Model No. VLCDS23719-6W/7W
17” Color TFT LCD Display
Service Manual
ViewSonic VG712s/b-1
ViewSonic
381 Brea Canyon Road, Walnut, California 91789 USA - (800) 888-8583
(VG712s/b_SM_835_1b Rev. 1b Oct. 2004)
Copyright
Copyright
¤
2004 by ViewSonic Corporation. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or
computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,
manual or otherwise, without the prior written permission of ViewSonic Corporation.
Disclaimer
ViewSonic makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranty of merchantability or fitness for any particular
purpose. Further, ViewSonic reserves the right to revise this publication and to make changes from time
to time in the contents hereof without obligation of ViewSonic to notify any person of such revision or
changes.
Trademarks
ViewSonic is a registered trademark of ViewSonic Corporation.
All other trademarks used within this document are the property of their respective owners.
Optiquest is a registered trademark of ViewSonic Corporation.
Revision History
Re
i
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
DCN Number ECR Number
Documents Number
Description of Changes EditorRevision SM Editing Date
1a
06/18/04
4475
Initial Release
A. Lu
1b
10/18/04
4774
Change Panel From AUO M170EN05 V.8 48.62701.003 12ms/20ms
A. Lu
4626
To AUO M170EG01 V.0 48.62701.004 12ms
TABLE OF CONTENTS
2. Specification
3. Front Panel Function Control Description
4. Circuit Description

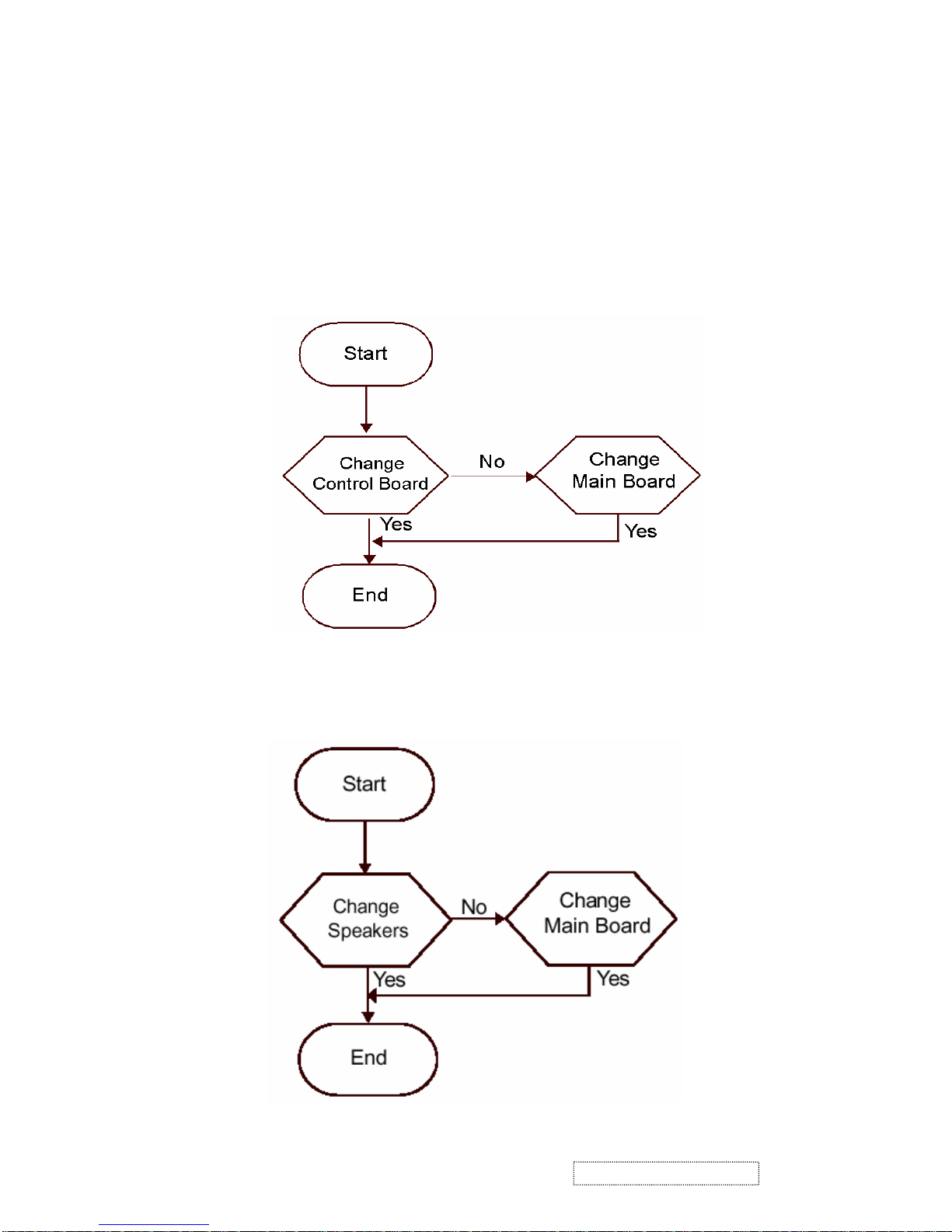

6. Trouble Shooting Flow Chart
9. Block Diagram
10. Schematic Diagrams
7. Recommended Spare Parts List
1. Precautions and Safety Notices
5. Adjusting Procedure
8. Exploded Diagram And Spare Parts List
11. PCB Layout Diagrams
1
5
14
21
24
49
53
61
65
66
72
ii
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
1. Appropriate Operation
(1) Turn off the product before cleaning.
(2) Use only a dry soft cloth when cleaning the LCD panel surface.
(3) Use a soft cloth soaked with mild detergent to clean the display housing.
(4) Use only high quality and safety approved AC/DC power adapter.
(5) Disconnect the power plug from AC outlet if the product is not used for a long period of time.
(6) If smoke, abnormal noise, or strange odor is present, immediately switch the LCD display off.
(7) Do not touch the LCD panel surface with sharp or hard objects.
(8) Do not place heavy objects on the LCD display, video cable, or power cord.
(9) Do not use abrasive cleaners, waxes or solvents for your cleaning.
(10) Do not operate the product under the following conditions:
- Extremely hot, cold or humid environment.
- Areas susceptible to excessive dusts and dirt.
- Near any appliance generating a strong magnetic field.
- Place in direct sunlight.
2. Caution
No modification of any circuit should be attempted. Service work should only be performed after you are thoroughly
familiar with all of the following safety checks and servicing guidelines.
3. Safety Check
Care should be taken while servicing this LCD display. Because of the high voltage used in the inverter circuit, the voltage
is exposed in such areas as the associated transformer circuits.
4. Power Supply Requirements
The external power converter for this display utilizes AC and DC cords, AC cord is detachable, but DC cord is permanently
attached. Any attempt to replace another adapter could result in serious problems on the display.
1. Precautions and Safety Notices
1
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
5. LCD Module Handling Precautions
5.1 Handling Precautions
(1) Since front polarizer is easily damaged, pay attention not to scratch it.
(2) Be sure to turn off power supply when inserting or disconnecting from input connector.
(3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
(4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
(5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
(6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when
handling.
(7) Do not open nor modify the Module Assembly.
(8) Do not press the reflector sheet at the back of the module to any directions.
(9) In case if a Module has to be put back into the packing container slot after once it was taken out from the
container, do not press the center of the CCFL Reflector edge. Instead, press at the far ends of the CFL
Reflector edge softly. Otherwise the TFT Module may be damaged.
(10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface
Connector of the TFT Module.
(11) After installation of the TFT Module into an enclosure (LCD monitor housing, for example), do not twist
nor bend the TFT Module even momentary. At designing the enclosure, it should be taken into
consideration that no bending/twisting forces are applied to the TFT Module from outside. Otherwise the
TFT Module may be damaged.
(12) Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please follow local ordinances
or regulations for disposal.
(13) Small amount of materials having no flammability grade is used in the LCD module. The LCD module
should be supplied by power complied with requirements of Limited Power Source (IEC60950 or UL1950),
or be applied exemption.
(14) The LCD module is designed so that the CFL in it is supplied by Limited Current Circuit (IEC60950 or
UL1950). Do not connect the CFL in Hazardous Voltage Circuit.
2
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
5.2 Handling and Placing Methods
Correct Methods:
Incorrect Methods:
Only touch the metal frame of the LCD panel or the front
cover of the monitor. Do not touch the surface of the
polarizer.
Surface of the LCD panel is pressed by fingers and that
will probably cause “Mura.”
Take out the monitor with cushions
Take out the monitor by grasping the LCD panel. That
will probably cause “Mura.”
3
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Place the monitor on a clean and soft foam pad. Place the monitor on foreign objects. That will probably
scratch the surface of the panel or cause “Mura.”
The panel is placed facedown on the lap. That will
probably cause “Mura.”
4
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
1. General Requirements
Test Resolution & Frequency 1280x1024 @ 60Hz
Test Image Size Full Size
Contrast and Brightness Controls
Factory Default:
Contrast = 70%, Brightness = 100%
2. Signal Interface
Vide o Inte r face
Analog Input Connector DB-15 (Analog)
Digital Input Connector DVI-I (Digital)
Default Input Connector Defaults to the first detected input
Video Cable Connector DB-15 Pin out Compliant DDC 2B
Video Signals 1. Video RGB (Analog)
Separate
2. TMDS (Digital)
Video Impedance 75 Ohms (Analog), 100 Ohms (Digital)
Exclusions Not compatible with interlaced video
3. Power
Power Supply
Power Supply (Adapter) Part Number: LSE 0107A1240
Input Voltage Range 90 to 264 VAC
Over Current Protection 12.7V ~ 18V full load
Power Dissipation 40 Watts (typ.)
4. Electrical Requirements
Horizontal / Vertical Frequency
Horizontal Frequency 30 – 82 KHz
Vertical Refresh Rate 50 – 85* Hz.
1. Since 75Hz in panel spec, the image quality
might be worse than <= 75Hz
2. For resolution 1280 x 1024, the vertical refresh
rate up to 75 Hz; for the rest resolutions, the vertical
refresh rate up to 85Hz
Maximum Pixel Clock 135 MHz
Primary Preset 1280x1024@60Hz
Look up table timing
2. Specification
5
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
<<Analog>>
640 x 350 @ 70Hz, 31.5KHz
640 x 400 @ 60Hz, 31.5KHz
640 x 400 @ 70Hz, 31.5KHz
640 x 480 @ 50Hz, 24.7KHz
640 x 480 @ 60Hz, 31.5KHz
640 x 480 @ 67Hz, 35.0KHz
640 x 480 @ 72Hz, 37.9KHz
640 x 480 @ 75Hz, 37.5KHz
640 x 480 @ 85Hz, 43.27KHz
720 x 400 @ 70Hz, 31.5KHz
800 x 600 @ 56Hz, 35.1KHz
800 x 600 @ 60Hz, 37.9KHz
800 x 600 @ 75Hz, 46.9KHz
800 x 600 @ 72Hz, 48.1KHz
800 x 600 @ 85Hz, 53.7KHz
832 x 624 @ 75Hz, 49.7KHz
1024 x 768 @ 60Hz, 48.4KHz
1024 x 768 @ 70Hz, 56.5KHz
1024 x 768 @ 72Hz, 58.1KHz
1024 x 768 @ 75Hz, 60.0KHz
1024 x 768 @ 85Hz, 68.67KHz
1152 x 864 @ 75Hz, 67.5KHz
1152 x 870 @ 75Hz, 68.7KHz
1280 x 1024 @ 60Hz, 63.4KHz
1280 x 1024 @ 75Hz, 79.97KHz
1280x 720 @ 60Hz, 45KHz (HDTV)
<<Digital>>
640 x 350 @ 70Hz, 31.5KHz
640 x 400 @ 60Hz, 31.5KHz
640 x 400 @ 70Hz, 31.5KHz
640 x 480 @ 50Hz, 24.7KHz
640 x 480 @ 60Hz, 31.5KHz
640 x 480 @ 67Hz, 35.0KHz
640 x 480 @ 72Hz, 37.9KHz
640 x 480 @ 75Hz, 37.5KHz
640 x 480 @ 85Hz, 43.27KHz
720 x 400 @ 70Hz, 31.5KHz
800 x 600 @ 56Hz, 35.1KHz
800 x 600 @ 60Hz, 37.9KHz
800 x 600 @ 75Hz, 46.9KHz
800 x 600 @ 72Hz, 48.1KHz
800 x 600 @ 85Hz, 53.7KHz
832 x 624 @ 75Hz, 49.7KHz
1024 x 768 @ 60Hz, 48.4KHz
1024 x 768 @ 70Hz, 56.5KHz
1024 x 768 @ 72Hz, 58.1KHz
1024 x 768 @ 75Hz, 60.0KHz
1024 x 768 @ 85Hz, 68.67KHz
1152 x 864 @ 75Hz, 67.5KHz
1152 x 870 @ 75Hz, 68.7KHz
1280 x 1024 @ 60Hz, 63.4KHz
1280 x 1024 @ 75Hz, 79.97KHz
1280x 720 @ 60Hz, 45KHz (HDTV)
Changing Modes
Maximum Mode Change Blank Time for image
stability. Note:
1. 3 seconds (Max), excluding “Auto Adjust”
time
2. Under DOS mode (640 x 350, 720 x 400 &
640 x 400), it should recall factory setting
when execute “Auto Adjust”
3. The monitor needs to do “Auto Adjust” the
first time a new mode is detected
4. While running Change Mode, Auto Adjust or
Memory Recall, the image shall blank.
5. Audio Interface
Speaker Specification
Line input connection 3.5 mm stereo jack
Line input signal 1.0 Vrms
Line input impedance 10 k Ohm
Maximum power output (Electric) 3 W @ < 8% DISTORTION
Signal to Noise Ratio 72 dB
Frequency response 400 Hz – 20 KHz
Distortion < 8 % THD (@1KHz)
6
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
6. LCD Panel
Panel Characteristics
Source panel AU panel (M170EG01 V0)
Size 17”diagonal screen size
Type MVA type with LVDS interface
Pixel 1280*1024 addressable pixels
Pixel Pitch 0.264mm*0.264mm pixel pitch
Brightness 300 cd/m2 (Typ after 30 minute warm up)
Contrast Ratio 500:1 (Typ), 300:1 (Min)
Viewin g Angle(Horizontal) 140 deg @ CR>10
Viewin g Angle (Vertical) 130 deg @ CR>10
Response Time 12 ms (Tr=9ms, TF =3 ms) (Typ.)
Backlight lamps 4 CCFL backlight lamps
Backlight Life 50,000 Hours (Typ.) / 45,000 hours (Min.)
7. Mechanical
Dimensions
Width 378 mm (14.9 inch)
Height 405 mm (16.0 inch)
Depth 177 mm ( 7.0 inch)
Monitor Weight 5.3 kg / 11.66 lbs
Ergonomics
Tilt Up
20 º +/- 20%
Tilt Down -5 º +/- 20%
8. Environmental
Environmental Conditions
Operating Temperature 0°C to +40°C
Storage Temperature -20°C to +60°C
Operating Relative Humidity 20% to 90% RH Non-Condensing
Storage Relative Humidity 5% to 90% RH Non-Condensing
Operating Altitude 0 to +3,000 meters
Storage Altitude 0 to +12,000 meters
7
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Appendix E: Analog EDID
VG712s/b Analog EDID
Time: 13:10:50
Date: Wed Jan 14, 2004
______________________________________________________________________
______________________________________________________________________
VIEWSONIC CORPORATION
EDID Version # 1, Revision # 3
DDCTest For: ViewSonic VG712s/b
______________________________________________________________________
______________________________________________________________________
128 BYTES OF EDID CODE:
0 1 2 3 4 5 6 7 8 9
________________________________________
0 | 00 FF FF FF FF FF FF 00 5A 63
10 | 19 7B 01 01 01 01 01 0E 01 03
20 | 08 22 1B 78 2E C5 C6 A3 57 4A
30 | 9C 23 12 4F 54 BF EF 80 81 80
40 | 61 59 45 59 31 59 01 01 01 01
50 | 01 01 01 01 30 2A 00 98 51 00
60 | 2A 40 30 70 13 00 52 0F 11 00
70 | 30 00 1E 00 00 00 FF 00 50 33 55
80 | 30 34 30 31 30 30 30 30 31 0A
90 | 00 00 00 FD 00 32 55 1E 52 0E
100 | 00 0A 20 20 20 20 20 20 00 00
110 | 00 FC 00 56 47 37 31 32 73 0A
120 | 20 20 20 20 20 20 00 94
______________________________________________________________________
(08-09) ID Manufacturer Name = VSC
(11-10) Product ID Code = 7B19
(12-15) Last 5 Digits of Serial Number = Not Used
(16) Week of Manufacture = 01
(17) Year of Manufacture = 2004
(10-17) Complete Serial Number = See Descriptor Block
(18) EDID Version Number = 1
(19) EDID Revision Number = 3
(20) VIDEO INPUT DEFINITION:
Analog Signal
0.700, 0.300 (1.000 Vp-p)
Separate Syncs
9. EDID
8
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
(21) Maximum Horizontal Image Size = 340 mm
(22) Maximum Vertical Image Size = 270 mm
(23) Display Gamma = 2.20
(24) Power Management and Supported Feature(s):
Active Off/Very Low Power, Standard Default Color Space,
Preferred Timing Mode
Display Type = R/G/B Color
(25-34) CHROMA INFO:
Red X - 0.640 Green X - 0.290 Blue X - 0.140 White X - 0.310
Red Y - 0.340 Green Y - 0.610 Blue Y - 0.070 White Y - 0.330
(35) ESTABLISHED TIMING I:
720 X 400 @ 70Hz (IBM,VGA)
640 X 480 @ 60Hz (IBM,VGA)
640 X 480 @ 67Hz (Apple,Mac II)
640 X 480 @ 72Hz (VESA)
640 X 480 @ 75Hz (VESA)
800 X 600 @ 56Hz (VESA)
800 X 600 @ 60Hz (VESA)
(36) ESTABLISHED TIMING II:
800 X 600 @ 72Hz (VESA)
800 X 600 @ 75Hz (VESA)
832 X 624 @ 75Hz (Apple,Mac II)
1024 X 768 @ 60Hz (VESA)
1024 X 768 @ 70Hz (VESA)
1024 X 768 @ 75Hz (VESA)
1280 X 1024 @ 75Hz (VESA)
(37) Manufacturer's Reserved Timing:
1152 X 870 @ 75Hz (Apple,Mac II)
(38-53) Standard Timing Identification:
1280 X 1024 @60Hz
1024 X 768 @85Hz
800 X 600 @85Hz
640 X 480 @85Hz
Not Used
Not Used
Not Used
Not Used
9
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
______________________________________________________________________
(54-71) Detailed Timing / Descriptor Block 1:
1280x1024 Pixel Clock: 108.00 MHz
______________________________________________________________________
Horizontal Image Size: 338 mm Vertical Image Size: 271 mm
Refreshed Mode: Non-Interlaced Normal Display - No Stereo
Horizontal:
Active Time: 1280 pixels Blanking Time: 408 pixels
Sync Offset: 48 pixels Sync Pulse Width: 112 pixels
Border: 0 pixels Frequency: 63.98 KHz
Vertical:
Active Time: 1024 lines Blanking Time: 42 lines
Sync Offset: 1 lines Sync Pulse Width: 3 lines
Border: 0 lines Frequency: 60.02 Hz
Digital Separate, Horizontal Polarity (+) Vertical Polarity (+)
______________________________________________________________________
(72-89) Detailed Timing / Descriptor Block 2:
Monitor Serial Number:
P3U040100001
______________________________________________________________________
(90-107) Detailed Timing / Descriptor Block 3:
Monitor Range Limits:
Min Vertical Freq - 50 Hz
Max Vertical Freq - 85 Hz
Min Horiz. Freq - 30 KHz
Max Horiz. Freq - 82 KHz
Pixel Clock - 140 MHz
Secondary GTF - Not Supported
______________________________________________________________________
(108-125) Detailed Timing / Descriptor Block 4:
Monitor Name:
VG712s/b
(126) No Extension EDID Block(s)
(127) CheckSum OK
10
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Appendix F: Digital EDID
VG712s/b Digital EDID
Time: 08:14:47
Date: Fri Jan 30, 2004
______________________________________________________________________
______________________________________________________________________
VIEWSONIC CORPORATION
EDID Version # 1, Revision # 3
DDCTest For: ViewSonic VG712s/b
______________________________________________________________________
______________________________________________________________________
128 BYTES OF EDID CODE:
0 1 2 3 4 5 6 7 8 9
________________________________________
0 |
00 FF FF FF FF FF FF 00 5A 63
10 |
19 7B 01 01 01 01 01 0E 01 03
20 | 80 22 1B 78 2E C5 C6 A3 57 4A
30 |
9C 23 12 4F 54 BF EF 80 81 80
40 |
61 59 45 59 31 59 31 0A 01 01
50 |
01 01 01 01 30 2A 00 98 51 00
60 |
2A 40 30 70 13 00 52 0F 11 00
70 | 0
0 1E 00 00 00 FF 00 50 33 55
80 |
30 34 30 31 30 30 30 30 31 0A
90 |
00 00 00 FD 00 32 55 1E 52 0E
100 |
00 0A 20 20 20 20 20 20 00 00
110 |
00 FC 00 56 47 37 31 32 73 0A
120 |
20 20 20 20 20 20 00 E3
______________________________________________________________________
(08-09) ID Manufacturer Name = VSC
(11-10) Product ID Code = 7B19
(12-15) Last 5 Digits of Serial Number = Not Used
(16) Week of Manufacture = 01
(17) Year of Manufacture = 2004
(10-17) Complete Serial Number = See Descriptor Block
(18) EDID Version Number = 1
(19) EDID Revision Number = 3
(20) VIDEO INPUT DEFINITION:
Digital Signal
Non - VESA DFP 1.x Compatible
11
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
(21) Maximum Horizontal Image Size = 340 mm
(22) Maximum Vertical Image Size = 270 mm
(23) Display Gamma = 2.20
(24) Power Management and Supported Feature(s):
Active Off/Very Low Power, Standard Default Color Space,
Preferred Timing Mode
Display Type = R/G/B Color
(25-34) CHROMA INFO:
Red X - 0.640 Green X - 0.290 Blue X - 0.140 White X - 0.310
Red Y - 0.340 Green Y - 0.610 Blue Y - 0.070 White Y - 0.330
(35) ESTABLISHED TIMING I:
720 X 400 @ 70Hz (IBM,VGA)
640 X 480 @ 60Hz (IBM,VGA)
640 X 480 @ 67Hz (Apple,Mac II)
640 X 480 @ 72Hz (VESA)
640 X 480 @ 75Hz (VESA)
800 X 600 @ 56Hz (VESA)
800 X 600 @ 60Hz (VESA)
(36) ESTABLISHED TIMING II:
800 X 600 @ 72Hz (VESA)
800 X 600 @ 75Hz (VESA)
832 X 624 @ 75Hz (Apple,Mac II)
1024 X 768 @ 60Hz (VESA)
1024 X 768 @ 70Hz (VESA)
1024 X 768 @ 75Hz (VESA)
1280 X 1024 @ 75Hz (VESA)
(37) Manufacturer's Reserved Timing:
1152 X 870 @ 75Hz (Apple,Mac II)
(38-53) Standard Timing Identification:
1280 X 1024 @60Hz
1024 X 768 @85Hz
800 X 600 @85Hz
640 X 480 @85Hz
640 X 400 @70Hz
Not Used
Not Used
Not Used
12
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
______________________________________________________________________
(54-71) Detailed Timing / Descriptor Block 1:
1280x1024 Pixel Clock: 108.00 MHz
______________________________________________________________________
Horizontal Image Size: 338 mm Vertical Image Size: 271 mm
Refreshed Mode: Non-Interlaced Normal Display - No Stereo
Horizontal:
Active Time: 1280 pixels Blanking Time: 408 pixels
Sync Offset: 48 pixels Sync Pulse Width: 112 pixels
Border: 0 pixels Frequency: 63.98 KHz
Vertical:
Active Time: 1024 lines Blanking Time: 42 lines
Sync Offset: 1 lines Sync Pulse Width: 3 lines
Border: 0 lines Frequency: 60.02 Hz
Digital Separate, Horizontal Polarity (+) Vertical Polarity (+)
______________________________________________________________________
(72-89) Detailed Timing / Descriptor Block 2:
Monitor Serial Number:
P3U040100001
(90-107) Detailed Timing / Descriptor Block 3:
Monitor Range Limits:
Min Vertical Freq - 50 Hz
Max Vertical Freq - 85 Hz
Min Horiz. Freq - 30 KHz
Max Horiz. Freq - 82 KHz
Pixel Clock - 140 MHz
Secondary GTF - Not Supported
______________________________________________________________________
(108-125) Detailed Timing / Descriptor Block 4:
Monitor Name:
VG712/b
(126) No Extension EDID Block(s)
(127) CheckSum OK
13
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Adjusting the Screen Image
Use the buttons on the front control panel to display and adjust the OnView
®
controls which display on the screen. The OnView controls are explained at the
top of the next page.
Scrolls through menu options and
adjusts the displayed control.
Also a shortcut to display the
Contrast adjustment control
screen.
Power
On/Off
Displays the control
screen for the highlighted
control.
Also toggles between two
controls on some
screens.
Also a shortcut to toggle
between analog and
digital connections.
Power light
Green = ON
Orange = Power
Saving
Main Menu with OnView controls
Front Control Panel shown
below
Audio Mute button
turns the sound off.
Displays the Main Menu
or exits the control screen
and saves adjustments
Decreases or
increases volume
Speaker Speaker
MAIN
ř EXIT ř SELECT
MENU
AUTO IMAGE ADJUST
CONTRAST/BRIGHTNESS
INPUT SELECT
AUDIO MENU
COLOR ADJUST
INFORMATION
MANUAL IMAGE ADJUST
SETUP MENU
MEMORY RECALL
1
2
3. Front Panel Function Control Description
14
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Do the following to adjust the screen image:
1
To display the Main Menu, press button [1].
NOTE:
All OnView menus and adjustment screens disappear automatically
after about 15 seconds. This is adjustable through the OSD timeout setting in the
setup menu.
2
To select a control you want to adjust, press ▲ or ▼ to scroll up or down the
Main Menu.
3
After the control is selected, press button [2]. A control screen like the one
shown below appears.
4
To adjust the control, press the up ▲ or down ▼ buttons.
5
To save the adjustments and exit the menu, press button [1]
twice
.
The following tips may help you optimize your display:
• Adjust your computer's graphic card so that it outputs a video signal 1280 x
1024 @ 60Hz to the LCD display. (Look for instructions on "changing the
refresh rate" in your graphic card's user guide.)
• If necessary, make small adjustments using H POSITION and V POSITION
until the screen image is completely visible
. (The black border around the
edge of the screen should barely touch the illuminated "active area" of the
LCD display.)
The command line at the
bottom of the control screen
tells what to do next from this
screen. You can toggle
between control screens,
adjust the selected option, or
exit the screen.
15
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Main Menu Controls
Adjust the menu items shown below by using the up ▲ and down ▼ buttons.
Control Explanation
Auto Image Adjust
sizes and centers the screen image
automatically.
Contrast
adjusts the difference between the image background
(black level) and the foreground (white level).
Brightness
adjusts background black level of the screen image.
Input Select
toggles between inputs if you have more than one
computer.
Color Adjust
provides several color adjustment modes: preset
color temperatures and
RGB
which allows you to adjust red (R),
green (G), and blue (B) separately. The factory setting for this
product is 6500K (6500 Kelvin).
9300K
— Adds blue to the screen image for cooler white (used
in most office settings with fluorescent lighting).
6500K
— Adds red to the screen image for warmer white and
richer red.
5400K
— Adds green to the screen image for a darker color.
5000K
— Adds blue and green to the screen image for a darker
sRGB
— sRGB is quickly becoming the industry standard for color
management, with support being included in many of the latest
applications. Enabling this setting allows the LCD display to
more accurately display colors the way they were originally
intended. Enabling the sRGB setting will cause the Contrast and
Brightness adjustments to be disabled.
Color Adjust
sRGB
9300K
Ԧ6500K
5400K
5000K
User Color
1:EXIT 2:SELECT
Audio Adjust
Volume
increases the volume, decreases the volume, and
mutes the audio.
Mute
temporarily silences audio output.
16
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
User Color
— Individual adjustments for red (R), green (G),
and blue (B)
.
1
To select color (R, G or B) press button [2].
2
To adjust selected color, press ▲ or ▼.
Important
: If you select RECALL from the Main Menu when
the product is set to a Preset Timing Mode, colors return to the
6500K factory preset.
Control Explanation
Information
displays the timing mode (video signal input)
coming from the graphics card in your computer, the LCD
model number, the serial number, and the ViewSonic website
URL. See your graphic card’s user guide for instructions on
changing the resolution and refresh rate (vertical frequency).
NOTE:
VESA 1280 x 1024 @ 60Hz (recommended) means
that the resolution is 1280 x 1024 and the refresh rate is 60
Hertz.
Manual Image Adjust Sub-menu
H. Size (Horizontal Size)
adjusts the width of the screen image.
H./V. Position (Horizontal/Vertical Position)
moves the screen
image left or right and up or down.
Information:
H. Frequency: XX kHz
V. Frequency: XX Hz
Resolution XXXXXXXXX
Pixel Clock: XXX MHz
Serial Number: XXXXXXXXXXX
Model Number: XXXXXXXXXXX
www.ViewSonic.com 1: Exit
17
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Fine Tune
sharpens the focus by aligning the text and/or graphic
characters.
NOTE:
Try Auto Image Adjust first.
Sharpness
adjusts the clarity and focus of the screen image.
Setup menu displays the menu shown below:
Language
allows you to choose the language used in the menus
and control screens.
Control Explanation
Resolution Notice
allows you to enable or disable this notice.
If you enable the Resolution Notice shown above and your
computer is set at a resolution other than 1280 x 1024, the
following screen appears.
Resolution Notice
ԦOn ԦOff
1: Exit
Resolution Notice
Press "1" to Clear Message.
Press "2" to Disable Message.
For best picture quality, change the resolution to 1280 x 1024
Setup Menu
Language Select
Resolution Notice
OSD Position
OSD Time Out
OSD Background On/Off
1: Exit 2: Select
18
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
OSD Position
allows you to move the on-screen display menus
and control screens.
OSD Timeout
sets the length of time the on-screen display
screen is displayed. For example, with a “30 second” setting, if a
control is not pushed within 30 seconds, the display screen
disappears.
Memory Recall
returns the adjustments back to factory settings
if the display is operating in a factory Preset Timing Mode listed
in the Specifications of this manual.
Control Explanation
OSD Background
On/Off
allows you to turn the On-Screen Display
background On or Off.
19
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Hot Keys for Function Controls
Buttons: Functions:
[Up] + [Down] arrows Recall Contrast or Brightness while in the Contrast
or Brightness adjustment, or recall both of Contrast
and Brightness when the OSD is not on.
[Volume-] + [Volume+] Recall volume to 50% while in volume adjustment,
or when OSD is not on.
[1] + [2] Toggle 720x400 and 640x400 mode when input
720x400 or 640x400 mode.
[1] + [Up] + [Down] White Balance. White Balance should set the screen
on the pure black and white pattern with
640*480@60Hz resolution.
[1] + [Down] (hold for 10 seconds) Power Lock (Unlock). User won’t be able to turn off
the monitor.
[1] + [Up] (hold for 10 seconds) OSD Lock (Unlock). It will lock all functions,
including “Volume” and “Mute”.
[Up] + [Down] + [Power On] with signal
(Hold for 3 seconds. Release “Power” button first
and then “Up” & ”Down” buttons.)
All Mode Reset. It will erase all end users’ settings
and restore the factory defaults.
[Up] + [Down] + [Power On]
Without signal
(Hold for 3 seconds. Release “Power” button first
and then “Up” & ”Down” buttons.)
Burn in Mode. After entering Burn in Mode, press
[1] button, you can find the information about this
monitor.
Remark: All the shortcut functions are only available while OSD is off.
20
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
1. Power supply (DC/DC Converter)
The AP1501 is monolithic IC designed for M/B DC/DC converter, and owns the ability of driving a 3A load without
any additional transistor component.
The AP1501 operates at a switching frequency of 150KHz and thus allows smaller-sized filter components than what
would be needed with lower frequency switch regulator.
4. Circuit Description
21
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
2. Flash Memory
The Pm39LV010R is a 1 Megabit, 3.3 Volt-only Flash Memory organized as 131,072 bytes of 8 bits each. This device
is designed to use a 3.0 Volt to 3.6 Volt power supply to perform in-system programming.
The 1 Megabit memory array is divided into thirty-two uniform blocks of 4 Kbytes each for data and/or code storage.
The block architecture allows users to flexibly make chip erase or block erase operation. The block erase feature
allows a particular block to be erased and reprogrammed without affecting the data in other blocks. After the device
performs chip erase or block erase operation, it can be reprogrammed on a byte-by-byte basis.
3. GM5120
The gm5110/20 is a graphic processing IC for Liquid Crystal Display (LCD) monitors at XGA/SXGA resolution. It
provides all key IC functions required for the highest quality LCD monitors. On-chip functions include a high-speed
triple-ADC and PLL, Ultra-Reliable DVI
TM
receiver, a high quality zoom and shrink scaling engine, an on-screen
display (OSD) controller, digital color controls and an on-chip microcontroller (OCM). With this level of integration,
the gm5110/20 devices simplify and reduce the cost of LCD monitors while maintaining a high-degree of flexibility and
quality.
22
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
4. LVDS (THC63LVDM83A)
The THC63LVDM83A transmitter converts 28 bits of CMOS/TTL data into LVDS (Low Voltage Differential Signaling)
data stream. A phase-locked transmit clock is transmitted in parallel with the data streams over a fifth LVDS link. The
HC63LVDM83A can be programmed for rising edge or falling edge clocks through a dedicated pin. The
THC63LVDF84A receiver converts the LVDS data streams back into 28 bits of CMOS/TTL data with falling edge
clock. At a transmit clock frequency of 85MHz, 24 bits of RGB data and 4 bits of LCD timing and control data
(HSYNC, VSYNC, CNTL1, CNTL2) are transmitted at a rate of 595 Mbps per LVDS data channel.
gm5110/5120 System Design Example
23
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
1. Function Test
1.1 Product
- 17” LCD Monitor
1.2 Test Equipment
- Color Video Signal & Pattern (or PC with SXGA resolution and a sound card)
1.3 Test Condition
Before function test and alignment, each LCD Monitor should be run-in and warmed up for at least 30 minutes
with the following conditions:
(a) In room temperature,
(b) With full-white screen, RGB, and Black
(c) With cycled display modes,
640*480 (H=43.27KHz, V=85Hz)
800*600 (H=53.7KHz, V=85Hz)
1024*768 (H=68.67KHz, V=85Hz)
1280*1024 (H=79.97KHz, V=75Hz)
1.4 Test Display Modes & Pattern
1.4.1 Compatible Modes
Analog Digital
1. 640 x 350 @ 70Hz, 31.5KHz
2. 640 x 400 @ 60Hz, 31.5KHz
3. 640 x 400 @ 70Hz, 31.5KHz
4. 640 x 480 @ 50Hz, 24.7KHz
5. 640 x 480 @ 60Hz, 31.5KHz
6. 640 x 480 @ 67Hz, 35.0KHz
7. 640 x 480 @ 72Hz, 37.9KHz
8. 640 x 480 @ 75Hz, 37.5KHz
9. 640 x 480 @ 85Hz, 43.27KHz
10. 720 x 400 @ 70Hz, 31.5KHz
11. 800 x 600 @ 56Hz, 35.1KHz
12. 800 x 600 @ 60Hz, 37.9KHz
13. 800 x 600 @ 75Hz, 46.9KHz
14. 800 x 600 @ 72Hz, 48.1KHz
15. 800 x 600 @ 85Hz, 53.7KHz
640 x 350 @ 70Hz, 31.5KHz
640 x 400 @ 60Hz, 31.5KHz
640 x 400 @ 70Hz, 31.5KHz
640 x 480 @ 50Hz, 24.7KHz
640 x 480 @ 60Hz, 31.5KHz
640 x 480 @ 67Hz, 35.0KHz
640 x 480 @ 72Hz, 37.9KHz
640 x 480 @ 75Hz, 37.5KHz
640 x 480 @ 85Hz, 43.27KHz
720 x 400 @ 70Hz, 31.5KHz
800 x 600 @ 56Hz, 35.1KHz
800 x 600 @ 60Hz, 37.9KHz
800 x 600 @ 75Hz, 46.9KHz
800 x 600 @ 72Hz, 48.1KHz
800 x 600 @ 85Hz, 53.7KHz
5. Adjusting Procedure
24
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
16. 832 x 624 @ 75Hz, 49.7KHz
17. 1024 x 768 @ 60Hz, 48.4KHz
18. 1024 x 768 @ 70Hz, 56.5KHz
19. 1024 x 768 @ 72Hz, 58.1KHz
20. 1024 x 768 @ 75Hz, 60.0KHz
21. 1024 x 768 @ 85Hz, 68.67KHz
22. 1152 x 864 @ 75Hz, 67.5KHz
23. 1152 x 870 @ 75Hz, 68.7KHz
24. 1280 x 1024 @ 60Hz, 63.4KHz
25. 1280 x 1024 @ 75Hz, 79.97KHz
26. 1280x 720 @ 60Hz, 45KHz (HDTV)
832 x 624 @ 75Hz, 49.7KHz
1024 x 768 @ 60Hz, 48.4KHz
1024 x 768 @ 70Hz, 56.5KHz
1024 x 768 @ 72Hz, 58.1KHz
1024 x 768 @ 75Hz, 60.0KHz
1024 x 768 @ 85Hz, 68.67KHz
1152 x 864 @ 75Hz, 67.5KHz
1152 x 870 @ 75Hz, 68.7KHz
1280 x 1024 @ 60Hz, 63.4KHz
1280 x 1024 @ 75Hz, 79.97KHz
1280x 720 @ 60Hz, 45KHz (HDTV)
1.4.2 Function Test Display Pattern
Item
Test Content Pattern Specification Remark
1 Frequency & Tracking Fine Line Moire Eliminate visual wavy noise. Figure 1
2 Contrast/Brightness 16 Gray Scale 16 gray levels should be
distinguishable.
Figure 2
3 Boundary Horizontal & Vertical
Thickness
Horizontal and Vertical position of
video should be adjustable to be
within the screen frame.
Figure 3
4 RGB Color Performance RGB Color Intensities Contrast of each R, G, B, color
should be normal.
Figure 4, 5, 6
5 Screen Uniformity & Flicker Full White Should be compliant with the spec. Figure 7
6 Dead Pixel/Line White Screen & Dark
Screen
The numbers of dead pixels should
be compliant with the spec.
Figure 7, 8
7 White Balance White & Black Pattern The screen must have the pure
white and black pattern, no other
color.
Figure 9
Fine Line Morie Pattern (Figure1) Gray Scale Pattern (Figure2)
25
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Horizontal & Vertical Thickness Pattern (Figure 3) R. Color Pattern (Figure 4)
G. Color Pattern (Figure5) B. Color Pattern (Figure 6)
Full White Patter (Figure 7) Dark Screen Pattern (Figure 8)
26
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Black-White Pattern (Figure 9)
1.5 Function Test and Alignment Procedure
1.5.1 All Modes Reset
You should do “All Mode Reset” (Refer to Chapter III-3. Hot Keys for Function Controls) first.
This action will allow you to erase all end-user’s settings and restore the factory defaults.
1.5.2 Auto Image Adjust
Please select and enter “Auto Image Adjust” function on Main Menu to see if it is workable. The “Auto Image
Adjust” function is aimed to offer a better screen quality by built-in ASIC. For optimum screen quality,
the user has to adjust each function manually.
1.5.3 Firmware
Test Pattern: Burn In Mode (Refer to Chapter III-3. Hot Keys for Function Controls)
- Make sure the F/W is the latest version.
1.5.4 DDC
Test Pattern: EDID program
- Make sure it can pass test program.
27
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
1.5.5 Fine Tune and Sharpness
Test Signal: 1280*1024@60Hz
Test Pattern: Line Moire Pattern
- Check and see if the image has noise and focus performs well. Eliminate visual line bar.
- If not, readjust by the following steps:
(a) Select and enter “Fine Tune” function on “Manual Image Adjust” to adjust the image to eliminate
visual wavy noise.
(b) Then, select and enter “Sharpness” function to adjust the clarity and focus of the screen image.
1.5.6 Boundary
Test Signal: 1280*1024@60Hz
Test Pattern: Horizontal & Vertical Line Thickness Pattern
- Check and see if the image boundary is within the screen frame.
- If not, readjust by the following steps:
(a) Select and enter “Manual Image Adjust ” function on OSD Main Menu.
(b) Then, select and enter “Horizontal Size” or “Horizontal/Vertical Position” function to adjust the video
boundary to be full scanned and within screen frame.
1.5.7 White Balance
Test Signal: 640*480@60Hz
Test Pattern: White and Black Pattern
1.5.8 R, G, B, Colors Contrast
Test Signal: 1280*1024@60Hz
Test Pattern: R, G, B, Color Intensities Pattern and 16 Gray Scale Pattern
- Check and see if each color is normal and distinguishable.
- If not, please return the unit to repair area.
1.5.9 Screen Uniformity and Flicker
Test Signal: 1280*1024@60Hz
Test Pattern: Full White Pattern
- Check and see if it is in normal condition.
28
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
1.5.10 Dead Pixel and Line
Test Signal: 1280*1024@60Hz
Test Pattern: Dark and White Screen Pattern
- Check and see if there are dead pixels on LCD panel with shadow gauge and filter film.
- The total numbers and distance of dead pixels should be compliant with the spec.
1.5.11 Mura
Test Pattern: White, RGB, Black, & Grey
Test Tool: 8% ND Filter
- Check if the Mura can pass 8% ND Filter.
1.5.12 Audio
Test Signal: Voice signal (optional, depend on model)
Test Pattern: liberty
- Make sure there is audio output.
- Make sure that audio function (volume≦80%) is working without noise and resonance.
- Make sure that the sound of right and left speakers are in balance.
1.5.13 Check for Secondary Display Modes
Test Signal:
Analog: 640 x 350 @ 70Hz; 640 x 400 @ 60Hz; 640 x 400 @ 70Hz;
640 x 480 @ 50/60/67/72/75/85Hz; 720 x 400 @ 70Hz; 800 x 600 @ 56/60/72/75/85Hz; 832 x 624 @ 75Hz; 1024 x
768 @ 60Hz; 1024 x 768 @ 70/72/75/85Hz; 1152 x 864 @ 75Hz; 1152 x 870 @ 75Hz; 1280 x 1024 @ 75Hz; 1280x
720 @ 60Hz (HDTV).
Digital: 640 x 350 @ 70Hz; 640 x 400 @ 60/70/Hz; 640 x 480 @ 50/60/67/72/75/85Hz; 720 x 400 @ 70Hz; 800 x
600 @ 56/60/75/72/85Hz; 832 x 624 @ 75Hz; 1024 x 768 @ 60/70/72/75/85Hz; 1152 x 864 @ 75Hz; 1152 x 870 @
75Hz; 1280 x 1024 @ 75Hz; 1280x 720 @ 60Hz (HDTV).
- Normally when the primary mode 1280*1024@60Hz is well adjusted and compliant with the specification, the
secondary display modes will be great possible to be compliant with the spec. But we still have to check with the
general test pattern to make sure every secondary is compliant with the specification.
29
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
1.5.14 All Modes Reset
After final QC step, we have to erase all saved changes again and restore the factory defaults. You should
do "All Mode Reset” again.
1.5.15 Power Off Monitor
Turn off the monitor by pressing “Power” button.
2. Firmware Upgrade Procedure
When you receive the returned monitor, please check whether the firmware version is the latest.
If not, please do the following procedures to upgrade it to the latest version.

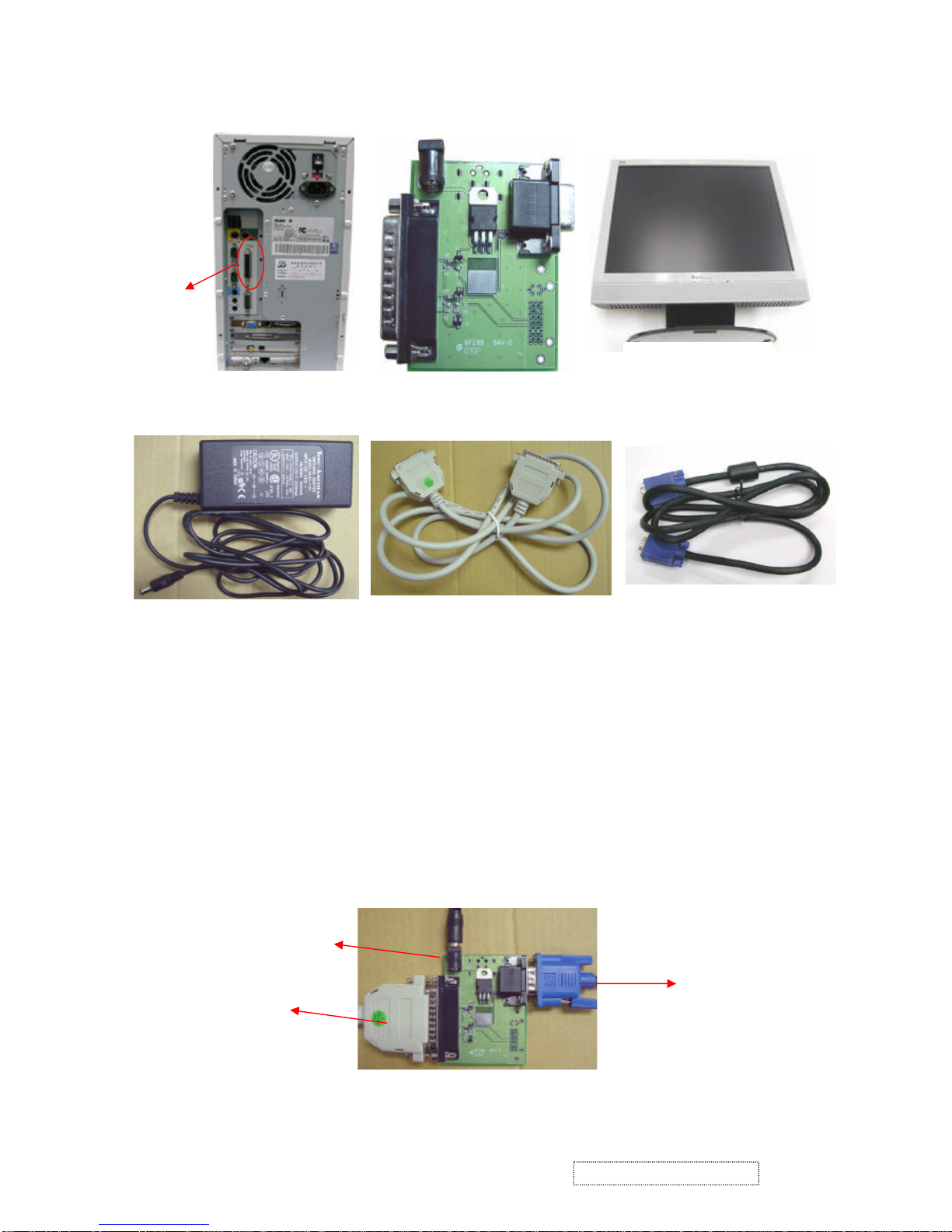

2.1 Equipment Needed
- VG712s/b Monitor
- Fixture for Firmware Upgrade
- Power Adapter (P/N: 47.58201.001) *1 for Fixture
- VGA Cable (P/N: 42.59901.003) *1(Pin 4, 11 should be connected to GND)
- PC (Personal Computer)
- LPT Cable (P/N: 42.59906.001) *1
- Firmware Upgrade Program
- One additional monitor for checking the program execution
30
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
2.2 Setup Procedure
2.2.1 Connect P2 of Fixture with printer port of PC by LPT Cable.
2.2.2 Connect P1 of Fixture with VG712 Monitor by VGA Cable.
2.2.3 Plug Power Adapter to Fixture.
2.2.4 Connect Power Cord to VG712 Monitor.
2.2.5 Connect PC to the additional monitor.
PC
VGA Cable
(P/N: 42.59901.003)
Fixture
Printer Port
Power Adapter for Fixture
(P/N: 47.58201.001)
LPT Cable
(P/N: 42.59906.001)
P1: to VGA Cable
P2: to LPT Cable
JP1: to Power Adapter
VG712S
31
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
2.2.6 Install GProbe Program by selecting and clicking Gprobe icon. Press “Yes” or “Next” buttons until the installation is
complete.
32
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
33
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
34
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
35
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
2.3 Firmware Upgrade Procedure
Step 1. Let VG712 enter Burn In Mode. (Refer to Chapter III-3. Hot Keys for Function Controls).
Step 2.
Save these three files<bdisp.txt>, <p204_205.bin> and <712AV_V2_65.bin> in a hard disk
(better in a root directory, e.g. C:\ or D:\ ).
Step 3. Open <bdisp.txt> file. Key in the path where you save the driver <p204_205.bin> and firmware <712AV_V2_65.bin >.
36
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Step 4. Execute Gprobe program.
Step 5. Click Connection Setup icon. Select Protocol: DDC 2Bi3, Port: LPT1 (0x378), Speed: 70000.
37
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Step 6. Before executing the firmware program, please test the connection between the monitor and fixtures. Key in “test” after
“Gprobe,” and then press “Enter.”
If the test result shows “passed,” it means the connection is well. If not (failed), it means the connection
has problems. Then you need to check the setup procedure or reboot the PC, or simply use another PC to do
the firmware upgrade.
38
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Step 7. Key in “batch C:\VG712\bdisp.txt” after “Gprobe:”, and then press “Enter” key to begin programming.
Step 8. The successful picture is as follows:
39
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Step 9. Unplug and replug power cord of VG712s/b and then enter “Burn In Mode” (Refer to Chapter III-3. Hot Keys for Function
Controls). Check if the version of BIOS is correct.
Step 10. At last, do “All Mode Reset.”
40
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Troubleshooting:
1. If the firmware upgrade fails at the last step, don’t unplug the power cord of the monitor. Just try the upgrade
procedure again.
(a) If there is error to execute the command at or before line10 in the “bdisp.txt” batch file (for instance, the
message “Error executing batch file at line 4” shows up in the Gprobe program (see the following picture)),
please try to upgrade the firmware again.
(b) If there is error to execute the command at or after line11 in the “bdisp.txt” batch file, please copy the error
line of the “bdisp.txt” batch file to “Gprobe:>” in the Gprobe program, and then press “Enter.” For example,
there is “Error executing batch file at line 16” (see the following picture). Then you have to copy line 16
“FLASHWRITE C:\VG712\712AV_V2_65.bin” in the “bdisp.txt” file to “Gprobe:>” in the Gprobe program,
and then press “Enter” (see the picture next page).
Test failed.
Test failed.
Test failed.
Test failed.
Test failed.
Test failed.
Error executing batch file at line 4.
Execution time: 5.72s
GProbe:>
41
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Test passed.
Test passed.
Test passed.
Erasing FLASH... Done.
Writing FLASH...
Writing FLASH... FAILED.
Error executing batch file at line 16.
Execution time: 9.61s
GProbe:>
Line 16
Line 16
42
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
2. If the firmware upgrade still fails, reboot the PC, or simply use another PC to upgrade.
3. If the above procedures don’t work, unplug and re-plug the power cord of VG712s/b. Then try to upgrade the
firmware again if VG712 can be powered on. If VG712s/b cannot be turned on, that means the flash memory of
the main board is out of work. You then have to replace the main board.
3. DDC Key In Procedure
Note:
1. Every time after replacing the main board, you have to do the DDC key in.
2. If you find the DDC does not conform to the monitor, you have to do the DDC key in.
3.1 Equipment Needed
- VG712s/b Series Monitor
- Fixture (V3) for DDC Key in (JP3 must be closed)
- RS232 Cable (P/N: 42.55907.001) *1
- VGA Cable (P/N: 42.59901.003) *2
- DVI-DVI Cable *1 (P/N: 42.56108.012)
Copy the error line of the
“bdisp.txt” batch file to
“Gprobe:>”
43
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
- PC (Personal Computer) with Win 98
- Power Adapter (P/N: 47.56001.501) *1 for Fixture
- DDC Key In Program
- One additional monitor for checking the program execution
PC V3 Fixture
VGA Cable (P/N: 42.59901.003)
RS-232 Cable
(P/N: 42.55907.001)
Power Adapter for Fixture
(P/N: 47.57702.001)
DVI-DVI Cable
(P/N: 42.56108.012)
Barcode Reader
COM1:
to
RS232
Cable
VG712S
JP3 must be closed
44
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
3.2 Setup Procedure
3.2.1 Connect P2 of Fixture with VGA port of VG712s/b by VGA Cable.
3.2.2 Connect P3 of Fixture with DVI port of VG712s/b by DVI-DVI Cable.
3.2.3 Connect P1 of Fixture with COM1 of PC by RS-232 Cable.
3.2.4 Plug Power Adapter to Fixture(JP1).
3.2.5 Connect Power Cord to VG712s/b Monitor.
3.2.6 Connect PC to the additional monitor.
JP1: to Power
Adapter
P1: to RS232 Cable
P2: to VGA Cable
P3: to DVI-DVI Cable
JP3 must be closed
45
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
3.3 DDC Key In Procedure
Step 1. Select and execute DDC Key In program.
Step 2. Select “W/w - writing mode.”
46
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Step 3. Key in the serial number or use the barcode reader to scan the barcode of the monitor, and then press “Enter” key.
Notice: The English of the serial number should be capital letters.
Step 4. The successful picture is as follows. “The checksum values will appear after DDC is upgraded successfully in both VGA
and DFP (DVI) modes.”
47
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Step 5. Let VG712 enter “Burn In Mode” (Refer to Chapter III-3. Hot Keys for Function Contro ls). Unplug and re-plug the
power cord of the monitor. The corrective serial number will show on the screen.
Step 6. Checking Method:
- Execute the DDC Key In program and select “R/r - Reading mode” in Step 2.
- Use the barcode reader to scan the barcode of the monitor, or manually key in the serial number. If the DDC is
correct, the “Send VGA” and “Send DFP” will show “Check Pass!” message.
48
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
This chapter provides technicians and people who have an electronic background a primary description about
maintaining the product. Moreover, you can get the appropriate operation to solve some complicated problems of
component repairing and professional problems.
1. Equipment Needed
- VG712s/b Monitor
- Philips Screw Driver #101 and #107
- Electronic Hex Nut M5 mm
- PC (Personal Computer) with SXGA resolution and sound card / Pattern Generator
2. Main Procedure
Note: Before troubleshooting, do “All Mode Reset” first to restore the monitor’s settings to the factory defaults.
6. Trouble Shooting Flow Chart
49
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
2.1 A. Power Circuit Troubleshooting
2.2 B. Performance Troubleshooting
50
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
51
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Notice:
1. Make sure VGA cable connected to PC directly, not via anything like “Data transfer” or “Distribution” ……After this
action if Ghost image disappears, go to “Yes”; else, go to “No.”
2. Check the compatibility on the computer. If it is compatibility problem, feedback the information to ViewSonic; else,
go to “No.”
2.3 C. Control Function Troubleshooting
2.4 D. Speakers Troubleshooting
52
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Rev: 1a
Item ViewSonic P/N Ref. P/N Location Universal number# Q'ty
1
Accessories:
ADAPTER IN100-240V 12V/3.33A;"LSE" A-AD-0114-0204 47.62701.001 ADAPTER 1
2 PCBA INVERTER;EMAX FOR 17" AUO M170EG01 V0 B-SB-0221-0700 44.58402.002 INVERTER 1
3 PCBA MAIN BD VG710 "GM5120 AU-EG01V0" B-MB-0201-2734 80.62701.005 MAIN BOARD GM5120 1
4 PCBA CTRL BD VG710 B-CB-0206-0165 80.62702.001 CONTROL BOARD 1
5 ASSY STAND CS-VS08 VG710b C-BS-0303-0571 70.62702.002 STAND 1
6 ASSY FRONT COVER CS-VS07A VG712b C-00000212 75.62701.004 FRONT COVER 1
7 ASSY REAR COVER CS-VS08 VG710b C-BC-0302-0539 75.62702.002 REAR COVER 1
8 BASE COVER ABS HB-VS08 VG710b M-CV-0830-2479 51.62706.002 BASE COVER 1
9 W.A. 10/6P UL1007 #24 100mm VG700(INV) M-WR-0828-0636 42.58301.001 INVERTER WIRE 1
10 W.A. 30P UL1007 #24 225mm VG710(COST)-CMO CB-00000213 42.62701.A01 PANEL WIRE 1
11 W.A. 12P UL1571 #28 260mm W/O CORE SHARE(MB/CTRL) M-WR-0828-6010 42.58303.001 1
12 CABLE VGA 15P 1800mm 2*25mm CORE A-VC-0101-0261 42.59901.003 VGA CABLE 1
13 CABLE AUDIO 1.8M LM/BK/LM VX2000 A-AU-0120-0032 42.59903.001 AUDIO CABLE 1
14 USER GUIDE+CD VG712b TCO'99 A-CD-VG712B 36.62701.008 USER GUIDE 1
15 LABEL CAUTION HIGH VOLTAGE 25.4*19mm M-LB-0813-1016 35.00010.002 CAUTION LABEL 1
16 LABEL CARTON 76*76mm M-LB-0813-0706 35.58203.001 UPC LABEL 1
17 LABEL BARCODE 40*14 ViewSonic M-LB-0813-0736 35.58304.001 BARCODE LABEL 1
18 LABEL 210*65mm BLANK FOR PALLET M-LB-0813-1017 35.59906.001 0.0625
19 LABEL BAR CODE 50*25mm VP191 M-LB-0813-0781 35.61203.001 BARCODE LABEL 1
20 LABEL SPEC 120*50mm VG712b TCO99 M-LB-0830-0733 35.62701.005 SPEC LABEL 1
21 TFT LCD 17" AUO M170EG01 V.0 M-LCD-0826-0256 48.62701.004 PANEL AUO M17EG01 V0 1
22 SPEAKER 3W FOR VG710 E-SK-0412-0080 49.62701.001 SPEAKER 1
23 SHIELDING BRKT-INV TINEPLATE 0.3t VG710s M-BK-0805-0020 61.61102.002 INVERTER BRACKET 1
24 LCD BRKT SECC 1.0t VG710s M-BK-0805-0021 61.62701.001 PANEL BRACKET 1
25 SHIELDING BRKT-MB SECC 1.0t VG710s M-BK-0805-0022 61.62702.001 MB BRACKET 1
26 BASE PLATE SPCC-Zn 2.5t VG710s M-MS-0808-8960 61.62703.001 BASE PLATE 1
27 HINGE SPCC-Zn 2.0t VG710s M-MS-0808-8961 61.62704.001 HINGE 1
28 HINGE CAP ABS HB-VS08 VG710b M-MS-0808-8954 51.62703.002 HINGE CAP 1
29 BIRD LOGO AL E015-006 VG710s M-MS-0808-8946 35.62702.001 BIRD LOGO 1
30 COSMETIC STRIP ADHESIVE CS-VS06 140*21*0.3t M-MS-0808-8947 35.62703.001 COMESTIC STRIP ADHESIVE 1
31 ViewSonic AL-LOGO E015-016-1 ViewSonic M-MS-0808-8948 35.62704.001 1
32 EMI Tape (80773) 20*40mm M-MS-0808-8882 41.55601.001 2
33 EMI TAPE 80773 25*75mm M-MS-0808-8949 41.58301.001 1
34 EMI GASKET 773GT W6*H6.5*L30 M-MS-0808-8950 41.61603.001 1
35 FILAMENT TAPE 3M NO.8915 25mm*55M M-MS-0808-8797 51.00014.002 TAPE FOR WIRE 0.0032
36 LCD PROTECT FILM 355*290*0.1t mm MYLAR VG700/VG750 M-MS-0808-8952 51.58314.001 PROTECTION FILM FOR PANEL 1
37 NAMEPLATE ELLIPSE CS-VS08 ViewSonic M-MS-0808-8299 51.58711.002 NAMEPLATE 1
38 WIRE MOUNT MC-03A "G&A" VX930 M-MS-0808-8953 51.59907.001 5
39 MYLAR ADHESIVEt=0.3mm VP171 M-MS-0808-8750 51.61103.001 INVERTER MYLAR 1
40 PC 30*12*0.6t mm VG710 M-MS-0808-9643 51.62711.003 2
41 FRONT ARM ABS HB-VS08 VG710b M-MS-0808-8955 51.62707.002 FRONT ARM 1
42 REAR ARM ABS HB-VS08 VG710b M-MS-0808-8956 51.62708.002 REAR ARM 1
43 CARTON AB-18 455*205*480(h) VG712b TCO99 P-BX-0601-1087 55.62701.005 CARTON 1
44 CUSHION R EPS VG710s P-FM-0602-0818 56.62701.001 CUSHION 1
45 CUSHION L EPS VG710s P-FM-0602-0819 56.62702.001 CUSHION 1
46 PE BAG LDPE 450*700*0.07t W/HOLE VG710 M-MS-0808-9642 51.62710.001 PE BAG 1
47 VESA RUBBER PAD D7.0*H4.5 VG710b M-MS-0808-8959 52.62701.002 4
48 RUBBER SPACER 20*10*5.5mm M-MS-0808-9644 52.62702.001 2
49 RUBBER FOOT 35*10*1.2t VG710 M-MS-0808-9645 52.62703.001 RUBBER FOOT 5
50 RUBBER 30*15*4 BLACK VG710 M-MS-0808-9646 52.62703.002 1
Hardware:
RECOMMENDED SPARE PARTS LIST (VG712b-1)
Description
Electronic
Components:
Plastics:
ViewSonic Model Number: VLCDS23719
Miscellaneous:
Cabinets:
Packing Material:
PC Board Assembly:
Documentation:
Cables:
Item ViewSonic P/N Ref. P/N Location Q'ty
1
Accessories:
CABLE POWER CORD 1.8M±0.1M UNSHIELD (NA) A-PC-0106-0270 42.57207.001 POWER CORD 1
Item ViewSonic P/N Ref. P/N Location Q'ty
1 Accessories: CABLE POWER CORD 1.8M±0.1M UNSHIELD (NA) A-PC-0106-0270 42.57207.001 POWER CORD 1
Item ViewSonic P/N Ref. P/N Location Q'ty
1 Accessories: 1.8M+0.1M COLOR CS-VS08 China A-PC-0106-0187 42.50126.001 POWER CORD 1
1 WARRANTY CARD S. CHINESE SECOND VERSION VIEWSONIC M-MS-0808-8773 36.58307.002 WARRANTY
2 WARRANTY STICKER S. CHINESE M-LB-0813-0737 36.58308.001 WARRANTY
3 SHIPPING WARRANTY STICKER S. CHINESE VIEWSONIC M-LB-0813-0739 36.58309.001 WARRANTY
4 Packing Material:
PE BAG LDPE 750*760*0.05t VG700-1
M-MS-0808-9647
51.58317.001
PE BAG
1
Item ViewSonic P/N Ref. P/N Location Q'ty
1 Accessories: CABLE POWER CORD 1830mm SP-023+IS14 EUR. A-PC-0106-0271
42.50112.001
POWER CORD 1
Item ViewSonic P/N Ref. P/N Location Q'ty
1 Accessories: CABLE POWER CORD 1830mm SP-023+IS14 EUR. A-PC-0106-0271
42.50112.001
POWER CORD 1
Description
Description
RECOMMENDED SPARE PARTS LIST (VG712b-A)
Description
Documentation:
RECOMMENDED SPARE PARTS LIST (VG712b-E)
Description
RECOMMENDED SPARE PARTS LIST (VG712b-G)
RECOMMENDED SPARE PARTS LIST (VG712b-M)
Description
RECOMMENDED SPARE PARTS LIST (VG712b-P)
7. Recommended Spare Parts List
53
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Rev: 1b
Item ECR/ECN ViewSonic P/N Ref. P/N Location Universal number# Q'ty
1
Accessories:
ADAPTER IN100-240V 12V/3.33A;"LSE" A-AD-0114-0204 47.62701.001 ADAPTER 1
2 PCBA INVERTER;EMAX FOR 17" AUO M170EG01 V0 ECR 4990 B-SB-0221-0700 44.58402.002 INVERTER 1
3 PCBA MAIN BD VG710 "GM5120 AU-EG01V0" ECR 4626 B-MB-0201-2734 80.62701.005 MAIN BOARD GM5120 1
4 PCBA CTRL BD VG710 B-CB-0206-0165 80.62702.001 CONTROL BOARD 1
5 ASSY STAND CS-VS06 VG710s PL-PS-0715-0994 70.62702.001 STAND 1
6 ASSY FRONT COVER CS-VS07A VG712s M-CV-0830-2564 75.62701.003 FRONT COVER 1
7 ASSY REAR COVER CS-VS06 VG710s C-BC-0302-0540 75.62702.001 REAR COVER 1
8 BASE COVER ABS HB-VS06 VG710s M-CV-0830-2480 51.62706.001 BASE COVER 1
9 FRONT ARM ABS HB-VS06 VG710s M-MS-0808-8970 51.62707.001 FRONT ARM 1
10 REAR ARM ABS HB-VS06 VG710s M-MS-0808-8971 51.62708.001 REAR ARM 1
11 W.A. 10/6P UL1007 #24 100mm VG700(INV) M-WR-0828-0636 42.58301.001 INVERTER WIRE 1
12 W.A. 30P UL1007 #24 225mm VG710(COST)-CMO Added 10/01/04 CB-00000213 42.62701.A01 PANEL WIRE 1
13 W.A. 12P UL1571 #28 260mm W/O CORE SHARE(MB/CTRL) M-WR-0828-6010 42.58303.001 1
14 CABLE VGA 15P 1800mm 2*25mm CORE A-VC-0101-0261 42.59901.003 VGA CABLE 1
15 CABLE AUDIO 1.8M LM/BK/LM VX2000 A-AU-0120-0032 42.59903.001 AUDIO CABLE 1
16 USER GUIDE+CD VG712s TCO'03 ECR 4626 A-CD-VG712S 36.62701.007 USER GUIDE 1
17 LABEL CAUTION HIGH VOLTAGE 25.4*19mm M-LB-0813-1016 35.00010.002 CAUTION LABEL 1
18 LABEL CARTON 76*76mm M-LB-0813-0706 35.58203.001 UPC LABEL 1
19 LABEL BARCODE 40*14 ViewSonic M-LB-0813-0736 35.58304.001 BARCODE LABEL 1
20 LABEL 210*65mm BLANK FOR PALLET M-LB-0813-1017 35.59906.001 0.0625
21 LABEL BAR CODE 50*25mm VP191 M-LB-0813-0781 35.61203.001 BARCODE LABEL 1
22 LABEL SPEC 120*50mm VG712s Added 10/01/04 M-LB-0813-1044 35.62701.003 SPEC LABEL 1
23 TFT LCD 17" AUO M170EG01 V.0 ECR 4690 M-LCD-0826-0256 48.62701.004 PANEL AUO M17EG01 V0 1
24 SPEAKER 3W FOR VG710 E-SK-0412-0080 49.62701.001 SPEAKER 1
25 SHIELDING BRKT-INV TINEPLATE 0.3t VG710s M-BK-0805-0020 61.61102.002 INVERTER BRACKET 1
26 LCD BRKT SECC 1.0t VG710s M-BK-0805-0021 61.62701.001 PANEL BRACKET 1
27 SHIELDING BRKT-MB SECC 1.0t VG710s M-BK-0805-0022 61.62702.001 MB BRACKET 1
28 BASE PLATE SPCC-Zn 2.5t VG710s M-MS-0808-8960 61.62703.001 BASE PLATE 1
29 HINGE SPCC-Zn 2.0t VG710s M-MS-0808-8961 61.62704.001 HINGE 1
30 HINGE CAP ABS HB-VS06 VG710s M-MS-0808-8969 51.62703.001 HINGE CAP 1
31 BIRD LOGO AL E015-006 VG710s M-MS-0808-8946 35.62702.001 BIRD LOGO 1
32 COSMETIC STRIP ADHESIVE CS-VS06 140*21*0.3t M-MS-0808-8947 35.62703.001 COMESTIC STRIP ADHESIVE 1
33 ViewSonic AL-LOGO E015-016-1 ViewSonic M-MS-0808-8948 35.62704.001 1
34 EMI Tape (80773) 20*40mm M-MS-0808-8882 41.55601.001 2
35 EMI TAPE 80773 25*75mm M-MS-0808-8949 41.58301.001 1
36 EMI GASKET 773GT W6*H6.5*L30 M-MS-0808-8950 41.61603.001 1
37 FILAMENT TAPE 3M NO.8915 25mm*55M M-MS-0808-8797 51.00014.002 TAPE FOR WIRE 0.0032
38 LCD PROTECT FILM 355*290*0.1t mm MYLAR VG700/VG750 M-MS-0808-8952 51.58314.001 PROTECTION FILM FOR PANEL 1
39 NAMEPLATE ELLIPSE ViewSonic M-MS-0808-8116 51.58711.001 NAMEPLATE 1
40 WIRE MOUNT MC-03A "G&A" VX930 M-MS-0808-8953 51.59907.001 5
41 MYLAR ADHESIVEt=0.3mm VP171 M-MS-0808-8750 51.61103.001 INVERTER MYLAR 1
42 PC 30*12*0.6t mm VG710 Added 10/01/04 M-MS-0808-9643 51.62711.003 2
43 CARTON AB-18 455*205*480(h) VG712s TCO99 ECR 4626 P-BX-0601-0991 55.62701.003 CARTON 1
44 CUSHION R EPS VG710s P-FM-0602-0818 56.62701.001 CUSHION 1
45 CUSHION L EPS VG710s P-FM-0602-0819 56.62702.001 CUSHION 1
46 PE BAG LDPE 450*700*0.07t W/HOLE VG710 M-MS-0808-9642 51.62710.001 PE BAG 1
47 RUBBER SPACER 20*10*5.5mm M-MS-0808-9644 52.62702.001 2
48 RUBBER FOOT 35*10*1.2t VG710 M-MS-0808-9645 52.62703.001 RUBBER FOOT 5
49 RUBBER 30*15*4 BLACK VG710 M-MS-0808-9646 52.62703.002 1
50 VESA RUBBER PAD D7.0*H4.5 VG710s M-MS-0808-8972 52.62701.001 4
Plastics:
ViewSonic Model Number: VLCDS23719
Miscellaneous:
Cabinets:
Packing Material:
PC Board Assembly:
Documentation:
Cables:
Hardware:
RECOMMENDED SPARE PARTS LIST (VG712s-1)
Description
Electronic
Components:
Item ViewSonic P/N Ref. P/N Location Q'ty
1
Accessories:
CABLE POWER CORD 1.8M±0.1M UNSHIELD (NA) A-PC-0106-0270 42.57207.001 POWER CORD 1
Item ViewSonic P/N Ref. P/N Location Q'ty
1 Accessories: CABLE POWER CORD 1.8M±0.1M UNSHIELD (NA) A-PC-0106-0270 42.57207.001 POWER CORD 1
Item ViewSonic P/N Ref. P/N Location Q'ty
1 Accessories: CABLE POWER CORD 1830mm SP-023+IS14 EUR. A-PC-0106-0271
42.50112.001
POWER CORD 1
Item ViewSonic P/N Ref. P/N Location Q'ty
1 Accessories: 1.8M+0.1M COLOR CS-VS08 China A-PC-0106-0187 42.50126.001 POWER CORD 1
2 WARRANTY CARD S. CHINESE SECOND VERSION VIEWSONIC M-MS-0808-8773 36.58307.002 WARRANTY 1
3 WARRANTY STICKER S. CHINESE M-LB-0813-0737 36.58308.001 WARRANTY 1
4 SHIPPING WARRANTY STICKER S. CHINESE VIEWSONIC M-LB-0813-0739 36.58309.001 WARRANTY 1
5 Packing Material:
PE BAG LDPE 750*760*0.05t VG700-1
M-MS-0808-9647
51.58317.001
PE BAG
1
Description
Documentation:
Description
RECOMMENDED SPARE PARTS LIST (VG712s-G)
RECOMMENDED SPARE PARTS LIST (VG712s-E)
RECOMMENDED SPARE PARTS LIST (VG712s-M)
Description
RECOMMENDED SPARE PARTS LIST (VG712s-P)
Description
54
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
ViewSonic Model Number: VLCDS23719
Rev: 1a
Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty
1 M-LB-0813-1016 35.00010.002 LABEL CAUTION HIGH VOLTAGE 25.4*19mm CAUTION LABEL 1
2 M-LB-0813-0736 35.58304.001 LABEL BARCODE 40*14 ViewSonic BARCODE LABEL 1
3 M-LB-0813-0781 35.61203.001 LABEL BAR CODE 50*25mm VP191 BARCODE LABEL 1
4 M-LB-0830-0733 35.62701.005 LABEL SPEC 120*50mm VG712b TCO99 SPEC LABEL 1
5 M-MS-0808-8948 35.62704.001 ViewSonic AL-LOGO E015-016-1 ViewSonic 1
6 #N/A 39.62702.005 DDC RECODER VG712b AUO EG01 V0 1
7 A-AD-0114-0204 47.62701.001 ADAPTER IN100-240V 12V/3.33A;"LSE" 1
8 M-MS-0808-8952 51.58314.001 LCD PROTECT FILM 355*290*0.1t mm MYLAR VG70
PROTECTION FILM FOR
PANEL
1
9 M-MS-0808-8299 51.58711.002 NAMEPLATE ELLIPSE CS-VS08 ViewSonic NAMEPLATE 1
10 M-MS-0808-8954 51.62703.002 HINGE CAP ABS HB-VS08 VG710b HINGE CAP 1
11 M-MS-0808-8946 35.62702.001 BIRD LOGO AL E015-006 VG710s BIRD LOGO 1
12 M-MS-0808-8947 35.62703.001 COSMETIC STRIP ADHESIVE CS-VS06 140*21*0.3t
COMESTIC STRIP
ADHESIVE
1
13 M-MS-0808-8882 41.55601.001 EMI Tape (80773) 20*40mm 3
14 M-MS-0808-8949 41.58301.001 EMI TAPE 80773 25*75mm 1
15 M-MS-0808-8950 41.61603.001 EMI GASKET 773GT W6*H6.5*L30 1
16 M-WR-0828-0636 42.58301.001 W.A. 10/6P UL1007 #24 100mm VG700(INV) INVERTER WIRE 1
17 CB-00000213 42.62701.A01 W.A. 30P UL1007 #24 225mm VG710(COST)-CMO PANEL WIRE 1
18 M-WR-0828-6010 42.58303.001 W.A. 12P UL1571 #28 260mm W/O CORE SHARE(MB 1
19 B-SB-0221-0700 44.58402.002 PCBA INVERTER;EMAX FOR 17" AUO M170EG01 V0 INVERTER 1
20 M-LCD-0826-0256 48.62701.004 TFT LCD 17" AUO M170EG01 V.0 PANEL AUO M17EG01 V0 1
21 E-SK-0412-0080 49.62701.001 SPEAKER 3W FOR VG710 SPEAKER 1
22 M-MS-0808-8797 51.00014.002 FILAMENT TAPE 3M NO.8915 25mm*55M TAPE FOR WIRE 0.001
23 M-MS-0808-8239 51.59901.001 ACETATE TAPE W=20mm 3
24 M-MS-0808-8953 51.59907.001 WIRE MOUNT MC-03A "G&A" VX930 5
25 M-MS-0808-8750 51.61103.001 MYLAR ADHESIVEt=0.3mm VP171 INVERTER MYLAR 1
26 #N/A 51.62709.002 MYLAR ADHESIVE 150*45*0.25t VG710 1
27 M-MS-0808-9643 51.62711.003 PC 30*15*1.15tmm VG712 2
28 M-MS-0808-8959 52.62701.002 VESA RUBBER PAD D7.0*H4.5 VG710b 4
29 M-MS-0808-9644 52.62702.001 RUBBER SPACER 20*10*5.5mm 4
30 M-MS-0808-9646 52.62703.002 RUBBER 30*15*4 BLACK VG710 1
31 M-MS-0808-7882 52.62707.001 SPONGE 8.0L*6.0W*8.0H VG712s 6
32 M-BK-0805-0020 61.61102.002 SHIELDING BRKT-INV TINEPLATE 0.3t VG710s INVERTER BRACKET 1
33 M-BK-0805-0021 61.62701.001 LCD BRKT SECC 1.0t VG710s PANEL BRACKET 1
34 M-BK-0805-0022 61.62702.001 SHIELDING BRKT-MB SECC 1.0t VG710s MB BRACKET 1
35 #N/A 51.62701.004 FRONT COVER ABS HB-CR VG712b 1
36 PL-BT-0706-0149 51.62704.001 SELECT BUTTON ABS HB-Cr VG710s 1
37 M-MS-0808-8973 51.62705.001 LED LENS PMMA VG710s 1
38 M-CV-0830-2630 51.62702.002 REAR COVER ABS HB-VS08 VG710b 1
39 M-BK-0805-0023 61.00042.001 LOCK BRKT+CAP SECC 0.8t 1
40 B-MB-0201-2734 80.62701.005 PCBA MAIN BD VG710 "GM5120 AU-EG01V0" MAIN BOARD 1
41 #N/A 00.58401.E01 BARE PCB L:4 MAIN BD GM5120/GM2120 1
42 #N/A 01.00034.501 RES RP 0 5% 1/4W CHIP #1206 R101 1
43 #N/A 01.00036.502 RES RP 0 5% 1/16W CHIP #0603;"TA-I TECHNOLO
C188,C30,R111,R33,R51,R54,
R6,R66,R67,R68,R85,R88,R95
,R98,
14
44 #N/A 01.00039.501 RES RP 0 5% 1/10W CHIP #0805 R100,R105,R116,R117 4
45 #N/A 01.10136.501 RES RP 100 5% 1/16W #0603 R110,R15,R16,R37,R38,R42 6
46 #N/A 01.10136.502 RES RP 100 5% 1/16W X4 V8V 8P SMD
RP10,RP11,RP12,RP13,RP14,
RP15,RP16,RP5,RP6,RP7,RP8
,RP9
12
47 #N/A 01.10216.501 RES RP 1K 1% 1/16W CHIP #0603 R55 1
48 #N/A 01.10236.501 RES RP 1K 5% 1/16W x4 V8V 8P SMD "PANAS RP3,RP4 2
49 #N/A 01.10236.502 RES RP 1K 5% 1/16W #0603;"TA-I TECHNOLOGY" R5,R75,R77 3
50 #N/A 01.10336.501 RES RP 10K 5% 1/16W x4 V8V 8P SMD "PANASO RP1,RP2 2
51 #N/A 01.10336.502 RES RP 10K 5% 1/16W CHIP #0603;"TA-I TECHNO
C17,R119,R12,R121,R17,R32,
R49,R50,R56,R57,R58,R59,R6
0,R61,R65,R69,R73
17
52 #N/A 01.10339.501 RES RP 10K 5% 1/10W CHIP #0805 R1,R2 2
53 #N/A 01.10436.501 RES RP 100K 5% 1/16W CHIP #0603 R10,R9 2
54 #N/A 01.20116.501 RES RP 200 1% 1/16W CHIP #0603 R7 1
55 #N/A 01.22036.501 RES RP 22 5% 1/16W CHIP #0603 R18,R20,R22 3
56 #N/A 01.22236.501 RES RP 2.2K 5% 1/16W CHIP #0603
R34,R35,R43,R44,R47,R81,R8
2
7
57 #N/A 01.33036.501 RES RP 33 5% 1/16W x4 V8V 8P SMD "PANASON RP17 1
58 #N/A 01.33036.502 RES RP 33 5% 1/16W CHIP #0603;"TA-I TECHNOL
R124,R125,R126,R40,R41,R52
,R53
7
FRONT COVER
REAR COVER
BOM LIST (VG712b-1)
55
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty
59 #N/A 01.33116.501 RES RP 330 1% 1/16W CHIP #0603 R28,R29,R3,R4,R8 5
60 #N/A 01.33336.501 RES RP 33K 5% 1/16W CHIP #0603 R80 1
61 #N/A 01.47236.501 RES RP 4.7K 5% 1/16W CHIP #0603 R13,R14 2
62 #N/A 01.56236.501 RES RP 5.6K 5% 1/16W CHIP #0603 R72 1
63 #N/A 01.68036.501 RES RP 68 5% 1/16W CHIP #0603 R45 1
64 #N/A 01.68336.501 RES RP 68K 5% 1/16W CHIP 0603 R76 1
65 #N/A 01.75016.501 RES RP 75 1% 1/16W CHIP #0603;"TA-I TECHNOL R24,R25,R26 3
66 #N/A 01.75116.501 RES RP 750 1% 1/16W CHIP #0603 R11 1
67 #N/A 01.78216.501 RES RP 7.87K 1% 1/16W CHIP #0603 R78,R79 2
68 #N/A 02.10075.402 CAP CE 10u 25V 20% 5*11mm 105 DEGREE C (PZ) C114,C121,C124 3
69 #N/A 02.10174.404 CAP CE 100u 20% 16V 6.3*11 RADIAL 105 degre
C100,C118,C12,C14,C174,C19
,C22,C25,C29,C32,C62,C77,C
9,C90
14
70 #N/A 02.10273.404 CAP CE 1000u 10V 20% 10*16mm 105℃ (HF) LOW C27 1
71 #N/A 02.10274.403 CAP CE 1000u 16V 20% 10*20mm 105℃ (HD) LOW C123,C5 2
72 #N/A 02.10547.102 CAP CC 100pF 5% 50V NPO #0603
C102,C165,C166,C167,C168,C
186,C187,C89
8
73 #N/A 02.10747.101 CAP CC 0.01uF 10% 50V X7R #0603;"YCTC""TEAM
C122,C163,C164,C41,C42,C43
,C44,C45,C46
9
74 #N/A 02.10887.101 CAP CC 0.1uF +80%-20% 50V Y5V #0603; "YCTC"
C10,C101,C105,C108,C109,C1
1,C110,C111,C125,C126,C127
,C128,C129,C130,C131,C132,
C133,C134,C136,C137,C138,C
139,C140,C141,C143,C144,C1
45,C146,C147,C148,C149,C15
0,C151,C152,C153,C154,C155
,C156,C157,C158,C159,C16,C
161,C162,C169,C171,C172,C1
75,C176,C18,C180,C181,C182
,C183,C184,C2,C202,C203,C2
1,C23,C24,C26,
C28,C3,C33,C35,C37,C39,C40
,C48,C49,C57,C63,C64,C65,C
66,C67,C68,C69,C7,C70,C71,
C72,C73,C74,C78,C79,C8,C80
,C81,C82,C83,C84,C85,C86,C
87,C88,C91,C92,C93,C94,C95,
C96,C97,C98,C99
106
75 #N/A 02.10987.101 CAP CC 1uF +80%-20% 16V Y5V #0603 C115,C116,C117 3
76 #N/A 02.12174.401 CAP CE 120µF 20% 16V LOW-ESR TYPE RC=405mA C1,C20 2
77 #N/A 02.22447.101 CAP CC 22pF 5% 50V NPO #0603; "YCTC","TEAM C192,C59,C60,C61,C75,C76 6
78 #N/A 02.33575.101 CAP CC 330pF 8P4C 20% 25V #1206 "INPAQ" CP13,CP14 2
79 #N/A 02.50347.101 CAP CC 5pF 5% 50V NPO X7R #0603 C103,C104 2
80 #N/A 03.00052.401 INDCTOR BEAD MLB-160808-0600A-N1 SMD ; "MAG L20,L21 2
81 #N/A 03.00072.401 EMI Bead MLB-201209-0300A-N1 L15,L17,L18,L19,L3 5
82 #N/A 03.00127.401 INDCTR BEAD #0805 100MHz 30R MLB201209-0030 R127,R128,R129 3
83 #N/A 03.15100.301 INDCTR CHOKE 150uH 20% 3A DIP A0060D1 "ARON L4 1
84 #N/A 03.22040.301 INDCTR CHOKE COIL 22u 10% 3A DIP A00601C2 " L1,L16,L5,L9 4
85 #N/A 07.14318.001 XTAL 14.318MHz HC-49S HALF SIZE "鴻星" X1 1
86 #N/A 08.2N390.402 TRNSTR NPN GENERAL MMBT3904LT1 SOT-23 "MO Q2,Q3 2
87 #N/A 08.2N390.603 TRANSTR PNP GENERAL PURPOSE 2N3906 SST3 "RO Q4 1
88 #N/A 09.1N414.802 DIODE RLS4148 / PMLL4148L SMD "PHILIPS" D13 1
89 #N/A 09.1N582.201 DIODE IN5822 SCHOTTKY RECTIFIER DO201AD D1 1
90 #N/A 09.DAN20.2K1 DIODE ARRAY DAN202K SMD; "ROHM" D2,D3 2
91 #N/A 11.035F1.301 CNNT F3P PWR JACK 2.54mm DIP 2DC-S005D100 JP2 1
92 #N/A 11.042M2.306 CNNT M 4P 2mm RT/LEAD TU2001WNR-04 "TYU" JP10 1
93 #N/A 11.059F2.014 CNNT PHONE JACK 5P ST/LEAD A71-5AYLT1 LIM JP9 1
94 #N/A 11.102M2.303 CNNT 10P 2.0mm TU2001WNR-10 RT/DIP;"TYU" JP3 1
95 #N/A 11.122M2.303 CNNT 12P 2.0mm TU2001WNR-12 RT/DIP;"TYU" JP7 1
96 #N/A 11.155F2.203 CNNT D-SUB 15P RT/LEAD BLUE PC99 VGA JP6 1
97 M-MS-0808-9904 11.299F2.211
CNNT DVI-I F 29P 1.91mm RT/LEAD HELM QH11121CPQ "HELM"
JP5 1
98 #N/A 11.302M2.301 CNNT M 30P 2mm RT/LEAD P220-2*15-R ;"LCU" JP11 1
99 E-IC-0401-2771 20.24LC2.1A1 IC CMOS 24LC21A EEPROM 128*8 BIT 8SOIC U7,U8 2
100 #N/A 20.74LVC.141 IC CMOS 74LVC14 INNERT SCHMITT-TR 14SOIC ; U6 1
101 #N/A 20.AIC10.842 IC AIC1084:(TO252) 5A ADJUSTABLE REGULATOR U1,U3 2
102 #N/A 20.AN752.201 IC AUDIO AN7522 DUAL 3-W AMPLIFIER U12 1
103 #N/A 20.AP150.101 IC AP1501 5V SWITCHING REGULATOR SMD 150KHz U4 1
104 #N/A 20.GM512.001 IC GM5120 Dual-Interface SXGA 208P PQFP "GE U9 GM5120 1
56
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty
105 #N/A 20.SI230.4D1 IC NMOS SI2304DS VISHAY SOT-23 Q1 1
106 #N/A 20.THC63.LV1 IC THC63LVDM83A 85MHZ LVDS TSSOP U13,U14 2
107 #N/A 21.24LC1.601 IC EEPROM 24LC16B/SN M 2K*8 BIT IIC BUS 8SO U10 1
108 #N/A 22.62701.005 PROGRAMMED IC VG710 "GM5120 AU-EG01V0" 1
109 #N/A 21.Pm39L.V01 IC Pm39LV010 CMOS Flash memory 1Megabit(128 1
110 #N/A 39.62701.005 FW BIOS SOURCE CODE "GM5120 AU-EG01V0" 1
111 #N/A 35.00017.001 LABEL BIOS 13*11mm BLANK 1
112 #N/A 35.00018.001 LABEL BARCODE 13*26.5mm BLANK 2
113 #N/A 35.59907.001 LABEL SPEC ASIC 13*11mm BLANK For VIEWSONIC 1
114 #N/A 61.00039.001 EYELET BR f3*4.0 2
115 #N/A 61.59901.001 SHIELDING PLATE DVI T-PLATE 0.3t 1
116 B-CB-0206-0165 80.62702.001 PCBA CTRL BD VG710 CONTROL BOARD 1
117 #N/A 00.62701.A01 BARE PCB L:2 CTRL BD VG710 1
118 #N/A 09.LTL1B.ED1 DIODE LED 3mm Yellow/Green LTL-1BEDJ 1
119 #N/A 11.122M2.302 CNNT M 12P 2mm RT/LEAD P-220-2*6-R 1
120 #N/A 35.00016.001 LABEL BARCODE 6*38mm BLANK 1
121 #N/A 43.52102.002 SWITCH PUSH PT-002-B2 DC12V 50mA
SW1,SW2,SW3,SW4,SW5,SW
5,SW7,SW8
8
122 M-MS-0808-6287 85.005AG.075 SCREW HEX I/O #4-40*H5*L7.5 Ni NYLOK 4
123 M-SCW-0824-0651 85.1F123.060 SCREW PAN MECH W/SF M3*6 Ni 19
124 M-SCW-0824-6753 85.4A323.040 SCREW FLATE MECH M3*4 BLACK 2
125 M-SCW-0824-6756 85.TA123.080 SCREW CAP TAP M3*8 Ni 4
126 M-SCW-0824-6755 85.UA123.080 DOUBLE THREADS SCREW PAN TAP M3*8 Ni 3
127 M-CV-0830-2479 51.62706.002 BASE COVER ABS HB-VS08 VG710b BASE COVER 1
128 M-MS-0808-8955 51.62707.002 FRONT ARM ABS HB-VS08 VG710b FRONT ARM 1
129 M-MS-0808-8956 51.62708.002 REAR ARM ABS HB-VS08 VG710b REAR ARM 1
130 M-MS-0808-9645 52.62703.001 RUBBER FOOT 35*10*1.2t VG710 RUBBER FOOT 5
131 M-MS-0808-8960 61.62703.001 BASE PLATE SPCC-Zn 2.5t VG710s BASE PLATE 1
132 M-MS-0808-8961 61.62704.001 HINGE SPCC-Zn 2.0t VG710s HINGE 1
133 M-SCW-0824-6757 85.1F124.120 SCREW PAN MECH W/SF M4*12 Ni 4
134 M-SCW-0824-6754 85.4A524.080 SCREW FLAT MECH W/O M4*8 NYLOK 4
135 M-SCW-0824-6755 85.UA123.080 DOUBLE THREADS SCREW PAN TAP M3*8 Ni 1
136 M-SCW-0824-6872 85.YA123.070 SCREW FLAT TAP M3*7 Ni 4
137 M-LB-0813-1017 35.59906.001 LABEL 210*65mm BLANK FOR PALLET 0.063
138 #N/A 51.00069.001 PACKING STRAP 12MM*2000M*0.6MM 0.023
139 #N/A 51.00070.001 PE STRETCH FILM 500MM*1500M*0.02MM 3E-04
140 #N/A 51.00080.001 3 INCH TRANSPARENT ADHESIVE TAPE (600M) 0.002
141 #N/A 55.55103.001 CORNER BOARD 40*40*5*1050mm 0.063
142 #N/A 55.57202.001 CORNER BOARD 40*40*5*960mm 0.063
143 #N/A 55.58303.002 CORNER BOARD 40*40*5*2120mm VG700-1 0.125
144 #N/A 55.62702.001 COVER PALLET AB FLUTE 112.5*95*0.7cm FOR VG 0.031
145 #N/A 58.62701.001 WOOD PALLET 1125*950*130 VG710s 0.031
146 M-LB-0813-0706 35.58203.001 LABEL CARTON 76*76mm 1
147 A-CD-VG712B 36.62701.008 USER GUIDE+CD VG712b TCO'99 USER GUIDE 1
148 A-VC-0101-0261 42.59901.003 CABLE VGA 15P 1800mm 2*25mm CORE VGA CABLE 1
149 A-AU-0120-0032 42.59903.001 CABLE AUDIO 1.8M LM/BK/LM VX2000 AUDIO CABLE 1
150 M-MS-0808-9642 51.62710.001 PE BAG LDPE 450*700*0.07t W/HOLE VG710 PE BAG 1
151 P-BX-0601-1087 55.62701.005 CARTON AB-18 455*205*480(h) VG712b TCO99 CARTON 1
152 P-FM-0602-0818 56.62701.001 CUSHION R EPS VG710s CUSHION 1
153 P-FM-0602-0819 56.62702.001 CUSHION L EPS VG710s CUSHION 1
57
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
ViewSonic Model Number: VLCDS23719
Rev: 1b
Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty
1 M-LB-0813-1016 35.00010.002 LABEL CAUTION HIGH VOLTAGE 25.4*19mm CAUTION LABEL 1
2 M-LB-0813-0736 35.58304.001 LABEL BARCODE 40*14 ViewSonic BARCODE LABEL 1
3 M-LB-0813-0781 35.61203.001 LABEL BAR CODE 50*25mm VP191 BARCODE LABEL 1
4 M-LB-0813-1044 35.62701.003 LABEL SPEC 120*50mm VG712s SPEC LABEL 1
5 M-MS-0808-8948 35.62704.001 ViewSonic AL-LOGO E015-016-1 ViewSonic 1
6 #N/A 39.62702.005 DDC RECODER VG712b AUO EG01 V0 1
7 A-AD-0114-0204 47.62701.001 ADAPTER IN100-240V 12V/3.33A;"LSE" 1
8 M-MS-0808-8952 51.58314.001
LCD PROTECT FILM 355*290*0.1t mm MYLAR
VG70
PROTECTION FILM FOR
PANEL 1
9 M-MS-0808-8116 51.58711.001 NAMEPLATE ELLIPSE ViewSonic NAMEPLATE 1
10 M-MS-0808-8969 51.62703.001 HINGE CAP ABS HB-VS06 VG710s HINGE CAP 1
11 M-MS-0808-8946 35.62702.001 BIRD LOGO AL E015-006 VG710s BIRD LOGO 1
12 M-MS-0808-8947 35.62703.001
COSMETIC STRIP ADHESIVE CS-VS06
140*21*0.3t
COMESTIC STRIP
ADHESIVE 1
13 M-MS-0808-8882 41.55601.001 EMI Tape (80773) 20*40mm 3
14 M-MS-0808-8949 41.58301.001 EMI TAPE 80773 25*75mm 1
15 M-MS-0808-8950 41.61603.001 EMI GASKET 773GT W6*H6.5*L30 1
16 M-WR-0828-0636 42.58301.001 W.A. 10/6P UL1007 #24 100mm VG700(INV) INVERTER WIRE 1
17 CB-00000213 42.62701.A01 W.A. 30P UL1007 #24 225mm VG710(COST)-CMO PANEL WIRE 1
18 M-WR-0828-6010 42.58303.001
W.A. 12P UL1571 #28 260mm W/O CORE
SHARE(MB 1
19 B-SB-0221-0700 44.58402.002
PCBA INVERTER;EMAX FOR 17" AUO M170EG01
V0 INVERTER 1
20 M-LCD-0826-0256 48.62701.004 TFT LCD 17" AUO M170EG01 V.0 PANEL AUO M17EG01 V0 1
21 E-SK-0412-0080 49.62701.001 SPEAKER 3W FOR VG710 SPEAKER 1
22 M-MS-0808-8797 51.00014.002 FILAMENT TAPE 3M NO.8915 25mm*55M TAPE FOR WIRE 0.001
23 M-MS-0808-8239 51.59901.001 ACETATE TAPE W=20mm 3
24 M-MS-0808-8953 51.59907.001 WIRE MOUNT MC-03A "G&A" VX930 5
25 M-MS-0808-8750 51.61103.001 MYLAR ADHESIVEt=0.3mm VP171 INVERTER MYLAR 1
26 #N/A 51.62709.002 MYLAR ADHESIVE 150*45*0.25t VG710 1
27 M-MS-0808-9643 51.62711.003 PC 30*15*1.15tmm VG712 2
28 M-MS-0808-8972 52.62701.001 VESA RUBBER PAD D7.0*H4.5 VG710s 4
29 M-MS-0808-9644 52.62702.001 RUBBER SPACER 20*10*5.5mm 4
30 M-MS-0808-9646 52.62703.002 RUBBER 30*15*4 BLACK VG710 1
31 M-MS-0808-7882 52.62707.001 SPONGE 8.0L*6.0W*8.0H VG712s 6
32 M-BK-0805-0020 61.61102.002 SHIELDING BRKT-INV TINEPLATE 0.3t VG710s INVERTER BRACKET 1
33 M-BK-0805-0021 61.62701.001 LCD BRKT SECC 1.0t VG710s PANEL BRACKET 1
34 M-BK-0805-0022 61.62702.001 SHIELDING BRKT-MB SECC 1.0t VG710s MB BRACKET 1
35 C-FP-0301-1037 51.62701.003 FRONT COVER ABS HB-CR VG712s 1
36 PL-BT-0706-0149 51.62704.001 SELECT BUTTON ABS HB-Cr VG710s 1
37 M-MS-0808-8973 51.62705.001 LED LENS PMMA VG710s 1
38 C-BC-0302-0541 51.62702.001 REAR COVER ABS HB-VS06 VG710s 1
39 M-BK-0805-0023 61.00042.001 LOCK BRKT+CAP SECC 0.8t 1
40 B-MB-0201-2734 80.62701.005 PCBA MAIN BD VG710 "GM5120 AU-EG01V0" MAIN BOARD 1
41 #N/A 00.58401.E01 BARE PCB L:4 MAIN BD GM5120/GM2120 1
42 #N/A 01.00034.501 RES RP 0 5% 1/4W CHIP #1206 R101 1
43 #N/A 01.00036.502 RES RP 0 5% 1/16W CHIP #0603;"TA-I TECHNOLO
C188,C30,R111,R33,R51,R54,
R6,R66,R67,R68,R85,R88,R9
5,R98, 14
44 #N/A 01.00039.501 RES RP 0 5% 1/10W CHIP #0805 R100,R105,R116,R117 4
45 #N/A 01.10136.501 RES RP 100 5% 1/16W #0603 R110,R15,R16,R37,R38,R42 6
46 #N/A 01.10136.502 RES RP 100 5% 1/16W X4 V8V 8P SMD
RP10,RP11,RP12,RP13,RP14,
RP15,RP16,RP5,RP6,RP7,RP
8,RP9 12
47 #N/A 01.10216.501 RES RP 1K 1% 1/16W CHIP #0603 R55 1
48 #N/A 01.10236.501 RES RP 1K 5% 1/16W x4 V8V 8P SMD "PANAS RP3,RP4 2
49 #N/A 01.10236.502 RES RP 1K 5% 1/16W #0603;"TA-I TECHNOLOGY" R5,R75,R77 3
50 #N/A 01.10336.501 RES RP 10K 5% 1/16W x4 V8V 8P SMD "PANASO RP1,RP2 2
51 #N/A 01.10336.502 RES RP 10K 5% 1/16W CHIP #0603;"TA-I TECHNO
C17,R119,R12,R121,R17,R32,
R49,R50,R56,R57,R58,R59,R
60,R61,R65,R69,R73 17
52 #N/A 01.10339.501 RES RP 10K 5% 1/10W CHIP #0805 R1,R2 2
53 #N/A 01.10436.501 RES RP 100K 5% 1/16W CHIP #0603 R10,R9 2
54 #N/A 01.20116.501 RES RP 200 1% 1/16W CHIP #0603 R7 1
55 #N/A 01.22036.501 RES RP 22 5% 1/16W CHIP #0603 R18,R20,R22 3
56 #N/A 01.22236.501 RES RP 2.2K 5% 1/16W CHIP #0603
R34,R35,R43,R44,R47,R81,R
82 7
57 #N/A 01.33036.501 RES RP 33 5% 1/16W x4 V8V 8P SMD "PANASON RP17 1
FRONT COVER
REAR COVER
BOM LIST (VG712s-1)
58
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty
58 #N/A 01.33036.502 RES RP 33 5% 1/16W CHIP #0603;"TA-I TECHNOL
R124,R125,R126,R40,R41,R5
2,R53 7
59 #N/A 01.33116.501 RES RP 330 1% 1/16W CHIP #0603 R28,R29,R3,R4,R8 5
60 #N/A 01.33336.501 RES RP 33K 5% 1/16W CHIP #0603 R80 1
61 #N/A 01.47236.501 RES RP 4.7K 5% 1/16W CHIP #0603 R13,R14 2
62 #N/A 01.56236.501 RES RP 5.6K 5% 1/16W CHIP #0603 R72 1
63 #N/A 01.68036.501 RES RP 68 5% 1/16W CHIP #0603 R45 1
64 #N/A 01.68336.501 RES RP 68K 5% 1/16W CHIP 0603 R76 1
65 #N/A 01.75016.501 RES RP 75 1% 1/16W CHIP #0603;"TA-I TECHNOL R24,R25,R26 3
66 #N/A 01.75116.501 RES RP 750 1% 1/16W CHIP #0603 R11 1
67 #N/A 01.78216.501 RES RP 7.87K 1% 1/16W CHIP #0603 R78,R79 2
68 #N/A 02.10075.402 CAP CE 10u 25V 20% 5*11mm 105 DEGREE C (PZ) C114,C121,C124 3
69 #N/A 02.10174.404 CAP CE 100u 20% 16V 6.3*11 RADIAL 105 degre
C100,C118,C12,C14,C174,C1
9,C22,C25,C29,C32,C62,C77,
C9,C90 14
70 #N/A 02.10273.404 CAP CE 1000u 10V 20% 10*16mm 105℃ (HF) LOW C27 1
71 #N/A 02.10274.403
CAP CE 1000u 16V 20% 10*20mm 105℃ (HD)
LOW C123,C5 2
72 #N/A 02.10547.102 CAP CC 100pF 5% 50V NPO #0603
C102,C165,C166,C167,C168,
C186,C187,C89 8
73 #N/A 02.10747.101
CAP CC 0.01uF 10% 50V X7R
#0603;"YCTC""TEAM
C122,C163,C164,C41,C42,C4
3,C44,C45,C46 9
74 #N/A 02.10887.101 CAP CC 0.1uF +80%-20% 50V Y5V #0603; "YCTC"
C10,C101,C105,C108,C109,C
11,C110,C111,C125,C126,C1
27,C128,C129,C130,C131,C1
32,C133,C134,C136,C137,C1
38,C139,C140,C141,C143,C1
44,C145,C146,C147,C148,C1
49,C150,C151,C152,C153,C1
54,C155,C156,C157,C158,C1
59,C16,C161,C162,C169,C17
1,C172,C175,C176,C18,C180,
C181,C182,C183,C184,C2,C2
02,C203,C21,C23,C24,C26,
C28,C3,C33,C35,C37,C39,C4
0,C48,C49,C57,C63,C64,C65,
C66,C67,C68,C69,C7,C70,C7
1,C72,C73,C74,C78,C79,C8,C
80,C81,C82,C83,C84,C85,C86
,C87,C88,C91,C92,C93,C94,C
95,C96,C97,C98,C99
106
75 #N/A 02.10987.101 CAP CC 1uF +80%-20% 16V Y5V #0603 C115,C116,C117 3
76 #N/A 02.12174.401
CAP CE 120µF 20% 16V LOW-ESR TYPE
RC=405mA C1,C20 2
77 #N/A 02.22447.101 CAP CC 22pF 5% 50V NPO #0603; "YCTC","TEAM C192,C59,C60,C61,C75,C76 6
78 #N/A 02.33575.101 CAP CC 330pF 8P4C 20% 25V #1206 "INPAQ" CP13,CP14 2
79 #N/A 02.50347.101 CAP CC 5pF 5% 50V NPO X7R #0603 C103,C104 2
80 #N/A 03.00052.401
INDCTOR BEAD MLB-160808-0600A-N1 SMD ;
"MAG L20,L21 2
81 #N/A 03.00072.401 EMI Bead MLB-201209-0300A-N1 L15,L17,L18,L19,L3 5
82 #N/A 03.00127.401
INDCTR BEAD #0805 100MHz 30R MLB2012090030 R127,R128,R129 3
83 #N/A 03.15100.301
INDCTR CHOKE 150uH 20% 3A DIP A0060D1
"ARON L4 1
84 #N/A 03.22040.301
INDCTR CHOKE COIL 22u 10% 3A DIP A00601C2
" L1,L16,L5,L9 4
85 #N/A 07.14318.001 XTAL 14.318MHz HC-49S HALF SIZE "鴻星" X1 1
86 #N/A 08.2N390.402
TRNSTR NPN GENERAL MMBT3904LT1 SOT-23
"MO Q2,Q3 2
87 #N/A 08.2N390.603
TRANSTR PNP GENERAL PURPOSE 2N3906 SST3
"RO Q4 1
88 #N/A 09.1N414.802 DIODE RLS4148 / PMLL4148L SMD "PHILIPS" D13 1
89 #N/A 09.1N582.201 DIODE IN5822 SCHOTTKY RECTIFIER DO201AD D1 1
90 #N/A 09.DAN20.2K1 DIODE ARRAY DAN202K SMD; "ROHM" D2,D3 2
91 #N/A 11.035F1.301 CNNT F3P PWR JACK 2.54mm DIP 2DC-S005D100 JP2 1
92 #N/A 11.042M2.306 CNNT M 4P 2mm RT/LEAD TU2001WNR-04 "TYU" JP10 1
93 #N/A 11.059F2.014
CNNT PHONE JACK 5P ST/LEAD A71-5AYLT1
LIME( JP9 1
59
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty
94 #N/A 11.102M2.303 CNNT 10P 2.0mm TU2001WNR-10 RT/DIP;"TYU" JP3 1
95 #N/A 11.122M2.303 CNNT 12P 2.0mm TU2001WNR-12 RT/DIP;"TYU" JP7 1
96 #N/A 11.155F2.203 CNNT D-SUB 15P RT/LEAD BLUE PC99 VGA JP6 1
97 M-MS-0808-9904 11.299F2.211
CNNT DVI-I F 29P 1.91mm RT/LEAD HELM
QH11121-CPQ "HELM" JP5 1
98 #N/A 11.302M2.301 CNNT M 30P 2mm RT/LEAD P220-2*15-R ;"LCU" JP11 1
99 E-IC-0401-2771 20.24LC2.1A1 IC CMOS 24LC21A EEPROM 128*8 BIT 8SOIC U7,U8 2
100 #N/A 20.74LVC.141
IC CMOS 74LVC14 INNERT SCHMITT-TR 14SOIC
; U6 1
101 #N/A 20.AIC10.842
IC AIC1084:(TO252) 5A ADJUSTABLE
REGULATOR U1,U3 2
102 #N/A 20.AN752.201 IC AUDIO AN7522 DUAL 3-W AMPLIFIER U12 1
103 #N/A 20.AP150.101
IC AP1501 5V SWITCHING REGULATOR SMD
150KHz U4 1
104 #N/A 20.GM512.001 IC GM5120 Dual-Interface SXGA 208P PQFP "GE U9 GM5120 1
105 #N/A 20.SI230.4D1 IC NMOS SI2304DS VISHAY SOT-23 Q1 1
106 #N/A 20.THC63.LV1 IC THC63LVDM83A 85MHZ LVDS TSSOP U13,U14 2
107 #N/A 21.24LC1.601 IC EEPROM 24LC16B/SN M 2K*8 BIT IIC BUS 8SO U10 1
108 #N/A 22.62701.005 PROGRAMMED IC VG710 "GM5120 AU-EG01V0" 1
109 #N/A 21.Pm39L.V01 IC Pm39LV010 CMOS Flash memory 1Megabit(128 1
110 #N/A 39.62701.005 FW BIOS SOURCE CODE "GM5120 AU-EG01V0" 1
111 #N/A 35.00017.001 LABEL BIOS 13*11mm BLANK 1
112 #N/A 35.00018.001 LABEL BARCODE 13*26.5mm BLANK 2
113 #N/A 35.59907.001
LABEL SPEC ASIC 13*11mm BLANK For
VIEWSONIC 1
114 #N/A 61.00039.001 EYELET BR f3*4.0 2
115 #N/A 61.59901.001 SHIELDING PLATE DVI T-PLATE 0.3t 1
116 B-CB-0206-0165 80.62702.001 PCBA CTRL BD VG710 CONTROL BOARD 1
117 #N/A 00.62701.A01 BARE PCB L:2 CTRL BD VG710 1
118 #N/A 09.LTL1B.ED1 DIODE LED 3mm Yellow/Green LTL-1BEDJ 1
119 #N/A 11.122M2.302 CNNT M 12P 2mm RT/LEAD P-220-2*6-R 1
120 #N/A 35.00016.001 LABEL BARCODE 6*38mm BLANK 1
121 #N/A 43.52102.002 SWITCH PUSH PT-002-B2 DC12V 50mA
SW1,SW2,SW3,SW4,SW5,S
W5,SW7,SW8 8
122 M-MS-0808-6287 85.005AG.075 SCREW HEX I/O #4-40*H5*L7.5 Ni NYLOK 4
123 M-SCW-0824-0651 85.1F123.060 SCREW PAN MECH W/SF M3*6 Ni 19
124 M-SCW-0824-6753 85.4A323.040 SCREW FLATE MECH M3*4 BLACK 2
125 M-SCW-0824-6756 85.TA123.080 SCREW CAP TAP M3*8 Ni 4
126 M-SCW-0824-6755 85.UA123.080 DOUBLE THREADS SCREW PAN TAP M3*8 Ni 3
127 M-CV-0830-2480 51.62706.001 BASE COVER ABS HB-VS06 VG710s BASE COVER 1
128 M-MS-0808-8970 51.62707.001 FRONT ARM ABS HB-VS06 VG710s FRONT ARM 1
129 M-MS-0808-8971 51.62708.001 REAR ARM ABS HB-VS06 VG710s REAR ARM 1
130 M-MS-0808-9645 52.62703.001 RUBBER FOOT 35*10*1.2t VG710 RUBBER FOOT 5
131 M-MS-0808-8960 61.62703.001 BASE PLATE SPCC-Zn 2.5t VG710s BASE PLATE 1
132 M-MS-0808-8961 61.62704.001 HINGE SPCC-Zn 2.0t VG710s HINGE 1
133 M-SCW-0824-6757 85.1F124.120 SCREW PAN MECH W/SF M4*12 Ni 4
134 M-SCW-0824-6754 85.4A524.080 SCREW FLAT MECH W/O M4*8 NYLOK 4
135 M-SCW-0824-6755 85.UA123.080 DOUBLE THREADS SCREW PAN TAP M3*8 Ni 1
136 M-SCW-0824-6872 85.YA123.070 SCREW FLAT TAP M3*7 Ni 4
137 M-LB-0813-1017 35.59906.001 LABEL 210*65mm BLANK FOR PALLET 0.063
138 #N/A 51.00069.001 PACKING STRAP 12MM*2000M*0.6MM 0.023
139 #N/A 51.00070.001 PE STRETCH FILM 500MM*1500M*0.02MM 3E-04
140 #N/A 51.00080.001 3 INCH TRANSPARENT ADHESIVE TAPE (600M) 0.002
141 #N/A 55.55103.001 CORNER BOARD 40*40*5*1050mm 0.063
142 #N/A 55.57202.001 CORNER BOARD 40*40*5*960mm 0.063
143 #N/A 55.58303.002 CORNER BOARD 40*40*5*2120mm VG700-1 0.125
144 #N/A 55.62702.001
COVER PALLET AB FLUTE 112.5*95*0.7cm FOR
VG 0.031
145 #N/A 58.62701.001 WOOD PALLET 1125*950*130 VG710s 0.031
146 M-LB-0813-0706 35.58203.001 LABEL CARTON 76*76mm 1
147 A-CD-VG712S 36.62701.007 USER GUIDE+CD VG712s TCO'03 USER GUIDE 1
148 A-VC-0101-0261 42.59901.003 CABLE VGA 15P 1800mm 2*25mm CORE VGA CABLE 1
149 A-AU-0120-0032 42.59903.001 CABLE AUDIO 1.8M LM/BK/LM VX2000 AUDIO CABLE 1
150 M-MS-0808-9642 51.62710.001 PE BAG LDPE 450*700*0.07t W/HOLE VG710 PE BAG 1
151 P-BX-0601-0991 55.62701.003 CARTON AB-18 455*205*480(h) VG712s CARTON 1
152 P-FM-0602-0818 56.62701.001 CUSHION R EPS VG710s CUSHION 1
153 P-FM-0602-0819 56.62702.001 CUSHION L EPS VG710s CUSHION 1
60
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
8. Exploded Diagram And Spare Parts List
61
ViewSonic Corporation Confidential - Do Not Copy VG712s/b
Rev: 1a
Item ViewSonic P/N Ref. P/N Description Q'ty
1 M-MS-0808-8973 51.62705.001 LED LENS PMMA VG710s 1
2 M-MS-0808-8948 35.62704.001 ViewSonic AL-LOGO E015-016-1 ViewSonic 1
3 PL-BT-0706-0149 51.62704.001 SELECT BUTTON ABS HB-Cr VG710s 1
4 B-CB-0206-0165 80.62702.001 PCBA CTRL BD VG710 1
5 E-SK-0412-0080 49.62701.001 SPEAKER 3W FOR VG710 1
6 M-SCW-0824-6756 85.TA123.080 SCREW CAP TAP M3*8 Ni 4
7 M-MS-0808-8946 35.62702.001 BIRD LOGO AL E015-006 VG710s 1
8 C-00000212 51.62701.004 FRONT COVER ABS HB-CR VG712b 1
9 M-LCD-0826-0256 48.62701.004 TFT LCD 17" AUO M170EG01 V.0 1
10 M-SCW-0824-0651 85.1F123.060 SCREW PAN MECH W/SF M3*6 Ni 4
11 M-BK-0805-0021 61.62701.001 LCD BRKT SECC 1.0t VG710s 1
12 M-MS-0808-6287 85.005AG.075 SCREW HEX I/O #4-40*H5*L7.5 Ni NYLOK 4
13 M-MS-0808-8953 51.59907.001 WIRE MOUNT MC-03A "G&A" VX930 5
14 B-SB-0221-0700 44.58402.002 PCBA INVERTER;EMAX FOR 17" AUO M170EG01 V0 1
15 M-SCW-0824-0651 85.1F123.060 SCREW PAN MECH W/SF M3*6 Ni 2
16 B-MB-0201-2734 80.62701.005 PCBA MAIN BD VG710 "GM5120 AU-EG01V0" 1
17 M-SCW-0824-0651 85.1F123.060 SCREW PAN MECH W/SF M3*6 Ni 3
18 M-MS-0808-8750 51.61103.001 MYLAR ADHESIVEt=0.3mm VP171 1
19 M-BK-0805-0022 61.62702.001 SHIELDING BRKT-MB SECC 1.0t VG710s 1
20 M-BK-0805-0020 61.61102.002 SHIELDING BRKT-INV TINEPLATE 0.3t VG710s 1
21 M-SCW-0824-0651 85.1F123.060 SCREW PAN MECH W/SF M3*6 Ni 5
22 M-SCW-0824-6753 85.4A323.040 SCREW FLATE MECH M3*4 BLACK 2
23 M-SCW-0824-0651 85.1F123.060 SCREW PAN MECH W/SF M3*6 Ni 3
24 M-MS-0808-8949 41.58301.001 EMI TAPE 80773 25*75mm 1
25 M-BK-0805-0023 61.00042.001 LOCK BRKT+CAP SECC 0.8t 1
26 M-CV-0830-2630 51.62702.002 REAR COVER ABS HB-VS08 VG710b 1
27 M-MS-0808-8959 52.62701.002 VESA RUBBER PAD D7.0*H4.5 VG710b 4
28 M-MS-0808-8955 51.62707.002 FRONT ARM ABS HB-VS08 VG710b 1
29 M-MS-0808-8961 61.62704.001 HINGE SPCC-Zn 2.0t VG710s 1
30 M-MS-0808-8956 51.62708.002 REAR ARM ABS HB-VS08 VG710b 1
31 M-SCW-0824-6757 85.1F124.120 SCREW PAN MECH W/SF M4*12 Ni 4
32 M-MS-0808-8954 51.62703.002 HINGE CAP ABS HB-VS08 VG710b 1
33 M-MS-0808-8299 51.58711.002 NAMEPLATE ELLIPSE CS-VS08 ViewSonic 1
34 M-SCW-0824-6755 85.UA123.080 DOUBLE THREADS SCREW PAN TAP M3*8 Ni 1
35 M-CV-0830-2479 51.62706.002 BASE COVER ABS HB-VS08 VG710b 1
36 M-MS-0808-8960 61.62703.001 BASE PLATE SPCC-Zn 2.5t VG710s 1
37 M-MS-0808-9645 52.62703.001 RUBBER FOOT 35*10*1.2t VG710 5
38 M-SCW-0824-6754 85.4A524.080 SCREW FLAT MECH W/O M4*8 NYLOK 4
39 M-SCW-0824-6872 85.YA123.070 SCREW FLAT TAP M3*7 Ni 4
40 M-MS-0808-9646 52.62703.002 RUBBER 30*15*4 BLACK VG710 1
41 M-MS-0808-9644 52.62702.001 RUBBER SPACER 20*10*5.5mm 4
42 M-MS-0808-7882 52.62707.001 SPONGE 8.0L*6.0W*8.0H VG712s 6
43 CB-00000213 42.62701.A01 W.A. 30P UL1007 #24 225mm VG710(COST)-CMO 1
44 M-WR-0828-6010 42.58303.001 W.A. 12P UL1571 #28 260mm W/O CORE SHARE(MB 1
45 M-WR-0828-0636 42.58301.001 W.A. 10/6P UL1007 #24 100mm VG700(INV) 1
EXPLODED PARTS LIST (VG712b-1)
ViewSonic Model Number: VLCDS23719
62
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
5 E-SK-0412-0080 49.62701.001 SPEAKER 3W FOR VG710 1
6 M-SCW-0824-6756 85.TA123.080 SCREW CAP TAP M3*8 Ni 4
7 M-MS-0808-8946 35.62702.001 BIRD LOGO AL E015-006 VG710s 1
8 C-FP-0301-1037 51.62701.003 FRONT COVER ABS HB-CR VG712s 1
9 M-LCD-0826-0256 48.62701.004 TFT LCD 17" AUO M170EG01 V.0 1
10 M-SCW-0824-0651 85.1F123.060 SCREW PAN MECH W/SF M3*6 Ni 4
11 M-BK-0805-0021 61.62701.001 LCD BRKT SECC 1.0t VG710s 1
12 M-MS-0808-6287 85.005AG.075 SCREW HEX I/O #4-40*H5*L7.5 Ni NYLOK 4
13 M-MS-0808-8953 51.59907.001 WIRE MOUNT MC-03A "G&A" VX930 5
14 B-SB-0221-0700 44.58402.002 PCBA INVERTER;EMAX FOR 17" AUO M170EG01 V0 1
15 M-SCW-0824-0651 85.1F123.060 SCREW PAN MECH W/SF M3*6 Ni 2
16 B-MB-0201-2734 80.62701.005 PCBA MAIN BD VG710 "GM5120 AU-EG01V0" 1
17 M-SCW-0824-0651 85.1F123.060 SCREW PAN MECH W/SF M3*6 Ni 3
18 M-MS-0808-8750 51.61103.001 MYLAR ADHESIVEt=0.3mm VP171 1
19 M-BK-0805-0022 61.62702.001 SHIELDING BRKT-MB SECC 1.0t VG710s 1
20 M-BK-0805-0020 61.61102.002 SHIELDING BRKT-INV TINEPLATE 0.3t VG710s 1
21 M-SCW-0824-0651 85.1F123.060 SCREW PAN MECH W/SF M3*6 Ni 5
22 M-SCW-0824-6753 85.4A323.040 SCREW FLATE MECH M3*4 BLACK 2
23 M-SCW-0824-0651 85.1F123.060 SCREW PAN MECH W/SF M3*6 Ni 3
24 M-MS-0808-8949 41.58301.001 EMI TAPE 80773 25*75mm 1
25 M-BK-0805-0023 61.00042.001 LOCK BRKT+CAP SECC 0.8t 1
26 C-BC-0302-0541 51.62702.001 REAR COVER ABS HB-VS06 VG710s 1
27 M-MS-0808-8972 52.62701.001 VESA RUBBER PAD D7.0*H4.5 VG710s 4
28 M-MS-0808-8970 51.62707.001 FRONT ARM ABS HB-VS06 VG710s 1
29 M-MS-0808-8961 61.62704.001 HINGE SPCC-Zn 2.0t VG710s 1
30 M-MS-0808-8971 51.62708.001 REAR ARM ABS HB-VS06 VG710s 1
31 M-SCW-0824-6757 85.1F124.120 SCREW PAN MECH W/SF M4*12 Ni 4
32 M-MS-0808-8969 51.62703.001 HINGE CAP ABS HB-VS06 VG710s 1
33 M-MS-0808-8116 51.58711.001 NAMEPLATE ELLIPSE ViewSonic 1
34 M-SCW-0824-6755 85.UA123.080 DOUBLE THREADS SCREW PAN TAP M3*8 Ni 1
35 M-CV-0830-2480 51.62706.001 BASE COVER ABS HB-VS06 VG710s 1
36 M-MS-0808-8960 61.62703.001 BASE PLATE SPCC-Zn 2.5t VG710s 1
37 M-MS-0808-9645 52.62703.001 RUBBER FOOT 35*10*1.2t VG710 5
38 M-SCW-0824-6754 85.4A524.080 SCREW FLAT MECH W/O M4*8 NYLOK 4
39 M-SCW-0824-6872 85.YA123.070 SCREW FLAT TAP M3*7 Ni 4
40 M-MS-0808-9646 52.62703.002 RUBBER 30*15*4 BLACK VG710 1
41 M-MS-0808-9644 52.62702.001 RUBBER SPACER 20*10*5.5mm 4
42 M-MS-0808-7882 52.62707.001 SPONGE 8.0L*6.0W*8.0H VG712s 6
43 CB-00000213 42.62701.A01 W.A. 30P UL1007 #24 225mm VG710(COST)-CMO 1
44 M-WR-0828-6010 42.58303.001 W.A. 12P UL1571 #28 260mm W/O CORE SHARE(MB 1
45 M-WR-0828-0636 42.58301.001 W.A. 10/6P UL1007 #24 100mm VG700(INV) 1
ViewSonic Model Number: VLCDS23719
Rev 1b
Item ViewSonic P/N Ref. P/N Description Q'ty
1 M-MS-0808-8973 51.62705.001 LED LENS PMMA VG710s 1
2 M-MS-0808-8948 35.62704.001 ViewSonic AL-LOGO E015-016-1 ViewSonic 1
3 PL-BT-0706-0149 51.62704.001 SELECT BUTTON ABS HB-Cr VG710s 1
4 B-CB-0206-0165 80.62702.001 PCBA CTRL BD VG710 1
EXPLODED PARTS LIST (VG712s-1)
63
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
VG712s-1 PPL
Packing for shipping
64
ViewSonic Corporation Confidential - Do Not Copy VG712s/b
Item ViewSonic P/N Ref. P/N Description Q'ty
1 P-FM-0602-0819 56.62702.001 CUSHION L EPS VG710s 1
2 A-VC-0101-0261 42.59901.003 CABLE VGA 15P 1800mm 2*25mm CORE 1
3 A-AU-0120-0032 42.59903.001 CABLE AUDIO 1.8M LM/BK/LM VX2000 1
4 A-AD-0114-0204 47.62701.001 ADAPTER IN100-240V 12V/3.33A;"LSE" 1
5 M-MS-0808-9642 51.62710.001 PE BAG LDPE 450*700*0.07t W/HOLE VG710 1
6 E-00000214 DC.62701.013 D.C. VG712b;AUO TWO-TONE TCO99 1
7 M-LB-0830-0733 35.62701.005 LABEL SPEC 120*50mm VG712b TCO99 1
8 M-LB-0813-0736 35.58304.001 LABEL BARCODE 40*14 ViewSonic 1
9 A-CD-VG712B 36.62701.008 USER GUIDE+CD VG712b TCO'99 1
10 A-PC-0106-0270 42.57207.001 CABLE POWER CORD 1.8M±0.1M UNSHIELD (NA) 1
11 P-FM-0602-0818 56.62701.001 CUSHION R EPS VG710s 1
12 P-BX-0601-1087 55.62701.005 CARTON AB-18 455*205*480(h) VG712b TCO99 1
GM512 0
LG 17"
OUTPUT
14.318MH z
EEPROM
EEPROM
(50-60Hz)
INPUT
INPUT
TMDS
Pm39LV010R
A/D BUS
24LC16B
LVDS Singal
RB/GB/BB[0~7]
RA/GA/BA[0~7]
AUO 17"
Jack
GM5120
BLOCK DIAGRAM
7 7Thursday, July 10, 2003
E
Title
Size Document Number Rev
Date: Sheet
of
SCL
R/G/B
SDA
DDC_IIC
AC (110-240V)
+12V
HS/VS
DDC_IIC
VLVH
BLON
VOLUME
+12V
+12VIN
+5V
+3.3VD
+3.3VA
+2.5V
DVS/DHS/DEN/DCLK
MUTE
INVERTER
R
16 ohm
L
16 ohm
DPMS
ASIC
ADAPTER
AUDIO
FLASH MEMO RY
PANEL
XTAL
EEPROM
DDC
DVI
DDC
D_SUB
LVDS
Audio
9. Block Diagram
65
ViewSonic Corporation Confidential
-
Do Not Copy
VG712s/b
5V_MAIN=2.5A
3.3V_MAIN MAX 5A
(GM5120)
(GM5120)
(GM5120)
LESR
E
GM5120
1
6
Thursday, July 10, 2003
POWER
Title
Size Document Number Rev
Date: Sheet
of
BRI
ON
Volume-
BLON3
PNL_EN3
BRIGHT3
+5V
+3.3VD
+2.5VD
2.5V_VDD
2.5V_AVDD
3.3V_AVDD
+3.3VA
3.3V_DVDD
+5V
+12V
+12V
+5V
+3.3VA
VPL
+5V
+5V
+12V+3.3VD
+3.3VD
+5VIN
+3.3VD
+12V
+12VIN
+3.3VD
+5VIN
+12V
+12V
+12V
+2.5VD
+12V
5V
+12V
+5V
+5V
JP13
2 HEADER
1
2
C181
0.1uF
SOT
23
D
G
S
MOSN
N
Q5
SI2302DS
Power MOSN
NMos
132
C183
0.1uF
C182
0.1uF
C152
0.1uF
R133
100K
C205
100uF/10V
C204
0.1uF
Q6
2N3904
1
2
3
C184
0.1uF
C141
0.1uF
C140
0.1uF
C16
0.1u
C15
100uF/16V
C18
0.1u
SOT
23
D
G
S
MOSN
N
Q1
SI2302DS
Power MOSN
NMos
132
C7
0.1uF
JP2
BNC-2
2
3
1
C2
0.1uF
C5
1000uF/16V
C32
100uF/16V
C37
0.1uF
R2
10K
C1
120uF/16V
C38
NC/0.1uF
C36
NC/0.1uF
C14
100uF/16V
R5
1K
C17
NC/0.1uF
C3
0.1uF
R1
10K
L7 NC
L3
NC
L8 BEAD 0805
C4
120uF/16V
C177
NC/100pF
C28
0.1uF
C24
0.1uF
C23
0.1uF
R8
330/1%
L4 150uH
C27
1000uF/10V
C26
0.1uF
C155
0.1uF
C11
0.1uF
C178
NC/100pF
C9
100uF/16V
R7
200/1%
C10
0.1uF
R4
330/1%
L9 22uH
L6 22uH
D1
IN5822
C149
0.1uF
R3
330/1%
R6 0
C39
0.1uF
C12
100uF/16V
C33
0.1uF
U4 AP1501
1 2
4
5
3
+VIN VOUT
VOS
S.S
GND
C21
0.1uF
R112
10K /NC
JP3
HEADER 10-2.0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
C22
100uF/16V
C29
100uF/16V
U3
AIC1084
3 1
2
VIN VOUT
GND
C25
100uF/16V
C8
0.1uF
R10
100K
Q2
2N3904
1
2
3
L14 BEAD /0805
C35
0.1uF
C34
1000uF/10V
L10 BEAD /0805
R11
750R
L5 22uH
JP1CIRDIN_4-R
1 2
3 4
56789
C154
0.1uF
R12
10K
L11 NC
U2
XC6201
3 1
2
VI VO
GND
L12 BEAD /1206
C20
120uF/16V
U6A
74LVC14
1 2
14
7
C19
100uF/16V
L1 22uH
C13
NC/0.1uF
C31
NC/0.1uF
U5
IRF7204
1
2
3
4
8
6
5
7
NC
S
S
G
D
D
D
D
R9
100K
C148
0.1uF
U1
AIC1084
3 1
2
VIN VOUT
GND
C147
0.1uF
C151
0.1uF
C150
0.1uF
C146
0.1uF
C30
0
R131 1k
R132
100K
JP15
4 HEADER
1
2
3
4
C145
0.1uF
R100 0
R101 0
R102 0/NC
C144
0.1uF
R114
NC
R113
NC
R116 0
C17
NC/0.1uF
C153
0.1uF
C179
0.1uF
C171
0.1uF
C172
0.1uF
C180
0.1uF
10. Schematic Diagrams
66
ViewSonic Corporation Confidential - Do Not Copy
VG712s/b
(KEYPAD)
E
GM5120
2
6
Thursday, July 10, 2003
INPUT CONNECTOR
Title
Size Document Number Rev
Date: Sheet
of
DDCSDA1
DDCSCL1
VS_DSUB
HS_DSUB
SCL_IN2
SDA_IN2
HOT_PLUG
SDA_IN1
SCL_IN1
RIN
GIN
BIN
KVOLUME+
KMUTE MUTE
MENU
SELECT
VOLUME+
DOWN
UP
VOLUMEPWR_SW
LEDG
LEDR
KSELECT
KLEDR
MUTE
MENU
SELECT
VOLUME+
DOWN
UP
VOLUMEPWR_SW
LEDG
LEDR
DVI_5V
DSUB
KMENU
KDOWN
KUP
KVOLUMEKLEDG
KPWR
ISP_SC
DVI_5V
DDCSCL2
DDCSDA2
ISP_SD SDA_IN2
SCL_IN2ISP_SC
ISP_SD
DDCSCL2
DDCSDA2
UART_D1
UART_D0
DSUB
DDCSCL1 3
DDCSDA1 3
DDCSCL2 3
HS 3
VS 3
MUTE 3
MENU 3
SELECT 3
VOLUME+ 3
DOWN 3
UP 3
VOLUME- 3
RX1+ 3
RX0+ 3
RX0- 3
RXC- 3
RX2- 3
RXC+ 3
RX2+ 3
BLUE+ 3
RED+ 3
GREEN- 3
RED- 3
PWR_SW 3
LEDG 3
LEDR 3
DVI_5V 3
DSUB 3
ISP_SDA 3
ISP_SCL 3
RX1- 3
ISP_SDA 3
ISP_SCL 3
DDCSDA2 3
UART_D1 3
UART_D0
3
GREEN+ 3
BLUE- 3
DVI_5V +5V
+5VDSUB_5V
+5V +5V
3.3V_DVDD
DVI_5V
DSUB_5V
+5V
+5V
+5V
C157
0.1u
C158
0.1u
C159
0.1u
CP14
0.1uF
1
2 7
3 6
4 5
8
R28 100R
R29 100R
C48
0.1uF
C49
0.1uF
R31
NC
R17 10K
JP5
DVI-I
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
RX2RX2+
GND
RX4RX4+
SCL
SDA
VS
RX1RX1+
GND
RX3RX3+
5V
GND
HP
RX0RX0+
GND
RX5RX5+
GND
RXC+
RXC-
RIN
GIN
BIN
HS
GND
D_SUBJP6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
RIN
GIN
BIN
NC
GND
GND
GND
GND
5V
GND
NC
SDA
HS
VS
SCL
R30
NC
JP7
HEADER 12-2.0
1
2
3
4
5
6
7
8
9
10
11
12
U6C
74LVC14
5 6
R42
100
12
3
SOT23
D2
BAV70
R15 100
U6D
74LVC14
9 8
C40
0.1u
R16 100
R14
4.7K
R123 0
U8
PCB2421A
4
81
2
3
7
6
5
GND
VCCNC
NCNCWP
SCL
SDA
12
3
SOT23
D3
BAV70
U7
24LC21A
4
81
2
3
7
6
5
GND
VCCNC
NC
NC
WP
SCL
SDA
R34
4.7K
C57
0.1uF
R35
4.7K
R13
4.7K
R43
2.2K
R20 22
R27
NC
R126 56
C41 0.01uF
C44 0.01uF
R110
100
C60
47pF
R22 22
C43 0.01uF
C46 0.01uF
R124 56
R41 33
R44
2.2K
R40 33
C59
47pF
R26
75
R25
75
R125 56
C45 0.01uF
R18 22
R24
75
C42 0.01uF
RP2
10K
432
1
567
8
RP3 1K
4
3
2
1
5
6
7
8
RP1
10K
432
1
567
8
RP4 1K
4
3
2
1
5
6
7
8
U6E
74LVC14
11 10
R32
10K
R33 0
R36 100/NC
C61
47pF
U6B
74LVC14
3 4
C192
47pF
R108 0 /NC
R109 0 /NC
R129 Bead 30R
R128
Bead 30R
R127
Bead 30R
CP13
0.1uF
1
2 7
3 6
4 5
8
R37 100
R38 100
C194
0.1u
R122 0
C196
0.1u
C195
0.1u
C190
0.1u /NC
C189
0.1u /NC
C202
0.1u
R68 0
R67 0
C156
0.1u
67
ViewSonic Corporation Confidential - Do Not Copy
VG712s/b
100pF on pin-196
E
GM5120
3
6
Thursday, July 10, 2003
Gensis Chip (Scaler) ASIC
Title
Size Document Number Rev
Date: Sheet
of
RMDATA6
RMDATA5
RMDATA2
RMDATA4
RMDATA3
RMDATA7
RMDATA0
RMDATA1
RMDATA0
RMDATA[0..7]
RMDATA7
RMDATA4
RMDATA2
RMDATA5
RMDATA6
RMDATA3
RMDATA1
ROM_OEn
FLASH_OEn
RMADDR[0..15]
/WR
RMADDR7
RMADDR5
RMADDR10
RMADDR7
RMADDR13
RMADDR6
RMADDR6
RMADDR4
RMADDR11
RMADDR10 RMADDR4
RMADDR12
RMADDR5
RMADDR13
RMADDR11
RMADDR15
RMADDR12
RMADDR15
XTAL
RMADDR1
RMADDR2
RMADDR2
RMADDR0
RMADDR0
RMADDR1
RMADDR3
RMADDR3
Bank0
RESETn
UART_D1
RMADDR8
RMADDR9
RMADDR9
RMADDR14
RMADDR14
RMADDR8
RMADDR9
RMADDR14
UART_D0
OB3
OB4
OR5
OB2
OR3
OR6
OB6
OR7
OR4
OR2
OB7
OB5
OB1
OB0
OR1
OR0
ER3
EG4
EG7
EG3
ER7
ER4
ER2
ER5
ER6
EG2
EG6
EG5
EG1
EG0
ER1
ER0
RESETn
OG2
OG4
OG7
OG5
OG6
OG1
OG0
OG3
EB2
EB7
EB0
EB5
EB4
EB6
EB3
EB1
SDA
SCL
UART_D1
UART_D0Bank0
ROM_CE
ROM_CE
WP
SDA
SCL
TCLK
DEN\
DVS\
DHS\
RMADDR8
RMADDR12
WP
DDCSCL12
DDCSDA12
PNL_EN1
BLON1
DCLK 6
GREEN+2
RX1-2
RXC+2
RX2+2
RX2-2
RED+2
GREEN-2
BLUE+2
RX0+2
VS2
RED-2
BLUE-2
RXC-2
HS2
RX1+2
RX0-2
PWR_SW 2
SDA
SCL
ISP_SCL.2
ISP_SDA2
OB[0..7] 5
OG[0..7] 5
OR[0..7] 5
EB[0..7] 5
EG[0..7] 5
ER[0..7] 5
DSUB 2
BRIGHT 1
VOLUME 4
SDA
SCL
DOWN 2
UP 2
SELECT 2
VOLUME-2
VOLUME+2
DEN 6
DVS
6
LEDR 2
LEDG 2
LVDSON6
LVDSON 6
ADO_CTRL
4
DVI_5V2
MENU 2
MUTE2
DDCSDA2 2
DDCSCL2 2
DHS 6
UART_D0 2
UART_D1
2
Fujitsu_PD 6
2.5V_VDD2.5V_VDD
3.3V_AVDD 3.3V_AVDD
3.3V_AVDD
3.3V_AVDD
3.3V_AVDD
2.5V_AVDD 2.5V_AVDD
2.5V_AVDD
3.3V_DVDD3.3V_DVDD
3.3V_DVDD
3.3V_DVDD
3.3V_AVDD
3.3V_DVDD2.5V_VDD
3.3V_DVDD3.3V_DVDD
3.3V_DVDD
3.3V_DVDD
+5V
3.3V_DVDD
3.3V_DVDD
3.3V_DVDD
+5V
R111 0
R120 NC
R121 10K
C161
0.1uF
R119
10K
R118
NC
R103 10K /NC
Q4
SST3906
R73
10K
R69
100K
R72
5.6K
C109
0.1UF
C110
0.1UF
C112
1UF/0805
R95 0
C106
NC
D13
1N4148
1 2
C77
100uF/16V
R59 10K
C162
0.1uF
R60 10K
R52 33
R53 33
R48 100 /NC
JP8
+5V 1
RXD 2
TXD 3
GND 4
Q3
2N3904
1
2
3
C90
100uF/16V
R65
10K
C111
0.1UF
R58
10K
C107
NC
R46 0 /NC
R54 0
C100
100uF/16V
C76
22pF
R47
2.2K
C101
0.1uF
TP2
TP4
R56
10K
C86
0.1uF
TP6
C89
100pF
C88
0.1uF
C71
0.1uF
C75
22pF
R45 33
C80
0.1uF
U10
24LC16B
4
81
237
6
5
GND
VCCA0
A1A2WP
SCL
SDA
C74
0.1uF
C73
0.1uF
C72
0.1uF
C81
0.1uF
U11
AT49HF/F010-45JC
3
29
28
4
25
23
26
27
5
6
7
8
9
10
11
12
21
20
19
18
17
15
14
13
24
31
32
1
16
2
30
22
A15
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0
DQ7
DQ6
DQ5
DQ4
DQ3
DQ2
DQ1
DQ0
OE
WE
VCC
NC
GND
A16
NC/A17
CE
C82
0.1uF
C62
100uF/16V
C70
0.1uF
C69
0.1uF
C68
0.1uF
R49
10K
C99
0.1uF
R50
10K
C79
0.1uF
C95
0.1uF
C94
0.1uF
R57 10K
C92
0.1uF
C91
0.1uF
X1
14.318MHz
C67
0.1uF
C66
0.1uF
C103
5pF
R61
10K
C83
0.1uF
C64
0.1uF
3.3V_A
AGND
Int_Test
U9
gm5120
PQFP208
171
170
167
166
163
162
179
180
185
186
191
192
151
152
40
41
42
43
44
45
50
51
52
118
115
117
116
195
194
174
205
204
5
4
6
7
39
201
25
24
23
22
19
18
17
16
15
8
35
34
33
32
31
30
29
28
9
10
14
12
13
11
36
155
153
165
169
161
158
157
178
22053678197111
129
2688134
203
176
113
114
175
182
184
188
190
197
198
199
150
149
148
146
144
141
139
145
140
137
136
3213854688298
112
13089133
202
135
156
154
177
183
189
147
143
138
200
159
61
62
65
66
69
70
71
72
94
93
75
76
77
78
79
80
74
73
85
86
87
90
91
92
84
83
95
96
99
100
101
102
64
63
105
106
107
108
109
110
104
103
27
131
142
132
173
181
187
193
196
164
168
172
160
60
59
58
57
56
55
37
119
120
121
122
123
124
125
126
127
49
48
128
47
46
206
207
208
1
RED+
REDGREEN+
GREENBLUE+
BLUE-
RX2+
RX2RX1+
RX1RX0+
RX0-
XTAL
TCLK
GPIO0/PWM0
GPIO1/PWM1
GPIO2/PWM2
GPIO3/TIMER1
GPIO4/UART_D1
GPIO5/UART_D0
GPIO11/ROM_WEn
GPIO12/NVRAM_SDA
GPIO13/NVRAM_SCL
DCLK
DEN
DVS
DHS
RXC-
RXC+
REXT
GPIO16/HFSn
GPIO22/HCLK
RESETn
GPIO21/IRQn
DDC_SCL
DDC_SDA
GPIO8/IRQINn
CLKOUT
ROM_ADDR0
ROM_ADDR1
ROM_ADDR2
ROM_ADDR3
ROM_ADDR4
ROM_ADDR5
ROM_ADDR6
ROM_ADDR7
ROM_ADDR8
ROM_ADDR15
ROM_DATA0
ROM_DATA1
ROM_DATA2
ROM_DATA3
ROM_DATA4
ROM_DATA5
ROM_DATA6
ROM_DATA7
ROM_ADDR14
ROM_ADDR13
ROM_ADDR9
ROM_ADDR11
ROM_ADDR10
ROM_ADDR12
ROM_OEn
VDD1_ADC_2.5
VDD2_ADC_2.5
AGND_GREEN
AGND_RED
AGND_BLUE
AGND_ADC
SGND_ADC
AGND_RX2
RVDD
RVDD
RVDD
RVDD
RVDD
RVDD
RVDD
RVDD
CVDD_2.5
CVDD_2.5
CVDD_2.5
CVDD_2.5
VDD_RX2_2.5
PPWR
PBIAS
AGND_IMB
VDD_RX1_2.5
AGND_RX1
VDD_RX0_2.5
AGND_RX0
AGND_RXC
AGND_RXPLL
VDD_RXPLL_2.5
AVDD_RPLL
AVSS_RPLL
VDD_DPLL_3.3
AVDD_SDDS
VDD_SDDS_3.3
AVDD_DDDS
VDD_DDDS_3.3
AVSS_SDDS
AVSS_DDDS
HSYNC
VSYNC
RVSS
RVSS
RVSS
RVSS
RVSS
RVSS
RVSS
RVSS
RVSS
CVSS
CVSS
CVSS
CVSS
GND1_ADC
GND2_ADC
GND_RX2
GND_RX1
GND_RX0
VSS_DPLL
VSS_SDDS
VSS_DDDS
N/C
ADC_TEST
PD6/ER6
PD7/ER7
PD10/EG2
PD11/EG3
PD12/EG4
PD13/EG5
PD14/EG6
PD15/EG7
PD33/OG1
PD32/OG0
PD18/EB2
PD19/EB3
PD20/EB4
PD21/EB5
PD22/EB6
PD23/EB7
PD17/EB1
PD16/EB0
PD26/OR2
PD27/OR3
PD28/OR4
PD29/OR5
PD30/OR6
PD31/OR7
PD25/OR1
PD24/OR0
PD34/OG2
PD35/OG3
PD36/OG4
PD37/OG5
PD38/OG6
PD39/OG7
PD9/EG1
PD8/EG0
PD42/OB2
PD43/OB3
PD44/OB4
PD45/OB5
PD46/OB6
PD47/OB7
PD41/OB1
PD40/OB0
CVSS
Reserved
N/C
Reserved
AVDD_IMB
AVDD_RX2
AVDD_RX1
AVDD_RX0
AVDD_RXC
AVDD_BLUE
AVDD_GREEN
AVDD_RED
AVDD_ADC
PD5/ER5
PD4/ER4
PD3/ER3
PD2/ER2
PD1/ER1
PD0/ER0
RVDD
GPO0
GPO1
GPO2
GPO3
GPO4
GPO5
GPO6
GPO7
TCON_RCLK
GPIO10/TCON_ROE3
GPIO9/TCON_ROE2
TCON_ROE
GPIO7/TCON_TDIV
GPIO6/TCON_SHC
GPIO20
GPIO19
GPIO18
GPIO17
C93
0.1uF
C65
0.1uF
C96
0.1uF
C78
0.1uF
C104
5pF
C84
0.1uF
C87
0.1uF
C98
0.1uF
C63
0.1uF
C85
0.1uF
C97
0.1uF
R66
0
R55 1K
1%
C108
0.1uF
R62 0/NC
R51
0
C105
0.1uF
C102
100pF
C114
10uF/16V /NC
R74
0 /NC
RP17 33
4
3
2
1
5
6
7
8
CP15
22p /NC
12736
45
8
68
ViewSonic Corporation Confidential - Do Not Copy
VG712s
/b
AUGND AUGN D AUGND
AUGND
AUGND
NC
E
GM5120
4
6
Thursday, July 10, 2003
AUDIO
Title
Size Document Number Rev
Date: Sheet
of
AAINR1
OUT_L+
VOL
ADOLIN
OUT_L-
ADORI N
OUT_R-
OUT_R+
AAINL1
AAINR1
AAINL1
OUT_R-
OUT_L+
OUT_LOUT_R+
VDO_PWR
VOLUME 3
ADO_CTRL3
+5V
+12V
C187 0.1uF
C185 0.1uF
C188 0.1uF
C197
0.1u
C164
0.01uF
C163
0.01uF
R96 0
R97 0
C123
1000uF/16V
C115 1uF
R79 7.87K 1%
L21 BEAD-600
L20 BEAD-600
R77 1K
C118
100uF/16V
L16 22uH
JP10
4 HE ADER
1
2
3
4
L15 BEAD
U12
AN7522
1234567891011
12
L18 BEAD
R81
2.2K
R75 1K
C119
100pF /NC
C122
0.01uF
L17 BEAD
R78 7.87K 1%
R80
33K
C117
1uF
C116 1uF
JP9
PHONEJACK
1
2
3
4
5
C121
10uF/16V
L19 BEAD
R76 68K
C120
100pF /NC
R82
2.2K
R105 0
JP16
2*4 (BD/BD)F emale
1
2
3
4
5
6
7
8
C186 0.1uF
C170
1000uF/16V
69
ViewSonic Corporation Confidential - Do Not Copy
VG712s/b
Select LVDS MAPPIN G
EX:RP5~RP16 for 0,1,2,3,4,5,6,7
EX:RP18~RP29 for 2,3,4,5,6,7,0,1
AUO 17",19" Samsung 17",19" CHI MEI 19"
Fujitsu 19"-10
Fujitsu 19" FLC48SXC8V-05/-10
E
GM5120
5
6
Thursday, July 10, 2003
OUTPUT INTERFACE
Title
Size Document Number Rev
Date: Sheet
of
OB0
OB2
OG5
OB4
OG4
OB1
OB3
OG6
OG7
OR4
OR7
OR5
OR6
OR1
OR0
OR2
OR3
EB4
EB7
EB5
EB6
OB7
OB6
OB5
DBO4
DBO7
DBO5
DBO6
DBO2
DBO3
ER5
ER4
ER7
ER6
EG6
EG4
EG5
EG7
EG1
EG0
EG3
EG2
DBE[0..7]
DGE[0..7]
DRE[0..7]
DBO[0..7]
DRO[0..7]
DGE7
DBO0
DGO7
DGE1
DGE5
DBO1
DGE6
DRE7
DGO6
DRE4
DGO[0..7]
DGE3
DRE6
DGO4
DGO5 DRE5
DGE4
DGE2
DGE0
OG0
OG3
OG1
OG2 DGO2
DGO0
DGO1
DGO3
EB0
EB3
EB1
EB2
ER0
ER3
ER1
ER2 DRE2
DRE0
DRE1
DRE3
OB2
OB3
OB4
OB5
OB7
OB6
OB0
OB1
EB[0..7]
EG[0..7]
OB[0..7]
OG[0..7]
ER[0..7]
OR[0..7]
OG4
OG5
OG2
OG3
OG6
OG7
OG1
OG0
EB2
EB3
EB5
EB4
EB6
EB7
EB0
EB1
OR5
OR4
OR2
OR3
OR6
OR7
OR1
OR0
EG3
EG2
EG4
EG5
EG6
EG7
EG1
EG0
ER5
ER4
ER3
ER2
ER6
ER7
ER0
ER1
DRE0
DRE1
DRE2
DRE3
DRE4
DRE5
DRE6
DRE7
DGE0
DGE1
DGE3
DGE2
DGE5
DGE6
DGE7
DGE4
DRO7
DRO6
DRO5
DRO4
DRO7
DRO4
DRO3
DRO2
DRO0
DRO6
DRO2
DRO0
DRO1
DRO3
DRO5
DRO1
DBE5
DBE6
DBE1
DBE4
DBE2
DBE5
DBE6
DBE7
DBE0
DBE7
DBE3
DBE4
DBE2
DBE1
DBE3
DBE0
DGO1
DGO2
DGO3
DGO0
DGO6
DGO7
DGO4
DGO5
DBO7
DBO4
DBO6
DBO5
DBO2
DBO1
DBO3
DBO0
DRO[0..7] 6
DGO[0..7] 6
DBO[0..7] 6
DRE[0..7] 6
DGE[0..7] 6
DBE[0..7] 6
OG[0..7]3
OR[0..7]3
EB[0..7]3
EG[0..7]3
ER[0..7]3
OB[0..7]3
RP20
R-PACK4
1 8
2 7
3 6
4 5
RP19
R-PACK4
1 8
2 7
3 6
4 5
RP18
R-PACK4
1 8
2 7
3 6
4 5
RP24
R-PACK4
1 8
2 7
3 6
4 5
RP23
R-PACK4
1 8
2 7
3 6
4 5
RP29
R-PACK4
1 8
2 7
3 6
4 5
RP28
R-PACK4
1 8
2 7
3 6
4 5
RP27
R-PACK4
1 8
2 7
3 6
4 5
RP26
R-PACK4
1 8
2 7
3 6
4 5
RP25
R-PACK4
1 8
2 7
3 6
4 5
RP22
R-PACK4
1 8
2 7
3 6
4 5
RP21
R-PACK4
1 8
2 7
3 6
4 5
RP9
100X4
1 8
2 7
3 6
4 5
RP12
100X4
1 8
2 7
3 6
4 5
RP5
100X4
1 8
2 7
3 6
4 5
RP7
100X4
1 8
2 7
3 6
4 5
RP8
100X4
1 8
2 7
3 6
4 5
RP10
100X4
1 8
2 7
3 6
4 5
RP11
100X4
1 8
2 7
3 6
4 5
RP6
100X4
1 8
2 7
3 6
4 5
CP2
NC
12736
45
8
RP13
100X4
1 8
2 7
3 6
4 5
CP5
NC
12736
45
8
CP7
NC
12736
45
8
CP10
NC
12736
45
8
RP14
100X4
1 8
2 7
3 6
4 5
CP4
NC
12736
45
8
CP1
NC
12736
45
8
CP11
NC
12736
45
8
RP15
100X4
1 8
2 7
3 6
4 5
CP6
NC
12736
45
8
CP8
NC
12736
45
8
RP16
100X4
1 8
2 7
3 6
4 5
CP12
NC
12736
45
8
CP3
NC
12736
45
8
CP9
NC
12736
45
8
70
ViewSonic Corporation Confidential - Do Not Copy
VG712s/b
For Fujitst Panel select Lvds mappin g
E
GM5120
6
6
Thursday, July 10, 2003
LVDS & OUTPUT CONNECTOR
Title
Size Document Number Rev
Date: Sheet
of
Vcont
RxEIN1-
DRO3
DGO7
DBO0
DGO2
DRO7
DCLKA
DEN
RxOIN0+
RxEIN0+
DGO5
DGE7
DBO1
DBE6
RxOCLKIN+
DGE2
DGE6
RxOIN2- RxOIN1-
RxOIN2-
PLV1
DRE3
DBE4
DGO0
DBE7
DBO6
DEN
RxEIN2-
DHS
DBE6
DBE0
DGE1
DBO2
RxOIN1+
DRO1
RxOCLKIN+
RxOIN0+
DBO7
DGO2
DBO5
DBO1
DBE3
DRO0
RxOIN2+
RxOIN0-
Vcont
DGE5
DGE3
RxEIN1+
DGE0
RxOIN3-
Fujitsu_PD DCLKB
DRE5
DGE7
DRE3
DRO2
DRE2
DRO1
DBO3
DVS
RxEIN2+
DGO5
RxOIN2+
RxEIN2+
RxOIN0-
RxECLKIN+
DBO4
DRE2
DRO3
DRO2
DRO4
DRE6
DBE5
DBE1
RxEIN3+
DVS
DGO0
DGE0
DBE1
DCLKA
DGO4
DGO1
DGE1
DBE2
DRE0
RxOIN1+
DVS
DHS
RxEIN0-
DBO7
RxEIN3+
DEN
RxEIN1+
RxOIN3+
DGO4
DBO6
DBO3
DGE3
DBE7
DGE4
DRO0
DGO1
RxOCLKIN-
DGE4
RxECLKIN-
DRO6
RxEIN0-
RxEIN3-
DRO7
DRE4
DRO4
DRE0
DGO6
RxEIN2-
DRO5
DBE0
Fujitsu_PD
DGO6
DBE2
DBO0
DRE4
RxEIN0+
DBO4
RxECLKIN-
DEN
DGO3
DGE2
DRE7
DGO3
RxOIN1-
DRE1
DHS
DGO7
DGE5
RxOIN3-
RxOCLKIN-
DBE4
DRO6
DBE5
RxECLKIN+
DRE6
DBE3
DGE6
DBO2
DRO5
DRE7
DRE1
DRE5
RxEIN3-
RxOIN3+
DBO5
RxEIN1-
DCLKB
DCLKA
DGO[0..7]5
DVS3
DGE[0..7]5
DHS3
LVDSON3
DEN3
LVDSON3
DRE[0..7]5
DCLK3
DBE[0..7]5
DBO[0..7]5
DRO[0..7]5
Fujitsu_PD
+3.3VL
+3.3VL
+3.3VD
+3.3VL
+3.3VL
+3.3VL
+3.3VL
+3.3VL
+3.3VL
+3.3VL
+3.3VL
+3.3VL
+3.3VL
+3.3VL
+3.3VL
+3.3VL
+3.3VL
VPL
VPL
C169
0.1uF
C165
100pF
C170
100uF/16V
C166
100pF
R92
0R
C136
0.1uF
R84
10K
+C124
10uF/16V
C125
0.1uF
JP11
HEADER 30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
R86
NC
R90
4.7K
R91
NC
C132
0.1uF
C133
0.1uF
C138 0.1uF
C137
0.1uF
C134 0.1uF
C139
0.1uF
U13
DS90CF383
1
2
3
4
6
5
13
21
7
8
9
17
10
11
12
14
15
16
18
19
20
22
23
24
25
27
28
30
26
51
52
54
55
56
53
29
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
VCC
TxIN5
TxIN6
TxIN7
TxIN8
GND
GND
GND
TxIN9
TxIN10
VCC
VCC
TxIN11
TxIN12
TxIN13
TxIN14
TxIN15
TxIN16
TxIN17
TxIN18
TxIN19
TxIN20
TxIN21
TxIN22
TxIN23
TxIN24
TxIN25
TxIN26
VCC
TxIN0
TxIN1
TxIN2
TxIN3
TxIN4
GND
GND
TxCLKIN
/PWRDWN
PLLGND
PLLVCC
PLLGND
LVDSGND
TxOUT3+
TxOUT3-
TxCLKOUT+
TxCLKOUT-
TxOUT2+
TxOUT2-
LVDSGND
LVDSVCC
TxOUT1+
TxOUT1-
TxOUT0+
TxOUT0-
LVDSGND
TxIN27
U14
DS90CF383
1
2
3
4
6
5
13
21
7
8
9
17
10
11
12
14
15
16
18
19
20
22
23
24
25
27
28
30
26
51
52
54
55
56
53
29
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
VCC
TxIN5
TxIN6
TxIN7
TxIN8
GND
GND
GND
TxIN9
TxIN10
VCC
VCC
TxIN11
TxIN12
TxIN13
TxIN14
TxIN15
TxIN16
TxIN17
TxIN18
TxIN19
TxIN20
TxIN21
TxIN22
TxIN23
TxIN24
TxIN25
TxIN26
VCC
TxIN0
TxIN1
TxIN2
TxIN3
TxIN4
GND
GND
TxCLKIN
/PWRDWN
PLLGND
PLLVCC
PLLGND
LVDSGND
TxOUT3+
TxOUT3-
TxCLKOUT+
TxCLKOUT-
TxOUT2+
TxOUT2-
LVDSGND
LVDSVCC
TxOUT1+
TxOUT1-
TxOUT0+
TxOUT0-
LVDSGND
TxIN27
R83
NC
L22
Bead /1206
C131
0.1uF
C127
0.1uF
C167
100pF
C168
100pF
C130 0.1uF
C129
0.1uF
C128 0.1uF
C126
0.1uF
R88 0R
R87
NC
R89
4.7K
C135
0.1uF
R85 0R
JP12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
4140
39
38
37
36
71
72
73
74
75
76
77
78
79
80
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
4140
39
38
37
36
71
72
73
74
75
76
77
78
79
80
C171
0.1uF
C203
0.1uF
C172
0.1uF
C174
100uF/16V
C175
0.1uF
C176
0.1uF
C173
0.1uF
R98 0
R99
NC
71
ViewSonic Corporation Confidential - Do Not Copy
VG712s/b
11. PCB Layout Diagrams
72
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
*Readers Response*
Dear Readers:
Thank you in advance for your feedback on our Service Manual,which allows continuous improvement
of our products. We would appreciate your completion of the Assessment Matrix below, for return to
ViewSonic Corporation.
Assessment
B.Are you satisfied with the VG712s/b service manual?
C.Do you have any other opinion or suggestion about this service manual?
Readers basic data:
After completing this form, please return it to ViewSonic Quality Assurance
A.What do you think about the content after reading VG712s/b Service Manual?
metI tnellecxE dooG riaF daB
.1
.2
.3
tinU riaF daB
in the USA at facsimile
1-909-839-7943.
You may also e-mail any suggestions to the Director, Quality Systems & Processes
(marc.maupin@viewsonic.com)
dooGtnellecxE
Precautions And Safety Notices
1.
8. Exploded Diagram and Spare Parts List
7. Recommended Spare Parts List
Adjusting Procedure
2. Specification
5.
4. Circuit Description
3.
6. Trouble Shooting Flow Chart
Front Panel Function Control Description
9. Block Diagram
10. Schematic Diagrams
11. PCB Layout Diagrams
Service Manual Content
Service Manual Layout
The form and listing
Name: Title:
Company:
Add.:
Tel:
E-mail:
Fax:
73
ViewSonic Corporation Confidential
-
Do Not Copy VG712s/b
Loading...
