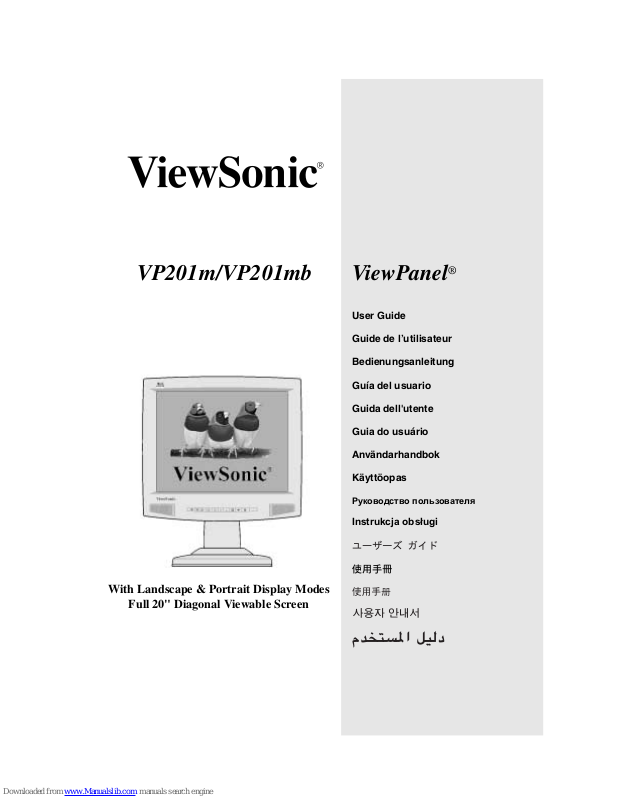

ViewSonic ViewPanel VP201m, ViewPanel VP201mb User Manual

VP201m/VP201mb ViewPanel

User Guide

Guide de l’utilisateur

Bedienungsanleitung

Guía del usuario

Guida dell'utente

Guia do usuário

Användarhandbok

Käyttöopas

Ɋɭɤɨɜɨɞɫɬɜɨ ɩɨɥɶɡɨɜɚɬɟɥɹ

Instrukcja obsáugi

®

With Landscape & Portrait Display Modes

Full 20" Diagonal Viewable Screen

Contents

Product Registration ..............................................................2

For Your Records .................................................................. 2

Getting Started

Package Contents ................................................................. 3

Precautions ...........................................................................3

Quick Installation ................................................................... 4

Landscape/Portrait Modes ....................................................5

To Raise and Lower the display ............................................ 5

Installation of Wall Mount (Optional) .....................................6

Using the ViewPanel

Setting the Timing Mode .......................................................7

OSD Lock Mode ....................................................................7

Adjusting the Screen Image ..................................................8

Other Information

Specifications ......................................................................13

Troubleshooting................................................................... 14

Customer Support ...............................................................15

Cleaning the ViewPanel ......................................................16

Limited Warranty .................................................................17

Appendix

Safety Guidelines ................................................................18

Compliance Information ...................................................... 19

CE Conformity.....................................................................19

08/01/02 A

ViewSonic VP201m/VP201mb 1

Copyright©ViewSonicCorporation,2002.Allrightsreserved.

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft
Corporation in the United States and other countries.

Perfect Portrait is a trademark of Portrait Display Labs.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of
ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC
are trademarks of VESA.

NERGYSTAR

E

As an E
E

NERGY STAR

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions
contained herein; nor for incidental or consequential damages resulting from furnishing this mate-

®

is a registered trademark of the U.S. Environmental Protection Agency (EPA).

NERGYSTAR

®

partner, ViewSonic Corporation has determined that this product meets the

®

guidelines for energy efficiency.

rial, or the performance or use of this product.

In the interest of continuing product improvement,ViewSonic Corporation reserves the right to
change product specifications without notice. Information in this document may change without
notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose
without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes available,
please register your product on the Internet at: www.viewsonic.com. The ViewSonic Wizard CD-
ROM also provides an opportunity for you to print the registration form which you may mail or fax
to ViewSonic.

For Your Records

Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:

ViewSonic VP201m/VP201mb
VLCDS22720-1/1b

A-CD-VP201m/mb-1

______________
______________

Product disposal at end of product life

ViewSonic is concerned about the preservation of our environment. Please dispose of this product
properly at the end of its useful life. Your local waste disposal company may provide information
about proper disposal.

ViewSonicVP201m/VP201mb2

Getting Started

Congratulations on your purchase of a VP201m/VP201mb color ViewPanel®.

Important! Save the original box and all packing material for future shipping
needs.

NOTE:

The word “Windows” in this user guide refers to the following Microsoft
operating systems: Windows ‘95, Windows NT, Windows ‘98, Windows 2000
and Windows Me (Millennium).

Package Contents

Yo u r VP201m/VP201mb package includes:

• VP201m/VP201mb ViewPanel

• Standard DB-15 pin analog VGA video cable

• DVI-D video cable (DVI-D requires a DVI-D video card in your computer)

• Audio cable

• U.S. power cord

• Schuko power cord

• Quick Start Guide

• ViewSonic Wizard CD-ROM (including user guide PDF file and INF/ICM

display optimization files). (

Perfect Portrait

Note:

must be installed to use the ViewPanel in portrait mode.)

IMPORTANT:

The supplied INF file assures compatibility with Windows
operating systems, and the ICM file (Integrated Color Management) assures
accurate on-screen colors.

TM

software on CD-ROM

Precautions

• For best viewing conditions sit at least 18"
from the ViewPanel.

• AVOID TOUCHING THE SCREEN WITH
YOUR FINGERS. Oils from the skin are
difficult to remove.

• NEVER REMOVE THE REAR COVER. The
ViewPanel contains high-voltage parts. You
may suffer serious injury if you touch these
parts.

• Avoid exposing the ViewPanel to direct
sunlight or another heat source including an
open flame. The ViewPanel should be facing
away from direct sunlight to reduce glare.

• Always handle your ViewPanel with care
when moving it.

• Place your ViewPanel in a well ventilated
area. Do not place anything on the ViewPanel
that prevents adequate dissipation of heat.

• Ensure the area around the ViewPanel is clean
and free of moisture.

• Do not place heavy objects on theViewPanel,
video cable, or power cord.

• If smoke, abnormal noise, or strange odor is
present, immediately switch the ViewPanel
offandcallyourdealerorViewSonic.Itis
dangerous to continue using the ViewPanel.

ViewSonicVP201m/VP201mb3

Quick Installation

1 Connect video cable

Make sure both the ViewPanel®and
computer are powered OFF.

Connect the VGA analog video cable to the
computer then to the ViewPanel. Both
analog and digital (DVI-D) ports are
available on the back of the ViewPanel for
your convenience. The DVI-D cable
requires a DVI-D video card in your
computer.

Macintosh users: Models older than G3
require a Macintosh adapter. Attach the
adapter to the computer and plug the video
cable into the adapter.

To order a ViewSonic
contact ViewSonic Customer Support.

®

Macintosh adapter,

2a Connect power cord

Connect the power cord from the ViewPanel
to a properly grounded AC outlet.

2b Optional - Connect audio cable

Connect the supplied audio cable to the
Audio Out port on your computer sound
card.

3 Power-ON ViewPanel and

computer

Power-ON the ViewPanel, then power-ON
the computer. This sequence (ViewPanel
before computer) is very important.

NOTE: Windows 95, 98 or 2000 users may
receive a message asking them to install the
VP201m/VP201mb INF file.

4 Install display optimization files

(INF and ICM files)

(1) Insert theViewSonic Wizard CD-ROM
into your computer’s CD-ROM drive.

NOTE: If your computer does not have a
CD-ROM drive, see Customer Support in
this user guide.

(2) Wait for the CD-ROM to auto-start.

NOTE: If the CD-ROM does not auto­start: double-click on the CD-ROM icon in
the Windows Explorer, then double-click
on install.exe.

(3) Follow the on-screen instructions.

5 Windows users: Set the timing

mode (resolution and refresh
rate)

Example: 1600 X 1200 @ 60 Hz.

For instructions on changing the resolution
and refresh rate, see the user guide for your
computer's graphics card.

Installation is complete. Enjoy your new
VP201m/VP201mb ViewPanel.

To be best prepared for any future customer
service needs: print this user guide and
write the serial number in "For Your
Records" on page 2. (See back of
ViewPa nel.)

To register your product go online to
www.viewsonic.com.

The ViewSonic Wizard CD-ROM also
provides an opportunity for you to print the
registration form which you may mail or
fax to ViewSonic.

DV I- D

(optional)

VGA analog
video cable

Audio

Powe r

VGA video cable

Power co rd

Audio
cable

AC outlet

Power cable to computer

ViewSonicVP201m/VP201mb4

Landscape/Portrait Modes

The VP201m/VP201mb ViewPanel can operate in either Landscape or Portrait
mode. Follow the instructions that accompany the Perfect Portrait software.

Note: Before using the portrait
display mode, first install the Perfect

TM

software included with

Landscape

Por t rai t

Portrait
your VP201m/VP201mb ViewPanel.

Perfect Portrait software is
compatible with most PCI and AGP
graphics (video) cards.

For information about compatible
graphics cards and approved
hardware configurations, go to the
ViewSonic website, http://

www.viewsonic.com

To switch from Landscape (default) to Portrait mode, do the following:

From the front, gently raise the ViewPanel to allow more clearance.

1

Pull the bottom of the ViewPanel outward and away from the base.

2

Manually rotate the VP201m/VP201mb clockwise 90 degrees as shown

3

above.

To Raise and Lower the display

You can easily raise and lower the display panel (the head) manually. As you
face the front of the display, take hold of each side of the head and pull up or
down. The panel should move easily.

ViewSonicVP201m/VP201mb5

Installation of Wall Mount (Optional)

To obtain a wall-mounting kit, contact ViewSonic or your local dealer. Refer to
the instructions that come with the base mounting kit.To convert your
ViewPanel from a desk-mounted to a wall-mounted display, do the following:

Disconnect Power.

1

Lay the ViewPanel face down on

2

a towel or blanket.
Pull the back plate away from the

3

head of the ViewPanel. Let the
plate hang on the neck of the
ViewPanel as shown on the left.
Notice the four screws.
Remove the four screws from the

4

Remove
four

screws

back plate.
Attach the mounting bracket

5

from the VESA compatible wall­mounting kit (100 m x 100 m
distance).
Attach the ViewPanel to the wall,

6

following the instructions in the
wall-mounting kit.

ViewSonicVP201m/VP201mb6

Using the ViewPanel

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the screen
image and minimizing eye strain. The
(example 1600 x 1200) and
Hz). After setting the timing mode, use the OnView
adjust the screen image.

refresh rate

timing mode

(or vertical frequency--example 60

consists of the

®

controls (pages 9 - 13) to

resolution

For the best picture quality set your ViewPanel

VESA 1600 x 1200 @ 60 Hz.

To set the Timing Mode:

Set the resolution: Right-click on the Windows®desktop >

1

Settings

the resolution.
Set the refresh rate: See your graphic card's user guide for instructions.

2

WARNING:

maximum refresh rate of 75 Hz @1280 x 1024 and lower resolutions. Do not
exceed 1600 x 1200 @ 60 Hz; doing so may result in permanent damage to your
ViewPa nel.

> Desktop Area or Screen Area for Windows 98 and newer > set

Do not set the graphics card in your computer to exceed the

®

timing mode to:

Properties

>

OSD Lock Mode

This mode locks all current control settings and prevents access to the control
menus until this mode is unlocked.

• To lock all OSD menus, press and hold both the [1] button and the
arrow) button for 10 seconds. While in this mode, when any button is pushed,
OSD Locked will display for five seconds.

• To unlock the OSD menus, press and hold both the [1] button and the
arrow) button for 10 seconds.

(up-

▲

(up-

▲

ViewSonicVP201m/VP201mb7

Adjusting the Screen Image

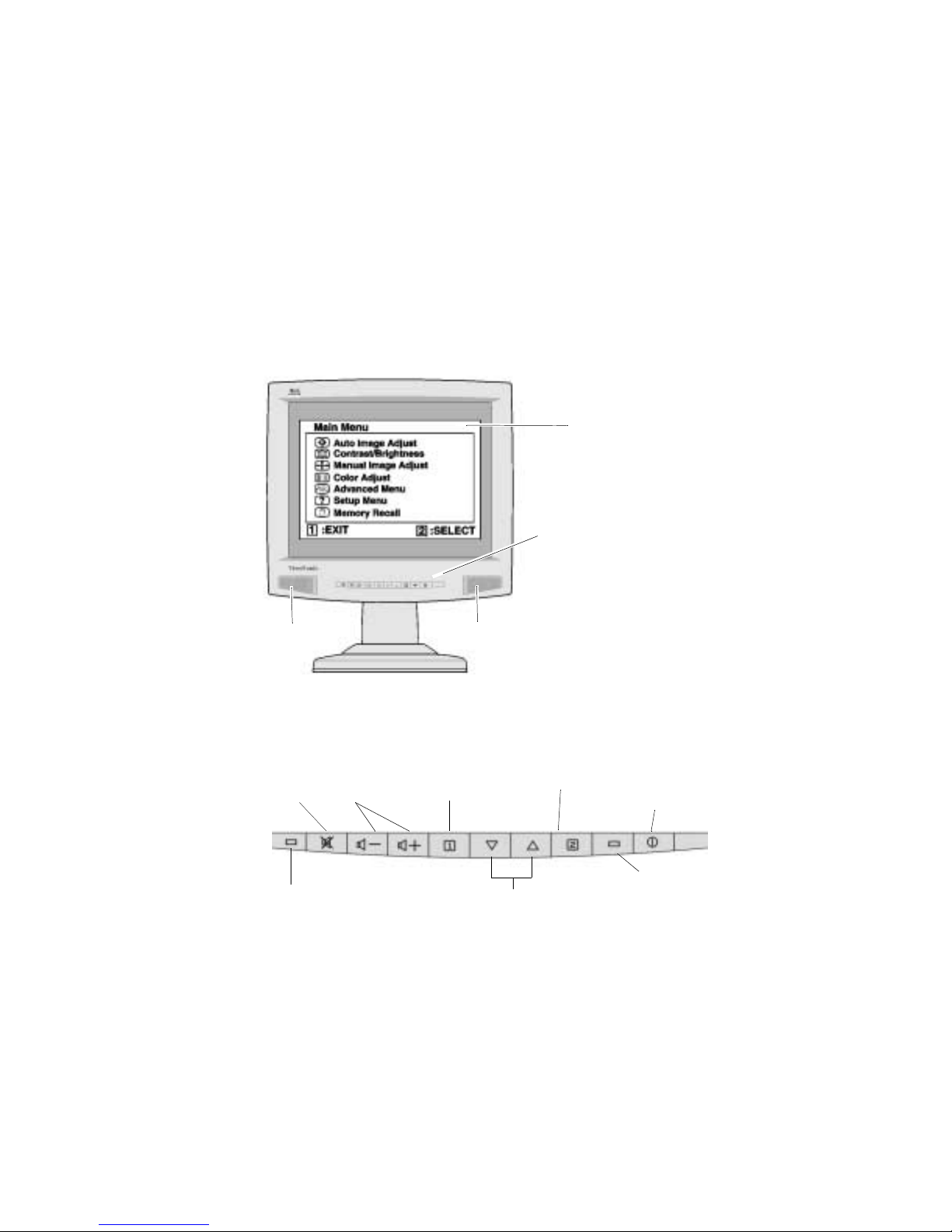

Use the buttons on the front control panel to display and adjust the OnView

®

controls from ViewSonic®. The controls are explained in the steps at the top of
the next page and are further explained in the menu controls on the next few
pages.

Main Menu with
OnView controls.

Front Control Panel
shown below

Speaker

Mutes
Sound
(on/off)

Decreases
or
Increases
Volu me

Displays Main Menu
or exits control screen
and saves settings.

Speaker

Displays control screen for
highlighted control (or pair
of controls). Also, toggles
between two controls, on
some screens.

Shortcut to toggle between
analog and digital
connections.

Pow er O n/ Off

Mute Light

Scrolls through options and also
increases or decreases a value.

Shortcut to display the Contrast
adjustment screen.

ViewSonicVP201m/VP201mb8

Powe r Ligh t
Green=ON
Orange=Power

Saving

Do the following to adjust the screen image:

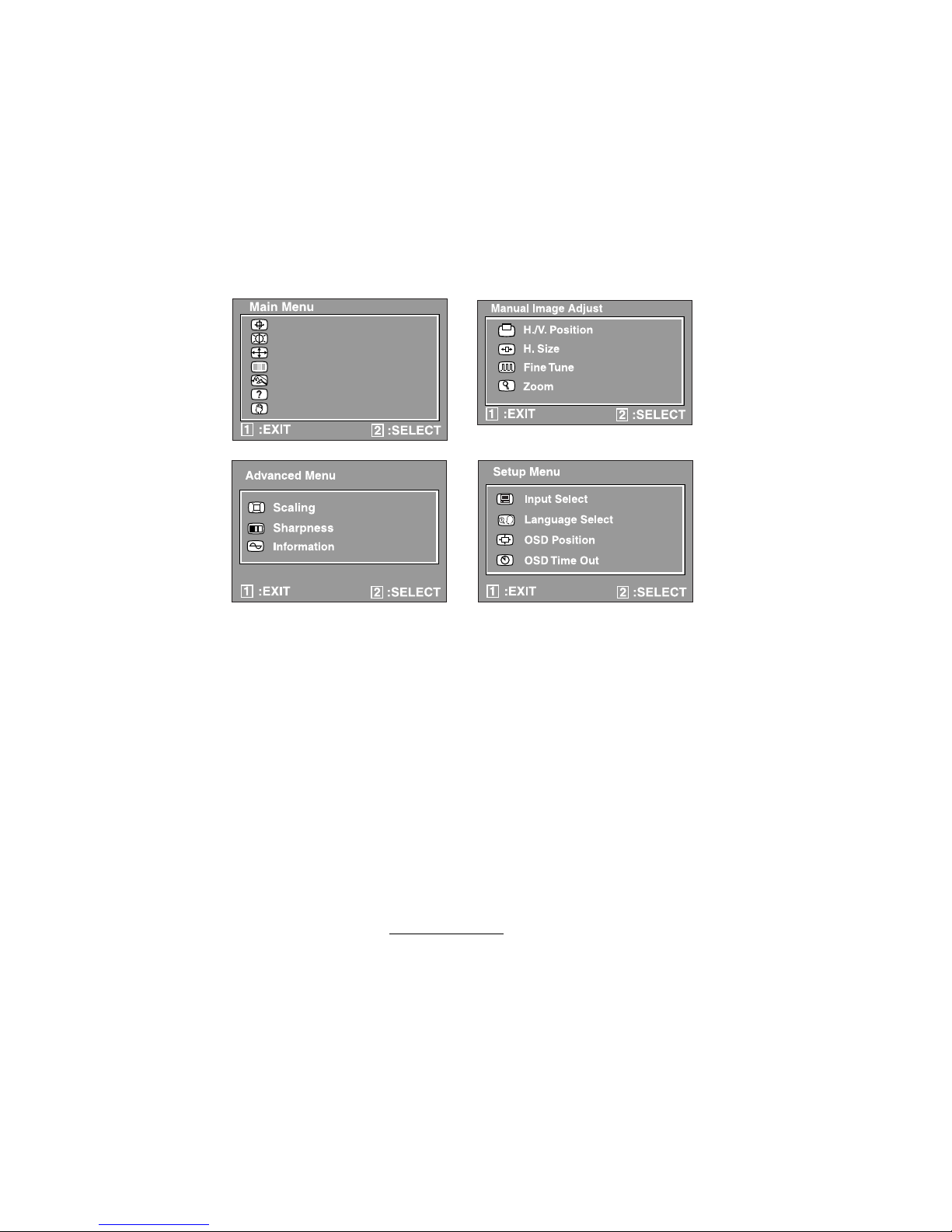

To display the Main Menu, press button [1]. From the Main Menu you can

1

also navigate to the other menus shown below:

Auto Image Adjust
Contrast/Brightness

Manual Image Adjust
Color Adjust

Advanced Menu
Setup Menu
Memory Recall

NOTE:

All OnView menus and adjustment screens disappear automatically
after about 10 seconds (default). This time can be changed on the OSD Time
Out menu.

To highlight a control you want to adjust, press▲or▼to scroll up or down

2

the Main Menu.

3 To select the highlighted control, press button [2].
4 To adjust the selected control, press the up
5 To save the adjustments and exit the menu, press button [1] twice.

or down▼buttons.

▲

The following tips may help you optimize your display:

• Adjust your computer's graphic card so that it outputs a video signal 1600 x

1200 @ 60Hz to the VP201m/VP201mb. (Look for instructions on "changing
the refresh rate" in your graphic card's user guide.)

• If necessary, make small adjustments using H POSITION and V POSITION

until the screen image is completely visible

. (The black border around the
edge of the screen should barely touch the illuminated "active area" of the
ViewPa nel

®

.)

• Adjust Fine Tune so that the screen image looks focused, crisp, and sharp.

ViewSonicVP201m/VP201mb9

Main Menu Controls

The menu items shown below can be adjusted by using the up
buttons.

Control Explanation

Auto Image Adjust

automatically sizes, centers, and fine tunes

the video signal to eliminate waviness and distortion.
Press the [2] button to obtain a sharper image.

NOTE:

Auto Image Adjust works with most common video
cards. If this function does not work on your ViewPanel
lower the video refresh rate to 60 Hz and set the resolution to its
pre-set value.

NOTE:

Contrast/Brightness

Not available for digital mode.

Contrast adjusts the difference between
the image background (black level) and the foreground (white
level). Brightness adjusts background black level of the screen
image. Press button [2] to toggle between Contrast and
Brightness.

Manual Image Adjust

brings up the Image Adjust controls

explained below.

H./V. Position

adjusts horizontal and vertical position of the
screen image. You can toggle between Horizontal and Vertical
by pressing button [2]. Horizontal
left or to the right. Vertical

NOTE:

Not available for digital mode.

moves the screen image to the

moves the screen image up and down.

and down

▲

®

,then

▼

H. Size adjusts the width of the screen image.

NOTE:

Fine Tune

Not available for digital mode.

Eliminates any remaining video artifacts (noise,

banding, out-of-phase, etc.)

NOTE:
NOTE:

Zoom

Try Auto Image Adjust first.
Not available for digital mode.

expands and contracts the entire screen image.

ViewSonicVP201m/VP201mb10

Control Explanation

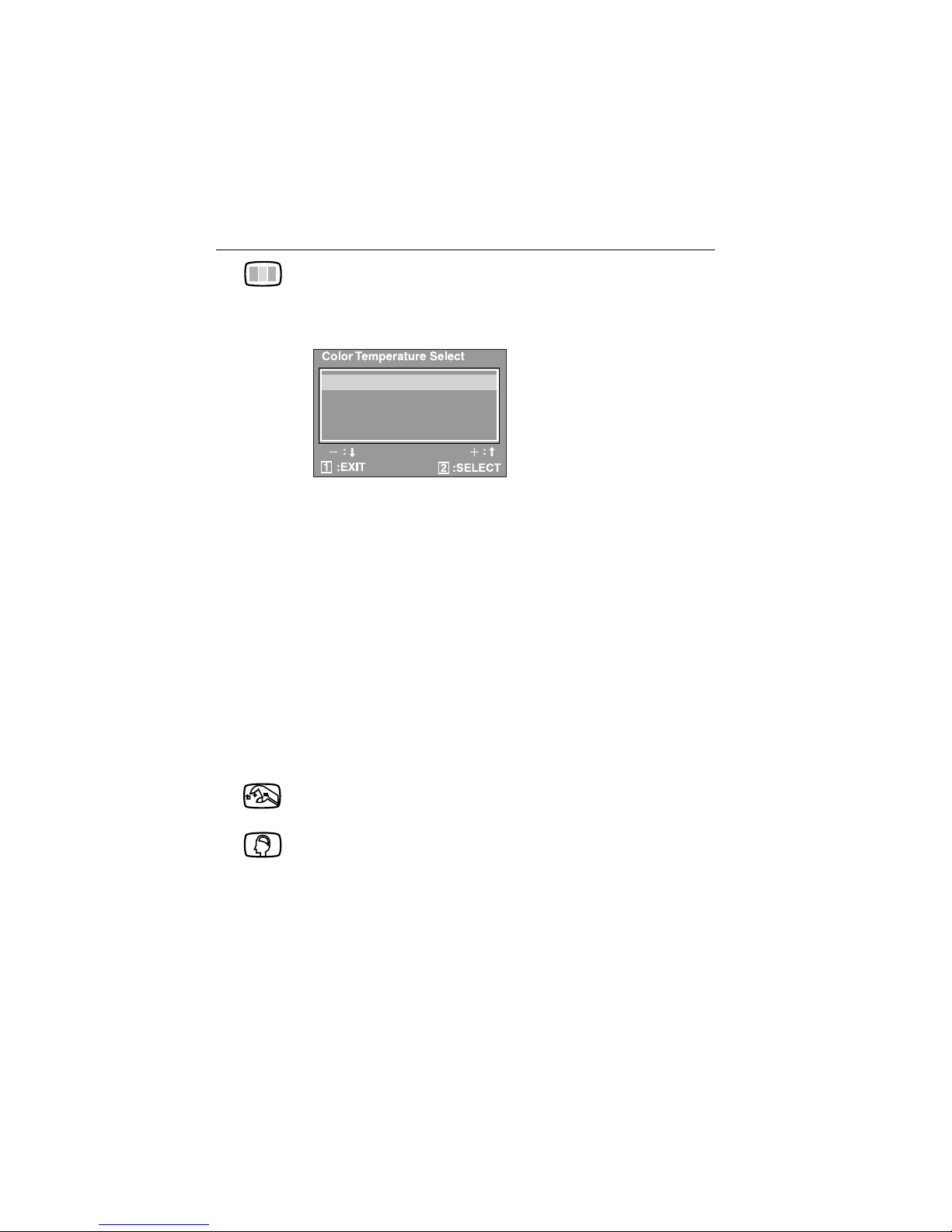

Color Adjust

provides two color adjustment modes: Color
Temperature Select as shown below and User Color. Color
Temperature Select allows you to choose a preset color
temperature. User Color allows you to make individual
adjustments for red, green, and blue (RGB).

9300K

6500K
5400K
5000K

9300K — Adds blue to the screen image for cooler white (used

in most office settings with fluorescent lighting).

6500K — Adds red to the screen image for warmer white and
richer red.

5400K — Adds green to the screen image for a darker color.

5000K — Adds blue and green to the screen image for a darker

color.

RGB — Individual adjustments for red, green, and blue.

1 Toselectcolor(R,GorB)pressbutton[2].
2 To adjust selected color, press

▲or▼

.

When you are finished making all color adjustments, press
button [1] twice.

Advanced Menu brings up the Advanced Menu controls

explained below.

Memory Recall

returns adjustments to the original factory
settings if the display is operating in a factory Preset Timing
Mode listed in this user guide.

Exception: This control does not affect changes made with the
User Color control.

ViewSonicVP201m/VP201mb11

Control Explanation

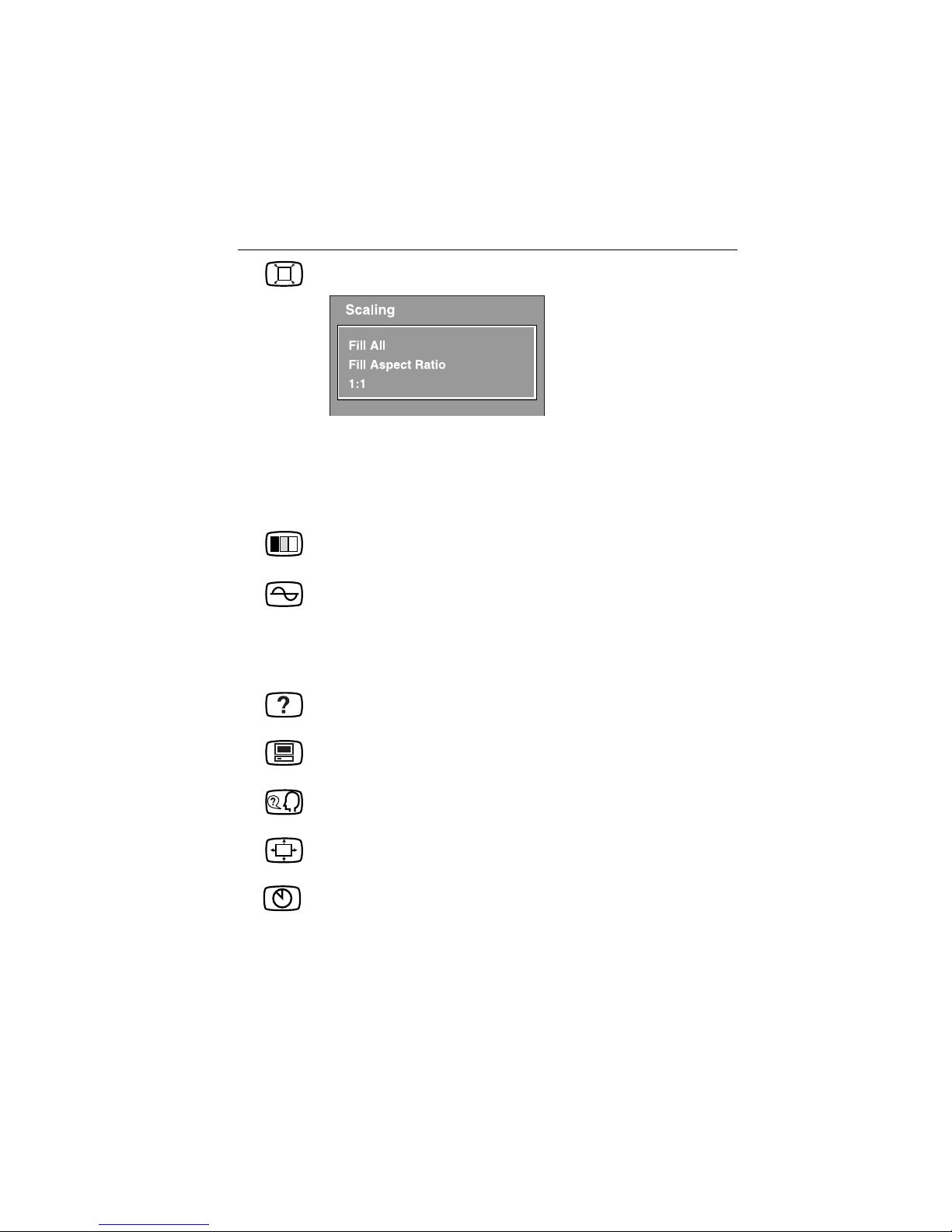

Scaling

adjusts the video input signal to the screen size using

the listed options.

will stretch the image to fill the full screen.

Fill All
Fill Aspect Ratio

will stretch the image to fill one direction,

while maintaining the aspect ratio.

will show the exact resolution of your video card setting,

1:1

centered on your screen.

Sharpness

Information

adjusts the clarity and focus of the screen image.

option displays the timing mode (video signal

input) coming from the graphics card in your computer. See your
graphic card’s user guide for instructions on changing the
resolution and refresh rate (vertical frequency).

NOTE:

VESA 1600 x 1200 @ 60Hz (recommended) means that

the resolution is 1600 x 1200 and the refresh rate is 60 Hertz.

Setup Menu

brings up the Setup Menu controls explained

below.

Input Select allows you to toggle between two input signals:

analog and digital.

Language Select allows you to choose the language used in the

menus and control screens.

OSD Position

allows you to move the on-screen display menus

and control screens.

OSD Time Out

sets the length of time the on-screen display
screen is displayed. For example, with a “15 second” setting, if a
control is not pushed within 15 seconds, the display screen
disappears.

ViewSonicVP201m/VP201mb12

Other Information

Specifications

LCD

Input signal

Compatibility

Resolutions

(Recommended
and Supported)

Power

Display area

Operating
conditions

Storage
conditions

Dimensions

Weight

Regulations

Power savin g
modes

Ty p e

Color Filter
Protective shield

Video Sync RGB analog (0.7/1.0 Vp-p, 75 ohms),

PC
Macintosh

1600 x 1200 @ 60 Hz 720 x 400 @ 70 Hz
1280 x 1024 @ 60, 75 Hz 640 x 350 @ 70 Hz
1024 x 768 @ 60, 70, 72, 75Hz 640 x 480 @ 60, 75 Hz
832 x 624 @ 75 Hz 640 x 400 @ 70 Hz
800 x 600 @ 56, 60, 72, 75, Hz

Vol ta ge
Powe r

Consumption

Full Scan 408 mm (H) x 306 mm (V)

Temperature
Humidity
Altitude

Temperature
Humidity
Altitude

Physical
(ViewPanel

Net (ViewPanel
only)

UL, FCC-B,
TCO99 (VP201m) and TCO95 (VP201mb), NEMKO, SEMKO, DEMKO, FIMKO,
BSMI, PSB, C-TICK, VCCI, GOST-R, PCBC

On Normal (green LED)
Active Off <3W (orange LED)

1

®

20" full viewable diagonal area,
TFT (Thin Film Transistor), Active Matrix UXGA LCD,
RGB vertical stripe
Anti-Glare and Anti-Reflective

digital DVI-D (TMDS, 100 0hms)
Composite Sync, Separate Sync, Sync on Green

:30-82 kHz, fv:50-75 Hz

f

h

Up to 1600 x 1200 Non-interlaced
Power Macintosh up to 1600 x 1200

100-240 VAC, 50/60 Hz (auto switch)

80W typical @ PF > 0.95

16.06" (H) x 12.05" (V)

32° F to + 104° F (0° C to + 40° C)
10% to 90% (no condensation)
To 10,000 feet

-4° F to + 140° F (-20° C to + 60° C)
10% to 90% (no condensation)
To 40,000 feet

536 mm (H) x 510 mm (W) x 238 mm (D)

21.10" (H) x 20.08" (W) x 9.37" (D)

only)

13.0 kg (28.6 lbs)

NERGYSTAR

E

®

, CSA, IC-B, CE, MPRII, TUV/ERGO, TUV/GS,

Preset Timing Mode

Warning:

result in permanent damage to the ViewPanel.

1

Do not set the graphics card in your computer to exceed these refresh rates; doing so may

Macintosh computers older than G3 require a ViewSonic®, Macintosh adapter. To order an adapter,

contact ViewSonic.

(pre-adjusted to VESA®1600 x 1200 @ 60 Hz)

ViewSonicVP201m/VP201mb13

Troubleshooting

No power

• Make sure power button (or switch) is ON.

• Make sure A/C power cord is securely connected to the DC power supply
and the power supply is firmly connected to the ViewPanel

• Plug another electrical device (like a radio) into the power outlet to verify that
the outlet is supplying proper voltage.

Power on but no screen image

• Make sure the video cable supplied with the ViewPanel is tightly secured to
the video output port on the back of the computer. If the other end of the
video cable is not attached permanently to the ViewPanel, tightly secure it to
the ViewPanel.

• Adjust brightness and contrast.

• If you are using an Macintosh older than G3, you need a Macintosh adapter.

Wrong or abnormal colors

• If any colors (red, green, or blue) are missing, check the video cable to make
sure it is securely connected. Loose or broken pins in the cable connector
could cause an improper connection.

• Connect the ViewPanel to another computer.

• If you have an older graphics card, contactViewSonic
adapter.

®

.

®

for a non-DDC

Control buttons do not work

• Press only one button at a time.

ViewSonicVP201m/VP201mb14

Customer Support

For the most expedient answer to your question, do the following:

1. Check Troubleshooting (on the previous page).

2. For assistance contact your reseller.

3. For further assistance see the contact information listed below.

If contact information for your country or region is not listed below, ask your
reseller to refer you to a service center.

NOTE:

You will need to provide the serial number (on the back of the product).

Country/
Region

United States

Canada

United Kingdom viewsoniceurope.com T: 0800 833 648

Europe, Middle
East, Baltic
countries, and
North Africa

Australia and New
Zealand

Singapore/India
and Southeast
Asia

Other Asia/Pacific
countries

South Africa viewsonic.com/asia T: 886 2 2246 3456

Web site T = Telephone

F = FAX

viewsonic.com/
support

viewsonic.com/
support

viewsoniceurope.com Contact your

viewsonic.com.au T: [phone]

viewsonic.com.sg T: 65 273 4018

viewsonic.com.tw T: 886 2 2246 3456

T: [phone]
F: [phone]

T: [phone]
F: [phone]

F: [phone]

reseller

F: [phone]

F: 65 273 1566

F: 886 2 8242 3668

F: 886 2 8242 3668

Email

service.us@
viewsonic.com

service.ca@
viewsonic.com

service.eu@
viewsoniceurope.com

service.eu@
viewsoniceurope.com

service.au@
viewsonic.com

service.sg@
viewsonic.com

service.ap@
viewsonic.com

service.ap@
viewsonic.com

ViewSonicVP201m/VP201mb15

Cleaning the ViewPanel

• MAKE SURE THEVIEWPANEL®IS TURNED OFF.

• NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE
SCREEN OR CASE.

To clean the screen:

Wipe the screen with a clean, soft, lint-free cloth. This removes dust and

1

other particles.
If still not clean, apply a small amount of non-ammonia, non-alcohol based

2

glass cleaner onto a clean, soft, lint-free cloth, and wipe the screen.

To clean the case:

Use a soft, dry cloth.

1

If still not clean, apply a small amount of a non-ammonia, non-alcohol

2

based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then
wipe the surface.

Disclaimer

ViewSonic
cleaners on the ViewPanel screen or case. Some chemical cleaners have been
reported to damage the screen and/or case of the ViewPanel.ViewSonic will not
be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

®

does not recommend the use of any ammonia or alcohol-based

ViewSonicVP201m/VP201mb16

Limited Warranty

VIEWSONIC LCD VIEWPANEL

What the warranty covers:

ViewSonic

warranty period. If a product proves to be defective in material or workmanship during the warranty
period,
product or parts may include remanufactured or refurbished parts or components.

How long the warranty is effective:
ViewSonic

three (3) years for all labor from the date of the first consumer purchase.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from:

3. Removal, installation, and set-up service charges.

How to get service:

1. For information about receiving service under warranty, contact

2. To obtain service under warranty, you will be required to provide (a) the original dated sales slip, (b) your

3. Take or ship the product freight prepaid in the original container to an authorized

4. For additional information or the name of the nearest

Limitation of implied warranties :

THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE
DESCRIPTION CONTAINED HEREIN INCLUDING THE IMPLIED WARRANTY OF
MERCHANTABILITY AND FITNESS FOR APARTICULAR PURPOSE.

Exclusion of damages:

VIEWSONIC'S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE
PRODUCT. VIEWSONIC SHALL NOT BE LIABLE FOR:

1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES

2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.

3. ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHERPARTY.

Effect of state law:

This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of
incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on
contact

ViewSonic LCD Warranty (V2.0) Release Date: 10-15-1999

®

warrants its products to be free from defects in material and workmanship during the

ViewSonic

a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product

modification, or failure to follow instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by
c. Any damage of the product due to shipment.
d. Removal or installation of the product.
e. Causes external to the product, such as electrical power fluctuations or failure.
f. Use of supplies or parts not meeting
g. Normal wear and tear.
h. Any other cause which does not relate to a product defect.

You will need to provide your product's serial number.

name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.

vice center or

ViewSonic

BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF
PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH
BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.

ViewSonic

will, at its sole option, repair or replace the product with a like product. Replacement

LCD ViewPanels are warranted for three (3) years for all parts including the light source and

ViewSonic.

’s specifications.

ViewSonic Customer Support.

ViewSonic

products sold outside of the U.S.A. and Canada,

ViewSonic.

.

or your local

ViewSonic

ViewSonic

ViewSonic

dealer.

®

ViewSonic

service center, contact

ser-

ViewSonicVP201m/VP201mb17

Appendix

Safety Guidelines

CAUTION:

CAUTION:

certified for the individual country. Some examples are listed below:

The socket-outlet shall be installed near the equipment and shall be easily accessible.

Use a power cable that is properly grounded. Always use the appropriate AC cord that is

USA.................UL

Canada.............CSA

Germany .......... VDE

Switzerland ..... SEV

Britain ............. BASE/BS

Japan ...............Electric Appliance Control Act

IMPORTANT NOTICE CONCERNING POWER CORD SELECTION

The power cord set for this unit has been enclosed and has been selected according to the country of
destination and must be used to prevent electric shock. Use the following guidelines if it is necessary to
replace the original cord set, or if the cord set is not enclosed.

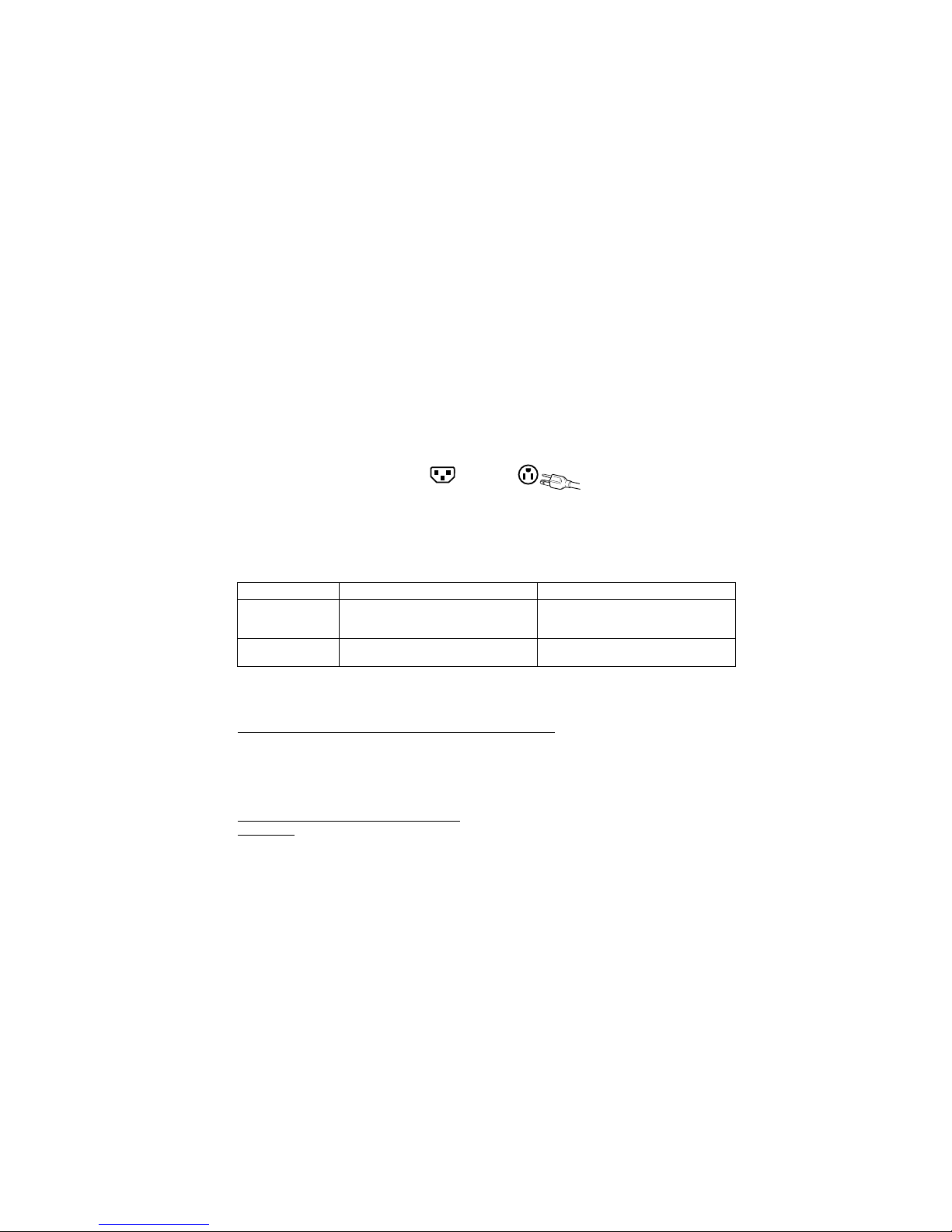

The female receptacle of the cord set must meet IEC-60320 requirements and will look like (Figure A1
below):

Figure A1

Figure A2

For the United States and Canada

In the United States and Canada the male plug is a NEMA5-15 style (Figure A2), UL Listed, and CSA
Labeled. For units which are mounted on a desk or table, type SVT or SJT cord sets may be used. For
units which sit on the floor, only SJT type cord sets may be used. The cord set must be selected according
to the current rating for your unit. Please consult the table below for the selection criteria for power cords
used in the United States and Canada.

Cord Type Size of Conductors in Cord Maximum Current Rating of Unit

SJT 18 AWG

SVT 18 AWG

16 AWG
14 AWG

17 AWG

10 Amps
12 Amps
12 Amps

10 Amps
12 Amps

For European Countries

In Europe you must use a cord set which is appropriate for the receptacles in your country. The cord set is HAR­Certified, and a special mark that will appear on the outer sheath, or on the insulation of one of the inner conductors.

AC PLUG CORD PRECAUTIONS FOR THE UNITED KINGDOM

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFUL LY.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET THEN THE PLUG SHOULD BE
CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE E LECTRICAL SHOCK IF THE CU T OFF PLUG IS INSERTED INTO AN
APPROPRIATE SOCKET.

If a new plug is to be fitted, please observe the wiring code as shown below.

If in any doubt, please consult a qualified electrician.

WARNING: THIS APPLIAN CE MUST BE EARTHED.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:

Green-and-Yellow: Ear th
Blue: Neutral
Brown: Live

If the coloured wires of the mains lead of this appl iance do not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by
the letter E or by the Earth symbol or coloured GREEN or GREEN-AND-YELLOW.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or
coloured BLACK. The wire which is coloured BROWN must be connected to the ter minal in the plug which is marked
with the letter L or coloured RED.

If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you
have purchased the product.

ViewSonicVP201m/VP201mb18

Compliance Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to p art 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a resi­dential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and
used in accordance with the instructions, may cause harmful interferenceto radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipmen t does cau se harmful interfer­ence t o radio or televisi on receptio n, which c an be det ermined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Warning

To assure continued FCC compliance, the user must use grounded power supply cord and the provided
shielded video interface cable with bonded ferrite cores. If a BNC cable is going to be used, use only a
shielded BNC(5) cable. Also, any unauthorized changes or modifications not expressly approved by t he
party responsible for compliance could void the user's authority to operate this device.

Notice for Japan

This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information
Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may
cause radio interference. Install and use the equipment according to the instruction manual.

CE Conformity

The device complies with the requirements of the EEC directive 89/336/EEC as amended
by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility," and 73/
23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety."

ViewSonicVP201m/VP201mb19

ViewSonic



Corporation
