Page 1
VG151 ViewPanel
User Guide
Guide de l’utilisateur
Bedienungsanleitung
Guía del usuario
Guida dell’utente
Guia do usuário
Användarhandbok
Käyttöopas
®
With Plug & Play
Full 15.0" Diagonal Viewable Screen
Руководство пользователя
Podręcznik użytkownika
Page 2
Contents
Product Registration..............................................................2
For Your Records ..................................................................2
Getting Started
Package Contents .................................................................3
Precautions ........................................................................... 3
Quick Installation ................................................................... 4
Using the ViewPanel
Setting the Timing Mode ....................................................... 5
OSD and Power Button Lock Modes..................................... 5
Adjusting the Screen Image .................................................. 6
Other Information
Specifications ...................................................................... 13
Troubleshooting...................................................................14
Customer Support ...............................................................15
Cleaning the ViewPanel ...................................................... 16
Limited Warranty ................................................................. 17
Appendix
Safety Guidelines ................................................................ 18
Compliance Information ...................................................... 19
CE Conformity .....................................................................19
ViewSonic VG151 1
Page 3
Copyright © ViewSonic Corporation, 2001. All rights reserved.
Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.
Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft
Corporation in the United States and other countries.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of
ViewSonic Corporation.
VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC
are trademarks of VESA.
E
NERGY STAR
As an E
E
NERGY STAR
®
is a registered trademark of the U.S. Environmental Protection Agency (EPA).
NERGY STAR
®
guidelines for energy efficiency.
®
partner, ViewSonic Corporation has determined that this product meets the
Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions
contained herein; nor for incidental or consequential damages resulting from furnishing this
material, or the performance or use this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right to
change product specifications without notice. Information in this document may change without
notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any purpose
without prior written permission from ViewSonic Corporation.
Product Registration
To meet your future needs, and to receive any additional product information as it becomes
available, please register your product on the Internet at: www.viewsonic.com. The ViewSonic
Wizard CD-ROM also provides an opportunity for you to print the registration form, which you may
mail or fax to ViewSonic.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
ViewSonic VG151
VLCDS21587-2
VG151-2_UG_146 (REV.1B)
______________
______________
Product disposal at end of product life
ViewSonic is concerned about the preservation of our environment. Please dispose of this product
properly at the end of its useful life. Your local waste disposal company may provide information
about proper disposal.
2 ViewSonic VG151
Page 4
Getting Started
Congratulations on your purchase of a VG151 color ViewPanel®.
Important! Save the original box and all packing material for future shipping
needs.
NOTE: The word “Windows” in this user guide refers to the following Microsoft
operating systems: Windows ‘95, Windows NT, Windows ‘98, Windows 2000
and Windows ME (Millennium).
Package Contents
Yo ur VG151 package includes:
• VG151 ViewPanel with video cables
• Quick Start Guide
• U.S. power cord
• Schuko power cord
• Standard VGA video cable
• DVI video cable (to be used with computers with DVI video cards)
• AC/DC Adapter
• ViewSonic Wizard CD-ROM (including user guide PDF file and INF/ICM
display optimization files)
IMPORTANT: The supplied INF file assures compatibility with Windows
operating systems, and the ICM file (Integrated Color Management) assures
accurate on-screen colors.
Precautions
• For best viewing conditions sit at least 18"
from the ViewPanel.
• AVOID TOUCHING THE SCREEN WITH
YOUR FINGERS. Oils from the skin are
difficult to remove.
• NEVER REMOVE THE REAR COVER. The
ViewPanel contains high-voltage parts. You
may suffer serious injury if you touch these
parts.
• Avoid exposing the ViewPanel to direct
sunlight or another heat source. The
ViewPanel should be facing away from direct
sunlight to reduce glare.
• Always handle your ViewPanel with care
when moving it.
• Place your ViewPanel in a well ventilated
area. Do not place anything on the ViewPanel
that prevents adequate dissipation of heat.
• Ensure the area around the ViewPanel is clean
and free of moisture.
• Do not place heavy objects on the ViewPanel,
video cable, or power cord.
• If smoke, abnormal noise, or strange odor is
present, immediately switch the ViewPanel
off and call your dealer or ViewSonic. It is
dangerous to continue using the ViewPanel.
ViewSonic VG151 3
Page 5
Quick Installation
1 Connect video cable
Make sure both the ViewPanel
computer are powered OFF.
• Remove the lower back cover and lift up the
upper back cover.
• Connect the video cable to the computer then
to the ViewPanel. Both analog and digital
ports are available on the back of the
ViewPanel for your convenience.
Macintosh users: Models older than G3
require a Macintosh adapter. Attach the
adapter to the computer and plug the video
cable into the adapter.
To order a ViewSonic
contact ViewSonic Customer Support.
2 Connect power cord and AC/DC
adapter
Connect the power cord and AC/DC adapter
from the ViewPanel to a properly grounded
AC outlet.
3 Power-ON ViewPanel and computer
Power-ON the ViewPanel, then power-ON
the computer. This sequence (ViewPanel
before computer) is very important.
NOTE: Windows 95, 98 or 2000 users may
receive a message asking them to install the
VG151 INF file.
4 Install display optimization files (INF
and ICM files)
(1) Insert the ViewSonic Wizard CD-ROM
into your computer’s CD-ROM drive.
®
Macintosh adapter,
®
and
4 Install display optimization files
(cont.)
NOTE: If your computer does not have a
CD-ROM drive, contact Customer Support.
(2) Wait for the CD-ROM to auto-start.
NOTE: If the CD-ROM does not auto-start:
double-click on the CD-ROM icon in the
Windows Explorer, then double-click on
install.exe.
(3) Follow the on-screen instructions.
5 Windows users
(resolution and refresh rate)
Example: 1024 X 768 @ 60 Hz.
For instructions on changing the resolution
and refresh rate, see the user guide for your
computer's graphics card.
Installation is complete. Enjoy your new
VG151 ViewPanel.
To be best prepared for any future customer
service needs: print this user guide and write
the serial number in "For Your Records" on
page 2. (See back of ViewPanel.)
To register your product go online to
www.viewsonic.com.
The ViewSonic Wizard CD-ROM also
provides an opportunity for you to print the
registration form which you may mail or fax to
ViewSo nic.
: Set the timing mode
Remove two
back covers
4 ViewSonic VG151
AC outlet
(wall socket)
Power cord
DC Adapter
Video cable
to computer
Page 6
Using the ViewPanel
Setting the Timing Mode
Setting the timing mode is important for maximizing the quality of the screen image
and minimizing eye strain. The timing mode consists of the resolution (example
1024 x 768) and refresh rate (or vertical frequency--example 60 Hz). After setting
®
the timing mode, use the OnView
controls (pages 6 – 10) to adjust the screen image.
The recommended timing mode for this ViewPanel is:
To set the Timing Mode:
1 Set the resolution: Right-click on the Windows
Settings > Desktop Area or Screen Area for Windows 98 and newer > set the
resolution.
2 Set the refresh rate: See your graphic card's user guide for instructions.
WARNING: Do not set the graphics card in your computer to exceed the maximum
refresh rate of 75Hz; doing so may result in permanent damage to your ViewPanel
VESA® 1024 x 768 @ 60 Hz
®
desktop > Properties >
.
OSD and Power Button Lock Modes
OSD Lock This mode locks all current control settings and prevents access to the
control menus until this mode is unlocked.
• To lock all OSD menus, press and hold both the [1] button and the
button for 10 seconds. While in this mode, when any button is pushed, OSD
Locked will display for A few seconds.
• To unlock the OSD menus, press and hold both the [1] button and the
arrow) button for 10 seconds.
Power Button Lock This mode locks the power of the ViewPanel in the ON
position.
(up-arrow)
(up-
• To lock the power of the ViewPanel ON, press and hold both the [1] button and
(down-arrow) button for 10 seconds. While in this mode, when the power
the
button is pushed, Power Button Locked will display for a few seconds.
• NOTE: After a power failure, whether or not the Power Button Lock mode was
active, your ViewPanel’s power will automatically turn on when power is
restored.
• To unlock this mode, press and hold both the [1] button and the
again for 10 seconds.
ViewSonic VG151 5
(down arrow)
Page 7
Adjusting the Screen Image
Beginning with the Main Menu shown below, you will use the buttons on the
®
front control panel to display and adjust the OnView
the screen. The OnView controls are explained in the five steps at the top of the
next page and are further explained on pages 8-12.
controls which display on
Main Menu
with OnView controls.
The status line at the bottom
of the menu shows what to
do next: Button [1] Exits the
menu. Button [2] Selects the
highlighted control.
Button [1] displays the Main
Menu; also saves changes
and exits the Main Menu.
Scroll Up/Down
menu options.
6 ViewSonic VG151
Power Light Power ON/OFF
Front
Control
Panel
Button [2] displays the
control screen for a
selected control. Also used
to toggle between a pair of
controls on some screens.
Page 8
Do the following to adjust the screen image:
1 To display the Main Menu, press button [1].
NOTE: All OnView menus and adjustment screens disappear automatically after
about 15 seconds. This time period is adjustable through the Setup menu and the
OSD timeout control described on page 11.
2 To highlight a control you want to adjust, press
or to scroll up or down the
Main Menu.
3 To select the highlighted control, press button [2]. A control screen appears like
the one shown below for the selected control.
4 To adjust the selected control, press the up
or down buttons on the Front
Control Panel of the monitor.
5 To save the adjustments and exit the menu, press button [1] twice.
The following tips may help you optimize your display:
• Adjust your computer's graphic card so that it outputs a video signal 1024 x 768
@ 60Hz to the VG151. (Look for instructions on "changing the refresh rate" in
your graphic card's user guide.)
• If necessary, make small adjustments using H POSITION and V POSITION until
the screen image is completely visible
screen should barely touch the illuminated "active area" of the ViewPanel
. (The black border around the edge of the
®
.)
• Adjust FINE TUNE so that the screen image looks focused, crisp, and sharp.
NOTE: Auto Image Adjust and Manual Image adjust are inactive for digital mode.
ViewSonic VG151 7
Page 9
Main Menu Controls
The menu items shown below can be adjusted by using the up
buttons.
Control Explanation
AUTO IMAGE ADJUST automatically sizes, centers, auto-
contrasts and fine tunes the video signal to eliminate waviness
and distortion.
Press the [2] button to obtain a sharper image.
NOTE: Auto Image Adjust works with most video cards. If this
function does not work on your ViewPanel
®
, then lower the
video refresh rate to 60 Hz and set the resolution to its preset
value.
CONTRAST/BRIGHTNESS Contrast adjusts the difference
between the image background (black level) and the foreground
(white level).
Brightness adjusts background black level of the
screen image. Press button [2] to toggle between Contrast and
Brightness.
INPUT ANALOG switches between two ports: one for a digital
input signal and one for an analog signal.
and down
Shortcut: From the Windows desktop, press button [2] to bypass
the Main Menu and switch ports.
On-screen display will show Input Analog or Input Digital,
depending upon the currently selected input source.
8 ViewSonic VG151
Page 10
Control Explanation

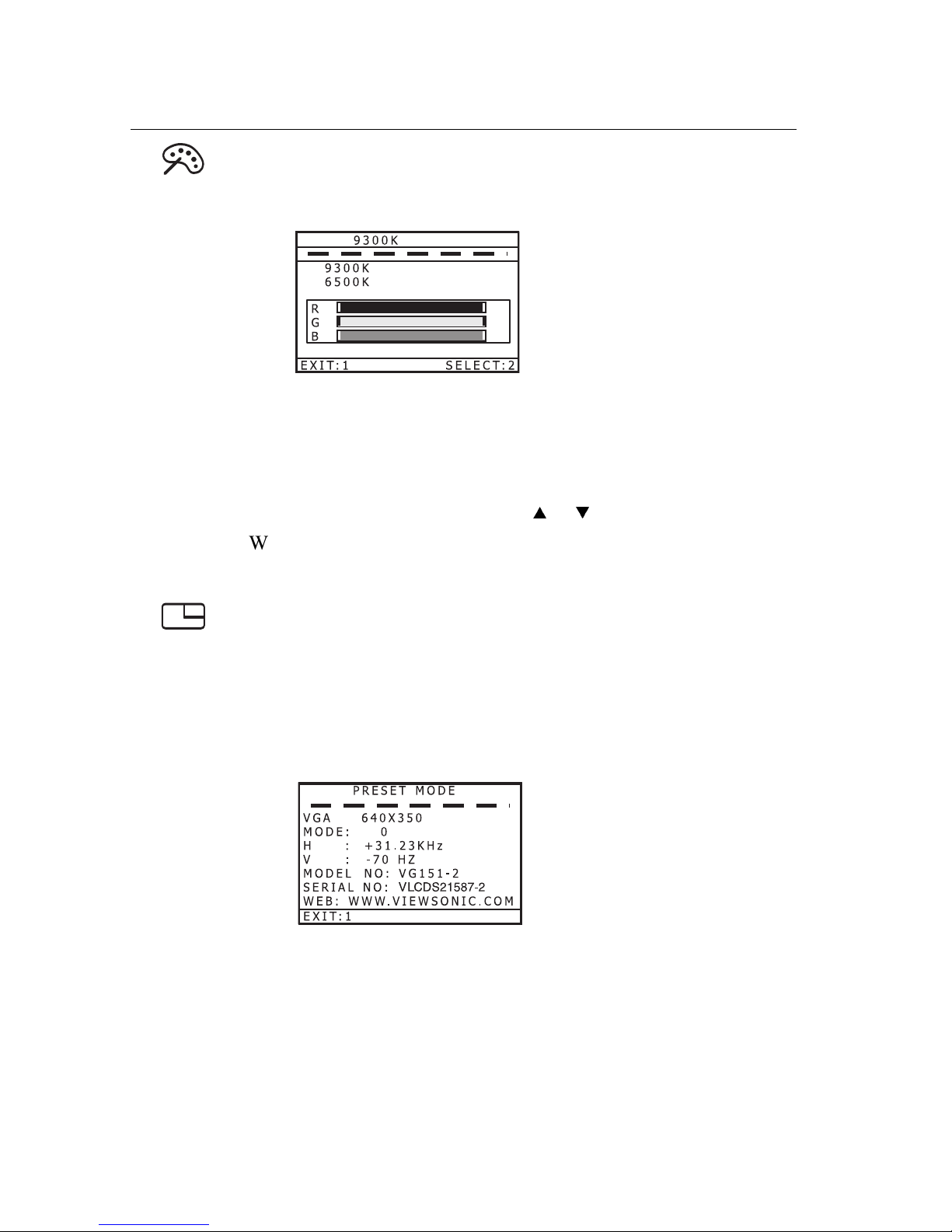

COLOR ADJUST provides several color options: preset color
temperatures and RGB which allows you to adjust red (R), green
(G), and blue (B) individually.
9300K – for a cooler, more blue image.
6500K – for a warmer, more red image.
User Color – Individual adjustments for red, green, and blue.
1 To select color (R, G or B) press button [2].
2 To adjust selected color, press
When you are finished making all color adjustments, press
button [1] twice.
or .
INFORMATION displays the timing mode (video signal input)
coming from the graphics card in your computer, the LCD
model number, the serial number, and the ViewSonic website
URL. See your graphic card’s user guide for instructions on
changing the resolution and refresh rate (vertical frequency).
NOTE: VESA 1280 x 1024 @ 60Hz (recommended) means that
the resolution is 1280 x 1024 and the refresh rate is 60 Hertz.
ViewSonic VG151 9
Page 11
Control Explanation

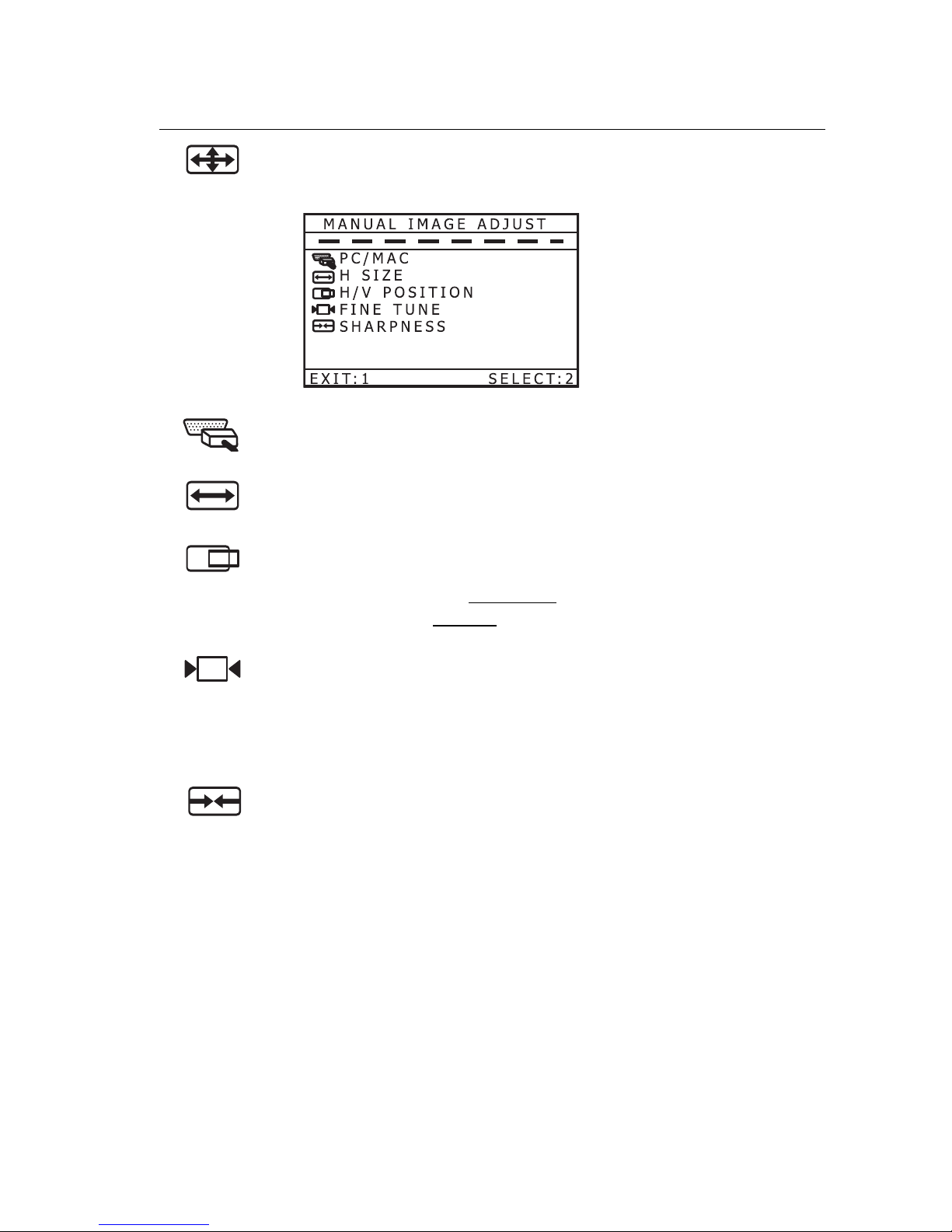

MANUAL IMAGE ADJUST displays the following menu . The
controls accessed through this menu are explained below:
PC/MAC selects the type of computer that will be used with the
ViewPanel.
H SIZE (HORIZONTAL SIZE) adjusts the width of the screen
image.
H/V POSITION adjusts horizontal and vertical position of the
screen image. You can toggle between Horizontal and Vertical
by pressing button [2]. Horizontal
left or to the right. Vertical
moves the screen image to the
moves the screen image up and down.
FINE TUNE eliminates any remaining video artifacts such as
noise banding, out-of -phase, etc.
NOTE: Try the Auto Image Adjust (see page 8) before using the
Fine Tune control.
SHARPNESS adjusts the clarity and focus of the screen image.
10 ViewSonic VG151
Page 12
Control Explanation
SETUP MENU displays the following menu . The controls shown
in this menu are explained below:
LANGUAGE SELECT allows you to choose from among several
languages for the menu(s) and control screens: English, French,
German, Italian, and Spanish.
RESOLUTION NOTICE displays the following menu which
allows you to enable or disable the Resolution Notice messages.
NOTE: See page 5 Setting the Timing Mode for an explanation
of resolution.
OSD POSITION allows you to move the on-screen display
menus and control screens.
OSD TIME OUT sets the length of time an on-screen display
screen is displayed. For example, with a “15 second” setting, if a
control is not pushed within 15 seconds, the display screen
disappears.
ViewSonic VG151 11
Page 13
Control Explanation
BACKGROUND allows the simultaneous viewing of open
software applications, or Windows desktop, while adjustments
are made to the OnView ViewPanel controls.
MEMORY RECALL returns adjustments to the original factory
settings if the display is operating in a factory Preset Timing
Mode listed in this user guide.
12 ViewSonic VG151
Page 14
Other Information
Specifications
LCD
Maximum
viewing angles
Input signal
Compatibility
Resolution
Power
Display area
Ty p e
Color Filter
Glass surface
Left
Right
Up
Down
Video Sync RGB analog (0.7/1.0 Vp-p, 75 ohms)
PC
Macintosh
Recommended
and supported
Voltage 100-240 VAC, 50/60 Hz (auto switch)
Full Scan 304.1mm (H) x 228.1 mm (V)
1
15" (full 15" viewable diagonal area),
TFT (Thin Film Transistor), Active Matrix XGA LCD,
0.297mm pixel pitch
RGB vertical stripe
Anti-Glare
60°
60°
45°
55°
DVI-D (TMDS, 100 ohms)
Composite Sync, Separate Sync, Sync on Green
:30-62 kHz, fv:50-75 Hz
f
h
Up to 1024 x 768 Non-interlaced (NI)
Up to 1024 x 768 Non-interlaced (NI)
1024 x 768 NI @ 60Hz 720 x 400 @ 70Hz
1024 x 768 NI @ 60, 70, 72, 75 Hz 832 x 624 @ 75 Hz
800 x 600 @ 56, 60, 72 Hz 640 x 400 @ 70 Hz
640 x 480 @ 60, 66, 72, 75 Hz 640 x 350 @ 70 Hz
12.0" (H) x 9.0" (V)
Operating
conditions
Storage
conditions
Dimensions
Weight
Regulations
2
Power saving
modes
Temperature
Humidity
Altitude
Temperature
Humidity
Altitude
Physical
(ViewPanel
Net 4.8 kg (10.6 lbs) ViewPanel only
On
Active Off
®
only)
Preset Timing
Mode
1
Macintosh computers older than G3 require a ViewSonic®, Macintosh adapter. To order an adapter, contact ViewSonic.
2
This product is DPMS compliant.
32° F to + 104° F (0° C to + 40° C)
10% to 90% (no condensation)
To 10,000 feet
-4° F to + 140° F (-20° C to +60° C)
10% to 90% (no condensation)
To 40,000 feet
390 mm (W) x 372 mm (H) x 167 mm (D)
15.3" (W) x 14.6" (H) x 6.6" (D)
UL, FCC-B, CSA, CE, TCO99, TUV/GS, NEMKO,
SEMKO, DEMKO, FIMCO, PSB, PCBC, EPA, E2000,
BSMI, VCCI, CCIB, CCEE, TUV/Ergo, CCEE, GOST-R +
Hygienic
Normal (green LED)
<3W (orange LED)
Pre-adjusted to VESA® 1024 x 768 @ 60 Hz
Warning: Do not set the graphics card in your computer to
exceed these refresh rates; doing so may result in
permanent damage to the ViewPanel.
ViewSonic VG151 13
Page 15
Troubleshooting
No power
• Make sure power button (or switch) is ON.
• Make sure A/C power cord is securely connected to the DC power supply
and the power supply is firmly connected to the ViewPanel
• Plug another electrical device (like a radio) into the power outlet to verify that
the outlet is supplying proper voltage.
Power on but no screen image
• Make sure the video cable supplied with the ViewPanel is tightly secured to
the video output port on the back of the computer. If the other end of the
video cable is not attached permanently to the ViewPanel, tightly secure it to
the ViewPanel.
• Adjust brightness and contrast.
• If you are using an Macintosh older than G3, you need a Macintosh adapter.
®
.
Wrong or abnormal colors
• If any colors (red, green, or blue) are missing, check the video cable to make
sure it is securely connected. Loose or broken pins in the cable connector
could cause an improper connection.
• Connect the ViewPanel to another computer.
• If you have an older graphics card, contact ViewSonic
®
for a non-DDC
adapter.
Control buttons do not work
• Press only one button at a time.
14 ViewSonic VG151
Page 16
Customer Support
For the most expedient answer to your question, do the following:
1. Check Troubleshooting (on the previous page).
2. For assistance contact your reseller.
3. For further assistance see the contact information listed below.
If contact information for your country or region is not listed below, ask your
reseller to refer you to a service center.
NOTE: You will need to provide the serial number (on the back of the product).
Country/Region T = Telephone
Email
F = FAX
United States
Canada
United Kingdom T: 0800 833 648
Europe, Middle East,
Baltic countries, and
North Africa
New Zealand T: 64-3-366-1135
Singapore/Southeast
Asia
Other Asia/Pacific
countries and Indian
Peninsula
T: (800) 688-6688
F: (909) 468-1202
T: (800) 688-6688
F: (909) 468-1202
F: 0044 (0)1293 643910
T: 0044 (0)1293 643900
F: 0044 (0)1293 643910
F: 64-3-366-7006
T: 65-273-4018
F: 65-273-1566
T: 886 2 2248 4072
F: 886 2 2249 1751
----------------------------
-----------------------------
South Africa T: 27-11-314-0002
F: 27-11-314-0002
ViewSonic VG151 15
Page 17
Cleaning the ViewPanel
• MAKE SURE THE VIEWPANEL® IS TURNED OFF.
• NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE
SCREEN OR CASE.
To clean the screen:
1 Wipe the screen with a clean, soft, lint-free cloth. This removes dust and
other particles.
2 If still not clean, apply a small amount of non-ammonia, non-alcohol based
glass cleaner onto a clean, soft, lint-free cloth, and wipe the screen.
To clean the case:
1 Use a soft, dry cloth.
2 If still not clean, apply a small amount of a non-ammonia, non-alcohol
based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then
wipe the surface.
Disclaimer
ViewSonic
®
does not recommend the use of any ammonia or alcohol-based
cleaners on the ViewPanel screen or case. Some chemical cleaners have been
reported to damage the screen and/or case of the ViewPanel. ViewSonic will not
be liable for damage resulting from use of any ammonia or alcohol-based cleaners.
16 ViewSonic VG151
Page 18
Limited Warranty
VIEWSONIC LCD VIEWPANEL
What the warranty covers:
ViewSonic
period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic
will, at its sole option, repair or replace the product with a like product. Replacement product or par ts may
include remanufactured or refurbished parts or components.
How long the warranty is effective:
ViewSonic LCD ViewPanels are warranted for three (3) years for all parts including the light source and three
(3) years for all labor from the date of the first consumer purchase.
Who the warranty protects:
This warranty is valid only for the first consumer purchaser.
What the warranty does not cover:
1. Any product on which the serial number has been defaced, modified or removed.
2. Damage, deterioration or malfunction resulting from:
3. Removal, installation, and set-up service charges.
How to get service:
1. For information about receiving service under warranty, contact ViewSonic Customer Support. You will
2. To obtain service under warranty, you will be required to provide (a) the original dated sales slip, (b) your name,
3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center
4. For additional information or the name of the nearest ViewSonic service center, contact ViewS-
Limitation of implied warranties:
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION
CONTAINED HEREIN INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE.
Exclusion of damages:
VIEWSONIC'S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT.
VIEWSONIC SHALL NOT BE LIABLE FOR:
1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES BASED
2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.
3. ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.
Effect of state law:
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Some states do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or
consequential damages, so the above limitations and exclusions may not apply to you.
Sales outside the U.S.A. and Canada:
For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact
ViewSonic or your local ViewSonic dealer.
ViewSonic LCD Warranty (V2.0) Release Date: 10-15-1999
®
warrants its products to be free from defects in material and workmanship during the warranty
a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modifica-
tion, or failure to follow instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by ViewSonic.
c. Any damage of the product due to shipment.
d. Removal or installation of the product.
e. Causes external to the product, such as electrical power fluctuations or failure.
f. Use of supplies or parts not meeting ViewSonic’s specifications.
g. Normal wear and tear.
h. Any other cause which does not relate to a product defect.
need to provide your product's serial number.
(c) your address, (d) a description of the problem, and (e) the serial number of the product.
or ViewSonic.
onic.
UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS,
LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
®
ViewSonic VG151 17
Page 19
Appendix
Safety Guidelines
Warning: This device must be operated with the original power supply, part number: LSE9901B1250, UP06031120A
CAUTION: The socket-outlet shall be installed near the equipment and shall be easily accessible.
CAUTION: Use a power cable that is properly grounded. Always use the appropriate AC cord that is certified for the individ-
ual country. Some examples are listed below:
USA .....................UL
Canada ........ ........ .C SA
Germany ... ........ ...V DE
IMPORTANT NOTICE CONCERNING POWER CORD SELECTION
The power cord set for this unit has been enclosed and has been selected according to the country of destination and must
be used to prevent electric shock. Use the following guidelines if it is necessary to replace the original cord set, or if the cord
set is not enclosed.
The female receptacle of the cord set must meet IEC-60320 requirements and will look like (Figure A1 below):
Figure A1 Figure A2
For the United States and Canada
In the United States and Canada the male plug is a NEMA5-15 style (Figure A2), UL Listed, and CSA Labeled. For units
which are mounted on a desk or table, type SVT or SJT cord sets may be used. For units which sit on the floor, only SJT type
cord sets may be used. The cord set must be selected according to the current rating for your unit. Please consult the table
below for the selection criteria for power cords used in the United States and Canada.
Cord Type Size of Conductors in Cord Maximum Current Rating of Unit
SJT 18 AWG
SVT 18 AWG
Switzerl and ...... .... SEV
Britain .... ........ ...... BASE/BS
Japan....................Electric Appliance Control Act
16 AWG
14 AWG
17 AWG
10 Amps
12 Amps
12 Amps
10 Amps
12 Amps
For European Countries
In Europe you must use a cord set which is appropriate for the receptacles in your country. The cord set is HARCertified, and a special mark that will appear on the outer sheath, or on the insulation of one of the inner conductors.
AC PLUG CORD PRECAUTIONS FOR THE UNITED KINGDOM
FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET THEN THE PLUG SHOULD BE
CUT OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO AN
APPROPRIATE SOCKET.
If a new plug is to be fitted, please observe the wiring code as shown below.
If in any doubt, please consult a qualified electrician.
WAR NING: THIS APPLIANCE MUST BE EARTHED.
IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:
Green-and-Yellow: Earth
Blue: Neutral
Brown: Live
If the coloured wires of the mains lead of this appliance do not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by
the letter E or by the Earth symbol or coloured GREEN or GREEN-AND-YELLOW.
The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or
coloured BLACK. The wire which is coloured BROWN must be connected to the terminal in the plug which is marked
with the letter L or coloured RED.
If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you
have purchased the product.
18 ViewSonic VG151
Page 20
Compliance Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Warning
To assure continued FCC compliance, the user must use grounded power supply cord and the provided shielded video interface cable with bonded ferrite cores. If a BNC cable is going to be used, use only a shielded BNC(5) cable. Also, any unauthorized changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate this device.
Notice for Japan
This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information
Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may
cause radio interference. Install and use the equipment according to the instruction manual.
CE Conformity
The device complies with the requirements of the EEC directive 89/336/EEC as amended
by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility," and 73/
23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety."
ViewSonic VG151 19
Page 21
NOTE
20 ViewSonic VG151
Page 22
ViewSonic Corporation
Loading...
