ViewSonic VG170m User Guide

VG170m ViewPanel

User Guide

Guide de l’utilisateur

Bedienungsanleitung

Guía del usuario

Guida dell'utente

Guia do usuário

Användarhandbok

®

Full 17" Diagonal Viewable Screen

Käyttöopas

Jmdh\h^kl\hihevah\Zl_ey

,QVWUXNFMDREVáXJL

Contents

Product Registration................................................... 2

For Your Records....................................................... 2

Getting Started

Package Contents...................................................... 3

Precautions ................................................................ 3

Quick Installation........................................................ 4

Installation of Wall Mount (Optional) .......................... 5

Using the ViewPanel Display

Setting the Timing Mode ............................................ 6

OSD and Power Lock Settings................................... 6

Adjusting the Screen Image .......................................7

Main Menu Controls ...................................................9

Other Information

Specifications ...........................................................12

Troubleshooting .......................................................13

Customer Support ....................................................14

Cleaning the ViewPanel Display .............................. 15

Limited Warranty ......................................................16

Appendix

Safety Guidelines .....................................................17

Compliance Information for U.S.A............................ 18

CE Conformity for Europe ........................................18

07/25/02 A ViewSonic VG170m 1

Copyright © ViewSonic Corporation, 2002. All rights reserved.

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of
Microsoft Corporation in the United States and other countries.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of
ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC
are trademarks of VESA.

NERGY STAR

E

As an E

NERGY STAR

E

®

is a registered trademark of the U.S. Environmental Protection Agency (EPA).

NERGY STAR

®

guidelines for energy efficiency.

®

partner, ViewSonic Corporation has determined that this product meets the

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions
contained herein; nor for incidental or consequential damages resulting from furnishing this mate­rial, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to
change product specifications without notice. Information in this document may change without
notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose
without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes
available, please register your product on the Internet at:

www.viewsonic.com

. The ViewSonic
Wizard CD-ROM also provides an opportunity for you to print the registration form, which you
may mail or fax to ViewSonic.

For Your Records

®

Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:

ViewSonic VG170m
VLCDS23724-3W
A-CD-VG170m-1
______________
______________

Product disposal at end of product life

ViewSonic is concerned about the preservation of our environment. Please dispose of this product
properly at the end of its useful life. Your local waste disposal company may provide information
about proper disposal.

ViewSonic VG170m 2

Getting Started

Congratulations on your purchase of a ViewSonic® ViewPanel®display.

Important!

needs.

Save the original box and all packing material for future shipping

NOTE:

The word “Windows” in this user guide refers to the following
Microsoft operating systems: Windows ‘95, Windows NT, Windows ‘98,
Windows 2000, Windows Me (Millennium), and Windows XP.

Package Contents

Your ViewPanel package includes:

• ViewPanel display

•Power cord

• AC/DC power adapter

• Video cable

• ViewSonic Wizard CD-ROM

NOTE:

User Guide PDF files and INF/ICM display optimization files. The INF file
ensures compatibility with Windows operating systems, and the ICM file (Image
Color Matching) ensures accurate on-screen colors. ViewSonic recommends
that you install both files.

The CD jacket contains the Quick Start Guide, and the CD includes the

Precautions

• Sit at least 18" from your ViewPanel display.

Avoid touching the screen.

•
difficult to remove.

Never remove the rear cover.

•
ViewPanel display contains high-voltage
parts. You may be seriously injured if you
touch them.

• Avoid exposing your ViewPanel display to
direct sunlight or another heat source. Orient
your ViewPanel display away from direct
sunlight to reduce glare.

• Always handle your ViewPanel display with
care when moving it.

Skin oils are

You r

• Place your ViewPanel display in a well­ventilated area. Do not place anything on your
ViewPanel display that prevents heat
dissipation.

• Ensure the area around the ViewPanel display
is clean and free of moisture.

• Do not place heavy objects on the ViewPanel
display, video cable, or power cord.

• If smoke, abnormal noise, or strange odor is
present, immediately switch the ViewPanel
display off and call your dealer or ViewSonic.
It is dangerous to continue using the
ViewPanel display.

ViewSonic VG170m 3

Quick Installation

Optional: For instructions on wall mounting,
see page 5 of this user guide.

1 Connect power cord and AC/DC

power adapter

2 Connect video cable

• Make sure both the ViewPanel®display
and computer are turned OFF

• Remove rear panel covers if necessary

• Connect the video cable from the View­Panel to the computer

Macintosh users:

require a Macintosh adapter. Attach the
adapter to the computer and plug the video
cable into the adapter.

To order a ViewSonic
contact ViewSonic

Models older than G3

®

Macintosh adapter,

Customer Support

.

3 Turn ON ViewPanel display and

computer

• Turn ON the ViewPanel display, then turn
ON the computer. This sequence (View­Panel display before computer) is impor­tant.

NOTE:

message asking them to install the INF file.
This is on the CD.

Windows users may receive a

4 Insert the ViewSonic Wizard CD

into the computer’s CD drive.

• Follow the on-screen instructions

If your computer does not have a CD-ROM
drive, see “Customer Support."

(1) Wait for the CD-ROM to auto-start.

NOTE:

double-click on the CD-ROM icon in the
Windows Explorer, then double-click on

viewsonic.exe.

(2) Follow the on-screen instructions.

If the CD-ROM does not auto-start:

5 Windows users: Set the timing

mode (resolution and refresh
rate)

Example:

For instructions on changing the resolution
and refresh rate, see the graphic card’s user
guide.

Installation is complete. Enjoy your new
ViewSonic, ViewPanel display.

To be best prepared for any future customer
service needs: print this user guide and write
the serial number in
page 2. (See back of ViewPanel display.)

You can register your product online at the
website for your region. See the Customer
Support table in this guide.

The ViewSonic Wizard CD-ROM also
provides an opportunity for you to print the
registration form which you may mail or fax
to ViewSonic.

1280 x 1024 @ 60 Hz.

"For Your Records"

on

Audio IN

Analog IN Port

AC IN

AC/DC Adapter

with power cord

AC outlet
(wall socket)

Audio Cable

Video Cable

ViewSonic VG170m 4

Installation of Wall Mount (Optional)

To obtain a wall-mounting kit, contact ViewSonic or your local dealer. Refer to
the instructions that come with the base mounting kit. To convert your
ViewPanel from a desk-mounted to a wall-mounted display, do the following:

Disconnect Power.

1

Push the ViewPanel back and

2

down flat against the base as
shown.

Four
screw
holes

Lay the ViewPanel face down on

3

a towel or blanket. Notice the
four screw holes on the bottom of
the base.

Attach the mounting bracket

4

from the VESA compatible wall­mounting kit (100 mm x 100 mm
distance).

Attach the ViewPanel to the wall,

5

following the instructions in the
wall-mounting kit.

Mounted

on the wall

ViewSonic VG170m 5

Using the ViewPanel Display

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the
screen image and minimizing eye strain. The

resolution

example 60 Hz). After setting the timing mode, use the OnView
to adjust the screen image.

(example 1280 x 1024) and

refresh rate

timing mode

(or vertical frequency;

consists of the

®

controls

For the best picture quality set your ViewPanel

VESA 1280 x 1024@ 60 Hz.

To set the Timing Mode:

Set the resolution: Right-click on the Windows desktop >

1

Settings

Set the refresh rate: See your graphic card's user guide for instructions.

2

WARNING:

maximum refresh rate of 75Hz; doing so may result in permanent damage to
your ViewPanel display.

> set the resolution.

Do not set the graphics card in your computer to exceed the

®

display timing mode to:

Properties

>

OSD and Power Lock Settings

OSD Lock

the control menus until this mode is unlocked.

OSD Lock:

•
buttons are pressed the message OSD Lock will display for a few seconds.

This mode locks all current control settings and prevents access to

Press and hold [1] and the up arrow

I

for 10 seconds. If any

OSD Unlock:

•

Power Button Lock

position.

Power Button Lock:

•
seconds. If the power button is pressed the message Power L ock will display
for a few seconds. With or without this setting, after a power failure, your
ViewPanel’s power will automatically turn ON when power is restored.

Power Button Unlock:

•
10 seconds.

Press and hold [1] and the up arrow

This mode locks the power of the ViewPanel in the ON

Press and hold [1] and the down arrow

Press and hold [1] and the down arrow

I

again for 10 seconds.

J

for 10

J

again for

ViewSonic VG170m 6

Adjusting the Screen Image

Use the buttons on the front control panel to display and adjust the OnView

®

controls which display on the screen. The OnView controls are explained at the
top of the next page and are defined in “Other Information” on page 12.

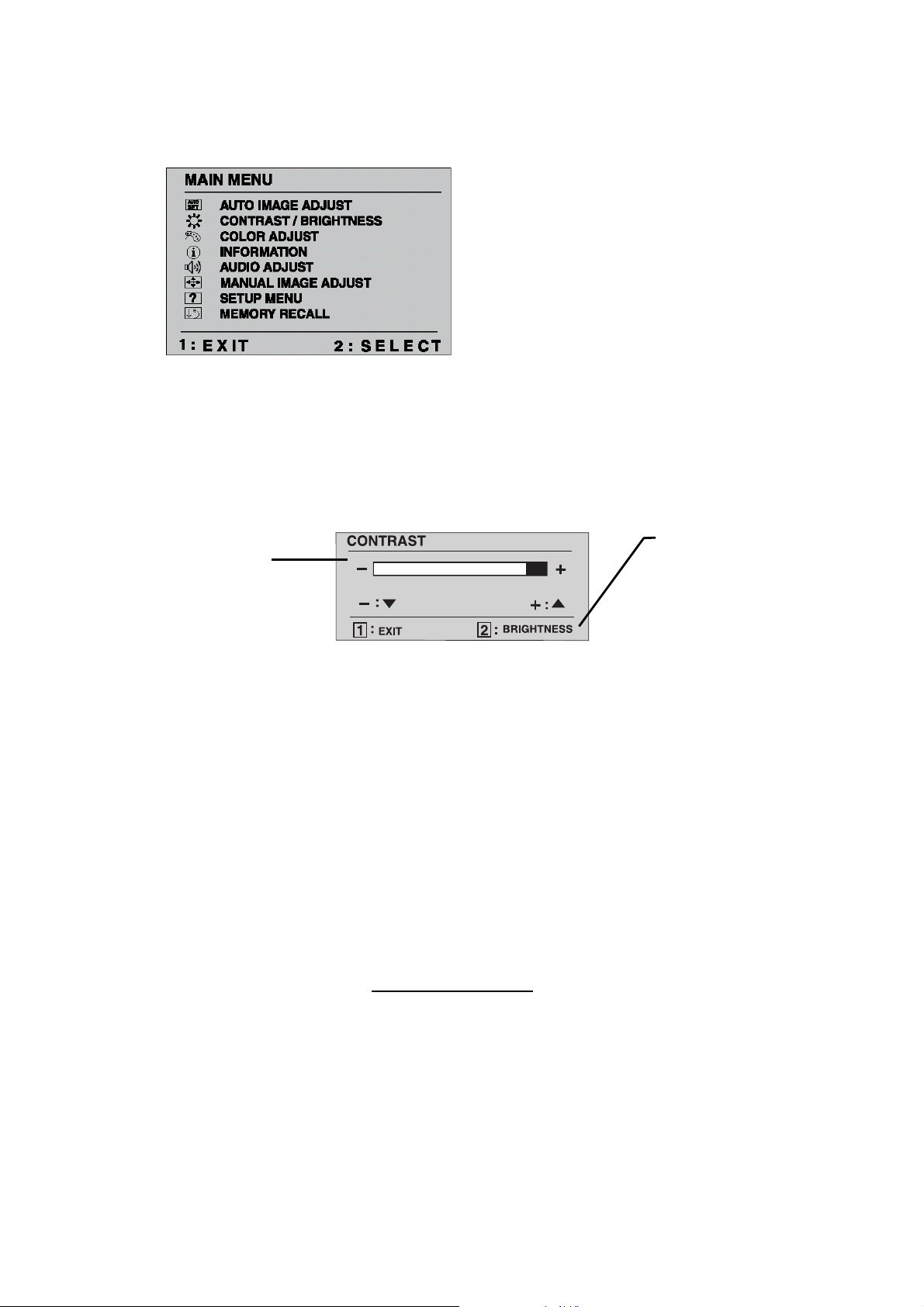

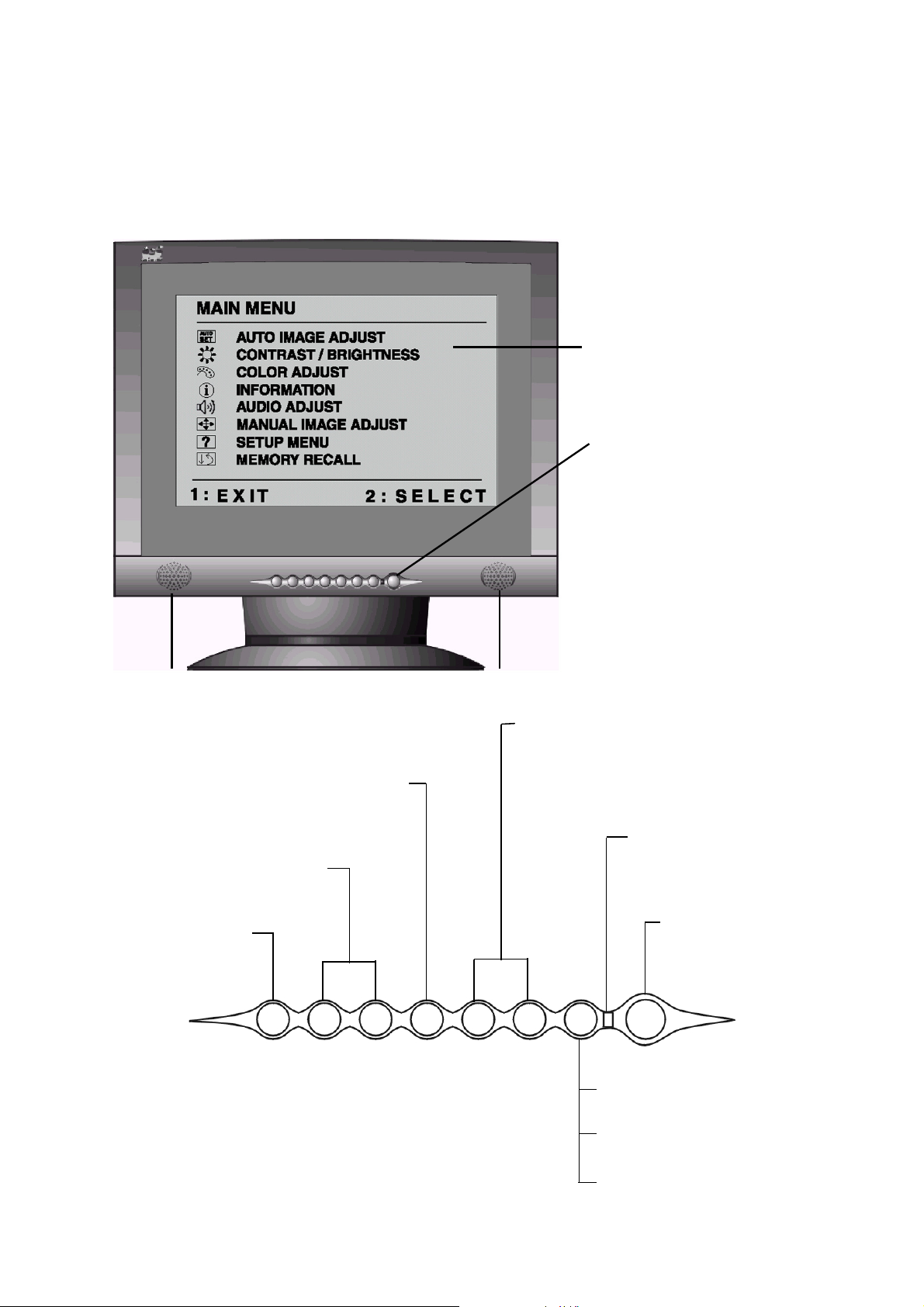

Main Menu
with OnView controls

Front Control Panel
show below in detail

Speaker

Displays the Main Menu
or exits the control screen
and saves adjustments.

Decreases or
increase volume.

Temporarily silences
audio output.

Speaker

Scrolls through menu options and
adjusts the displayed control.

Also a shortcut to display the
Contrast adjustment control screen.

Power light
Green = ON
Orange = Power Saving

Power On/Off

Displays the control screen
for the highlighted control.

Also toggles between two
controls on some screens.

Also a shortcut to Auto
Image Adjust.

ViewSonic VG170m 7

Do the following to adjust the screen image:

To display the Main Menu, press button [1].

1

To highlight a control you want to adjust, press I or J to scroll up or down

2

the Main Menu.
To select the highlighted control, press button [2]. A control screen appears

3

like the example shown below.

The line at the
TheJdown
arrow decreases,

I

up arrow

increases

bottom of the screen

tells you what you

can do next - in this

example, either EXIT

or select the

BRIGHTNESS

control.

To adjust the control, press the up I or down J buttons.

4

To save the adjustments and exit the menu, press button [1] twice.

5

The following tips may help you optimize your display:

• Adjust your computer's graphic card so that it outputs a video signal 1280 x
1024 @ 60 Hz to the ViewPanel. (Look for instructions on "changing the
refresh rate" in your graphic card's user guide.)

• If necessary, make small adjustments using H POSITION and V POSITION
until the screen image is completely visible

. (The black border around the
edge of the screen should barely touch the illuminated "active area" of the
ViewPanel

®

.)

ViewSonic VG170m 8

Main Menu Controls

Adjust the menu items shown below by using the up Iand down Jbuttons.

Control Explanation

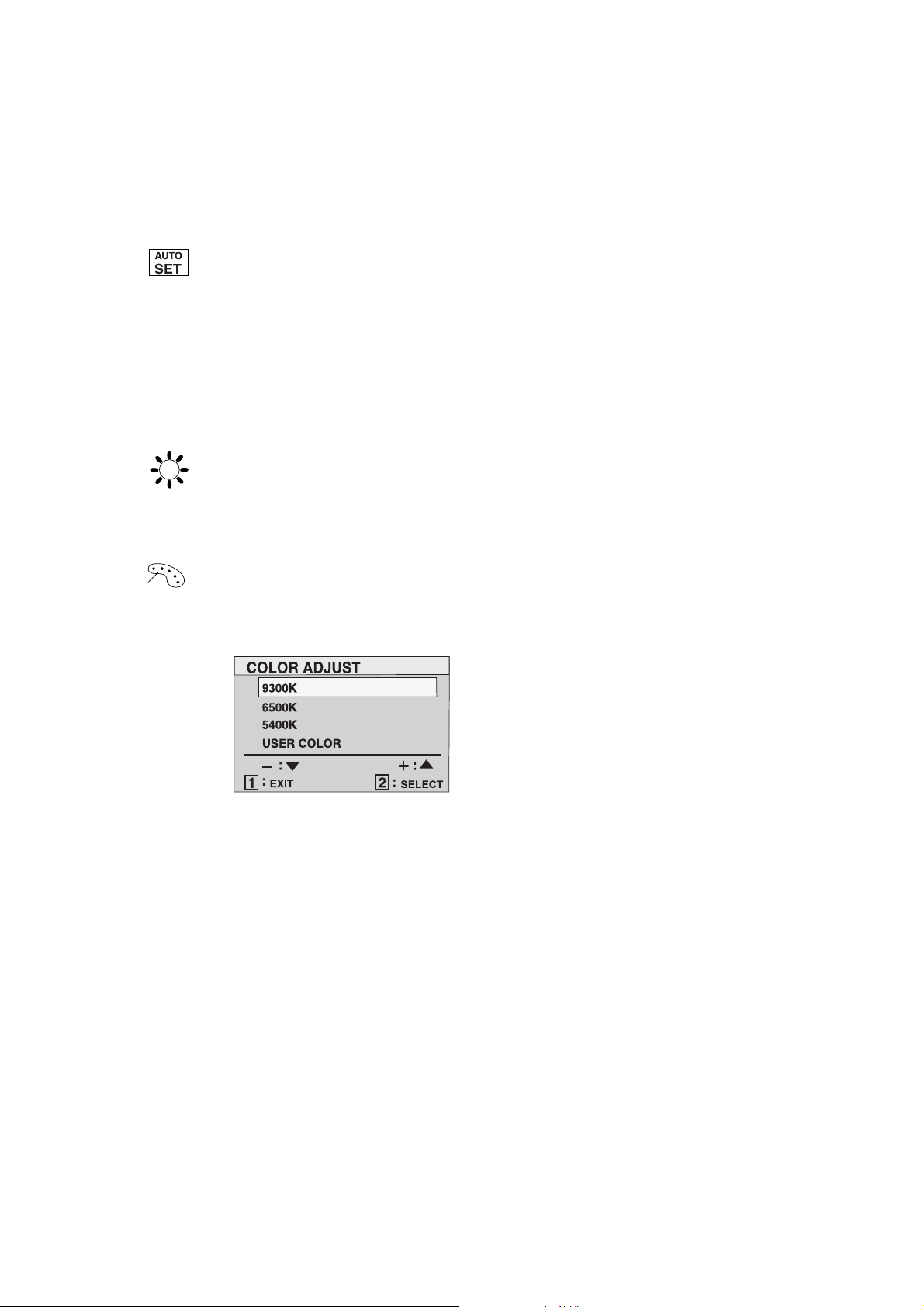

Auto Image Adjust

automatically sizes, centers, and fine tunes

the video signal to eliminate waviness and distortion.
Press the [2] button to obtain a sharper image.

NOTE: Auto Image Adjust works with most common video
cards. If this function does not work on your ViewPanel

®

, then
lower the video refresh rate to 60 Hz and set the resolution to its
pre-set value.

Contrast

adjusts the difference between the image background

(black level) and the foreground (white level).

Brightness

Color Adjust

adjusts background black level of the screen image.

provides several color options: preset color
temperatures and User which allows you to adjust red (R), green
(G), and blue (B). The factory setting for this product is 6500K
(6500 Kelvin).

9300K — Adds blue to the screen image for cooler white (used

in most office settings with fluorescent lighting).

6500K — Adds red to the screen image for warmer white and

richer red. Default setting.

5400K — Adds green to the screen image for a darker color.
User Color — Individual adjustments for red, green, and blue.

To select color (R, G or B) press button [2].

1

To adjust selected color, press I or J.

2

When you are finished making all color adjustments, press

3

button [1] twice.

ViewSonic VG170m 9

Control Explanation

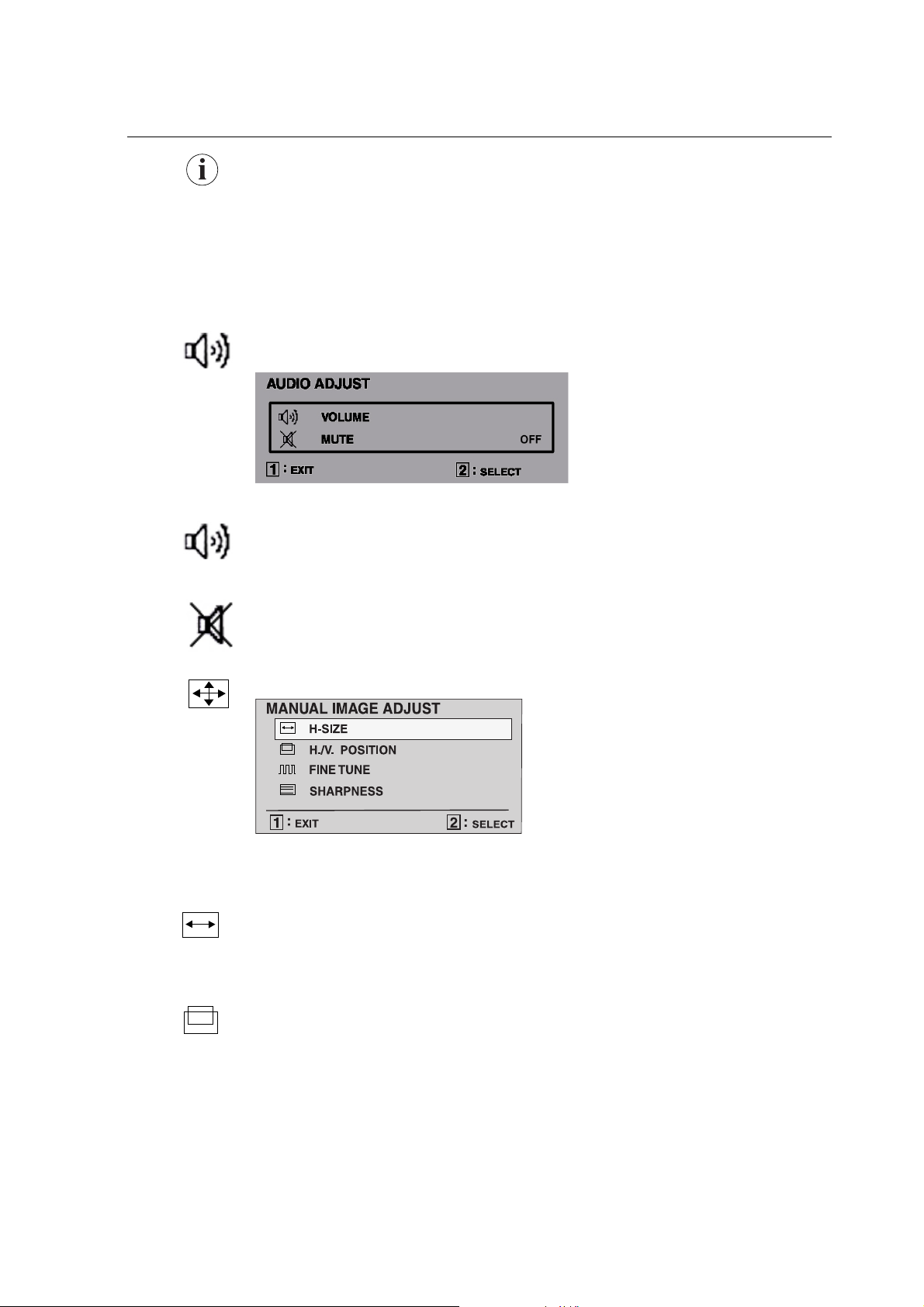

Information

displays the timing mode (video signal input)
coming from the graphics card in your computer. See your
graphic card’s user guide for instructions on changing the
resolution and refresh rate (vertical frequency).

VESA 1280 x 1024 @ 60 Hz (recommended) means that the
resolution is 1280 x 1024 and the refresh rate is 60 Hertz.

Audio Adjust

Volume

increases the volume, decreases the volume, and mutes

]

the audio.

Mute temporarily silences audio output.

Manual Image Adjust

The Manual Image Adjust controls are explained below:

H. Size

NOTE:

H./V. Position

(Horizontal Size) adjusts the width of the screen image.

Vertical size is automatic with your ViewPanel®.

adjusts horizontal and vertical position of the
screen image. You can toggle between Horizontal and Vertical
by pressing button [2]. Horizontal moves the screen image to
the left or to the right. Vertical moves the screen image up and
down.

ViewSonic VG170m 10

Control Explanation

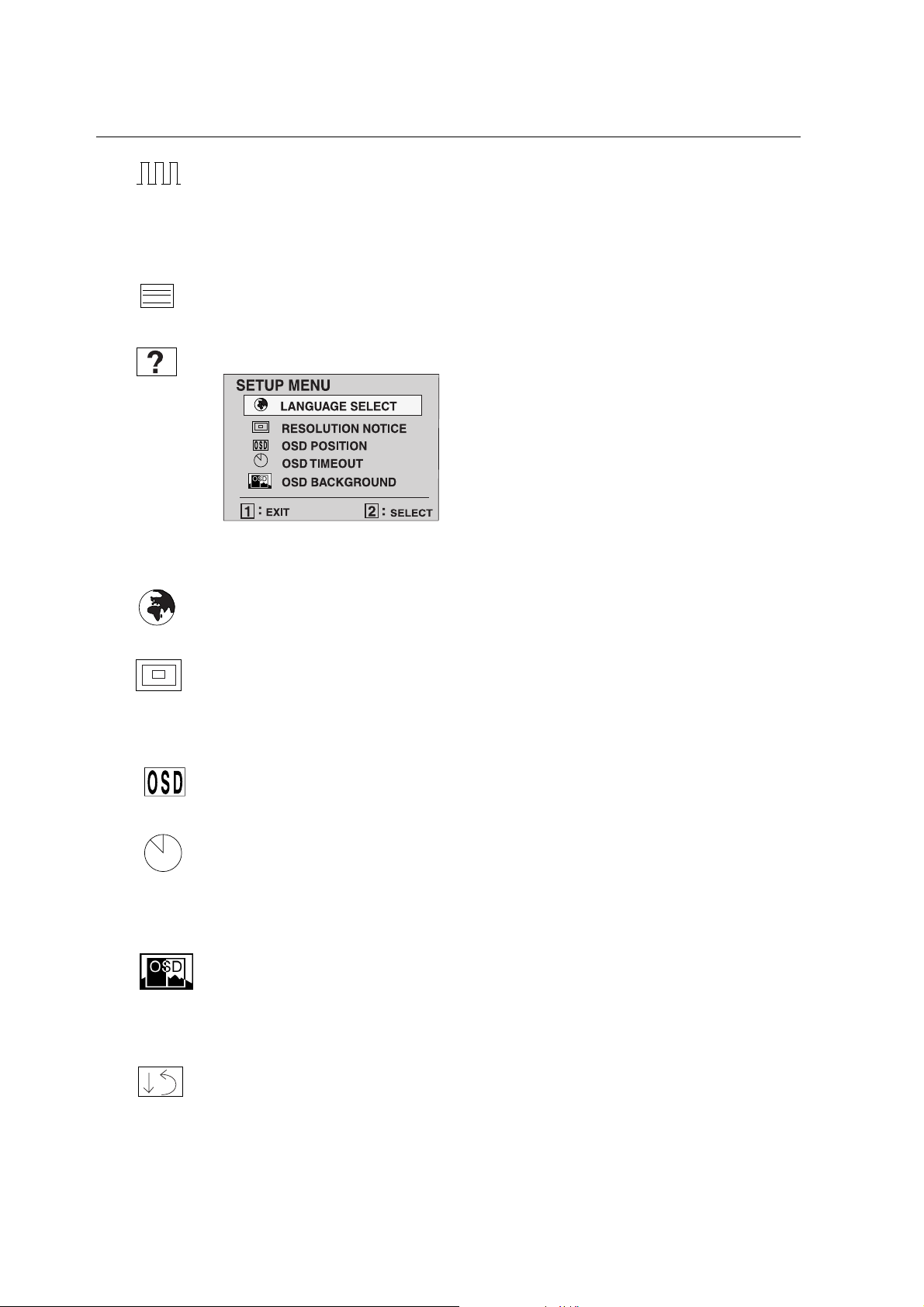

Fine Tune

sharpens focus by aligning the illuminated text and/

or graphic characters.

NOTE:

Fine Tune

Sharpness

Setup Menu

Try the

Auto Image Adjust

(see page 9) before using the

control.

adjusts the clarity and focus of the screen image.

displays the menu shown below.

The Setup Menu controls are explained below.

Language Select

allows you to choose the language used in the

menus and control screens.

Resolution Notice

advises the optimal resolution to use. After
selecting Resolution Notice, a sub menu appears asking if you
want to Disable or Enable the notice. If you want the Resolution
Notice to appear on-screen, select Enable.

OSD Position

allows you to move the on-screen display

menus and control screens.

OSD Timeout

sets the length of time an on-screen display
screen is displayed. For example, with a “15 second” setting, if
a control is not pushed within 15 seconds, the display screen
disappears.

OSD Background

allows you to turn the On-Screen display
background on or off. This means that while making adjustments
from the OSD control screens you can also view open software
applications, or the Windows desktop.

Memory Recall

returns adjustments to the original factory
settings if the display is operating in a factory Preset Timing
Mode listed in this user guide.

Exception: This control does not effect changes made with the
User Color control.

ViewSonic VG170m 11

Other Information

Specifications

LCD

Input signal

Compatibility

Resolution

Power

Display area

Operating
conditions

Ty p e

Color Filter
Glass surface

Video Sync RGB analog (0.7/1.0 Vp-p, 75 ohms)

PC
Macintosh

Recommended
and supported

Voltage 100-240 VAC, 50/60 Hz (auto switch)

Full Scan 337.9mm (H) x 227.0 mm (V)

Temperature
Humidity
Altitude

1

17.0" (full 17.0" viewable diagonal area),
TFT (Thin Film Transistor), Active Matrix SXGA LCD,

0.264 mm pixel pitch
RGB vertical stripe
Anti-Glare

H/V Separated (TTL)
f

:30-82 kHz, fv:50-75 Hz

h

Up to 1280 x 1024 Non-interlaced
Power Macintosh up to 1280 x 1024

1280 x 1024 @ 60, 75 Hz
1152 x 870 @ 75 Hz
1024 x 768 @ 60 Hz
832 x 624 @ 75 Hz
800 x 600 @ 60, 75 Hz
640 x 350 @ 70 Hz
720 x 400 @ 70 Hz

13.3" (H) x 8.9" (V)

32° F to + 104° F (0° C to + 40° C)
10% to 90% (no condensation)
To 10,000 feet

Storage
conditions

Dimensions

Weight

Temperature
Humidity
Altitude

Physical
(ViewPanel

Net 5.7 kg (12.56 lbs) ViewPanel only

®

only)

Regulations

Power saving
modes

Preset Timing Mode

Warning:

result in permanent damage to the ViewPanel.

1

Macintosh computers older than G3 require a ViewSonic®, Macintosh adapter. To order an adapter,

contact ViewSonic.

Do not set the graphics card in your computer to exceed these refresh rates; doing so may

On 40W (maximum) (green LED)
Active Off <3W (orange LED)

(pre-adjusted to VESA® 1280 x 1024@ 60 Hz)

-4° F to + 140° F (-20° C to + 60° C)
10% to 90% (no condensation)
To 40,000 feet

414 mm (W) x 403 mm (H) x 229 mm (D)

16.3" (W) x 15.9" (H) x 9.0" (D)

NERGY STAR

UL, FCC-B, CB, CE, IC-B, EPA
TUV/GS, VCCI, BSMI, PSB (S-Mark), C-Tick, GOST-R
(PCT-BZO2), EMI/B, MPRII, MPRII, NEMKO, SEMKO,
DEMKO, FIMKO, TCO99, ISO13046-2, CCIB

E

®

, NOM,

ViewSonic VG170m 12

Troubleshooting

No power

• Make sure power button (or switch) is ON.

• Make sure A/C power cord is securely connected to the DC power supply
and the power supply is firmly connected to the ViewPanel

• Plug another electrical device (like a radio) into the power outlet to verify that
the outlet is supplying proper voltage.

Power is ON but no screen image

• Make sure the video cable supplied with the ViewPanel display is tightly
secured to the video output port on the back of the computer. If the other end
of the video cable is not attached permanently to the ViewPanel display,
tightly secure it to the ViewPanel display.

• Adjust brightness and contrast.

• If you are using an Macintosh older than G3, you need a Macintosh adapter.

®

display.

Wrong or abnormal colors

• If any colors (red, green, or blue) are missing, check the video cable to make
sure it is securely connected. Loose or broken pins in the cable connector
could cause an improper connection.

• Connect the ViewPanel display to another computer.

• If you have an older graphics card, contact ViewSonic for a non-DDC
adapter.

Control buttons do not work

• Press only one button at a time.

ViewSonic VG170m 13

Customer Support

For technical support or product service, see the table below or contact your
reseller.

NOTE:

Country/

You will need the product serial number.

Web site T = Telephone

Region

United States

Canada

United Kingdom viewsoniceurope.com

Europe, Middle
East, Baltic
countries, and
North Africa

Australia and New
Zealand

viewsonic.com/
support

viewsonic.com/
support

viewsoniceurope.com Contact your

viewsonic.com.au

F = FAX

[phone]

T:

[phone]

F:

[phone]

T:

[phone]

F:

0800 833 648

T:

[phone]

F:

reseller

[phone]

T:

[phone]

F:

Email

service.us@
viewsonic.com

service.ca@
viewsonic.com

service.eu@
viewsoniceurope.com

service.eu@
viewsoniceurope.com

service.au@
viewsonic.com

Singapore/India
and Southeast
Asia

Other Asia/Pacific
countries

South Africa viewsonic.com/asia

viewsonic.com.sg

viewsonic.com.tw

65 273 4018

T:

65 273 1566

F:

886 2 2246 3456

T:

886 2 8242 3668

F:

886 2 2246 3456

T:

886 2 8242 3668

F:

service.sg@
viewsonic.com

service.ap@
viewsonic.com

service.ap@
viewsonic.com

ViewSonic VG170m 14

Cleaning the ViewPanel Display

• MAKE SURE THE VIEWPANEL® DISPLAY IS TURNED OFF.

• NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE
SCREEN OR CASE.

To clean the screen:

Wipe the screen with a clean, soft, lint-free cloth. This removes dust and

1

other particles.
If still not clean, apply a small amount of non-ammonia, non-alcohol based

2

glass cleaner onto a clean, soft, lint-free cloth, and wipe the screen.

To clean the case:

Use a soft, dry cloth.

1

If still not clean, apply a small amount of a non-ammonia, non-alcohol

2

based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then
wipe the surface.

Disclaimer

ViewSonic does not recommend the use of any ammonia or alcohol-based
cleaners on the ViewPanel display screen or case. Some chemical cleaners have
been reported to damage the screen and/or case of the ViewPanel display.
ViewSonic will not be liable for damage resulting from use of any ammonia or
alcohol-based cleaners.

ViewSonic VG170m 15

Limited Warranty

VIEWSONIC LCD VIEWPANEL DISPLAY

What the warranty covers:

ViewSonic

warranty period. If a product proves to be defective in material or workmanship during the warranty
period,
product or parts may include remanufactured or refurbished parts or components.

How long the warranty is effective:

ViewSonic

source and three (3) years for all labor from the date of the first consumer purchase.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from:

3. Removal, installation, and set-up service charges.

How to get service:

1. For information about receiving service under warranty, contact

2. To obtain service under warranty, you will be required to provide (a) the original dated sales slip, (b) your

3. Take or ship the product freight prepaid in the original container to an authorized

4. For additional information or the name of the nearest

Limitation of implied warranties:

THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE
DESCRIPTION CONTAINED HEREIN INCLUDING THE IMPLIED WARRANTY OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Exclusion of damages:

VIEWSONIC'S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE
PRODUCT. VIEWSONIC SHALL NOT BE LIABLE FOR:

1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES

2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.

3. ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.

Effect of state law:

This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of
incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on
contact

ViewSonic LCD Warranty (V2.0) Release Date: 10-15-1999

warrants its products to be free from defects in material and workmanship during the

ViewSonic

®

a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product

modification, or failure to follow instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by
c. Any damage of the product due to shipment.
d. Removal or installation of the product.
e. Causes external to the product, such as electrical power fluctuations or failure.
f. Use of supplies or parts not meeting
g. Normal wear and tear.
h. Any other cause which does not relate to a product defect.

You will need to provide your product's serial number.

name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.

vice center or

ViewSonic

BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF
PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH
BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.

ViewSonic

will, at its sole option, repair or replace the product with a like product. Replacement

LCD ViewPanel® displays are warranted for three (3) years for all parts including the light

ViewSonic.

’s specifications.

ViewSonic Customer Support.

ViewSonic

ViewSonic

products sold outside of the U.S.A. and Canada,

service center, contact

ser-

ViewSonic.

.

or your local

ViewSonic

ViewSonic

ViewSonic

dealer.

ViewSonic VG170m 16

Appendix

\

Safety Guidelines

Warning:

CAUTION:

CAUTION:

fied for the individual country. Some examples are listed below:

This device must be operated with the original power supply, part number: HASU05F.

The socket-outlet should be installed near the equipment and should be easily accessible.

Use a power cable that is properly grounded. Always use the appropriate AC cord that is certi-

86$  8/
&DQDGD  &6$
*HUPDQ\9'(

6ZLW]HUODQG  6(9
%ULWDLQ  %$6(%6

-DSDQ  (OHFWULF$SSOLDQFH&RQWURO$FW

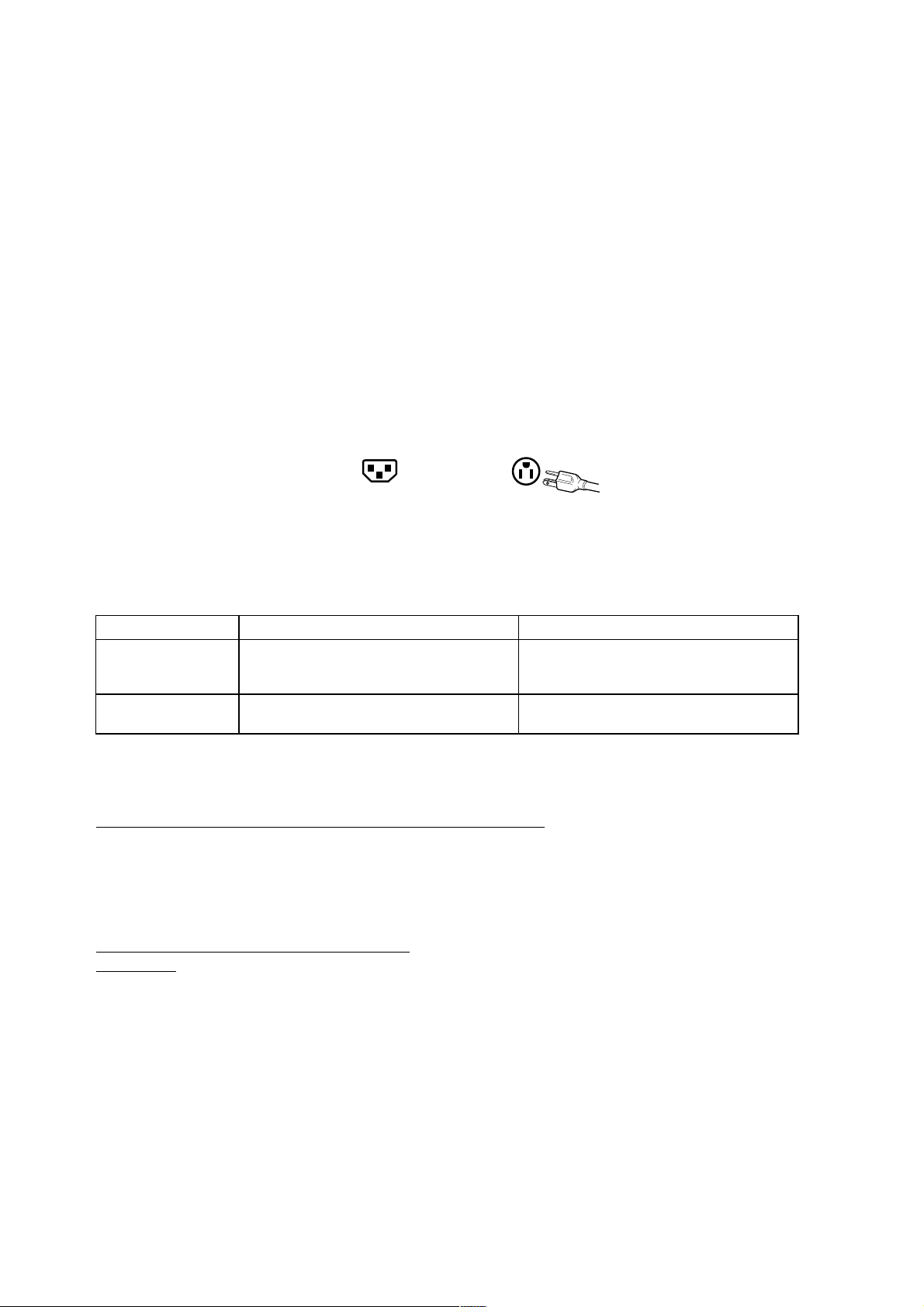

IMPORTANT NOTICE CONCERNING POWER CORD SELECTION

The power cord set for this unit has been enclosed and has been selected according to the country of des­tination and must be used to prevent electric shock. Use the following guidelines if it is necessary to
replace the original cord set, or if the cord set is not enclosed.
The female receptacle of the cord set must meet IEC-60320 requirements and may look like (Figure A1
below):

Figure A1

Figure A2

For the United States and Canada

In the United States and Canada the male plug is a NEMA5-15 style (Figure A2), UL Listed, and CSA
Labeled. For units which are mounted on a desk or table, type SVT or SJT cord sets may be used. For
units which sit on the floor, only SJT type cord sets may be used. The cord set must be selected according
to the current rating for your unit. Please consult the table below for the selection criteria for power cords
used in the United States and Canada.

&RUG7

SJT 18 AWG

SVT 18 AWG

SH 6L]HRI&RQGXFWRUVLQ&RUG 0D[LPXP&XUUHQW5DWLQJRI8QLW

16 AWG
14 AWG

17 AWG

10 Amps
12 Amps
12 Amps

10 Amps
12 Amps

For European Countries

In Europe you must use a cord set which is appropriate for the receptacles in your country. The cord set is HAR­Certified, and a special mark that will appear on the outer sheath, or on the insulation of one of the inner conductors.

AC PLUG CORD PRECAUTIONS FOR THE UNITED KINGDOM

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET THEN THE PLUG SHOULD BE
CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO AN
APPROPRIATE SOCKET.

If a new plug is to be fitted, please observe the wiring code as shown below.

If in any doubt, please consult a qualified electrician.

WARNING:

IMPORTANT:

If the coloured wires of the mains lead of this appliance do not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by
the letter E or by the Earth symbol or coloured GREEN or GREEN-AND-YELLOW.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or
coloured BLACK. The wire which is coloured BROWN must be connected to the terminal in the plug which is marked
with the letter L or coloured RED.

If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you
have purchased the product.

THIS APPLIANCE MUST BE EARTHED.

The wires in this mains lead are coloured in accordance with the following code:

Green-and-Yellow: Earth
Blue: Neutral
Brown: Live

ViewSonic VG170m 17

Compliance Information for U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a resi­dential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer­ence to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Warning

To assure continued FCC compliance, the user must use grounded power supply cord and the provided
shielded video interface cable with bonded ferrite cores. If a BNC cable is going to be used, use only a
shielded BNC(5) cable. Also, any unauthorized changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this device.

CE Conformity for Europe

The device complies with the requirements of the EEC directive 89/336/EEC as
amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic
compatibility, and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety."

ViewSonic VG170m 18

ViewSonic Corporation
