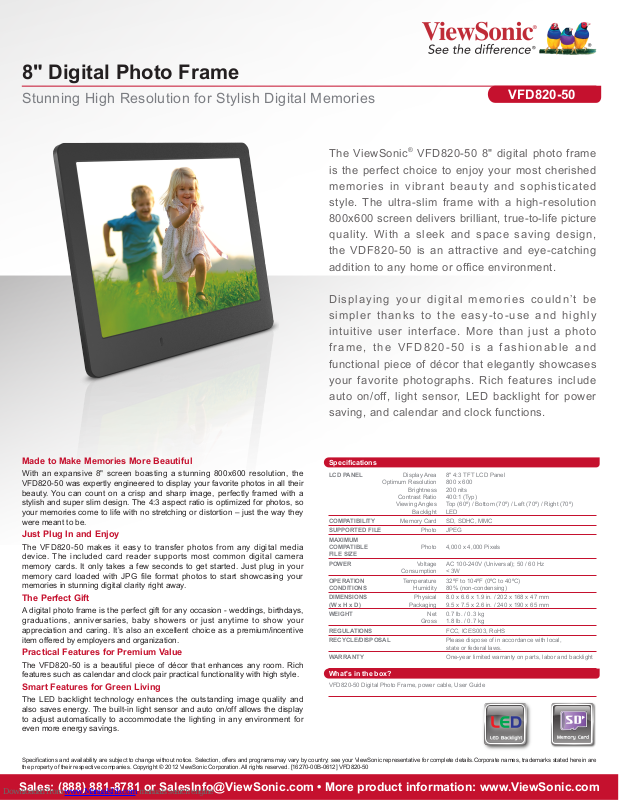

ViewSonic VFD820-50 Datasheet

8" Digital Photo Frame

Stunning High Resolution for Stylish Digital Memories

The ViewSonic® VFD820-50 8" digital photo frame
is the perfect choice to enjoy your most cherished
memories in vibrant beauty and sophisticated
style. The ultra-slim frame with a high-resolution
800x600 screen delivers brilliant, true-to-life picture
quality. With a sleek and space saving design,
the VDF820-50 is an attractive and eye-catching
addition to any home or office environment.

Displaying your digital memories couldn’t be
simpler thanks to the easy-to-use and highly
intuitive user interface. More than just a photo
frame, the VFD820-50 is a fashionable and
functional piece of décor that elegantly showcases
your favorite photographs. Rich features include
auto on/off, light sensor, LED backlight for power
saving, and calendar and clock functions.

VFD820-50

Made to Make Memories More Beautiful

With an expansive 8" screen boasting a stunning 800x600 resolution, the
VFD820-50 was expertly engineered to display your favorite photos in all their
beauty. You can count on a crisp and sharp image, perfectly framed with a
stylish and super slim design. The 4:3 aspect ratio is optimized for photos, so
your memories come to life with no stretching or distortion – just the way they
were meant to be.

Just Plug In and Enjoy

The VFD820-50 makes it easy to transfer photos from any digital media
device. The included card reader supports most common digital camera
memory cards. It only takes a few seconds to get started. Just plug in your
memory card loaded with JPG file format photos to start showcasing your
memories in stunning digital clarity right away.

The Perfect Gift

A digital photo frame is the perfect gift for any occasion - weddings, birthdays,
graduations, anniversaries, baby showers or just anytime to show your
appreciation and caring. It’s also an excellent choice as a premium/incentive
item offered by employers and organization.

Practical Features for Premium Value

The VFD820-50 is a beautiful piece of décor that enhances any room. Rich
features such as calendar and clock pair practical functionality with high style.

Smart Features for Green Living

The LED backlight technology enhances the outstanding image quality and
also saves energy. The built-in light sensor and auto on/off allows the display
to adjust automatically to accommodate the lighting in any environment for
even more energy savings.

Specications

LCD PANEL Display Area 8" 4:3 TFT LCD Panel
Optimum Resolution 800 x 600

Brightness 200 nits
Contrast Ratio 400:1 (Typ)
Viewing Angles Top (60º) / Bottom (70º) / Left (70º) / Right (70º)
Backlight LED

COMPATIBILITY Memory Card SD, SDHC, MMC

SUPPORTED FILE Photo JPEG

MAXIMUM
COMPATIBLE Photo 4,000 x 4,000 Pixels
FILE SIZE

POWER Voltage AC 100-240V (Universal); 50 / 60 Hz

Consumption < 3W

OPERATION Temperature 32ºF to 104ºF (0ºC to 40ºC)
CONDITIONS Humidity 80% (non-condensing)

DIMENSIONS Physical 8.0 x 6.6 x 1.9 in. / 202 x 168 x 47 mm
(W x H x D) Packaging 9.5 x 7.5 x 2.6 in. / 240 x 190 x 65 mm

WEIGHT Net 0.7 lb. / 0.3 kg

Gross 1.8 lb. / 0.7 kg

REGULATIONS FCC, ICES003, RoHS

RECYCLE/DISPOSAL Please dispose of in accordance with local,

state or federal laws.

WARRANTY One-year limited warranty on parts, labor and backlight

What's in the box?

VFD820-50 Digital Photo Frame, power cable, User Guide

Specications and availability are subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details.Corporate names, trademarks stated herein are
the property of their respective companies. Copyright © 2012 ViewSonic Corporation. All rights reserved. [16270-00B-0612] VFD820-50

Sales: [phone] or [e-mail] • More product information: www.ViewSonic.com
