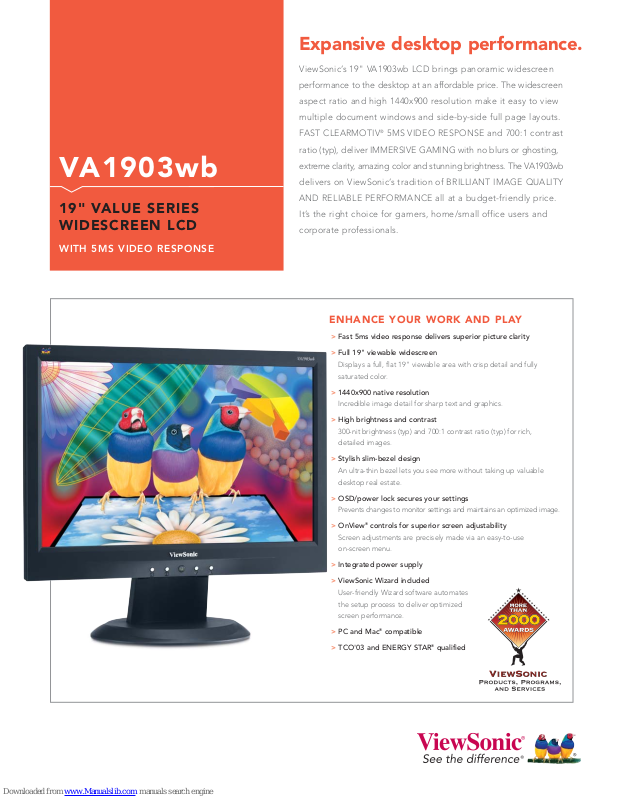

ViewSonic VA1903WB - 19"" LCD Monitor Specification
VA1903wb
19" VALUE SERIES
WIDESCREEN LCD
WITH 5MS VIDEO RESPONSE
Expansive desktop performance.
ViewSonic’s 19" VA1903wb LCD brings panoramic widescreen
performance to the desktop at an affordable price. The widescreen
aspect ratio and high 1440x900 resolution make it easy to view
multiple document windows and side-by-side full page layouts.
®
FAST CLEARMOTIV
ratio (typ), deliver IMMERSIVE GAMING with no blurs or ghosting,
extreme clarity, amazing color and stunning brightness. The VA1903wb
delivers on ViewSonic’s tradition of BRILLIANT IMAGE QUALITY
AND RELIABLE PERFORMANCE all at a budget-friendly price.
It’s the right choice for gamers, home/small office users and
corporate professionals.
ENHANCE YOUR WORK AND PLAY
> Fast 5ms video response delivers superior picture clarity
> Full 19" viewable widescreen
Displays a full, flat 19" viewable area with crisp detail and fully
saturated color.
> 1440x900 native resolution
Incredible image detail for sharp text and graphics.
> High brightness and contrast
300-nit brightness (typ) and 700:1 contrast ratio (typ) for rich,
detailed images.
> Stylish slim-bezel design
An ultra-thin bezel lets you see more without taking up valuable
desktop real estate.
> OSD/power lock secures your settings
Prevents changes to monitor settings and maintains an optimized image
> OnView
Screen adjustments are precisely made via an easy-to-use
on-screen menu
> Integrated power supply
> ViewSonic Wizard included
User-friendly Wizard software automates
the setup process to deliver optimized
screen performance.
> PC and Mac®compatible
> TCO'03 and ENERGY STAR
5MS VIDEO RESPONSE and 700:1 contrast
®
controls for superior screen adjustability
.
®
qualified
.
VA1903wb
19" VALUE SERIES WIDESCREEN LCD WITH 5MS VIDEO RESPONSE
LCD Type 19" color TFT active matrix WXGA+ LCD
Display Area 16.1" horizontal x 10.0" vertical; 19.0" diagonal
Optimum Resolution 1440x900
Contrast Ratio 700:1 (typ)
Viewing Angles 160° horizontal, 160° vertical @ contrast ratio > 5:1
Response Time 5ms (typ)
Light Source Long life, 50,000 hrs. (typ)
Brightness 300 cd/m2 (typ)
Aspect Ratio 16:9
Panel Surface Anti-glare
VIDEO INPUT Analog RGB analog (75 ohms, 0.7 Vp-p)
Frequency Fh: 24~82kHz, Fv: 50~75Hz
Sync H/V separated (TTL)
COMPATIBILITY PC VGA up to 1440x900 non-interlaced
Mac®* VGA up to 1440x900 non-interlaced
CONNECTOR Analog 15-pin mini D-sub
Power 3-pin AC plug (CEE22)
POWER Voltage AC 100–240V (universal), 50/60Hz (auto switch)
Consumption 34W (typ)
CONTROLS Basic Power, 1, down, up, 2
OPERATING Temperature 32–104°F (0–40°C)
CONDITIONS Humidity 10–90% (non-condensing)
DIMENSIONS Physical with stand 17.6" x 17.1" x 8.3" (448mm x 403mm x 210mm)
(W x H x D) Physical without stand 17.6" x 12.9" x 2.4" (448mm x 318mm x 63mm)
WEIGHT Net with stand 10.4 lb. (4.7 kg)
REGULATIONS UL, cUL, FCC-B, CB, CE, NOM, TUV/GS, TUV/ERGO
POWER MANAGEMENT Meets TCO'03 and ENERGY STAR®standards
PACKAGE CONTENTS LCD display, video cable, power cable, Quick Start Guide,
WARRANTY Three-year limited warranty on parts, labor and backlight
®
OnView
Net without stand 6.38 lb. (2.9 kg)
Gross with stand 13.2 lb. (6.0 kg)
Auto image adjust, contrast, brightness, ViewMatch®color
adjust (sRGB, 9300K, 6500K – default, 5400K, RGB), information
(resolution, H-freq, V-freq, pixel clock, model number, serial
number, web site), manual image adjust (H. size, H. position,
V. position, fine tune, sharpness), setup menu (language,
resolution notice, OSD position, OSD timeout, OSD back-
ground), memory recall
(covers ISO13406-2), TCO'03, BSMI, CCC, ENERGY STAR,
PSB, C-TICK, RoHS, WEEE, VCCI, GOST-R, SASO
ViewSonic Wizard
®
ViewSonic Corporation’s QMS & EMS have been registered to
ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Customer Service and Technical Support: (800) 688-6688 • Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com
*Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details.
Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2007 ViewSonic Corporation. All rights reserved. [13300-01B-03/07] VA1903wb-1
For more product information, visit us on the web at ViewSonic.com
