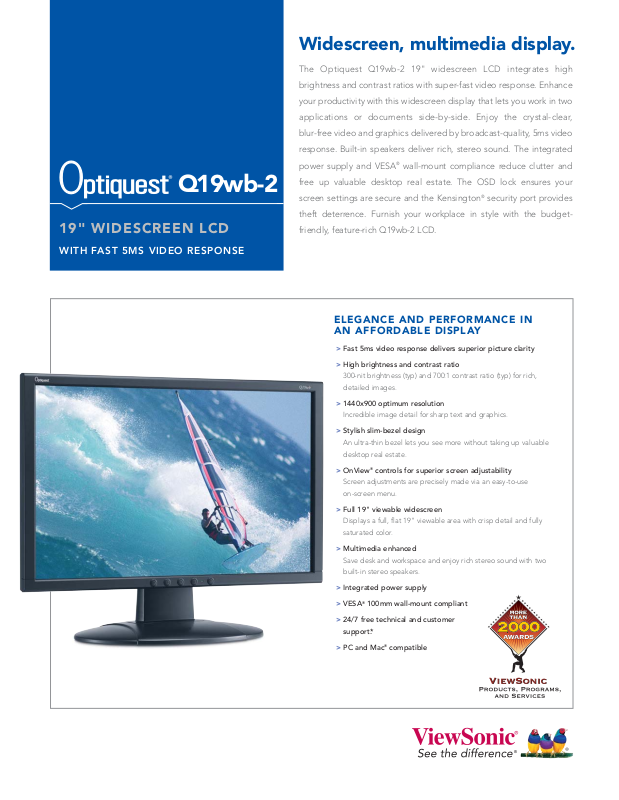

Q19wb-2
19" WIDESCREEN LCD
WITH FAST 5MS VIDEO RESPONSE
Widescreen, multimedia display.
The Optiquest Q19wb-2 19" widescreen LCD integrates high
brightness and contrast ratios with super-fast video response. Enhance
your productivity with this widescreen display that lets you work in two
applications or documents side-by-side. Enjoy the crystal-clear,
blur-free video and graphics delivered by broadcast-quality, 5ms video
response. Built-in speakers deliver rich, stereo sound. The integrated
®
power supply and VESA
free up valuable desktop real estate. The OSD lock ensures your
screen settings are secure and the Kensington
theft deterrence. Furnish your workplace in style with the budget-
friendly, feature-rich Q19wb-2 LCD.
ELEGANCE AND PERFORMANCE IN
AN AFFORDABLE DISPLAY
> Fast 5ms video response delivers superior picture clarity
> High brightness and contrast ratio
300-nit brightness (typ) and 700:1 contrast ratio (typ) for rich,
detailed images.
> 1440x900 optimum resolution
Incredible image detail for sharp text and graphics.
> Stylish slim-bezel design
An ultra-thin bezel lets you see more without taking up valuable
desktop real estate.
> OnView®controls for superior screen adjustability
Screen adjustments are precisely made via an easy-to-use
on-screen menu.
> Full 19" viewable widescreen
Displays a full, flat 19" viewable area with crisp detail and fully
saturated color.
> Multimedia enhanced
Save desk and workspace and enjoy rich stereo sound with two
built-in stereo speakers.
> Integrated power supply
®
> VESA
> 24/7 free technical and customer
> PC and Mac
100mm wall-mount compliant
support.*
wall-mount compliance reduce clutter and
®
security port provides
®
compatible
Q19wb-2
19" WIDESCREEN LCD WITH FAST 5MS VIDEO RESPONSE
LCD Type 19" color TFT active matrix SXGA LCD
Display Area 16.1" horizontal x 10.0" vertical; 19.0" diagonal
Optimum Resolution 1440x900
Contrast Ratio 700:1 (typ)
Viewing Angles 150° horizontal, 140° vertical @ contrast ratio > 10:1
Response Time 5ms (typ)
Light Source Long life, 50,000 hrs. (typ)
Brightness 300 cd/m2 (typ)
Panel Surface Anti-glare
INPUT SIGNAL Video RGB analog (75 ohms, 0.7 Vp-p)
Sync H/V separated (TTL)
Frequency Fh: 31~81kHz, Fv: 50~75Hz
COMPATIBILITY PC VGA up to 1440x900 non-interlaced
Mac®** Power Mac™G3/G4/G5 up to 1152x870
CONNECTOR Analog PC 15-pin mini D-sub
Power 3-pin AC plug (CEE22)
POWER Voltage AC 100–240V (universal), 50/60Hz (auto switch)
Consumption 36W (typ)
AUDIO Speakers 2x1-watt
CONTROLS Basic Power, 2, up, down,1
OPERATING Temperature 32–104°F (0–40°C)
CONDITIONS Humidity 10–90% (non-condensing)
DIMENSIONS Physical with stand 17.6" x 14.3" x 8.4" (446mm x 364mm x 213mm)
(W x H x D) Physical without stand 17.6" x 11.5" x 2.6" (446mm x 292mm x 67mm)
WEIGHT Net with stand 9.7 lb. (4.4 kg)
REGULATIONS UL, cUL, FCC-B, ENERGY STAR®, TCO’99, ICES-003B, RoHS,
POWER MANAGEMENT Meets TCO’99 and ENERGY STAR®standards
PACKAGE CONTENTS LCD display, power cable, video cable, audio cable,
WARRANTY One-year limited warranty on parts and backlight
®
OnView
Net without stand 8.8 lb. (4.0 kg)
Gross with stand 11.2 lb. (5.1 kg)
Auto image adjust, brightness, contrast, ViewMatch®color adjust
(sRGB, 9300K, 6500K, 5400K user color), H. position, V. position,
H. size, resolution notice, OSD position, OSD timeout,
OSD background, fine tune, sharpness, language, recall,
volume, mute
CB, CE, WEEE, ISO13406-2, TUV-S, NOM, GOST-R
Quick Start Guide, Wizard CD-ROM
ViewSonic Corporation’s QMS & EMS have been registered to
ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com
*Excluding major U.S. holidays. **Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic
representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2008 ViewSonic Corporation. All rights reserved. [14184-00B-10/08] Q19wb-2
