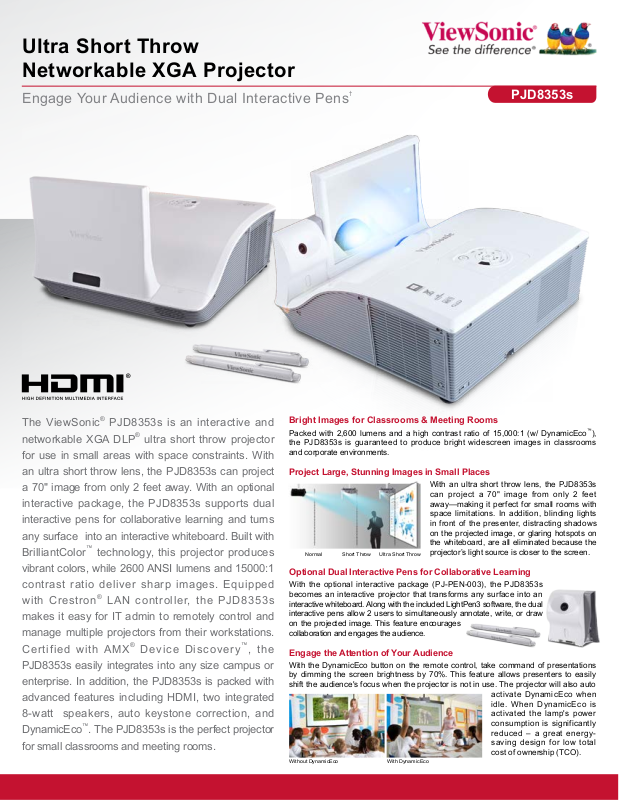

ViewSonic PJD8353s Product Sheet
Ultra Short Throw
Networkable XGA Projector
Engage Your Audience with Dual Interactive Pens
†
PJD8353s
The ViewSonic® PJD8353s is an interactive and
®
networkable XGA DLP
ultra short throw projector
for use in small areas with space constraints. With
an ultra short throw lens, the PJD8353s can project
a 70" image from only 2 feet away. With an optional
interactive package, the PJD8353s supports dual
interactive pens for collaborative learning and turns
any surface into an interactive whiteboard. Built with
™
BrilliantColor
technology, this projector produces
vibrant colors, while 2600 ANSI lumens and 15000:1
contrast ratio deliver sharp images. Equipped
®
with Crestron
LAN controller, the PJD8353s
makes it easy for IT admin to remotely control and
manage multiple projectors from their workstations.
®
Certified with AMX
Device Discovery™, the
PJD8353s easily integrates into any size campus or
enterprise. In addition, the PJD8353s is packed with
advanced features including HDMI, two integrated
8-watt speakers, auto keystone correction, and
™
DynamicEco
. The PJD8353s is the perfect projector
for small classrooms and meeting rooms.
Bright Images for Classrooms & Meeting Rooms
Packed with 2,600 lumens and a high contrast ratio of 15,000:1 (w/ DynamicEco™),
the PJD8353s is guaranteed to produce bright widescreen images in classrooms
and corporate environments.
Project Large, Stunning Images in Small Places
With an ultra short throw lens, the PJD8353s
can project a 70" image from only 2 feet
away—making it perfect for small rooms with
space limitations. In addition, blinding lights
in front of the presenter, distracting shadows
on the projected image, or glaring hotspots on
the whiteboard, are all eliminated because the
Normal Short Throw
Optional Dual Interactive Pens for Collaborative Learning
With the optional interactive package (PJ-PEN-003), the PJD8353s
becomes an interactive projector that transforms any surface into an
interactive whiteboard. Along with the included LightPen3 software, the dual
interactive pens allow 2 users to simultaneously annotate, write, or draw
on the projected image. This feature encourages
collaboration and engages the audience.
Engage the Attention of Your Audience
With the DynamicEco button on the remote control, take command of presentations
by dimming the screen brightness by 70%. This feature allows presenters to easily
shift the audience's focus when the projector is not in use. The projector will also auto
Without DynamicEco
Ultra Short Throw
With DynamicEco
projector’s light source is closer to the screen.
activate DynamicEco when
idle. When DynamicEco is
activated the lamp's power
consumption is significantly
reduced – a great energysaving design for low total
cost of ownership (TCO).
Ultra Short Throw
Networkable XGA Projector
Network Monitoring & Control
IT admin can monitor, schedule, and manage the projector remotely, as well
as receive projector status alerts, with the integrated Crestron
system and RoomView Express
PJD8353s is Crestron
®
and AMX® certied, IT admin can control and monitor
™
management software. Because the
multiple projectors for any size campus or enterprise.
3D Blu-ray Ready HDMI
HDMI delivers the highest picture and sound quality without
degradation. Equipped with the latest HDMI, ViewSonic's
PJD8353s projector can display 3D images directly from 3D
®
Blu-ray
players—perfect for connecting to any HDMI-enabled
devices such as PCs, laptops, tablets, and media players.
Reliable Picture Quality
ViewSonic's DLP projectors provide reliable picture quality you can trust–even after
thousands of hours of usage. Built on DLP technology, the ViewSonic PJD8353s
projector virtually eliminates image degredation known as "color decay" – a yellow/
faded tint that LCD projectors may develop after extended use. Even after years of
use, the PJD8353s will still produce stunning, sharp images that last.
Projection Distance
(from mirror)
Feet
Meters
1.7
2.0
2.2
2.3
2.6
0.52
0.61
0.68
0.71
0.80
Screen Size (4:3)
Diagonal
Inches
Meters
60
1.5
70
1.8
77
1.9
80
2.0
90
2.3
Optional Accessories
Replacement Lamp ........................................RLC-082
Interactive Module/Pen Kit........................PJ-PEN-003
Wall Mount Kit ...........................WMK-027 / WMK-042
3D Active Shutter Glasses ......................... PGD-series
Wireless Presentation Gateway ................WPG-series
Extended 5-Year Limited Warranty .......PRJ-EW-07-02
®
e-Control™
IR Remote Sensor
Projection Lens
AC Power In
Focus Ring
Reection Mirror
Interactive Pen
Sensor (optional)
Control Panel
Audio Out
Kensington
Lock Slot
S-Video / Video Inputs
PC AudioAudio In R/L
(x2)
LAN RJ45
®
Security Bar
Component /
RGB Video In
PJD8353s
12V TriggerMic In /
RS-232
Optional WMK-027
(interactive, mouse
control and service)
HDMI
Monitor Out
Wall Mount Kit
Mini Type B USB
Specications
DISPLAY Type 0.55" Digital Micromirror Device (DLP™)
Resolution XGA 1024x768 (native)
Lens Fixed zoom / Manual optical focus
Keystone Vertical digital keystone correction (+/- 20º)
Display Size Focus: 60 – 90 in. / 1.5 – 2.3 m (diagonal)
Visible: 47 – 150 in. / 1.2 – 3.8 m (diagonal)
Active: 60 – 100 in. / 1.5 – 2.5 m (with optional PJ-PEN-003)
Throw Distance 1.7 – 2.6 ft. / 0.5 – 0.8 m
Throw Ratio 0.43:1
Lamp 240 watt
Lamp L ife 3500 / 5000 / 7000 hours* (Normal / Eco-mode / DynamicEco)
Brightness 2600 Lumens
Contrast Ratio 15,000:1 (w/ DynamicEco™)
Aspect Ratio 4:3 (native)
Color Depth 30 bits, 1.07B Color (10+10+10)
Color Wheel 6-seg RGBCYW / 7200rpm
INPUT SIGNAL Computer and Video NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60),
SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and
576p, HD 720p, 1080i, 1080p
Frequency Fh: 31–100KHz, Fv: 48–120Hz
COMPATIBILITY PC VGA to 1600x1200 UXGA
Mac® Up to UXGA (may require MAC adaptor)
CONNECTOR RGB Input 15-pin mini D-sub (x2)
RGB Output 15-pin mini D-sub
Digital Input HDMI
Component Input 15-pin mini D-sub (x2, shared with RGB)
Composite Input RCA jack
S-Video Input 4-pin mini-DIN
Audio Input RCA L/R (x2)
PC Audio Input 3.5mm mini jack (x2)
Microphone Input 3.5mm mini jack (x1)
Audio Output 3.5mm mini jack (x1)
Control RS-232 (DB-9)
LAN RJ45
USB Mini Type B (interactive, mouse control and service)
DC 12V Trigger 3.5mm plug 12V/1A
AUDIO Speaker 8-watt (x2)
*Lamp life may vary based on actual usage and other factors. **One year Express Exchange® service requires product registration. †Optional PJ-PEN-003 required. Programs, specications and availability are subject to change without
notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies, DLP
trademarks of Texas Instruments and BrilliantColor
other countries. Copyright © 2013 ViewSonic Corporation. All rights reserved. [16518-00B-01/13]
™
is a trademark of Texas Instruments. HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and
POWER Voltage 100~240VAC (Auto Switching), 50/60Hz (universal)
Consumption 300W (typ) / <0.5W (stand-by mode)
CONTROLS Basi c Power, keystone/arrow keys, left, menu/exit, right, source, enter
OSD Picture, Video/Audio, Setting, Option, Language, Information
(See user guide for full OSD functionality)
OPERATING Temperature 32ºF–104ºF (0ºC–40ºC)
CONDITIONS Humidity 10%–90% (non-condensing)
Altitude 0~6,000 ft (1,800m), operational up to 10,000 ft (3,048m)
NOISE LEVEL Normal / Eco-mode 34dB / 32dB
DIMENSIONS Physical 14.1 x 9.9 x 14.4 in. / 357 x 231 x 367 mm
(W x H x D) Packaging 18.3 x 14.0 x 17.7 in. / 465 x 355 x 450 mm
WEIGHT Net 16.1 lbs. / 7.3 kg
Gross 23.2 lbs. / 10.5 kg
REGULATIONS UL/cUL, FDA (CDRH report), CB, FCC, TUV, GS+PAH, KC,
TUV (IEC60825-1), CE EMC Report, CCC, PSB, NOM,
GOST-R, C-tick
WARRANTY PJD8353s 3-year limited warranty on parts and labor, 1-year limited
warranty on lamp, 1st year free Express Exchange
PJ-PEN-003 1-year limited warranty on parts and labor
®
service**
What's in the box?
PJD8353s projector, power cable, VGA cable, remote control with batteries, Quick Start Guide,
ViewSonic Wizard DVD (with User Guide).
ViewSonic Corporation’s QMS & EMS
have been registered to ISO 9001 & ISO
14001, respectively, by TUV NORD.
®
and DLP logo are registered
Sales: (888) 881-8781 or SalesInfo@ViewSonic.com • More product information: www.ViewSonic.com
