ViewSonic
DLP Projector
PJ766D
®
- User Guide
- Guide de l'utilisateur
- Bedienungsanleitung
- Guía del usuario
- 使用手冊
- 使用手冊
Model No. : VS11200
i
Compliance Information
For U.S.A.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) The device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy, and if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Warning
To assure continued FCC compliance, the user must use grounded power supply cord and
the cables which are included with the equipment or specified. Also, any unauthorized
changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this device.
For Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
For European Countries
CE Conformity
The device complies with the requirements of the EEC directive 89/336/EEC
as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to
“Electromagnetic compatibility,” and 73/23/EEC as amended by 93/68/EEC
Art.13 with regard to “Safety.”
User Information for all Countries
Notice: Use the cables which are included with the unit or specified
ViewSonic PJ766D i
Important Safety Information
Congratulations on purchasing the DLP projector!
Important:
It is strongly recommended that you read this section carefully before using the projector.
These safety and usage instructions will ensure that you enjoy many years safe use of the
projector. Keep this manual for future reference.
Symbols Used
Warning symbols are used on the unit and in this manual to alert you of hazardous
situations.
The following boxes are used in this manual to alert you to important information.
Note:
Provides additional information on the topic at hand.
Important:
Provides additional information that should not be overlooked.
Caution:
Alerts you to situations that may damage the unit.
Warning:
Alerts you to situations that may damage the unit, create a hazardous environment, or
cause personal injury.
Throughout this manual, component parts and items in the OSD menus are denoted in
bold font as in this example:
“Push the Menu button on the remote control to open the Main menu.”
Main Features
• Lightweight unit, easy to pack away and transport
• Compatible with all major video standards including NTSC, PAL, and SECAM
• A high brightness rating allows for presentations in daylight or in lit rooms
• Supports resolutions up to SXGA at 16.7 million colors to deliver crisp, clear images
• Flexible setup allows for front rear and ceiling projection
• Line-of-vision projections remain square, with advanced keystone correction for angled
projections
• Input source automatically detected
ViewSonic PJ766D ii
General Safety Information
¾ Do not open the unit case. Aside from the projection lamp, there are no user-serviceable
parts in the unit. For servicing, contact qualified service personnel.
¾ Follow all warnings and cautions in this manual and on the unit case.
¾ The projection lamp is extremely bright by design. To avoid damage to eyes, do not look
into the lens when the lamp is on.
¾ Do not place the unit on an unstable surface, cart, or stand.
¾ Avoid using the system near water, in direct sunlight, or near a heating device.
¾ Do not place heavy objects such as books or bags on the unit.
Power Safety
¾ Only use the supplied power cord.
¾ Do not place anything on the power cord. Place the power cord where it will not be in the
way of foot traffic.
¾ Remove the batteries from the remote control when storing or not in use for a prolonged
period.
Replacing the Lamp
¾ Replacing the lamp can be hazardous if done incorrectly.
¾ Unplug the power cord.
¾ Allow the lamp sufficient time to cool.
Cleaning the Projector
¾ Unplug the power cord before cleaning.
¾ Allow the lamp sufficient time to cool.
About this manual
This manual is intended for end users and describes how to install and operate the DLP
projector. Wherever possible, relevant information—such as an illustration and its
description—has been kept on one page. This printer-friendly format is both for your
convenience and to help save paper and thereby protect the environment. It is suggested
that you only print sections that are relevant to your needs.
ViewSonic PJ766D iii
Copyright Information
Copyright © ViewSonic® Corporation, 2006. All rights reserved.
Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.
Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of
Microsoft Corporation in the United States and other countries.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered
trademarks of ViewSonic Corporation.
VESA is a registered trademark of the Video Electronics Standards Association. DPMS and
DDC are trademarks of VESA.
PS/2, VGA and XGA are registered trademarks of International Business Machines
Corporation.
Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or
omissions contained herein; nor for incidental or consequential damages resulting from
furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right
to change product specifications without notice. Information in this document may change
without notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any
purpose without prior written permission from ViewSonic Corporation.
Product Registration
To meet your future needs, and to receive any additional product information as it becomes
available, please register your product on the Internet at: www.viewsonic.com. The
ViewSonic Wizard CD-ROM also provides an opportunity for you to print the registration form,
which you may mail or fax to ViewSonic.
For Your Records
Product Name：
Model Number：
Document Number：
Serial Number：
Purchase Date：
PJ766D
ViewSonic DLP Projector
VS11200
PJ766D -1_UG_ENG Rev.1A 01-12-06
The lamp in this product contains mercury.
Please dispose of in accordance with local, state or federal laws.
ViewSonic PJ766D iv
Table of contents
GETTING STARTED .......................................................................................................................................................... 1
PACKING CHECKLIST ........................................................................................................................................................... 1
VIEWS OF PROJECTOR PARTS............................................................................................................................................... 2
Front-left view................................................................................................................................................................. 2
Top view—OSD buttons and LEDs................................................................................................................................. 3
Rear view—connectors ................................................................................................................................................... 5
Bottom view..................................................................................................................................................................... 7
REMOTE CONTROL PARTS ................................................................................................................................................... 8
REMOTE CONTROL OPERATING RANGE............................................................................................................................. 10
PROJECTOR AND REMOTE CONTROL BUTTONS.................................................................................................................. 10
SETUP AND OPERATION............................................................................................................................................... 11
INSERTING THE REMOTE CONTROL BATTER IES ................................................................................................................. 11
CONNECTING INPUT DEVICES ............................................................................................................................................ 12
STARTING AND SHUTTING DOWN THE PROJECTOR............................................................................................................. 13
ADJUST THE ZOOM, FOCUS AND KEYSTONE ...................................................................................................................... 15
ADJUSTING THE VOLUME .................................................................................................................................................. 16
ON-SCREEN DISPLAY MENU SETTINGS................................................................................................................... 17
ON-SCREEN DISPLAY MENU CONTROLS............................................................................................................................ 17

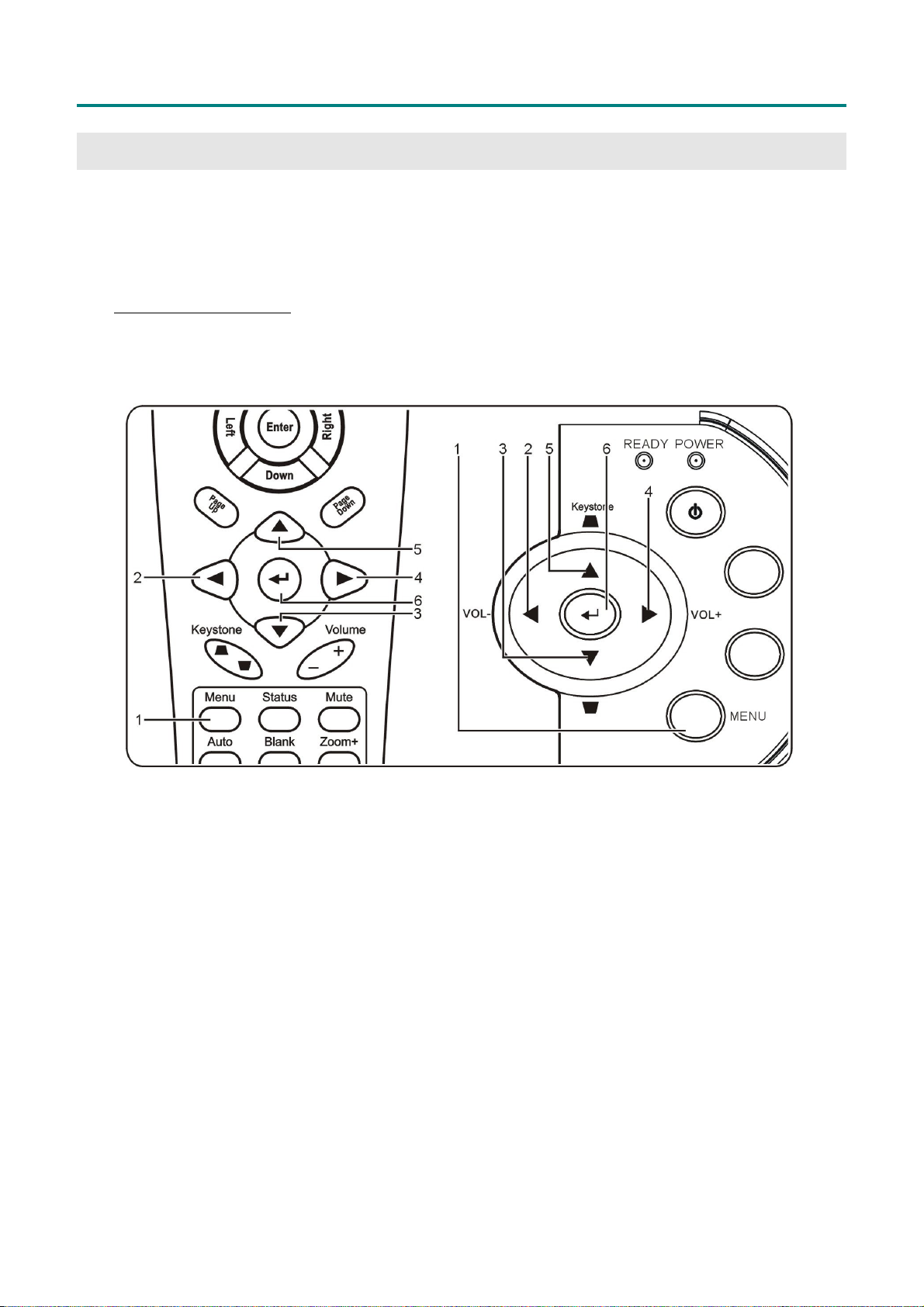

Navigating the OSD ...................................................................................................................................................... 17
Setting the OSD Language............................................................................................................................................ 18

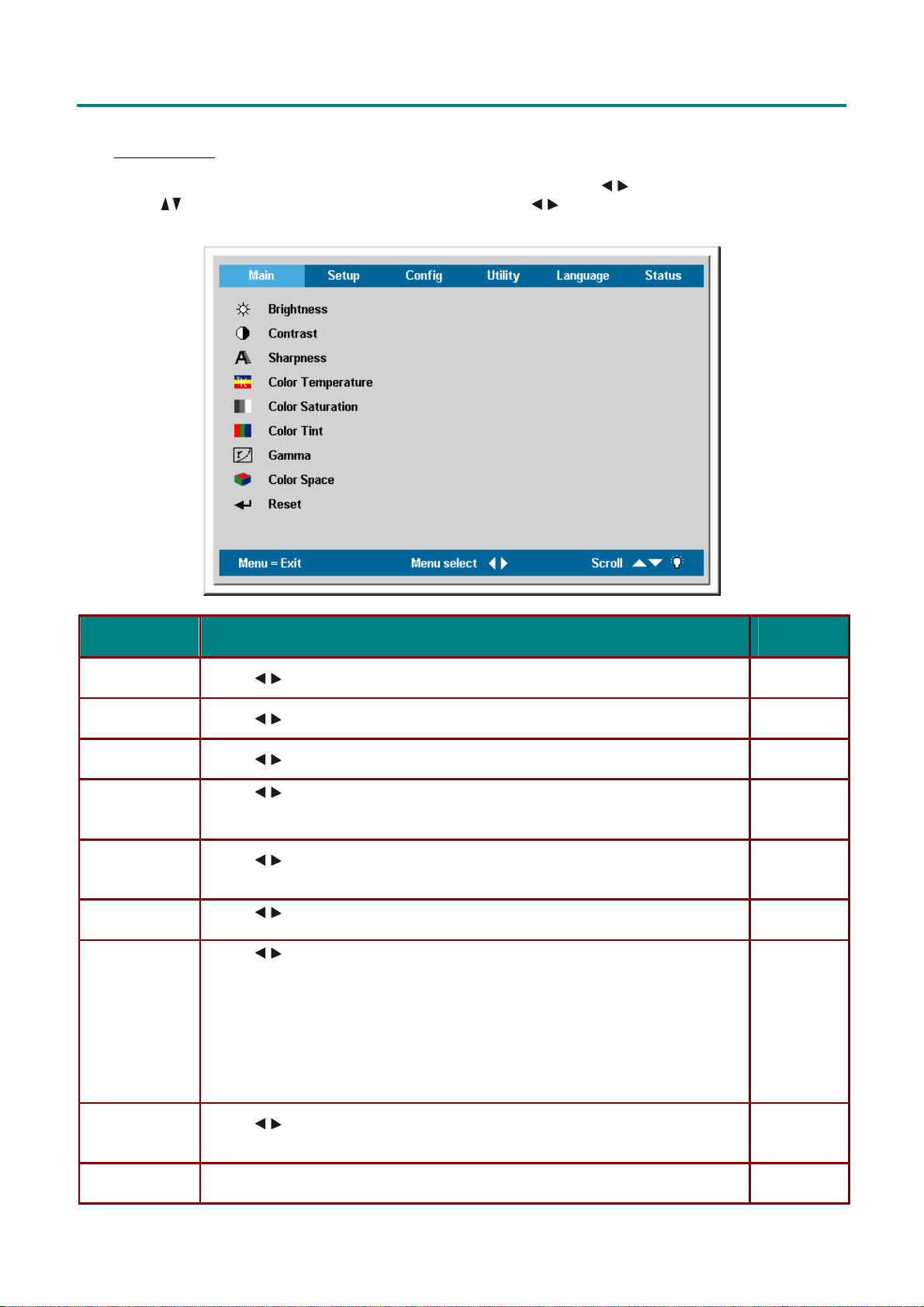

Main Menu.................................................................................................................................................................... 19
Setup Menu ................................................................................................................................................................... 21
Advance Feature ........................................................................................................................................................... 22

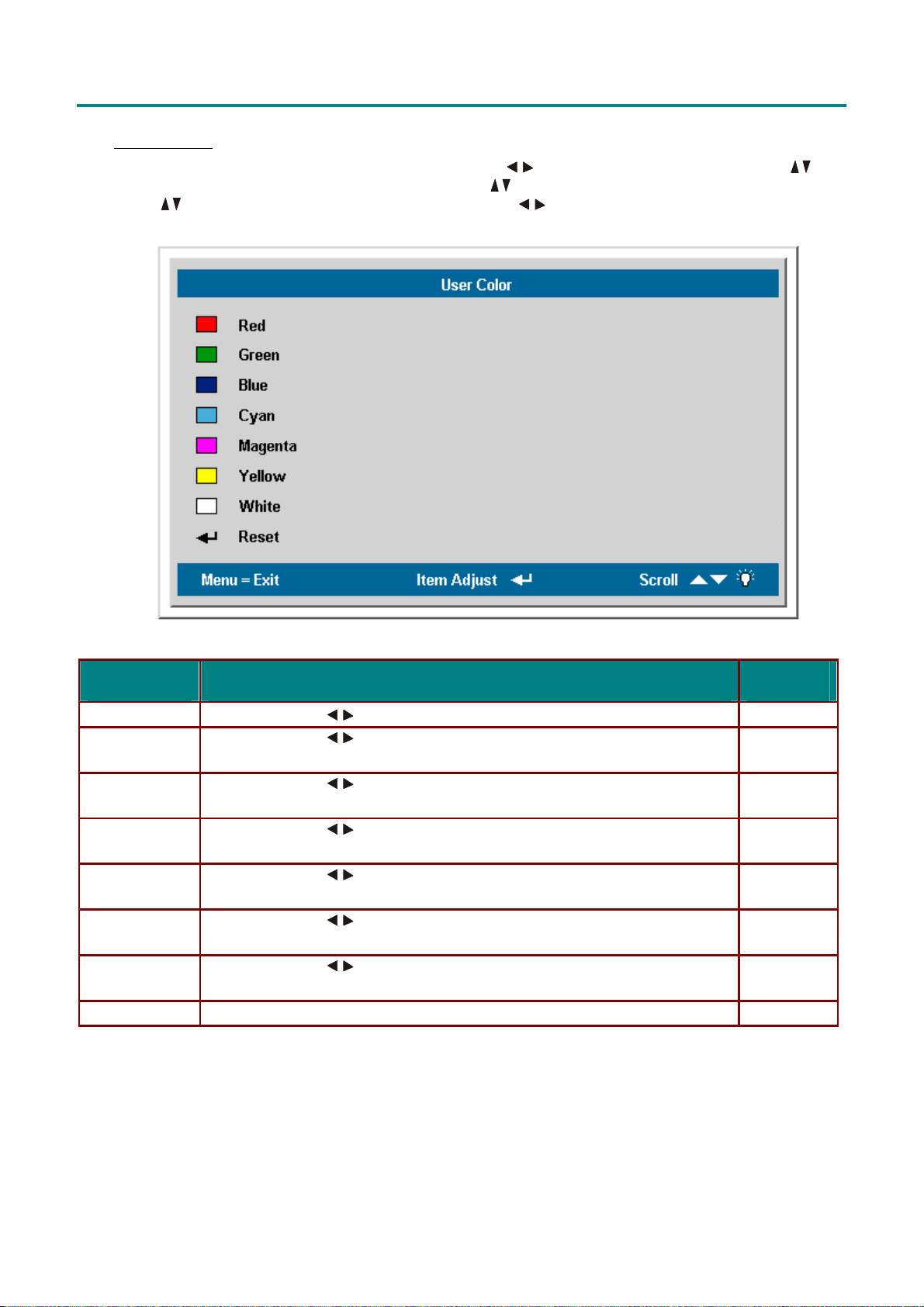

User Color .................................................................................................................................................................... 23

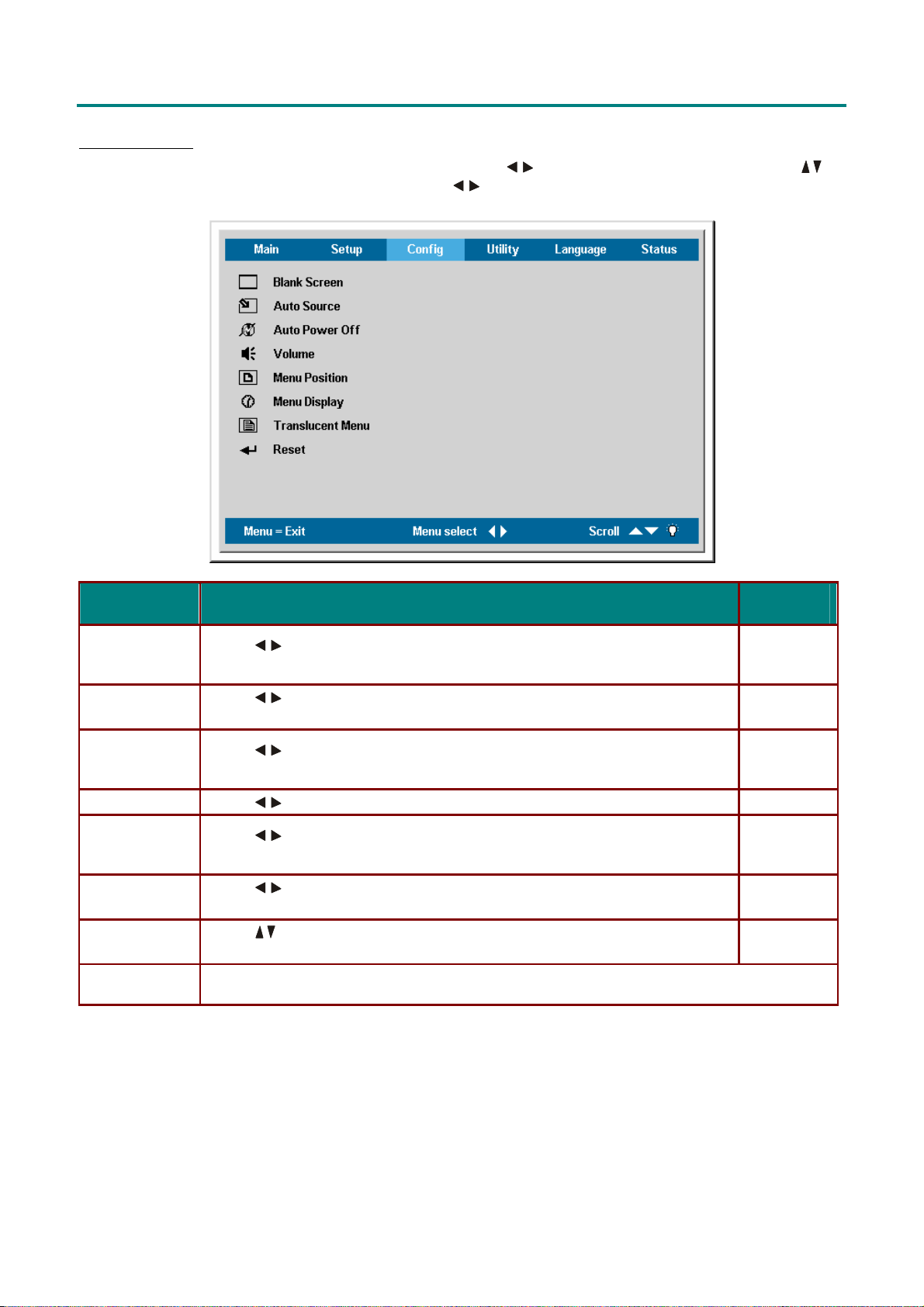

Config Menu ................................................................................................................................................................. 25
Utility Menu .................................................................................................................................................................. 26

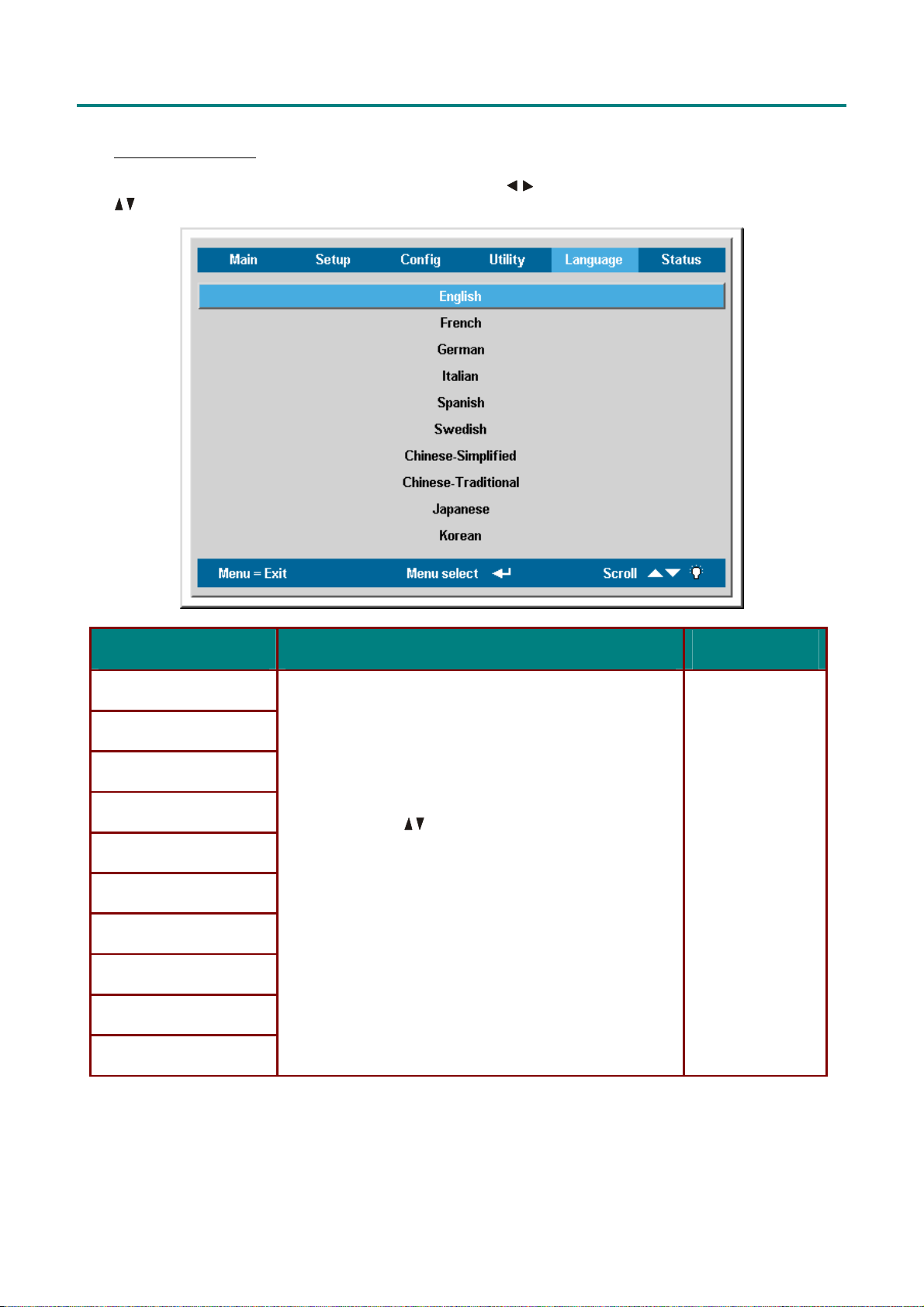

Language Menu ............................................................................................................................................................ 27
Status Menu................................................................................................................................................................... 28
MAINTENANCE AND SECURITY................................................................................................................................. 29
REPLACING THE PROJECTION LAMP ................................................................................................................................... 29

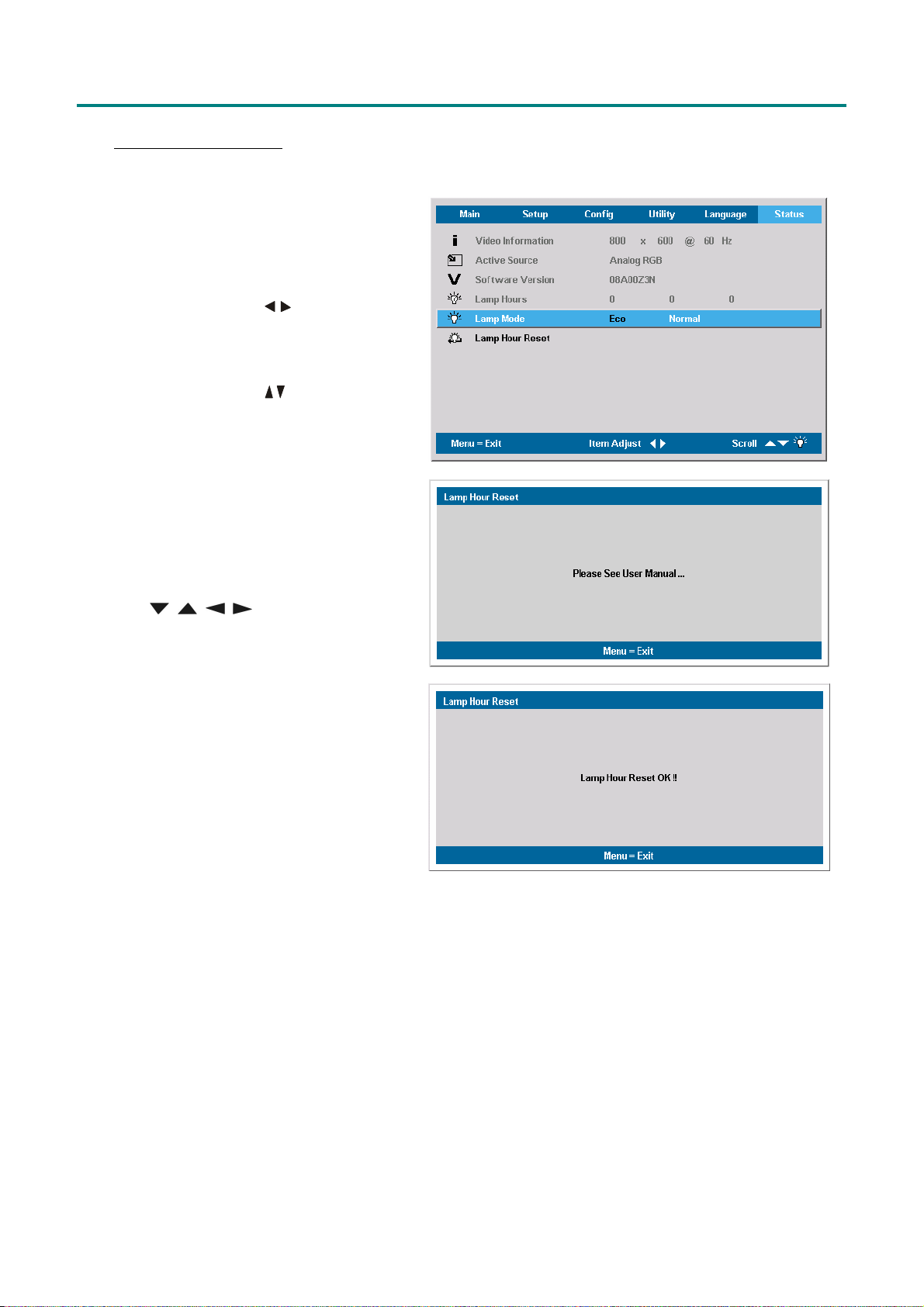

Resetting the Lamp........................................................................................................................................................ 30
CLEANING THE PROJECTOR................................................................................................................................................ 31
Cleaning the Lens ......................................................................................................................................................... 31
Cleaning the Case......................................................................................................................................................... 32

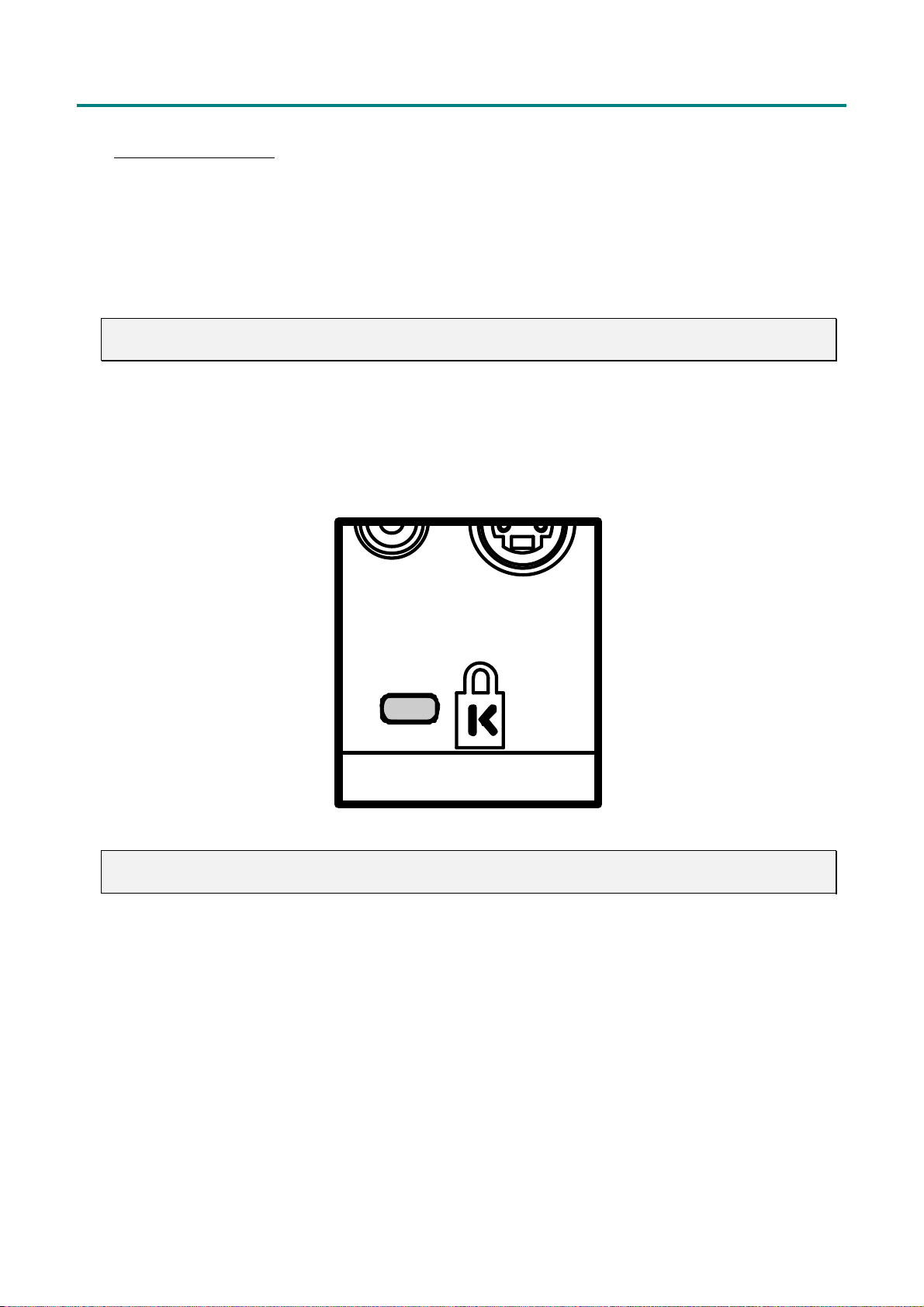

USING THE KENSINGTON LOCK ......................................................................................................................................... 32
TROUBLESHOOTING ..................................................................................................................................................... 33
COMMON PROBLEMS AND SOLUTIONS................................................................................................................................33
TIPS FOR TROUBLESHOOTING ............................................................................................................................................ 33
LED ERROR MESSAGES..................................................................................................................................................... 34
IMAGE PROBLEMS.............................................................................................................................................................. 34
LAMP PROBLEMS............................................................................................................................................................... 35
REMOTE CONTROL PROBLEMS .......................................................................................................................................... 35
AUDIO PROBLEMS.............................................................................................................................................................. 35
HAVING THE PROJECTOR SERVICED .................................................................................................................................. 36
SPECIFICATIONS............................................................................................................................................................. 37
SPECIFICATIONS................................................................................................................................................................. 37
Input/output connectors ................................................................................................................................................ 38

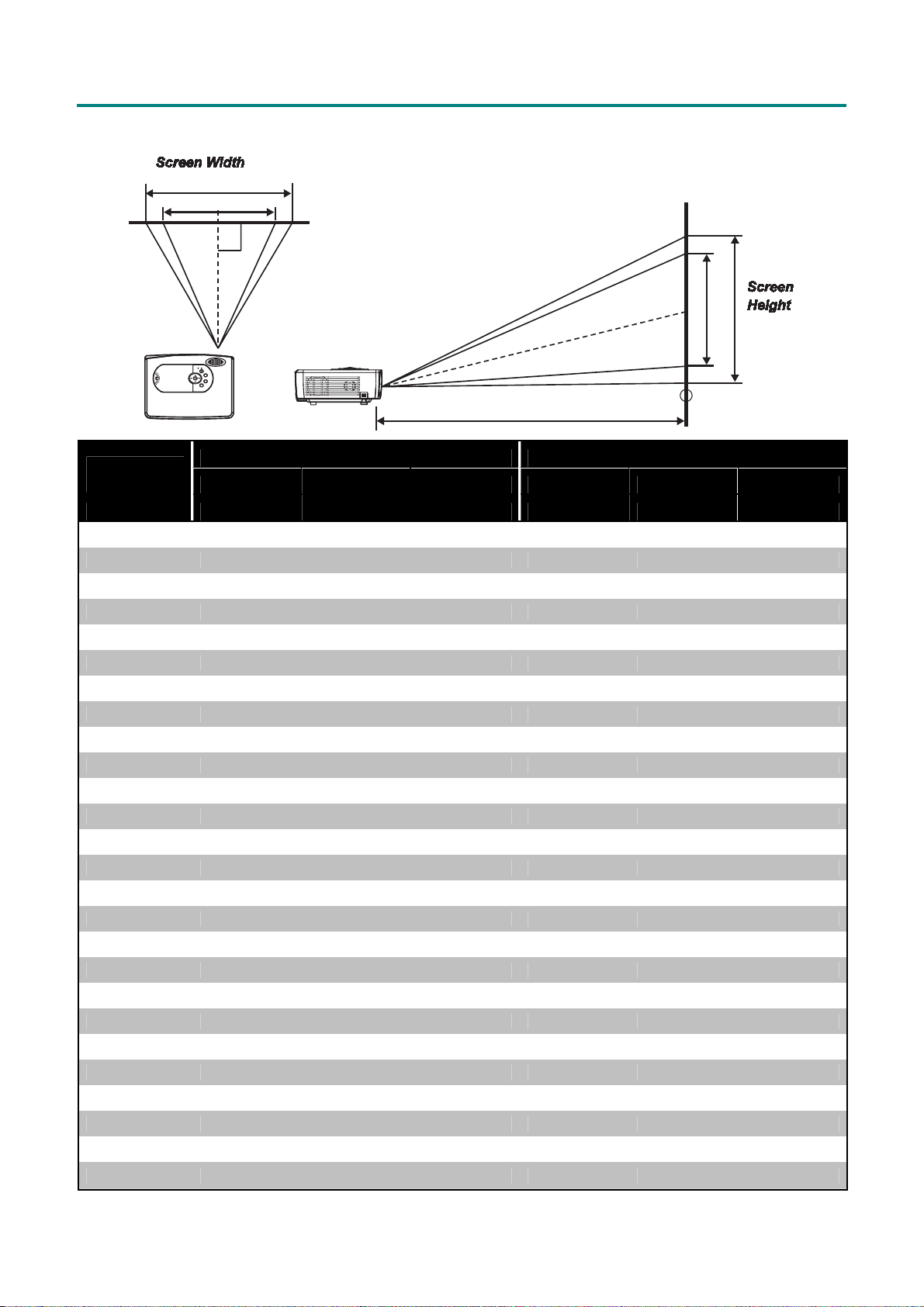

PROJECTION DISTANCE VERSUS PROJECTION SIZE............................................................................................................. 39
TIMING MODE TABLE ........................................................................................................................................................ 40

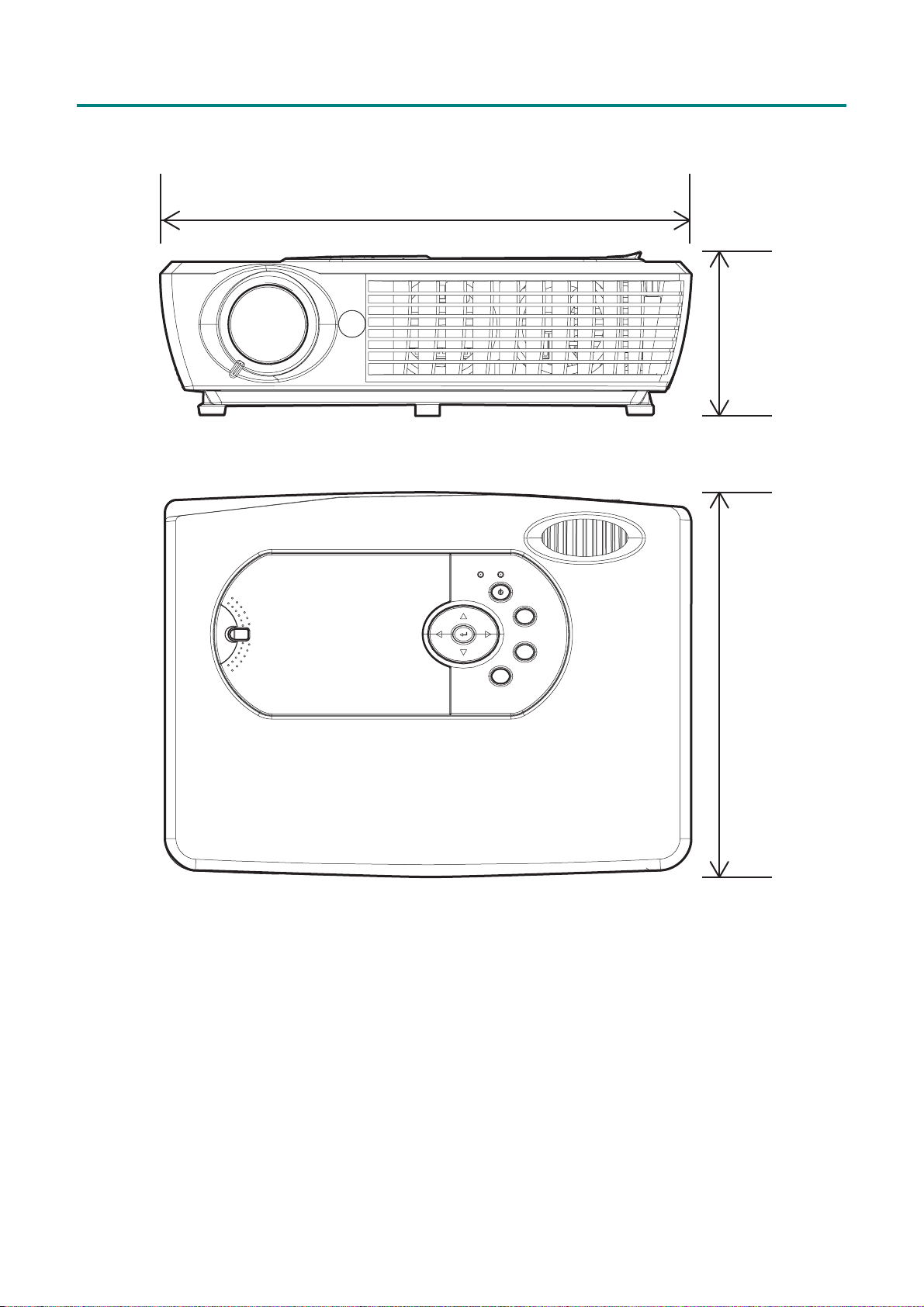

DIMENSIONS ...................................................................................................................................................................... 41
ViewSonic PJ766D
v
G
Packing Checklist
Carefully unpack the projector and check that the following items are included:
PROJECTOR WITH LENS CAP REMOTE CONTROL
DLP
ETTING STARTED
(
WITH TWO AAA BATTERIES)
250V
POWER CABLE USB CABLE S-VIDEO CABLE COMPUTER CABLE (DVI-
CD-ROM (THIS USER’S MANUAL) MULTI-LANGUAGE QUICK START GUIDE CARRYING CASE
Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work.
DB15)
Caution:
1. Avoid using the projector in dusty environments.
2. Leave the power cable plugged in (for 5-10 minutes) until the projector returns to room temperature before
placing the projector inside the soft case. Placing the projector into the case soon after switching off the power
could cause the projector to break down. Be sure to attach the lens cap and place the projector into the soft
case.
ViewSonic PJ766D 1
Views of Projector Parts
Front-left view
G
G
G
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
P
r
o
j
e
c
t
o
r
P
a
r
t
s
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
P
r
o
j
e
c
t
o
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
P
r
o
r
j
e
c
t
o
r
P
a
r
t
s
P
a
r
t
s
1
8
ITEM LABEL DESCRIPTION SEE PAGE:
7
6
5
2
4
3
1.
2.
3.
4.
5.
6.
7.
8.
Important:
Grill openings on the projector allow for good air circulation, which keeps the projector lamp cool.
Do not obstruct any of the grill openings.
Zoom Enlarges the projected image
See OSD buttons and LEDs below
Projection lamp cover Remove when changing lamp
IR receiver Receiver for IR signal from remote control
Lens/focus Remove cover, turn the lens to focus
Height adjuster Adjusters drop down when adjuster button is
pushed
Height adjuster button Push to release height adjuster
Speaker Built-in mono speaker
15
3
29
8
15
14
ViewSonic PJ766D
2
Top view—OSD buttons and LEDs
12 3 4
KEYSTONE
VOL -
G
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
P
r
o
j
e
c
t
o
r
P
a
r
t
s
G
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
P
r
o
j
e
c
t
o
G
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
P
r
o
POWERREADY
r
j
e
c
t
o
r
P
a
r
t
s
P
a
r
t
s
5
POWER
6
SOURCE
7
VOL +
AUTO
MENU
1011
8
9
ITEM LABEL DESCRIPTION SEE PAGE:
1.
2.
Volume/
left cursor
Keystone/
Up cursor
Ready (LED)
Decreases volume
Navigates and changes settings in the OSD
Corrects image-trapezoid (narrower top) effect
Navigates and changes settings in the OSD
Orange Lamp ready—you can safely turn on or off the projector
Flashing Lamp not ready—do not press the power button
16,17
15, 17
3.
4.
5.
6.
Power Turns the projector on or off (main power switch must
Power (LED)
Source Detects the input device
Volume/
right cursor
ViewSonic PJ766D
be turned on first, see item 8 on page 5)
Green Unit is powered on and working correctly
Off Unit is powered off
Flashing Operational error code
(refer to “LED Error Messages” on page 34)
Increases volume
Navigates and changes settings in the OSD
13
13
16, 17
3
G
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
P
r
o
j
e
c
t
o
r
P
G
G
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
P
r
o
j
e
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
c
P
r
o
j
e
a
t
o
r
P
c
a
t
o
r
P
a
ITEM LABEL DESCRIPTION SEE PAGE:
r
t
s
r
t
s
r
t
s
7.
8.
9.
10.
Auto Optimizes image size, position, and resolution
Menu Opens/exits the On-Screen Display (OSD)
Enter Changes settings in the OSD
Keystone/
Down cursor
Corrects image-trapezoid (narrower bottom) effect
Navigates and changes settings in the OSD
17
15, 17
ViewSonic PJ766D
4
Rear view—connectors
G
G
G
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
P
r
o
j
e
c
t
o
r
P
a
r
t
s
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
P
r
o
j
e
c
t
o
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
P
r
o
r
j
e
c
t
o
r
P
a
r
t
s
P
a
r
t
s
12
18
17
16
15
14
3456
10111213
9
7
8
ITEM LABEL DESCRIPTION SEE PAGE:
1.
2.
3.
DVI-I Connect the DVI cable (supplied) from a computer
RGB IN Connect a VGA cable (not supplied) from a computer
RGB OUT Connect to a monitor
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
RS-232 Installation control and firmware upgrades
USB Connect the USB cable (supplied) from a computer
Audio-in Connect the audio cable (not supplied) from the input de-
vice
Power connector Connect the supplied power cord
Main power Turns the main power on or off
IR receiver Receiver for IR signal from remote control
Audio-out Audio loop-thru
Audio-in-R Connect an RCA audio cable (not supplied) from the input
device right channel
Audio-in-L Connect an RCA audio cable (not supplied) from the input
device left channel
Video Connect a composite video cable (not supplied) from a
video device
12
8
12
14.
S-video Connect the supplied S-video cable from a video device
ViewSonic PJ766D
5
G
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
P
r
o
j
e
c
t
o
r
P
a
G
G
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
P
r
o
j
e
c
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
P
t
r
o
j
e
c
t
r
o
r
P
a
o
r
P
a
ITEM LABEL DESCRIPTION SEE PAGE:
t
s
r
t
s
r
t
s
15.
16.
17.
18.
Note:
If your video equipment has both S-video and RCA jacks (composite video) connect to the S-video
connector.
S-video provides a better quality signal.
Kensington Lock Secure to permanent object with a Kensington Lock system
Pr/Cr
Pb/Cb
Y
Component
video in
Connect a component video enabled device
32
12
ViewSonic PJ766D
6
Bottom view
2 3 3 3112
G
G
G
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
P
r
o
j
e
c
t
o
r
P
a
r
t
s
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
P
r
o
j
e
c
t
o
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
P
r
o
r
j
e
c
t
o
r
P
a
r
t
s
P
a
r
t
s
ITEM LABEL DESCRIPTION SEE PAGE:
1.
2.
3.
Height adjuster buttons Push to release height adjusters
Height adjusters Adjusters drop down when adjuster buttons
are pushed
Ceiling support holes Contact your dealer for information on mounting the projector on a
ceiling.
14
ViewSonic PJ766D
7
Remote Control Parts
G
e
t
t
i
n
g
S
t
a
r
G
G
e
t
t
i
n
g
e
t
t
i
n
t
S
t
a
r
g
t
S
t
a
r
t
28 1
27
26
25
24
e
d
—
V
i
e
w
s
o
f
P
r
o
j
e
c
t
o
r
P
a
r
t
s
e
d
—
V
i
e
w
s
o
f
P
r
o
j
e
c
t
o
e
d
—
V
i
e
w
s
o
f
P
r
o
r
j
e
c
t
o
r
P
a
r
t
s
P
a
r
t
s
2
3
4
5
6
7
23
22
8
9
10
21
11
20
19
18
17
15
16
Important:
1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluo-
rescent lights can disrupt remote control operation.
2. Be sure nothing obstructs the path between the remote control and the projector. If the path be-
tween remote and projector is obstructed, you can bounce the remote signal off certain reflective
surfaces such as projector screens.
12
13
14
ITEM LABEL DESCRIPTION SEE PAGE:
1.
2.
3.
ViewSonic PJ766D
IR transmitter Transmits signals to projector
Status LED Lights when the remote control is used
Laser Press to operate the on-screen pointer
8
G
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
P
r
o
j
e
c
t
o
r
P
G
G
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
P
r
o
j
e
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
c
P
r
o
j
e
a
t
o
r
P
c
a
t
o
r
P
a
ITEM LABEL DESCRIPTION SEE PAGE:
r
t
s
r
t
s
r
t
s
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
Up Up arrow when connected through USB to a PC
Right Right arrow when connected through USB to a PC
Down Down arrow when connected through USB to a PC
Page Down Page down when connected through USB to a PC
Up cursor
Right cursor
Down cursor
Volume +/- Adjusts volume
Mute Mutes the built-in speaker
Zoom+ Zoom in
Zoom- Zoom out
Freeze Freeze/unfreezes the on-screen picture
Navigates and changes settings in the OSD
17
16
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
Blank Makes the screen blank
Source Detects the input device
Auto Auto adjustment for phase, tracking, size, position
Menu Opens the OSD
Status Opens the OSD Status menu (the menu only opens
when an input device is detected)
Keystone
top/bottom
Left cursor Navigates and changes settings in the OSD
Enter Changes settings in the OSD
Page Up Page up when connected through USB to a PC
Left Left arrow when connected through USB to a PC
Enter Enter key when connected through USB to a PC
Corrects image-trapezoid (wider top/bottom) effect
17
28
15
17
27.
28.
Power Turns the projector on or off
Laser Use as on-screen pointer. DO NOT POINT IN EYES.
ViewSonic PJ766D
13
9
G
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
P
r
o
j
e
G
G
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
e
t
t
i
n
g
S
t
a
r
t
e
d
—
V
i
e
w
s
o
f
c
P
r
o
j
e
c
P
r
o
j
e
Remote Control Operating Range
The remote control uses infrared transmission to control the projector. It is not necessary to point the
remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or
the rear of the projector, the remote functions within a radius of about (7) meters (23 feet) and 30 degrees above or below the projector level. If the projector does not respond to the remote control,
move a little closer.
Projector and Remote Control Buttons
The projector can be operated using the remote control or the buttons on the top of the projector. All
operations can be carried out with the remote control; however the buttons on the projector are limited in use. The following illustration shows the corresponding buttons on the remote control and on
the projector.
t
o
r
P
a
r
t
s
t
o
r
c
t
o
r
P
a
r
t
s
P
a
r
t
s
Some buttons on the projector have two functions. For example, item 7/8 on the projector functions
both as the volume down button and as the left cursor key in OSD menus.
ViewSonic PJ766D
10
Inserting the Remote Control Batteries
S
e
t
u
p
a
n
d
O
p
S
e
t
u
p
a
S
e
S
ETUP AND OPERATION
n
t
u
p
a
e
d
O
p
n
e
d
O
p
e
r
a
t
i
o
n
r
a
t
i
o
n
r
a
t
i
o
n
Remove the battery compartment cover
1.
by sliding the cover in the direction of
the arrow.
Insert the supplied batteries taking note
2.
of the polarity (+/-) as shown here.
Replace the cover.
3.
Caution:
1. Only use AAA alkaline batteries.
2. Dispose of used batteries according to local ordinance regulations.
3. Remove the batteries when not using the projector for prolonged periods.
ViewSonic PJ766D
11
S
e
t
u
p
a
n
d
S
e
t
u
p
S
e
t
u
p
O
a
n
d
O
a
n
d
O
Connecting Input Devices
A PC or notebook computer as well as video devices can be connected to the projector at the same time.
Video devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras.
Check the user manual of the connecting device to confirm it has the appropriate output connector.
p
e
r
a
t
i
o
n
p
e
r
p
e
a
t
i
o
n
r
a
t
i
o
n
A
DVI-I IN
BS
P/C
Y
COMPONENT VIDEO IN
K
B
RGB IN
P/C
RR
S-VIDEO IN VIDEO IN L-AUDION IN -R
J
I
C
RGB OUT
H
D
RS-232C
AUDIO OUT
G
ITEM LABEL DESCRIPTION
A
B
C
DVI-I Connect the supplied DVI cable from a computer.
RGB in Connect a VGA cable (not supplied) from a computer.
RGB out Connect a VGA cable (not supplied) to a monitor.
E F
AUDIO-IN
USB
D
E
F
G
RS-232 Reserved for installation control and firmware upgrades.
USB Connect the USB cable (supplied) from a computer.
Audio-in Connect an audio cable (not supplied) from the computer’s audio-out connector.
Audio-out Audio loop-thru
H
L-Audio in-R Connect the audio cable (not supplied) from an audio input device.
I
Video Connect a composite video cable (not supplied) from a video device.
S-video Connect the supplied S-video cable from a video device.
Component
video in
Warning:
As a safety precaution, disconnect all power to the projector and connecting devices before making
connections.
Connect a component video cable (not supplied) from a video device.
ViewSonic PJ766D
12
Starting and Shutting down the Projector
Connect the power cord to the projec-
1.
tor. Connect the other end to a wall
outlet. (A)
Turn on the power switch. (B)
The Power LED and Lamp-ready LED
turn on.
Remove the lens cover.
2.
S
e
t
u
p
a
n
d
O
p
e
r
a
t
i
o
n
S
e
t
u
p
a
n
d
O
p
e
S
e
t
u
p
a
n
r
d
O
p
e
a
t
i
o
n
r
a
t
i
o
n
Turn on the connected devices.
3.
Ensure the Lamp-ready LED is on a
4.
steady (not flashing) orange and then
press the Power button to turn on the
projector.
The projector splash screen displays
and connected devices are detected.
If the connected device is a PC, press
the appropriate Fn hot keys on the
computer keyboard to switch the display output to the projector. (Check the
PC user manual to determine the appropriate Fn hot keys to change display
output.)
If more than one input device is con-
5.
nected, press the Source button
repeatedly to switch among devices.
Splash Screen
To turn off the projector, press the
6.
Power button. When the “Power
Off?/Press Power again” message appears, press the Power button. The
projector turns off.
Attention : Power off the projector normally and unplug the power cord before moving the projector
ViewSonic PJ766D
13
S
e
S
e
S
e
Adjusting the Projector Level
Take note of the following when setting up the projector:
• The projector table or stand should be level and sturdy.
• Position the projector so that it is perpendicular to the screen.
• Be sure cables are not in the way or can cause the projector to be knocked over.
t
u
p
a
n
d
O
p
e
r
a
t
i
o
n
t
u
p
a
n
d
O
p
e
t
u
p
a
n
r
d
O
p
e
a
t
i
o
n
r
a
t
i
o
n
1.
2.
To raise the level of the projector, lift the projector [A] and press the height-adjuster
buttons [B].
The height-adjusters drop down [C].
To lower the level of the projector, press the height-adjuster buttons and push down
on the top of the projector.
ViewSonic PJ766D
14
Adjust the Zoom, Focus and Keystone
Use the Image-zoom con-
1.
trol (on the projector only)
to resize the projected im-
A
age and screen size
Use the Image-focus con-
2.
trol (on the projector only)
to sharpen the projected
Use the Keystone buttons
3.
(on the projector or the
remote control) to correct
image-trapezoid (wider
top or bottom) effect.
B
.
S
e
t
u
p
a
n
d
O
p
e
r
a
t
i
o
n
S
e
t
u
p
a
n
d
O
p
e
S
e
t
u
p
a
n
r
d
O
p
e
a
t
i
o
n
r
a
t
i
o
n
The keystone control appears on the display.
ViewSonic PJ766D
15
Adjusting the Volume
Press the Volume +/- but-
1.
tons on the projector or
the remote control.
The volume control appears on the display.
Use the Volume +/- but-
2.
tons to adjust the level.
Press the Mute button (on
3.
the remote control only)
to turn off the volume.
S
e
t
u
p
a
n
d
O
p
e
r
a
t
i
o
n
S
e
t
u
p
a
n
d
O
p
e
S
e
t
u
p
a
n
r
d
O
p
e
a
t
i
o
n
r
a
t
i
o
n
Press Volume +/- or
4.
Mute on the remote control to turn off mute.
ViewSonic PJ766D
16
O
O
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
S
e
t
t
i
n
g
s
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
S
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
e
n
u
S
e
t
t
i
n
g
s
t
t
i
n
g
s
O
N
-S
CREEN DISPLAY MENU SETTINGS
On-Screen Display Menu Controls
The projector has an On-Screen Display (OSD) that lets you make image adjustments and change
various settings.
Navigating the OSD
You can use the remote control or the buttons on the top of the projector to navigate and make
changes to the OSD. The following illustration shows the corresponding buttons on the remote control
and on the projector.
ViewSonic PJ766D
17
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
S
e
t
O
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
-
S
c
r
e
e
n
D
i
s
p
l
a
n
y
M
e
n
t
u
S
e
t
t
u
S
e
t
t
Setting the OSD Language
You may want to reference the OSD on your projector while reading this section. Set the OSD language to your preference before continuing. (The default language is English.)
1. Press the Menu button. The Main menu appears.
i
n
g
s
i
n
g
s
i
n
g
s
2. Press until Language is highlighted.
3. Press until the language you want is highlighted.
4. Press the Enter button to select the language.
5. Press the Menu button twice to close the OSD.
ViewSonic PJ766D
18
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
S
e
t
t
i
O
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
u
M
e
n
u
n
S
e
t
t
i
n
S
e
t
t
i
n
Main Menu
Press the Menu button to open the OSD menu. If necessary, press to move to the Main menu.
Press
press Enter to confirm the new setting.
to move up and down in the Main menu. Press to change values for settings, and then
g
s
g
s
g
s
ITEM DESCRIPTION DEFAULT
Brightness Press to adjust the brightness. (Range: 0—100) 50
Contrast Press
Sharpness Press
Color
Temperature
Color
Saturation
Color Tint
Gamma
Press
(Range: Cool/Normal/Warm)
Press
Press
Press
to adjust the contrast. (Range: 0—100) 50
to adjust the display sharpness (Range: 1-5) 3
to adjust the video color temperature.
to adjust the video saturation. (Range: 0—100)
to adjust the video tint/hue. (Range: 0—100)
to adjust the gamma correction of the display.
Input Gamma Brightness
PC 2.2 High
MAC 1.8 High
Video 2.4 Low
Chart 2.2 Low
B&W 2.4 High
Normal
50
50
PC
Color Space Press
(Range: Auto—RGB—YpbPr—YCbCr)
Reset Resets all Main items settings except Color Saturation to default values -
to adjust the color space.
ViewSonic PJ766D
Auto
19
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
S
e
t
t
i
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
Main Menu Items Supported for Each Input Source
Depending on the video source not all items in the OSD are available. Items that are available for
each input source are marked with “X”. Items that are not available can not be selected in the OSD.
Function RGB DVI Component Video Composite Video S-Video
u
M
e
n
u
n
S
e
t
t
i
n
S
e
t
t
i
n
g
s
g
s
g
s
Brightness
Contrast
Sharpness
Color Temperature
Color Saturation
Color Tint
Gamma
X X X X X
X X X X X
X X X X X
X X X X X
X X X X X
X X X
X X X
ViewSonic PJ766D
20
Setup Menu
O
O
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
S
e
t
t
i
n
g
s
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
S
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
e
n
u
S
e
t
t
i
n
g
s
t
t
i
n
g
s
Press the Menu button to open the OSD menu. Press
move up and down in the Setup menu. Press
ter to confirm the new setting.
to change values for settings, and then press En-
to move to the Setup menu. Press to
ITEM DESCRIPTION DEFAULT
Horizontal
Position
Vertical
Position
Keystone
Aspect Ratio Press
Advance
Feature
Reset Resets Keystone and Aspect Ratio to default values
Press
Press
Press
(Range: -50—50)
TV (HDTV) format.
The Advance feature enables you to adjust additional feature settings such as
User Color, White Peaking and Logo Display.
to move the image left or right. (Range: 0—100) 50
to move the image up or down. (Range: 0—100) 50
to correct distortion of the projected image.
to toggle between the 4:3 standard format and 16:9 High Definition
16:9
0
ViewSonic PJ766D
21
Advance Feature
O
O
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
S
e
t
t
i
n
g
s
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
S
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
e
n
u
S
e
t
t
i
n
g
s
t
t
i
n
g
s
Press the Menu button to open the OSD menu. Press
move to the Advance Feature, press Enter. Press
ture. Press
to change values for settings, and then press Enter to confirm the new setting.
to move to the Setup menu. Press to
to move up and down in the Advance Fea-
ITEM DESCRIPTION DEFAULT
User Color This feature adjusts the color balance in each color of RGB (Red, Green,
Blue), and their neutral colors (cyan, magenta, yellow, white) by using Color
correction adjustment. Increasing a color’s setting heightens the intensity of
that color on the screen, while a lower setting makes the color less intense.
to select a color.
to adjust the selected color. (Range: -50—50 )
to adjust the value of white peaking. (Range: 0—10 ) -
to enable or disable the logo displays when the projector starts, and
White Peaking
Logo Display
Reset
Press
Press
White Peaking increases the output in the brightest whites without changing
the blacks and dark grays. It crushes the whites slightly, but it does not appear
to clip them or seriously obscure white detail. If you prefer a stronger image,
adjust toward the maximum setting. For a smoother, more natural image, adjust toward the minimum setting.
Press
Press
when no source is detected. (Range: On—Off)
Resets all White Peaking, Logo Display settings to default values
0
10
On
ViewSonic PJ766D
22
User Color
O
O
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
S
e
t
t
i
n
g
s
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
S
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
e
n
u
S
e
t
t
i
n
g
s
t
t
i
n
g
s
Press the Menu button to open the OSD menu. Press to move to the Setup menu. Press
move to the Advance Feature, press Enter. Press
Press
press Enter to confirm the new setting.
to move up and down to select a color. Press
to move to the User Color, press Enter.
to change values for settings, and then
to
ITEM DESCRIPTION DEFAULT
Red Press the cursor button to adjust the red color level (Range: -50—50 ) 0
Green
Blue
Cyan
Magenta
Yellow
White
Reset Resets all user color settings to default values.
Press the cursor
50 )
Press the cursor
50 )
Press the cursor
50 )
Press the cursor
50—50 )
Press the cursor
50 )
Press the cursor
50 )
button to adjust the green color level (Range: -50—
button to adjust the blue color level (Range: -50—
button to adjust the cyan color level (Range: -50—
button to adjust the magenta color level (Range: -
button to adjust the yellow color level (Range: -50—
button to adjust the white color level (Range: -50—
0
0
0
0
0
0
ViewSonic PJ766D
23
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
S
e
t
t
i
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
Setup Menu Items Supported for Each Input Source
Depending on the video source not all items in the OSD are available. Items that are available for
each input source are marked with “X”. Items that are not available can not be selected in the OSD.
Function RGB DVI Component Video Composite Video S-Video
u
M
e
n
u
n
S
e
t
t
i
n
S
e
t
t
i
n
g
s
g
s
g
s
Horizontal Position
Vertical Position
Keystone
X
X
X X X X X
ViewSonic PJ766D
24
Config Menu
O
O
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
S
e
t
t
i
n
g
s
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
S
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
e
n
u
S
e
t
t
i
n
g
s
t
t
i
n
g
s
Press the Menu button to open the OSD menu. Press
move up and down in the Config menu. Press
ter to confirm the new setting.
to change values for settings, and then press En-
to move to the Config menu. Press to
ITEM DESCRIPTION DEFAULT
Blank Screen Press
(Range: Black – Red—Green—Blue—White)
Auto Source Press
(Range: On—Off)
Auto Power
Off
Volume Press
Menu
Position
Menu Display Press
Translucent
Menu
Reset
Press
utes of inactivity (Range: On—Off)
Press
(Range: Left—Right—Center—Down—Up)
(Range: 10 - 20 sec.)
Press
(Range: 0—25%—50%—75%—100% )
Resets all Config screen items to default values
to select a background color for blank screen
to enable or disable automatic source detection
to enable or disable automatic shut-down of lamp after 10 min-
to adjust the audio volume level (Range: 0 - 10) 5
to position the OSD on screen
to determine the timeout delay of the OSD
to set menu screen translucency
Blue
On
Off
Center
15
0%
ViewSonic PJ766D
25
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
S
e
t
t
i
n
O
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
g
S
e
t
t
i
n
S
e
t
t
i
n
Utility Menu
Press the Menu button to open the OSD menu. Press to move to the Utility menu. Press to
move up and down in the Utility menu. Press
ter to confirm the new setting.
to change values for settings, and then press En-
s
g
s
g
s
ITEM DESCRIPTION DEFAULT
Video Type Press
(Range: Auto—NTSC—PAL—SECAM)
Video AGC Press
for the video source. (Range: On—Off)
Projection
Frequency Press
Press
(Range: 0—100 )
to select the video standard.
to enable or disable automatic gain control
to choose from four projection methods:
Desktop mount, front of screen
Desktop mount, rear of screen
Ceiling mount, front of screen
Ceiling mount, rear of screen
to adjust the A/D sampling clock.
Auto
On
Desktop front
Auto detected
Tracking Press
(Range: 0—100)
Reset Resets Video Type, Video AGC, and Projection to default values
to adjust the A/D sampling number.
ViewSonic PJ766D
Auto detected
26
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
S
e
t
t
O
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
-
S
c
r
e
e
n
D
i
s
p
l
a
n
y
M
e
n
i
u
S
e
t
t
i
u
S
e
t
t
Language Menu
Press the Menu button to open the OSD menu. Press to move to the Language menu. Press
to move up and down in the Language menu.
n
g
s
n
g
s
i
n
g
s
ITEM DESCRIPTION DEFAULT
English
French
German
Italian
Spanish
Swedish
Chinese Simplified
Chinese Traditional
Japanese
Press the cursor
menu.
Press the Enter button to select the language.
button to move up and down in the
English
Korean
ViewSonic PJ766D
27
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
S
e
t
t
i
n
O
O
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
n
-
S
c
r
e
e
n
D
i
s
p
l
a
y
M
e
n
u
g
S
e
t
t
i
n
g
S
e
t
t
i
n
g
Status Menu
Press the Menu button to open the OSD menu. Press to move to the Status menu. Press to
move up and down in the Status menu. Press
ter to confirm the new setting.
to change values for settings, and then press En-
s
s
s
ITEM DESCRIPTION DEFAULT
Video
Information
Active Source Displays the active source.
Software
Version
Lamp Hours Number of hours lamp has been in Normal use and number of hours lamp
Lamp Mode Choose among ECO and Normal lamp modes. ECO mode uses less power and
Lamp Hour
Reset
Displays the resolution and refresh rate of the connected video device.
Information about the firmware version.
has been in Eco use.
extends lamp life, but decreases lamp brightness.
After replacing the lamp, this item should be reset. Refer to “Replacing the Projection Lamp” on page 29.
These
items are
display
only.
Normal
—
ViewSonic PJ766D
28
M
a
i
n
t
e
n
a
n
c
e
a
M
a
i
n
t
e
n
M
a
M
AINTENANCE AND SECURITY
a
i
n
t
e
n
a
n
n
c
e
a
n
n
c
e
a
n
Replacing the Projection Lamp
The projection lamp should be replaced when it burns out. It should only be replaced with a certified
replacement part, which you can order from your local dealer.
Important:
1. The lamp contains a certain amount of mercury and should be disposed of according to local or-
dinance regulations.
2. Avoid touching the glass surface of the new lamp: Doing so may shorten its operation life.
Warning:
1. Be sure to turn off and unplug the projector at least an hour before replacing the lamp. Failure to
do so could result in a severe burn.
2. It is recommended that you do not attempt to replace the lamp while the projector is installed on
a ceiling. If you do attempt this, wear protective goggles to prevent glass from a ruptured lamp getting into your eyes.
d
S
e
c
u
r
i
t
y
d
S
e
d
S
e
c
u
r
i
t
y
c
u
r
i
t
y
Lift the screw cover (A).
1.
Remove the screw on the lamp compartment cover (B) and then lift the
lamp compartment cover (C).
Remove the two screws from the lamp
2.
module (A) and then lift the module
handle up (B).
Pull up firmly to remove the lamp
3.
module.
Reverse Steps 1 to 4 to install the new
4.
lamp module.
Note: The lamp module should be oriented as shown here when replacing.
ViewSonic PJ766D
29
M
a
i
n
t
e
n
M
M
a
a
a
i
n
t
e
n
a
i
n
t
e
n
Resetting the Lamp
After replacing the lamp, reset the lamp hour counter to zero. Refer to the following:
Press the Menu button to open the
1.
Main menu.
Press the cursor button to move
2.
to the Status menu.
Press the cursor button to move
3.
to Lamp Hour Reset.
Press the Enter button.
4.
A message screen appears.
n
c
e
a
n
d
S
e
c
u
r
i
t
y
n
c
e
a
n
d
S
a
n
c
e
e
a
n
d
S
e
c
u
r
i
t
y
c
u
r
i
t
y
Press the cursor buttons in this order:
5.
; ; ; .
The “Lamp Hour Reset OK !!” message appears. Then the Status menu
appears again showing the Lamp
Hours reset to zero.
ViewSonic PJ766D
30
M
a
i
n
t
e
n
a
n
c
e
a
n
M
M
a
i
n
t
e
n
a
a
i
n
n
t
e
n
a
n
d
c
e
a
n
d
c
e
a
n
d
Cleaning the Projector
Cleaning the projector to remove dust and grime will help ensure trouble-free operation.
Warning:
1. Be sure to turn off and unplug the projector at least an hour before cleaning. Failure to do so
could result in a severe burn.
2. Use only a dampened cloth when cleaning. Do not allow water to enter the ventilation openings
on the projector.
3. If a little water gets into the projector interior while cleaning, leave unplugged in a well-ventilated
room for several hours before using.
4. If a lot of water gets into the projector interior when cleaning, have the projector serviced.
Cleaning the Lens
You can purchase optic lens cleaner from most camera stores. Refer to the following to clean the projector lens.
1. Apply a little optic lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to the lens.)
S
e
c
u
r
i
t
y
S
e
S
e
c
u
r
i
t
y
c
u
r
i
t
y
2. Lightly wipe the lens in a circular motion.
Caution:
1. Do not use abrasive cleaners or solvents.
2. To prevent discoloration or fading, avoid getting cleaner on the projector case.
ViewSonic PJ766D
31
M
a
i
n
t
e
n
a
n
c
e
M
M
a
i
n
t
e
n
a
i
n
t
e
n
a
a
n
c
e
a
a
n
c
e
a
Cleaning the Case
Refer to the following to clean the projector case.
1. Wipe off dust with a clean dampened cloth.
2. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and wipe the
case.
3. Rinse all detergent from the cloth and wipe the projector again.
Caution:
To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.
Using the Kensington Lock
If you are concerned about security, attach the projector to a permanent object with the Kensington
slot and a security cable.
n
d
S
e
c
u
r
i
t
y
n
d
S
e
n
d
S
e
c
u
r
i
t
y
c
u
r
i
t
y
Note:
Contact your vendor for details on purchasing a suitable Kensington security cable.
ViewSonic PJ766D
32
T
r
o
u
b
T
r
o
u
b
T
r
o
u
b
T
ROUBLESHOOTING
Common problems and solutions
These guidelines provide tips to deal with problems you may encounter while using the projector. If
the problem remains unsolved, contact your dealer for assistance.
Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection. Check the following before proceeding to the problem-specific solutions.
• Use some other electrical device to confirm that the electrical outlet is working.
• Ensure the projector is turned on.
• Ensure all connections are securely attached.
• Ensure the attached device is turned on.
• Ensure a connected PC is not in suspend mode.
• Ensure a connected notebook computer is configured for an external display. (This is usu-
ally done by pressing an Fn-key combination on the notebook.)
Tips for Troubleshooting
l
e
s
h
o
o
t
i
n
g
l
e
s
h
o
l
e
s
h
o
o
t
i
n
g
o
t
i
n
g
In each problem-specific section, try the steps in the order suggested. This may help you to solve the
problem more quickly.
Try to pin point the problem and thus avoid replacing non-defective parts.
For example, if you replace batteries and the problem remains, put the original batteries back and go
to the next step.
Keep a record of the steps you take when troubleshooting: The information may be useful when calling for technical support or for passing on to service personnel.
ViewSonic PJ766D
33
LED Error Messages
STATUS/
NUMBER OF
LED
FLASHES DESCRIPTION REMEDY
T
r
o
u
b
l
e
s
h
o
o
t
i
n
g
T
r
o
u
b
l
e
s
h
T
r
o
u
o
b
l
e
s
h
o
o
t
i
n
g
o
t
i
n
g
Power
Ready
Flashing Lamp not ready Do not press the power button.
3 System overheated Allow the projector to cool down.
4 System interface error Contact your dealer for assistance.
5 Lamp error Replace the lamp module.
6 Fan error Refer to Ready LED status in this
table to determine which fan.
7 Lamp cover open Close the lamp cover.
8 DLP driver error
Contact your dealer for assistance.
9 Color wheel error
Flashing Valid only when fan error indicated by Power LED flashing 6 times.
1 Blower fan
2 Optical fan
3 Lamp fan , ballast fan ,
power fan or internal fan
Contact your dealer for assistance.
Image Problems
Problem: No image appears on the screen
1. Verify the settings on your notebook or desktop PC.
2. Turn off all equipment and power up again in the correct order.
Problem: The image is blurred
1. Adjust the Focus on the projector.
2. Press the Auto button on the remote control or projector.
3. Ensure the projector-to-screen distance is within the 8-meter (26-feet) specified range.
4. Check that the projector lens is clean.
5. Make sure the output resolution from the PC is 800 x 600 (SVGA model) or 1024 x 768
(XGA model), the native resolution of the projector.
Problem: The image is wider at the top or bottom (trapezoid effect)
6. Position the projector so it is as perpendicular to the screen as possible.
7. Use the Keystone button on the remote control or projector to correct the problem.
Problem: The image is reversed or upside down
8. Check the Projection setting on the Utility menu of the OSD.
Problem: The image is streaked
ViewSonic PJ766D
34
1. Set the Frequency and Tracking settings on the Utility menu of the OSD to the default
settings.
2. To ensure the problem is not caused by a connected PC’s video card, connect to another
computer.
Problem: The image is flat with no contrast
1. Adjust the Contrast setting on the Main menu of the OSD.
Problem: The color of the projected image does not match the source image.
1. Adjust the Color Temperature and Gamma settings on the Main menu of the OSD.
Lamp Problems
Problem: There is no light from the projector
1. Check that the power cable is securely connected.
2. Ensure the power source is good by testing with another electrical device.
3. Restart the projector in the correct order and check that the Power LED is green.
4. If you have replaced the lamp recently, try resetting the lamp connections.
5. Replace the lamp module.
6. Put the old lamp back in the projector and have the projector serviced.
T
r
o
u
b
l
e
s
h
o
o
t
i
n
g
T
r
o
u
b
l
e
s
h
T
r
o
u
o
b
l
e
s
h
o
o
t
i
n
g
o
t
i
n
g
Problem: The lamp goes off
1. Power surges can cause the lamp to turn off. Press the power button twice to turn off the
projector. When the Lamp Ready LED is on, press the power button.
2. Replace the lamp module.
3. Put the old lamp back in the projector and have the projector serviced.
Remote Control Problems
Problem: The projector does not respond to the remote control
1. Direct the remote control towards the remote sensor on the projector.
2. Ensure the path between remote and sensor is not obstructed.
3. Turn off any fluorescent lights in the room.
4. Check the battery polarity of the remote control.
5. Replace the batteries.
6. Turn off other Infrared-enabled devices in the vicinity.
7. Have the remote control serviced.
Audio Problems
Problem: There is no sound
1. Adjust the projector volume.
2. Adjust the volume of the audio source.
3. Check the audio cable connection.
4. Test the source audio output with other speakers.
5. Have the projector serviced.
Problem: The sound is distorted
6. Check the audio cable connection.
7. Test the source audio output with other speakers.
8. Have the projector serviced.
ViewSonic PJ766D
35
T
r
o
u
b
l
T
T
e
r
o
u
b
l
r
o
u
b
l
Having the Projector Serviced
If you are unable to solve the problem, you should have the projector serviced. Pack the projector in
the original carton. Include a description of the problem and a checklist of the steps you took when
trying to fix the problem. The information may be useful to the service personnel. Return the projector
to the place you purchased it.
s
h
o
o
t
i
n
g
e
s
h
o
e
s
h
o
o
t
i
n
g
o
t
i
n
g
ViewSonic PJ766D
36
Specifications
S
p
e
c
i
f
i
S
S
S
PECIFICATIONS
c
p
e
c
i
f
i
c
p
e
c
i
f
i
c
a
t
i
o
n
s
a
t
i
o
n
s
a
t
i
o
n
s
Power consumption 320 watts(Max.)
Lamp 200W
(ECO mode 180W)
Display type TI DMD 0.7-inch, 12 deg. DDR
Resolution XGA 1024 x 768 native
Bandwidth Up to SXGA 1280 x 1024 @ 60 Hz
Color 16.7 Million (24-bits/pixel)
Weight 3.55 kg (7.8 lbs)
Projection distance 1.5 to 8 meter (4.9 to 26 feet)
Projection screen size 0.94 to 6.1 meter (37 inches to 240 inches)
Projection lens Manual zoom and focus
Zoom ratio 1.22:1
Vertical keystone correction + / - 15
Projection methods Desktop front/rear; ceiling front/rear
XGA
Data Compatibility IBM PC or compatibles (VGA, SVGA), Mac
HDTV Video
Video compatibility NTSC/NTSC 4.43, PAL (B/G/H/I/M/N 60), SECAM
H-Sync 15,31 - 90 kHz
V-Sync 50 - 85 Hz
Safety certification
Operation temperature 10° ~ 35°
Dimensions 32.8 x 23.8 x 8.8 cm (12.9 x 9.4 x 3.5 inches)
Standby < 10 watts
Noise 35 dB typical
Audio speaker 2W mono speaker
Uniformity 80 %
Lens Cover (Diameter) 61.2mm
FCC Class B, UL, CUL, CE, TUV-GS, CCC, NOM, PCT、UL_AR
ViewSonic PJ766D
37
Input/output connectors
S
p
e
c
i
f
i
c
a
t
i
o
n
s
S
p
e
c
i
f
i
c
S
p
a
e
c
i
f
i
c
t
i
o
n
s
a
t
i
o
n
s
PC
Video
Audio
Service/upgrades RS-232
Security Kensington slot
DVI-I
RGB in
RGB out
USB
Composite video (RCAx1)
S-Video (Mini-DIN)
Component video Y,Pb/Cb,Pr/Cr (RCAx3)
Mini-jack in
Mini-jack out
Right and left in (RCAx2)
ViewSonic PJ766D
38
Projection Distance versus Projection Size
A
B
L Projection Distance
S
p
e
c
i
f
i
c
a
t
i
o
n
s
S
p
e
c
i
f
i
c
S
p
C
D
a
e
c
i
f
i
c
t
i
o
n
s
a
t
i
o
n
s
Projection
Distance
L
1.5m 1.1m 0.95m 0.535m 0.89m 0.77m 0.43m
4.92' 43.5" 37.5" 21.1" 35.8" 30.5" 17.1"
2m 1.47m 1.28m 0.72m 1.2m 1.04m 0.58m
6.56' 58" 50.5" 28.43" 47.7" 41" 23"
2.4m 1.75m 1.527m 0.86m 1.45m 1.26m 0.71m
7.87' 69.6" 60" 33.8" 57.2" 49.85" 28"
2.8m 2.05m 1.79m 1m 1.69m 1.47m 0.83m
9.18' 81.2" 70.6" 39.7" 66.78" 58" 32.7"
3.2m 2.33m 20.3m 1.15m 1.93m 1.68m 0.95m
10.5' 92.8" 80.18" 45.1" 76.32" 66.5" 37.4"
3.6m 2.64m 2.3m 1.3m 2.16m 1.88m 1.05m
11.81' 104.4" 90.6" 51" 85.8" 74" 41.6"
4m 2.94m 2.56m 1.44m 2.4m 2.10m 1.18m
13.12' 116" 101" 56.8" 95.4" 82.8" 46.6"
4.4m 3.22m 2.81m 1.58m 2.667m 2.32m 1.31m
14.43' 127.6" 110.7" 62.2" 105" 91.5" 51.5"
4.8m 3.53m 3.07m 1.73m 2.9m 2.52m 1.42m
15.74' 139.2" 121" 68" 114.5" 99" 55.9"
5.2m 3.81m 3.32m 1.87m 3.13m 2.72m 1.53m
17.06' 150.8" 130.74" 73.5" 123..2" 107" 60.4"
5.6m 4.11m 3.58m 2.02m 3.39m 2.95m 1.66m
18.37' 162.4" 141.2" 79.4" 133.56" 116" 65.5"
6m 4.42m 3.85m 2.16m 3.63m 3.16m 1.78m
19.68' 174" 151.66" 85.3" 143.1" 124.6" 70.1"
8m 5.8m 5.09m 2.86m 5.00m 4.35m 2.45m
26.24' 232" 200" 112.7" 196.72" 171.4" 96.4"
Diagonal Width Height Diagonal Width Height
Max. Screen Size Min. Screen Size
A C
B D
ViewSonic PJ766D
39
S
p
S
p
S
p
Timing Mode Table
The native resolution is 800 x 600 for the SVGA series and 1024 x 768 for the XGA series. Resolution other than native mode may display with uneven size of text or lines.
The following table shows the supported timing modes.
e
c
i
f
i
c
a
t
i
o
n
s
e
c
i
f
i
c
a
e
c
i
f
i
c
t
i
o
n
s
a
t
i
o
n
s
Signal Resolution
Frequency H.
( KHz )
NTSC -- 15.734 60.0 Ο -- --
PAL / SECAM -- 15.625 50.0 Ο -- --
VESA
640 x 350 37.9 85.1 -- Ο Ο
720 x 400 31.5 70.0 -- Ο Ο
720 x 400 37.9 85.0 -- Ο Ο
640 x 480 31.5 60.0 -- Ο Ο
640 x 480 37.9 72.8 -- Ο Ο
640 x 480 37.5 75.0 -- Ο Ο
640 x 480 43.3 85.0 -- Ο Ο
800 x 600 37.9 60.3 -- Ο Ο
800 x 600 46.9 75.0 -- Ο Ο
800 x 600 48.1 72.2 -- Ο Ο
800 x 600 53.7 85.1 -- Ο Ο
1024 x 768 48.4 60.0 -- Ο Ο
Frequency V.
Video Digital Analog
( Hz )
Apple Macintosh
HDTV
Ο
--
1024 x 768 56.5 70.1 -- Ο Ο
1024 x 768 60.0 75.0 -- Ο Ο
1024 x 768 68.7 85.0 -- Ο Ο
1280 x 1024 64.0 60.0 -- Ο Ο
640 x 480 35.0 66.7 -- Ο Ο
832 x 624 49.7 74.5 -- Ο Ο
1024 x 768 60.2 74.9 -- Ο Ο
1152 x 870 68.7 75.1 -- Ο Ο
1920 x 1080 33.8 60.0 Ο -- --
1920 x 1080 28.1 50.0 Ο -- --
1280 x 720 45.0 60.0 Ο -- --
720 x 576 31.3 50.0 Ο -- -- SDTV
720 x 480 31.5 60.0 Ο -- --
Frequency supported
Frequency not supported
For XGA series only
ViewSonic PJ766D
40
Dimensions
32.8 cm (12.9 inches)
S
p
e
c
i
f
i
c
a
t
i
o
n
s
S
p
e
c
i
f
i
c
S
p
8.8 cm (3.5 inches) 23.8 cm (9.4 inches)
a
e
c
i
f
i
c
t
i
o
n
s
a
t
i
o
n
s
ViewSonic PJ766D
41
Customer Support
For technical support or product service, see the table below or contact your reseller.
NOTE: You will need the product serial number.
Country/Region Web site
T = Telephone
F = FAX
United States www.viewsonic.com/support/
Canada www.viewsonic.com/support/ T= (866) 463 4775
United Kingdom www.viewsoniceurope.com/uk T= 0207 949 0307
Europe/Middle
East/Baltic
www.viewsoniceurope.com Contact your reseller
countries/North
Africa
Australia and New
www.viewsonic.com.au/support/
Zealand
Singapore/
www.viewsonic.com.sg/support/
Malaysia/Thailand
T= (800) 688-6688
F= (909) 468 1202
AUS= 1800 880 818
NZ= 0800 008 822
T= (65) 6273 4018
F= (65) 6273 1566
Email
service.us@
viewsonic.com
service.ca@
viewsonic.com
service.eu@
viewsoniceurope.com
service.eu@
viewsoniceurope.com
service@au.
viewsonic.com
service@sg.
viewsonic.com
South Africa/ Other
www.viewsonic.com
countries
Hong Kong www.hk.viewsonic.com/ T= +852 3102 2900
Macau T= +853 700 303
Korea www.viewsonic.com T= 080 2659 080
T= +886 (2) 2246-3456
F= +886 (2) 2249-1751
service@sd.
viewsonic.com
service@hk.
viewsonic.com
service@kr.
viewsonic.com
ViewSonic PJ766D 42
Limited Warranty
ViewSonic® Projector
What the warranty covers:
ViewSonic warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be
defective in material or workmanship during the warranty period, ViewSonic will at its sole option repair or replace the product with a like
product. Replacement product or parts may include remanufactured or refurbished parts or components.
How long the warranty is effective:
North and South America: 3 years warranty for all parts excluding the lamp, 3 years for labor, and 90 days for the original lamp from the date
of the first consumer purchase. Europe except Poland: 3 years warranty for all parts excluding the lamp, 3 years for labor, and 90 days for
the original lamp from the date of the first consumer purchase. Poland: 2 years warranty for all parts excluding the lamp, 2 years for labor,
and 90 days for the original lamp from the date of the first consumer purchase. Other regions or countries: Please check with your local
dealer or local ViewSonic office for the warranty information.
Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer’s installed lamp only. All accessory lamps
purchased separately are warranted for 90 days.
Who the warranty protects:
This warranty is valid only for the first consumer purchaser.
What the warranty does not cover:
1. Any product on which the serial number has been defaced, modified or removed.
2. Damage, deterioration or malfunction resulting from:
a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow
instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by ViewSonic.
c. Any damage of the product due to shipment.
d. Removal or installation of the product.
e. Causes external to the product, such as electric power fluctuations or failure.
f. Use of supplies or parts not meeting ViewSonic’s specifications.
g. Normal wear and tear.
h. Any other cause which does not relate to a product defect.
3. Any product exhibiting a condition commonly known as “image built-in” which results when a static image is displayed on the product for
an extended period of time.
4. Removal, installation, and set-up service charges.
How to get service:
1. For information about receiving service under warranty, contact ViewSonic Customer Support. You will need to provide your product’s
serial number.
2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a
description of the problem, and (e) the serial number of the product.
3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic.
4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.
Limitation of implied warranties:
There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of
merchantability and fitness for a particular purpose.
Exclusion of damages:
ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:
1. Damage to other property caused by any defects in the product, damaged based upon inconvenience, loss of use of the product, loss of
time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercil loss,
even if advised of the possibility of such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by other party.
Effect of state law:
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow
limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and
exclusions may not apply to you.
Sales outside the U.S.A. and Canada:
For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact ViewSonic or your local
ViewSonic dealer.
Warranty_Projectors Rev. 1d 1 of 1
4.3: Projector Warranty Release Date: 03-31-05
ViewSonic PJ766D 43
