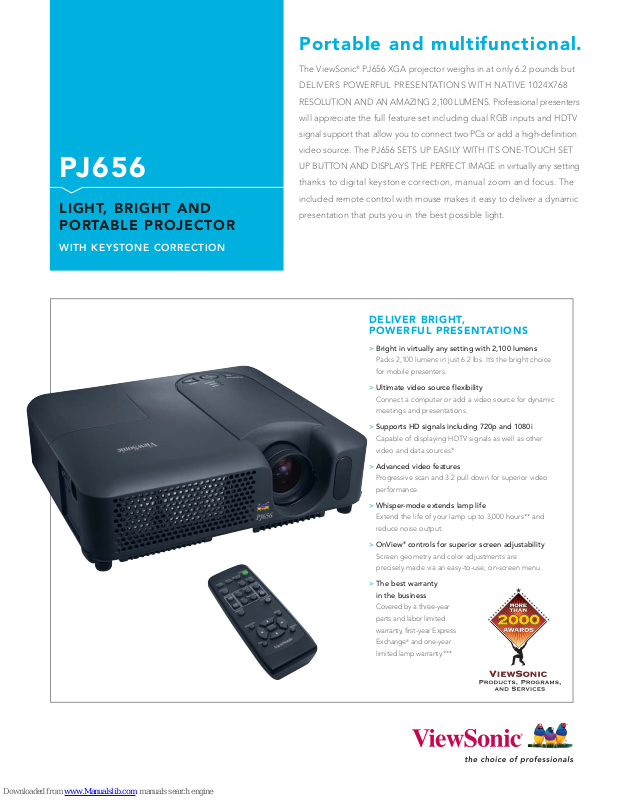

ViewSonic PJ656 - XGA Projector 6.2 Lbs, PJ656 Specification Sheet
PJ656
LIGHT, BRIGHT AND
PORTABLE PROJECTOR
WITH KEYSTONE CORRECTION
Portable and multifunctional.
The ViewSonic®PJ656 XGA projector weighs in at only 6.2 pounds but
DELIVERS POWERFUL PRESENTATIONS WITH NATIVE 1024X768
RESOLUTION AND AN AMAZING 2,100 LUMENS. Professional presenters
will appreciate the full feature set including dual RGB inputs and HDTV
signal support that allow you to connect two PCs or add a high-definition
video source. The PJ656 SETS UP EASILY WITH ITS ONE-TOUCH SET
UP BUTTON AND DISPLAYS THE PERFECT IMAGE in virtually any setting
thanks to digital keystone correction, manual zoom and focus. The
included remote control with mouse makes it easy to deliver a dynamic
presentation that puts you in the best possible light.
DELIVER BRIGHT,
POWERFUL PRESENTATIONS
> Bright in virtually any setting with 2,100 lumens
Packs 2,100 lumens in just 6.2 lbs. It’s the bright choice
for mobile presenters
> Ultimate video source flexibility
Connect a computer or add a video source for dynamic
meetings and presentations
> Supports HD signals including 720p and 1080i
Capable of displaying HDTV signals as well as other
video and data sources
> Advanced video features
Progressive scan and 3:2 pull down for superior video
performance
> Whisper-mode extends lamp life
Extend the life of your lamp up to 3,000 hours** and
reduce noise output
> OnView
> The best warranty
®
controls for superior screen adjustability
Screen geometry and color adjustments are
precisely made via an easy-to-use, on-screen menu
in the business
Covered by a three-year
parts and labor limited
warranty, first-year Express
®
Exchange
limited lamp warranty.***
and one-year
.
.
.*
.
.
.
PJ656
LIGHT, BRIGHT AND PORTABLE PROJECTOR WITH KEYSTONE CORRECTION
Optional Accessories
• Replacement lamp . . . . . . . . . . . . . . . . .RLC-013
• Hard case with wheels . . . . . . . . . . . . . .PRJ-HCA-001
• Extended Express Exchange
• Soft case with wheels
and laptop bag . . . . . . . . . . . . . . . . . . . .PRJ-SCA-004
• Universal ceiling mount kit . . . . . . . . . .WMK-005
®
. . . . . . .PRJ-EE-08-03
PROJECTOR Type 0.6" (x3) Poly-Si TFT with micro-lens
DISPLAY Size 30"–300" (diagonally)
AUDIO Speakers 1x1 watts
INPUT SIGNAL Computer/Video RGB analog, NTSC M, NTSC 4.43, PAL, SECAM, HDTV
COMPATIBILITY PC Analog: from VGA up to UXGA (scaled)
CONNECTOR RGB (input) 15-pin HD, D-sub cable (x2)
POWER Voltage 100–240 VAC, 50/60Hz (universal)
CONTROLS Basic Standby/On, input, menu
OPERATING Temperature 41–95°F (5–35°C)
CONDITIONS Humidity 10–85% (non-condensing)
NOISE LEVEL Normal 38 dB (typ)
DIMENSIONS Physical (mm) 306mm x 100mm x 249mm
(W x H x D) Physical (in.) 12" x 3.9" x 9.8"
WEIGHT Net 6.2 lb. (2.8 kg)
REGULATIONS UL 60950, C-UL, FCC-B, TUV/GS, CB, CE, C-TICK, NOM
OTHER Vertical digital keystone correction, progressive scan,
PACKAGE CONTENTS Projector, power cords, VGA cable, RCA video cable,
WARRANTY Three-year limited warranty on parts and labor, first-year
Pixel Format 1024x768 XGA
Lens Manual zoom, manual focus
Zoom Factor 1.2
Keystone Vertical ± 15º
Throw Distance 35"–440"
Throw Ratio 1.5~1.8:1
Lamp 180W, 2,000 hours**
Brightness 2,100 ANSI lumens
Contrast Ratio 400:1
Aspect Ratio 4:3 (native), 16:9
(480i, 480p, 576i, 720p, 1080i)
Frequency Fh: 31.5–106kHz; Fv: 56–120Hz
®†
Mac
RGB (output) Shared with RGB-2 input
Composite Video (input) RCA jack (x1)
S-Video (input) Mini-Din 4-pin (x1)
Component Video (input) RCA jack (x1 set)
Audio (input) Stereo mini-jack (x1); RCA (L/R)
Audio (output) Stereo mini jack
USB For mouse control
Control 9-Pin D-sub for RS232 control
Consumption 290W (typ)
®
OnView
Whisper Mode 33 dB (typ)
Gross 16.5 lb. (7.5 kg)
Analog: up to SXGA (may require a Mac adapter)
Language, brightness, contrast, gamma, color temperature,
color, tint, sharpness, progressive, My Memory, aspect,
overscan, V./H. position, H. phase, H. size, auto adjust,
color space, component, video format, frame lock, information, V. keystone, whisper, mirror, volume, audio, language,
menu position, OSD bright, blank color, start up, My Screen,
My Screen Lock, message, auto search, auto off, lamp time,
filter time, service menu
3:2 pull down, whisper mode
remote control, soft case, lens cap, ViewSonic Wizard CD,
Quick Start Guide
Express Exchange
lamp***
®
Service. One-year limited warranty on
ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Customer Service and Technical Support: (800) 688-6688 • Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com
*Optional cables required. **Running whisper-mode exclusively can extend lamp life. ***Visit ViewSonic.com for full details. †Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without
notice. Selection, offers and programs vary by country. See your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2006 ViewSonic
Corporation. All rights reserved. [12749-00B-01/06] PJ656-1
