ViewSonic PJ558D User Manual

ViewSonic
PJ558D
®
DLP Projector
- User Guide
- Guide de l’utilisateur
- Guía del usuario
- 使用手冊 (繁體)
- 使用手冊(简体)
Model No. : VS11529
ViewSonic PJ558Di
Compliance Information
For U.S.A.
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: You are cautioned that changes or modications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
For Canada
• This Class B digital apparatus complies with Canadian ICES-003.
• Cet appareil numérique de la classe B est conforme
à la norme NMB-003 du Canada.
CE Conformity for European Countries
The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility”, and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety.”
Following information is only for EU-member states:
The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE).
The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law.
iiViewSonic PJ558D
Important Safety Instructions
1. Read these instructions completely before using the equipment.
2. Keep these instructions in a safe place.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this equipment near water. Warning: To reduce the risk of re or electric shock,
do not expose this apparatus to rain or moisture.
6. Clean with a soft, dry cloth. If further cleaning is required, see “Cleaning the Display” in this guide for further instructions.
7.
Do not block any ventilation openings. Install the equipment in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices
(including ampliers) that produce heat.
9. Do not attempt to circumvent the safety provisions of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade and the third prong are provided for
your safety. If the plug does not t into your outlet, consult an electrician for replacement of
the outlet.
10. Protect the power cord from being tread upon or pinched, particularly at the plug, and the point where if emerges from the equipment. Be sure that the power outlet is located near the equipment so that it is easily accessible.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with the cart, s tand, tripo d, bracke t, or tab le specif ie d by the manufacturer, or sold with the equipment. When a cart is used, use caution when moving the cart/equipment combination to avoid injury from tipping over.
13. Unplug this equipment when it will be unused for long periods of time.
14. Refer all servicing to qualified service personnel. Service is required when the unit has been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if the unit does not operate normally or has been dropped.
ViewSonic PJ558Diii
Declaration of RoHS Compliance
This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:
Substance
Proposed Maximum
Concentration
Actual Concentration
Lead (Pb)
0.1% < 0.1%
Mercury (Hg)
0.1% < 0.1%
Cadmium (Cd)
0.01% < 0.01%
Hexavalent Chromium (Cr
6+
) 0.1% < 0.1%
Polybrominated biphenyls (PBB)
0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE)
0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex of the RoHS Directives as noted below:
Examples of exempted components are:
1. Mercury in compact uorescent lamps not exceeding 5 mg per lamp and in other lamps not
specically mentioned in the Annex of RoHS Directive.
2. Lead in glass of cathode ray tubes, electronic components, uorescent tubes, and electronic
ceramic parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or
more lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium
containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.
ivViewSonic PJ558D
Copyright Information
Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.
Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.
ViewSonic, the three birds’ logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic Corporation.
VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC are trademarks of VESA.
PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation.
Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change
product specications without notice. Information in this document may change without notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation.
Product Registration
To meet your future needs, and to receive any additional product information as it becomes available, please register your product on the Internet at: www.viewsonic.com. The ViewSonic Wizard CD­ROM also provides an opportunity for you to print the registration form, which you may mail or fax to ViewSonic.
For Your Records
Product Name:
Model Number:
Serial Number: Purchase Date:
PJ558D ViewSonic DLP Projector VS11529
The lamp in this product contains mercury.
Please dispose of in accordance with local, state or federal laws.
Copyright © ViewSonic® Corporation, 2007. All rights reserved.
Document Number:
PJ558D-1_UG_ENG Rev. 1C 02-27-07
English
ViewSonic PJ558D1
Safety Instructions
Read all of these instructions before you operate your projector and save for future reference.
1. Check that the operating voltage of your unit is identical with the voltage of your
local power supply.
2. Should any liquid or solid object fall into the cabinet, unplug the unit and have it
checked by the qualied personnel before operating it further.
3. Do not attempt to service this product yourself, as opening or removing covers may
damage the components inside and will void your warranty.
4. Do not place this product on an unstable cart, stand, or table. The product may
fall, causing serious damage to the product.
5. Unplug the unit from the wall socket if it is not to be used for several days. To
disconnect the cord, pull it out by the plug. Never pull the cord itself.
6. The wall socket should be near the unit and easily accessible.
7. Do not place the projector where the cord can be stepped on as this may result in
fraying or damage to the lead or the plug. Be alert to tripping hazards.
8. Never look into the projector lens when the lamp is switched on as the bright light
can damage your eyes. Never let children look into the lens when it is on.
9. Do not place your hand or objects near the ventilation holes. The air coming out is
hot.
10. Never open any covers on the projector except the lamp cover. Dangerous electrical
voltages inside the projector can cause severe injury. Except as specically directed
in this User’s Manual, do not attempt to service this product yourself. Refer all
servicing to qualied service personnel.
11. Unplug the projector from the wall socket before cleaning. Use a damp cloth for
cleaning the projector housing. Do not use liquid or aerosol cleaners.
12. Keep the plastic packing materials (from the projector, accessories and optional
parts) out of the reach of children as these bags may result in death by suffocation. Be particularly careful around the small children.
2ViewSonic PJ558D
13. For ventilation reasons, the fan continues to operate after the projector has been
powered off. Please do not unplug the power cord until the fan stops.
14. The projector is equipped with ventilation holes (intake) and ventilation holes
(exhaust). Do not block or place anything near these slots, or internal heat build-up may occur, causing picture degradation or damage to the projector.
15. When you replace the projector lamp, never touch the new bulb with your bare
hands. The invisible residue left by the oil on your hands may shorten the bulb life.
Use lint-free gloves or nger cots are recommended.
16. The product should be situated away from heat sources such as radiators, heat
registers, stoves, or other products (including ampliers) that produce heat.
17. Do not overload wall outlets, extension cords, or integral convenience receptacles
as this can result in a risk of re or electric shock.
English
ViewSonic PJ558D3
Notes on AC Power Cord
AC Power Cord must meet requirement of country where you use a projector. Conrm an
AC plug type with graphics below and proper AC Power Cord must be used. If supplied AC Power Cord does not match your AC outlet, contact your sales dealer. This projector is equipped with a grounding type AC line plug. Make sure that your
outlet ts the plug. Do not defeat the safety purpose of this grounding type plug. We
highly recommend using a video source device also equipped with a grounding type
AC line plug to prevent from signal interference due to voltage uctuation.
4ViewSonic PJ558D
CONTENTS
Product Introduction .................................................................................................5
Projector Features .............................................................................................
5
Package Contents .............................................................................................
6
Getting to Know the Projector
...................................................................................7
Projector Components
.......................................................................................7
Remote Control Components ..........................................................................
10
Installation ..............................................................................................................
11
Connecting the Projector .................................................................................
11

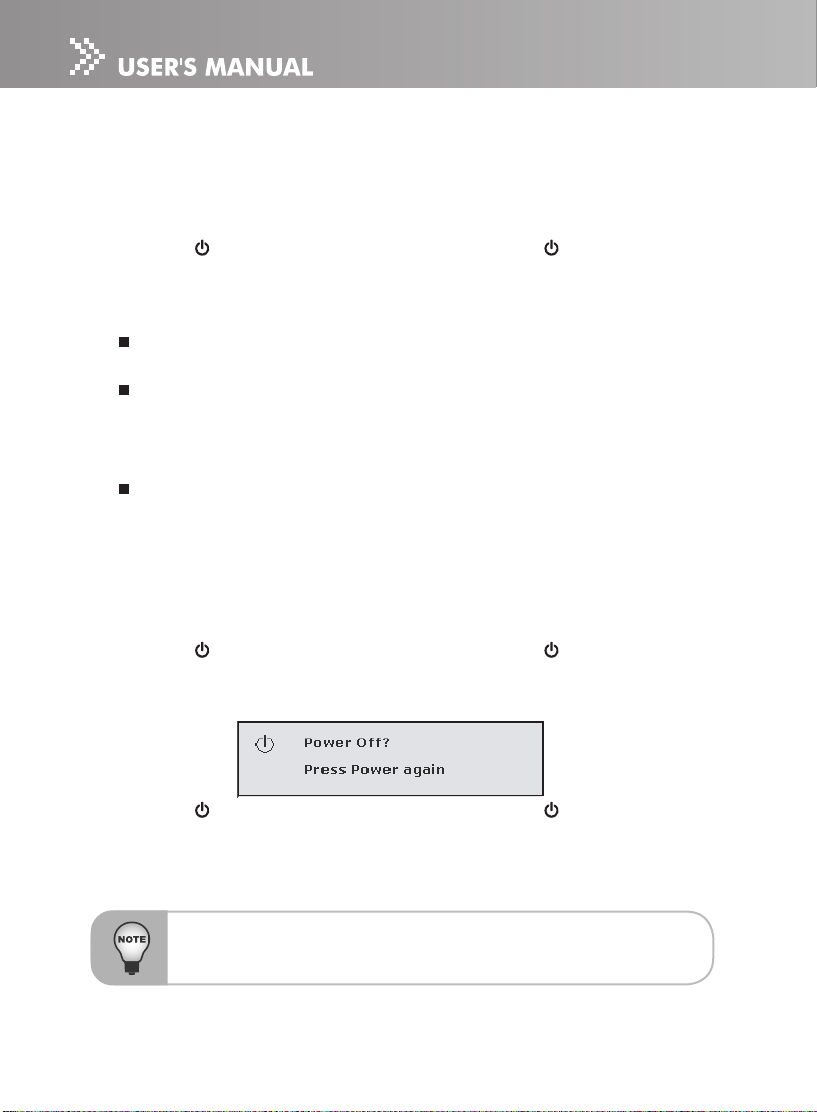

Powering On/Off the Projector ........................................................................
12

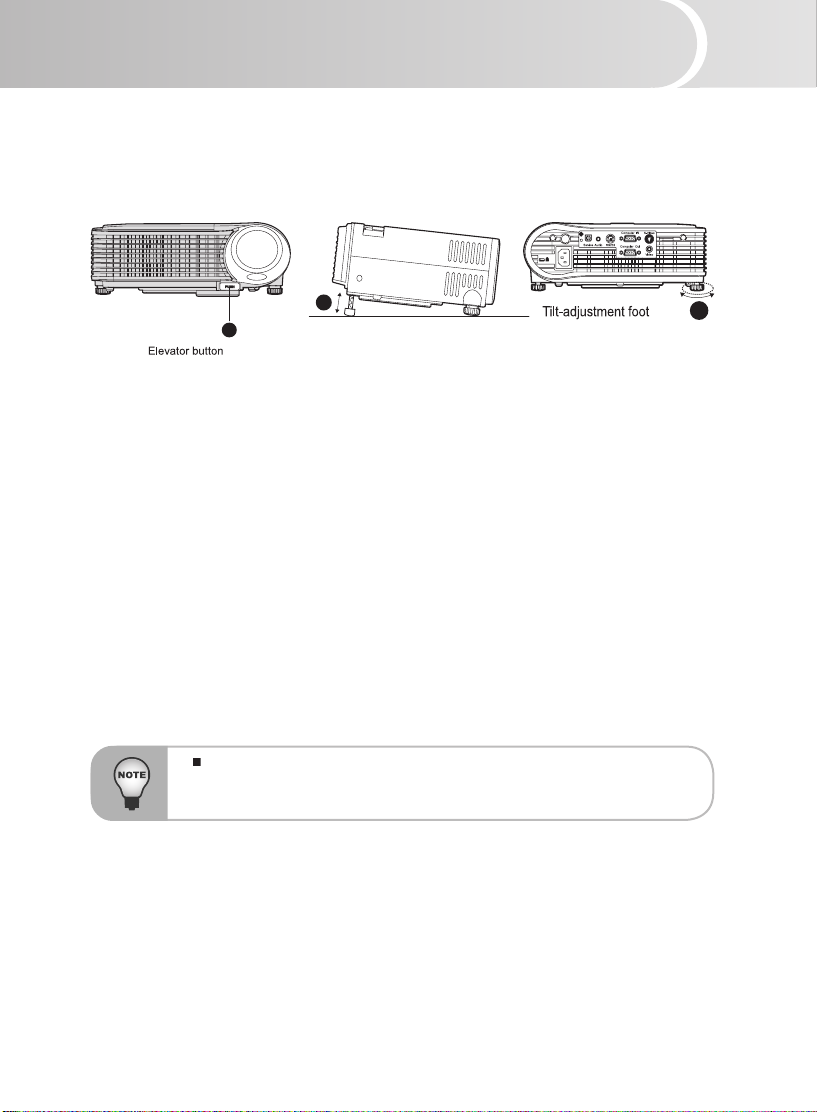

Adjusting the Projected Image ........................................................................
13
Adjusting the Projector Zoom and Focus .......................................................
14
Adjusting Projection Image Size
......................................................................14
Using the Projector .................................................................................................
16

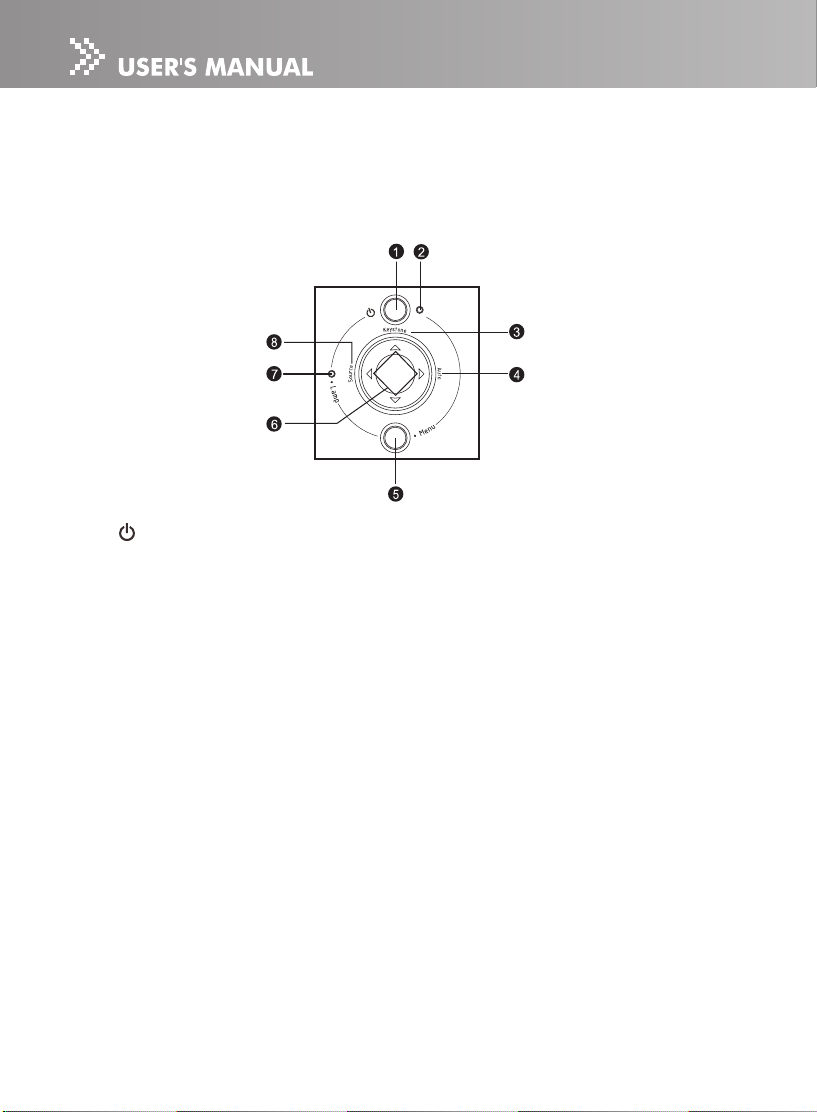

Control Panel
...................................................................................................16

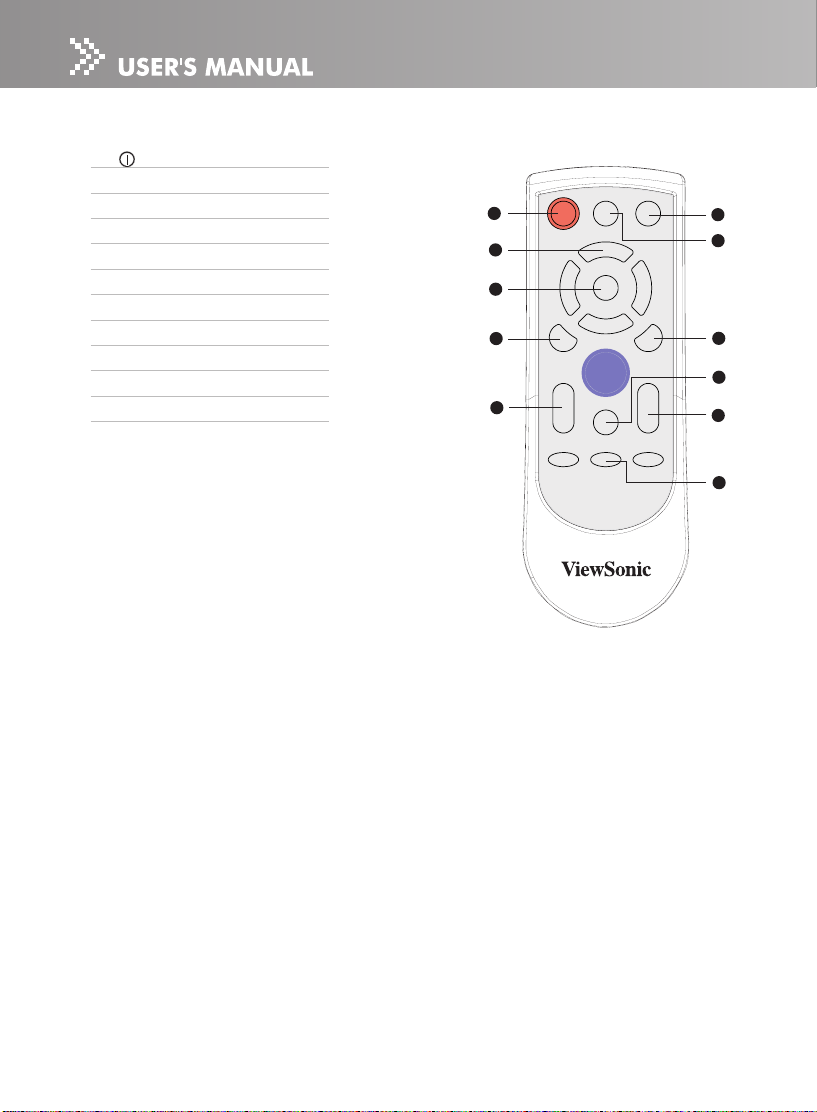

Remote Control ...............................................................................................
17
Battery Replacement .......................................................................................
17
Remote Control Operation ..............................................................................
18
Menu Options .........................................................................................................
19
Color (Computer/Video Mode) ........................................................................
20

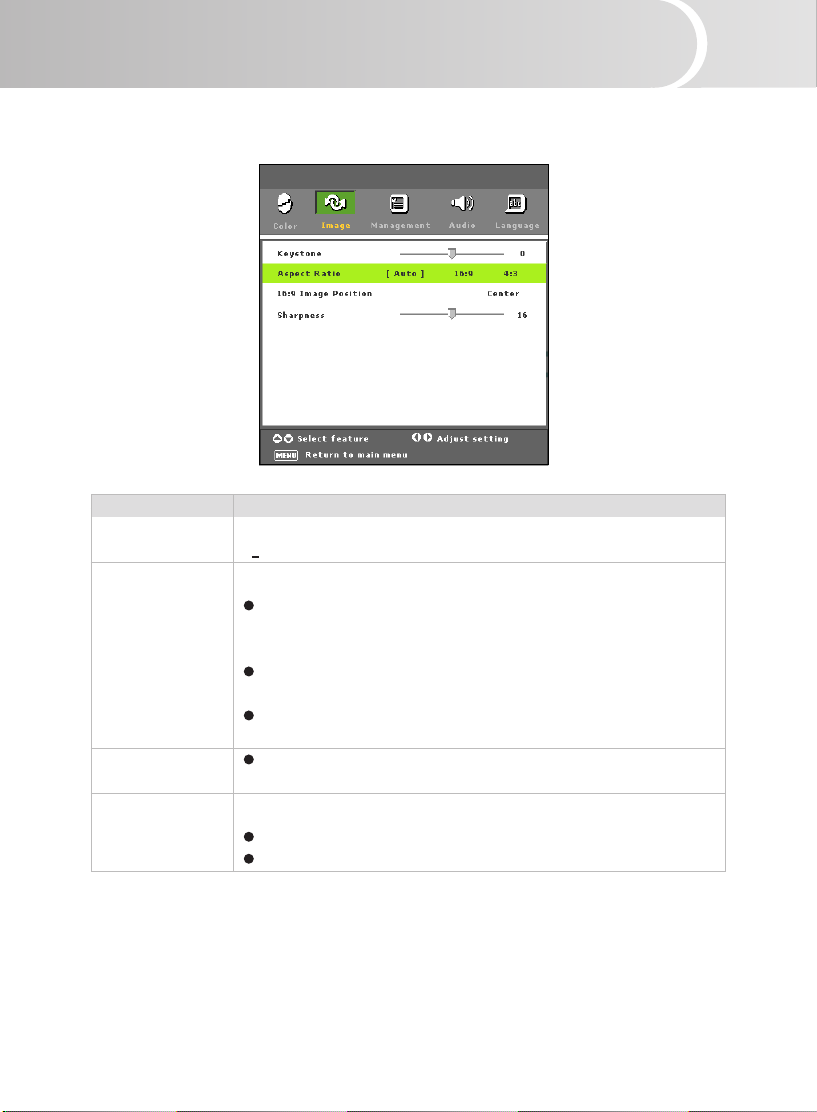

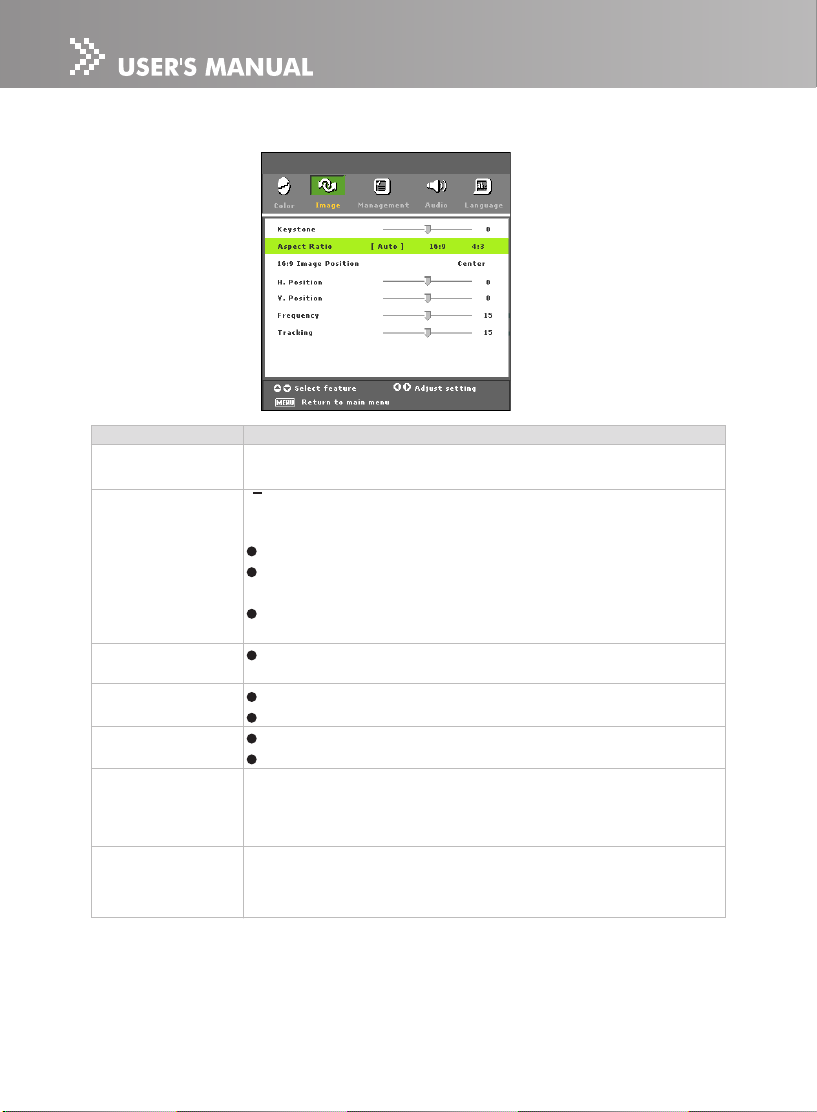

Image (Computer Mode) .................................................................................
22
Image (Video Mode) ........................................................................................
23
Management (Computer/Video Mode) ............................................................
24

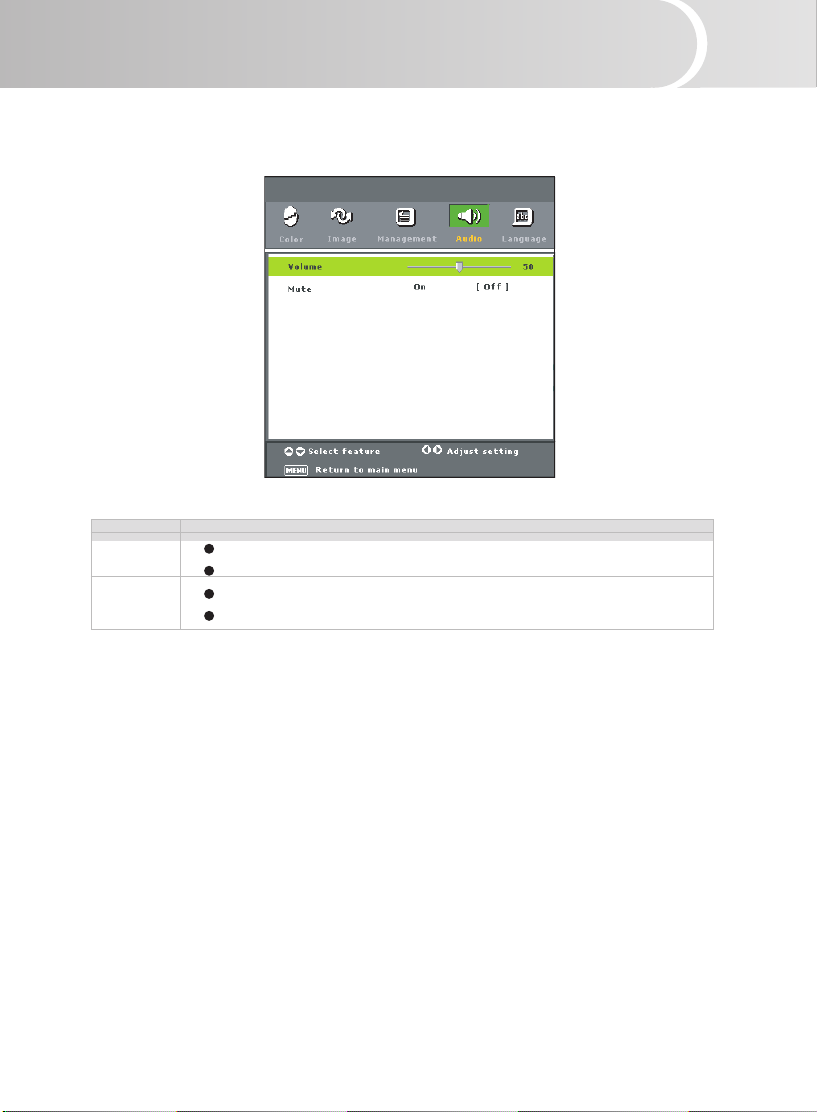

Audio (Computer/Video Mode) ........................................................................
25
Language ........................................................................................................26
Maintenance ...........................................................................................................
27
Cleaning the Lens ...........................................................................................
27
Cleaning the Projector Housing
.......................................................................27

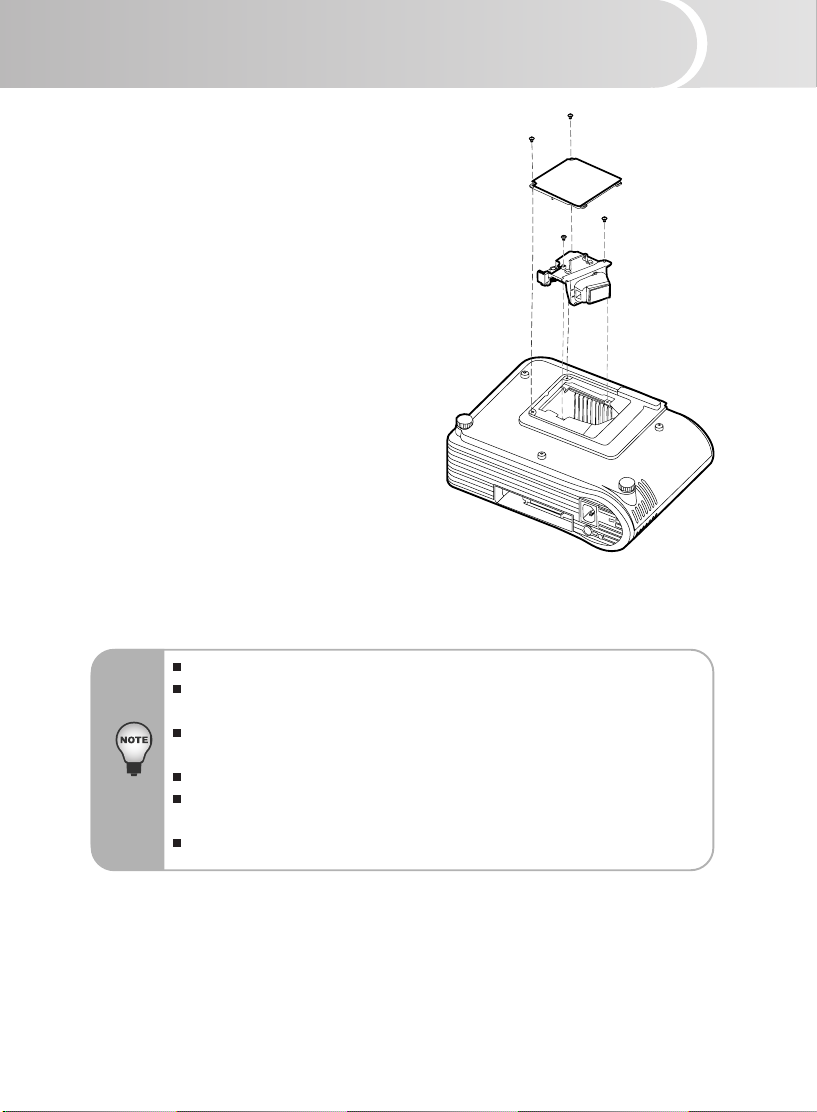

Replacing the Lamp ........................................................................................
28
Specications .........................................................................................................30
Appendix
.................................................................................................................31
Indicator Messages .........................................................................................
31
Preset Signals .................................................................................................
32
Troubleshooting ...............................................................................................
33
English
ViewSonic PJ558D5
Product Introduction
Projector Features
The projector integrates high-performance optical engine projection and a user-friendly design to deliver high reliability and ease of use.
The projector offers the following features:
Single chip 0.55” Texas Instruments DLP™ technology XGA (1024 x 768 pixels) Compact size, light weight for portability
1.2x manual zoom lens Auto image re-sizing (Auto-Sync.) to 1024 x 768 full screen with scaling compression
compatibility for VGA, SVGA, XGA and SXGA*. State-of-the-art motion adaptive hardware deinterlacing with 3:2 pull down Compatibility with Macintosh® computers Compatibility with NTSC, PAL, SECAM, and HDTV Multi-function remote control D-Sub 15-pin cable for analog video connectivity User-friendly, multi-language on-screen display (OSD) Advanced electronic keystone correction
* means compressed.
6ViewSonic PJ558D
Package Contents
When you unpack the projector, make sure you have all these components:
Save the original shipping carton and packing material; they will come in handy
if you ever to ship your unit. For maximum protection, repack your unit as it
was originally packed at the factory.
Accessories and components may vary by retailer and region.
Lithium battery is loaded in the remote control. Remove the transparent
insulation tape by pulling it before use.
Projector with Lens Cap AC Power Cord VGA Cable (D-SUB to D-SUB)
S-Video Cable
Composite Video Cable
Audio Cable
VGA (D-SUB) to HDTV (RCA) Cable
Projector
Carrying Case
User’s Manual
Remote Control (IR) with Lithium battery
POWER
MUTE
4:3/16:9 KEYSTONE
LASER
ENTER BLANK
MENU
VOLUME
AUTO SOURCE
Optional Accessory:
Quick Start Guide
RS232 Cable
USB Cable
English
ViewSonic PJ558D7
Getting to Know the Projector
Projector Components
Front View
1. Lens cap
2. Lens cap strap
3. Fron t I R re m o t e co n t r o l
sensor
4. Lens
5. Ventilation holes (intake)
6. Zoom ring
1 2 4
7
8
9
10
5
6
12
11
3
7. Focus ring
8. Control panel
9. Speaker
10. Ventilation holes (exhaust)
11. Elevator foot
12. Elevator button
8ViewSonic PJ558D
Rear View
1. Interface connector
2. Rear IR remote control sensor
3. Security lock receptacle
4. AC power socket
5. Ventilation holes (intake)
6. Tilt-adjustment foot
Bottom View
1. Lamp cover
2. Ceiling mount
1
2
3
4 56 6
2 2
1
2
This projector can be used with a ceiling mount for support. The ceiling mount
is not included in the package.
English
ViewSonic PJ558D9
Control Panel
1. (power)
2. Power LED indicator
3. Keystone
/
4. Auto
5. Menu
6. Four direction buttons
7. Lamp LED indicator
8. Source
Interface Connector
1. USB connector (Service purpose)
This connector is used for engineering purpose.
2. Audio input connector Connect an audio output from video equipment to this jack.
3. RS232 connector When operating the projector via a computer, connect this to the controlling
computer’s RS-232C port.
4. Computer IN (D-SUB) connector (Blue) Connect image input signal (analog) to this connector.
5. S-Video connector Connect S-Video output from video equipment to this jack.
6. Computer Out (D-SUB) connector (Black) Connect to a computer display, etc.
7. Video connector Connect composite video output from video equipment to this jack.
7
21 3
6
4
5
10ViewSonic PJ558D
Remote Control Components
1. Power button
2. Four direction buttons
3. Menu button
4. Enter button
5. Keystone
/ buttons
6. Volume
/ buttons
7. Source button
8. Mute button
9. Blank button
10. 4:3/16:9 button
11. Auto button
POWER
MUTE
4:3/16:9 KEYSTONE
LASER
ENTER BLANK
MENU
VOLUME
AUTO SOURCE
1
2
3
4
7
6
5
8
9
10
11
English
ViewSonic PJ558D11
Installation
Connecting the Projector
Audio Cable VGA (D-SUB) to HDTV (RC A)
Cable
RS232 Cable Video Cable VGA Cable (D-SUB to D-SUB) S-Video Cable
Desktop type Laptop type
2
3
6
1
1
3
54
When connecting cable, power cords of both a projector and external
equipment should be disconnected from AC outlet.
The gure above is a sample connection. This does not mean that all of
these devices can or must be connected simultaneously.
12ViewSonic PJ558D
Powering On/Off the Projector
Powering On the Projector:
1. Remove the projector lens cap.
2. Complete the AC power cord and peripheral signal cable(s) connections.
3. Press the
button on the Projector Control Panel or the button on the Remote
Control to turn on the power.
4. Turn on your source (computer, notebook, DVD, etc.). The projector automatically detects your source.
If the “Searching for source” message appears on the screen, ensure that
the appropriate signal cable(s) are securely connected.
If you are connecting multiple sources to the projector simultaneously, press
the Source button either on the Projector Control Panel or the Remote Control.
Warning: Never look into the lens when the lamp is on. This can damage your eyes. It is
especially important that children are not allowed to look into the lens.
Powering Off the Projector:
1. Press the button on the Projector Control Panel or the button on the Remote Control. A message will appear on the screen:
2. Press the
button on the Projector Control Panel or the button on the Remote
Control again to turn off the power. Wait until the lamp LED indicator turns off.
Please wait until the fan motor and the lamp LED turn off before removing
the AC power cord from the projector.
English
ViewSonic PJ558D13
Adjusting the Projected Image
Adjusting the Projector Height
The projector is equipped with an elevator foot to adjust the image height. To raise or lower the image:
1. Turn the projector over and locate the elevator foot. Press the elevator button to extend the foot so it may be adjusted.
2. While holding down the elevator button, adjust the foot to the desired height, then release the button to lock the elevator foot into position.
3. Use tilt-adjustment foot to ne-tune tilt-adjustment.
4. Lower the projector so it rests on its foot; adjust as needed.
To avoid damaging the projector, make sure that the elevator foot and tilt-
adjustment foot are fully retracted before placing the projector in its carrying
case.
1
2
3
14ViewSonic PJ558D
Adjusting the Projector Zoom and Focus
1. Adjust the image size by rotating the zoom ring.
Rotate to the right to reduce the image. Rotate to the left to enlarge the image.
2. Focus the image by rotating the focus ring.
A still image is recommended for focusing.
Adjusting Projection Image Size
Refer to the graphic and table below to determine the screen size and projection distance.
Zoom Ring
Focus Ring
Distance between the screen and the center of the lens
English
ViewSonic PJ558D15
Position the projector in a horizontal position; other positions can cause heat
build-up and damage to the projector.
Make sure the heat ventilation holes are not blocked.
Do not use the projector in a smoky environment. Smoke residue may cause
buildup on critical parts (i.e. DMD, lens assembly, etc.)
PROJECTION
DISTANCE (METER)
4:3 SCREEN
SIZE-
DIAGONAL
(INCH)
Wide
Tele
1.0
27.50
25.60
2.1
57.70
53.70
3.0
82.40
76.50
5.0
137.4
128.0
10.0
275.00
256.00
* This table is for user reference only.
16ViewSonic PJ558D
Using the Projector
Control Panel
1.
Refer to “Powering On/Off the Projector”.
2. Power LED indicator
Refer to “Indicator Messages”.
3. Keystone
/
Adjusts image distortion caused by tilting the projector.
4. Auto
Automatically adjusts frequency and phase. This function is available for computer
mode only.
5. Menu
Displays or exits the on-screen display menus.
6. Four direction buttons
The four direction buttons
/// can be used to scroll through OSD (On-Screen
Display) menus and make adjustments.
7. Lamp LED indicator
Refer to “Indicator Messages”.
8. Source
Manually selects an input source.
English
ViewSonic PJ558D17
Remote Control
1. Power
Refer to “Powering On/Off the Projector”.
2. Four direction buttons
The four direction buttons
///can be used
to scroll through OSD (On-Screen Display) menus and make adjustments.
3. Menu
Press the Menu button to activate the OSD (On-
Screen Display) menu. Use the directional buttons and Menu button to navigate through the OSD (On-Screen Display) menu.
4. Enter
Conrms the selection
5. Keystone
/
Adjusts image distortion caused by tilting the
projector.
6. Volume
/
Press the Volume
button to inc rease the
volume; press the Volume
button to reduce the
volume.
7. Source
Manually selects an input source.
8. Mute
Cuts off the sound temporarily.
9. Blank
Cuts off the screen temporarily.
10. 4:3/16:9
Press the 4:3/16:9 to switch the image aspect ratio from 4:3 to 16:9.
11. Auto
Automatically adjusts frequency and phase.
POWER
MUTE
4:3/16:9 KEYSTONE
LASER
ENTER BLANK
MENU
VOLUME
AUTO SOURCE
1
2
3
4
7
6
5
8
9
10
11
Battery Replacement
Keep the battery out of the reach of children. There is a danger of death by accidentally
swallowing the battery.
Do not recharge the used battery or expose the battery to re or water.
Do not dispose of the used battery along with household waste. Dispose of used batteries
according to local regulations.
Avoid excessive heat and humidity. Danger of explosion may happen if a battery is incorrectly
replaced. Replace only with the same type recommended by the manufacturer.
18ViewSonic PJ558D
7m
7m
5m
5m
5m
5m
15
15
10
10
P
O
W
E
R
M
U
T
E
4
:
3
/
1
6
:
9
K
E
Y
S
T
O
N
E L
A
S
E
R E
N
T
E
R
B
L
A
N
K
M
E
N
U
V
O
L
U
M
E
A
U
T
O
S
O
U
R
C
E
P O
W E R
M
U T E
4 : 3
/ 1 6 : 9
K E Y S T O
N
E
L A
S E R
E
N T E R
B L A N
K
M
E N U
V O
L U M E
A U T O
S O
U R C
E
Remote Control Operation
Point the remote control at the infrared remote sensor and press a button.
The remote control may not operate when there is sunlight or other strong
light such as a uorescent lamp shining on the remote sensor.
Operate the remote control from a position where the remote sensor is
visible.
Do not drop the remote control or jolt it.
Keep the remote control out of locations with excessively high temperature
or humidity.
Do not get water on the remote control or place wet objects on it.
Do not disassemble the remote control.
A. Straight Distance: within about 7 meters from the front of the remote
sensor. B. Direction: Angle: within about 15 degrees of the
remote sensor in vertical direction ;
within about 10 degrees of the remote
sensor in horizontal direction. Distance: within about 5 meters from
the front of the remote sensor.
English
ViewSonic PJ558D19
Menu Options
The projector has multi-language OSD (On-Screen Display) menus that can only be displayed when an input source is present. The menus can be accessed using either the Projector Control Panel or the Remote Control. The OSD (On-Screen Display) menus allow you to make image adjustments and change a variety of settings.
1. Press the Menu button on the Projector Control Panel or the Menu button on the Remote Control.
2. Select the menu tab with the
/ buttons either on the Projector Control Panel
or the Remote Control.
3. Select the desired menu option item with the
/ buttons either on the Projector
Control Panel or the Remote Control.
4. Adjust the settings with the
/ buttons either on the Projector Control Panel or
the Remote Control.
Refer to each menu option section for more details.
5. To return back to the main menu, press the Menu button on the Projector Control Panel or the Menu button on the Remote Control.
6. To exit from the menu, press the Menu button on the Projector Control Panel or the Menu button on the Remote Control.
The illustrations in this manual are for the purpose of explanation and may
differ from the actual setting of your projector.
20ViewSonic PJ558D
Color (Computer/Video Mode)
Option Actions/Descriptions Brightness Adjusts the brightness of the image.
Press the button to darken the image. Press the button to lighten the image. Contrast The contrast controls the degree of difference between the
lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.
Press the button to decrease the contrast. Press the button to increase the contrast. Color Temperature Adjusts the color temperature. At higher temperature, the screen
looks colder; at lower temperature, the screen looks warmer.
Gamma Gamma affects how dark scenery is displayed. With a greater
gamma value, dark scenery will look brighter.
White Segment The white segment control adjusts the white peaking level of the
DMD chip. 0 stands for minimal segment, and 10 stands for maximum segment. If you prefer a stronger image, adjust towards the maximum setting. For a smooth and more natural image, adjust towards the minimum setting.
English
ViewSonic PJ558D21
Option Actions/Descriptions
Saturation Adjusts a video image from black and white to fully saturated
color.
Press the button to decrease the amount of color in the
image.
Press the button to increase the amount of color in the
image.
Tint Adjusts the color balance of red and green.
Press the button to increase the amount of green in the
image.
Press the button to increase the amount of red in the image. Color R Adjusts the red color. Color G Adjusts the green color. Color B Adjusts the blue color.
“Saturation” and “Tint” functions are not supported under computer mode.
22ViewSonic PJ558D
Image (Computer Mode)
Option Actions/Descriptions Keystone Adjusts image distortion caused by tilting projection.
(+15 degrees)
Aspect Ratio Selects this function to t Auto, 16:9, 4:3 aspect ratio.
Auto: Keep the image with original width-height ratio. 16:9: The input source will be scaled to t the width of the screen. 4:3 : The input source will be scaled to t the projection screen. 16:9 Image
Press the / buttons to choose the image position showed
on Position top, center, or bottom. H. Position
Press the button to move the image left.
(Horizontal Position)
Press the button to move the image right.
V. Position
Press the button to move the image down.
(Vertical Position)
Press the button to move the image up.
Frequency “Frequency” changes the display data frequency to match the frequency of your computer’s graphic card. If you
experience a vertical ickering bar, use this function to make an
adjustment. Tracking “Tracking” synchronizes the signal timing of the display with
the graphic card. If you experience an unstable or ickering
image, use this function to correct it.
English
ViewSonic PJ558D23
Image (Video Mode)
Option Actions/Descriptions
Keystone Adjusts image distortion caused by tilting projection. (+15 degrees)
Aspect Ratio Select this function to t Auto, 16:9, 4:3 aspect ratio.
Auto : Keep the image with original width-height ratio and
maximize the image to t native horizontal or vertical
pixels. 16:9 : The input source will be scaled to t the width of the screen. 4:3 : The input source will be scaled to t the projection screen. 16:9 Image
Press the / buttons to choose the image position showed
Position on top, center, or bottom. Sharpness Adjusts the sharpness of the image.
Press the button to decrease the sharpness. Press the button to increase the sharpness.
24ViewSonic PJ558D
Management (Computer/Video Mode)
Option Actions/Descriptions ECO Mode Choose “On” to dim the projector lamp which will lower power consumption, extend the lamp life and reduce noise. Choose “Off” to return normal mode. Menu Location Choose the Menu location on the display screen. Project Ceiling Choose “On” to reverse the image horizontally. Choose “Off” to return normal mode. Project Rear Choose “On” to reverse the image vertically. Choose “Off” to return normal mode. Source Lock When source lock is turned off, the projector will search for other signals if the current input signal is lost. When source lock is turned on, it will “Lock” the current source channel before you press “Source” button for next channel. Lamp Hour Displays the lamp’s elapsed operating time (in hours). Elapse Lamp Choose this function to show or to hide warning message Reminding when the changing lamp message is displayed. The message will show up 30 hours before end of life. OSD Adjusts the OSD’s transparency. Transparency Reset Press the
button and then choose “Yes” to return the display
parameters on all menus to the factory default settings.
English
ViewSonic PJ558D25
Audio (Computer/Video Mode)
Option Actions/Descriptions Volume Press the button to decrease the volume. Press the button to increase the volume. Mute Choose “On” to turn mute on. Choose “Off” to turn mute off.
26ViewSonic PJ558D
Option Actions/Descriptions Language Choose the multilingual OSD menu. Use the
/ buttons to
select your preferred language. Press the Menu button on the Projector Control Panel or the Menu
button on the Remote Control to conrm the selection.
Language
English
ViewSonic PJ558D27
Maintenance
The projector needs proper maintenance. You should keep the lens clean as dust, dirt or spots will project on the screen and diminish image quality. If any other parts need
replacing, contact your dealer or qualied service personnel. When cleaning any part of the projector, always switch off and unplug the projector rst.
Warning:
Never open any of the covers on the projector. Dangerous electrical voltages
inside the projector can cause severe injury. Do not attempt to service this product
yourself. Refer all servicing to qualied service personnel.
Cleaning the Lens
Gently wipe the lens with lens cleaning paper. Do not touch the lens with your hands.
Cleaning the Projector Housing
Gently wipe with a soft cloth. If dirt and stains are not easily removed, use a soft cloth damped with water, or water and neutral detergent, and wipe dry with a soft, dry cloth.
Turn off the projector and remove the AC power cord from the power outlet
before beginning maintenance work.
Make sure the lens is cool before cleaning.
Do not use detergents or chemicals other than those noted above. Do not use
benzene or thinners.
Do not use chemical sprays.
Use a soft cloth or lens paper only.
28ViewSonic PJ558D
Replacing the Lamp
Projector lamps have a nite life. Replace the lamp when:
A warning message “Lamp is approaching the end of its useful life in full power
operation. Replacement Suggested!” appears on the screen.
The image becomes darker and hues become weaker after a lamp has been for
a long period of time.
The projector lamp LED indicator turns into red. Refer to section titled “Indicator
Messages” for further details.
The lamp becomes high temperature after turning off the projector with the
power button. If you touch the lamp, you may scald your nger. When you
replace the lamp, wait for at least 45 minutes for the lamp to cool down.
Do not touch the lamp glass at any time. The lamp may explode due to improper
handling, including the touching of the lamp glass.
Lamp lifetime may differ from lamp to lamp and according to the environment
of use. There is no guarantee of the same lifetime for each lamp. Some lamps
may fail or terminate their lifetime in a shorter period of time than other similar
lamps.
A lamp may explode as a result of vibration, shock or degradation as a result
of hours of use as its lifetime draws to an end. Risk of explosion may differ
according to the environment or conditions in which the projector and lamp are
being used.
Wear protective gloves and eyeglasses when xing or detaching the lamp.
Faster on-off-cycles will damage the lamp and reduce lamp life. Wait at least
for 5 minutes to turn off the projector after powering on.
Do not operate the lamp in proximity to paper, cloth, or other combustible
material nor cover it with such materials. Otherwise it could cause a re.
Do not operate the lamp in an atmosphere containing an inammable substance,
such as thinner. Otherwise it could cause a re or explosion.
Thoroughly ventilate the area or the room when operating the lamp in an oxygen
atmosphere (in the air). If ozone is inhaled, it could cause headaches, nausea,
dizziness, etc.
The inorganic mercury is involved in the lamp. If the lamp bursts, the mercury
inside the lamp will go out of the projector. Leave the area immediately if the
lamp shatters while being operated and ventilate the area for at least 30 minutes
in order to avoid the inhalation of mercury fumes. Otherwise it could be harmful
to user’s health.
English
ViewSonic PJ558D29
1. Turn off the projector and unplug the AC power cord.
2. Place a protective sheet (cloth) beneath the projector. Turn the projector over so you can access the lamp cover.
3. Remove the access panel screws and open the panel.
4. Remove the screws on the bottom of the lamp assembly.
5. Grasp the lamp handle and pull the lamp assembly directly out of the projector.
6. Replace with the new lamp.
7. Place back the scre ws on the bottom of lamp assembly.
8. Place the panel and screw back the screws on the lamp cover.
Dispose of the used lamp according to local regulations.
Ensure that screws are tightened properly. Screws not tightened fully may
result in injury or accidents.
Since the lamp is made of glass, do not drop the unit and do not scratch the
glass.
Do not reuse the old lamp. This could cause the lamp to explode.
Be sure to turn off the projector and unplug the AC power cord before replacing
the lamp.
Do not use the projector with the lamp cover removed.
30ViewSonic PJ558D
Specications
Projection System Single panel 0.55” DLP projector Native resolution 786,432 dot x1 (1024 x 768 x1) Lens Manual Zoom (1.2X) Aspect Ratio Auto, 16:9, 4:3 Screen Size 30” - 300” Lamp 230W Projection Type Front, Rear, Ceiling Input Source D-Sub 15 pin, S-Video, Composite Video, Stereo Phone Jack, RS232, USB Scanning Frequency Horizontal Freq. 31 - 79 KHz Vertical Freq. 56 - 85 Hz Digital Keystone Correction Vertical: +/- 15 degrees Integrated Speaker 1W x 1 Remote Control Multifunctional OSD Language Multilanguage Operational Ambient Temperature: 0 - 400C Humidity: 30 - 85% Power Supply AC 100 - 240 V, 50 / 60 Hz Power Consumption 300 Watts (Typical) Dimension (W x D x H) 265 x 202 x 97 mm Weight 2.5 kgs (5.4 lbs)
Note: Design and Specications are subject to change without prior notice.
English
ViewSonic PJ558D31
Power LED Amber Solid
Lamp LED Green Solid
Lamp LED Amber Solid
Lamp LED Green Flashing
Power LED Green Solid
Appendix
Indicator Messages
LED Type Color Status Meaning Power LED Green Flashing The projector is powered and ready. The projector system has some problems with its fan, so the projector cannot start up. The projector is in good condition on working. The lamp is in good condition and is projecting at maximum brightness. The lamp has reached its end of life and must be changed soon. The lamp will continue to operate until it fails. Change the lamp. If the lamp is off, then the ballast will become malfunction. The projector is shutting down. The fan motor is cooling the lamp for shutdown. Do not unplug the power cable or turn the power switch off before the lamp LED turns off. The fan motor will turn off when the lamp has cooled. Lamp LED Amber Flashing Temperature is too high. The lamp will turn off.
32ViewSonic PJ558D
Preset Signals
* means compressed.
HDTV Preset Signals
Signal Horizontal Frequency (kHz) Vertical Frequency (Hz) 480p 31.469 kHz 59.94 Hz
720p 45.0 kHz 60 Hz 1080i
33.716kHz 29.97 Hz
Mode
Resolution
Vertical Frequency Horizontal Frequency
Timing
(Hz) (kHz)
480p 640 x 480 59.94 31.46 60 Hz
720p 1280 x 720 60 45 60 Hz
VGA
640 x 480 72.8 37.86 60 Hz
640 x 480 75 37.5 75 Hz
640 x 480 85 43.2 85 Hz
720 x 400 70 31.5 60 Hz
720 x 400 85 37.9 85 Hz
SVGA
800 x 600 56.2 35.1 56 Hz
800 x 600 60.3 37.8 60 Hz
8000 x 600 72.1 48 72 Hz
800 x 6000 75 46.8 75 Hz
XGA
1024 x 768 60 48.3 60 Hz
1024 x 768 70 56.4 70 Hz
1024 x 768 75 60 75 Hz
1024 x 768 84.9 68.8 85 Hz
1024 x 768 60 48.3 60 Hz
1024 x 768 75 60.2 60 Hz
SXGA*
1280 x 1024 60 63.98 60 Hz
1280 x 1024 75 79.9 75 Hz
1152 x 870 75 68.6 60 Hz
1152 x 864 75 67.5 75 Hz
Mac 16” 832 x 624 74.5 49.7 60 Hz
Mac 480-66A 640 x 480 66.667 35 66 Hz
English
ViewSonic PJ558D33
Troubleshooting
Refer to the symptoms and measures listed below before sending the projector for repairs. If the problem persists, contact your local reseller or service center. Please refer to “Indicator Messages” as well.
Symptom No power.
Power goes out during use.
No picture.
No audio.
Picture not displayed correctly.
Cause The AC power cord is not plugged in. The AC power cord is not connected to the projector. The lamp cover loose.
The temperature is too high.
The ventilation holes are blocked.
The projector is not turned on. The brightness setting is minimized. The connections set up are not correctly. The connected devices are not functioning properly.
The projector is not turn on. The mute function is on. The volume setting is minimized. The connections have not been set up correctly. The connected devices are not functioning properly.
The input signal is not supported by the projector.
Measure Plug in the AC power cord.
Connect the AC power cord to the projector correctly. Tighten the screws on the lamp cover. Unplug the AC power cord and wait for a short while, then turn the power back on. Place the projector so that the ventilation holes are not blocked. Turn the projector on.
Adjust the brightness in the “Color” menu. Check that all connections are set up correctly. Check that all connected devices are functioning properly. Turn the projector on. Set the mute to off. Adjust the volume in the “Audio” menu. Check that all connections are set up correctly. Check that all connected devices are functioning properly. Refresh the input signal rate.
34ViewSonic PJ558D
Picture blurred. Part of picture out of focus.
Image is dark.
Colors too light. Bad shading.
Remote control doesn’t work.
The lens is dirty.
The lens focus is not adjusted optimally. The projection distance is not within the projector’s supported range. The projector’s screen placement angle is tilted too far. The frequency or tracking has not been adjusted properly.
The lens cap is attached to the lens. The brightness or contrast has not been adjusted properly.
The lamp is near the end of its service life. The saturation, tint, color R, color G or color B has not been adjusted properly.
The screen is dirty. The lamp is near the end of its service life. The battery could be weak. The polarity is not correct.
The remote control is not being used within the effective range. There are some obstructions between the remote control and projector.
There are some uorescent or
other bright lights shining at the projector’s infrared remote sensor.
Wipe clean with a soft, dry cloth or lens paper. Adjust the focus with the focus ring. Place the projector within the supported range.
Adjust the screen placement angle. Adjust frequency and tracking in the “Image (Computer Mode)” menu properly. Remove the lens cap.
Adjust the brightness or contrast in the “Color (Computer/Video Mode)” menu properly. Replace with a new lamp.
Adjust the saturation, tint, color R or color G in the “Color (Computer/Video Mode)” menu properly. Wipe clean with a soft, dry cloth. Replace with a new lamp.
Replace with a new battery. Insert the battery with correct polarities. Use the remote control within the effective range. Check that there are not any obstructions between the remote control and projector. Check that there are not any
uorescent or other bright
lights shining at the projector’s infrared remote sensor.
ViewSonic PJ558D35
Customer Support
For technical support or product service, see the table below or contact your reseller.
Note : You will need the product serial number.
Country/
Region
Web Site
T=Telephone
F=Fax
E-mail
United States www.viewsonic.com/support/
T= 800 688 6688
F= 909 468 1202
service.us@viewsonic.com
Canada www.viewsonic.com/support T= 866 463 4775 service.ca@viewsonic.com
United Kingdom www.viewsoniceurope.com/uk T= 0207 949 0307 service.eu@viewsoniceurope.com
Europe, Middle
East, Baltic
countries, and
North Africa
www.viewsoniceurope.com
Contact your
reseller
service.eu@viewsoniceurope.com
Australia and
New Zealand
www.viewsonic.com.au/
support/
AUS= 1800 880 818
NZ= 0800 008 822
service@au.viewsonic.com
Singapore/
Malaysia/
Thailand
www.viewsonic.com.sg/
support/
T= 65 64616044 service@sg.viewsonic.com
South Africa/
Other countries
www.viewsonic.com
T= 886 2 2246-3456
F= 886 2 2249-1751
service@sd.viewsonic.com
Hong Kong
www.hk.viewsonic.com/
support/
T= 852 3102 2900 service@hk.viewsonic.com
Macau
www.hk.viewsonic.com/
support/
T= 853 700 303 service@hk.viewsonic.com
Korea www.viewsonic.com T= 080 265 9080 service@kr.viewsonic.com
36ViewSonic PJ558D
Limited Warranty
VIEWSONIC® PROJECTOR
What the warranty covers:
ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.
How long the warranty is effective:
North and South America: 3 years for all parts excluding the lamp, 3 years for labor, 1 year for
the original lamp from the date of the rst consumer purchase.
Europe: 3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp
from the date of the rst consumer purchase.
Other regions or countries: Please check with your local dealer or local ViewSonic ofce for the warranty information. Lamp war ranty subje ct to terms and c onditions , verificatio n and approva l. Ap plies to manufacturer’s installed lamp only. All accessory lamps purchased separately are warranted for 90 days.
Who the warranty protects:
This warranty is valid only for the rst consumer purchaser.
What the warranty does not cover:
1. Any product on which the serial number has been defaced, modied or removed.
2. Damage, deterioration or malfunction resulting from: a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized
product modication, or failure to follow instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by ViewSonic. c. Any damage of the product due to shipment. d. Removal or installation of the product. e. Causes external to the product, such as electric power uctuations or failure. f. Use of supplies or parts not meeting ViewSonic’s specications. g. Normal wear and tear. h. Any other cause which does not relate to a product defect.
3. Any product exhibiting a condition commonly known as “image built-in” which results when
a static image is displayed on the product for an extended period of time.
4. Removal, installation, and set-up service charges.
How to get service:
1. For information about receiving service under warranty, contact ViewSonic Customer
Support (Please refer to Customer Support page). You will need to provide your product’s serial number.
ViewSonic PJ558D37
2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic.
4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.
Limitation of implied warranties:
There are no warranties, express or implied, which extend beyond the description contained
herein including the implied warranty of merchantability and tness for a particular purpose.
Exclusion of damages:
ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:
1. Damage to other property caused by any defects in the product, damaged based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercil loss, even if advised of the possibility of such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by other party.
Effect of state law:
This warranty gives you specic legal rights, and you may also have other rights which vary from
state to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.
Sales outside the U.S.A. and Canada:
For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact ViewSonic or your local ViewSonic dealer. The warranty period for this product in mainland China (Hong Kong, Macao and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card.
4.3: Projector Warranty PRJ_LW01 Rev. 1g 06-30-06
Loading...
