ViewSonic PJ458D User Manual

ViewSonic

®

ViewSonic

®

- User Guide

- Guide de l'utilisateur

- Bedienungsanleitung

- Guía del usuario

- Guia do usuário

- Pyководство польэователя

- 使用手冊

- 使用手冊

- 사용자 안내서

1ViewSonic PJ458D

Compliance Information

For U.S.A.

This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) The device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Warning

To assure continued FCC compliance, the user must use grounded power supply
cord and the cables which are included with the equipment or specified. Also, any
unauthorized changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this device.

For Canada

• This Class B digital apparatus complies with Canadian ICES-003.

• Cet appareil numérique de la classe B est conforme

à la norme NMB-003 du

Canada.

For European Countries
CE Conformity

The device complies with the requirements of the EEC directive 89/336/
EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to
“Electromagnetic compaty”, and 73/23/EEC as amended by 93/68/EEC
Art.13 with regard to “Safety.”

User Information for all Countries

Notice: Use the cables which are included with the unit or specified.

2ViewSonic PJ458D

Important Safety Instructions

1. Read these instructions completely before using the equipment.

2. Keep these instructions in a safe place.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this equipment near water.

6. Clean with a soft, dry cloth. If further cleaning is required, see “Cleaning the

Display” in this guide for further instructions.

7. Do not block any ventilation openings. Install the equipment in accordance with
the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other devices (including amplifiers) that produce heat.

9. Do not attempt to circumvent the safety provisions of the polarized or grounding­type plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide blade
and the third prong are provided for your safety. If the plug does not fit into your
outlet, consult an electrician for replacement of the outlet.

10. Protect the power cord from being tread upon or pinched, particularly at the plug,
and the point where if emerges from the equipment. Be sure that the power outlet
is located near the equipment so that it is easily accessible.

11. Only use attachments/accessories specified by the manufacturer.

12. Use on ly with the cart, s tand, tripo d, brack et, o r t able spe cified b y the

manufacturer, or sold with the equipment. When a cart is used, use caution when
moving the cart/equipment combination to avoid injury from tipping over.

13.

Unplug this equipment when it will be unused for long periods of time.

14. Refer all servicing to qualified service personnel. Service is required when the
unit has been damaged in any way, such as: if the power-supply cord or plug is
damaged, if liquid is spilled onto or objects fall into the unit, if the unit is exposed
to rain or moisture, or if the unit does not operate normally or has been dropped.

3ViewSonic PJ458D

Copyright Information

Copyright © ViewSonic® Corporation, 2005. All rights reserved.

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks
of Microsoft Corporation in the United States and other countries.

ViewSonic, the three birds’ logo, OnView, ViewMatch, and ViewMeter are registered
trademarks of ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association.
DPMS and DDC are trademarks of VESA.

PS/2, VGA and XGA are registered trademarks of International Business Machines
Corporation.

Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors
or omissions contained herein; nor for incidental or consequential damages resulting
from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves
the right to change product specifications without notice. Information in this document
may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for
any purpose without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it
becomes available, please register your product on the Internet at: www.viewsonic.
com. The ViewSonic

®

Wizard CD-ROM also provides an opportunity for you to print

the registration form, which you may mail or fax to ViewSonic.

For Your Records

Product Name:

Model Number:
Document Number:
Serial Number:
Purchase Date:

PJ458D
ViewSonic DLP Projector
VS10872
PJ458D-1_UG_ENG Rev.1B 10-26-05

The lamp in this product contains mercury.

Please dispose of in accordance with local, state or federal laws.

4ViewSonic PJ458D

Notes on AC Power Cord

AC Power Cord must meet requirement of country where you use a projector.
Confirm an AC plug type with graphics below and proper AC Power Cord must be
used. If supplied AC Power Cord does not match your AC outlet, contact your sales
dealer.
This projector is equipped with a grounding type AC line plug. Make sure that your
outlet fits the plug. Do not defeat the safety purpose of this grounding type plug.
We highly recommend using a video source device also equipped with a grounding
type AC line plug to prevent from signal interference due to voltage fluctuation.

Ground

Ground

Ground

Ground

For the U.K.

For the U.S.A. and CanadaFor Australia and

Mainland China�

For Continental Europe

5ViewSonic PJ458D

CONTENTS

Product Introduction .................................................................................................6

Projector Features .............................................................................................6

Package Contents .............................................................................................7

Getting to Know the Projector ..................................................................................8

Projector Components ......................................................................................8

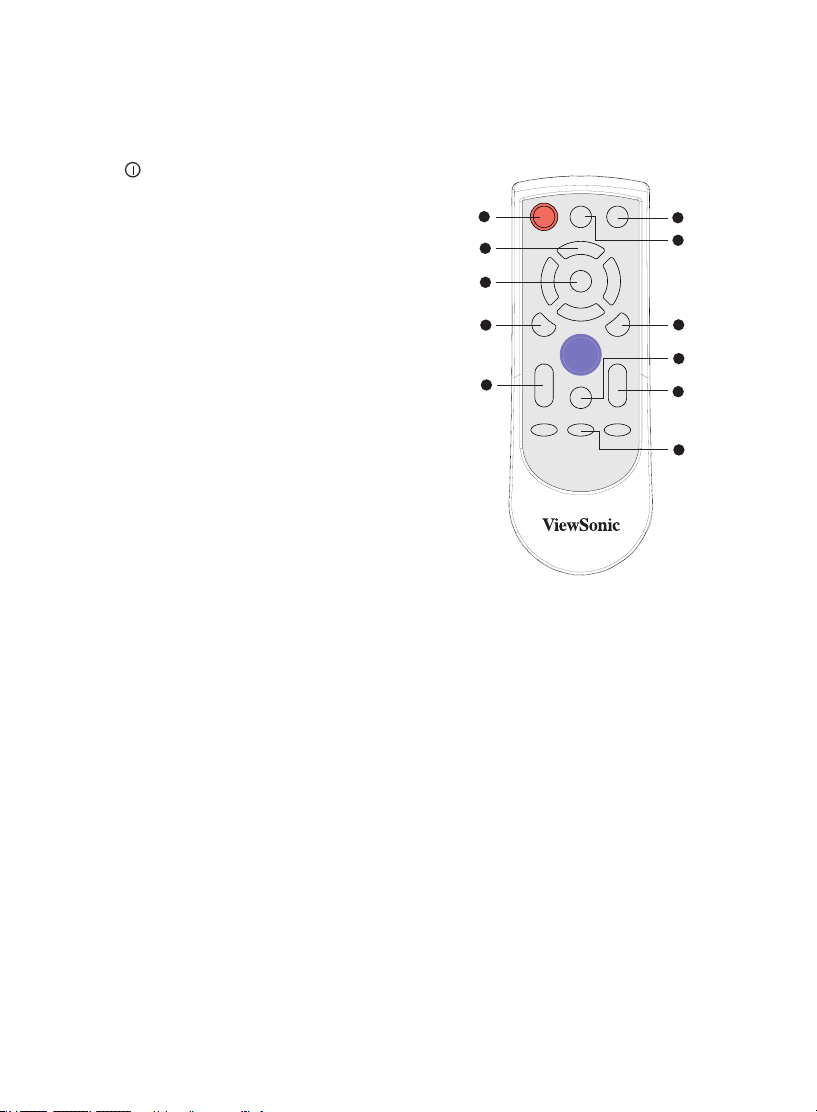

Remote Control Components ..........................................................................11

Installation ..............................................................................................................12

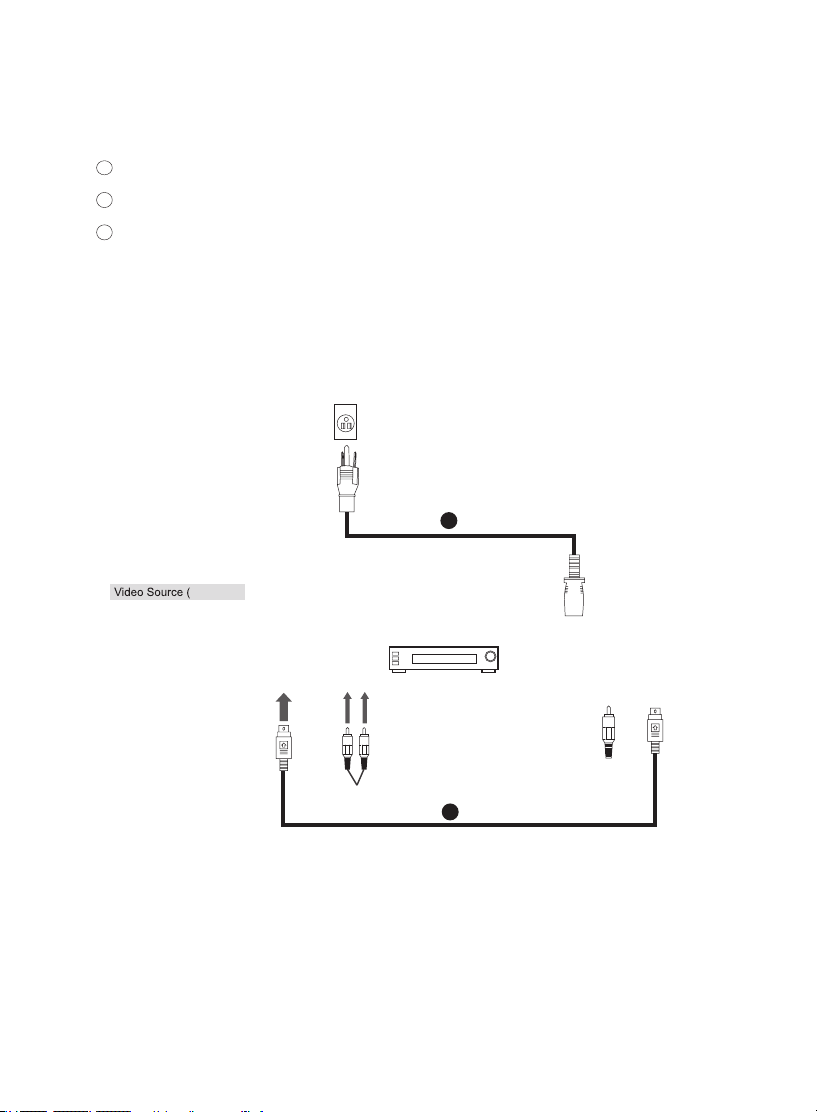

Connecting the Projector .................................................................................12

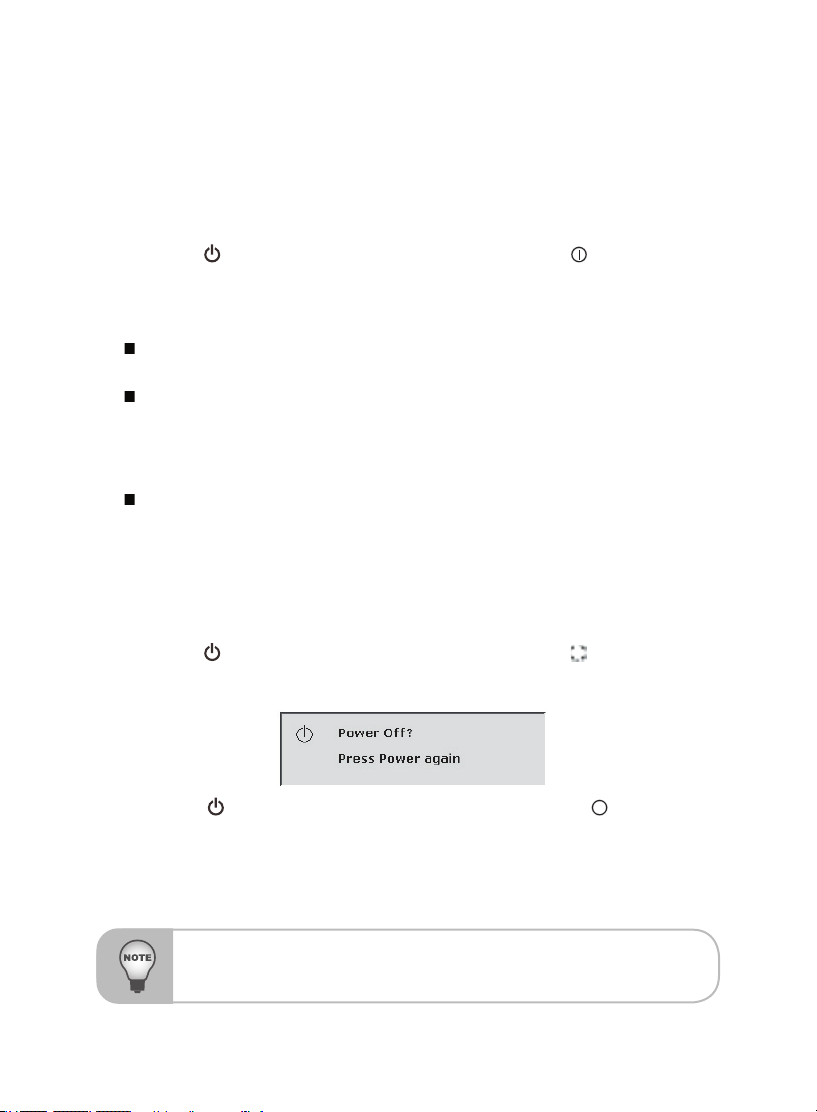

Powering On/Off the Projector ........................................................................16

Adjusting the Projected Image ........................................................................17

Adjusting the Projector Zoom and Focus .......................................................18

Adjusting Projection Image Size .....................................................................18

Using the Projector .................................................................................................20

Control Panel ..................................................................................................20

Remote Control ...............................................................................................21

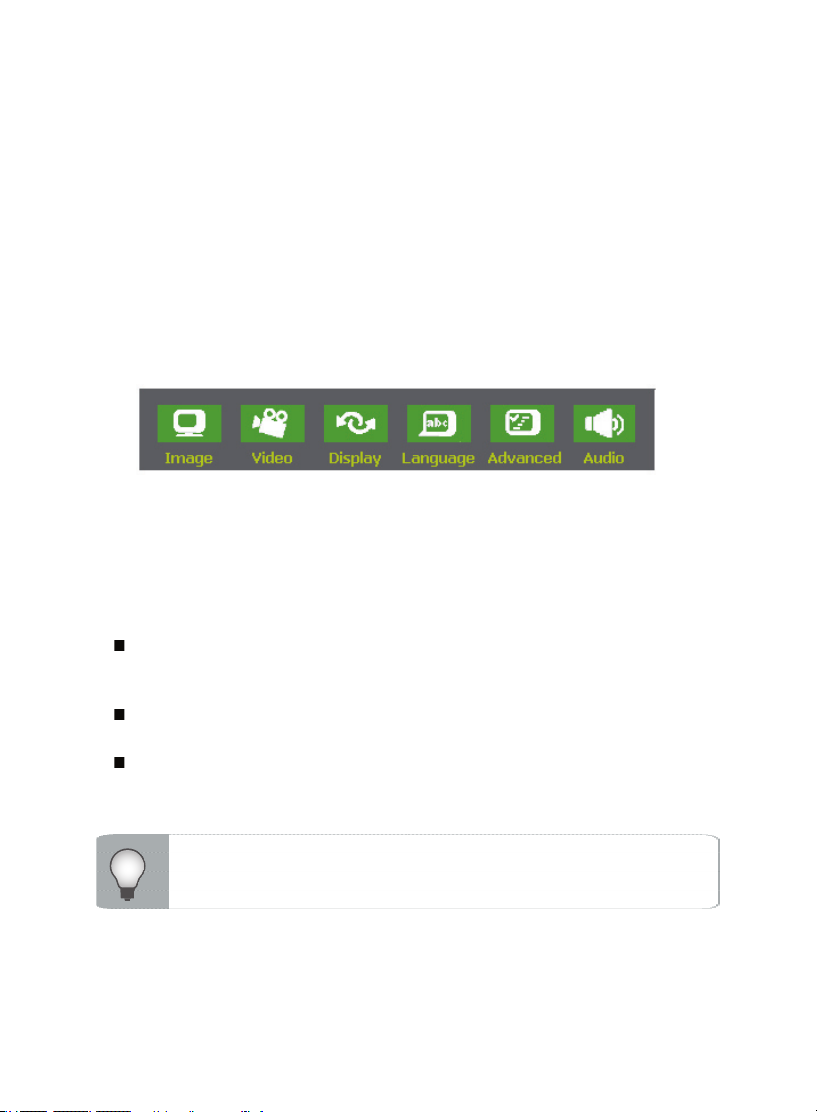

Menu Options .........................................................................................................24

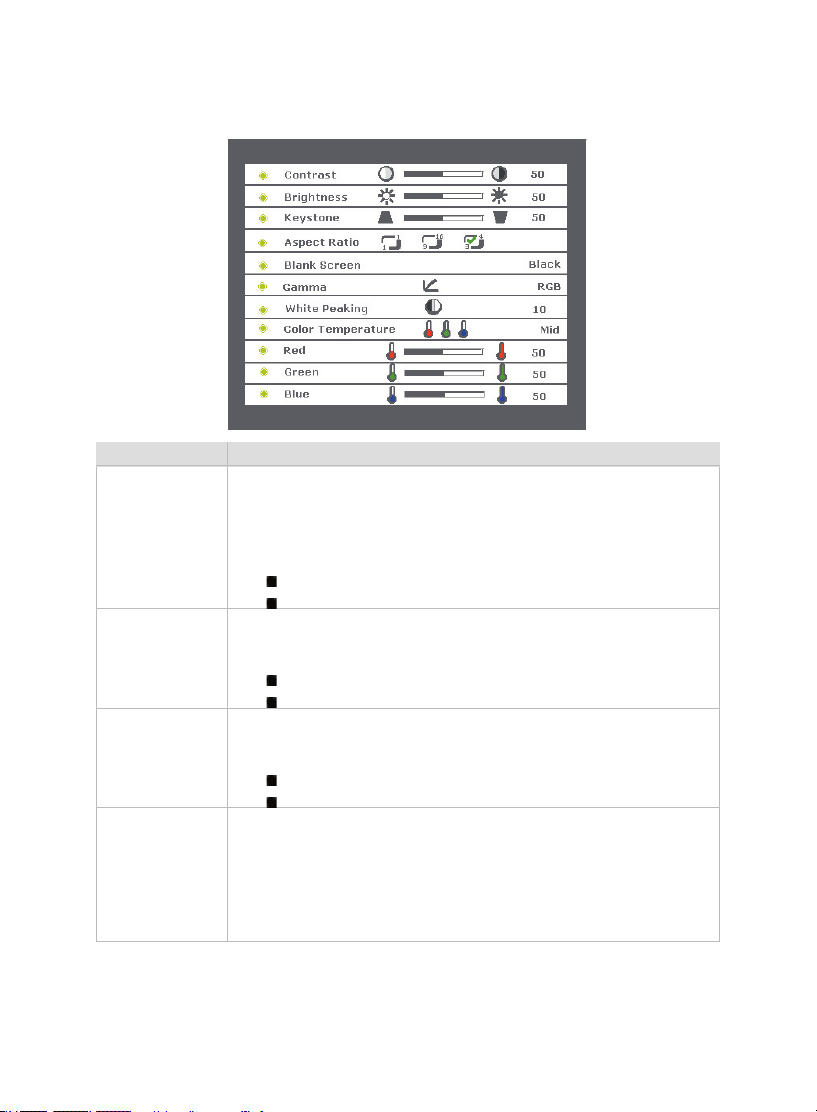

Image ..............................................................................................................25

Video ...............................................................................................................28

Display.............................................................................................................29

Language ........................................................................................................30

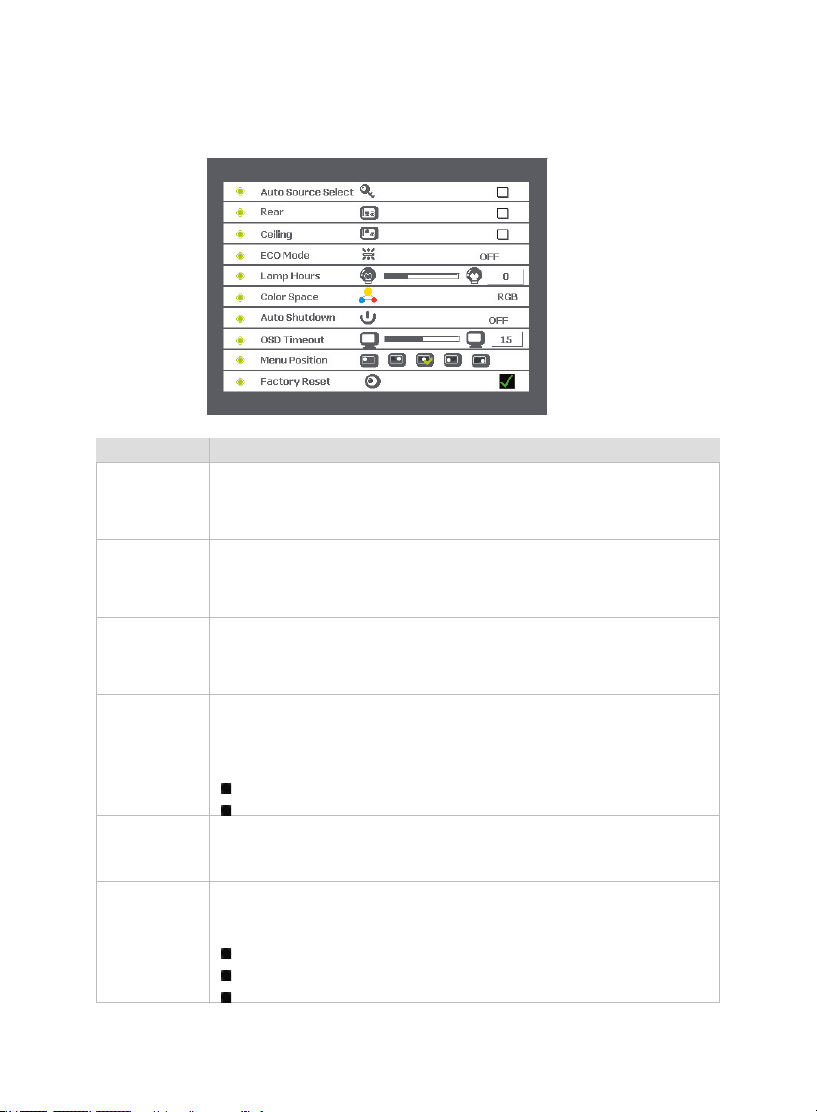

Advanced ........................................................................................................31

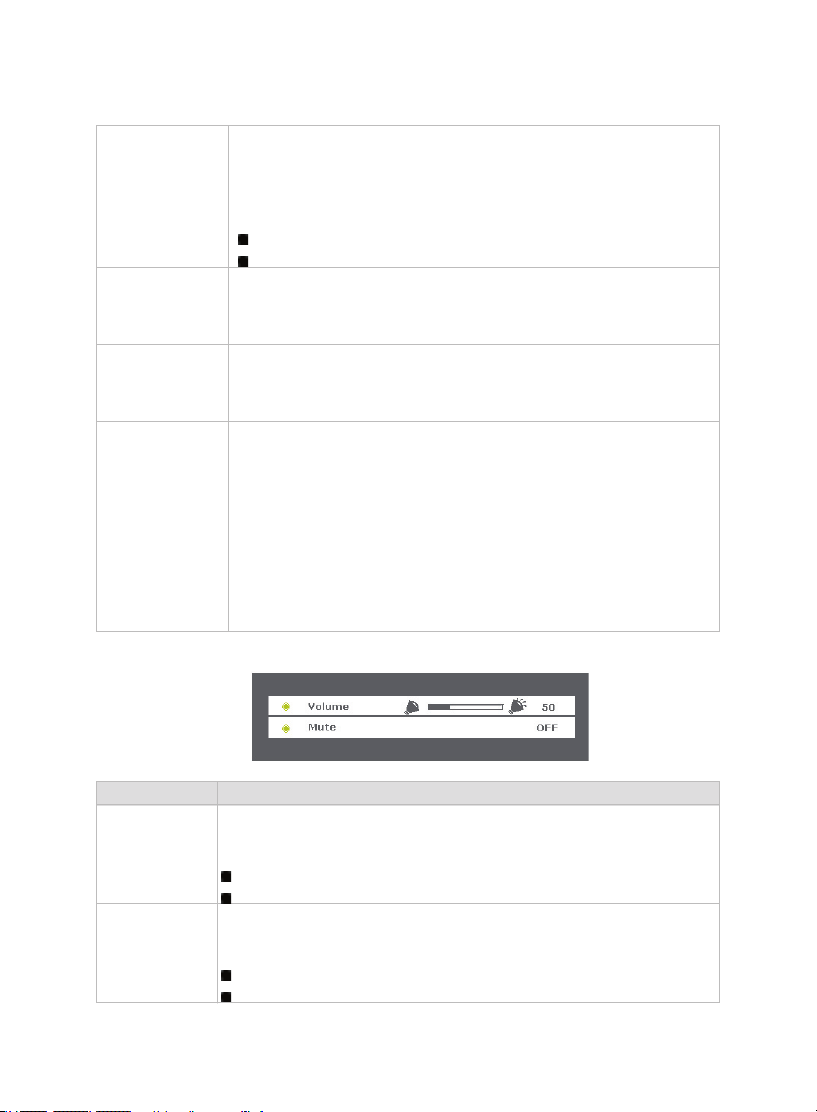

Audio ...............................................................................................................32

Maintenance ...........................................................................................................33

Cleaning the Lens ...........................................................................................33

Cleaning the Projector Housing ......................................................................33

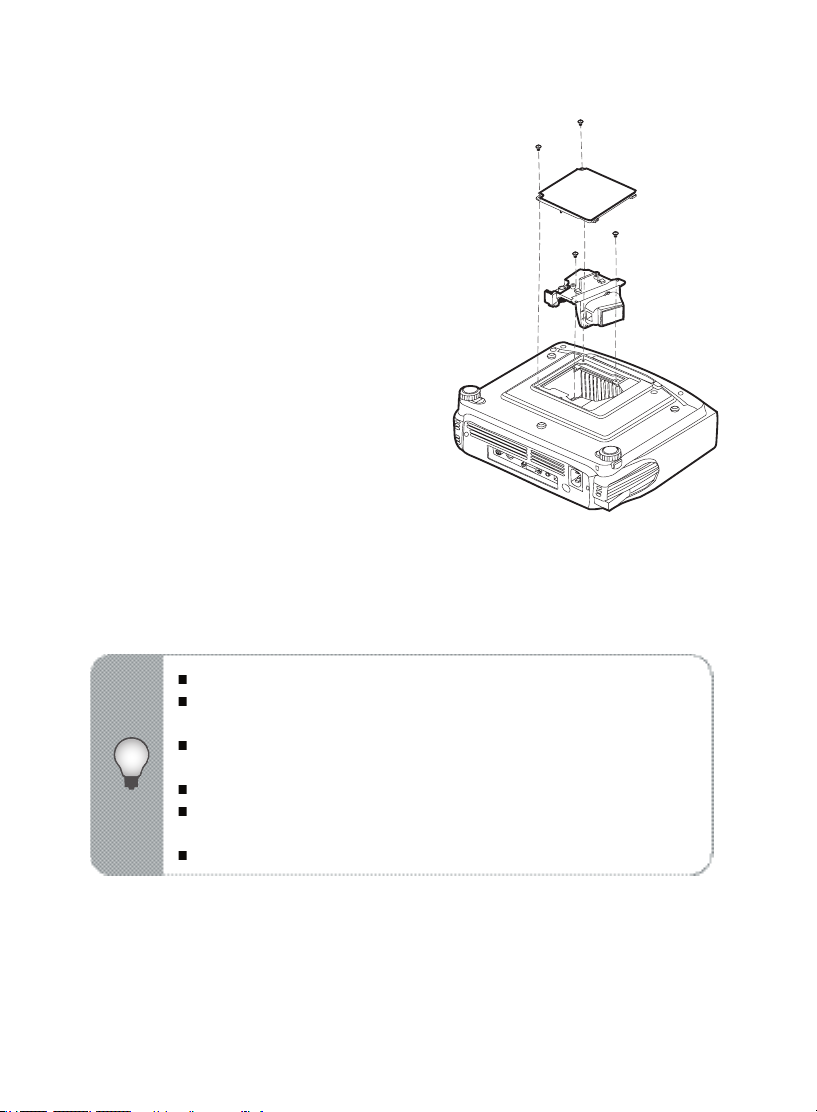

Replacing the Lamp ........................................................................................34

Technical Specifications .........................................................................................36

Appendix ................................................................................................................37

Indicator Messages .........................................................................................37

Preset Signals .................................................................................................38

6ViewSonic PJ458D

Product Introduction

Projector Features

The projector integrates high-performance optical engin e projection and a user­friendly design to deliver high reliability and ease of use.

The projector offers the following features:

Single chip 0.55” Texas Instruments DLP™ technology
XGA (1024 x 768 pixels)
Compact size, light weight for portability

1.2x manual zoom lens
Auto image re-sizing (Auto-Sync.) to 1024 x 768 full screen with scaling

compression compatibility for VGA, SVGA, XGA and SXGA*.
State-of-the-art motion adaptive hardware deinterlacing with 3:2 pull down
200-watt, user-replaceable lamp
Compatibility with Macintosh® computers
Compatibility with NTSC, PAL, SECAM, and HDTV
Multi-function remote control
D-Sub 15-pin cable for analog video connectivity
User-friendly, multi-language on-screen display (OSD)
Advanced electronic keystone correction

* means compressed.

7ViewSonic PJ458D

Package Contents

When you unpack the projector, make sure you have all these components:

Save the original shipping carton and packing material; they will come in

handy if you ever to ship your unit. For maximum protection, repack your
unit as it was originally packed at the factory.

Accessories and components may vary by retailer and region.

Projector with Lens Cap AC Power Cord VGA Cable (D-SUB to D-SUB)

S-Video Cable

Composite Video Cable

Battery for

Remote

Control

Audio Cable

VGA (D-SUB) to
HDTV (RCA) Cable

Projector

Soft Case

Quick Start Guide

Remote Control (IR)

NOTE

Optional Accessory:

Wizard CD

8ViewSonic PJ458D

Getting to Know the Projector

Projector Components

Front View

1. Lens cap

2. Lens cap strap

3. Lens

4. Ventilation holes (intake)

5. Zoom ring

6. Focus ring

7. Control panel

8. Speaker

9. Front IR remote control sensor

10. Ventilation holes (exhaust)

1

2

3

6

7

8

9

10

4

5

9ViewSonic PJ458D

Rear View

1. Interface connector

2. Rear IR remote control sensor

3. Security lock receptacle

4. AC power socket

5. Ventilation holes (intake)

6. Foot adjuster

7. Foot adjuster button

Bottom View

1. Lamp cover

1

2

3

4

10ViewSonic PJ458D

Control Panel

LED

1. POWER (Power LED indicator)

2. LAMP (Lamp LED indicator)

Button

1.

2. MENU\ENTER

3. KEYSTONE (

/

)

4. AUTO (



)

5. Four direction buttons

6. SOURCE (



)

Interface Connector

1. Service connector
This connector is used for engineering purpose.

2. AUDIO input connector
Connect an audio output from video equipment to this jack.

3. COMPUTER IN (D-SUB) connector
Connect image input signal (analog) to this connector.

4. S-VIDEO connector
Connect S-Video output from video equipment to this jack.

5. VIDEO connector
Connect composite video output from video equipment to this jack.

1

2

3

6

5

1

2

4

1

2

3

4

5

SERVICE

11ViewSonic PJ458D

Remote Control Components

1. Power button

2. Four direction buttons

3. Menu button

4. Enter button

5. Keystone

/

buttons

6. Volume

/

buttons

7. Source button

8. Mute button

9. Blank button

10. 4:3/16:9 button

11. Auto button

POWER

MUTE

4:3/16:9 KEYSTONE

LASER

ENTER BLANK

MENU

VOLUME

AUTO SOURCE

1

2

3

4

7

6

5

8

9

10

11

12ViewSonic PJ458D

Installation

Connecting the Projector

A. Connecting to a computer

1

AC Power Cord

2

VGA Cable (D-SUB to D-SUB)

Desktop type Laptop type

1

2
