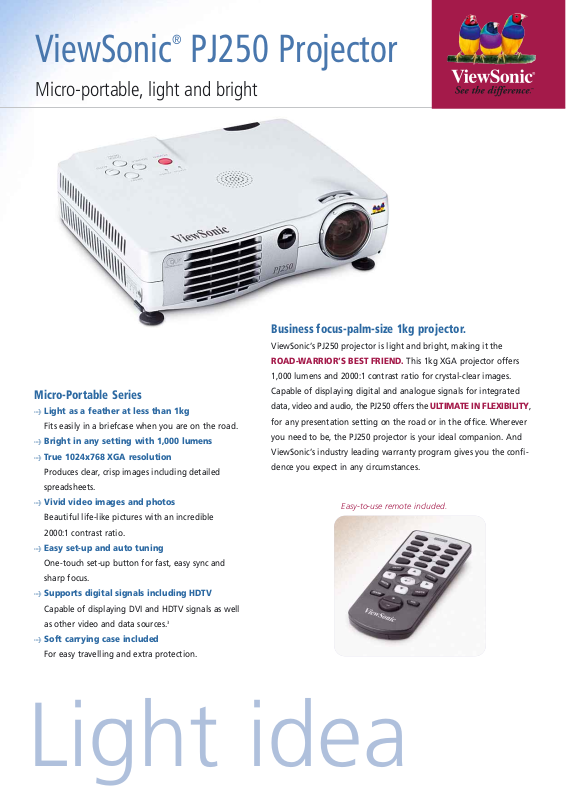

ViewSonic®PJ250 Projector

Micro-portable, light and bright

Business focus-palm-size 1kg projector.

ViewSonic’s PJ250 projector is light and bright, making it the

ROAD-WARRIOR’S BEST FRIEND. This 1kg XGA projector offers

1,000 lumens and 2000:1 contrast ratio for crystal-clear images.

Micro-Portable Series

> Light as a feather at less than 1kg

Fits easily in a briefcase when you are on the road.

> Bright in any setting with 1,000 lumens

> True 1024x768 XGA resolution

Produces clear, crisp images including detailed

spreadsheets.

> Vivid video images and photos

Beautiful life-like pictures with an incredible

2000:1 contrast ratio.

> Easy set-up and auto tuning

One-touch set-up button for fast, easy sync and

sharp focus.

> Supports digital signals including HDTV

Capable of displaying DVI and HDTV signals as well

as other video and data sources.

> Soft carrying case included

For easy travelling and extra protection.

Capable of displaying digital and analogue signals for integrated

data, video and audio, the PJ250 offers the ULTIMATE IN FLEXIBILITY,

for any presentation setting on the road or in the office. Wherever

you need to be, the PJ250 projector is your ideal companion. And

ViewSonic’s industry leading warranty program gives you the confi-

dence you expect in any circumstances.

Easy-to-use remote included.

Light idea

ViewSonic®PJ250 Projector

Micro-portable, light and bright

MICRO-PORTABLE PROJECTOR DLP Type 0.7" XGA DLP™

Pixel Format 1024 Horizontal x 768 Vertical (XGA), SXGA 1.280x1024 compressed Lens Manual focus

DISPLAY Size 0.89m - 5.08m (20"–245"), (measured diagonally)

Throw Distance 1.2m - 6.87m (47”–260”) Lamp 120W, 2000 hour rating

1. Power button

2. Menu

3. Auto sync

PJ250 Distance Calculator

Image Size (Diagonal

in inches/cm)

36/91 40/102 60/152

80/203 100/254 120/305 150/381 180/457 200/508

Accuracy of the calculations are +/- 5%. For additional calculations visit ViewSonicEurope.com.

4. IR port (front/back)

5. Leg adjust button

6. Focus ring

Throw Distance

(in inches/cm)

47/119 52/132

78/198 104/264 130/330 166/422 195/495 234/594 260/660

Optional Accessories

• Replacement lamp

• DVI cable

• DVD component cable

• HDTV component cable

AUDIO Speakers 1 x 0.5 watts INPUT SIGNAL Video RGB analogue, digital NTSC M,NTSC 4.43, PAL (B, D, G, H, I, M, N),

COMPATIBILITY PC Analogue: VGA to SXGA (scaled),

CONNECTOR RGB 15–pin HD, D–sub cable with adapter

POWER Voltage 100-120V/200-240V, 50-60Hz (universal)

USER CONTROLS Physical Standby on/off, menu, enter/resync, source (data, video, and

OPERATING Tem pe rature 5º C to 30º C (41º F to 95º F) CONDITIONS Humidity 30% to 85% (non-condensation)

DIMENSIONS Physical (W x D x H) 180mm x 141mm x 45mm (excluding lens and leg) WEIGHT Net 1.0kg REGULATIONS CE,TUV/GS, UL, C-UL, FCC-CLASS A, CB, NOM, PCT, SASSO,

OTHER Front and rear projection, 10 user modes. Included in box: power cord, DVI

WARRANTY Three-year limited warranty

Brightness 1,000 Lumens Contrast Ratio 2000:1 Aspect Ratio 4:3, 16:9

SECAM (B, D, G, K, K1, L), 480i/p, HDTV 720p, 1080i

Sync horizontal and vertical Frequency Fh:15–85kHz; Fv:50–120Hz

®1

Mac

DVI High density 29-pin DVI-I (option) Video RCA S-Video SVHS DIN Connector Audio 2.5mm Mini Stereo Plug Remote Mouse In Din 8-pin

Consumption 180 watts (typ)

Remote Standby on/off, source, laser, page up (PU), page down (PD),

OSD Display [brightness, contrast, picture adjustment, fine picture, H/V position,

Digital: VGA to XGA (scaled) Analogue: to SXGA Digital: to XGA

S-video), mute, volume (+, -)

volume, keystone, zoom, mute, freeze, menu

colour, tint, sharpness, reset, gamma, colour temp, colour system, colour space, aspect, filter, projection (vertical and horizontal flip), keystone correction (H/V keystone), picture-in-picture], Setup [language, auto source, auto power off, on screen, menu position,YpbPr, background, white balance], Info [status, default, lamp timer reset, resolution, frequency, lamp timer]

BSMI, PSB/S-MARK, C-TICK, CCC, EMC REPORT

adapter, D-sub cable to DVI, composite video cable, S-video cable, remote control with batteries, lens cap, soft carrying case,Quick Start guide, user guide.

ecifications s

ViewSonic Europe Limited/UK

ViewSonic House Fleming Way, Crawley West Sussex, RH10 9GA United Kingdom

Tel: +44 (0) 12 93 64 39 00 Fax: +44 (0) 12 93 64 39 10

May require optional Mac adapter. 2For further information see ViewSonic WebSite. 3Optional cable required. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2003 ViewSonic Corporation. All rights reserved. PJ250 03/03-UK
