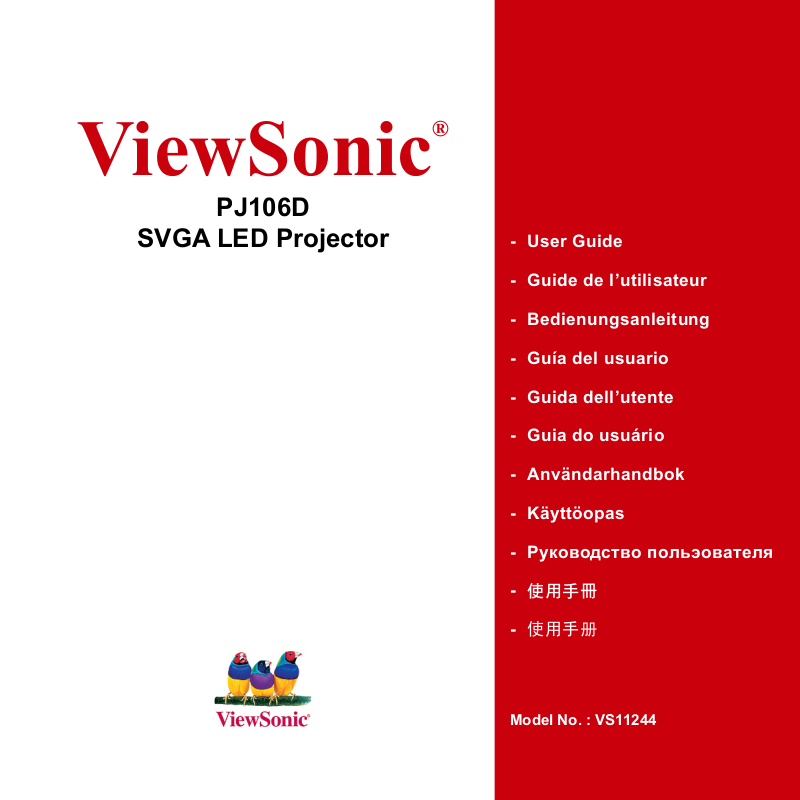

ViewSonic PJ106D User Manual

ViewSonic

PJ106D

SVGA LED Projector

®

- User Guide

- Guide de l’utilisateur

- Bedienungsanleitung

- Guía del usuario

- Guida dell’utente

- Guia do usuário

- Användarhandbok

- Käyttöopas

- Pyководство польэователя

- 使用手冊

- 使用手册

Model No. : VS11244

Compliance Information

For U.S.A.

This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) The device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.

This equipment has been tested and found to comply with the limits for a Class B digital
device, pur sua nt to part 15 of the FCC Rules. These limits are designed to provide
reason able prot ection against harmful inter ference in a resident ial in stallation. Th is
equipment generates, uses, and can radiate radio frequency energy, and if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
par ticul ar installat ion. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Warning

To assure continued FCC compliance, the user must use grounded power supply cord
and the cables which are included with the equipment or specified. Also, any unauthorized
changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this device.

ViewSonic PJ106D i

For Canada

• This Class B digital apparatus complies with Canadian ICES-003.

• Cet appareil numérique de la classe B est conforme

For European Countries

CE Conformity

The device complies with the requirements of the EEC directive 89/336/
EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to
“Electromagnetic compaty”, and 73/23/EEC as amended by 93/68/EEC
Art.13 with regard to “Safety.”

User Information for all Countries

Notice: Use the cables which are included with the unit or specified.

à la norme NMB-003 du Canada.

ViewSonic PJ106D ii

Copyright Information

Copyright © ViewSonic® Corporation, 2005. All rights reserved.
Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.
Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of
Microsoft Corporation in the United States and other countries.
ViewSonic, the thr ee birds’ logo, OnV iew, ViewMatch, and ViewMeter are regist ered
trademarks of ViewSonic Corporation.
VESA is a registered trademark of the Video Electronics Standards Association. DPMS and
DDC are trademarks of VESA.
PS/2, VGA an d XGA are registe red trademar ks of Inter national Business Machines
Corporation.
Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors or
omissions contained herein; nor for incidental or consequential damages resulting from
furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right
to change product specifications without notice. Information in this document may change
without notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any
purpose without prior written permission from ViewSonic Corporation.

ViewSonic PJ106D iii

Product Registration

To meet your future needs, and to receive any additional product information as it becomes
available, please regis ter yo ur produ ct on the Internet at: www.viewso nic.com. Th e
ViewSonic Wizard CD-ROM also provides an opportunity for you to print the registration
form, which you may mail or fax to ViewSonic.

For Your Records

Product Name:

Model Number:
Document Number:
Serial Number:
Purchase Date:

The lamp in this product contains mercury.
Please dispose of in accordance with local, state or federal laws.

PJ106D
ViewSonic LED Projector
VS11244
PJ106D-1_UG_ENG Rev. 1A 11-30-05

ViewSonic PJ106D iv

Contents

Important safeguards ............................................................................................................2

Overview ................................................................................................................................

Power .....................................................................................................................................

Remote control (optional accessory) ...................................................................................

Installation ...........................................................................................................................13

Basic connections ................................................................................................................15

Preparation ..........................................................................................................................

Basic operation ....................................................................................................................

Menu operation ....................................................................................................................

Using an SD Card ................................................................................................................25

Troubleshooting ...................................................................................................................

Maintenance ........................................................................................................................32

Indicators .............................................................................................................................33

Specifications ......................................................................................................................

10

17
19
22

28

35

7
8

ViewSonic PJ106D 1

Important safeguards

Please read all these instructions regarding your projector and retain them for future
reference. Follow all warnings and instructions marked on the projector.

1. Read instructions
All the safet y and operati ng instr uctio ns should be read before the appliance is

operated.

2. Retain instructions
The safety and operating instructions should be retained for future reference.

3. Warnings
All warnings on the appliance and in the operating instructions should be adhered to.

4. Instructions
All operating instructions must be followed.

5. Cleaning
Unplug this projector both from the wall outlet and battery before cleaning it. Do not use

liquid aerosol cleaners. Use a damp soft cloth for cleaning.

6. Attachments and equipment
Never add any attachments and/or equipment without the approval of the manufacturer

as such additions may result in the risk of fire, electric shock or other personal injury.

7. Water and moisture
Do not use this projector near water or in contact with water.

8. Accessories
Do not place this projector on an unstable cart, stand, tripod, bracket or table. Use only

with a cart, stand, tripod bracket, or table recommended by the manufacturer or sold with

ViewSonic PJ106D 2

the projector. Any mounting of the appliance should follow the manufacturer’s instructions
and should use a mounting accessory recommended by the manufacturer.

An appliance and cart combination should be moved with care. Quick stops, excessive

force and uneven surfaces may cause the appliance and cart combination to overturn.

9. Ventilation
Slots and openings in the cabinet are provided for ventilation, ensuring reliable operation

of the projector and to protect it from overheating. Do not block these openings or allow
them to be blocked by placing the projector on a bed, sofa, rug, or bookcase.

Ensure that there is adequate ventilation and that the manufacturer’s instructions have

been adhered to.

10. Power sources
This projector should be operated only from the type of power source indicated on the

marking label. If you are not sure of the type of power, please consult your appliance
dealer or local power company.

11. Power-cord protection
Power-supply cords should be routed so that they are not likely to be walked on or

pinched by items placed upon or against them. Pay par ticular attention to cords at
plugs, convenience receptacles, and points where they exit from the appliance. Do not
put the power cord under a carpet.

12. Overloading
Do not overload wall outlets and extension cords as this can result in a fire or electric

shock.

13. Objects and liquids
Never push objects of any kind through openings of this projector as they may touch dangerous

voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of
any kind on the projector, adaptor or battery.

14. Servicing
Do not attempt to service this projector yourself. Refer all servicing to qualified service

personnel.

ViewSonic PJ106D 3

15. Damage requiring service
Unplug this proje ctor from the wall outlet and refer servicing to qualified servi ce

personnel under the following conditions:

(a) If the power-supply cord or plug is damaged.
(b) If the adaptor or the battery is damaged.
(c) If liquid has been spilled, or objects have fallen into the projector, adaptor or battery.
(d) If the projector does not operate normally after you follow the operating instructions.
Adjust only those controls that are covered by the operating instructions. An improper

adjustment of other controls may result in damage and may often require extensive
work by a qualified technician to restore the projector to its normal operation.

(e) If the projector has been exposed to rain or water.
(f ) If the projector has been dropped or the cabinet has been damaged.
(g) If the projector exhibits a distinct change in performance- this indicates a need for

service.

16. Replacement parts
When r ep la ce me nt par ts are required, be sure that the ser vice technician ha s

used replacement parts specified by the manufacturer or par ts having the same
characteristics as the original part. Unauthorized substitutions may result in fire, electric
shock or other hazards.

17. Safety check
Upon completion of any service or repair to this projector, ask the service technician to

perform safety checks determining that the projector is in a safe operating condition.

18. Keep appropriate method when recharge the battery.

19. The projector is a precision instrument. Please pay attention on static
electricity.

ViewSonic PJ106D 4

WARNING:

Unplug the power cord or remove the battery immediately if there is something

wrong with your projector.

Do not operate if smoke, strange noise or odor comes out of your projector, adaptor or

battery. It may cause fire or electric shock. In this case, unplug immediately and contact

your dealer.

Never remove the cabinet.

This projector contains high voltage circuitry. An inadvertent contact may result in an

electric shock. Except as specifically explained in User Manual, do not attempt to service

this product by yourself. Please contact your dealer when you want to fix, adjust, or inspect

the projector.

Do not modify the projector.

It can lead to fire or electric shock.

Do not keep using the damaged projector.

If the projector is dropped and the cabinet is damaged, unplug the projector and contact

your dealer for inspection.

It may lead to fire if you keep using the damaged projector.

Do not face the projection lens to the sun.

It can lead to fire.

Use correct voltage.

If you use incorrect voltage, it can lead to fire.

Only use the provided AC adaptor.

ViewSonic PJ106D 5

Do not place the projector on uneven surface.

Place the projector on a level and stable surface only.

Do not look into the lens when the projector is operating.

It may hurt your eyes. Never let children look into the lens when the projector is on.

Do not unplug the power cord or remove the battery during operation.

It can lead to lamp breakage, fire, electric shock or other trouble. Wait for the fan to stop

before unplugging the power cord or remove the battery.

Do not touch the air outlet grilles and bottom plate.

Do not touch them or put other equipment close to the air outlet grilles because they

become hot during operation.

The heated air outlet grilles and bottom plate may cause injury or damage to other

equipment. Also, do not put the projector on a desk that is easily affected by heat.

Do not look into the air outlet grilles when projector is operating.

Heat, dust, etc. may blow out of them and hurt your eyes.

Do not block the air inlet and outlet grilles.

If they are blocked, heat may be generated inside the projector, causing deterioration in the

projector quality and fire.

• Don’t put upwards. It may block the exhausted holes.

• Don’t drop.

• Don’t project to person’s eyes.

ViewSonic PJ106D 6

1

2

5

6

4

8

7

3

9

Overview

1

2

3

4

5

6

7

1

2

3

4

6

7

5

1

Control panel

1 LAMP indicator
2 POWER indicator
3 CHARGE indicator
4 POWER button
5 Four directional

buttons
6 OK button
7 MENU button

Terminal board

1 S-VIDEO terminal

1 Focus ring
2 Control panel
3 Terminal board
4 Air outlet grille
5 Lens
6 Kensington lock
7 Remote control sensor (Rear side only)
8 Speaker
9 Air inlet grille

ViewSonic PJ106D 7

2 VIDEO terminal
3 VGA IN terminal
4 Power jack
5 AUDIO IN terminal
6 AUDIO OUT(Earphone)terminal
7 SD Card slot

Bottom side

1 Battery latch

Power

1

2

3

Using the provided AC adapter or an optional Lithium-ion rechargeable battery.

Warning:

The projector must be used with the provided AC adapter. Damage caused by the use of an
incorrect adapter is not covered under the warranty.

Using the AC adapter

1. Insert the plug from the AC adapter into the
DC IN terminal.

2. Insert the appropriate end of the power cord
into the AC adapter.

3. Insert the plug on the power cord into a wall outlet.
The POWER indicator lights red when using

the AC adapter.

Using the optional battery

The projector must be used with specified Lithium-ion rechargeable battery.
Charge the battery before using the projector for the first time use. Using the projector for
charging the battery. You may also use the projector when charging the battery.

For battery charging
Warning:

When you use the battery, please observe the safety precautions.

1. Move the battery latch to the open side.

2. Position the projector on the battery.

ViewSonic PJ106D 8

3. Match the battery carefully until it fits in place.

4

5

6

4. Insert the plug from the AC adapter into the DC IN terminal.

5. Insert the appropriate end of the power cord into the AC adapter.

6. Insert the plug on the power cord into a wall outlet.
The CHARGE indicator lights red when charging is started and turns off

when charging is completed.
We recommended that you full charge the battery all the time.
When the projector is off, the charger works as a fast charging mode. It takes

approximately 5 hours to complete charging.
When the projector is on, the charger works as a slow charging mode.It takes

approximately 7 hours to complete charging.

For battery removal

Slide the battery lock switches on the two sides
to remove the battery from the projector.

CHARGE (Red) CONDITION
On Charging battery

Off Battery full

ViewSonic PJ106D 9

Remote control

Catch

Battery holder

1 POWER button
2 Four directional buttons
3 Menu button
4 Enter button
5 Keystone
6 Volume
7 Source button
8 Mute button
9 Blank button

10 4:3/16:9 button
11 Auto button

For the first time use:

Remove the transparent insulation tape by pulling it before
use.

For battery change:

1. Push the catch to the right and remove the battery holder.

/

/

buttons

buttons

ViewSonic PJ106D 10

2. Remove the old Lithium coin cell and install new one.

Approx. 30

Approx.

3m

o

Ensure that the side with the mark “+” is up.

3. Push the battery holder back into the remote control until you feel a
click.

Operating Range

The infrared signal operates by line-of-sight up to a distance of approximately 9.8 (3 m) and
within a 30-degree angle of the remote sensor. The projector will not function if there are
objects between the remote control and the remote sensor on the projector or if strong light
falls on the remote sensor. A weak battery will also prevent the projector from operating.

This sample may be slightly different from actual range.

Remote Control Precautions

Handle the remote control carefully.
Do not use the remote control if it got wet. Remove the battery immediately. Make sure

the remote control and battery are dry before use.
Avoid excessive heat and humidity.
Do not place the battery upside down.
Keep the coin cell battery out of reach of children so as not to allow them to swallow

the cell battery.

ViewSonic PJ106D 11

CAUTION:

Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to your local regulations.
Do not recharge, disassemble or dispose of the battery in fire.

ViewSonic PJ106D 12

L

W

A

B

H

C

D

Installation

Layout of the projector

Image size varies depending on the distance between the screen and the projector.

Front projection

L : Between the screen and the front edge of the projector
A : Height of the projected image under the horizontal line
Optical offset:
B:A 27:13
C:D 41:59

Screen diagonal size Distance (L)

inch cm inch cm

12 30.5 15.4 40

20 50.8 26.0 66

30 76.2 39.0 99

40 101.6 53.0 135

50 127.0 66.1 167

60 152.4 78.9 200

The above figures are approximate and may be slightly different from the actual

measurements.

ViewSonic PJ106D 13

Caution:

Do not place the projector on a carpet or any flammable mater ials. It may cause

damage or fire.
Place the projector at least 10 cm (or 4 inches) away from the wall to prevent the air

inlet grille and the air outlet grilles that emit hot air from being blocked.
Do not use the projector in the following locations and manners, which may cause fire

or electric shock.

a. In a dusty or humid place.
b. In a sideways or upside-down position.
c. Near a heater.
d. In an oily, smoky, or damp place such as a kitchen.
e. In direct sunlight.
f. Where the temperature rises high, such as in a closed car.
g. Where the temperature is lower than +41°F (or +5°C) or higher than +95°F (or

+35°C).

Important:

Do not apply force to the lens, because the lens may be damaged.

ViewSonic PJ106D 14

VIDEO IN

S-VIDEO IN

to S-video output

to video output

VCR etc.

AUDIO IN

AUDIO OUT

to Audio output

Basic connections

VGA IN

DVD Player or�
HDTV decoder

AUDIO IN

AUDIO OUT

to Audio output

This projector can be connected with various devices such as a VCR, video camera,
videodisc player, or personal computer that have analog RGB output connectors.

Important:

Make sure that the connected device is turned off before starting connection.
P lu g in the AC ad ap te r of th e projector and the conn ec te d devi ce s fir ml y. Wh en

unplugging, hold and pull the plug. Do not pull the cord.

When the projector and the connected devices are located too close to each other, the

projected image may be affected by their interference.

See the owner’s guide of each device for details about its connections.

Projector + AV device

Projector + DVD player or HDTV

Some DVD players have an output connector
for 3-line fitting (Y, C
such DVD player with this projector, use the
VGA IN terminal.

ViewSonic PJ106D 15

B

, CR). When connecting

to monitor port

VGA IN

Desktop type Laptop type

AUDIO IN

AUDIO OUT

to Audio output

Important:

The terminal’s names Y, PB, and PR are given as examples of when a HDTV decoder is

connected.
The terminal’s names vary depending on the connected devices.
Image may not be projected correctly with some DVD players.

Projector + Computer

For computer with D-SUB

Important:

When you use a longer RGB cable instead of the common length cable, the image may

not be projected correctly.
Some computers require additional connectors or analog RGB output adapters to be

connected with this projector. Contact your dealer for further information.

For Macintosh

If your Macintosh has no video port, a monitor output adapter is required. Contact your dealer

for further information.
Some Macintoshes require a MAC adapter for the RGB cable for connection with this

projector. Contact your dealer for further information.

ViewSonic PJ106D 16

Preparation

Preparation for projection

1. Attach the provided AC adapter to the projector.

2. Plug the AC adapter in the wall outlet.
The POWER indicator lights red when using the AC adapter.

Warning:

Do not look into the lens directly when the projector is on.
Use 100-240 V AC 50/60 Hz to prevent fire or electric shock.
Do not place any objects on the AC adapter and power cord or do not place the

projector near heat sources to prevent damage to the power cord. If either the AC

adapter or power cord should be damaged, conta ct your dealer for replacement

because it may cause fire or electric shock.
Do not modify or alter the AC adapter. If the AC adapter is modified or altered, it may

cause fire or electric shock.

Caution:

Plug in the power cord firmly. When unplugging, hold and pull the power plug, not the

power cord.

Do not plug in or out the power cord with your hand wet. It may cause electric shock.

Important:

Install the screen on a flat wall at 90 degrees to the floor.
Images may not be projected in a shape of a regular rectangle or with its aspect ratio 4:3,

depending on the installation conditions of the projector and the screen.
To correct vertical keystone distortion:

On the optional remote control: press the Keystone
On the control panel: adjust Keystone in the Image menu.

/

buttons.

ViewSonic PJ106D 17

In the following cases:

Press the Keystone . Press the Keystone



.

Important:

When the keystone adjustment is carried out, the adjustment value is indicated. Note

that this value doesn’t mean a projection angle.

The a ll owabl e rang e of the a dj ustment value in th e keystone adju stment vari es

depending on the installation conditions.

When the keystone adjustment takes effect, the resolution decreases. In addition,

stripes may appear or straight lines may bend in images with complicated patterns. They
are not due to product malfunctions.

Noise may appear on the screen during the keystone adjustment because of the type

of the video signal being projected and the setting values of the keystone adjustment.
In such cases, set the keystone adjustment values in the range where the image is
displayed without noise.

When the keystone adjustment is carried out, the image may not be displayed correctly

because of the type of input signal.

ViewSonic PJ106D 18

Basic operation

4

3

3

On the control panel

Power-on

1. Turn on the device connected to the projector first.

2. Plug the AC adapter in both the projector and the wall outlet.
The POWER indicator lights up.
The CHARGE indicator lights up when the projector connects with a not fully

charged battery.
The projector charges a not fully charged battery all the time.
The projector stops charging battery when battery is fulled.

3. Press the POWER button either on the control panel or the remote control.
The LAMP indicator lights up and the POWER indicator goes off.
The message “Searching for source” appears on the screen.
The lamp occasionally fails to light up. Turn off the projector, wait for one minute and

then turn on it again.

After the POWER button is pressed, the image may flicker before the lamp becomes

stable. This is not a product malfunction.

Condition
Stand-by.

When the lamp is on. On Off

Indicator

LAMP(Green) POWER(Red)

Off On

ViewSonic PJ106D 19

Important:

Images may not be projected with good quality in an extremely hot or cold environment.

(This is not a product malfunction.)

4. Adjust the focus by turning the focus ring.

5. Choose your desired external input source using the COMPUTER / VIDEO buttons.
The projector automatically selects the appropriate signal format. The selected

signal format is displayed on the screen.

6. Adjust the image size by changing the distance between the projector and the screen.
If necessary, adjust the focus ring again.

Caution:

The air outlet fan rotates faster as the temperature around the projector rises.

Power-off

Use the following procedure to turn off the projector. Do not turn off the projector by
unplugging the power cord while the lamp is on. Unplugging while the lamp is on degrades
the lamp’s performance and causes failure in the projector.

1. Press the POWER button either on the control panel or on the remote control.
The message “POWER OFF? PRESS POWER AGAIN” appears on the screen.
To cancel, press any button except the POWER button.

2. Press the POWER button either on the control panel or on the remote control within 10

seconds again.

Both the lamp and the LAMP indicator will go out.
The POWER indicator lights up.

3. Unplug the power cord.
The CHARGE indicator will go out if a not fully chargedbattery is connected with

the projector.

The POWER indicator goes out.

Important:

In case the system has frozen or hung up for whatever reason and the system has

stopped responding, you may shut off the system by holding down the POWER
button either on the control panel or on the remote control for 5 seconds.

ViewSonic PJ106D 20

On the remote control

Keystone

Press the Keystone
projector.

Important:

Keystone adjustment will not change the shape of the menus, the start-up screen,

and the background (with no signal input).

Volume

Press the Volume

/

/

button

or Keystone to adjust image distor tion caused by tilting the



button

to increase the volume, press the Volume  to reduce the volume.



Source button

If multiple sources are connected withto the projector simultaneously, press the Source but­tonThe projector will detect your source.

Important:

The image may not be projected or auto adjustmentsetting may not be performed

correctly for input signals other than those supported by the projector.

Mute button

The sound is temporarily cut off when the Mute button is pressed. To cancel mute, press it
again.

Blank button

The screen is temporarily cut off when the Blank button is pressed. To cancel blanking,
press the Blank button again.

4:3/16:9 button

Toggle the 4:3/16:9 button to change the aspect ratio.

Auto button

If source is a computer, press the Auto button to adjust frequency and phase.

ViewSonic PJ106D 21

Menu operation

Color


Gamma

Contrast

High Brightness Mode

Color Temperature

Color R

Color G

Color B

Brightness 0 - 100

0 - 100

On, Off

PC, Movie, Photo, Enhanced

Saturation*1 0 - 100

0 - 6

0 - 100

0 - 100

0 - 100

-15 - +15

-10 - +10

4:3, 16:9

*6

0 - 31

Management

AV Set

Keystone

Aspect Ratio

Sharpness

Tracking*3

H. Position*2

V. Position*2

Frequency*2

Projection Ceiling

Projection Rear

Source Lock

Lamp Hour Elapse

OSD Transparency

Reset

Battery level

Volume

Mute

0 - 15

Language

0 - 31

OK

Tint*1 0 - 100

-20 - +20

-20 - +20

-20 - +20

0 - 31

On, Off

On, Off

On, Off

0 - xxxx

On, Off

SD Slideshow*4

SD Slideshow Delay*4,5

SD Picture Information*4

Manual, Auto

3 sec, 6 sec, 9 sec, 12 sec, 15 sec

On, Off

*1: Not active when connecting with VGA signal and SD card mode.
*2: Active when connecting with VGA, Component_P and HD source.
*3: Active when connecting with VGA source only.
*4: Only available for SD card mode.
*5: SD Slideshow Delay will be active when SD Slideshow sets to Auto.
*6: Range -15 - +15 for 4:3 aspect ratio; -10 - +10 for 16:9 aspect ratio.

ViewSonic PJ106D 22

1 Color

Brightness ................Use to adjust the image brightness. The image becomes brighter as

Contrast ....................Use to adjust the image contrast. The contrast becomes higher as

Gamma .....................Use to select Gamma mode.

High Brightness Mode Select On for high brightness mode.

Saturation .................Use to adjust a video image from black and white to fully saturated

Tint ............................Use to adjust the color balance of the image.

Color Temperature ....Use to adjust the color temperature.

Color R .....................Use to adjust the red color.

Color G .....................Use to sdjust the green color.

Color B ......................Use to adjust the blue color.

2. Image

Keystone ...................Use to adjust the image distortion caused by tilting projection.

Aspect Ratio .............Use to choose aspect ratio.

Sharpness ................Use to adjust the image sharpness. The image becomes sharp as

H. Position .................Use to adjust the horizontal position of the image.

V. Position .................Use to adjust the vertical position of the image.

Frequency .................Use to change the display data frequency to match the frequency

Tracking ....................Use to eliminate image noise such as wide stripes.

the value increases.

the value increases.

• PC: For computer or notebook.

• Movie: Common video mode.

• Photo: Computer photo mode.

• Enhanced: For enhanced Gamma mode.

color.

the value increases.

of your computer’s graphic card.

ViewSonic PJ106D 23

3. Management

Projection Ceiling ............. Use to reverse the image horizontally.

Project Rear ..................... Use to reverse the image vertically.

Source Lock ..................... Use to lock the current source.

Lamp Hour Elapse ........... Displays the LED lamp’s elapsed operating time (in hour).

Battery level ..................... Displays the remaining battery level.

OSD Transparency ...............

Reset ............................... Press control panel’s OK button or remote control’s Enter button

4. AV Set

Volume ............................. Use to adjust the volume.

Mute ................................. Use to mute the sound.

SD Slideshow .................. Use to select slideshow display mode.

SD Slideshow Delay ........ Use to adjust the slideshow display interval.

SD Picture Information .... Use to display picture information.

5. Language

.................... Use to select the language used in the menu. [English, Deutsch,

Use to adjust OSD’s transparency.

and then choose “Yes” to turn the display parameters to the
factory default settings.

• Manual: for playback once.

• Auto: for continuous playback.

Français, Italiano Español, Português,

, , ]

ViewSonic PJ106D 24

Using an SD Card

You can playback image and video files stored in an SD card.

MPEG1
(I-Frame
only)

AVI (MJPG
only)

Video

QuickTime
(MJPG
only)

Supported file type: *.mpg

Supported audio format: MPEG1 AUDIO LAYER I and MPEG1 AUDIO LAYER II (8Bit OUT)

Supported audio sampling rate: 8k,11.025k,12k,16k,22k,24k,32k,48k Hz (Note: 44.1KHz is
not supported)

Supported
brand name

Premier DC-4381 DC-5381 DC-5384 DC-4365

Supported file type: *.avi

Supported audio format: PCM mono ( 8Bit OUT )

Supported audio sampling rate: 8k,11.025k,12k,16k,22k,24k,32k,48k Hz (Note: 44.1KHz is
not supported)

Supported
brand name

Canon PowerShot S45 PowerShot S50 PowerShot A40 PowerShot G3

Casio Exilim EXS2 QVR4

Fuji Film FinePixA303 FinePixF601 FinePixF602Zom

Konica Digital Revio KD-400Z

Kyocera Finecam S4

Minolta DiMAGE 7Hi

Pentax Optio 330GS

Ricoh Caplio RR1 RDC-7

Samsung Digimax 350SE

Supported file type: *.mov

Supported audio format: UnCompressed ( 8Bit OUT )

Supported audio sampling rate: 8k,11.025k,12k,16k,22k,24k,32k,48kHz (Note: 44.1KHz is
not supported)

Supported
brand name

Epson PhotoPC 3000Z

Nikon Coolpix4500 CoolPix5000 CoolPix5700

Olympus C4040 C5050 C-730 Ultra Zoom D-520

PanasonicLecia Lumix DMC-LC5

Supported model name

Supported model name

Supported model name

ViewSonic PJ106D 25

Still

Memory
Card

JPEG

SD

Supported file type: *.jpg (up to 16M pixels)

Supported brand
name

Canon PowerShot G1 PowerShot A40

Casio QV-2800UX

Fuji Film FinePix F401

Kodak DC210 DC240 DC4800

Minolta DiMAGE 5 S304

Nikon 950

Olympus C700 C920Z 5050

PanoasonicLeica Digilux 1 Lumix DMC-

Pentax 330 RS Optio 330

Sanyo AZ1

Sony CD Mavica CyberShot

Note:

1. The accessing time varies depending on the file size.

Supported brand
name

Hagiwara 32M ~ 1G

SanDisk 64M ~ 1G

Toshiba 64M ~ 1G

Panasonic 32M ~ 1G

Note:

1. NTFS format is not supported when formatting the SD Card.

2. Do not remove the SD Card while accessing or playing back the files because it may
damage the data.

Supported model name

LC5

Supported capacity

ViewSonic PJ106D 26

Inserting/Removing an SD Card

Lock

1. Inser t the SD card in the correct orientation shown.

2. To removing an SD card, press lightly on the edge

of the SD card and it will eject.

Playing Back Files in SD Card

1. Insert an SD card stored image and video files into the SD card slot.

2. Select SD Card as input source.



Thumbnail display will appear on the screen.

3. You may press remote control’s Source button to change thumbnail display mode

if still images and video clips saved in an SD card.



The still image thumbnail will display first and then automatically followed by video

clip thumbnail.

4. Use four directional buttons to select the desired image/video clip, and press remote

control’s Enter button or control panel’s OK button to playback.



Pressing remote control’s Enter button or control panel’s OK button again will stop,

pause or exit from playback.

5. Press remote control’s Source button again to exit SD Card mode.

ViewSonic PJ106D 27

Troubleshooting

The following offers solutions to some of the common problems you may encounter. We
suggest that you consult this chart before contacting your dealer.

Images aren’t projected on the screen.

Problem Cause and solution

Power isn’t turned on.

Images aren’
t projected on the
screen.

Images suddenly
disappear.

Check the states of the indicators.

LAMP(Red) POWER(Red) Charge(Red) Solution
Off Off Off Connect the power cord

to the projector.

Plug the power cord into

a wall outlet.

Cancel blanking by pressing the Blank button.
On rare occasion, the lamp fails to light up. In such cases, try to light the lamp

again.
Check that the cable connected to the external device isn’t broken.
When an extension cord is being used, replace it with the supplied cable and

check whether images are projected correctly.
The air inlet or outlet grille may be blocked.

Remove the objects blocking the air inlet or outlet grille and carry out the



following.

1. Wait for the air inlet or outlet fan to stop (or wait for the LAMP indicator
to go out.)

2. Unplug the power cord from the wall outlet.

3. Wait about 1 minute.

4. Plug the power cord into the wall outlet.

5. Press the POWER button.

Check that the battery or power cord connected with the projector correctly.

ViewSonic PJ106D 28

Problem Cause and solution

“Searching for

source” is displayed.

Turn on the power of the connected device, or check whether there is

something wrong with the connected device.

Check the external device outputs signals. (Check this especially when the

external device is a notebook computer.)

Check that the cable connected to the external device isn’t defective.

Check that the projector is connected to the external device using the correct

terminals.

Check that the connected device is correctly selected as the input source.

When an extension cord is being used, replace it with the supplied cable and

check whether images are projected correctly.

Images aren’t projected correctly.

Problem Cause and solution

Projected images are

shaking.

Projected images are

displaced.

Projected images are

distorted.

Projected images are

dark.

Projected images are

blurred.

Check that the cable connected to the external device isn’t intermittent.

Connect the cable’s plug with the external device’s connector firmly.

Some computers output out-of-spec signals on rare occasion. Adjust the

Image menu.

Adjust the projector and the screen so that they are perpendicular to each

other.

Adjust Brightness in the Color menu.

Adjust the focus.

Clean the lens.

Adjust Brightness and Contrast in the Color menu.

Adjust the projector and the screen so that they are perpendicular to each

other.

ViewSonic PJ106D 29

Problem Cause and solution

White dots are seen

on projected images.

Black dots are seen

onprojected images.

Rainbow

blurprojected images.

Fine streak pattern

appears in projected

images.

Projected images

appear wavy and

distorted.

Tint in projected

images is incorrect.
Only the motion

areas in the images

supplied from the

computer aren’t

displayed.

Projected images are

obscured.

This symptom is normal for a DLP projector and is not a malfunction. (A

very small number of pixels may stay lit or out, but such sympton is not a

malfunction. Pixels of 99.99% or more are effective.)

This is due to color breaking noise that occurs in a DLP system and is not a

malfunction.

It occurs because of interference with the screen and isn’t a product

malfunction. Change the screen or readjust the focus of the projector.

Connect the cable’s plug with the external device’s connector firmly.

Keep the projector away from equipment generating interfering radio waves.

When the keystone adjustment is carried out, the image may not be displayed

correctly because of the type of input signal. This isn’t a product malfunction.

In this case, readjust the keystone so that the amount of keystone correction

is as small as possible.

Check that the cable connected to the external device isn’t broken.

This is caused by the computer being used. Contact the manufacturer of your

computer.

Match the output resolution of your computer with the resolution of the

projector. For the method to change the output resolution of the computer,

contact the manufacturer of your computer.

Some images and texts appear obscured during the keystone adjustment. In

such cases, use the projector without applying the keystone adjustment.

ViewSonic PJ106D 30

Others

Problem Cause and solution

Hot air is emitted

from the air outlet

grilles.

Th e men u c an’ t be

used.

The remote control

doesn’t function

easily at all.

displays on the

upper-right of

the screen.

displays on the

center of the

screen.

This air comes out as a result of cooling the inside of the projector. This isn’t

a product malfunction.

The microcomputers inside the projector may be wrongly operating because

of noise.

Press the POWER button twice to turn off the lamp and unplug the power

cord from the wall outlet. Wait about 1 minute, plug the power cord in, and try

again

Check that the battery is loaded in the remote control or the battery isn’t

weak.

Check that the remote control sensor isn’t exposed to direct sunlight or

fluorescent light.

Use the remote control within its operation range.

Low battery power. Charge the battery. You may press the MENU button to

cancel the icon display.

No batter y power. Charge the battery. You may press the MENU button to

cancel the icon display.

ViewSonic PJ106D 31

Maintenance

Caution:

Be sure to turn off the lamp and unplug the power cord from the wall outlet before you
perform any maintenance on the projector.

Cleaning of the projector and the ventilation slots

Use a soft cloth to clean the projector and the ventilation grilles. When the grilles become
dirty, wipe them with a soft cloth dampened with diluted mild detergent, and then wipe them
with a dry cloth.

To protect the surface of the projector from fading or deteriorating:

Do not spray insecticide on or inside the projector.
Do not use benzine or thinner to clean it.
Do not let rubber or plastic materials contact with projector.

Cleaning of the lens

Use a standard lens-cleaning brush or a piece of lens tissue dampened with lens cleaning
fluid. The lens surface is fra gile. Use only recommended, non abr asive lens-cleaning
materials. Do not touch the lens with your fingers.

ViewSonic PJ106D 32

Indicators

This projector has three indicators, each of which shows the operation condition of the
projector.
The following offer solutions to possible problems. If these problem persist, turn the
projector off and consult your appliance dealer.

Normal condition (AC Adaptor only)

LAMP(Green) POWER (Red) CHARGE (Red) CONDITION

ON OFF OFF System ON

OFF ON OFF System standby

Normal condition ( AC Adaptor + Battery)

LAMP(Green) POWER (Red) CHARGE (Red) CONDITION

ON OFF ON System ON+Battery charging
ON OFF OFF System ON + Battery full

OFF ON ON System standby+Battery

OFF ON OFF System standby+Battery full

charging

ViewSonic PJ106D 33

Normal condition (Battery only)

LAMP (Green) POWER (Red) CHARGE (Red) CONDITION

ON OFF OFF System ON

OFF ON OFF System standby

OFF Flashing x 10 OFF

Low Battery (System

Abnormal condition

LAMP (Green) POWER (Red) CHARGE (Red) CONDITION

OFF Off x 1 (Flashing) - System Failure
OFF Off x 3 (Flashing) - Fan abnormal

OFF Off x 4 (Flashing) - Over temperature
Flashing x 1 OFF - System Failure
Flashing x 2 OFF - System Failure
Flashing x 3 OFF - System Failure

ON OFF - System Failure

turned off)

ViewSonic PJ106D 34

Specifications

Type LED projector
Rated input 15V, 2.0A
Display technology Single 0.55” DLP panel
Native resolution 800 x 600 pixels
Colors 16.7 million
Projection lens Fixed zoom with focus adjustment; F2.0
Light source RGB LED lamps

Projection range

Performance range

PC compatibility

Video compatibility

I/O Connectors

Outside dimensions 121 x 99 x 47.5mm (W x D x H)
Weight Approx. 1 lb (0.45kg)
AC adapter input 100-240V AC 50/60 Hz
Length of power cord
Temperature, humidity

(performance guaranteed)

The specifications and outside appearance of the projector are subject to change without prior

notice.

Typical image size: 12” - 60”

Typical distance: 40cm - 200cm
Typical image size: 15” - 50”

Typical distance: 48cm - 167cm
VGA (Expand)

SVGA (Real)

XGA (Compress)

SXGA (Compress)
NTSC-M, 4.43; PAL60; PAL- M, N; SECAM;

HDTV 480i, 480p, 720p, 1080i from analog RGB connector
DC IN jack; Yellow RCA jack for composite video input; S-Video; D-SUB

15 female for analog VGA input; AUDIO IN ; AUDIO OUT; SD CARD slot

72.8 inch + 72.8 inch (1.85m + 1.85m)

+41°F (+5°C) - +95°F (+35°C), maximum 85%

640 x 480

800 x 600

1024 x 768

1280 x 1024

ViewSonic PJ106D 35

Dimensional drawings (unit : mm)

ViewSonic PJ106D 36

What’s included in the box

1 Soft Bag
1 CD Wizard (with User’s Manual)
1 Quick Start Guide
1 Composite Video Cable
1 AC Adaptor
1 Power Cord (US/EU/UK/AU/CN/TW)*
1 Remote Control

* It depends on different countries or areas, only 1 cord is included.

Optional accessories

1 Lithium-ion Rechargeable Battery

* Output: Normal DC 11.1V 4300 mAh

ViewSonic PJ106D 37

Specification of RGB signals in each computermode of the projector

Signal mode Resolution (H x V) Horizontal frequency (kHz) Vertical frequency (Hz)

VGA 60 640 x 350 31.47 59.94

VGA 85

VGA mode3

MAC

VGA VESA 72

VGA VESA 75

VGA VESA 85

VGA VESA 85

SVGA VESA 56

SVGA VESA 60

SVGA VESA 72

SVGA VESA 75

SVGA VESA 85

MAC 16

MAC 19

XGA VESA 60

XGA VESA 70

XGA VESA 75

XGA VESA 85

SXGA 1280 x 1024 64 60

SXGA 1280 x 1024 80 75

640 x 350 37.86 85.08

640 x 480 31.47 59.94

640 x 480 35 66.7

640 x 480 37.86 72.80

640 x 480 37.50 75.00

640 x 480 43.27 85.01

720 x 400 37.93 85.04

800 x 600 35.16 56.00

800 x 600 37.88 60.00

800 x 600 48.08 72.00

800 x 600 46.88 75.00

800 x 600 53.67 85.06

832 x 624 49.72 74.55

1024 x 768 60.24 75.02

1024 x 768 48.36 60.00

1024 x 768 56.48 70.00

1024 x 768 60.02 75.03

1024 x 768 68.68 85.00

ViewSonic PJ106D 38

Specification of HDTV signals

Signal mode Resolution (H x V) Horizontal frequency (kHz) Vertical frequency (Hz)

480i 720 x 480 15.80 60.00

480p 720 x 480 31.50 60.00

576i 720 x 576 15.60 50.00

576p 720 x 576 31.30 50.00
720p 60 1280 x 720 45.00 60.00
720p 50 1280 x 720 37.50 50.00

1080i 60 1920 x 1080 33.80 60.00
1080i 50 1920 x 1080 28.10 50.00

Important:

Some computers aren’t compatible with the projector.
The projector’s maximum resolution is 800 x 600 pixels. It may not display images of

higher resolutions than 800 x 600 correctly.
Images with SYNC on G (Green) signal may jitter.
Images with SYNC on G (Green) signal may be tinged with green.
If the resolution and frequency of your computer aren’t shown on the table, find the

compatible resolution and frequency by changing the resolution of your computer.

ViewSonic PJ106D 39

Customer Support

For technical support or product service, see the table below or contact your reseller.
Note : You will need the product serial number.

Country/Region Web Site

United States

Canada

United Kingdom

Europe, Middle East,
Baltic countries, and
North Africa

Australia and New
Zealand

Singapore/Malaysia/
Thailand

South Africa/Other
countries

Hong Kong

Macau

Korea www.viewsonic.com

www.viewsonic.com/
support/
www.viewsonic.com/
support

www.viewsoniceurope.
com/uk

www.viewsoniceurope.
com

www.viewsonic.com.
au/support/

www.viewsonic.com.
sg/support/

www.viewsonic.com

www.hk.viewsonic.
com/support/

www.hk.viewsonic.
com/support/

T=Telephone
F=Fax
T= [phone]
F= [phone]

T=[phone]

T= 0207 949 0307

Contact your reseller

AUS= 1800 880 818
NZ= 0800 008 822

T= (65) 6273 4018
F= (65) 6273 1566

T= [phone]
F= [phone]

T= [phone]

T= [phone]

T= 080 333 2131

E-mail

service.us@viewsonic.
com
service.ca@viewsonic.
com
service.
eu@viewsoniceurope.
com

service.
eu@viewsoniceurope.
com

[e-mail].
com

[e-mail].
com

[e-mail].
com
[e-mail].
com

[e-mail].
com

[e-mail].
com

ViewSonic PJ106D 40

Limited Warranty

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship during the warranty
period. If a product proves to be defective in material or workmanship during the warranty period,
ViewSonic will at its sole option repair or replace the product with a like product. Replacement product or
parts may include remanufactured or refurbished parts or components.

How long the warranty is effective:

North and South America: Three (3) years warranty for all par ts excluding the lamp, three (3) years for
labor, and one (I) year for the original lamp from the date of the first consumer purchase. Europe except
Poland: Three (3) years warranty for all parts excluding the lamp, three (3) years for labor, and ninety (90)
days for the original lamp from the date of the first consumer purchase. Poland: Two (2) years warranty
for all parts excluding the lamp, two (2) years for labor, and ninety (90) days for the original lamp from the
date of the first consumer purchase. Other regions or countries: Please check with your local dealer or
local ViewSonic office for the warranty information.
Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer’s
installed lamp only. All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from:
a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product

modification, or failure to follow instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by ViewSonic.
c. Any damage of the product due to shipment.
d. Removal or installation of the product.
e. Causes external to the product, such as electric power fluctuations or failure.
f. Use of supplies or parts not meeting ViewSonic’s specifications.
g. Normal wear and tear.
h. Any other cause which does not relate to a product defect.

3. Any product exhibiting a condition commonly known as “image built-in” which results when a static
image is displayed on the product for an extended period of time.

4. Removal, installation, and set-up service charges.

ViewSonic PJ106D 41

ViewSonic® Projector

How to get service:

1. For information about receiving service under warranty, contact ViewSonic Customer Support. You
will need to provide your product’s serial number.

2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your
name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.

3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service
center or ViewSonic.

4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein
including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be
liable for:

1. Damage to other proper ty caused by any defects in the product, damaged based upon
inconvenience, loss of use of the product, loss of time, loss of profits, loss of business oppor tunity,
loss of goodwill, interference with business relationships, or other commercil loss, even if advised of
the possibility of such damages.

2. Any other damages, whether incidental, consequential or otherwise.

3. Any claim against the customer by other party.

Effect of state law:

This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of
incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada,
contact ViewSonic or your local ViewSonic dealer.

Warranty_Projectors Rev. 1d 1 of 1

4.3: Projector Warranty Release Date: 03-31-05

ViewSonic PJ106D 42
