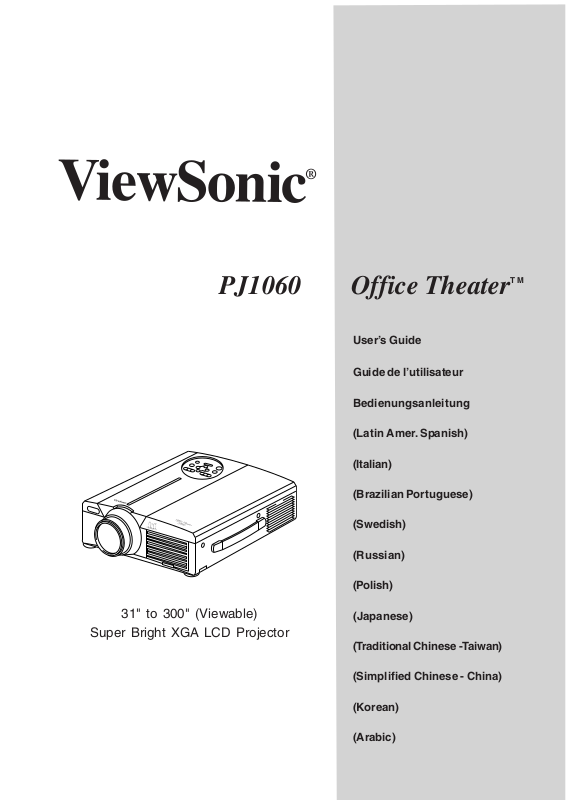

ViewSonic PJ1060 User Manual

PJ1060 Office Theater

User’s Guide

Guide de l’utilisateur

Bedienungsanleitung

(Latin Amer. Spanish)

(Italian)

(Brazilian Portuguese)

(Swedish)

TM

31" to 300" (Viewable)

Super Bright XGA LCD Projector

(Russian)

(Polish)

(Japanese)

(Traditional Chinese -Taiwan)

(Simplified Chinese - China)

(Korean)

(Arabic)

Copyright © ViewSonic Corporation, 2000. All rights reserved.

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows Logo are registered trademarks of Microsoft Corporation in the United
States and other countries.

ViewSonic and the three birds logos, and OnView are registered trademarks of ViewSonic Corporation. Office Theater is a
trademark of ViewSonic Corporation.

VESA and EDID are registered trademarks of the Video Electronics Standards Association (VESA). DPMS and DDC are
trademarks of VESA.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for
incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications
without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission
from ViewSonic Corporation.

FOR YOUR RECORDS

The serial number of this product is on the bottom of the projector. Write the serial number in the
space below and keep this guide as a permanent record of your purchase to aid in identification in
the event of theft or loss.

Model Name: ViewSonic PJ1060-2
Model Number: VPROJ21773-2
Serial Number: ______________________
Purchase Date:

______________________

E
N

G

L

S

H

Electronic Warranty Registration

Register your projector at www.viewsonic.com. It’s fast, easy, and will simplify future support needs.

FOR CUSTOMERS IN THE UNITED KINGDOM

THIS PRODUCT IS SUPPLIED WITH TWO PIN MAINS FOR USE IN MAINLAND EUROPE.
FOR THE U.K. PLEASE REFER TO THE CLASS I EQUIPMENT NOTES BELOW.

The mains lead on this equipment is
supplied with a moulded plug
incorporating a fuse, the value of which
is indicated on the pin face of the plug.
Should the fuse need to be replaced, an
ASTA or BSI approved BS 1362 fuse of
the same rating must be used.

If the fuse cover is detachable, never
use the plug without the cover. If a
replacement fuse cover is required,
ensure it is of the same colour as that
visible on the pin face of the plug. Fuse
covers are available from your dealer.

DO NOT cut off the mains plug from
this equipment. If the plug fitted is not
suitable for the power points in your
home or the cable is too short to reach
a power point, then obtain an
appropriate safety approved extension
lead or consult your dealer.

Should it be necessary to change the
mains plugs, this must be carried out by
a competent person, preferably a
qualified electrician.

If there is no alternative to cutting off
the mains plug, ensure that you first
remove the fuse then immediately
dispose of the portion remaining, to
avoid a possible shock hazard by
inadvertent connection to the mains
supply.

WARNING: THIS EQUIPMENT

MUST BE EARTHED

The wires in the mains lead are
coloured in accordance with the code
shown in the diagram below:

Green & Yellow to Earth

Blue to Neutral

Brown to Live

Fuse

Cord Clamp

As these colours may not correspond
with the coloured markings identifying
the terminals in your plug, proceed as
follows:

The wire which is coloured Green and
Yellow must be connected to the
terminal in the plug which is marked
with the letter E or by the earth symbol
or coloured Green, or Green and
Yellow.

The wire coloured Blue must be
connected to the terminal marked with
the letter N or coloured either BLUE or
BLACK. The wire coloured BROWN
must be connected to the terminal
marked with the letter L or coloured
either BROWN or RED.

ViewSonic PJ1060

1

WARNING:

This equipment has been tested and found to comply
with the limits of a Class A digital device, pursuant to
Part 15 of the FCC Rules.

These limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate
radio frequency energy, and if not installed and used
in accordance with the user guide, may interfere with
radio communications.

Operation of this equipment in a residential area is
likely to cause interference in which case the user will
be required to correct the interference at his own
expense.

Instructions for FCC compliance:

This equipment complies with the requirements of FCC
(Federal Communication Commission) Class A equipment
provided that the following conditions are met:

1 Video signal cables:

Double shielded coaxial cables (so called FCC shielded
cable) must be used. The outer shield must be connected
to the ground. If normal coaxial cables are used, they must
be enclosed in metal pipes or similar material to reduce the
interference they may cause.

2 Power cord:

A shielded power cord must be used. The outer shield must
be grounded.

3 Video Inputs:

The amplitude of the input signal must not exceed the level
specified in this user's guide.

Important Safety Precautions

Warning Following these instructions could prevent possible injury or death.

If any of events listed below
occur, switch projector OFF, pull
power plug out of power source,
and contact ViewSonic
Support (see back cover):

®

Customer

• If there is an abnormal smell or

smoke

• If suddenly there is no picture, no

sound, or an abnormal sound

• If water or any other liquid enters

the projector

To prevent possible electric
shock or fire, handle power cord
and power plug with care:

• Do not touch the power cord with

wet hands.

• TO DISCONNECT THE UNIT

FROM THE POWER SOURCE,
GRASP THE POWER PLUG, AND
PULL. DO NOT PULL THE
POWER CORD ITSELF.

• Do not damage the power cord by

pulling, bending, heating, or placing
heavy objects on it.

To prevent possible electric shock
or fire, keep liquids away from
projector:

• Do not use the projector near water

(such as a shower, sink, etc.).

• Do not put an open container with

liquid on or near the projector (such
as a vase, open beverage container,
etc.).

Do not insert a foreign object into

any part of the projector:

• To prevent electric shock or fire, do

not insert a metal or flammable object
through the ventilation holes, etc.

• If foreign matter enters the projector,

switch it OFF and pull the power plug
out of the power source.

• Prevent small children from inserting

objects into the projector.

Only use recommended power
supply:

• Do not use any power source that has

a voltage other than what this user's
guide specifies. See page 12.

CAUTION:

To prevent possible eye damage:

•

DO NOT look directly at the laser

light from the aperture at the
front of the Remote Control
Unit. (See page 7.)

•

DO NOT point the laser light at

any person's eyes.

Also, do not look directly into
projector lens when lamp is lit:

• Prevent all people especially small

children, from looking into the
projector lens when the lamp is lit.

Do not subject projector to
physical shock or place projector
on unstable surface:

• Do not place the projector in a

location where it is likely to be struck
or bumped into.

• Avoid placing the projector on a shelf,

cabinet, etc. that cannot adequately
support its weight, or that is on an
inclined floor.

• When the projector is placed on a

table with casters, set the caster
stoppers to prevent movement.

Caution Following these instructions could prevent personal injury or damage to the projector.

To prevent damage from heat
build-up:

• Clean the air filter after every 100

hours of operation. (See page 16.)

• Do not place the projector in direct

sunlight or near a source of heat like a
furnace, electric heater, etc.

• Do not block ventilation holes (by

placing the projector on its side, or on
a carpet, bedspread etc.)

Do not place projector in moist or
dusty place:

• Do not place the projector in an area

containing steam (from a humidifier,
etc.) dust, or soot (from a stove, etc).

If projector will not be used for
long time, pull out power plug and
close lens cover.

• Place the projector at least 10cm from

any wall (allowing space for the
ventilation holes).

2

Have inside of projector cleaned
at least every two (2) years :

• Contact ViewSonic Customer Service

for information about where to have
the inside cleaned. Never attempt to
open the cabinet to clean the inside of
the projector yourself.

• To clean the lens and cabinet, follow

the instructions on page 16.

Do not place heavy objects on the
projector.

ViewSonic PJ1060

CONTENTS

For Your Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Electronic Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Getting Started

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Inserting Batteries into Remote Control Unit

Connecting Input/Output Devices . . . . . . . . . . . . . . . . . . . . . . . 5

Side Connector Panel
Example of System Setup

Operation

Projecting a Picture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Turning Off the Projector
Positioning the Projector
Setting the Projection Angle

Controls and Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Adjusting the Projected Image . . . . . . . . . . . . . . . . . . . . . . . . . 8

Memory Function
Returning to Factory Default Settings
Freeze Function
Magnify Function

Set Up Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Auto Adjustment Function

Input Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Image Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Option Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Technical Information

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Timing Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Connecting to the RS232 Port . . . . . . . . . . . . . . . . . . . . . . . . . 13

Mouse Emulation

E
N
G

L

S
H

ViewSonic PJ1060

Troubleshooting

On-Screen Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . 14

Problem Solving Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Control Panel Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Maintenance

Cleaning Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Cleaning the Air Filter
Cleaning the Lens
Cleaning the Cabinet

Replacing the Lamp Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3

Getting Started

TM

Congratulations on purchasing a ViewSonic PJ1060 Office Theater

Save the original box and all packing material for future shipping needs.

Package Contents

•

ViewSonic PJ1060 Office Theater

•

Remote Control Unit/Mouse & Laser Pointer

•

2 AA batteries

•

3 AC power cords (U.S., Europe, and China)

•

RGB computer video cable (15-pin mini D-sub
connector)

•

Video/Audio cable (RCA connectors)

• S-Video cable

•

Audio (stereo) mini-DIN cable

I

(RCA connectors)

•

PS/2 mouse cable

•

Serial (RS232) mouse/computer-control cable

•

ADB (Macintosh®) mouse cable

•

Macintosh adaptor

•

User’s guide

•

Carrying Case

Installation

LCD projector!

1 Connect signal input cables

With both the PJ1060 and the com­puter powered OFF, connect the
appropriate video and audio cables
to the computer, VCR, or other
input sources.

Macintosh users:

supplied Macintosh adapter to the
video cable, then to the PJ1060.

Connect the

2 Connect power cord

Connect the power cord to a
properly grounded AC outlet, then
to the PJ1060.

3 (continued)

When a PC is one of the input
devices (not for Macintosh):

Set the graphics card(s) to
1024 x 768@75 Hz (resolution
and refresh rate).

4 Install batteries into

Remote Control Unit

See intructions below.

3 Power-ON projector and all input

devices (computer, VCR, etc.)

(1)Power-ON the PJ1060 projector.

(2) Power-ON all input devices.

Inserting Batteries into the Remote Control Unit

1 Remove the compartment cover by

sliding it in the direction of the arrow
shown below.

2 Insert the batteries (Alkaline type)

with the polarities (+,-) facing the
direction shown below.

3 Replace the compartment cover.

CAUTION:

• Only use AA (LRG) type of batteries.

• To prevent leakage that may damage
the unit, do not combine old and new
batteries.

• When inserting batteries, be careful
to insert them according to the
correct polarities (+,-).

• If not using the Remote Control Unit
for an extended period of time,
remove the batteries.

• Do not place the Remote Control Unit
on any wet surface or close to the
cooling fan of the projector.

To be best prepared for any future
customer service needs:

•

Write the serial number (see the

bottom of the projector) in

Records"

•

Register the warranty of your projector

on the Internet at:

http://www.viewsonic.com

on page 1 of this guide.

"For your

4

Getting Started

ViewSonic PJ1060

Connecting Input/Output Devices

Side Connector Panel

"RGB1" & "RGB2"

RGB input ports (2)

D-sub 15 pin type
(to video output of computers)

NOTE: RGB1 supports
Plug & Play; RGB2 does
not support Plug & Play.

CONTROL port

(RS232C type) for
mouse emulation
(PS2 PC mouse,
serial PC mouse, or
Macintosh® mouse);
or for controlling the

CONTROL RGB OUT

projector from a
computer. See page
13 for more infor­mation.

AUDIO input ports (2)

stereo mini type (left port =
stereo audio with RGB1; right
port = stereo audio with RGB2)

AUDIO IN
12

AUDIO

OUT

AUDIO output port

stereo mini type
(to audio amplifying
equipment)

Example of System Setup

RGB IN12

USB

S-VIDEO IN

VIDEO IN

AUDIO IN

L

MONO

R

USB input port

(Upstream) The mouse
cursor can be controlled by
connecting the PJ1060
projector to a computer.

S-VIDEO input port

Mini DIN 4 pin type
(used with S-VIDEO
output equipment)

VIDEO input port

RCA type (used with
Composite VIDEO
output equipment)

AUDIO input ports

RCA type, Left/Right
(used with either S­VIDEO or Composite
VIDEO outputs)

RGB output port

D-sub 15 pin
(to video input of CRT
Display)

E
N

G

L

I

S

H

Laptop Computer

ViewSonic

1 2

Desktop Computer

Audio ampifying equipment

PJ1060 Projector

AUDIO IN
12

ViewSonic

1 2

RGB IN12

CONTROL RGB OUT

AUDIO

OUT

USB

CRT Display

S-VIDEO IN

VIDEO IN

AUDIO IN

L

MONO

R

NOTE: Two computers can be
connected (using RGB1 and
RGB2). Only one VCR should be
connected (using either the
Composite video or S-video
output port.)

VCR with S-VHS out

VCR

ViewSonic PJ1060

Getting Started

5

b

a

Operation

Projecting a Picture

1 Power ON the projector. Set the MAIN POWER switch to ON (located

on the side Connector Panel). The ON indicator lights orange.

2 Press the STANDBY/ON button on the Projector Control Panel or on

the Remote Control Unit. (See page 7)

The ON indicator blinks green during warm-up and stays green
when projector is ready for use.

NOTE: The power can not be turned on if the STANDBY/ON button
is pressed within 60 seconds after the power is turned off.

3 Remove the lens cap.

4 Position the projector the desired distance from the projection

E
N

G

L

I

S

H

screen, then set the projection angle by positioning the foot
adjusters. (See

Angle

below)

5 Power ON all connected input devices. (See page 5.)

6 Select the signal source: press the INPUT button on the projector or

one of the the INPUT buttons (VIDEO/RGB) on the Remote Control
Unit. (See pages7.)

NOTE: To switch between RGB1 and RGB2, use the INPUT
menu (see page 10).

7 Using buttons on the Remote Control Unit or the control panel on top

of the projector, adjust the picture size with the ZOOM button, then
adjust the focus using the FOCUS button.

Positioning the Projector

and

Setting the Projection

Turning Off the Projector

1 Press STANDBY/ON button (on Control

Panel or Remote Control Unit) for one (1)
second. The ON indicator blinks orange
and the projector lamp turns off.

CAUTION: Always press the
STANDBY/ON button before turning
OFF the MAIN POWER. This allows the
fan to cool down the projector.

2 Wait until the fan stops (about one minute

after pressing STANDBY/ON button).

3 Power OFF the projector. Set the MAIN

POWER switch to OFF.

4 Place the lens cap over the lens.

Positioning the Projector

The projector must be horizontal to get a distortion-free picture. Place the projector on a table-top or other flat
surface. Use the chart below to determine the placement of the projection screen.

Screen

(inches)

Distance "a" (inches)

Size

Minimum Maximu m

40 55 73 1

60 85 114 2

80 114 151 2

100 144 191 3

120 176 231 3

150 220 282 4

200 291 386 6

Distance "b"

(inches)

---------------

Top View

Screen

CAUTION To prevent a build-up of heat

that can damage the projector:

• Be especially careful not to block
ventilation holes when installing the
projector.

• Only use this projector in the horizontal
position (see Side View shown above).

Side View

a = distance from projector

to screen

b = distance from center of
lens to bottom of screen

(a, b: +/- 10%)

Setting the Projection Angle

1 While firmly grasping the front of the projector with both hands, use

your index finger to push --and hold-- the Adjuster Buttons (located on
the sides of the projector).

2 While pressing the Adjuster Buttons, tilt the front of the projector up in

order to adjust the viewing angle. Then (while still grasping the
projector) release the Adjuster Buttons, securely locking the Front
Foot Adjusters.

3 To make fine adjustments, turn the base of the Front Adjusters.

Front View

Front Adjusters

CAUTION

• To prevent possible injury or damage to the projector, make sure
you are holding onto the projector securely before you unlock the
foot adjusters.

• Securely lock the Front Adjusters.

• Do not use unnecessary force when you move the foot adjusters.

6

Operation

Side View

You can make vertical adjustments
(0 to 9 degrees) using the Front

Foot Adjusters.

ViewSonic PJ1060

Controls and Indicators

Projector Control Panel

MUTE button silences

audio output temporarily

LAMP indicator

becomes lit when
lamp cannot light

ON indicator

blinks in Standby
mode; remains lit
in Operation mode

TEMP indicator

becomes lit when
temperature inside
projector is too high

RESET button

resets selected
menu option to
factory setting

STANDBY /ON button

powers ON/OFF button.
OFF activates Standby
Mode

ZOOM button

ajusts the size of the
projected picture.

FOCUS button

ajusts the sharpness of
the projected picture.

INPUT button

selects input source:

RGB2 VIDEO

RGB1

MENU buttons used
to display on-screen
menus and and to
adjust the selected
opition.

FREEZE displays a
still picture, stopping
audio and moving
video image

MAGINIFY buttons

magnify part of
projected picture

OFF button turns OFF the
MAGNIFY function (+/-)

BLANK button displays
blank screen (white, blue,
or black). See page 10.

FOCUS button

ajusts the sharpness of
the projected picture.

Remote Control Unit

VIDEO

STANDBY/ON

MENU

MAGNIFY

P in P MUTE

FOCUS ZOOM

LASER

POSITION

RESET

FREEZE

VOLUME

OFF

AUTOBLANK TIMER

RGB

VIDEO button and RGB button
These two buttons are used to
select either Video or RGB
(computer) as the input source.

NOTE: Same function as INPUT
button on Projector Control Panel

LASER button toggles laser-pointer

See CAUTION below.

On/Off.

POSITION button After
pressing this button, move
the DISK PAD (up/down,
left/right) to move screen
image (only for RGB signal)

DISK PAD

•

When a menu screen is
displayed, use DISK PAD to
select or adjust a menu item.

•

When menu is
mouse cables are connected, the
DISK PAD functions as a mouse.
Press center of DISKPAD for left­click mouse function.

•

After pressing POSITION button,
DISK PAD moves entire screen
image.

RESET / "RIGHT " MOUSE button

(two functions)

•

RESET button: when a menu is
displayed, returns selected
menu option to factory setting.

•

"RIGHT" MOUSE button: when
no menu is displayed

VOLUME buttons adjust loudness
of audio output

MUTE button silences
audio output temporarily

TIMER button activates on-screen
countdown timer

ZOOM buttons are used to adust
the size of the screen image

AUTO button automatically adjusts
Vertical Position, Horizontal
Position, Horizontal Phase , and
Horizontal Size).

not displayed, and

E
N

G

L

I

S

H

Remote control
sensor (rear)

Lens

Lens cap

ViewSonic PJ1060

Cooling fan
(intake)

Speakers

Handle

Cooling fan
(exhaust)

Back View of Remote Control Unit

Battery
Compartment

Laser
Aperture

CAUTION
To prevent possible eye damage:

•

DO NOT look directly at the laser light

emitted from the Laser Aperture of the
Remote Control Unit (see above).

•

DO NOT point the laser light at any

person's eyes.

Operation

7

Adjusting the Projected Image

1 Display the list of menus. Press any one of the four MENU

buttons on the Projector Control Panel or the MENU ON/OFF
button on the Remote Control Unit. The names of the four
menus (SETUP, INPUT, IMAGE, OPTION) will display. (See
pages 8-10)

2 Select the menu.To select one of the four menus, press the

left or right MENU buttons on the Projector Control Panel or
the DISK PAD on the Remote Control Unit. The name of the
selected menu is highlighted in green.

3 Select the menu option.To select a menu option you want

to adjust, use the MENU buttons on the Projector Control
Panel or use the DISK PAD on the Remote Control Unit. The
selected adjustment option is highlighted in green.

Returning to Factory Default Settings

E
N
G

L

I

S
H

To return all the controls in a given menu to factory settings:

1 Select the menu (follow step 2 above).

2 Press the RESET button (on the projector control panel or

Remote Control Unit), and select DEFAULT.
If you change your mind, select CANCEL.

NOTE: To return a single control (Volume, Brightness, etc.) to
the factory setting, select only that menu option, and press
RESET. If you change your mind, select CANCEL.

Memory Function

Whenever you power OFF the projector, all picture
adjustments made for each input device (VIDEO, RGB1, and

RGB2) will be saved separately.

Freeze Function

This function displays a still picture, freezing a moving video
image (similar to the "pause" function of a VCR). You can not
use this feature together with the MAGNIFY function.

1 Press the FREEZE button on the Remote Control Unit.

2 To release the Freeze function, press the FREEZE button

again.

Magnify Function

This function allows you to magnify a portion of the
projected picture. You can not can use this feature together
with the FREEZE function. (see above)

1 To activate the Magnify function: Press the MAGNIFY button

on the Remote Control Unit. The center of the projected
picture will double in size.

2 To change magnification: Press the [+] button to increase

magnification (maximum, 4 times). Press the [-] button to
decrease magnification (minimum, about 1.1 times)

3 To shift the magnified display area: Press the POSITION ON

button, then press the DISK PAD up, down, left, or right.
The magniified display area shifts accordingly.

4 To return to a normal display: Press the OFF button (below

the FREEZE button).

NOTE: FREEZE and MAGNIFY can
not be used simultaneously.

NOTE: The Magnify function is released when a INPUT
SELECT button (on projector or Remote Control Unit) or
when the timing mode (resolution or refresh rate) of a
personal computer is changed while an image is displayed.

8

Operation

ViewSonic PJ1060

SET UP Menu

The SET UP Menu allows you to adjust the picture for each input source separately: RGB1, RGB2, and VIDEO
(Composite Video or S-Video).

NOTE: Before using the SET UP Menu, use the INPUT Menu to select one of the input sources, then repeat these
steps for each of the other input sources (see next page). Two computers can be connected (using RGB1 and
RGB2), and one video source should be connected (using either the Composite video or S-video input port.)
See page 5 for information about the input ports.

SET UP Menu Options Adjustments

VOLUME Decrease -- Increase

BRIGHT (BRIGHTNESS) Darker -- Brighter

CONTRAST Lower -- Higher

For VIDEO signal input only

SHARPNESS Softer -- Sharper

COLOR (SATURATION) Lower -- Higher

TINT Red -- Green

For RGB signal input only

VPOSIT

(VERTICAL POSITION)

HPOSIT

(HORIZONTAL POSITION)

H PHASE

(HORIZONTAL PHASE)

HSIZE

(HORIZONTAL SIZE)

COLOR BAL R

(COLOR BALANCE RED)

COLOR BAL B

(COLOR BALANCE BLUE)

Moves picture up or down

(or use AUTO -- automatic control)

Moves picture left or right

(or use AUTO)

Eliminates Horizontal Noise*

(or use AUTO)

Widens/narrows horizontal size of

picture (or use AUTO)

Red: Lighter <----> Darker

Blue: Lighter <----> Darker

VIDEO signal input

RGB signal input

E
N
G

L

I

S
H

* "horizontal noise"appears as horizontal lines on the screen image when
Horizontal Phase is not adjusted ; when adjusted properly, text charcters
appear sharp.

NOTE:

• TINT cannot be adjusted with PAL/SECAM video signal
input.

• TINT, COLOR, and SHARPNESS cannot be adjusted with
RGB signal nput.

• V. POSIT, H. POSIT, H. PHASE, and H. SIZE cannot be
adjusted with VIDEO signal input.

AUTO Adjustment function

The AUTO Adjustment function automatically adjusts 4 controls: V. POSIT
(Vertical Position), H. POSIT (Horizontal Position), H. PHASE (Horizontal
Phase), and H. SIZE (Horizontal Size).

NOTE -- Auto Adjust:

• May require several seconds to execute

• May not operate correctly with some projected images

• May cause parts of the projected image to be slightly dark in some cases

• Can not execute when the FREEZE or MAGNIFY function is in use, or

when the initial on-screen message is "NO INPUT IS DETECTED" or
"SYNC IS OUT OF RANGE."

ViewSonic PJ1060

Operation

9

INPUT Menu

The INPUT Menu allows you to select from three possible input sources (RGB1, RGB2, and VIDEO). For
VIDEO, the AUTO option will work for most circumstances (N-PAL is not suppported).

INPUT

Options

RGB
(1&2)

VIDEO

E
N
G

L

I

S
H

NOTE: RGB1 is compatible with Plug
and Play (DDC1TM and DDC2BTM);
RGB2 is not.

Adjustment Description

Displays the following RGB inputs:

fH: horizontal sync frequency
fV: vertical syn frequency

Selects signal from VIDEO port (either
Composite video or S-Video)
NOTE: When the screen is unstable
(no color or rolling image), select the
mode that matches the input signal.

RGB options

VIDEO options

IMAGE Menu

The IMAGE Menu allows you to select the KEYSTONE, MIRROR, BLANK, START UP and P in P options.

IMAGE Menu

Options

KEYSTONE

MIRROR

BLANK

START UP

PinP

Adjustment Description

Reduces keystone distortion at top -­or bottom -- of picture (trapazoid
shape) caused by raising the front of
projector using the adjusters (see
page 6).

Inverts picture horizontally and/or
vertically

NORMAL Returns to factory

settings

H : INVERT Inverts picture

horizontally

V : INVERT Inverts picture

vertically

H&V : INVERT Inverts picture

horizontally and
vertically

Selects background color (white,
blue, or black) for the Blank Screen
feature. The blank screen will
display when VIDEO is the selected
input source and no video input
signal is detected.

Allows you to select/de-select the
ViewSonic welcome screen at
start-up.

Selects the the position of the sub
(small) Picture-in-Picture screen
image.

NOTE: The source of the "large picture" of the P in P
(picture in picture) image is the RGB (computer) signal
and the source of the "small picture" is the VIDEO signal.

With P in P activated, the audio source defaults to the
audio from the VIDEO source. To switch to the RGB
(computer) audio source, push one of the Volume buttons.

No picture is displayed when either no signal is detected
or when the signal is out of the signal range.

10

Operation

ViewSonic PJ1060

OPT. (OPTION) Menu

The OPT. Menu allows you to adjust the Communication Function* (COM. SPEED and COM. BITS), enabling
you to control the projector from a computer. The OPT. Menu also allows you to set the TIMER , select the
LANGUAGE for all on-screen displays, activate AUTO OFF and START UP.

OPT.

(OPTION)

Menu

Options

COM. SPEED
(COMMUNIC-

AT I O N)

COM. BITS

TIMER

LANGUAGE

AUTO OFF

SYNC ON G

Selects data speed of trans­mission: 1200, 2400, 4800,
9600, 19200. (Used for computer
control of projector)

Selects data transmission format:

7N1...7 data bits, No Parity,
1Stopbit
8N1...8 data bits, No Parity,

1Stopbit
(Used for computer control of
projector.)

A countdown timer (up to 99
minutes) you can activate
whenever needed. The time
remaining displays at bottom of
the projected picture.

Selects language of On-View
menus: English, Francais
(French), Deutsch (German),
Espanol (Spanish), Italiano
(Italian), Norsk (Norwegian),
Nederlands (Dutch), Japanese.

Automatically shuts off the
projector --and puts it in Standby
Mode-- after a specified period
of time that no input source is
detected (up to 99 minutes).

To disable AUTO OFF, set
minutes to 0.

Toggles the Sync on Green
feature on/off.

Adjustment
Description

IMPORTANT: If AUTO OFF is activated and shuts off the
projector lamp, wait at least one (1) minute. Then press--and
briefly hold--the STANDBY/ON button. The lamp will turn back
on.

* NOTE: Computer control of the projector (communication

function) is an advanced feature that requires specialized
software not included with the PJ1060. To develop this software
you will need various control codes and other supplementary
information availaible from ViewSonic Customer Support. (See
page 15.)

E
N
G

L

I

S
H

ViewSonic PJ1060

Operation

11

Technical Information

Specifications

LCD Type 1.3" Polysilicon (x3) Stripe Pixel 1024 x 768 (XGA) TFT Active Matrix

Lens Type Power Focus, Power Zoom (1-1.3X) F1.7 ~ 2.3 (f = 49 - 64 mm)
Display Image Size 30" - 300" (76.2mm x 7620mm)

Audio Power 2W (1W + 1W) 10%THD

E
N
G
L

I
S
H

Input Signal RGB Analog 75 ohms, 0.7 Vp-p X2 H/V Separated, Composite (TTL)

Compatibility PC PC compatible (up to 1280 x 1024 compressed)

Maximum 1280 x 1024 @ 75Hz (Compressed)
Recommended 1024 x 768 @ 60Hz
Resolutions

Input Ports RGB 15 pin mini D-sub (x2)

Output Ports RGB 15 pin mini D-sub (x1)

Power Voltage AC 100-120/220-240 50 / 60 Hz (Automatic), 3 Wire Grounded

User Controls Physical/projector Standby On/Off, Menu (Left, Right, Up, Down), Input, Reset, Mute

Video Input Bandwidth 150 MHz

Operating Temperature 32°F to 95°F (0°C to 35°C)
Conditions Humidity 10% to 85% (no condensation)

Optimum Temperature 59°F to 82°F (15°C to +28°C)
Installation Humidity 40% to 75% (no condensation)
Environment

Storage Temperature -4°F to +140°F (-20°C to +60°C)
Conditions Humidity 10% to 85% (no condensation)

Dimensions Physical 292mm (W) x 124mm (H) x 395mm (D)

Weight (typical) Net 5.9 kg (13.0 lb)

Regulations UL, FCC-A, CSA, CE, CB Report, TüV/GS, EMC report

Pixels 2,359,296 (1024 dots x 768 lines x 3 colors)

Projection Distance 1.1m - 11m
Brightness 1800 ANSI Lumens (typical )*, 1440 ANSI Lumens (minimum)
Contrast Ratio 100:1 (typical -- ANSI method), 200:1 (typical -- non-ANSI method)
Aspect Ratio 4:3
Lamp 190W Ultra High Pressure compact
Lamp Life 1500 hours (shutdown)

Video NTSC 3.58 / PAL-N, PAL-M / SECAM S-Video

Frequency f

Macintosh® ** Power Macintosh® (up to 1280 x 1024 compressed)
Video NTSC 3.58 / PAL-N, PAL-M / SECAM S-Video

Video RCA (x1)
S-Video Mini DIN 4-pin (x1)
Audio RCA jack (L/R) for Video, Stereo Mini (x2) for RGB

Audio Stereo Mini (x1) for Audio-out

Consumption 370 Watts

Packing 385mm (W) x 370mm (H) x 532mm (D)

Gross 11.8 kg (26.0 lb)

Luminance signal 0.7 Vp-p, 75 ohms termination
Chrominance signal 0.29Vp-p (NTSC), 0.30Vp-p (PAL), 75 ohms
termination

: 15.75/15.63, 25-80 kHz fv: 56-120Hz

h

11.4" (W) x 4.9" (H) x 15.5" (D)

15.1" (W)x 14.5" (H) 20.9"(D)

12

Power Savings "On" Green 370W

"Stand By" Amber 11W

* Brightness may vary with lamp age and environmental conditions
** Macintosh computers require a Macintosh adaptor (supplied with the PJ1060 projector).
All products and trademarks are brand names of their respective companies. Specifications are subject to change without notice.

Technical Information

ViewSonic PJ1060

Timing Chart

The following table lists the maximum refresh rates that the ViewSonic PJ1060 will operate at a number of standard
resolutions (timing presets). While the projector is capable of this level of performance, not all video cards are
capable of operating at these signal timings. See your graphics card's user guide to ensure compatibility.

Computer/Signal Timings

Input

Resolution

HxV

Vertical

Frequency

(Refresh Rate)

(Hz)

Horizontal
Frequency

(kHz)

Polari ty of

Synchronizing

Signal H/V

Industry 640 x 400@56Hz 640 x 400 56.4 31.5

Industry 720 x 400@70Hz 720 x 400 70.1 24.8

®

VGA 720 x 400@56Hz 720 x 400 56.4 24.8 +/-

VESA

VESA VGA 640 x 480@85Hz 640 x 480 85.1 43.3 -/+

VESA VGA 640 x 480@60Hz 640 x 480 59.9 31.5 -/+

®

13" 640 x 480@67Hz 640 x 480 66.7 35.0 -/-

Mac

VESA VGA-3 640 x 480@73Hz 640 x 480 72.8 37.9 -/-

VESA VGA-3 640 x 480@75Hz 640 x 480 75.0 37.5 -/-

Industry 640 x 480@100Hz 640 x 480 100.4 50.9

Industry 640 x 480@120Hz 640 x 480 120.0 61.8

VESA SVGA 800 x 600@56Hz 800 x 600 56.3 35.2 -/-

VESA SVGA 800 x 600@ 60Hz 800 x 600 60.2 37.9 +/+

VESA SVGA 800 x 600@ 72Hz 800 x 600 72.2 48.1 +/+

VESA SVGA 800 x 600@75Hz 800 x 600 75.0 46.9 -/-

VESA SVGA 800 x 600@85Hz 800 x 600 85.1 53.7 -/-

Industry 800 x 600@100Hz 640 x 480 100.0 63.6

Industry 800 x 600@120Hz 640 x 480 120.0 77.2

Mac 16" 832 x 624@75Hz 832 x 624 74.57 49.7 +/+

VESA XGA 1024 x 768@60Hz 1024 x 768 60.0 48.4 -/-

VESA XGA 1024 x 768@70Hz 1024 x 768 70.1 56.5 -/-

VESA XGA 1024 x 768@75Hz 1024 x 768 75.0 60.0 -/-

VESA XGA 1024 x 768@85Hz 1024 x 768 85.0 68.7 -/-

VESA 1152 x 768@ 75Hz 1152 x 768 75.0 67.5 -/-

VESA SXGA 1280 x 960@ 60Hz 1280 x1024 60.0 60.0 +/+

VESA SXGA 1280 x 1024@ 60Hz 1280 x1024 60.0 64.0 +/+

VESA SXGA 1280 x 1024@ 75Hz 1280 x 1024 75.0 80.0 +/+

(compression)

(compression)

(compression)

(compression)

CAUTION: Some input
sources may not
display properly if
they are not
compatible with the
projector. Some input
sources may not
display in full size, as
shown in Output
Resolutions.

E
N

G

L

I

S

H

Connecting to the RS232 Port

The RS232C Port has two possible uses:

1 Mouse Emulation This allows you to use a mouse with one computer at a time, by toggling between one

computer connected to RGB1 and another computer connected to RGB2.

NOTE: Depending on which type of mouse you will be using (PS/2, ADB, or Serial) you must use the appropriate connector. (See diagrams below)

2 Computer Control Port This is only used for special applications in which a computer controls the projector

(instead of the projector's control buttons or Remote Control Unit).

NOTE: To use this feature you must first develop customized software using various control codes. To find out how to access this supplementary
information, contact ViewSonic Customer Support. (See page 15.)

Mouse Emulation

1 With both the projector and the computer powered OFF,

connect the projector and the mouse terminal of the
computer using the appropriate cable. (See diagrams to
the right).

2 Disconnect the existing mouse.

3 Power ON the projector, then power ON the computer.

NOTE: If mouse emulation will not start, reset the
computer and/or check the mouse driver.

ViewSonic PJ1060

(a) PS/2 mouse
connector

Mini Din 6pin

6 5

34

2 1

(c) Serial mouse
connector

D-sub 9pin

1 2 3 4

6 7 8 9

5

(b) ADB (Macintosh)
mouse connector

NOTE:
Depending on which type of mouse you

will be using (PS/2, ADB, or Serial) you
must use the appropriate connector.

Mini Din 4pin

34

2 1

Technical Information

13

Troubleshooting

On-Screen Warning Messages

OnView Message Recommended Action

"CHANGE THE LAMP"
"CALL A MAINTENANCE
PERSON"

"CHANGE THE LAMP"
"CALL A MAINTENANCE
PERSON"
"THE POWER WILL TURN
OFF AFTER 20 HR."

CHANGE THE LAMP

(Blinking message)

NO INPUT IS DETECTED No signal input is detected. Check all cable connections to all input devices.

E
N
G
L

I
S
H

SYNC IS OUT OF RANGE

Problem Solving Chart (Check before contacting Customer Support)

Symptom Possible Cause Recommended Action Page No.

Power cannot be turned on

No picture or sound

Picture without sound

Sound without picture

Colors are pale and color
matching is poor

Picture is dark

Picture is blurred

LAMP Indicator is lit red*

TEMP Indicator is lit red*

The lamp unit should be replaced soon. After 200 hours of use power will turn off

automatically if you do not replace the lamp unit and reset the lamp time. See page 16.

®

Replacing the lamp unit is recommended. Call ViewSonic
new lamp unit (RLU-190-03A). Power will turn off automatically after 20 hours of use if
you do not replace the lamp unit and reset the lamp time. See page 16.

Replace the lamp unit now. The power will turn off after 10 minutes.

Check to make sure the input signal (Horizontal and Vertical frequency) is within the
range supported by the projector. See page 13.

Turn Main Power Switch ON



InsertpowercordintoanACsocket



After power is turned off, wait at



Main Power switch is not ON



Power cord is disconnected
60 seconds have not elapsed



since the power was turned off
Inside the projector is too hot



Input source is not set correctly



Connections to projector are not



correct



Connections to projector are not

correct



Volume is set to minimum



Projector is in Mute mode



Connections to projector are not

correct



Brightness is set to minimum



Lens cap is attached



Color density and color
matching are not correctly
adjusted

Brightness and Contast are not



adjusted correctly

The lamp is nearing the end



of its service life



FocusorHPHASEisoutof

adjustment



Lamp is not functioning properly

Internal overheating





least 60 seconds before turning
power on again



Check to see make sure that the
ventilation holes are not blocked



Clean the air filter



Verify that operating enviornment
of projector is under 35° C



Select correct input source using
INPUT button on projector or
by accessing the on-screen INPUT
menu with the Remote Control Unit



Verify cable(s) are connected
correctly



Verify cable(s) are connected
correctly



From the Projector Control Panel,
select BRIGHT with the MENU button
and then press the [>] button



Remove the lens cap



Verify cable(s) are connected
correctly



On either projector or Remote
Control Unit, press MENU button,
select BRIGHT, and increase.



Adjust the video



Adjust BRIGHT(Brightness) and
CONTRAST



Replace the lamp unit



Adjust focus or H PHASE



TurnPowerSwitchOFF,wait20

minutes; then turn power ON again

Check to see make sure that the



ventilation holes are not blocked

Clean the air filter



Verify that operating enviornment



of projector is under 35° C or less

Customer Service to order a

6, 7

7, 10

5

5

7

5, 7

6, 7

5, 9

9

9

7

6

6, 7

14

Troubleshooting

ViewSonic PJ1060

Control Panel Indicators

ON Indicator LAMP Indicator TEMP Indicator Meaning Recommended Action

Lights orange turns off turns off Standby mode ---------------------

Blinks green turns off turns off While warming up ---------------------

Lights green turns off turns off During normal operation ---------------------

Blinks orange turns off turns off While cooling down ---------------------

Power OFF projector and let it

lights red lights red turns off Lamp cannot light

lights red blinks red turns off

lights red turns off turns off

blinks red blinks red blinks red

Lamp is not properly
installed, or lamp door is
open

Cooling fan is not working
properly

Cumulative time of lamp
use has exceeded 1,500
hours

cool down for 20 minutes.
If LAMP Indicator is still lit,
the lamp may be defective.
Replace the Lamp Unit.

After the lamp has cooled
down (45 min.), insert the
Lamp Unit securely and re­attach the lamp cover.

Contact ViewSonic Customer
Support

Replace the Lamp Unit and
reset the Lamp Time (see
page 16).

Customer Support

For the most expedient answer to your question, do the following:

1 Check the Problem Solving Chart (on the previous page).
2 For assistance contact your reseller.
3 For further assistance see the contact infomation listed below.

NOTE: If contact information is not listed below for your country
or region, your reseller will refer you to a service center.

E
N

G

L

I
S
H

Country/Region Telephone Fax Email

United States [phone] [phone] [e-mail]

Canada [phone] [phone] [e-mail]

United Kingdom 0800 833 648 0044 (0)1293 643910 --------------------------

Europe, Middle East, 0044 (0)1293 643900 0044 (0)1293 643910 -------------------------­Baltic countries, and
North Africa

Australia (contact reseller) ------------------------ --------------------------

New Zealand 64- 3 - 366-1135 64-3-366-7006 [e-mail]

Singapore/Southeast 65-273-4018 65-273-1566 [e-mail]
Asia

Other Asia/Pacific 886-2-2248-4072 886-2-2240-8238 [e-mail]
countries and Indian
Peninsula

South Africa 27-11-314-0002 27-11-314-0002 [e-mail]

ViewSonic PJ1060

Troubleshooting

15

Maintenance

Cleaning Instructions

To ensure that the projector functions properly, follow the recommended cleaning instructions below.

Cleaning the Air Filter

IMPORTANT: Clean the air filter about every 100 hours.

1 Turn OFF the Main Power switch of the projector and disconnect

the power cord from the wall outlet.

2 Remove the Front Filter Cover. (see diagram to the right)

3 Remove the air filter from the Front Filter Cover (as shown in the

illustration to the right) and use a vacuum cleaner to clean the
filter.

4 Re-install the air filter, then the Front Filter Cover.

E
N
G
L

I
S
H

NOTE: If sufficient dust, etc. collects in the air filter, a protection circuit in the projector

will automatically turn off the power. To prevent this from occurring, make sure you clean
the air filter every 100 hours.

Cleaning the Lens

Front Filter
Cover

• To clean the lens, use a camera lens cleaning tissue or a
camel hair brush.

• Be careful not to scratch the lens with a sharp or hard object.

CAUTION: Never use any ammonia
or alcohol based cleaner on the lens.

Cleaning the Cabinet

• Use a soft, dry, lint-free cloth to wipe dust, etc. from the cabinet.

• If this is insufficient, use a soft, lint-free cloth moistened with a

mild detergent diluted with water. Then wipe the surface with a
soft, dry, lint-free cloth.

CAUTION: Never use any
ammonia or alcohol-based
cleaner to clean the cabinet.

Replacing the Lamp Unit

To order a new lamp unit (Part No. RLU-190-03A) contact ViewSonic® Customer Support.

1 Make sure the Main Power switch is OFF, then

disconnect the power cord from the wall outlet. If the
projector has recently been turned on, wait at least
45 minutes for the lamp to cool down.

2 Carefully place the projector onto a flat surface

covered with soft material (like a towel). Then loosen
the Lamp Cover screw and remove the Lamp Cover
(as shown to the right).

3 Loosen the two (2) lamp-unit screws, grasp the

Lamp Unit Handle, and gently pull the lamp unit out
of the projector.

4 Carefully insert the new lamp unit into the projector

and tighten the lamp-unit screws.

5 Re-install the Lamp Cover and tighten the Lamp

Cover screw securely.

Power-on the projector.

6 Reset the lamp time (within 10 minutes)

• Press RESET (on projector) or TIMER (on Remote
Control Unit)

and hold for three (3) seconds

• Press RESET (on projector) or MENU ON (on
Remote Control Unit)

• Select "0" on the screen using MENU [<] (on
projector) or DISKPAD (on Remote Conrol Unit.)

Lamp
Cover

Lamp Unit
Handlle

Screws

Replace the lamp unit if:

• the picture is dark

• "CHANGE THE LAMP" is

displayed

• the lamp indicator on the
projector remains lit red.
(See page 14.)

CAUTION:
HANDLE THE LAMP UNIT

CAREFULLY. Dropping
the unit could cause the
lamp to explode.

Reflector

Front
Glass

Lamp Unit

16

Maintenance

ViewSonic PJ1060

LIMITED WARRANTY

VIEWSONIC

What the warranty covers:

ViewSonic® warrants its products to be free from defects in material and workmanship during the warranty period. If a product

proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace
the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

How long the warranty is effective:

ViewSonic projectors are warranted for three (3) years for all parts excluding the lamp, three (3) years for all labor, and ninety

(90) days for the lamp from the date of the first consumer purchase.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from:

a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow

instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by ViewSonic.
c. Any damage of the product due to shipment.
d. Removal or installation of the product.
e. Causes external to the product, such as electrical power fluctuations or failure.
f. Use of supplies or parts not meeting ViewSonic’s specifications.
g. Normal wear and tear.
h. Any other cause which does not relate to a product defect.

3. Removal, installation, and set-up service charges.

How to get service:

1. For information about receiving service under warranty, contact ViewSonic Customer Support. You will need to provide your
product's serial number.

2. To obtain service under warranty, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your
address, (d) a description of the problem, and (e) the serial number of the product.

3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic.

4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.

Limitation of implied warranties:

THERE ARE NO WARRANTIES, EXPRESSED OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION CONTAINED
HEREIN INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Exclusion of damages:

VIEWSONIC'S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. VIEWSONIC
SHALL NOT BE LIABLE FOR:

1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES BASED UPON
INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS
OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL
LOSS, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.

3. ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.

Effect of state law:

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do
not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact ViewSonic or your
local ViewSonic dealer.

PJ1060

PROJECTOR

Rev. 9/20/99

E
N

G

L

I
S
H

ViewSonic PJ1060

Warranty

17

NOTES

E
N
G
L

I
S
H

18

ViewSonic PJ1060

7/2000

ViewSonic® Corporation

381 Brea Canyon Road
Walnut, CA 91789
Tel [phone]
Tel [phone]
Fax [phone]
