ViewSonic PG800X, PG800W, PG800HD User Guide

PG800X/PG800W/PG800HD
DLP Projector

User Guide

IMPORTANT: Please read this User Guide to obtain important information on installing
and using your product in a safe manner, as well as registering your product for future
service. Warranty information contained in this User Guide will describe your limited
coverage from ViewSonic Corporation, which is also found on our web site at http://

ZZZYLHZVRQLFFRPLQ (QJOLVKRU LQ VSHFL¿FODQJXDJHV XVLQJ WKH 5HJLRQDOVHOHFWLRQ

box in the upper right corner of our website. “Antes de operar su equipo lea cu
idadosamente las instrucciones en este manual”

Model No. VS17080/VS17081/VS17082

1

Compliance Information

FCC Statement

This device complies with part 15 of FCC Rules. Operation is subject to the follow­ing two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa­tion. This equipment generates, uses, and can radiate radio frequency energy, and
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interfer­ence will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:

y Reorient or relocate the receiving antenna.
y Increase the separation between the equipment and receiver.
y Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

y Consult the dealer or an experienced radio/TV technician for help.

Warning:<RXDUHFDXWLRQHGWKDWFKDQJHVRUPRGL¿FDWLRQVQRWH[SUHVVO\DSSURYHG

by the party responsible for compliance could void your authority to operate the
equipment.

For Canada

CAN ICES-3 (B)/NMB-3(B)

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU and Low Voltage
Directive 2014/35/EU.

Following information is only for EU-member states:

The mark is in compliance with the Waste Electrical and Electronic
Equipment Directive 2012/19/EU (WEEE).

The mark indicates the requirement NOT to dispose the equipment
including any spent or discarded batteries or accumulators as unsorted
municipal waste, but use the return and collection systems available.

If the batteries, accumulators and button cells included with this equipment,
display the chemical symbol Hg, Cd, or Pb, then it means that the battery
has a heavy metal content of more than 0.0005% Mercury or more than,

0.002% Cadmium, or more than 0.004% Lead.

i

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this unit near water.

6. Clean with a soft, dry cloth.

7. Do not block any ventilation openings. Install the unit in accordance with the
manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves,

RURWKHUGHYLFHVLQFOXGLQJDPSOL¿HUVWKDWSURGXFHKHDW

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade and the third
SURQJDUHSURYLGHGIRU\RXUVDIHW\,IWKHSURYLGHGSOXJGRHVQRW¿WLQWR\RXU
outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs.

Convenience receptacles and the point where they exit from the unit. Be sure
that the power outlet is located near the unit so that it is easily accessible.

 2QO\XVHDWWDFKPHQWVDFFHVVRULHVVSHFL¿HGE\WKHPDQXIDFWXUHU
 8VHRQO\ZLWKWKHFDUWVWDQGWULSRGEUDFNHWRUWDEOHVSHFL¿HGE\

the manufacturer, or sold with the unit. When a cart is used, use
caution when moving the cart/unit combination to avoid injury from
tipping over.

13. Unplug this unit when unused for long periods of time.

 5HIHUDOOVHUYLFLQJWRTXDOL¿HGVHUYLFHSHUVRQQHO6HUYLFLQJLVUHTXLUHGZKHQWKH

unit has been damaged in any way, such as: if the power-supply cord or plug is
damaged, if liquid is spilled onto or objects fall into the unit, if the unit is exposed
to rain or moisture, or if the unit does not operate normally or has been dropped.

ii

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive
2011/65/EU of the European Parliament and the Council on restriction of the use
of certain hazardous substances in electrical and electronic equipment (RoHS2
Directive) and is deemed to comply with the maximum concentration values issued
by the European Technical Adaptation Committee (TAC) as shown below:

Substance

Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%

6+

) 0.1% < 0.1%

Proposed Maximum
Concentration

Actual Concentration

Certain components of products as stated above are exempted under the Annex III
of the RoHS2 Directives as noted below:

Examples of exempted components are:

1. 0HUFXU\LQFROGFDWKRGHÀXRUHVFHQWODPSVDQGH[WHUQDOHOHFWURGHÀXRUHVFHQW

lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):
(1) Short length (≦500 mm): maximum 3.5 mg per lamp.
(2) Medium length (＞500 mm and ≦1,500 mm): maximum 5 mg per lamp.
(3) Long length (＞1,500 mm): maximum 13 mg per lamp.

2. Lead in glass of cathode ray tubes.

3. /HDGLQJODVVRIÀXRUHVFHQWWXEHVQRWH[FHHGLQJE\ZHLJKW

4. Lead as an alloying element in aluminium containing up to 0.4% lead by weight.

5. Copper alloy containing up to 4% lead by weight.

6. Lead in high melting temperature type solders (i.e. lead-based alloys containing

85% by weight or more lead).

7. Electrical and electronic components containing lead in a glass or ceramic other

than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or
ceramic matrix compound.

iii

Copyright Information

Copyright © ViewSonic® Corporation, 2017. All rights reserved.
Macintosh and Power Macintosh are registered trademarks of Apple Inc.
Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks
of Microsoft Corporation in the United States and other countries.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered
trademarks of ViewSonic Corporation.
VESA is a registered trademark of the Video Electronics Standards Association.
DPMS and DDC are trademarks of VESA.
PS/2, VGA and XGA are registered trademarks of International Business Machines
Corporation.
Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors
or omissions contained herein; nor for incidental or consequential damages resulting
from furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves
WKHULJKWWRFKDQJHSURGXFWVSHFL¿FDWLRQVZLWKRXWQRWLFH,QIRUPDWLRQLQWKLVGRFX­ment may change without notice.
No part of this document may be copied, reproduced, or transmitted by any means,
for any purpose without prior written permission from ViewSonic Corporation.

Product Registration

To fulfill possible future product needs, and to receive additional product information
as it becomes available, please visit your region section on ViewSonic’s website to
register your product online.
The ViewSonic CD also provides an opportunity for you to print the product
registration form. Upon completion, please mail or fax to a respective ViewSonic
office. To find your registration form, use the directory “:\CD\Registration”.
Registering your product will best prepare you for future customer service needs.
Please print this user guide and fill the information in the “For Your Records” section.
For additional information, please see the “Customer Support” section in this guide.

For Your Records

Product Name: PG800X/PG800W/PG800HD

ViewSonic DLP Projector

Model Number: VS17080/VS17081/VS17082
Document Number: PG800X/PG800W/PG800HD_UG_ENG Rev. 1A 09-07-17
Serial Number: ________________________________________
Purchase Date: ________________________________________

Product disposal at end of product life

The lamp in this product contains mercury which can be dangerous to you and the
environment. Please use care and dispose of in accordance with local, state or
federal laws.
ViewSonic respects the environment and is committed to working and living green.
Thank you for being part of Smarter, Greener Computing. Please visit ViewSonic
website to learn more.
USA & Canada: http://www.viewsonic.com/company/green/recycle-program/
Europe: http://www.viewsoniceurope.com/eu/support/call-desk/
Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx

iv

Table of contents

Important safety

instructions .......................2

Introduction......................4

Projector features ................................. 4

Shipping contents.................................4

Controls and functions .........................5

Positioning your projector

..........................................10

Choosing a location............................10

Projection dimensions........................ 11

Shifting the projection lens vertically

............................................................ 15

Connection ......................16

Connecting a computer or monitor ....18

Connecting Video source devices ...... 19

Playing sound through the projector .. 21

Using the cable management cover

(optional)............................................ 22

Operation ........................23

Starting up the projector..................... 23

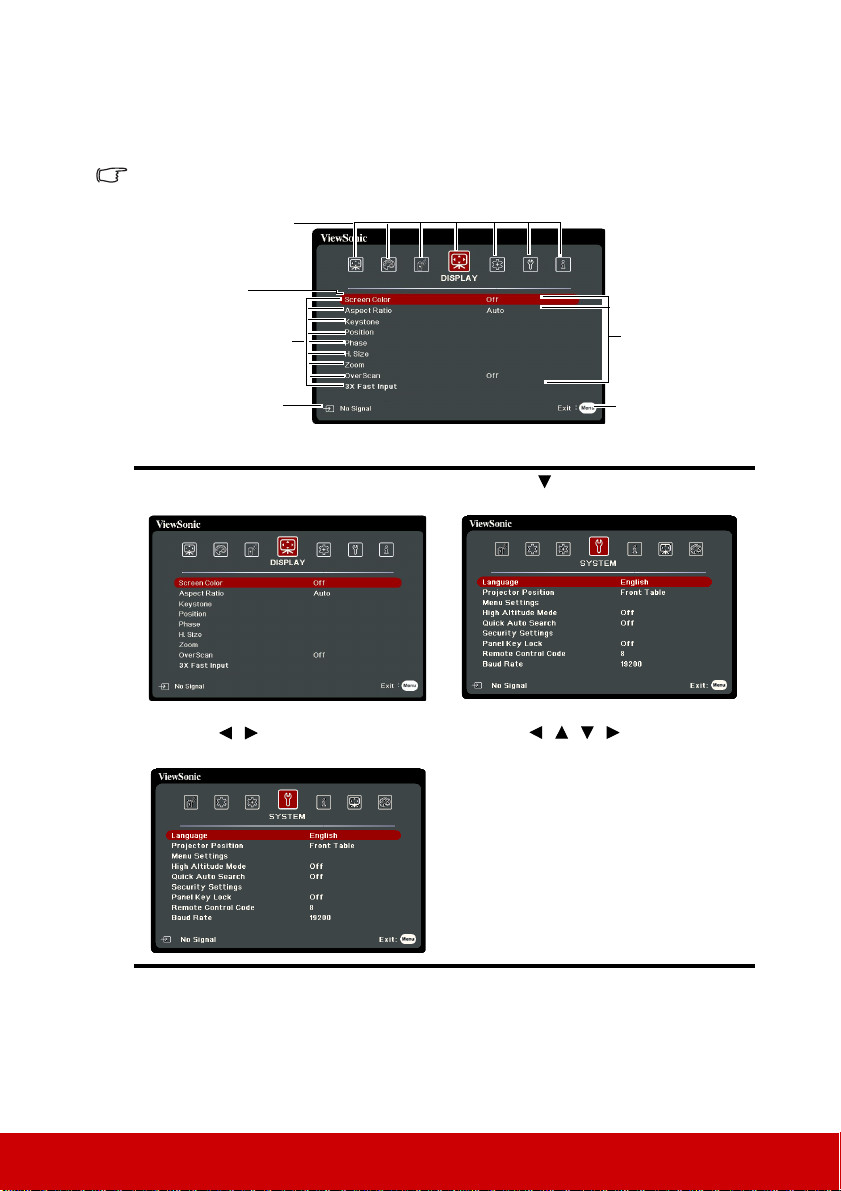

Using the menus................................. 24

Utilizing the password function ......... 25

Switching input signal........................ 27

Adjusting the projected image ........... 28

Magnifying and searching for details

............................................................ 29

Selecting the aspect ratio ...................30

Optimizing the image......................... 31

Setting the presentation timer ............34

Hiding the image................................35

Locking control keys.......................... 36

Operating in a high altitude environment

........................................................... 36

Using the CEC function..................... 37

Using the 3D functions...................... 37

Controlling the projector through

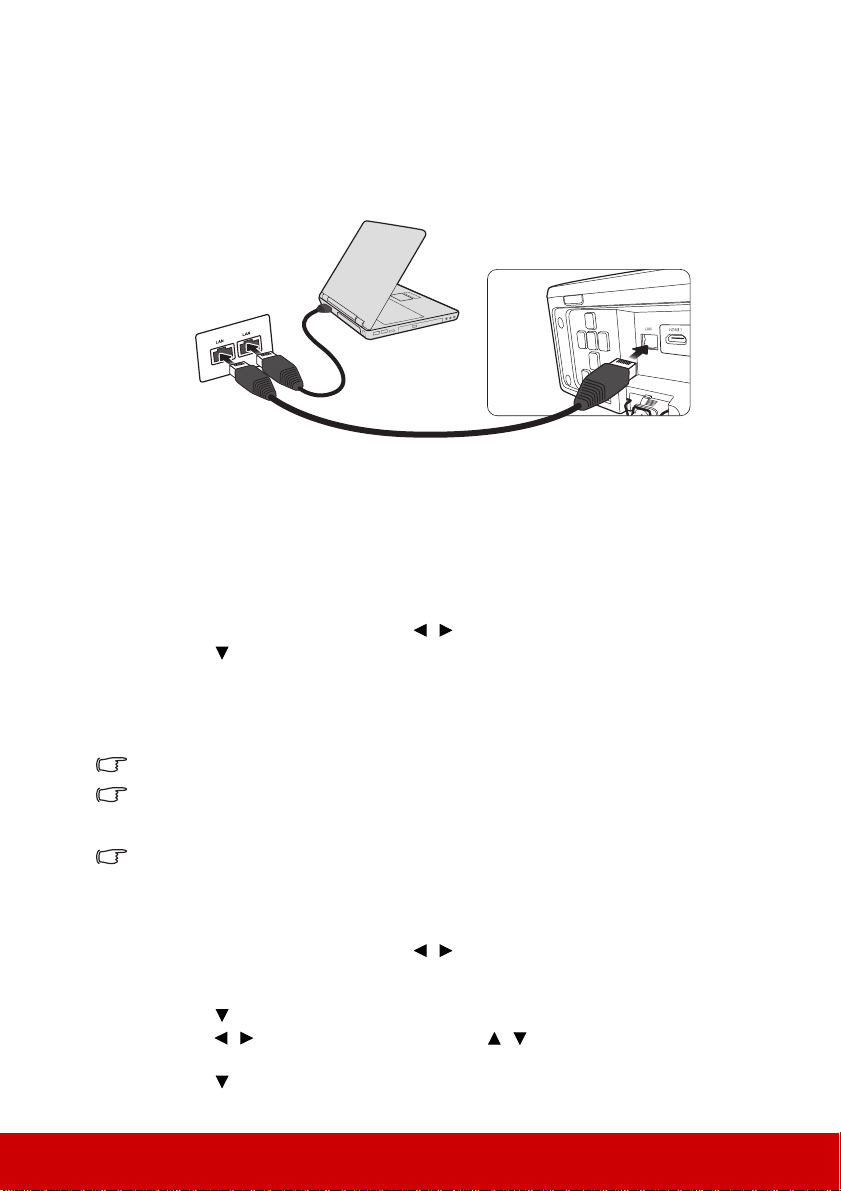

a LAN environment ........................... 38

Using the projector in standby mode

........................................................... 44

Adjusting the sound ........................... 44

Shutting down the projector .............. 46

Menu operation.................................. 47

Maintenance ...................57

Care of the projector .......................... 57

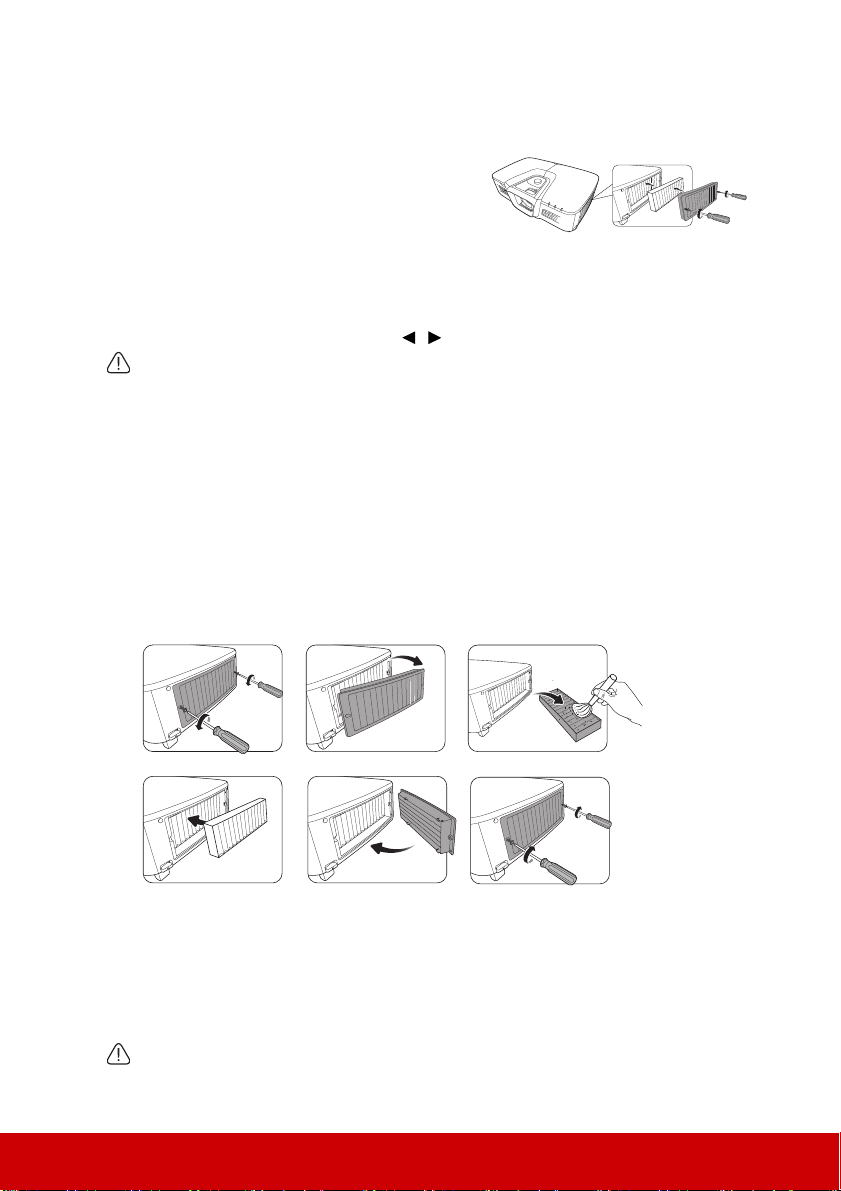

Using the dust filter (optional accessory)

........................................................... 57

Lamp information.............................. 59

Troubleshooting .............62

Specifications ..................63

Dimensions ........................................ 63

Ceiling mount installation ................. 63

IR control table .................................. 64

RS232 command table....................... 65

Timing chart ...................................... 75

Projector specifications...................... 79

Copyright information...81

1

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information
technology equipment. However, to ensure safe use of this product, it is important that you
follow the instructions mentioned in this manual and marked on the product.

Safety Instructions

1. Please read this manual before you operate your projector. Save it for future
reference.

2. Do not look straight at the projector lens during operation. The intense light beam
may damage your eyes.

3. Refer servicing to qualified service personnel.

4. Always open the lens shutter or remove the lens cap when the projector lamp is

on.

5. In some countries, the line voltage is NOT stable. This projector is designed to operate
safely within a mains voltage between 100 to 240 volts AC, but could fail if power
cuts or surges of ±10 volts occur. In areas where the mains voltage may fluctuate

or cut out, it is recommended that you connect your projector through a power
stabilizer, surge protector or uninterruptible power supply (UPS).

6. Do not block the projection lens with any objects when the projector is under
operation as this could cause the objects to become heated and deformed or even
cause a fire. To temporarily turn off the lamp, press BLANK on the projector or
remote control.

7. The lamp becomes extremely hot during operation. Allow the projector to cool for
approximately 45 minutes prior to removing the lamp assembly for replacement.

8. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps
beyond the rated life could cause them to break on rare occasions.

9. Never replace the lamp assembly or any electronic components unless the projector is
unplugged.

10. Do not place this product on an unstable cart, stand, or table. The product may fall,
sustaining serious damage.

11. Do not attempt to disassemble this projector. There are dangerous high voltages inside
which may cause death if you should come into contact with live parts.

Under no circumstances should you ever undo or remove any other covers. Refer
servicing only to suitably qualified professional service personnel.

12. Do not place this projector in any of the following environments.

- Space that is poorly ventilated or confined. Allow at least 50 cm clearance from walls
and free flow of air around the projector.

- Locations where temperatures may become excessively high, such as the inside of a
car with all windows rolled up.

- Locations where excessive humidity, dust, or cigarette smoke may contaminate optical
components, shortening the projector's life span and darkening the picture.

- Locations near fire alarms

- Locations with an ambient temperature above 40°C / 104°F

- Locations where the altitudes are higher than 3000 m (10000 feet).

2

13. Do not block the ventilation holes. If the ventilation holes are seriously obstructed,
overheating inside the projector may result in a fire.

- Do not place this projector on a blanket, bedding or any other soft surface.

- Do not cover this projector with a cloth or any other item.

- Do not place inflammables near the projector.

14. Always place the projector on a level, horizontal surface during operation.

- Do not use if tilted at an angle of more than 10 degrees left to right, nor at angle of
more than 15 degrees front to back. Using the projector when it is not fully horizontal
may cause a malfunction of, or damage to, the lamp.

15. Do not stand the projector on end vertically. Doing so may cause the projector to fall
over, causing injury or resulting in damage to the projector.

16. Do not step on the projector or place any objects upon it. Besides probable physical
damage to the projector, doing so may result in accidents and possible injury.

17. Do not place liquids near or on the projector. Liquids spilled into the projector may
cause it to fail. If the projector does become wet, disconnect it from the power
supply's wall socket and call your local service center to have the projector serviced.

18. This product is capable of displaying inverted pictures for ceiling mount installation.

Use only qualified ceiling mount kit for mounting the projector and ensure it is
securely installed.

19. When the projector is under operation, you may sense some heated air and odor from
its ventilation grill. It is a normal phenomenon and not a product defect.

20. Do not use the Security bar for transporting or installation. It should be used with a
commercially available theft prevention cable.

21. CAUTION
Possibly hazardous optical radiation emitted from this product. Do not stare at
operating lamp. May be harmful to the eyes. Risk Group 2

Warni ng

• THIS APPARATUS MUST BE EARTHED.

• When installing the unit, incorporate a readily accessible disconnect device in the fixed

wiring, or connect the power plug to an easily accessible socket-outlet near the unit. If a
fault should occur during operation of the unit, operate the disconnect device to switch
the power supply off, or disconnect the power plug.

Safety instructions for ceiling mounting of the
projector

We want you to have a pleasant experience using your projector, so we need to bring this
safety matter to your attention to prevent damage to person and property.

If you intend to mount your projector on the ceiling, we strongly recommend that you use a
proper fitting projector ceiling mount kit and that you ensure it is securely and safely
installed.

If you use an inappropriate projector ceiling mount kit, there is a safety risk that the
projector may fall from the ceiling due to an improper attachment through the use of the
wrong gauge or length screws.

You can purchase a projector ceiling mount kit from the place you purchased your projector.
We recommend that you also purchase a separate security cable and attach it securely to
both the anti-theft lock slot on the projector and the base of the ceiling mount bracket. This
will perform the secondary role of restraining the projector should its attachment to the
mounting bracket become loose.

3

Introduction

Projector features

The projector integrates high-performance optical engine projection and a user-friendly
design to deliver high reliability and ease of use.

Some of the features may not be available on your projector. Actual performance may vary
and subject to model specifications.

• Power saving function decreasing the power consumption of the lamp by up to 80%

when no input signal can be detected for a set period of time.

• Presentation timer for better control of time during presentations

•

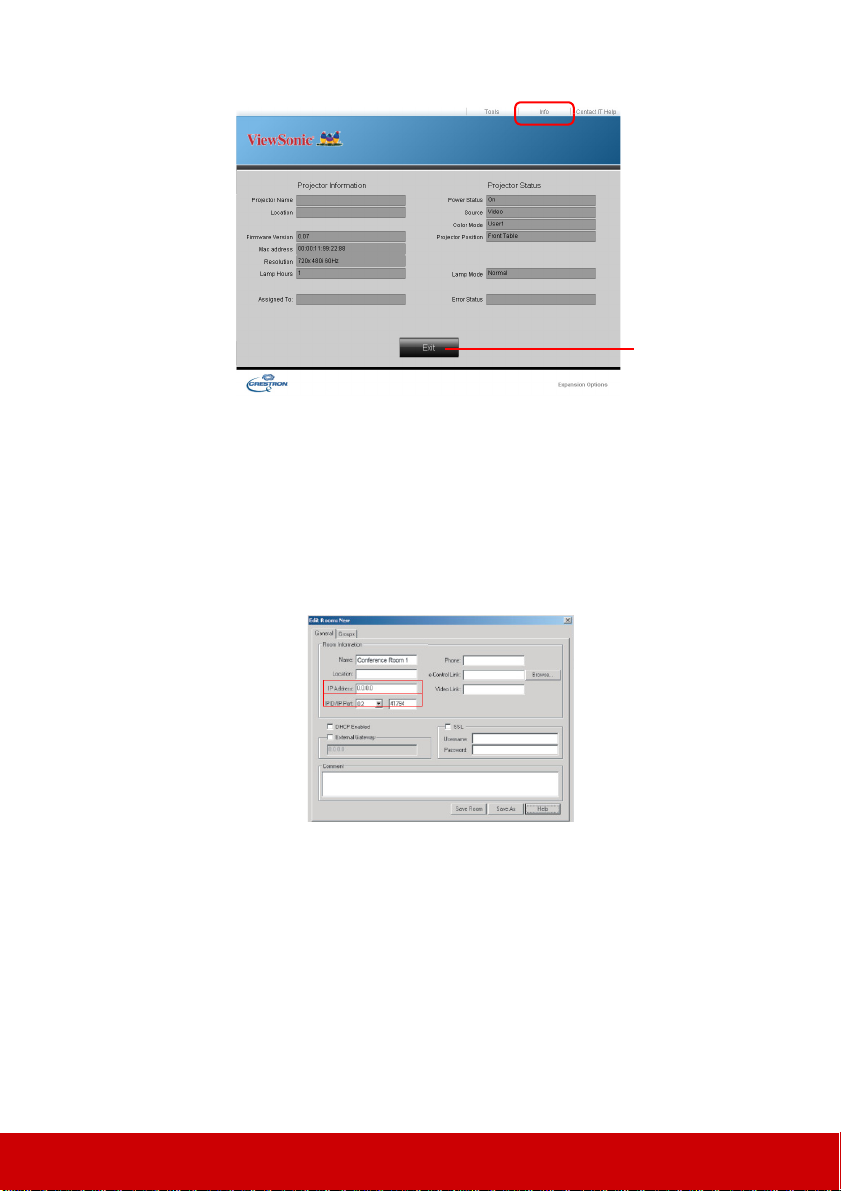

LAN Settings allowing management of projector status from a remote computer

• Supports 3D display

•Color Management allowing color adjustments to your liking

• Less than 0.5W power consumption when power saving mode is turned on

• Screen Color correction allowing projection on surfaces of several predefined colors

• Quick auto search speeding up the signal detecting process

• Color modes providing choices for different projection purposes

• One-key auto-adjustment to display the best picture quality (only for analog signal)

• Digital keystone correction to correct distorted images

• Adjustable color management control for data/video display

• Ability to display 1.07 billion colors

• Multi-language On-Screen Display (OSD) menus

• Switchable normal and economic modes to reduce the power consumption

• Component HDTV compatibility (YP

• HDMI CEC (Consumer Electronics Control) function allows synchronized power ON/

OFF operation between the projector and a CEC-compatible DVD player device
connected to the HDMI input of the projector

The apparent brightness of the projected image will vary depending on the ambient lighting
conditions, selected input signal contrast/brightness settings, and is directly proportional to
projection distance.

The lamp brightness will decline over time and may vary within the lamp manufacturers
specifications. This is normal and expected behavior.

bPr)

Shipping contents

1. Projector

2. Power Cord

3. Quick Start Guide

4. Remote Control & Batteries

5. VGA Cable

6. Cable management cover (optional)

7. Replacement lamp (optional)

8. Soft carry case (optional)

9. Dust filter (optional)

4

Controls and functions

Lens shift wheel

Focus and Zoom rings

Power indicator light

Lamp indicator light

Temperature indicator light

Projector

•Power

Toggles the projector between standby
mode and Power ON.

HDMI port indicator

Lights up blue when an HDMI device is
inserted into the inner HDMI port.

•/ (Keystone keys)

Manually corrects distorted images
resulting from an angled projection.

• Left/ Right/ Up/ Down

Selects the desired menu items and makes
adjustments.

•Menu

Turns on the On-Screen Display (OSD)
menu.

•Exit

Goes back to previous OSD menu, exits
and saves menu settings.

•Enter

Enacts the selected On-Screen Display
(OSD) menu item.

•Color Mode

Selects an available picture setup mode.

• Source

Displays the source selection bar.

• (Help)

Displays the HELP menu by a long press
for 3 seconds.

5

Remote control

To use the remote mouse control keys
(Page Up, Page Down, , and

"Using the remote mouse control" on
page 8 for details.

•Power

Toggles the projector between standby
mode and Power ON.

•COMP

Selects source from Computer In
port for display.

•HDMI

Selects source from HDMI port for
display.

•VIEDO

Selects VIEDO source for display.

• Auto Sync

Automatically determines the best
picture timings for the displayed
image.

), see

• / (Keystone keys)

Manually corrects distorted images
resulting from an angled projection.

•Enter

Enacts the selected On-Screen Display
(OSD) menu item.

•Menu

Turns on the On-Screen Display
(OSD) menu.

• Left/ Right/ Up/ Down

Selects the desired menu items and
makes adjustments.

6

•Mouse

Switches between the normal and mouse
modes.

PgUp, PgDn, , : active after pressing
Mouse. An icon appears on the screen to

indicate the activation of the mouse mode.

Only available when a PC input signal is
selected.

• (Left mouse button)

Performs the same function as the left
mouse button when the mouse mode is
activated.

Only available when a PC input signal is
selected.

• (Right mouse button)

Performs the same function as the right
mouse button when the mouse mode is
activated.

Only available when a PC input signal is
selected.

• (Aspect Ratio)

Displays the aspect ratio selection bar.

•Blank

Hides the screen picture.

• (Panel Key Lock)

Activates panel key lock. To unlock the

panel keys, press

• (My Button)

Allows user to define a short cut key on
the remote control, and the function item
is selected in OSD menu.

• Source

Displays the source selection bar.

•Laser

Emits visible laser pointer light for
presentation purposes.

•Exit

Exits and saves menu settings.

• PgUp (Page Up)/PgDn (Page Down)

Operates your display software program
(on a connected PC) which responds to
page up/down commands (like Microsoft
PowerPoint) when the mouse mode is
activated.

Only available when a PC input signal is
selected.

• Pattern

Displays embedded test pattern.

• (Mute)

Toggles the projector audio between on
and off.

• (Help)

Displays the HELP menu.

• (Volume Up)

Increases the volume level.

• (Presentation Timer)

Displays the presentation timer settings
menu.

•Eco Mode

Selects a lamp mode.

• (Volume Down)

Decreases the volume level.

• (Zoom)

Displays the zoom bar that magnifies or
reduces the projected picture size.

•Color Mode

Selects an available picture setup mode.

• Audio Mode

Selects an audio mode.

7

Operating the LASER pointer

The Laser Pointer is a presentation aid for professionals. It emits colored light when you
press it. The laser beam is visible. It is necessary to press and hold Laser for continuous
output.

Do not look into the laser light window or shine the laser light beam on yourself or others. See
the warning messages on the back of the remote control prior to using it.

The laser pointer is not a toy. Parents should be mindful of the dangers of laser energy and
keep this remote control out of the reach of children.

Remote control code

The projector can be assigned to 8 different remote control codes, 1 to 8. When several
adjacent projectors are in operation at the same time, switching the remote control codes
can prevent interference from other remote controls. Set the remote control code for the
projector first before changing that for the remote control.

To switch the code for the projector, select from among 1 to 8 in the SYSTEM > Remote
Control Code menu.

To switch the code for the remote control, press ID set and the number button
corresponding to the remote control code set in the projector OSD together for 5 seconds or
more. The initial code is set to 1. When the code is switched to 8, the remote control can
control every projector.

If different codes are set on the projector and remote control, there will be no response from
the remote control. When that happens, a message will display to remind you to switch the
code for the remote control.

Using the remote mouse control

The capability of operating your computer with the remote control gives you more
flexibility when delivering presentations.

1. Set the input signal to a PC signal.

2. Press Mouse on the remote control. A cursor appears on the screen. You can press /

/ / to move the cursor for indication.

3. Press Mouse again to switch to the normal mode.

If you wish to use a more advanced mouse mode, follow the below steps:

1. Connect the projector to your PC or notebook with a USB cable prior to using the
remote control in place of your computer’s mouse. See "Connecting a computer" on

page 18 for details.

2. Press Mouse to switch to the mouse mode. An icon appears on the screen to indicate
the activation of the mouse mode.

3. Perform the desired mouse controls on your remote control.

• To move the cursor on the screen, press / / / .

• To left-click, press .

• To right-click, press .

• To operate your display software program (on a connected PC) which responds to

page up/down commands (like Microsoft PowerPoint), press PgUp/PgDn.

8

• To return to the normal mode, press Mouse again or other keys except for the

A

pp

r

o

x

.

3

0

°

A

p

p

r

o

x

.

3

0°

mouse related multi-function keys.

Remote control effective range

Refer to the illustration about the location of the Infra­Red (IR) remote control sensor(s). The remote control
must be held at an angle within 30 degrees perpendicular
to the projector's IR remote control sensor(s) to function
correctly. The distance between the remote control and
the sensor(s) should not exceed 8 meters (~ 26 feet).

Make sure that there are no obstacles between the remote
control and the IR sensor(s) on the projector that might
obstruct the infra-red beam.

Replacing the remote control batteries

1. To open the battery cover, turn the remote control over to view its back, press on the
finger grip on the cover and slide it down in the direction of the arrow as illustrated.

2. Remove any existing batteries (if necessary) and install two AAA batteries observing
the battery polarities as indicated in the base of the battery compartment. Positive (+)
goes to positive and negative (-) goes to negative.

3. Refit the cover by aligning it with the base and pushing it back down into position.
Stop when it clicks into place.

WARNING

• Avoid leaving the remote control and batteries in an excessive heat or humid environment

like the kitchen, bathroom, sauna, sunroom or in a closed car.

• Replace only with the same or equivalent type recommended by the battery manufacturer.

• Dispose of the used batteries according to the manufacturer's instructions and local

environment regulations for your region.

• Never throw the batteries into a fire. There may be danger of an explosion.

• If the batteries are drained or if you will not be using the remote control for an extended

period of time, remove the batteries to avoid damage to the remote control from possible
battery leakage.

9

Positioning your projector

Choosing a location

Your room layout or personal preference will dictate which installation location you select.
Take into consideration the size and position of your screen, the location of a suitable power
outlet, as well as the location and distance between the projector and the rest of your
equipment.

Your projector is designed to be installed in one of the following possible installation
locations:

1. Front Table

Select this location with the projector placed near
the floor in front of the screen. This is the most
common way to position the projector for quick
setup and portability.

2. Front Ceiling

Select this location with the projector suspended
upside-down from the ceiling in front of the screen.

Purchase the projector ceiling mount kit from your
dealer to mount your projector on the ceiling.

Set Front Ceiling in the SYSTEM > Projector

Position menu after you turn the projector on.

3. Rear Ceiling

Select this location with the projector suspended
upside-down from the ceiling behind the screen.

Note that a special rear projection screen and the
projector ceiling mounting kit are required for this
installation location.

Set Rear Ceiling in the SYSTEM > Projector

Position menu after you turn the projector on.

4. Rear Table

Select this location with the projector placed near
the floor behind the screen.

Note that a special rear projection screen is
required.

Set Rear Table in the SYSTEM > Projector
Position menu after you turn the projector on.

10

Projection dimensions

(a)

(d)

(b)

(e)

(f)

(c)

(a)

(d)

(c)

(b)

(e)

(f)

(a)

(c)

(b)

(e)

(f)

(d)

(f): Center of lens(e): Screen

• 4:3 image on a 4:3 screen

• 4:3 image on a 16:10 screen

(a)

(d)

(c)

(b)

(e)

(f)

The "screen" mentioned below refers to the projection screen usually consisting of a screen
surface and a support structure.

Please see "Projector specifications" on page 79 for the native display resolution of this
projector.

For models with a 4:3 native aspect ratio

When the projector’s native resolution is XGA (1024 x 768) with a throw
ratio of 1.51~1.97

(a) Screen Size

Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm

60 1524 73 1846 94 2400 36 914 2.7 68.6 5.4 137

70 1778 85 2154 110 2800 42 1067 3.2 80 6.3 160

80 2032 97 2462 126 3200 48 1219 3.6 91.4 7.2 183

90 2286 109 2769 142 3600 54 1372 4.1 102.9 8.1 206

100 2540 121 3077 157 4000 60 1524 4.5 114.3 9 229

110 2794 133 3385 173 4400 66 1676 5 125.7 9.9 251

120 3048 145 3692 189 4800 72 1829 5.4 137.2 10.8 274

130 3302 157 4000 205 5200 78 1981 5.9 148.6 11.7 297

140 3556 170 4308 220 5600 84 2134 6.3 160 12.6 320

150 3810 182 4615 236 6000 90 2286 6.8 171.5 13.5 343

160 4064 194 4923 252 6400 96 2438 7.2 182.9 14.4 366

170 4318 206 5231 268 6800 102 2591 7.7 194.3 15.3 389

180 4572 218 5538 283 7200 108 2743 8.1 205.7 16.2 411

4:3 image on a 4:3 Screen

(b) Projection distance

min. max. min. max.

11

(c) Image

height

(d) Vertical offset

4:3 image on a 16:10 Screen

(a)

(c)

(b)

(e)

(f)

(d)

(a)

(c)

(b)

(e)

(f)

(d)

(a)

(c)

(b)

(e)

(f)

(d)

(f): Center of lens(e): Screen

• 16:10 image on a 16:10 screen

• 16:10 image on a 4:3 screen

(a)

(d)

(c)

(b)

(e)

(f)

(a) Screen Size

(b) Projection distance

min. max. min. max.

(c) Image

height

Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm

60 1524 64 1631 83 2120 32 808 2.4 61 4.8 121

70 1778 75 1903 97 2473 37 942 2.8 71 5.6 141

80 2032 86 2174 111 2827 42 1077 3.2 81 6.4 162

90 2286 96 2446 125 3180 48 1212 3.6 91 7.2 182

100 2540 107 2718 139 3533 53 1346 4 101 7.9 202

110 2794 118 2990 153 3887 58 1481 4.4 111 8.7 222

120 3048 128 3262 167 4240 64 1615 4.8 121 9.5 242

130 3302 139 3533 181 4593 69 1750 5.2 131 10.3 263

140 3556 150 3805 195 4947 74 1885 5.6 141 11.1 283

150 3810 161 4077 209 5300 79 2019 6 151 11.9 303

160 4064 171 4349 223 5653 85 2154 6.4 162 12.7 323

170 4318 182 4621 236 6007 90 2289 6.8 172 13.5 343

180 4572 193 4892 250 6360 95 2423 7.2 182 14.3 363

For models with a 16:10 native aspect ratio

(d) Vertical offset

12

When the projector’s native resolution is WXGA (1280 x 800) with a
throw ratio of 1.21~1.57

16:10 image on a 16:10 Screen

(a) Screen Size

Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm

60 1524 61 1559 80 2026 32 808 1.6 40.4 4 101

70 1778 72 1818 93 2364 37 942 1.9 47.1 4.6 118

80 2032 82 2078 106 2702 42 1077 2.1 53.8 5.3 135

90 2286 92 2338 120 3039 48 1212 2.4 60.6 6 151

100 2540 102 2598 133 3377 53 1346 2.6 67.3 6.6 168

110 2794 112 2857 146 3715 58 1481 2.9 74 7.3 185

120 3048 123 3117 160 4052 64 1615 3.2 80.8 7.9 202

130 3302 133 3377 173 4390 69 1750 3.4 87.5 8.6 219

140 3556 143 3637 186 4728 74 1885 3.7 94.2 9.3 236

150 3810 153 3897 199 5066 79 2019 4 101 9.9 252

160 4064 164 4156 213 5403 85 2154 4.2 107.7 10.6 269

170 4318 174 4416 226 5741 90 2289 4.5 114.4 11.3 286

180 4572 184 4676 239 6079 95 2423 4.8 121.2 11.9 303

(a) Screen Size

Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm

60 1524 58 1470 75 1912 30 762 1.5 38 3.8 95

70 1778 68 1715 88 2230 35 889 1.8 44 4.4 111

80 2032 77 1961 100 2549 40 1016 2 51 5 127

90 2286 87 2206 113 2867 45 1143 2.3 57 5.6 143

100 2540 96 2451 125 3186 50 1270 2.5 64 6.3 159

110 2794 106 2696 138 3504 55 1397 2.8 70 6.9 175

120 3048 116 2941 151 3823 60 1524 3 76 7.5 191

130 3302 125 3186 163 4142 65 1651 3.3 83 8.1 206

140 3556 135 3431 176 4460 70 1778 3.5 89 8.8 222

150 3810 145 3676 188 4779 75 1905 3.8 95 9.4 238

160 4064 154 3921 201 5097 80 2032 4 102 10 254

170 4318 164 4166 213 5416 85 2159 4.3 108 10.6 270

180 4572 174 4411 226 5735 90 2286 4.5 114 11.3 286

(b) Projection distance

min. max. min. max.

16:10 image on a 4:3 Screen

(b) Projection distance

min. max. min. max.

(c) Image

height

(c) Image

height

(d) Vertical offset

(d) Vertical offset

13

For models with a 16:9 native aspect ratio

(a)

(c)

(b)

(e)

(f)

(d)

(a)

(c)

(b)

(e)

(f)

(d)

(a)

(c)

(b)

(e)

(f)

(d)

(f): Center of lens(e): Screen

• 16:9 image on a 16:9 screen

• 16:9 image on a 4:3 screen

(a)

(d)

(c)

(b)

(e)

(f)

When the projector’s native resolution is 1080p (1920 x 1080) with a
throw ratio of 1.15~1.5

(a) Screen Size

Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm

60 1524 60 1535 79 1995 29 747 2.4 59.8 4.4 112

70 1778 70 1791 92 2328 34 872 2.7 69.7 5.1 131

80 2032 81 2046 105 2660 39 996 3.1 79.7 5.9 149

90 2286 91 2302 118 2993 44 1121 3.5 89.7 6.6 168

100 2540 101 2558 131 3325 49 1245 3.9 99.6 7.4 187

110 2794 111 2814 144 3658 54 1370 4.3 109.6 8.1 205

120 3048 121 3069 157 3990 59 1494 4.7 119.5 8.8 224

130 3302 131 3325 170 4323 64 1619 5.1 129.5 9.6 243

140 3556 141 3581 183 4655 69 1743 5.5 139.5 10.3 262

150 3810 151 3837 196 4988 74 1868 5.9 149.4 11 280

160 4064 161 4093 209 5320 78 1992 6.3 159.4 11.8 299

170 4318 171 4348 223 5653 83 2117 6.7 169.4 12.5 318

180 4572 181 4604 236 5985 88 2241 7.1 179.3 13.2 336

16:9 image on a 16:9 Screen

(b) Projection distance

min. max. min. max.

(c) Image

height

(d) Vertical offset

14

16:9 image on a 4:3 Screen

(a) Screen Size

Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm

60 1524 55 1409 72 1831 27 686 2.2 55 4.1 103

70 1778 65 1643 84 2137 32 800 2.5 64 4.7 120

80 2032 74 1878 96 2442 36 914 2.9 73 5.4 137

90 2286 83 2113 108 2747 41 1029 3.2 82 6.1 154

100 2540 92 2348 120 3052 45 1143 3.6 91 6.8 171

110 2794 102 2583 132 3357 50 1257 4 101 7.4 189

120 3048 111 2817 144 3663 54 1372 4.3 110 8.1 206

130 3302 120 3052 156 3968 59 1486 4.7 119 8.8 223

140 3556 129 3287 168 4273 63 1600 5 128 9.5 240

150 3810 139 3522 180 4578 68 1715 5.4 137 10.1 257

160 4064 148 3757 192 4883 72 1829 5.8 146 10.8 274

170 4318 157 3991 204 5189 77 1943 6.1 155 11.5 291

180 4572 166 4226 216 5494 81 2057 6.5 165 12.2 309

There is 3% tolerance among these numbers due to optical component variations. It is
recommended that if you intend to permanently install the projector, you should physically
test the projection size and distance using the actual projector in situ before you permanently
install it, so as to make allowance for this projector's optical characteristics. This will help you
determine the exact mounting position so that it best suits your installation location.

(b) Projection distance

min. max. min. max.

(c) Image

height

(d) Vertical offset

Shifting the projection lens vertically

The vertical lens shift control provides flexibility for installing your projector. It allows the
projector to be positioned slightly above or below the top level of the projected images.

Use the wheel to shift the projection lens upwards or downwards within the allowable range
depending on your desired image position.

To use the lens shift wheel:

Turn the wheel to adjust the projected image position.

Do not over-tighten the wheel.

Lens shift adjustment does not result in a degraded picture quality.

15

Connection

HDMI
connector

A/V device

or

Computer

HDMI cable

LAN
connector

RJ45 cable

Internet

Mini USB
socket

USB cable

Computer

RS232

RS232 cable

Computer

3D
VESA

3D emitter cable

3D glasses

Computer
In

VGA cable

Computer

or

Component Video to VGA
(D-Sub) adapter cable

A/V device

When connecting a signal source to the projector, be sure to:

1. Turn all equipment off before making any connections.

2. Use the correct signal cables for each source.

3. Ensure the cables are firmly inserted.

In the connections shown below, some cables may not be included with the projector (see

"Shipping contents" on page 4). They are commercially available from electronics stores.

The connection illustrations below are for reference only. The connecting jacks available on
the projector vary with each projector model.

For detailed connection methods, see pages 18-20.

Below is the connection method for each connector that you may find on your projector.

16

(for Component signal)

Audio
in

Audio cable

Computer

Audio cable

A/V device

or

Computer
Out

VGA cable

Monitor

or

VGA to DVI-A cable

S-Video
connector

S-Video cable

A/V device

Video
connector

Video cable

A/V device

Audio in
L/R

Audio cable

A/V device

USB 5V/
2A Out

USB Power Charger

HDMI
connector

HDMI dongle

MicroUSB cable

IR Out

Remote control wire

(for S-Video/Video signal)

17

(This connector may be

inside the projector. Open

the cover before using.)

(shared with top IR remote

sensor and a carrier

frequency of 38KHz is

supported)

(Trigger only)

12V Out

Powered screen

MIC

Microphone

Audio Out

Speakers

Connecting a computer or monitor

Connecting a computer

1. Take the supplied VGA cable and connect one end to the D-Sub output socket of the
computer.

2. Connect the other end of the VGA cable to the COMPUTER IN 1 or COMPUTER
IN 2 signal input socket on the projector.

3. If you wish to use the remote mouse control function, take a USB cable and connect
the larger end to the USB port of the computer, and smaller end to the MINI USB
socket on the projector. See "Using the remote mouse control" on page 8 for details.

Many notebooks do not turn on their external video ports when connected to a projector.
Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a
function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press
FN and the labeled function key simultaneously. Refer to your notebook's documentation to
find your notebook's key combination.

Connecting a monitor

If you want to view your presentation close-up on a monitor as well as on the screen, you
can connect the COMPUTER OUT signal output socket on the projector to an external
monitor with a VGA cable following the instructions below:

1. Connect the projector to a computer as described in "Connecting a computer" on page

18.

2. Take a suitable VGA cable (only one supplied) and connect one end of the cable to the
D-Sub input socket of the video monitor.
Or if your monitor is equipped with a DVI input socket, take a VGA to DVI-A cable
and connect the DVI end of the cable to the DVI input socket of the video monitor.

3. Connect the other end of the cable to the COMPUTER OUT socket on the projector.

18

The COMPUTER OUT output only works when COMPUTER IN 1 connection is made to the
projector in the standby mode. To use this connection method, turn on the Active VGA Out
function under the SOURCE > Standby Settings menu.

Connecting Video source devices

You can connect your projector to various Video source devices that provide any one of the
following output sockets:

• HDMI

• Component Video

•S-Video

• Video (composite)

You need only connect the projector to a Video source device using just one of the above
connecting methods, however each provides a different level of video quality. The method
you choose will most likely depend upon the availability of matching terminals on both the
projector and the Video source device as described below:

Best video quality

The best available video connection method is HDMI. If your source device is equipped
with an HDMI socket, you can enjoy uncompressed digital video quality.

See "Connecting an HDMI device" on page 20 for how to connect the projector to an HDMI
source device and other details.

If no HDMI source is available, the next best video signal is Component video (not to be
confused with composite video). Digital TV tuner and DVD players output Component
video natively, so if available on your devices, this should be your connection method of
choice in preference to (composite) video.

See "Connecting a Component Video source device" on page 20 for how to connect the
projector to a component video device.

Better video quality

The S-Video method provides a better quality analog video than standard composite Video.
If you have both composite Video and S-Video output terminals on your Video source
device, you should elect to use the S-Video option.

See "Connecting an S-Video source device" on page 20 for how to connect the projector to
an S-Video device.

Least video quality

Composite Video is an analog video and will result in a perfectly acceptable, but less than
optimal result from your projector, being the least video quality of the available methods
described here.

See "Connecting a composite Video source device" on page 21 for how to connect the
projector to a composite Video device.

Connecting audio

You can make use of the projector speaker in your presentations, and also connect separate
amplified speakers to the Audio Out socket of the projector. The audio output is controlled
by the projector Volume and Mute settings.

19

Connecting an HDMI device

You should use an HDMI cable when making connection between the projector and HDMI
devices.

1. Take an HDMI cable and connect one end to the HDMI output port of the video
device.

2. Connect the other end of the cable to the HDMI input port on the projector.

In the unlikely event that you connect the projector to a DVD player via the projector’s HDMI
input and the projected picture displays wrong colors, please change the color space to YUV.
See "Changing HDMI input settings" on page 27 for details.

Connecting a Component Video source device

Examine your Video source device to determine if it has a set of unused Component Video
output sockets available:

• If so, you can continue with this procedure.

• If not, you will need to reassess which method you can use to connect to the device.

1. Take a VGA (D-Sub)-Component adaptor cable and connect the end with 3 RCA type
connectors to the Component Video output sockets of the Video source device. Match
the color of the plugs to the color of the sockets; green to green, blue to blue, and red
to red.

2. Connect the other end of the VGA (D-Sub)-Component adaptor cable (with a D-Sub
type connector) to the COMPUTER IN 1 or COMPUTER IN 2 socket on the
projector.

If the selected video image is not displayed after the projector is turned on and the correct
video source has been selected, check that the Video source device is turned on and
operating correctly. Also check that the signal cables have been connected correctly.

Connecting an S-Video source device

Examine your Video source device to determine if it has an unused S-Video output socket
available:

• If so, you can continue with this procedure.

• If not, you will need to reassess which method you can use to connect to the device.

1. Take an S-Video cable and connect one end to the S-Video output socket of the Video
source device.

2. Connect the other end of the S-Video cable to the S-VIDEO socket on the projector.

If the selected video image is not displayed after the projector is turned on and the correct
video source has been selected, check that the Video source device is turned on and
operating correctly. Also check that the signal cables have been connected correctly.

If you have already made a Component Video connection between the projector and this S­Video source device using Component Video connections, you need not connect to this
device using an S-Video connection as this makes an unnecessary second connection of
poorer picture quality. See "Connecting Video source devices" on page 19 for details.

20

Connecting a composite Video source device

Examine your Video source device to determine if it has a set of unused composite Video
output sockets available:

• If so, you can continue with this procedure.

• If not, you will need to reassess which method you can use to connect to the device.

1. Take a Video cable and connect one end to the composite Video output socket of the
Video source device.

2. Connect the other end of the Video cable to the VIDEO socket on the projector.

If the selected video image is not displayed after the projector is turned on and the correct
video source has been selected, check that the Video source device is turned on and
operating correctly. Also check that the signal cables have been connected correctly.

You need only connect to this device using a composite Video connection if Component Video
and S-Video inputs are unavailable for use. See "Connecting Video source devices" on page

19 for details.

Playing sound through the projector

You can make use of the projector speaker in your presentations, and also connect separate
amplified speakers to the AUDIO OUT socket of the projector.

You can also use a microphone to output the sound through the projector speaker when the
BASIC > Audio Settings > Audio In 2 menu is set to Microphone. See "Adjusting the

Audio In 2 setting" on page 45 for details.

Once connected, the audio can be controlled by the projector On-Screen Display (OSD)
menus. See "Adjusting the sound" on page 44 for details.

About the microphone input

• If you wish to use a microphone, connect a 3.5 mini jack cable microphone to the

projector.

• You can use a wireless microphone as long as a wireless module is attached to the

projector’s microphone input jack and it works well with the associated devices. To
ensure a quality use of the wireless microphone, it is recommended that your
microphone conforms to the specifications listed in the table below.

Signal Parameter Min Ty pe Max

Transducer Principle Dynamic

Microphone

Impedance 300 1K ohm

Frequency response 600 16k Hz

• There are two ways to adjust microphone volumes.

• Directly set microphone volume levels in the BASIC > Audio Settings >

Microphone Volume menu.

• Set projector volume levels in the BASIC > Audio Settings > Audio Settings >

Audio Volume menu, or press (Volume Up)/ (Volume Down) on the
remote control. (The projector volume setting will affect the microphone volume.)

• If the microphone is not working, check the volume setting and cable connection.

• You might get feedback noise from the microphone when you are too close to the

speaker of the projector. Move the microphone away from the speaker of the projector.

21

The greater volume you require, the greater distance you need to be away from the
speaker to prevent the noise.

Using the cable management cover (optional)

This cable management cover helps you to conceal and organize the cables connected to the
back of the projector. It is especially useful when the projector is ceiling-mounted or wall­mounted.

1. Make sure that all the cables are properly
connected to the projector.

2. Attach the cable management cover to the
back of the projector.

3. Tighten the screws that secure the cable
management cover.

22

Operation

Starting up the projector

1. Plug the power cord into the projector and into a
wall socket. Turn on the wall socket switch
(where fitted).

2. (If available) Remove the lens cap.

3. Press Power to start the projector. As soon as
the lamp lights up, a "Power On Ring Tone" will
be heard. The Power indicator light stays blue
when the projector is on.

(If necessary) Rotate the focus ring to adjust the image clearness.

If the projector is still hot from previous activity, it will run the cooling fan for approximately 90
seconds before energizing the lamp.

To maintain the lamp life, once you turn the projector on, wait at least 5 minutes before turning
it off.

To turn off the ring tone, see "Turning off the Power On/Off Ring Tone" on page 45 for details.

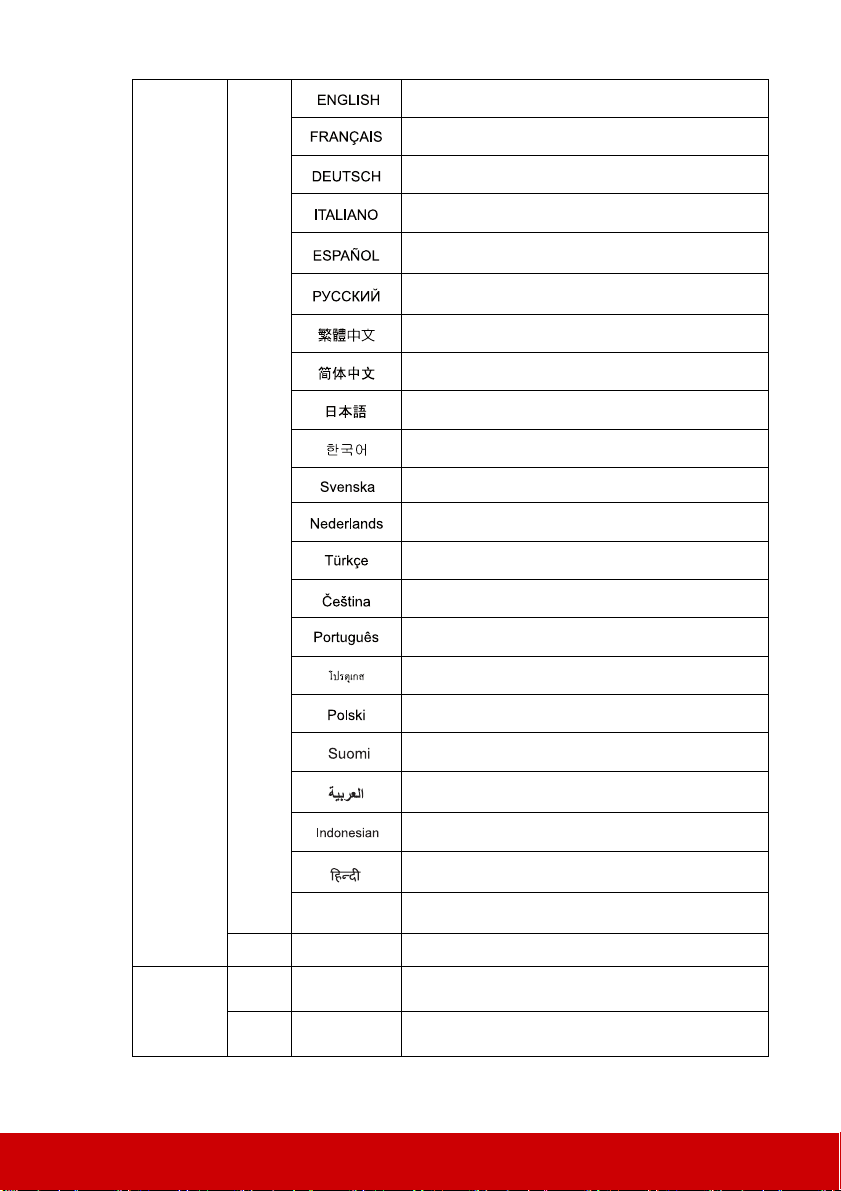

4. If the projector is activated for the first time, select your OSD language following the
on-screen instructions.

5. Switch all of the connected equipment on.

6. The projector will start to search for input signals. The current input signal being
scanned appears in the upper left corner of the screen. If the projector doesn't detect a
valid signal, the message 'No Signal' will continue to be displayed until an input
signal is found.
You can also press Source to select your desired input signal. See "Switching input

signal" on page 27 for details.

If the frequency/resolution of the input signal exceeds the projector's operating range, you will
see the message 'Out of Range' displayed on a blank screen. Please change to an input signal
which is compatible with the projector's resolution or set the input signal to a lower setting.
See "Timing chart" on page 75 for details.

23
