VOT530 PC Mini

ViewSonic

Model No. : VS12661

ViewSonic VOT530

Preface

Compliance Information

For U.S.A.

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modications not expressly approved

by the party responsible for compliance could void your authority to operate the equipment.

For Canada

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

CE Conformity for European Countries

The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC.

Following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law. If the batteries, accumulators and button cells included with this equipment, display the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury or more than, 0.002% Cadmium, or more than 0.004% Lead.

•

ViewSonic VOT530

FCC Radiation Exposure Statement

This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This wireless module device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Industry Canada Notice

This wireless module device complies with Canadian RSS-210.To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmitting antenna) that is installed outdoors is subject to licensing. The installer of this radio equipment must ensure that the antenna is located or pointed such that it

does not emit RF eld in excess of Health Canada limits for the general population;

consult Safety Code 6, obtainable from Health Canada’s web site www.hc-sc.gc. ca/rpb.

R&TTE Compliance Statement

This wireless module device complies with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following conformance standards:

ETSI EN 300 328 EN 301 489-01 EN 301 489-17

NotiedCountries:Germany, UK, Netherlands, Belgium, Sweden, Denmark, Finland, France, Italy, Spain, Austria, Ireland, Portugal, Greece, Luxembourg, Estonia, Latvia, Lithuania, Czech Republic, Slovakia, Slovenia, Hungary, Poland and Malta.

ViewSonic VOT530

iii

Important Safety Instructions

1. Read these instructions completely before using the equipment.

2. Keep these instructions in a safe place.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this equipment near water. Warning: To reduce the risk of re or

electric shock, do not expose this apparatus to rain or moisture.

6. Do not block any ventilation openings. Install the equipment in accordance with the manufacturer’s instructions.

7. Do not install near any heat sources such as radiators, heat registers, stoves, or

other devices (including ampliers) that produce heat.

8. Do not attempt to circumvent the safety provisions of the polarized or groundingtype plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade

and the third prong are provided for your safety. If the plug does not t into your

outlet, consult an electrician for replacement of the outlet.

9. Protect the power cord from being tread upon or pinched, particularly at the plug, and the point where if emerges from the equipment. Be sure that the power outlet is located near the equipment so that it is easily accessible.

10. Only use attachments/accessories specied by the manufacturer.

11. Use only with the cart, stand, tripod, bracket, or table specied by the

manufacturer, or sold with the equipment. When a cart is used, use caution when moving the cart/equipment combination to avoid injury from tipping over.

12. Unplug this equipment when it will be unused for long periods of time.

13. Refer all servicing to qualied service personnel. Service is required when the

unit has been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if the unit does not operate normally or has been dropped.

ViewSonic VOT530

Declaration of RoHS Compliance

This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance

Proposed Maximum Concentration

Actual Concentration

Lead (Pb) 0,1% < 0,1%

Mercury (Hg) 0,1% < 0,1%

Cadmium (Cd)

0,01% < 0,01%

Hexavalent Chromium (Cr6+)

0,1% < 0,1%

Polybrominated biphenyls (PBB)

0,1% < 0,1%

Polybrominated diphenyl ethers (PBDE)

0,1% < 0,1%

Certain components of products as stated above are exempted under the Annex of the RoHS Directives as noted below:

Examples of exempted components are:

1. Mercury in compact uorescent lamps not exceeding 5 mg per lamp and in other lamps not specically mentioned in the Annex of RoHS Directive.

2. Lead in glass of cathode ray tubes, electronic components, uorescent tubes,

and electronic ceramic parts (e.g. piezoelectronic devices).

3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).

4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.

ViewSonic VOT530

, Windows®, Windows NT®, and the Windows® logo are registered

trademarks of Microsoft

Corporation in the United States and other countries.

ViewSonic

, the three birds logo, OnView®, ViewMatch™, and ViewMeter® are

registered trademarks of ViewSonic

Corporation. Intel®, Pentium®, and Atom™ are registered trademarks of Intel Corporation. Award

is a registered trademark of Phoenix Technologies Ltd.

AMI

is a registered trademark of American Megatrends Inc.

Disclaimer: ViewSonic

Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specications without notice. Information in this document may change without notice. No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic

Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes available, please register your product on the Internet at: www.viewsonic. com. The ViewSonic® Wizard CD-ROM also provides an opportunity for you to print the registration form, which you may mail or fax to ViewSonic

For Your Records

Product Name:

Model Number: Document Number: Serial Number: Purchase Date:

VOT530 ViewSonic PC Mini VS12661 VOT530-1_UG_ENG Rev. 1B 08-30-10

Product disposal at end of product life

ViewSonic respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more. USA: http://www.viewsonic.com/company/green/ Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/ Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx

ViewSonic VOT530

System Overview

The PC Mini VOT530, with its compact design, is one

of the smallest Intel powered personal computers in the

world. Powered by an Intel Core Two Duo processor

it features a Microsoft Windows 7 operating system.

Connect to an LCD or large format TV to grab your

videos from the Web or from a CD. It is equipped with

optional DVD-RW and 2.5” 160GB/320GB SATA hard

disk drive, perfect for down loading movies, managing

your content or creating an entertainment hub.

Achieve connectivity with optional 802.11/g/n for

wireless ready interface with all your devices such

as smart phones, printers, PDAs, etc. The VOT530

optomizes your total entertainment experience with

precision and ease.

Chapter 1 Getting Started

Getting Started

ViewSonic VOT530

Packing Content

VOT530 PC Mini Wizard CD Recovery and

Driver Disk

Quick Start Guide

90W DC 20V

Power Adapter

Power cord Antenna

Getting Started

ViewSonic VOT530

Application Scenarios

Living Room Scenario

You can connect the system in your living room

to an HDTV, speakers, DVD/VCD players, DSL

(cable) modem, or other peripheral devices to

build a digital home center.

HomeOfceScenario

You can place your system together with an LCD

video display, speakers, printer/scanner/fax, DSL

(cable) modem, or other peripheral devices in your

study.

Professional Scenario

You can connect the system in a business

conference room to a projector in order to make

presentations.

Mobile Scenario

Because the system comes in very compact size,

you can carry it from your home to the ofce, or

to a business meeting conveniently in a carrying

case.

Getting Started

ViewSonic VOT530

The Front View

The power button is located in the center of the front panel. The optional optical disc

drive is also located near the top of the front panel. You can place a DVD or CD

optical disc into the opening near the top of the front cover. The disc eject button is

located to the left of the front panel when you face the front of the system. 2 USB

ports are also located on the left hand side of the power button, and both of power

indicator and HDD indicator will locate on the right hand side. The front view of the

system is illustrated below:

Note: Please push the center power button to boot up the VOT530.

CD/DVD Eject Button Use to eject ODD disk.

Optical Disc Drive Super Multi Drive.

USB 2.0 Port Connects USB devices such as a mouse, keyboard, printer, scanner,

and other peripherals.

Power Button Press to power on/off the PC Mini.

IR indicator When the IR indicator blinks it means the remote is working.

HDD indicator When the HDD indicator blinks it means the HDD is working.

Power indicator The power LED turns blue when the system is turned on.

CD/DVD Eject Button

Power Button

Optical Disc Drive

IR indicator HDD indicator Power indicator

USB 2.0 Port

5 6

Getting Started

ViewSonic VOT530

The Rear View

You can  nd the connectors for the power source, DVI, network, USB 2.0, eSATA,

Line in (S/PDIF out), Line out, and MIC as illustrated below.

S/PDIF cable connector

To connect to the back panel of your machine correctly,

please refer to the diagram as shown below:

DVI

e-S

ATA

DVI

e-S ATA

e-S

Getting Started

ViewSonic VOT530

DVI

e-SATA

Internet

LCD Monitor HDMI TV

DVI to HDMI Adapter

Wireless 802.11 Antenna

S/PDIF out

Line out

Microphone (MIC)

eSATA Port

ADSL (Cable) Modem

USB 2.0 Port Expander (USB HUB)

PDA Card reader/Flash memory Webcam Joystick Mouse/Keyboard

Fax/Scanner/Printer

Bluetooth Dongo

Wireless Lan Card

USB TV Tuner Box

USB HDD

Wall Outlet

Security lock

Kensington Use this to securely lock the PC Mini.

LCD Monitor Connect to LCD Monitor.

DVI Port Use to connect to a display with DVI port, or HDMI with DVI to

HDMI converter.

Antenna Connector Use for connecting the WiFi wireless antenna.

S/PDIF out Jack Connect optical 5.1 digitial signal out to decode.

Line-out jack Output the audio signal to an external audio device.

Microphone Jack Use for chatting and other interactive applications.

e-SATA Port Use to connect to a e-SATA device, such external HDD with eSATA cable.

USB 2.0 Port Connects USB devices such as a mouse, keyboard, printer, scanner, and other

peripherals.

RJ45 LAN Jack Connects to a local area network (LAN) using a network cable.

DC Jack

Use to connect the power adapter.

Rear panel I/O port Indicator

ViewSonic VOT530

This chapter will guide you in installing necessary and additional components to maximimize the system performance of your PC Mini. The following topics are covered:

Connecting Power Source

Connecting to Video Display

Connecting the LCD or CRT Monitor

Connecting to HDTV Set

Connecting to Projector

Connecting to Keyboard and Mouse

Connecting to USB Hub

Connecting to Fax/Printer/Scanner

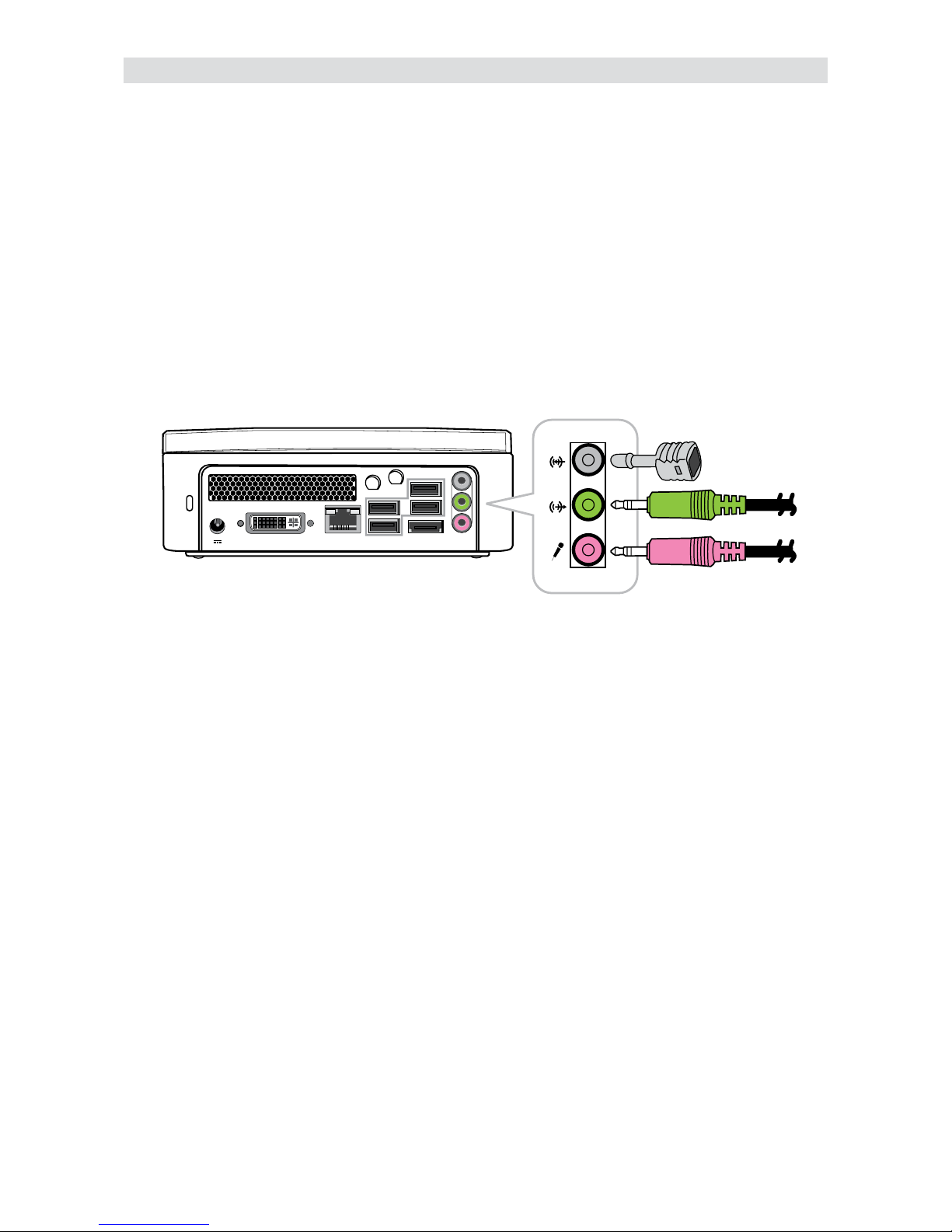

Connecting to Speaker

Connecting to the Internet and Network

Connecting to Webcam

Connecting to Memory Sticks, Card Readers, Memory Cards

•

Chapter 2 Connecting Your System

Connecting Your System

ViewSonic VOT530

Connecting the Power Source

The system comes with a power cable and adapter. Plug the output of the power

adapter to the power connector on the back panel of the system unit. Then, connect

the power plug to the wall outlet. Once the system is connected to the power source,

the power indicator in the middle of the front panel will light up. You should press the

power button on the front panel to start the system.

Connecting Your System

ViewSonic VOT530

Connecting to Video Display

You can connect the system to many types of video display devices, including

projector, LCD or LCD TVs.

Connecting to a LCD

You can connect the system to an LCD monitor. The video signal connector from the LCD monitor connects to the DVI connector through a DVI cable. If you want to connect the system to VGA input monitor, you have to use a DVI to VGA converter.

The VOT530 has 3 options to connect to a LCD monitor.

• DVI cable directly connect to DVI input (LCD monitor)

• DVI jack add DVI-to-HDMI adapter/ cable to HDMI input (LCD monitor)

• DVI jack add DVI-to VGA adapter/ cable to VGA input (LCD monitor)

LCD

Monitor

or or

VGA Cable

HDMI Cable

DVI Cable

Connecting Your System

ViewSonic VOT530

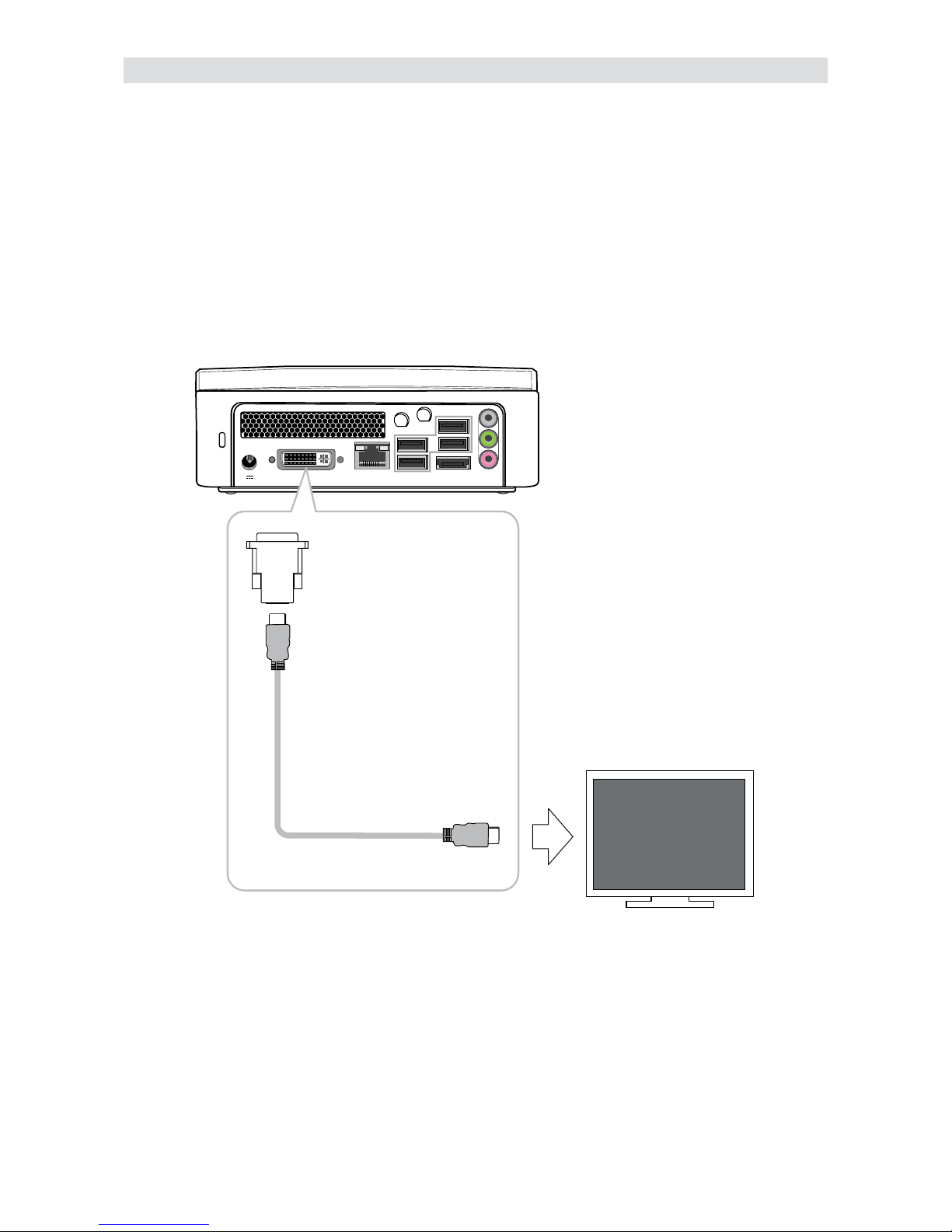

Connecting to a HDTV

You can connect the PC Mini to a HDTV with HDMI connections. You will need to use

the DVI to HDMI adapter along with your HDMI cable.

VOT530 to HDTV:

• Add the DVI-to-HDMI adapter to the DVI jack and then connect the HDMI cable

to the HDTV.

HDTV

HDMI Cable

Connecting Your System

ViewSonic VOT530

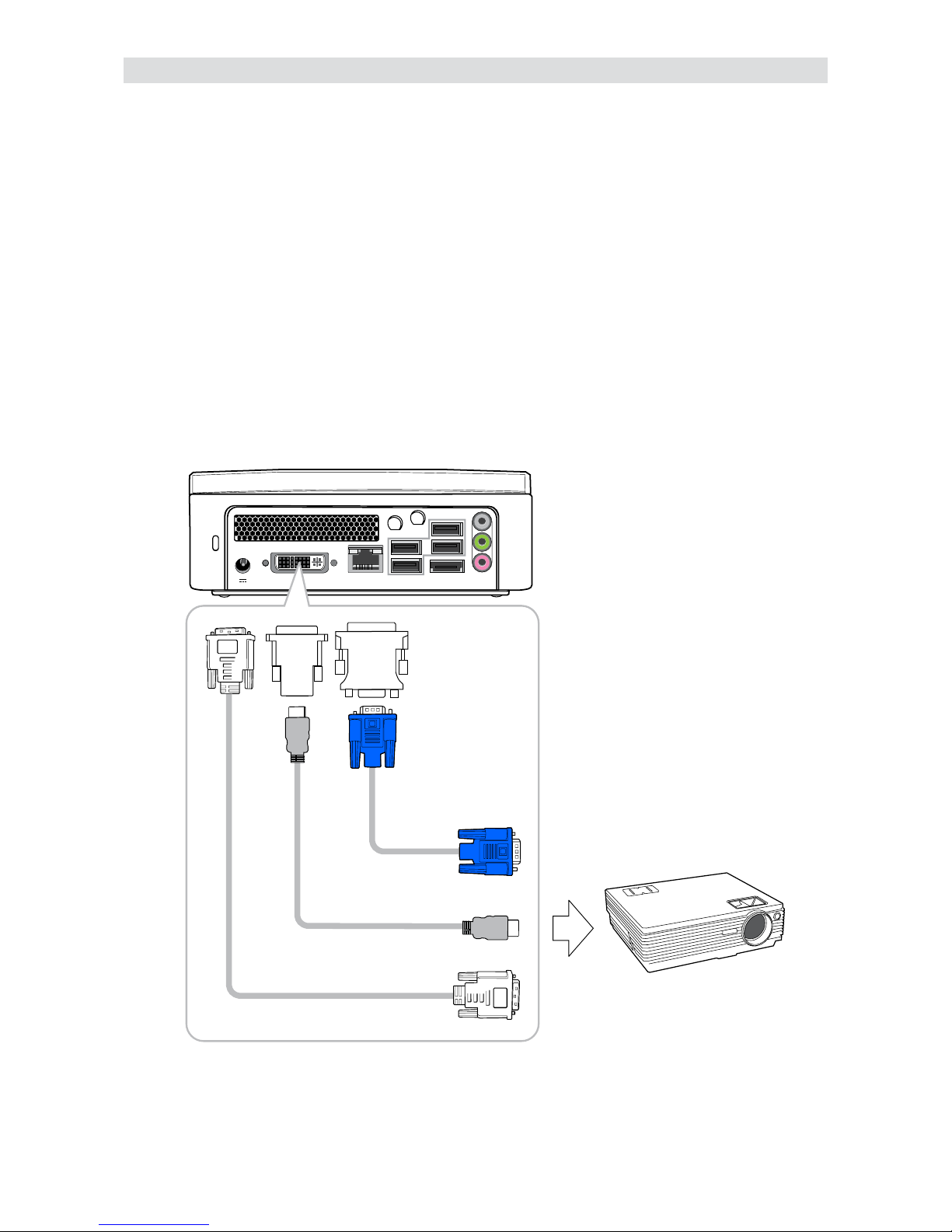

Connecting to a Projector

More and more people have the need to connect a PC to a projector in order to make

presentations. The system is designed with the connector for outputting content to a

projector using the DVI to VGA adapter.

VOT530 to Projector:

• DVI to DVI: Direct cable connection

• DVI to HDMI: Use the DVI to HDMI Adapter

• DVI to VGA: Use the DVI to VGA adapter

or or

VGA Cable

HDMI Cable

DVI Cable

Connecting Your System

ViewSonic VOT530

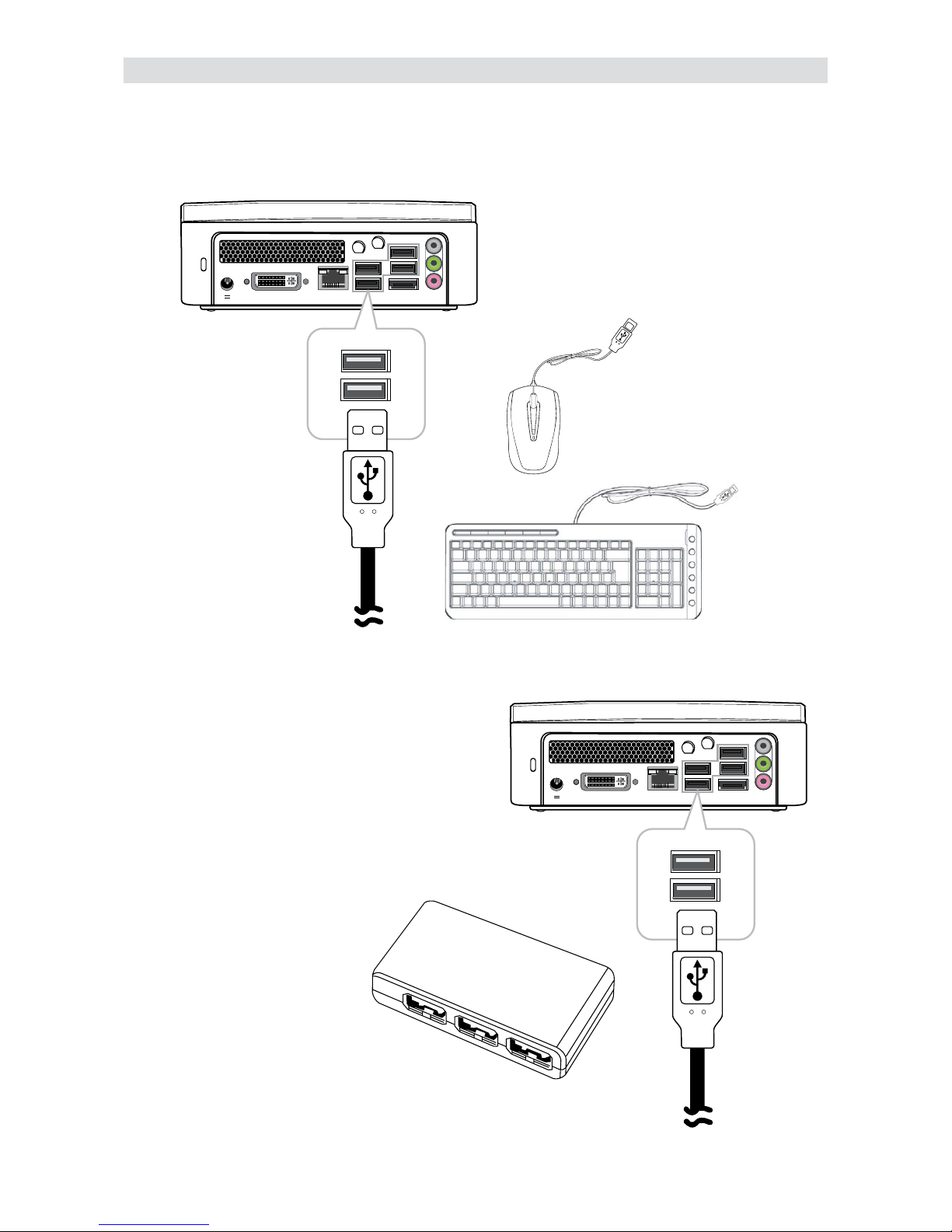

Connecting to Keyboard and Mouse

You can connect the keyboard and mouse to the USB connectors.

Connecting to a USB Hub

The system is designed to connect a USB

hub which allows a user to install multiple

USB devices to the system by simply

connecting the USB connector to the

system.

Connecting Your System

ViewSonic VOT530

Connecting to a Multi Function Printer (Fax/Printer/

Scanner)

Currently, many manufacturers build the functions of printer, scanner, and fax into

one unit. You can connect the system to a multi function unit thru an USB connector.

Connecting to External Speakers

Use the S/PDIF or earphone jack as indicated in the illustration.

Connecting Your System

ViewSonic VOT530

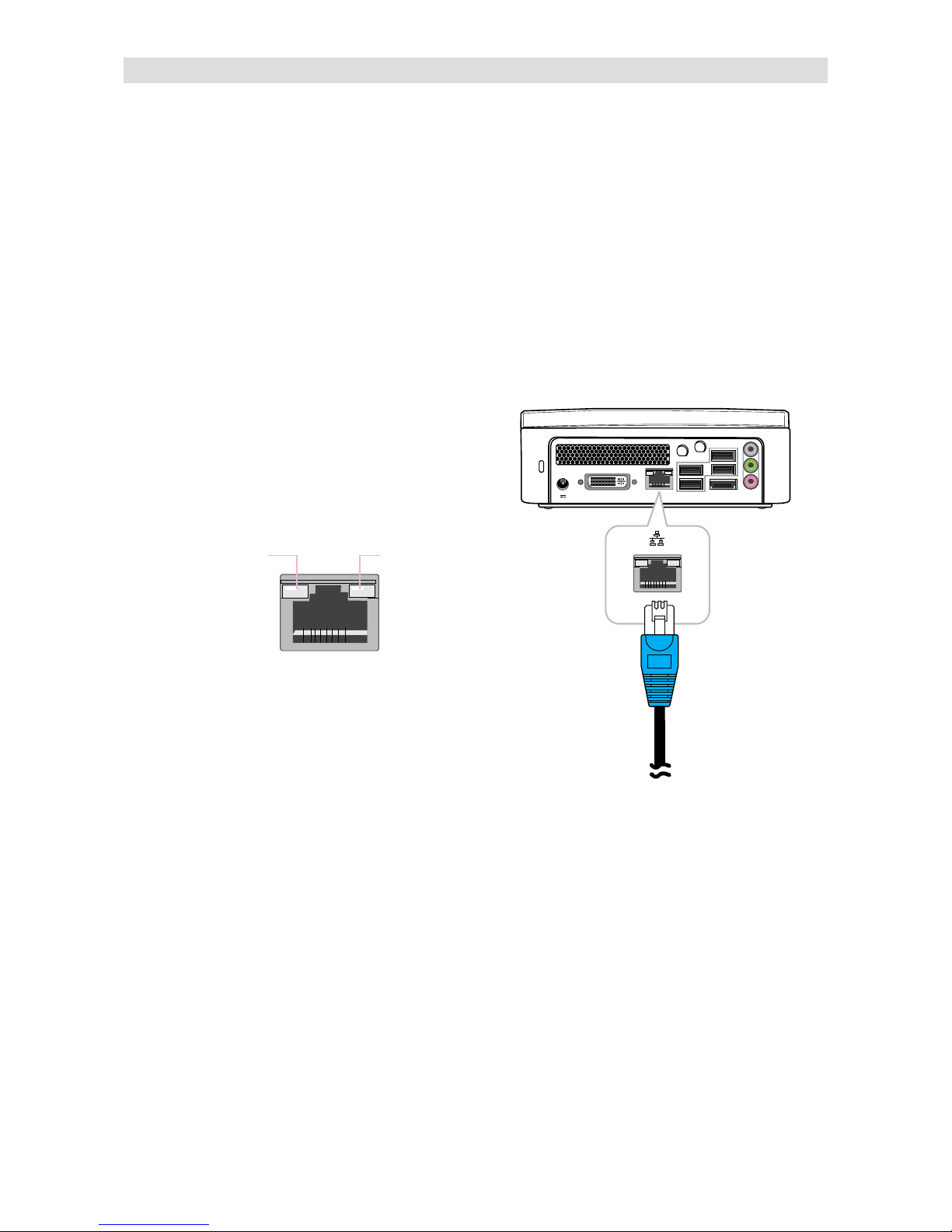

Connecting to the Internet and Network

Your system is built with a network connector on the back panel as illustrated in

Chapter 1. The connector allows you to connect your system to the Internet through a

DSL (or ADSL), cable modem, or to an Ethernet network.

If you want to connect to the Internet through DSL (or ADSL) modem, you should

contact your local network service provider for service. DSL provides faster data

transmission speed rather than conventional telephone lines. Your local network

service provider will help you install and set up the DSL (or ADSL) modem.

Link LEDActivity LED

To ensure proper connection, check the LAN

jack’s LED status indicators.

You can also access the internet thru a cable modem. Your local cable provider will

help you install and set up the cable modem.

The same connector allows you to connect the system to an Ethernet LAN (local area

network).

You can also connect the system to a standard modem for accessing the internet.

Contact your local service provider for more information.

Connecting Your System

ViewSonic VOT530

Connecting to a Webcam

More and more people are using instant messaging software or free international

Internet phone calls to communicate over the Internet with friends. The effects can

be enriched by installing a webcam to the system. The webcam installation guide

will provide the information on how to install it onto your system. After you have

connected the webcam, installed the software driver for the webcam, and set up

your instant messaging account properly, you will be able to see the person who is

chatting with you through the Internet.

Connecting to Memory Sticks, Card Readers and Memory Cards

There are a wide variety of memory devices which can be used for copying les from

one PC to another. These include memory sticks (ash memory), smart memory,

memory cards, portable hard disk drives, etc. Most of these devices can connect to

the USB ports on the VOT530. Flash memory cards have become one of the most

convenient and popular methods of media storage for digital cameras, MP3 players,

PDAs, and mobile phones.

Once you insert a memory device to your system, a notication will appear at the

lower right corner of your screen telling you the system has detected new hardware

in your system. The notication will also show the icon which is associated with the

hardware device.

To copy les from a memory stick to your system, simply plug the memory stick into

one of the USB ports on the rear panel of your system or USB hub.

Notes:

1. To prevent damaging your memory stick inadvertently, you are suggested to

“uninstall” the memory stick by clicking on the “safely remove hardware” icon at

the lower right corner of the Windows task bar.

2. Never remove the memory stick while your system is formatting, reading or writing

data to the device.

3. Never turn off the power abruptly while your system is formatting, reading or writing

data to the device.

4. Read the operating instructions which come with your memory device carefully

before using it.

Connecting Your System

ViewSonic VOT530

Once you insert a memory device to your system, a balloon will appear at the lower

right corner of your screen, telling you that the system has detected that a new

hardware was installed to the system. The balloon will also show the icon which is

associated with the hardware device (memory). You should click that icon after you

have nished copying les to or from the memory device.

After detection of the new memory device, the Windows operating system will prompt

you to install the software driver for that device. Simply follow the instructions to

complete the installation process. After the software driver has been installed, you

can copy les from the system hard disk drive to the memory device, or from the

memory device to the system hard disk drive.

ViewSonic VOT530

How to operate the DVD Super Multi Drive.

Chapter 3 Optical Disk Drive

ODD Operating

ViewSonic VOT530

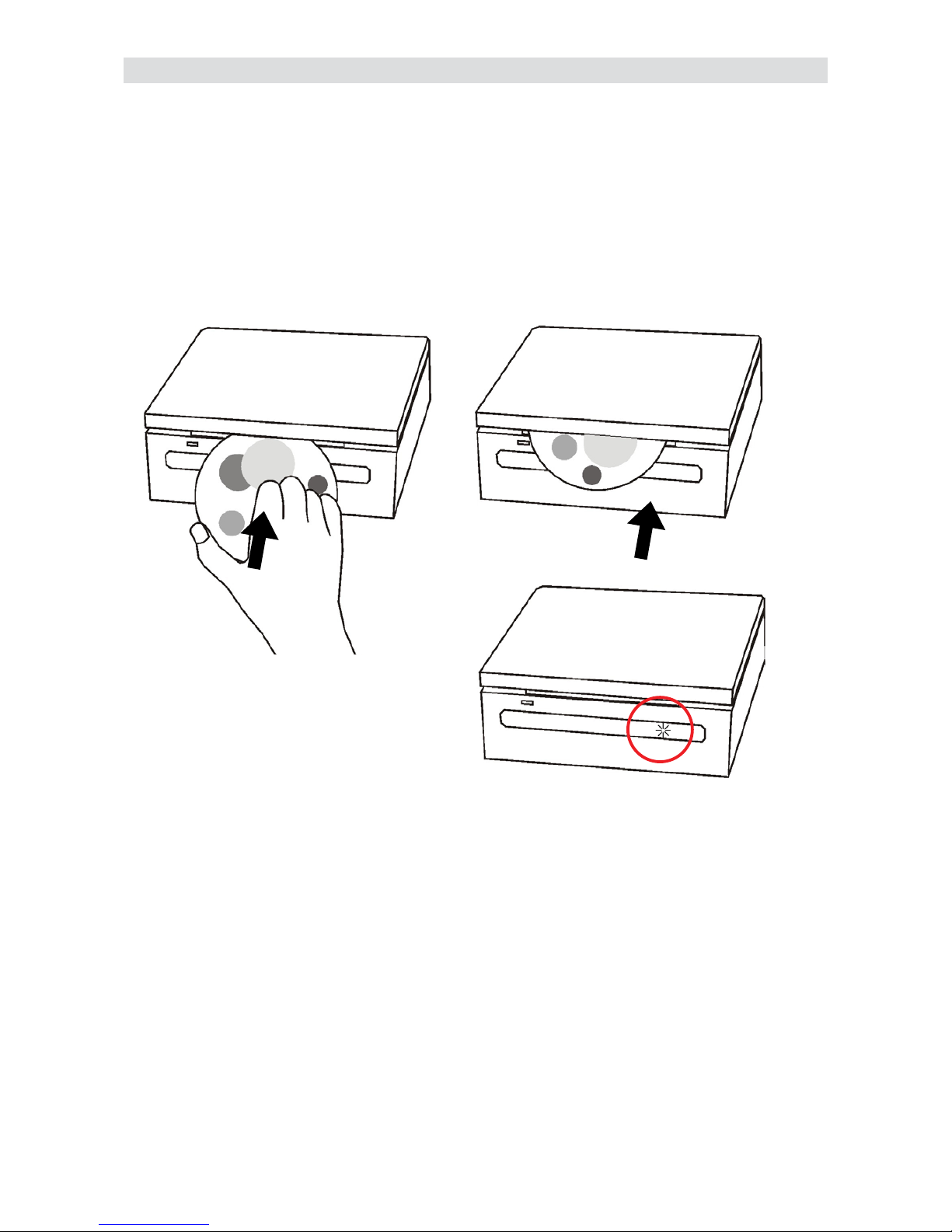

Inserting a Disc in the ODD

1. With the label side facing up, place the disc in the center of the ODD slot.

2. Gently push the disc back into the disk slot.

3. The optical disc driver indicator LED will turn on and the computer will start to read

the disc you just inserted.

Reading a Disc

1. Follow the steps in the “Inserting a disc” section.

2. When prompted, choose the desired program to play or read the disc you just

inserted.

Note: If no windows appears on the desktop, click “Start”, select “Programs”, and

then select the desired software to play the inserted disc. For more instructions

about the selected software, please see its manual or online help.

ODD Operating

ViewSonic VOT530

Writing to a Disc

Ensure that the discs you create do not violate copyright laws.

1. Follow the steps in the “Inserting a disc” section.

2. When prompted, choose the desired program to record les to the inserted

rrewritable (RW) disc.

3. Follow the on screen instructions to complete the copying process.

Note: If no windows appears on the desktop, click “Start”, select “Programs”,

and then select the desired software to write to the inserted disc. For more

instructions about the selected software, please see its manual or online help.

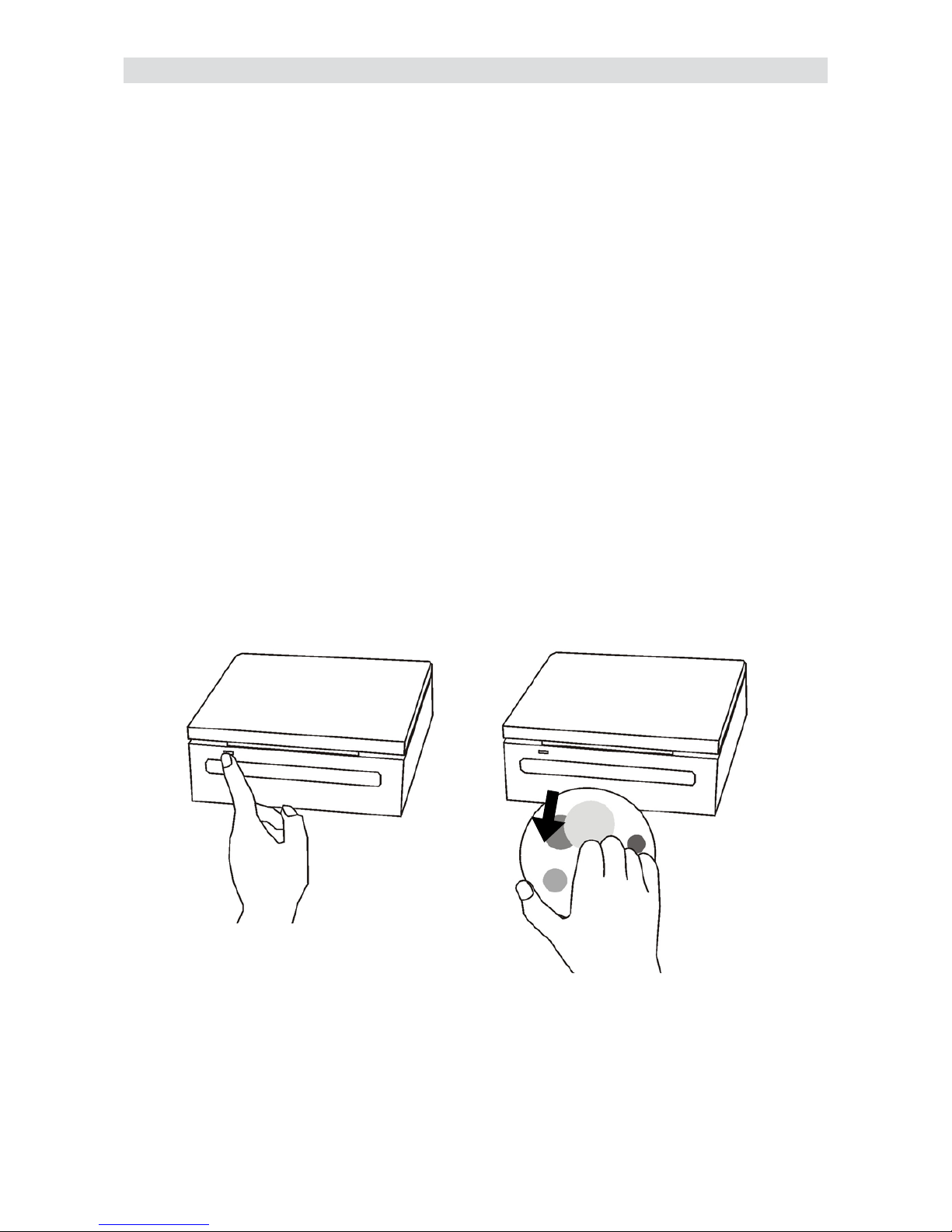

Removing a disc

1. Ensure the optical disc driver indicator is off.

2. Press the Eject button on front panel.

3. Remove the disc.

Note: Alternatively, you may double-click My Computer, right-click the disc drive icon,

and then select “Eject” from the menu.

ViewSonic VOT530

Your PC Min bundle system recovery disc enables users to restore the system to its default settings. This function is useful in the event of a system failure or if you forget the system passwords.

This chapter covers the following topics:

• When to use the System Recovery Disc

• Running System Recovery Manager

Chapter 4 System Recovery

System Recovery

ViewSonic VOT530

When to use the System Recovery Disc

You need to run system recovery:

• In the event of a system or hardware failure.

• You need to restore the system back to its default factory settings

• You forgot the system password.

System recovery will format the hard disk and restore the system to its default

settings.

Note: All les and other data on drive C: will be deleted.

Running System Recovery Manager

Your PC mini uses Acronis Recovery Manager for system recovery functions. Insert

the System Recovery disc into slot-in ODD to run System Recovery Manager.

Follow the step as below:

1. Turn on the PC mini. The system will boot up and the vendor logo will appear.

2. When the screen displays shows “Starting Acronis Loader...”, press the F11 button

on the keyboard.

System Recovery

ViewSonic VOT530

3. Now you will see a window as picture, choice Restore button to continue.

4. System will ask you to conrmation, restoring your computer to the original state

will remove all les that were created on your computer. Do you want to proceed with

restoring? Press “Yes” button to continue.

5. Waiting for the install progress, the system will restore operation completed

successfully. Start using your PC mini.

Note: If Windows operating system starts up before you press F11 and you still wish

to run System Recovery.

Restart the PC mini then follow the same procedures above.

ViewSonic VOT530

BIOS Setup Utility is a program for configuring the BIOS (Basic Input/Output System) settings of the computer.

BIOS is a layer of software called firmware that translates instructions from other layers of software into instructions so that the computer hardware devices can understand them. The BIOS settings are needed by your computer to identify the types of installed devices and establish special features.

This chapter tells you how to use the BIOS Setup Utility.

Chapter 5 Setting the BIOS

Setting BIOS

ViewSonic VOT530

Setting the BIOS

Not long after activating the power, you will see the following screen.

Please press “Delete” button to get into BIOS screen.

If you would like to see the POST screen, you may just press “Tab” button.

Setting BIOS

ViewSonic VOT530

After pressing “Delete” button, you will see the following BIOS setup menu:

How to Use Phoenix-Award BIOS Setup Program

Generally, you can use arrow keys to highlight the options that you want to choose,

press <Enter> key to select, and use <Page Up> and <Page Down> keys to

change setting values. You can press <Esc> key to quit the BIOS setup program.

The following table provides details about how to use keyboard while changing the

settings in the BIOS.

Key Description

Page Up or + Change setting to next value or increase the value.

Page Down or - Change setting to previous value or decrease value.

Enter Select the item.

Esc In main menu: Quit without saving any changes.

In sub menu: Exit current menu to main menu.

Up Arrow Highlight previous item.

Down Arrow Highlight next item.

Left Arrow Move the highlight to left side of menu.

Right Arrow Move the highlight to right side of menu.

F6 Load Setup Default setting value from CMOS.

F7 Load turbo setting value from CMOS.

F10 Save changed settings and exit setup program.

Note: Because BIOS code has been updated from time to time to meet the latest

customers requirements the BIOS information contained in this manual may

look slightly different from the BIOS messages, which comes with your system.

Setting BIOS

ViewSonic VOT530

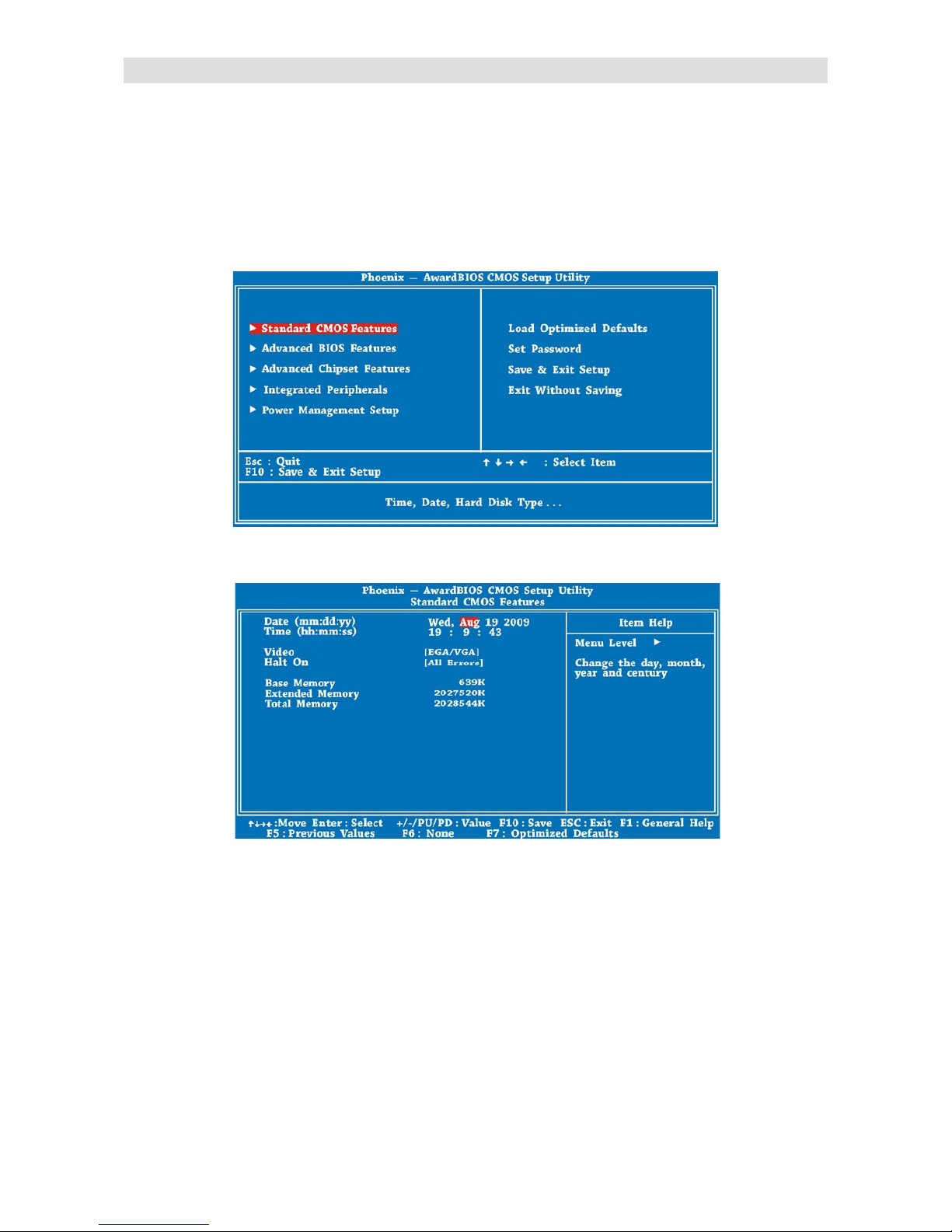

Standard CMOS Features

The “Standard CMOS Setup” sets the basic system parameters such as the date,

time, and the hard disk type. Use the arrow keys to highlight an item and <PgUp> or

<PgDn> to make your selection.

Standard CMOS Features > Date

To set the date, highlight the Date parameter. Press <PgUp> or <PgDn> to set the

current date. The date format is month, date, and year.

Setting BIOS

ViewSonic VOT530

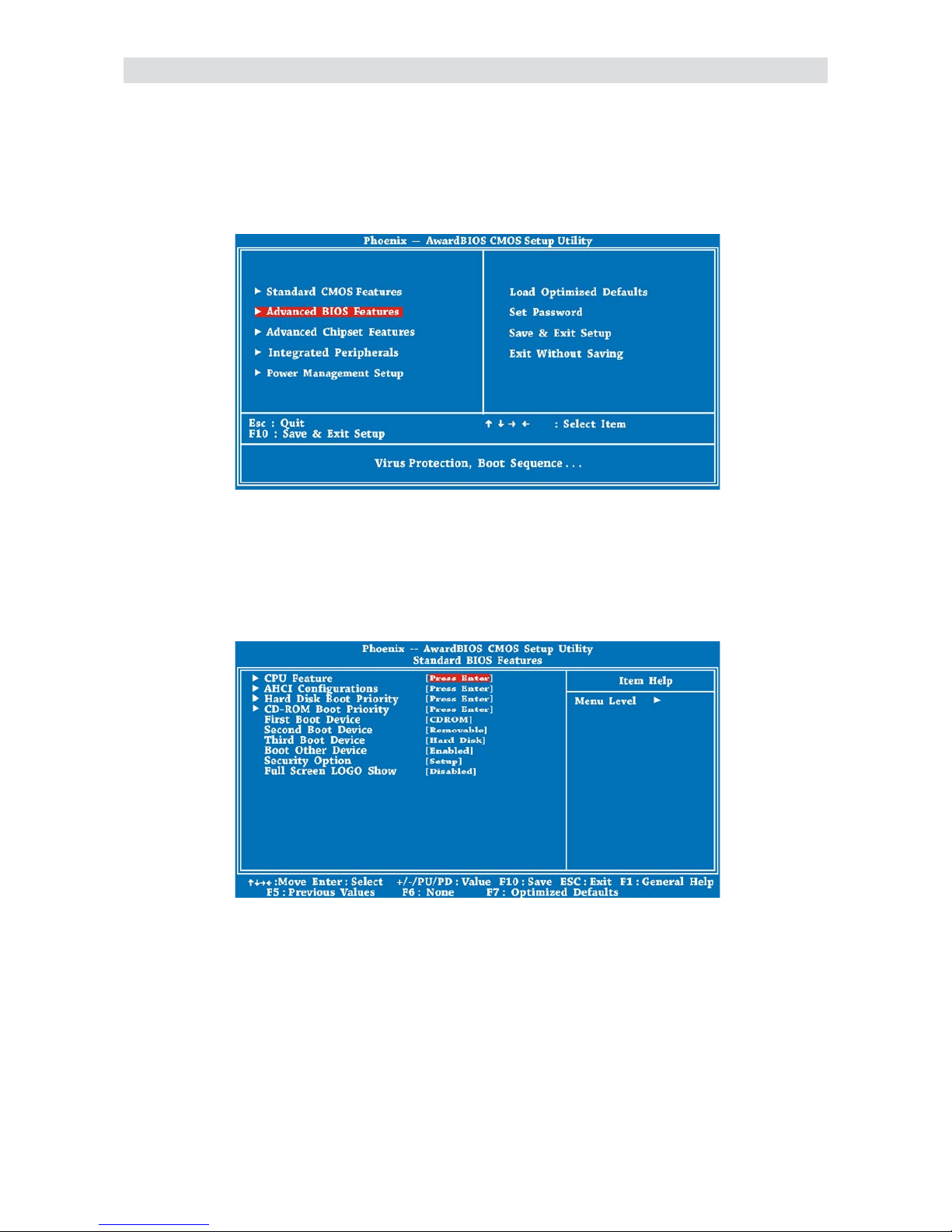

Advanced BIOS Features

From the rst BIOS setup page illustrated below, you can select “Advanced BIOS

Features” from the BIOS main menu.

The following screen appears when you select the option “Advanced BIOS Features”

from the main menu.

Setting BIOS

ViewSonic VOT530

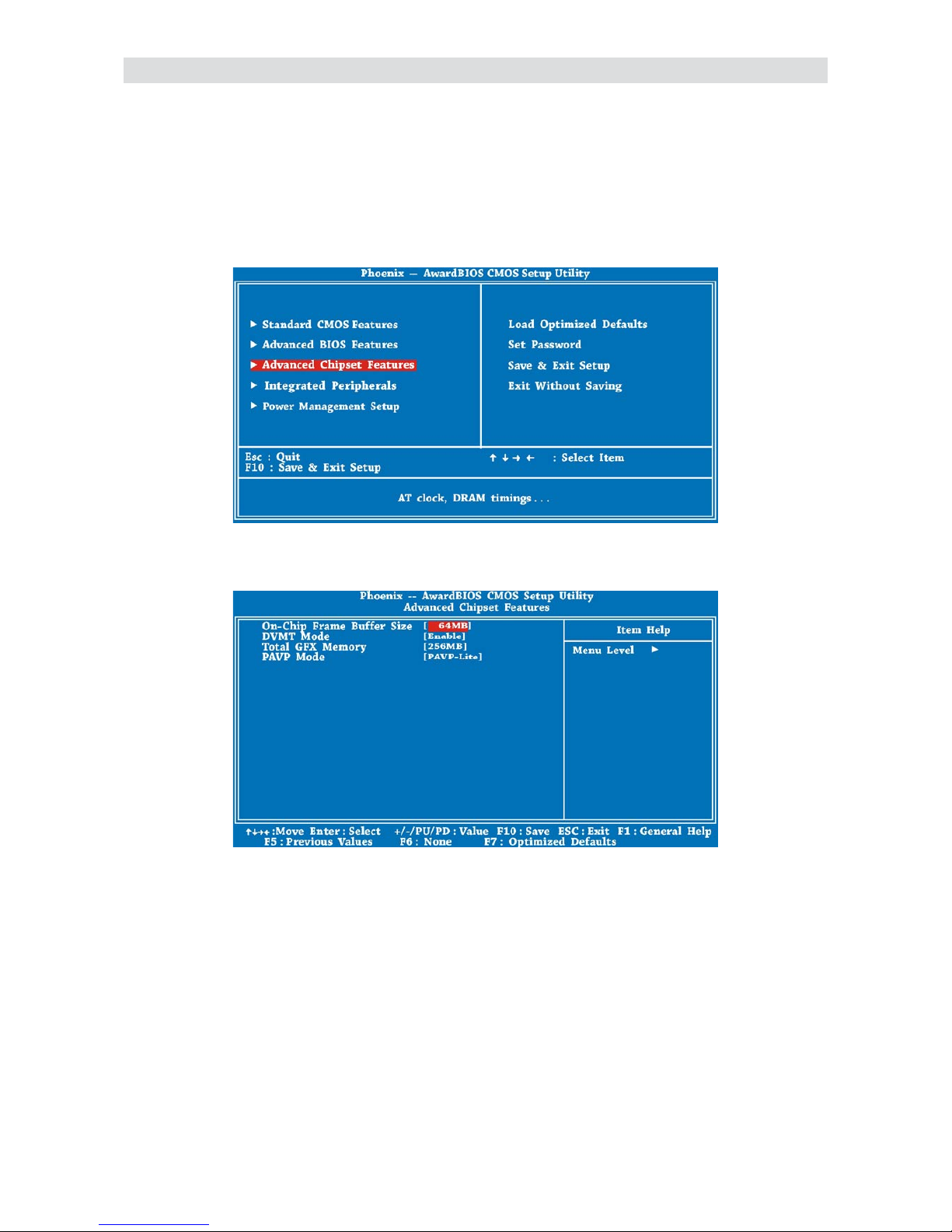

Advanced Chipset Features

The “Advanced Chipset Features” includes settings for the chipset dependent features.

These features are related to system performance. You can select “Advanced

Chipset Features” on the rst page of the BIOS setup program.

Warning:

Make sure you fully understand the items contained in this menu before you try

to change anything. You may change the parameter settings to improve system

performance. However, it may cause your system to be unstable if the setting is not

correct for your system conguration.

Setting BIOS

ViewSonic VOT530

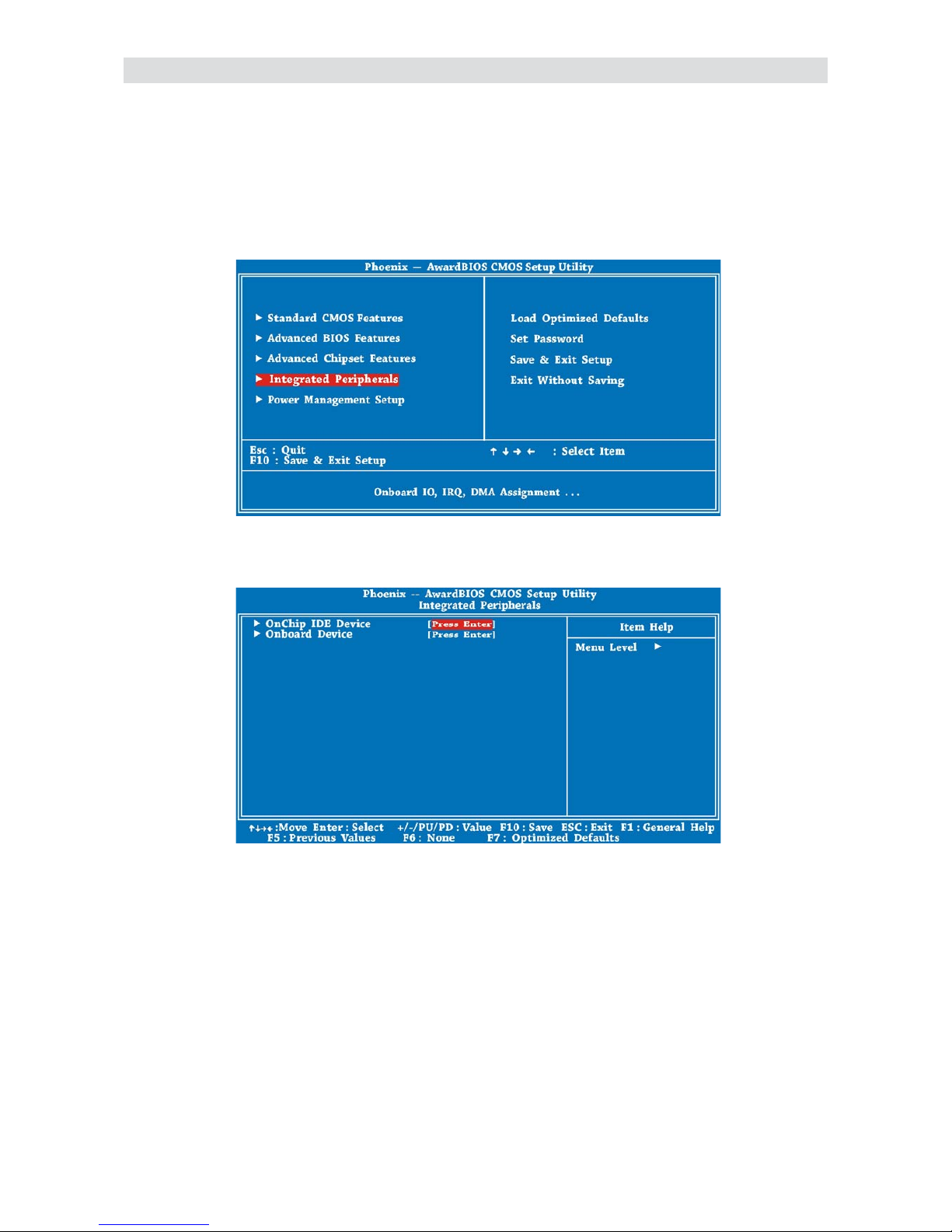

Integrated Peripherals Features

The “Integrated Peripherals Features” includes settings for the OnChip IDE Device

and Onboard Device. You can select “Integrated Peripherals” on the rst page of the

BIOS setup program.

Setting BIOS

ViewSonic VOT530

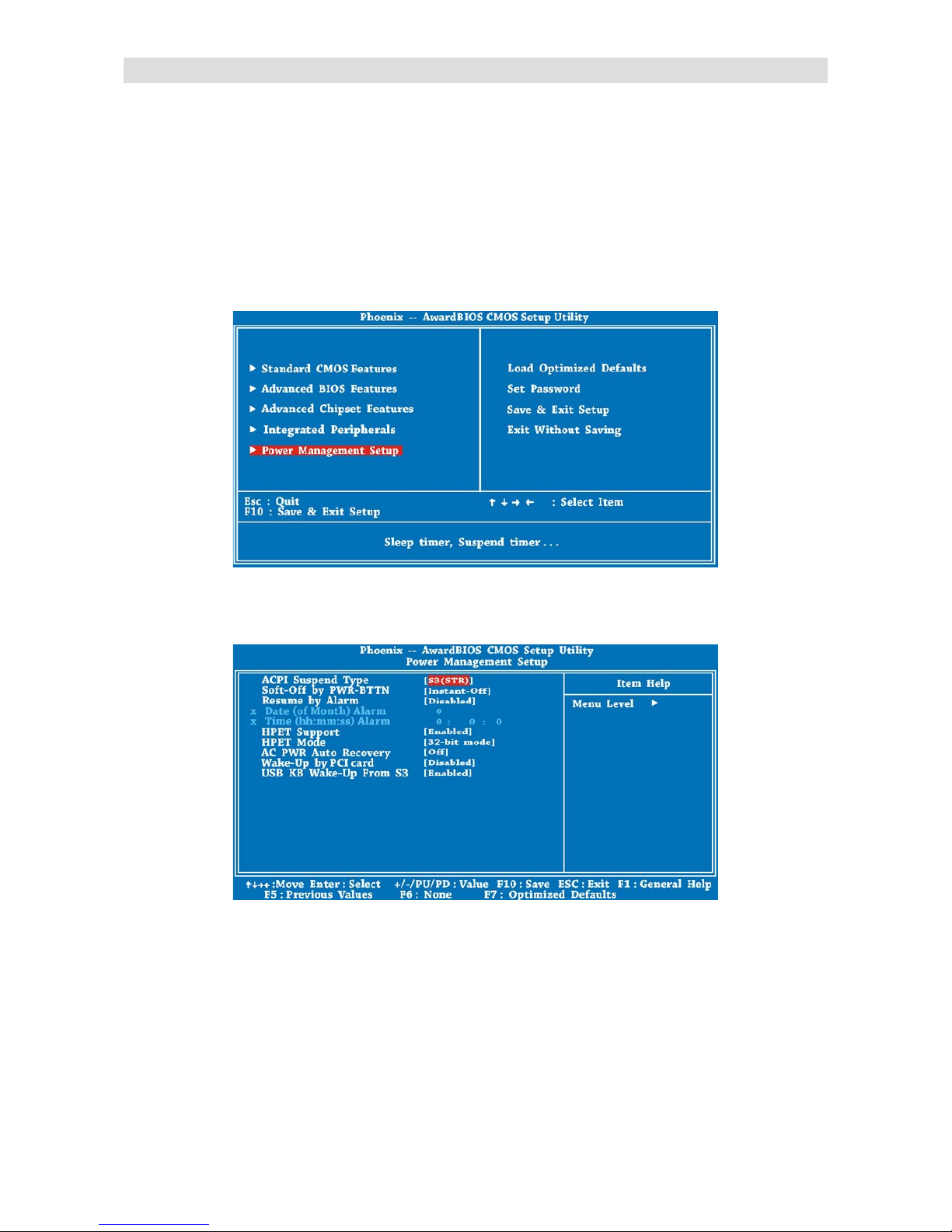

Power Management Setup

The Power Management Setup screen enables you to control the motherboard green

features. See the following screen. You can select “Power Management Setup” on

the rst page of the BIOS setup program.

Setting BIOS

ViewSonic VOT530

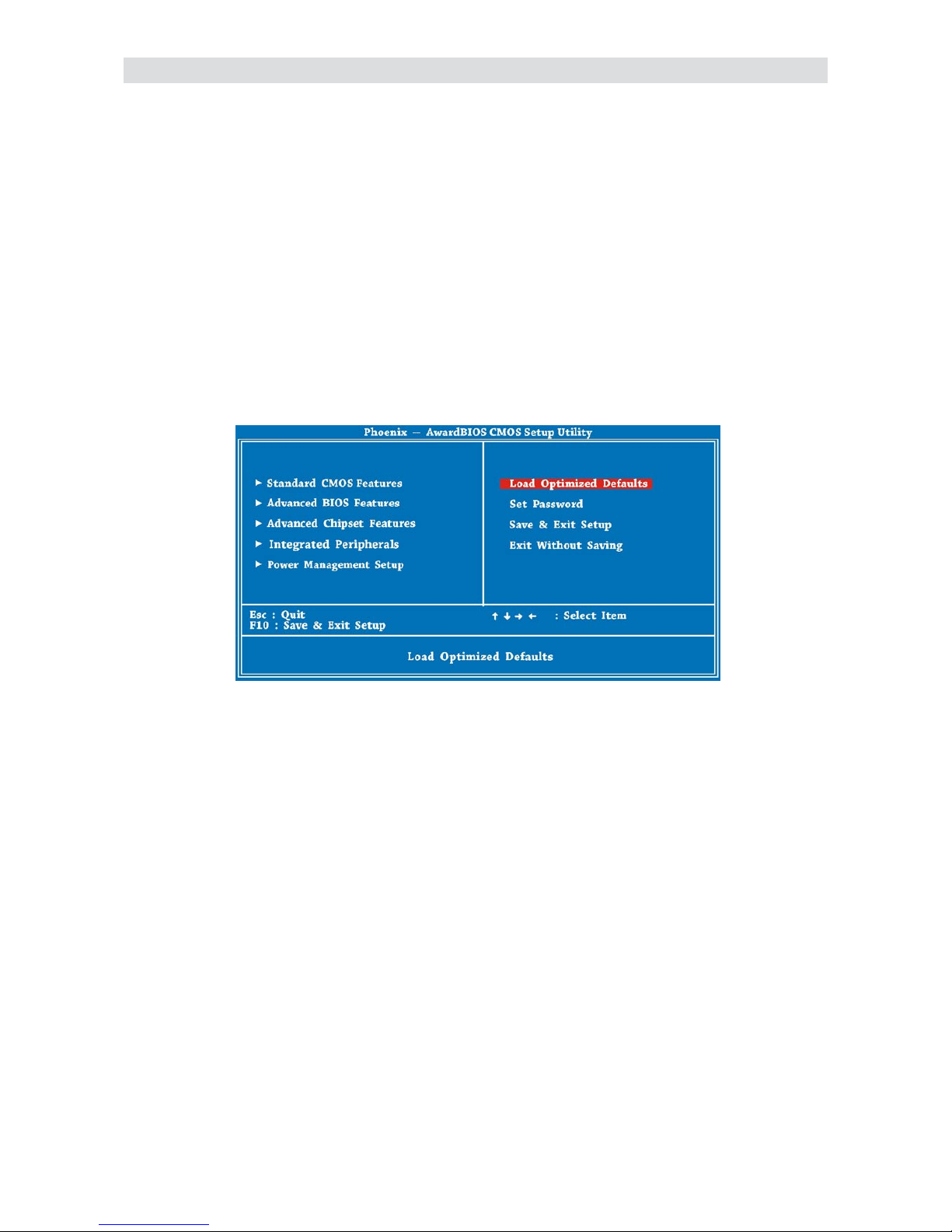

Now you can move the cursor by using direction keys on the keyboard. Move the

cursor to the option item“Load Optimized Defaults”and press“Enter” button.

Load Setup Defaults

The “Load Setup Defaults” option loads optimized settings for optimum system

performance. Optimal settings are relatively safer than the Turbo settings. All the

product verication, compatibility/reliability test report and manufacture quality control

are based on “Load Setup Defaults”. We recommend using these settings for normal

operation. “Load Setup Defaults” is not the slowest setting for this motherboard. If

you need to verify an unstable problem, you may manually set the parameter in the

“Advanced BIOS Features” and “Advanced Chipset Features” to get slowest and

safer setting.

Setting BIOS

ViewSonic VOT530

Then the following dialogue screen will pop up to conrm the default BIOS values.

Please press “Y” to conrm and then press “Enter” button.

Setting a Password

Password prevents unauthorized use of your computer. If you set a password, the

system prompts for the correct password before boot or access to Setup.

To set a password:

1. At the prompt, type your password. Your password can be up to 8 alphanumeric

characters. When you type the characters, they appear as asterisks on the

password screen box.

2. After typing the password, press.

3. At the next prompt, re-type your password and press again to conrm the new

password. After the password entry, the screen automatically reverts to the main

screen. To disable the password, press “Enter” when being prompted to enter the

password. The screen displays a message conrming that the password has been

disabled.

Setting BIOS

ViewSonic VOT530

Save & Exit Setup

Finally, move the cursor to“Save & Exit Setup”and press “Enter” to save the

parameter and exit BIOS setup. This function automatically saves all CMOS values

before leaving Setup.

Setting BIOS

ViewSonic VOT530

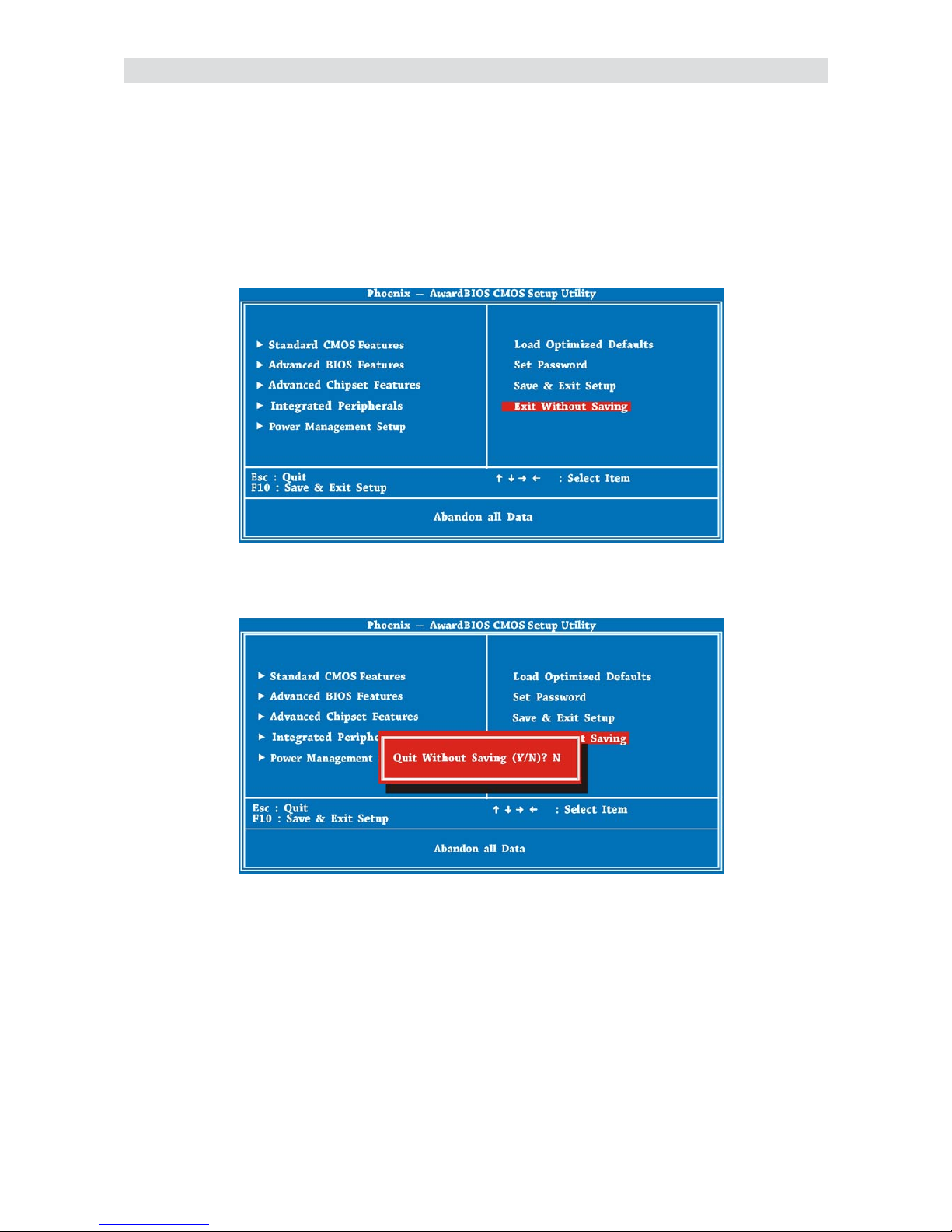

Exit without Saving

Use this function to exit Setup without saving the CMOS value changes. Do not use

this option if you want to save the new conguration. At the same time, type “Y” in the

dialogue box and press “Enter” to exit.

ViewSonic VOT530

This chapter lists some common problems that

you may encounter when using your PC Mini and describes solutions on how to solve

them.

This chapter covers the following topics:

• Troubleshooting

• Specifications

Chapter 6 Troubleshooting

Troubleshooting

ViewSonic VOT530

Troubleshooting

Q: After connecting peripherals to the PC Mini, the keyboard, mouse and speakers

do not work and the display does not show any content.

A: Check to make sure you followed the correct installation procedures and

connections. Check to see if the peripherals are connected correctly and they are

not loose. After checking connections, power up the system again to see if the

system works as expected.

If the speakers or video monitor still does not continue to function, refer to the

manuals that came with those devices for further troubleshooting.

Q: After making sure the monitor is connected correctly to the system, the monitor

still shows nothing. What should I do?

A: The computer’s power management function may blank the screen to save power,

move the mouse slightly or press any key on the keyboard to turn the display

back on. You can also adjust the brightness or contrast controls on the monitor for

desired display effects.

Q: The cursor moves unsteadily across the screen. What should I do?

A: If you are using an optical mouse it may not perform correctly on a glossy surface.

Put the mouse on a non-reective surface.

Q: The system hangs or does not respond to any key strokes.

A: When the system is processing multiple tasks the system may hang up. Press

CTRL + ALT + DEL to bring up the Task Manager Menu. This will allow you to

cancel an application or do a warm reset of the system. If this happens multiple

times you may have to reinstall that application.

Troubleshooting

ViewSonic VOT530

Q: I have followed the installation processes mentioned in this manual, the system

still does not work.

A: Consult your dealer or authorized maintenance service personnel. Do not try to x

the system by yourself for it may cause additional damage to your system.

Q: There is no sound.

A: 1. Check if the speaker is correctly connected to SPK jack, and make sure the

speaker is also powered on.

2. Make sure the master volume control is not on mute.

3. Make sure you have the latest sound driver installed.

Q: The Microphone does not work or record.

A: 1. Verify if the microphone is correctly connected to MIC jack of sound card.

2. Inspect that the volume control of “Mic” hasn`t been muted.

3. Make sure that the “Recording” setting under “Properties” of “Volume control”

was correctly selected.

Q: Our Television does not have HDMI port but it does have DVI, can I use it on my

ViewSonic VOT series?

A: Yes, but you will also have to use audio cables connected since DVI to DVI only

transmits a video signal.

Q: How do I download a specic driver for my ViewSonic products?

A: Make sure you know the exact model of your ViewSonic products. Go to our main

home page and click on the Download tab under support. Click on the specic

model of ViewSonic product you have for the latest drivers.

Troubleshooting

ViewSonic VOT530

Q: Can ViewSonic VOT series support SO-DIMM DDR3 memory?

A: No, this model will only support SO-DIMM DDRII

Q: Can ViewSonic VOT series model support DDR2-533 memory module?

A: No, this model requires a minimum of DDR2-667 or higher.

Q: My PC Mini has trouble connecting to the internet

A: Check the DSL/ADSL modem settings and connections and make sure your PC is

properly congured for internet access.

The wireless LAN data transfer speed is affected by distance and obstructions

between devices and access points. To maximize data transfer speed select the

closes access point.

Specication

ViewSonic VOT530

Specications

Dimension WxHxD(mm) 165(W) x 50(H) x 165(D)

WxHxD(inch) 6.5(W) x 1.97(H) x 6.5(D)

Volume(liters) 1.36L Weight(Kg/Pound) 1.45kg / 2.4 pound (N.W.) Housing Color Black Power Solutions Two-phase voltage stabilization

CPU

Socket Socket P Type Intel® Core 2 Duo T6500/T6600 FSB 667/800/1066

Chipset

NB Intel GM45 SB ICH9M

Memory

Dual Channel Dual Channel Model Type DDRII SO-DIMM x 2 DDR 667/800 Memory size 2GB

Graphics

Chip Intel® GM45 on Die Intel® GMA X4500

(Support Microsoft Direct10X) DVI Port x 1 VGA Port no HDMI interface x 1 via DVI to HDMI Adapter

Expansion Slot mini Card Slot WLN WN6600R-F4

Audio

Type Realtek ALC888 HD Audio Channel 5.1CH

LAN Intel 10/100/1000 Ethernet

USB 2.0 x 6, 2 (Front), 4 (Rear)

Storage

SATA Connector Super Multi ODD S-ATA Connector 160GB/320GB

Storage Device

Slot-in Slim ODD (Optical Drive) x 1 (P-ATA)

2.5” HDD Bay x 1 (S-ATA)

Front Panel I/O

Power Button x 1 HDD indicator x 1 Power indicator x 1 IR indicator x 1 USB 2.0 Port x 2

Rear Panel I/O

DC Jack x 1 (20V) DVI Port x 1 e-SATA Port x 1 USB 2.0 Port x 4 RJ45 LAN Jack x 1 Line-In Jack x 1 S/PDIF Out Jack x 1 Microphone Jack x 1 Upgrade for Antenna hole x 2 Kensington Lock Hole x 1

CPU Thermal

Module ViewSonic Thermal Module Noise 27db

Adapter 90W (20V, 4.5A) AC Adapter Input Voltage AC 100 ~ 240V Operating Temperature 0 °C - 40 °C

Note: ViewSonic reserves the right to revise the specications contained in this

document, which are subject to change without notice.

ViewSonic VOT530

Chapter 7 Other Information

Customer Support

For technical support or product service, see the table below or contact your reseller.

NOTE: You will need the product serial number.

Country/Region Website

T = Telephone F = FAX

Australia/New Zealand

www.viewsonic.com.au

AUS= 1800 880 818 NZ= 0800 008 822

service@au.viewsonic.com

Canada www.viewsonic.com

T (Toll-Free)= 1-866-463-4775 T (Toll)= 1-424-233-2533 F= 1-909-468-3757

service.ca@viewsonic.com

Europe

www.vie ws on ic eu ro pe . com

www.viewsoniceurope.com/uk/Support/Calldesk.htm

Hong Kong www.hk.viewsonic.com T= 852 3102 2900 service@hk.viewsonic.com India www.in.viewsonic.com T= 1800 11 9999 service@in.viewsonic.com

Ireland (Eire)

www.vie ws on ic eu ro pe . com/uk/

www.viewsoniceurope.com/uk/support/ call-desk/

service_ie@viewsoniceurope.

com Korea www.kr.viewsonic.com T= 080 333 2131 service@kr.viewsonic.com Latin America (Argentina)

www.viewsonic.com/la/ T= 0800-4441185 soporte@viewsonic.com

Latin America (Chile) www.viewsonic.com/la/ T= 1230-020-7975 soporte@viewsonic.com Latin America (Columbia)

www.viewsonic.com/la/ T= 01800-9-157235 soporte@viewsonic.com

Latin America (Mexico)

www.viewsonic.com/la/ T= 001-8882328722 soporte@viewsonic.com

Renta y Datos, 29 SUR 721, COL. LA PAZ, 72160 PUEBLA, PUE. Tel: 01.222.891.55.77 CON 10 LINEAS Electroser, Av Reforma No. 403Gx39 y 41, 97000 Mérida, Yucatán. Tel: 01.999.925.19.16 Other places please refer to http://www.viewsonic.com/la/soporte/index.htm#Mexico Latin America (Peru) www.viewsonic.com/la/ T= 0800-54565 soporte@viewsonic.com Macau www.hk.viewsonic.com T= 853 2870 0303 service@hk.viewsonic.com Middle East ap.viewsonic.com/me/ Contact your reseller service@ap.viewsonic.com

Puerto Rico & Virgin Islands

www.viewsonic.com

T= 1-800-688-6688 (English) T= 1-866-379-1304 (Spanish) F= 1-909-468-3757

service.us@viewsonic.com

soporte@viewsonic.com

Singapore/Malaysia/ Thailand

www.ap.viewsonic.com T= 65 6461 6044 service@sg.viewsonic.com

South Africa ap.viewsonic.com/za/ Contact your reseller service@ap.viewsonic.com

United Kingdom

www.vie ws on ic eu ro pe . com/uk/

www.viewsoniceurope.com/uk/support/ call-desk/

service_gb@viewsoniceurope.

com

United States www.viewsonic.com

T (Toll-Free)= 1-800-688-6688 T (Toll)= 1-424-233-2530 F= 1-909-468-3757

service.us@viewsonic.com

ViewSonic VOT530

Limited Warranty

VIEWSONIC® PC MINI

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a similar product. Replacement Product or parts may include remanufactured or refurbished parts or components. The replacement unit will be covered by the balance of the time remaining on the customer’s original limited warranty. ViewSonic provides no warranty for the third-party software included with the product or installed by the customer.

How long the warranty is effective:

ViewSonic PC products are warranted for (1) year for parts and labor from the rst consumer purchase; Germany, Spain, and Portugal are warranted for (2) years for parts and labor from the rst consumer purchase.

User is responsible for the back up of any data before returning the unit for service. ViewSonic is not responsible for any data lost.

Who the warranty protects:

This warranty is valid only for the rst consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modied or removed.

2. Damage, deterioration or malfunction resulting from:

a. Accident, misuse, neglect, re, water, lightning, or other acts of nature, unauthorized

product modication, or failure to follow instructions supplied with the product.

b. Any damage of the product due to shipment.

c. Removal or installation of the product.

d. Causes external to the product, such as electrical power uctuations or failure.

e. Use of supplies or parts not meeting ViewSonic’s specications.

f. Normal wear and tear.

g. Any other cause which does not relate to a product defect.

3. Removal, installation, one way transportation, insurance, and set-up service charges.

How to get service:

1. For information about receiving service under warranty, contact ViewSonic Customer Support (Please refer to Customer Support page). You will need to provide your product’s serial number.

2. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.

3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic.

4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.

4.3: ViewSonic PC Mini Warranty Page 1 of 2 PC Mini_LW01 Rev. 1a 07-02-09

ViewSonic VOT530

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained

herein including the implied warranty of merchantability and tness for a particular purpose.

Exclusion of damages:

ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon

inconvenience, loss of use of the product, loss of time, loss of prots, loss of business

opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.

2. Any other damages, whether incidental, consequential or otherwise.

3. Any claim against the customer by any other party.

4. Repair or attempted repair by anyone not authorized by ViewSonic.

Effect of state law:

This warranty gives you specic legal rights, and you may also have other rights which vary

from state to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact ViewSonic or your local ViewSonic dealer.

The warranty period for this product in mainland China (Hong Kong, Macao and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card.

For users in Europe and Russia, full details of warranty provided can be found in www. viewsoniceurope.com under Support/Warranty Information.

4.3: ViewSonic PC Mini Warranty Page 2 of 2 PC Mini_LW01 Rev. 1a 07-02-09

ViewSonic PC mini 530, VOT530 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
