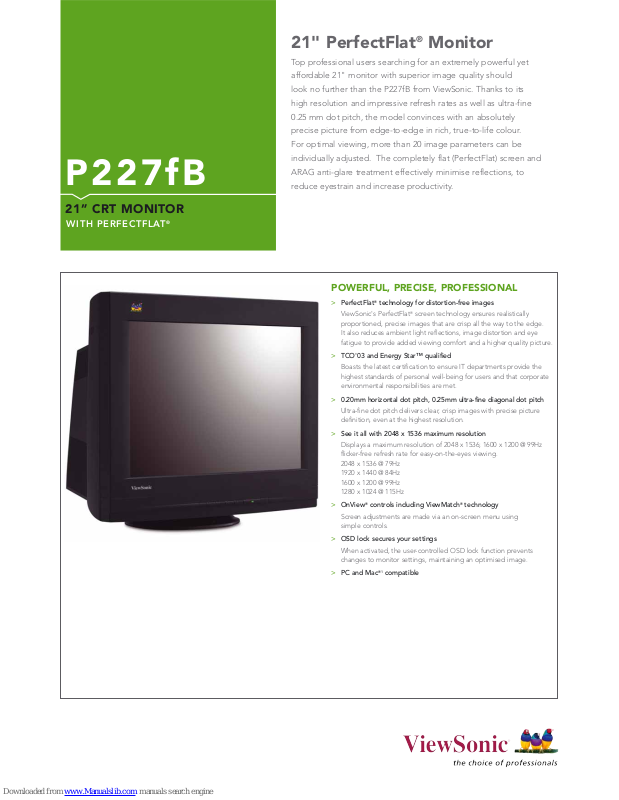

ViewSonic P227FB Specifications
P227fB
21” CRT MONITOR
WITH PERFECTFLAT
®
21" PerfectFlat®Monitor
Top professional users searching for an extremely powerful yet
affordable 21" monitor with superior image quality should
look no further than the P227fB from ViewSonic. Thanks to its
high resolution and impressive refresh rates as well as ultra-fine
0.25 mm dot pitch, the model convinces with an absolutely
precise picture from edge-to-edge in rich, true-to-life colour.
For optimal viewing, more than 20 image parameters can be
individually adjusted. The completely flat (PerfectFlat) screen and
ARAG anti-glare treatment effectively minimise reflections, to
reduce eyestrain and increase productivity.
POWERFUL, PRECISE, PROFESSIONAL
> PerfectFlat®technology for distortion-free images
ViewSonic's PerfectFlat
®
screen technology ensures realistically
proportioned, precise images that are crisp all the way to the edge.
It also reduces ambient light reflections, image distortion and eye
fatigue to provide added viewing comfort and a higher quality picture.
> TCO'03 and Energy Star
™
qualified
Boasts the latest certification to ensure IT departments provide the
highest standards of personal well-being for users and that corporate
environmental responsibilities are met.
> 0.20mm horizontal dot pitch, 0.25mm ultra-fine diagonal dot pitch
Ultra-fine dot pitch delivers clear, crisp images with precise picture
definition, even at the highest resolution.
> See it all with 2048 x 1536 maximum resolution
Displays a maximum resolution of 2048 x 1536; 1600 x 1200 @ 99Hz
flicker-free refresh rate for easy-on-the-eyes viewing.
2048 x 1536 @ 79Hz
1920 x 1440 @ 84Hz
1600 x 1200 @ 99Hz
1280 x 1024 @ 115Hz
> OnView
®
controls including ViewMatch®technology
Screen adjustments are made via an on-screen menu using
simple controls.
> OSD lock secures your settings
When activated, the user-controlled OSD lock function prevents
changes to monitor settings, maintaining an optimised image.
> PC and Mac
®1
compatible
P227fB
21" CRT MONITOR WITH PERFECTFLAT
®
CRT Type 21” (20” viewable) CRT, 90° deflection, PerfectFlat
®
Dot Pitch 0.20mm horizontal x 0.14mm vertical, 0.25mm diagonal
Phosphor RGB medium-short persistence P22
Glass Surface Tint (TM ~ 54.5%), ARAG
®
screen treatment
INPUT SIGNAL Video RGB analogue (0.7 Vp-p, 75 ohms)
Frequency Fh: 30 - 130kHz, Fv: 50 - 160Hz
Sync H/V separated (TTL), composite, sync on green
COMPATIBILITY PC PC and compatible (from VGA up to 2048 x 1536)
Mac
®1
Power Mac™ (from VGA up to 2048 x 1536)
CONNECTORS Signal 15-pin mini D-sub, BNC x 5 (RGBHV)
Power 3-pin plug (IEC320)
POWER Voltage AC 90 - 264V, 50/60Hz (+/- 2Hz) (auto switch)
Consumption 125 Watt (typ.), < 2 Watt in power save mode
ERGONOMICS Tilt Down 5°, up 20°
Swivel 180° (90° left/right)
USER CONTROLS Physical Power on/off, menu, up, down, right, left
OSD Auto calibrate, language, input select (D-sub, BNC), zoom, H/V position,
H/V size, side curve, pincushion, pin balance, trapezoid, parallelogram,
tilt, H/V moiré reduction, H/V-convergence, purity, ViewMatch
®
colour
(sRGB, 9300k, 6500k, 5000k, smart mode, professional mode), degauss,
preset to factory setting, H/V OSD position, OSD lock
VIDEO INPUT Bandwidth 360MHz (typ.)
MISCONVERGENCE 0.25mm (max.) at centre
0.35mm (max.) at corner
PROGRAMMABLE Factory 12
MODES User 12
DISPLAY AREA Factory Setting 392mm (H) x 294mm (V) (typ.)
Maximum Scan 410mm (H) x 300mm (V) (depending on signal timing used)
OPERATING Temperature 0°C to 40°C
CONDITIONS Humidity 5% to 95% (non condensation)
DIMENSIONS Physical 501mm (W) x 503mm (H) x 477mm (D)
WEIGHT Net 26.4kg
PLUG & PLAY DDC1, DDC2B
REGULATIONS TCO’03, TÜV/GS, TÜV/Ergo, CE, CB, UL, cUL, DHHS, FCC-B, ICES-003,
BSMI, CCC, Argentina-TÜV/S, SASO, GOST-R, PSB, NOM, C-Tick, EPA
Energy Star Y2005 tier1, RoHS
POWER MANAGEMENT Meets TCO'03 and Energy Star™ standards
WARRANTY Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
For more product information, visit us on the web at www.ViewSonicEurope.com
1
May require optional Mac adapter.
Copyright © 2006, ViewSonic Corporation. All rights reserved. Specifications subject to change without notice. Corporate names and trademarks stated herein are the property of their respective
companies. VS P227fB-01/06-UK
