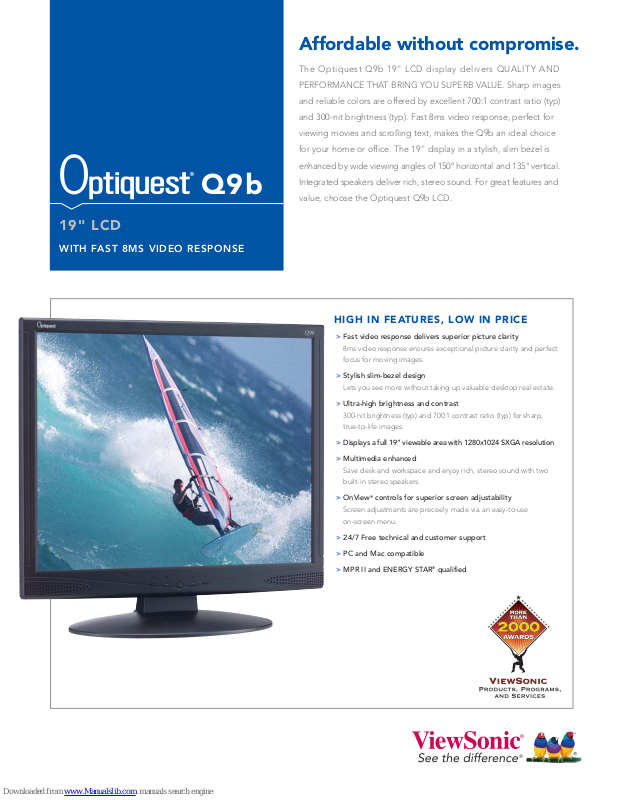

ViewSonic Optiquest Q9b Specification
Q9b
19" LCD
WITH FAST 8MS VIDEO RESPONSE
Affordable without compromise.
The Optiquest Q9b 19" LCD display delivers QUALITY AND
PERFORMANCE THAT BRING YOU SUPERB VALUE. Sharp images
and reliable colors are offered by excellent 700:1 contrast ratio (typ)
and 300-nit brightness (typ). Fast 8ms video response, perfect for
viewing movies and scrolling text, makes the Q9b an ideal choice
for your home or office. The 19" display in a stylish, slim bezel is
enhanced by wide viewing angles of 150° horizontal and 135° vertical.
Integrated speakers deliver rich, stereo sound. For great features and
value, choose the Optiquest Q9b LCD.
HIGH IN FEATURES, LOW IN PRICE
> Fast video response delivers superior picture clarity
8ms video response ensures exceptional picture clarity and perfect
focus for moving images.
> Stylish slim-bezel design
Lets you see more without taking up valuable desktop real estate.
> Ultra-high brightness and contrast
300-nit brightness (typ) and 700:1 contrast ratio (typ) for sharp,
true-to-life images.
> Displays a full 19” viewable area with 1280x1024 SXGA resolution
> Multimedia enhanced
Save desk and workspace and enjoy rich, stereo sound with two
built-in stereo speakers
> OnView
> 24/7 Free technical and customer support
> PC and Mac compatible
> MPR II and ENERGY STAR
®
controls for superior screen adjustability
Screen adjustments are precisely made via an easy-to-use
on-screen menu.
.
®
qualified
Q9b
19" LCD DISPLAY WITH FAST 8MS VIDEO RESPONSE
LCD Type 19" color TFT active matrix SXGA LCD
Display Area 14.8" (horizontal) x 11.9" (vertical); 19.0" diagonal
Optimum Resolution 1280x1024
Contrast Ratio 700:1 (typ)
Viewing Angles 150° horizontal, 135° vertical
Response Time 8ms (typ)
Light Source Long life, 50,000 hrs. (typ)
Brightness 300 cd/m2 (typ)
Panel Surface Anti-glare
INPUT SIGNAL Video RGB analog (75 ohms, 0.7 Vp-p)
Sync H/V separated (TTL)
Frequency Fh:30~80kHz, Fv:55~75Hz
COMPATIBILITY PC VGA up to 1280x1024 non-interlaced
Mac®* Power Mac™G3/G4/G5 up to 1280x1024
CONNECTOR Analog PC 15-pin mini D-sub
Power 3-pin AC plug (CEE22)
POWER Voltage AC 100–240V (universal), 50–60Hz (auto switch)
Consumption 36-watts (typ)
AUDIO Speakers 2x1-watt
CONTROLS Basic Power, menu, +/-
Auto image adjust, brightness, contrast, ViewMatch®color
adjust (9300K, 6500K, user color), H. position, V. position,
language, phase, clock, recall, volume
OPERATING Temperature 32–104°F (0–40°C)
CONDITIONS Humidity 10–90% (non-condensing)
DIMENSIONS Physical with stand 16.5" x 16.1" x 7.2" (418mm x 408mm x 184mm)
(W x H x D) Physical without stand 16.5" x 14.3" x 2.2" (418mm x 363mm x 57mm)
WEIGHT Net with stand 10.8 lb. (4.9 kg)
Net without stand 10.1 lb. (4.6 kg)
Gross with stand 13.2 lb. (6.0 kg)
REGULATIONS UL, cUL, FCC-B, NOM, ENERGY STAR®, BSMI, MPR II, RoHS
RECYCLE/DISPOSAL The lamp in this product contains mercury. Please dispose of
in accordance with local, state or federal laws.
POWER MANAGEMENT Meets MPR II and ENERGY STAR®standards
PACKAGE CONTENTS LCD display, power cable, video cable, user guide
WARRANTY One-year limited warranty on parts, labor and backlight
ViewSonic Corporation’s QMS & EMS have been registered to
ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com
*Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate
names, trademarks stated herein are the property of their respective companies. Copyright © 2008 ViewSonic Corporation. All rights reserved. [13827-00B-12/07] Q9b-2
For more product information, visit us on the web at ViewSonic.com
