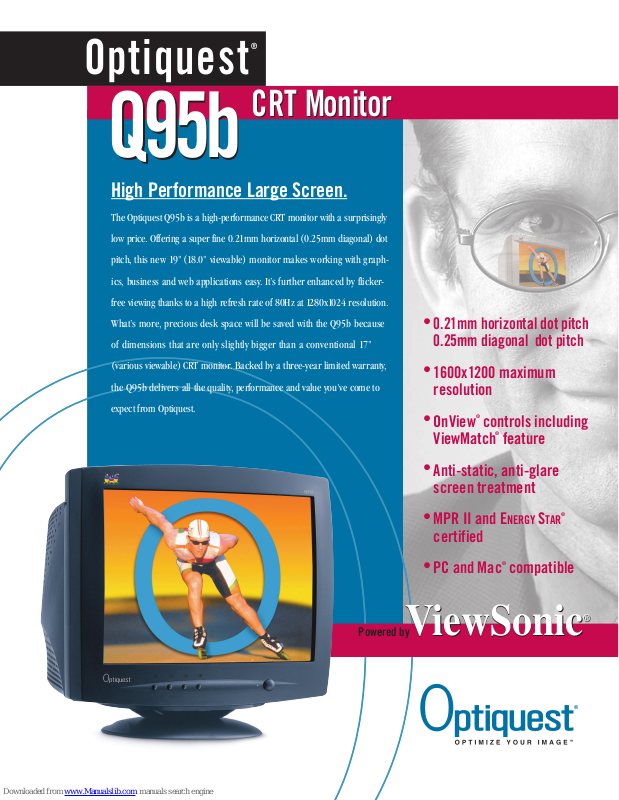

ViewSonic Optiquest Q95b Specifications

®

Optiquest

CRT Monitor

CRT Monitor

Q95b

Q95b

High Performance Large Screen.

The Optiquest Q95b is a high-performance CRT monitor with a surprisingly

low price. Offering a super fine 0.21mm horizontal (0.25mm diagonal) dot

pitch, this new 19" (18.0" viewable) monitor makes working with graph-

ics, business and web applications easy. It’s further enhanced by flicker-

free viewing thanks to a high refresh rate of 80Hz at 1280x1024 resolution.

What’s more, precious desk space will be saved with the Q95b because

of dimensions that are only slightly bigger than a conventional 17"

(various viewable) CRT monitor. Backed by a three-year limited warranty,

the Q95b delivers all the quality, performance and value you've come to

expect from Optiquest.

•

0.21mm horizontal dot pitch

0.25mm diagonal dot pitch

•

1600x1200 maximum
resolution

•

OnView
ViewMatch

•

Anti-static, anti-glare
screen treatment

•

MPR II and ENERGY STAR
certified

•

PC and Mac

®

controls including

®

feature

®

®

compatible

Powered by

®

®

ViewSonic

ViewSonic

®

Optiquest

CRT Monitor

CRT Monitor

Q95b

Q95b

19"(18.0" VIEWABLE) COLOR CRT MONITOR WITH ONVIEW®CONTROLS

CRT Type 19" (18.0" diagonal viewable area)

Dot Pitch 0.21mm horiz., 0.14mm vert., 0.25mm diagonal
Phosphor RGB medium-short persistence
Glass Surface Tint (TM=50%), anti-static, anti-glare coating

INPUT SIGNAL Video RGB Analog (0.7Vp-p, 75 ohms)

COMPATIBILITY PC Compatible from VGA up to 1600x1200

CONNECTOR Signal 15-pin mini D-sub

POWER Voltage AC 88–132/180–264VAC (auto switch)

CONTROLS Basic Power, 1, left, right, 2

VIDEO INPUT Bandwidth 202MHz
MISCONVERGENCE 0.3mm (max) at center

DISPLAY AREA Factory Setting 357mm (H) x 268mm (V)

OPERATING Temperature 32–104˚F (0–40˚C)
CONDITION Humidity 5–95% (non-condensing)

DIMENSIONS Physical 447mm x 452mm x 454mm
(W x H x D) 17.6" x 17.8" x 17.9"

WEIGHT Net 43.0 lbs. (19.5 kgs.)

OTHER DDC1, DDC2B
REGULATIONS UL, cUL, DDHS, FCC-B, CB, NOM, TUV/s, MPR II,

POWER MANAGEMENT Meets ENERGY STA R®and MPR II standards
WARRANTY Three-year limited warranty on CRT, parts and labor.

Sync H/V separate (TTL), composite
Frequency Fh:30–86kHz, Fv:50–160Hz

®

*

Mac

Power 3-pin plug (IEC60320)

Consumption 130W (typ)

®

OnView

Maximum Scan 366mm (H) x 274mm (V)

Gross 49.6 lbs. (22.5 kgs.)

90˚deflection

Power Mac™ up to 1600x1200

50/60 (+/-3)Hz

Contrast, brightness, zoom, H/V-position, H/V-size,
pincushion, trapezoid, pin-balance, parallelogram,
tilt, ViewMatch®color, moiré, degauss,
language, OSD position, memory recall

0.4mm (max) at corner

(Dependent upon signal timing used)

VCCI

Features & Benefits

0.21mm horizontal dot pitch,

0.25 diagonal dot pitch

This super-fine dot pitch produces clear,
crisp images with great picture definition,
even at the highest resolution.

1600x1200 maximum resolution

Displays a maximum resolution of
1600x 1200; 1280x1024 at 80Hz flicker-free
refresh rate for easy viewing.

1600x1200 @ 68Hz
1280x1024 @ 80Hz
1024x768 @ 106Hz

800x600 @ 132Hz

OnView
ViewMatch

All screen adjustments are made via an
on-screen menu using simple controls.
ViewMatch allows the user to adjust color
temperature and individual color intensity
for screen-to-print matching.

Three-year limited warranty

24/7 free technical and customer support**.

®

controls including

®

feature

ViewSonic Corporation's QMS & EMS have been registered to ISO

9001 & ISO 14001, respectively, by the British Standards Institution.
