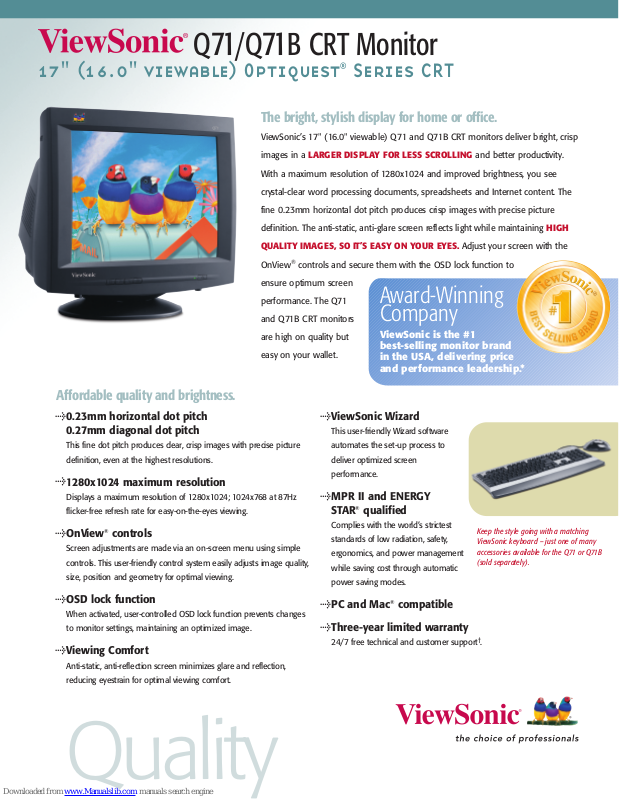

ViewSonic Optiquest Q71b, Optiquest Q71 Specifications

Q71/Q71B CRT Monitor

17" (16.0" viewable) Optiquest

The bright, stylish display for home or office.

ViewSonic’s 17" (16.0" viewable) Q71 and Q71B CRT monitors deliver bright, crisp

images in a LARGER DISPLAY FOR LESS SCROLLING and better productivity.

With a maximum resolution of 1280x1024 and improved brightness, you see

crystal-clear word processing documents, spreadsheets and Internet content. The

fine 0.23mm horizontal dot pitch produces crisp images with precise picture

definition. The anti-static, anti-glare screen reflects light while maintaining HIGH

®

Series CRT

QUALITY IMAGES, SO IT’S EASY ON YOUR EYES.

OnView®controls and secure them with the OSD lock function to

ensure optimum screen

performance. The Q71

and Q71B CRT monitors

are high on quality but

easy on your wallet.

Affordable quality and brightness.

>

0.23mm horizontal dot pitch

0.27mm diagonal dot pitch

This fine dot pitch produces clear, crisp images with precise picture

definition, even at the highest resolutions.

>

1280x1024 maximum resolution

Displays a maximum resolution of 1

flicker-free refresh rate for easy-on-the-eyes viewing.

>

OnV

Screen adjustments are made via an on-screen menu using simple

controls. This user-friendly control system easily adjusts image quality,

size, position and geometry for optimal viewing.

>

OSD lock function

When activated, user-controlled OSD lock function prevents changes

to monitor settings, maintaining an optimized image.

>

Viewing Comfort

Anti-static, anti-reflection screen minimizes glare and reflection,

reducing eyestrain for optimal viewing comfor

iew

®

controls

280x1024; 1024x768 at 87Hz

t.

Award-Winning
Company

ViewSonic is the #1
best-selling monitor brand
in the USA, delivering price
and performance leadership.*

>

ViewSonic Wizard

This user-friendly Wizard software

automates the set-up process to

deliver optimized screen

performance.

>

PR II and ENERGY

M

®

STAR

Complies with the world’s strictest

standards of low radiation, safety,

ergonomics, and power management

while saving cost through automatic

power saving modes.

>

PC and Mac®compatible

>

Three-year limited warranty

24/7 free technical and customer support†.

qualified

Adjust your screen with the

oing with a matching

yle g

eep the st

K

onic keyboard – just one of many

ViewS
accessories available for the Q71 or Q71B
(sold separ

ately).

Quality

Q71/Q71B CRT Monitor

17" (16.0" viewable) Optiquest

17" (16.0" VIEWABLE) CRT MONITOR WITH ONVIEW®CONTROLS

CRT Type 17" (16.0" viewable) 90° deflection

Dot Pitch 0.23mm horizontal x 0.13mm vertical; 0.27mm diagonal
Phosphor RGB medium-short persistence
Glass Surface Tint: TM~50%, anti-static, anti-glare screen coating

1

2

3

1. One-touch buttons control all major functions

2. Keep the style going with the attractive black case

3. Anti-static, anti-reflection screen reduces eye-strain

INPUT SIGNAL Video RGB analog (75 ohms, 0.7/1.0 Vp-p)

Sync H/V separated (TTL), composite
Frequency Fh:30~70kHz, Fv:50~160Hz

COMPATIBILITY PC VGA up to 1280x1024 non-interlaced

Mac®** Power Mac™ G3/G4 up to 1024x768

CONNECTOR Analog 15-pin mini D-sub

Power 3-pin plug (CEE22)

POWER Voltage AC 90–264 VAC , 50/60Hz (+/-3)

CONTROLS Basic Power, 1, down, up , 2

VIDEO INPUT Bandwidth 120 MHz (typ)

MISCONVERGENCE 0.25mm (max) at center

DISPLAY AREA Factory Setting 310mm horizontal x 230mm vertical

OPERATI NG Temperature 32—104°F (0—40°C)
CONDITIONS Humidity 5—95% (non-condensing)

DIMENSIONS Physical 410mm x 402mm x 425mm
(W x H x D) 16.1" x 15.8" x 16.7"

WEIGHT Net 33.1 lb. (15.0 kg)

REGULATIONS UL/cUL, DHHS, FCC-B, ICES-003, CB, MPR II, ENERGY STAR®TUV/GS,

POWER MANAGEMENT Meets MPR II and ENERGY STAR®standards

WARRANTY Three-year limited warranty on CRT, parts and labor.

Consumption 75W (typ), (auto switch)

®

OnView

Maximum Scan 325mm horizontal x 243mm vertical (dependent upon timing signal)

Gross 38.5 lb. (17.5 kg)

®

Series CRT

Contrast, brightness, degauss, H./V. size, H./V. position, pincushion, trape­zoid, pinbalance, parallelogram, tilt, moiré reduction, ViewMatch
6500K, 5000K, user), language, zoom, memory recall and ViewMeter

0.35mm (max) at corner

TUV/Ergo, Argentina-TUV/S, NOM

®

(9300K,

®

specifications

Available colors:

Black (Q71B), Beige (Q71)
