ViewSonic Optiquest Q55 Specifications
• 0.24mm Horizontal dot pitch
0.28mm Diagonal dot pitch
•
OnView
®
controls
including ViewMatch
®
•
Anti-static, anti-reflection
screen
•
TCO certified
•
PC and Mac
®
compatible
Q55
Monitor
Optiquest
®
Q55
Monitor

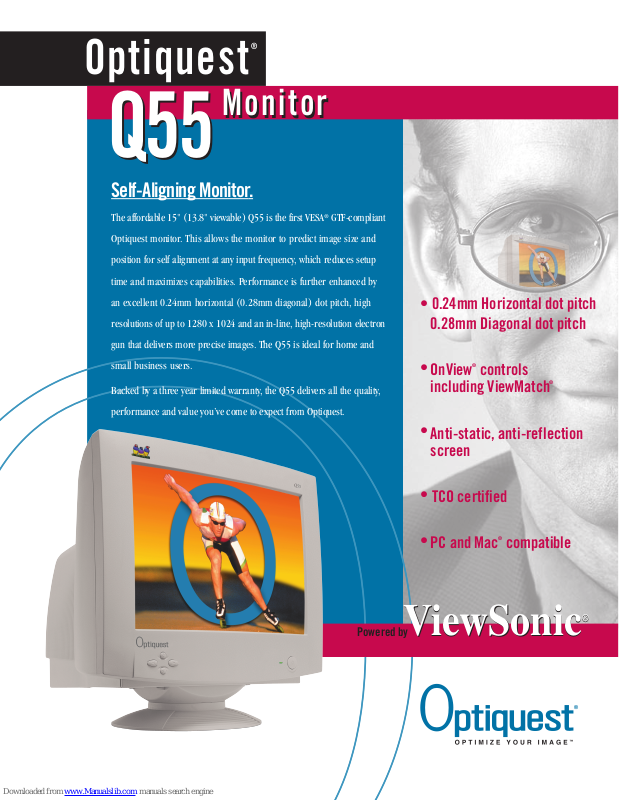

Self-Aligning Monitor.
The affordable 15" (13.8" viewable) Q55 is the first VESA®GTF-compliant
Optiquest monitor. This allows the monitor to predict image size and
position for self alignment at any input frequency, which reduces setup
time and maximizes capabilities. Performance is further enhanced by
an excellent 0.24mm horizontal (0.28mm diagonal) dot pitch, high
resolutions of up to 1280 x 1024 and an in-line, high-resolution electron
gun that delivers more precise images. The Q55 is ideal for home and
small business users.
Backed by a three year limited warranty, the Q55 delivers all the quality,
performance and value you’ve come to expect from Optiquest.
ViewSonic
®
Powered by
ViewSonic
®
Q55
Monitor
Optiquest
®
Q55
Monitor
381 Brea Canyon Road, Walnut, CA 91789
(
800)843-6784
•
(909) 869-9216
Fax (909) 468-3770
•
Internet: www.optiquest.com
*Free universal Mac cable adapter available. Copyright © 2000 ViewSonic Corporation. All rights reserved. Corporate names and trademarks stated herein are
the property of their respective companies. Specifications subject to change without notice. The EPA only promotes energy efficiency and does not endorse any
particular company or product.
1,280 x 1,024 maximum resolution
Displays a maximum resolution of 1,280 x
1,024; 1,024 x 768 at 86Hz flicker-free
refresh rate for easy viewing.
1,280 x 1,024 @ 65Hz
1,024 x 768 @ 86Hz
800 x 600 @ 109Hz
OnView®controls including ViewMatch
®
All screen adjustments are made via an
on-screen menu using simple controls.
ViewMatch allows the user to adjust color
temperature and individual color intensity
for screen-to-print matching.
Anti-static, anti-reflection screen
This anti-static, anti-reflection screen coating
refracts unwanted light away from the user
while maintaining the highest quality of the
displayed image.
VESA®and GTF compliant
Maximizes display performance by
automatically aligning images to reduce
set-up time.
Features & Benefits
OPQ55-2_02/00_10K_rev1
15" (13.8" viewable) COLOR MONITOR WITH
CRT Type 15" (13.8" diagonal viewable area)
90˚deflection
Dot Pitch 0.24mm Horiz., 0.14mm Vert., 0.28mm Diagonal
Phosphor RGB medium/short persistance
Glass Surface Tint (TM=57%), anti-static, anti-reflection coating
INPUT SIGNAL Video RGB Analog (0.7Vp-p, 75 ohms)
Sync H/V separate, Composite Sync
Frequency Fh:30-70kHz, Fv:50-160Hz
COMPATIBILITY
PC IBM®XT, AT, 386, 486, Pentium®, PS/2 and
compatibles (640 x 480 up to 1,280 x 1,024)
Mac
®
*
Power Mac™(up to 1024 x 768)
CONNECTOR Signal 15-pin mini D-sub (attached cable)
Power 3-pin plug (IEC320)
POWER Voltage AC 90-264VAC (auto switch)
50/60 (auto switch)
Consumption 70W (typ)
USER CONTROLS Basic Power on/off, enter, adjust (2 keys)
OnView
®
Contrast, brightness, H/V-position, H/V-size,
OSD position, pincushion, trapazoid, pin-balance,
parallelogram, moiré, tilt, color control, recall,
zoom, corner
VIDEO INPUT Bandwidth 110MHz (typ)
MISCONVERGENCE 0.3mm (max) at center
0.4mm (max) at corner
DISPLAY AREA Factory Setting 262mm (H) x 196mm (V) (Dependent upon
Maximum Scan 285mm (H) x 216mm (V) signal timing used)
OPERATING Temperature 32˚F to 104˚F (0˚C to 40˚C)
CONDITION Humidity 5% to 95% (non-condensing)
DIMENSIONS Physical 365mm (W) x 369mm (H) x 398mm (D)
(14.4" x 14.5" x 15.6")
WEIGHT Net 12.5Kg (27.5 lbs.)
OTHER DDC1, DDC2B & GTF
REGULATIONS UL, CSA, FCC-B, DHHS, DOC-B, MPR-II, EPA, TCO,
CB, CE, NOM, ISO9241-3
POWER MANAGEMENT Meets Energy Star®, VESA DPMS™TCO ’92
standards
WARRANTY Three year limited warranty on CRT, parts and labor.
48 hour Express Exchange®service option available
ViewSonic
®
Powered by
ViewSonic
®
ViewSonic Corporation's QMS\ EMS has been registered to
ISO 9001 & ISO 14001 by the British Standards Institution.
