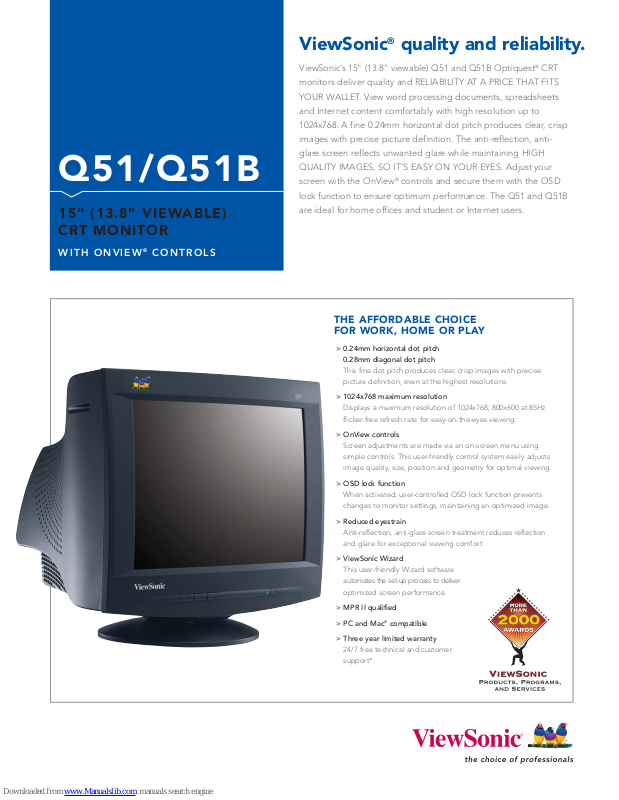

ViewSonic Optiquest Q51, Optiquest Q51B Specifications

Q51/Q51B

15" (13.8" VIEWABLE)
CRT MONITOR

WITH ONVIEW®CONTROLS

ViewSonic®quality and reliability.

ViewSonic’s 15" (13.8" viewable) Q51 and Q51B Optiquest®CRT

monitors deliver quality and RELIABILITY AT A PRICE THAT FITS

YOUR WALLET. View word processing documents, spreadsheets

and Internet content comfortably with high resolution up to

1024x768. A fine 0.24mm horizontal dot pitch produces clear, crisp

images with precise picture definition. The anti-reflection, anti-

glare screen reflects unwanted glare while maintaining HIGH

QUALITY IMAGES, SO IT’S EASY ON YOUR EYES. Adjust your

®

screen with the OnView

lock function to ensure optimum performance. The Q51 and Q51B

are ideal for home offices and student or Internet users.

THE AFFORDABLE CHOICE
FOR WORK, HOME OR PLAY

> 0.24mm horizontal dot pitch

0.28mm diagonal dot pitch

This fine dot pitch produces clear, crisp images with precise
picture definition, even at the highest resolutions.

> 1024x768 maximum resolution

Displays a maximum resolution of 1024x768; 800x600 at 85Hz
flicker-free refresh rate for easy-on-the-eyes viewing.

> OnView controls

Screen adjustments are made via an on-screen menu using
simple controls. This user-friendly control system easily adjusts
image quality, size, position and geometry for optimal viewing.

> OSD lock function

When activated, user-controlled OSD lock function prevents
changes to monitor settings, maintaining an optimized image.

> Reduced eyestrain

Anti-reflection, anti-glare screen treatment reduces reflection
and glare for exceptional viewing comfort.

> ViewSonic Wizard

This user-friendly Wizard software
automates the set-up process to deliver
optimized screen performance.

> MPR II qualified

> PC and Mac

> Three year limited warranty

24/7 free technical and customer
support*.

controls and secure them with the OSD

®

compatible

Q51/Q51B

15" (13.8" VIEWABLE) CRT MONITOR WITH ONVIEW®CONTROLS

CRT Type 15" (13.8 viewable) 90° deflection

Dot Pitch 0.24mm (horizontal) x 0.14mm (vertical); 0.28 diagonal

Phosphor RGB medium-short persistence

Glass Surface Tint: TM~57%, anti-reflection, anti-glare screen coating

INPUT SIGNAL Video RGB analog (75 ohms, 0.7/1.0 Vp-p)

Sync H/V separated (TTL), composite sync

Frequency Hh: 30~54Hz, Fv: 50~120Hz

COMPATIBILITY PC VGA up to 1024x768 non-interlaced

Mac®** Power Mac™G3/G4 up to 1024x768

CONNECTOR Analog 15-pin mini D-sub

Power 3-pin plug (CEE22)

POWER Voltage AC 90–132/198–264 VAC (auto switch), 50/60 Hz (+/-3)

Consumption 70W (typ)

Available colors:

Black (Q51B) and Beige (Q51)

CONTROLS Basic Power, 1, down, up, 2

VIDEO INPUT Bandwidth 75MHz (typ)

MISCONVERGENCE 0.25mm (max) at center; 0.35mm (max) at corner

DISPLAY AREA Factory Setting 270mm horizontal x 202mm vertical

OPERATING Temperature 32–104°F (0–40°C)

CONDITIONS Humidity 10–90% (no condensing)

DIMENSIONS Physical (mm) 360mm x 362mm x 384mm

(W x H x D) Physical (in.) 14.2" x 14.3" x 15.1"

WEIGHT Net 24.6 lb. (11.2 kg)

REGULATIONS UL, cUL, DHHS, FCC-B, ICES-003, CB, NOM, TUV/S

POWER MANAGEMENT Meets MPR II standards

PACKAGE CONTENTS CRT monitor, video cable (attached), power cable,

WARRANTY Three-year limited warranty on CRT, parts and labor

®

OnView

Maximum Scan 280mm horizontal x 210mm vertical (dependent upon timing signal)

Gross 28.6 lb. (13.0 kg)

Contrast, brightness, degauss, H./V. size, H./V. position,

pincushion, trapezoid, pinbalance, parallelogram, tilt, moiré,

ViewMatch

OSD position, zoom

(Argentina), BSMI, PSB, MPR II

Quick Start Guide, ViewSonic Wizard CD

®

color (9300K, 6500K), language, recall, ViewMeter®,

ViewSonic Corporation’s QMS & EMS have been registered to

ISO 9001 & ISO 14001, respectively, by the British Standards Institution.

ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Phone [phone] or [phone] • In Canada [phone]• Fax [phone]• [e-mail] • ViewSonic.com

*Excludes major U.S. holidays. **Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice.Selection, offers and programs may vary by country; see your ViewSonic
representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2005 ViewSonic Corporation. All rights reserved. [12259-01B-06/05] Q51-9/Q51B-9
