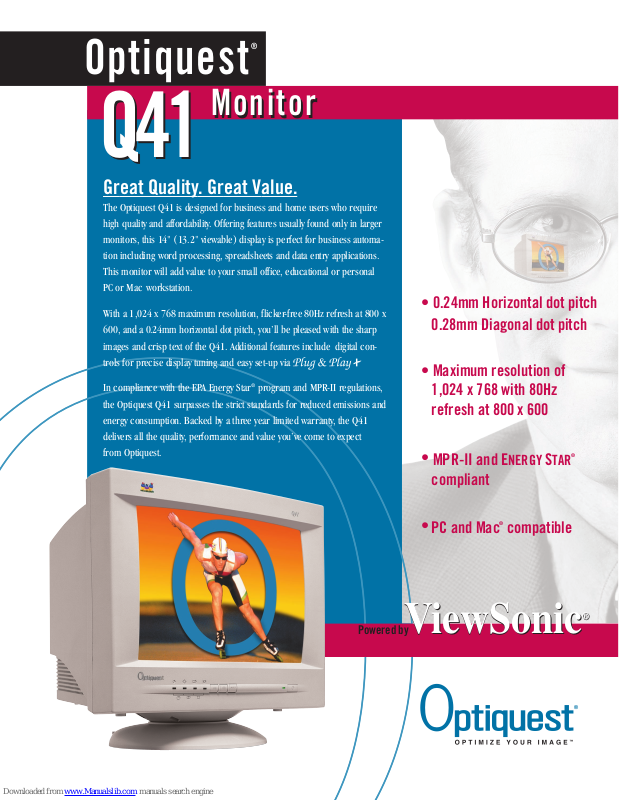

ViewSonic Optiquest Q41 Specifications
®
Optiquest
Monitor
Monitor
Q41
Q41
Great Quality. Great Value.
The Optiquest Q41 is designed for business and home users who require
high quality and affordability. Offering features usually found only in larger
monitors, this 14" (13.2" viewable) display is perfect for business automation including word processing, spreadsheets and data entry applications.
This monitor will add value to your small office, educational or personal
PC or Mac workstation.
With a 1,024 x 768 maximum resolution, flicker-free 80Hz refresh at 800 x
600, and a 0.24mm horizontal dot pitch, you’ll be pleased with the sharp
images and crisp text of the Q41. Additional features include digital controls for precise display tuning and easy set-up via
In compliance with the EPA Energy Star
the Optiquest Q41 surpasses the strict standards for reduced emissions and
energy consumption. Backed by a three year limited warranty, the Q41
delivers all the quality, performance and value you’ve come to expect
from Optiquest.
®
program and MPR-II regulations,
• 0.24mm Horizontal dot pitch
0.28mm Diagonal dot pitch
• Maximum resolution of
1,024 x 768 with 80Hz
refresh at 800 x 600
•
MPR-II and E
NERGY STAR
®
Powered by
compliant
•
PC and Mac®compatible
®
®
ViewSonic
ViewSonic
®
Optiquest
Monitor
Monitor
Q
Q
14" (13.2" viewable) MULTI-SCANNING COLOR MONITOR
CRT Type 14" (13.2" diagonal viewable area)
INPUT SIGNAL Video RGB Analog (0.714Vp-p, 75 ohms)
COMPATIBILITY PC IBM®and compatibles (VGA up to 1,024 x 768 )
CONNECTOR Signal 15-pin mini D-sub (attached cable)
POWER Voltage AC 100-264V (auto switch)50/60Hz
USER CONTROLS Basic Power on/off, contrast, brightness,
VIDEO INPUT Bandwidth 65MHz (typ)
MISCONVERGENCE 0.3mm (max) at center
DISPLAY AREA Factory Setting 255mm (H) x 191mm (V) (Dependent upon
OPERATING Temperature 32˚F to 104˚F (0˚C to 40˚C)
CONDITION Humidity 5% to 95% (non-condensing)
DIMENSIONS Physical 356mm (W) x 371mm (H) x 379mm (D)
WEIGHT Net 11.4Kg (25.1 lbs.)
OTHER DDC1, DDC2B
REGULATIONS cUL, UL, DHHS, FCC-B, TUV, CE, MPR-II, ENERGY
POWER MANAGEMENT Meets ENERGY STAR®,VESA®DPMS™and MPR-II
WARRANTY Three year limited warranty on CRT, parts and labor.
41
41
90˚deflection
Dot Pitch 0.24mm Horiz., 0.15mm Vert., 0.28mm Diagonal
Phosphor RGB medium/persistance
Glass Surface Anti-static screen treatment
Sync H/V separate (TTL)
Frequency Fh:30-50kHz, Fv:50-90Hz
®
*
Mac
Power 3-pin plug (IEC320)
Consumption 75W (typ)
Maximum Scan 270mm (H) x 210mm (V) signal timing used)
Power Mac
H/V-position, H/V-size, pincushion
0.4mm (max) at corner
(14.02" x 14.61" x 14.92")
TAR
S
standards
48 hour Express Exchange®service option available
™
®
, DOC-B, ISO9241-3
Features & Benefits
1,024 x 768 maximum resolution
Displays a maximum resolution of 1,024 x
768; 800 x 600 at 80Hz flicker-free refresh
rate for easy viewing.
1,024 x 768 @ 63Hz
800 x 600 @ 80Hz
Digital controls
This user friendly control system easily
adjusts image quality, size, position and
geometry for optimal viewing.
Anti-static, anti-glare screen
This anti-static, anti-glare coating refracts
light away from the user while maintaining
the highest quality of the displayed area.
381 Brea Canyon Road, Walnut, CA 91789
(
800)888-8583
Fax (909) 468-1202
*Free universal Mac cable adapter available. Copyright © 2000, ViewSonic Corporation. All rights reserved.
Corporate names and trademarks stated herein are the property of their respective companies. Specifications subject
to change without notice.As an E
STAR®guidelines for energy efficiency.
•
(909) 869-7976
•
Internet: www.ViewSonic.com
®
NERGY STAR
partner, ViewSonic has determined that this prduct meets the ENERGY
Powered by
®
ViewSonic
ViewSonic
ViewSonic Corporation's QMS\ EMS has been registered to
ISO 9001 & ISO 14001 by the British Standards Institution.
®
Q41-2_9/00_10K_rev1
OP-217
