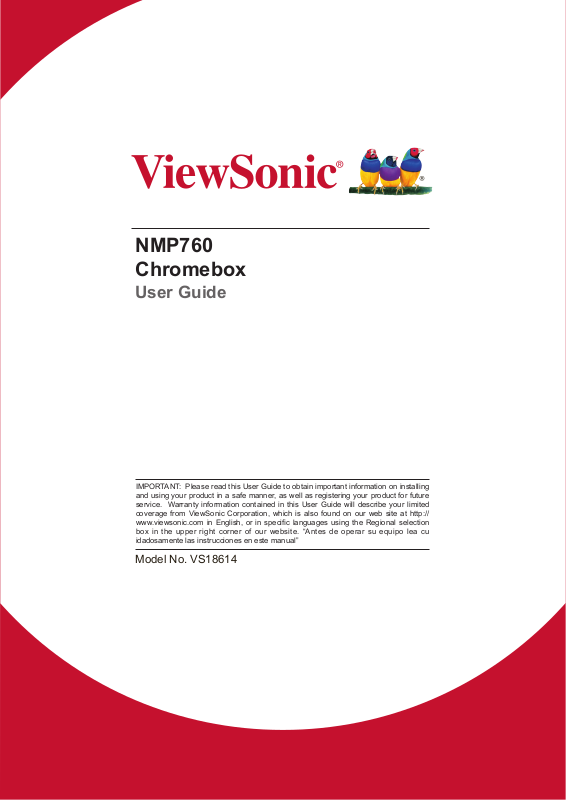

ViewSonic NMP760, VS18614 User Manual

NMP760

Chromebox

User Guide

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product for future service. Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http:// www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website. “Antes de operar su equipo lea cu idadosamente las instrucciones en este manual”

Model No. VS18614

Thank you for choosing ViewSonic

As a world leading provider of visual solutions, ViewSonic is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic product you have chosen will serve you well.

Once again, thank you for choosing ViewSonic !

Compliance Information

FCC Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency

energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Warning: Use only power supplies listed in the user instructions.

AVERTISSEMENT: Utilisez uniquement les sources d'alimentation mentionnées dans les instructions d'utilisation.

For Canada

•This Class B digital apparatus complies with Canadian ICES-003.

•Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU, RED Directive

2014/53/EU and Low Voltage Directive 2014/35/EU.

Following information is only for EU-member states:

The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE).

The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries or accumulators as unsorted municipal waste, but use the return and collection systems available.

If the batteries, accumulators and button cells included with this equipment, display the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury or more than, 0.002% Cadmium, or more than 0.004% Lead.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive

2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2

Directive), and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance	Proposed Maximum	Actual Concentration
Substance	Concentration	Actual Concentration
	Concentration
Lead (Pb)	0.1%	< 0.1%
Mercury (Hg)	0.1%	< 0.1%
Cadmium (Cd)	0.01%	< 0.01%
Hexavalent Chromium (Cr6+)	0.1%	< 0.1%
Polybrominated biphenyls (PBB)	0.1%	< 0.1%
Polybrominated diphenyl ethers	0.1%	< 0.1%
(PBDE)	0.1%	< 0.1%
(PBDE)
Bis(2-ethylhexyl) phthalate	0.1%	< 0.1%
(DEHP)	0.1%	< 0.1%
(DEHP)
Butyl benzyl phthalate (BBP)	0.1%	< 0.1%
Dibutyl phthalate (DBP)	0.1%	< 0.1%
Diisobutyl phthalate (DIBP	0.1%	< 0.1%

**Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below:

Examples of exempted components are:

1.Lead as an alloying element in aluminium containing up to 0.4% lead by weight

2.Copper alloy containing up to 4% lead by weight

3.Lead in high melting temperature type solders (i.e. lead-based alloys containing

85% by weight or more lead)

4.Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound

ENERGY STAR® compliance

As an ENERGY STAR Partner, has followed the EPA’s enhanced product qualification and certification process to ensure that the products marked with the

ENERGY STAR logo are ENERGY STAR qualified per the applicable ENERGY STAR guidelines for energy efficiency. The following logo appears on all ENERGY

STAR-qualified computers:

The ENERGY STAR program for computers was created by the EPA to promote energy efficiency and reduce air pollution through more energy-efficient equipment in homes, offices, and factories. One way that products achieve this goal is by using a power management feature to reduce power consumption when the product is not in use. The power management feature allows the computer to initiate a low-power or "Sleep" mode after a period of user inactivity. When used with an external ENERGY

STAR qualified monitor, this feature also supports similar power management features of the monitor. To take advantage of these potential energy savings, the power management feature has been preset to behave in the following way when the system is operating on AC power:

•Turn off the display / Initiate Sleep after <= 15 minutes (varies by model)

•Initiate Sleep after <= 30 minutes (varies by model)

The computer exits Sleep when the power/Sleep button is pressed. When the Wake On LAN (WOL) feature is enabled, the computer can also exit Sleep in response to a network signal.

Additional information on the potential energy and financial savings of the power management feature can be found on the EPA ENERGY STAR Power Management

Web site at http://www.energystar.gov/powermanagement.

Additional information on the ENERGY STAR program and its environmental benefits are available on the EPA ENERGY STAR Web site at http://www.energystar.gov.

1.Please follow the guidance of web page: http://www.chromium.org/chromium-os/developer-information-for-chrome-os- devices

to put your device to Developer mode.

2.In the Chrome OS UI, please press “Ctrl + Alt + F2” or “Ctrl + Alt + →” to enter console mode.

3.Login as “root”.

4.Run “ethtool -s eth0 wol d” to disable WOL function. Run “ethtool –s eth0 wol g” to enable WOL function.

Press “Ctrl + Alt + F1” or “Ctrl + Alt + ←” to go back to Chrome OS UI.

iii

Contents
Compliance Information
FCC Statement....................................................................................	i
CE Conformity for European Countries...............................................	i
Declaration of RoHS2 Compliance......................................................	ii
ENERGY STAR® compliance.............................................................	iii
Copyright Information
For Your Records................................................................................	1
1. PRODUCT OVERVIEW
Package contents...............................................................................	2
Front view...........................................................................................	3
Rear View...........................................................................................	3
Status indicators.................................................................................	4
2. Getting Started

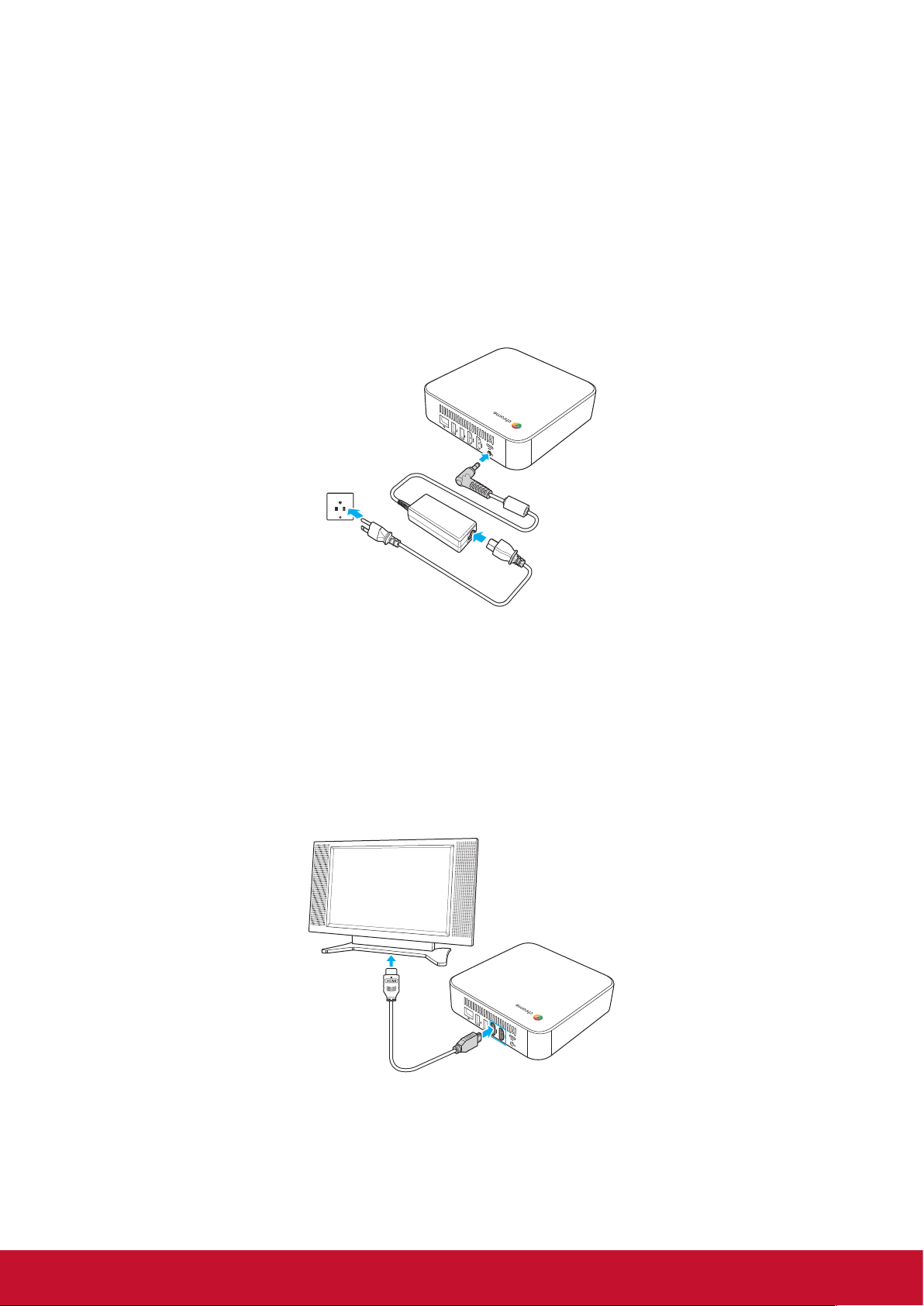

Connecting the AC power...................................................................	5
Connecting a display device...............................................................	5
Connecting a mouse and keyboard....................................................	6
Connecting a mouse and keyboard....................................................	6
Connecting a wireless mouse and keyboard......................................	6
3. Performing additional connections

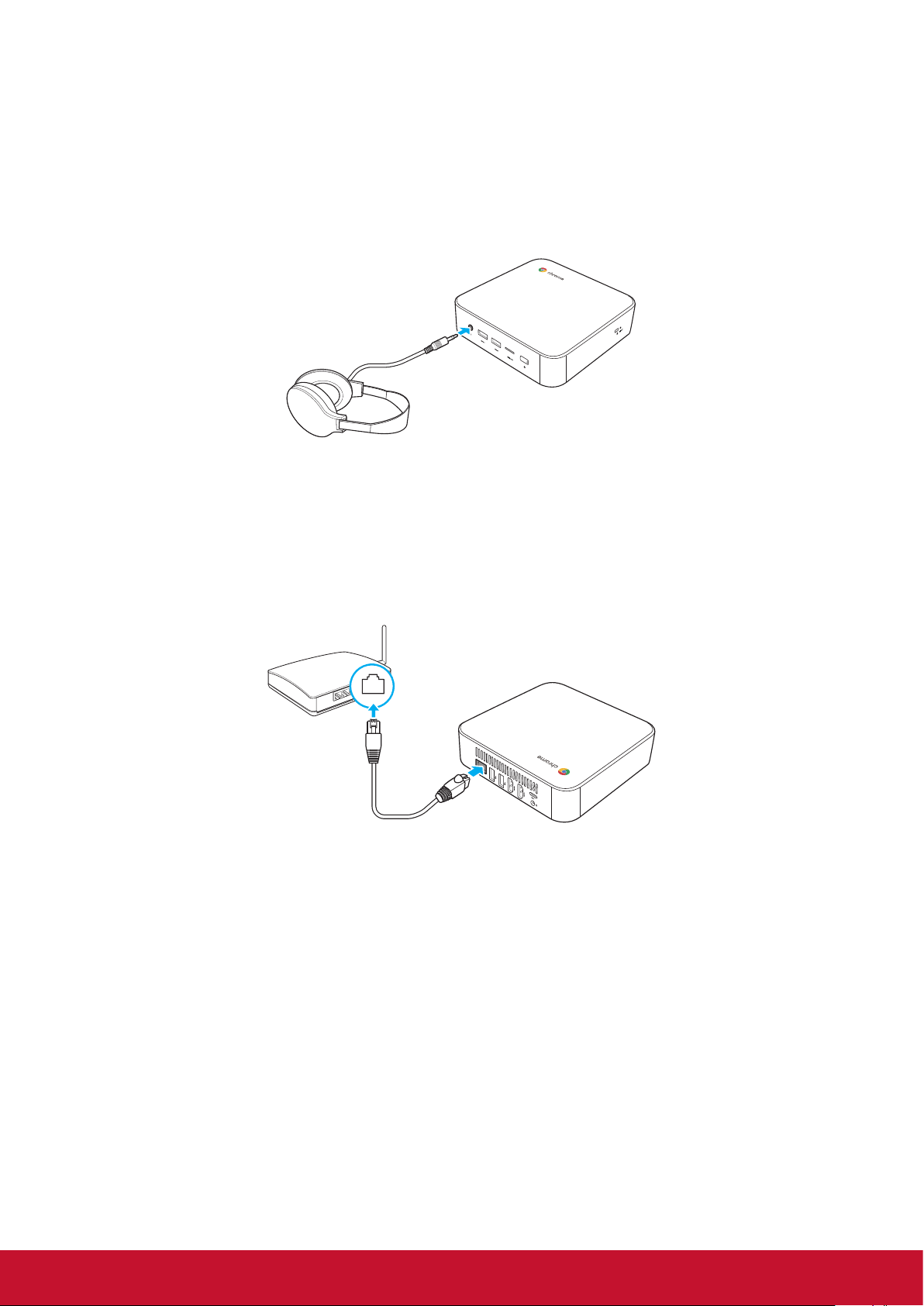

Connecting audio components...........................................................	7
Connecting to local area network (LAN).............................................	7
Inserting a memory card.....................................................................	8
Connecting USB devices....................................................................	8
Mounting the Chromebox....................................................................	9
Powering on your Chromebox..........................................................	10
Resetting the Chromebox.................................................................	10

4. Operting the Chromebox
Navigating the desktop.....................................................................	11
Managing apps.................................................................................	11
Wireless connections........................................................................	12
Connecting to a wireless access point..............................................	12
Connecting to Bluetooth devices......................................................	12
Managing notifications......................................................................	13
Switching to Night Light mode..........................................................	13
Adjusting volume...............................................................................	13
Adjusting brightness..........................................................................	13
Locking the screen............................................................................	13
Configuring Chromebox settings.......................................................	14
5. Troubleshooting
The power is switched on, but Chromebox does not start:..................................	16
Cannot access the LAN:......................................................................................	16
Cannot connect to the Bluetooth device:.............................................................	16
No audio is heard from the Chromebox:..............................................................	16
6. Specifications
Other Information
Customer Support.............................................................................	18

ViewSonic and the three birds logo are registered trademarks of ViewSonic Corporation.

Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation.

	For Your Records

Product Name:	ViewSonic NMP760 Chromebox
Model Number:	VS18614
Document Number:	NMP760_UG_ENG_1a_20210105
Serial Number:	_______________________________________
Purchase Date:	_______________________________________

Product disposal at end of product life

ViewSonic respects the environment and is committed to working and living green.

Thank you for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more.

USA & Canada: http://www.viewsonic.com/company/green/recycle-program/ Europe: http://www.viewsoniceurope.com/eu/support/call-desk/

Taiwan: http://recycle.epa.gov.tw/

1. PRODUCT OVERVIEW

Package contents

Please take a moment to check if all the necessary items are included in the package. If anything is missing or damaged, please contact your dealer immediately.

NMP760

Power adapter	Power cord (by Region)

Wall Mount

Screw
