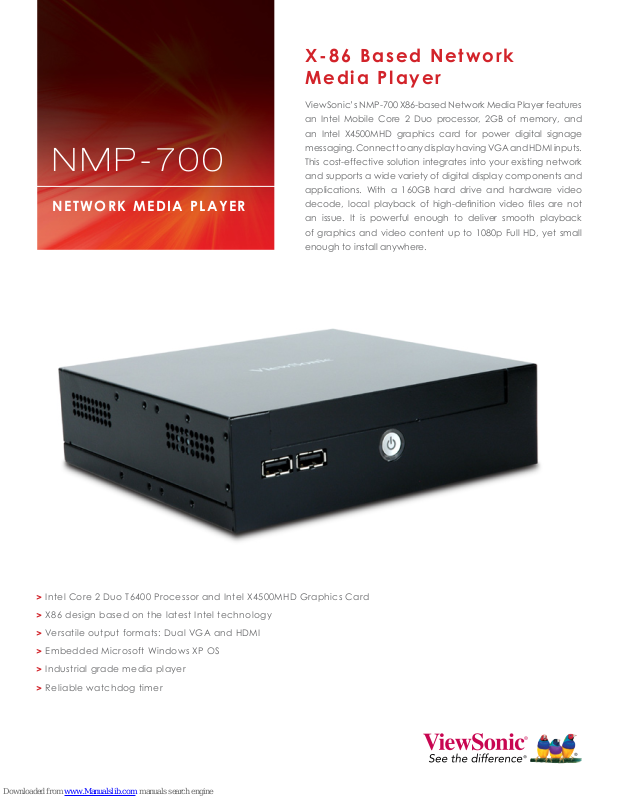

N M P - 7 0 0
NETWORK MEDIA PLAYER
X- 86 B as ed N et wo rk
Me di a Pl ay er

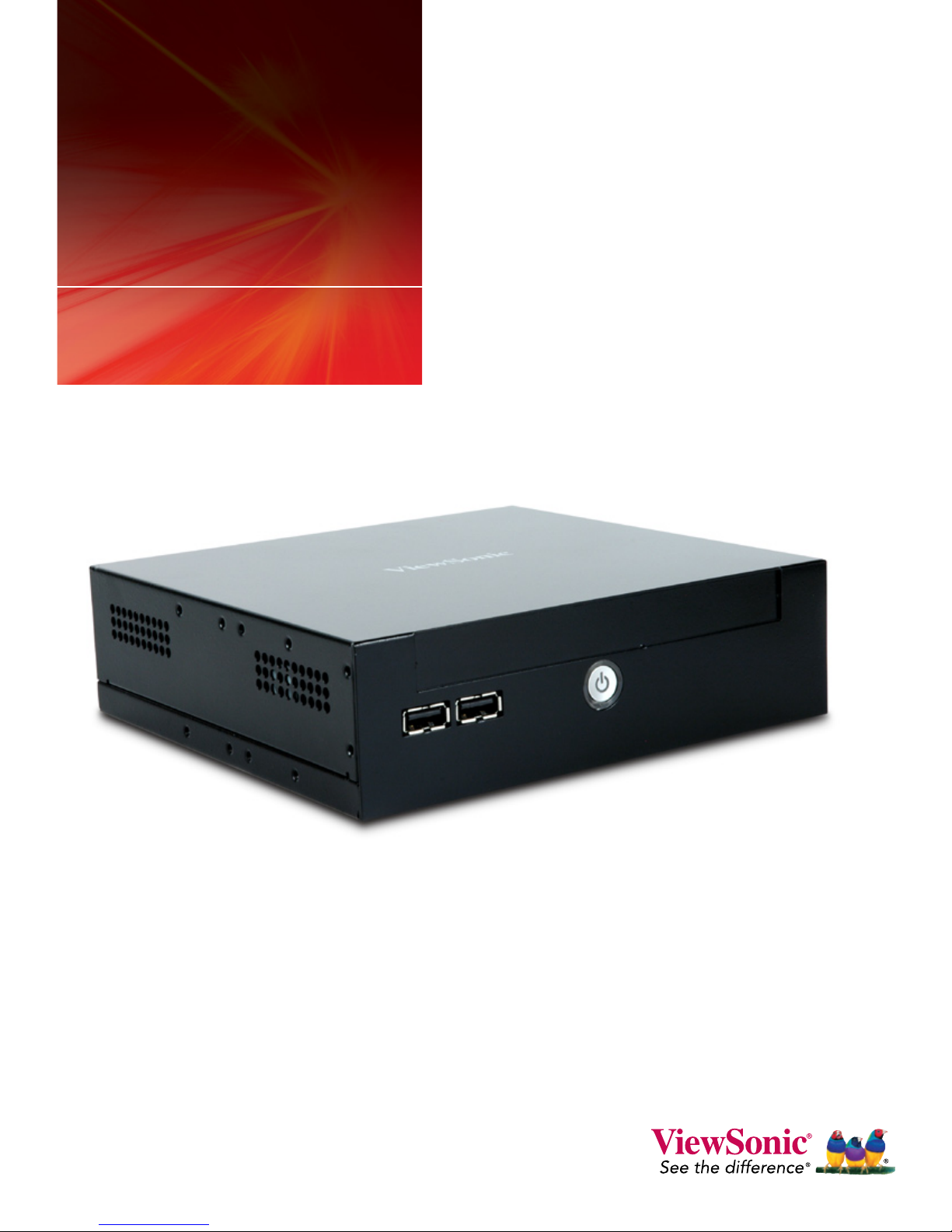

ViewSonic’s NMP-700 X86-based Network Media Player features
an Intel Mobile Core 2 Duo processor, 2GB of memory, and
an Intel X4500MHD graphics card for power digital signage
messaging. Connect to any display having VGA and HDMI inputs.
This cost-effective solution integrates into your existing network
and supports a wide variety of digital display components and
applications. With a 160GB hard drive and hardware video
decode, local playback of high-denition video les are not
an issue. It is powerful enough to deliver smooth playback
of graphics and video content up to 1080p Full HD, yet small
enough to install anywhere.
Intel Core 2 Duo T6400 Processor and Intel X4500MHD Graphics Card
>
X86 design based on the latest Intel technology
>
Versatile output formats: Dual VGA and HDMI
>
Embedded Microsoft Windows XP OS
>
Industrial grade media player
>
Reliable watchdog timer
>
Page 2
N M P - 7 0 0 NE T WOR K ME D IA P LAY E R
PRODUCT TYPE X86-based network media player
CPU
CORE LOGIC
GRAPHICS
OPERATING SYSTEM
MEMORY (RAM)
BIOS
STORAGE
NETWORK Gigabit (10/100/1000 Mbits/sec) LAN
REAR PANEL INPUT/OUTPUT USB port (x2), DC jack (20VDC), VGA port (x2), HDMI port,
RJ45 LAN, RS-232 port, audio out, mic in, Kensington
FRONT PANEL INPUT/OUTPUT Power button, HDD LED, power indicator, USB port (x2)
EXPANSION Mini card slot
PRE-INSTALLED SOFTWARE APPLICATIONS Optional
WATCH DOG TIMER
SUPPORTING PROTOCOLS
DISPLAY VGA (x2), HDMI
AUDIO RCA stereo analog
DECODING Video MPEG-1, 2, 4, Macromedia® Flash
Audio Realteck HD Audio Codec
OPERATING CONDITIONS Temperature 32º–122ºF (0º–50ºC)
Humidity 95% (non-condensing)
DIMENSIONS (W x H x D) Physical 6.5" x 1.9" x 6.2" (166mm x 48mm x 157mm)
WEIGHT Net 2.7 lb. (1.2 kg)
Gross 5.2 lb. (2.4 kg)
REGULATIONS UL/cUL, FCC-15B, CE, CB, RoHS
PACKAGE CONTENTS Network media player, AC adapter, mounting bracket,
Quick Start Guide, Driver CD
WARRANTY One-year limited warranty on parts and labor.
Intel Core 2 Duo Mobile T6400 2.0GHz 2MB L2 Cache 800MHz FSB
Intel GM45 Express Chipset
Intel X4500MHD
Windows embedded standard
2GB DDR-2 SO-DIMM format
AMI
160GB
1~255 sec
TCP/IP, HTTP
®
lock
ViewSonic® recommends our
commercial displays, open frame
display or any ViewSonic large screen LCD or LCD TV
and digital signage software for use with the NMP-700
to give you the best possible digital signage results.
ViewSonic Corporation’s QMS & EMS have been registered
to ISO 9001 & ISO 14001, respectively, by TUV NORD.
Sales: (888) 881-8781 • [email protected] • ViewSonic.com
Specications subject to change without notice. Selection, offers and programs may vary by country; see your
ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their
respective companies. Copyright © 2009 ViewSonic Corporation. All rights reserved. [14428-00B-06/09] NMP-700-1
For more product information, visit us on the web at ViewSonic.com
