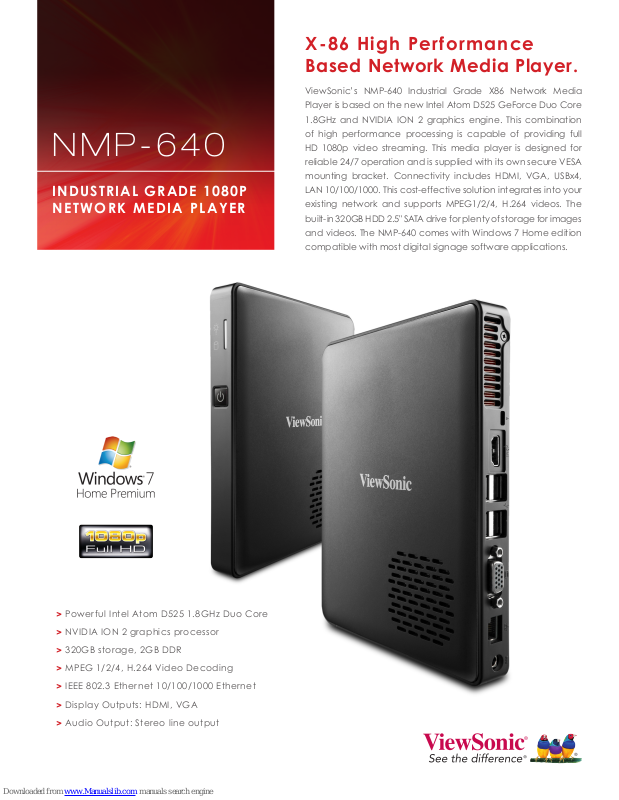

ViewSonic NMP-640 Datasheet

N M P - 6 4 0

INDUSTRIAL GRADE 1080P
NE T WO R K M ED I A P LA Y ER

X-86 High Performance
Based Network Media Player.

ViewSonic’s NMP-640 Industrial Grade X86 Network Media

Player is based on the new Intel Atom D525 GeForce Duo Core

1.8GHz and NVIDIA ION 2 graphics engine. This combination

of high performance processing is capable of providing full

HD 1080p video streaming. This media player is designed for

reliable 24/7 operation and is supplied with its own secure VESA

mounting bracket. Connectivity includes HDMI, VGA, USBx4,

LAN 10/100/1000. This cost-effective solution integrates into your

existing network and supports MPEG1/2/4, H.264 videos. The

built-in 320GB HDD 2.5" SATA drive for plenty of storage for images

and videos. The NMP-640 comes with Windows 7 Home edition

compatible with most digital signage software applications.

Power ful Intel Atom D525 1.8GHz Duo Core

>

NVIDIA ION 2 graphics processor

>

320GB storage, 2GB DDR

>

MPEG 1/2/4, H.264 Video Decoding

>

IEEE 802.3 Ethernet 10/100/1000 Ethernet

>

Display Outputs: HDMI, VGA

>

Audio Output: Stereo line output

>

IN DU STR IA L GRA DE 1 080 P

N MP - 6 4 0

01 – Mounting bracket
02 – Power button
03 – Battery light indicator
04 – Power light indicator
05 – Card reader slot
06 – eSATA + USB 2.0
07 – Headphone jack
08 – Mic in
09 – Kensington® lock slot

10 – HDMI
11 – USB 2.0 (x4)
12 – VGA port
13 – RJ45 Ethernet
14 – DC-in

1

4

3

2

NE TW ORK M ED IA PL AY ER

5 6 7 8

9

10

11

PRODUCT TYPE X86-based network media player

CPU Intel Atom D525 Duo Core 1.8GHz

GRAPHICS NVIDIA GT218 ION 2

OPERATING SYSTEM Windows 7 Home

MEMORY (RAM) 2GB DDR-3 SO-DIMM format

BIOS AMI

STORAGE 320GB SATA 2.5" 5400 rpm

NETWORK Gigabit (10/100/1000 Mbits/sec) LAN

CONNECTIVITY Display HDMI 1.3, VGA

Audio Output Headphone stereo mini-jack

Line Output Mic-in mini-jack, RJ45 LAN,

USB 2.0 (x4), eSATA + USB 2.0,
card reader SD/SDHC/MS/MS Pro

12

13

14

DECODING Video AVC, VC1, MPEG2

Audio Realteck HD Audio Codec ALC662

OPERATING Temperature 32º–104ºF (0º–40ºC)

CONDITIONS Humidity 20–85% (non-condensing)

DIMENSIONS Physical 5.9" x 1.0" x 7.4"
(W x H x D) 150mm x 25mm x 190mm

WEIGHT Net 1.2 lb. (0.55 kg)

Gross 3.9 lb. (1.8 kg)

REGULATIONS FCC-15B, CE, RoHS

WALL MOUNT VESA 100mm x 100mm

PACKAGE CONTENTS Network media player, power cord,

power adapter, mounting bracket,
stand, driver/User Guide CD,
Quick Start Guide

WARRANTY One-year limited warranty

on parts and labor.

ViewSonic Corporation’s QMS & EMS have been registered

to ISO 9001 & ISO 14001, respectively, by TUV NORD.

Sales: [phone] • [e-mail] • ViewSonic.com

Specications subject to change without notice. Selection, offers and programs may vary by country; see your

ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their
respective companies. Copyright © 2011 ViewSonic Corporation. All rights reserved. [15498-00B-02/11] NMP-640-1

For more product information, visit us on the web at ViewSonic.com
