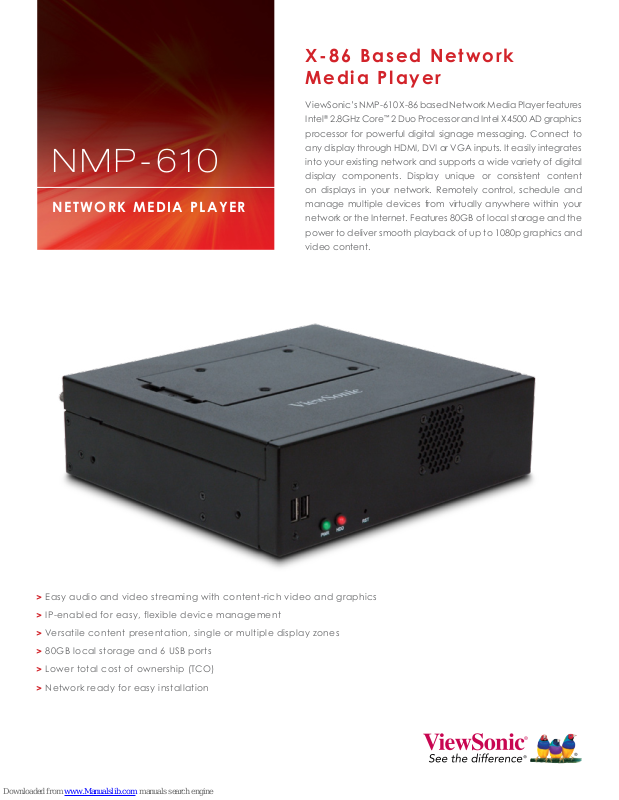

ViewSonic NMP-610 Specifications

N M P - 6 1 0

NETWORK MEDIA PLAYER

X- 86 B as ed N et wo rk
Me di a Pl ay er

ViewSonic’s NMP-610 X-86 based Network Media Player features

Intel® 2.8GHz Core™ 2 Duo Processor and Intel X4500 AD graphics

processor for powerful digital signage messaging. Connect to

any display through HDMI, DVI or VGA inputs. It easily integrates

into your existing network and supports a wide variety of digital

display components. Display unique or consistent content

on displays in your network. Remotely control, schedule and

manage multiple devices from virtually anywhere within your

network or the Internet. Features 80GB of local storage and the

power to deliver smooth playback of up to 1080p graphics and

video content.

Easy audio and video streaming with content-rich video and graphics

>

IP-enabled for easy, flexible device management

>

Versatile content presentation, single or multiple display zones

>

80GB local storage and 6 USB ports

>

Lower total cost of ownership (TCO)

>

Network ready for easy installation

>

N M P - 6 1 0 NE T WOR K ME D IA P LAY E R

OPERATING SYSTEM Windows® XP

CPU

GRAPHICS

STORAGE

RAM

WATCH DOG TIMER

SUPPORTING PROTOCOLS

DISPLAY HDMI 1.3, DVI, VGA

AUDIO Mic-in, headphone, mini out

NETWORK 10/100/1000 Gigabit Ethernet

PERIPHERAL USB (x6), eSATA

POWER DC 12V (max), 100-240V AC

DECODING Video MPEG-1, 2, 2HD, H.264, WMV9

Audio 7.1

OPERATING CONDITIONS Temperature 50º–104ºF (10º–45ºC)

Humidity 20–85% (non-condensing)

DIMENSIONS (W x H x D) Physical 8.7" x 2.5" x 8.0" (221mm x 63mm x 201mm)

WEIGHT Net 5.0 lb. (2.3 kg)

Gross 7.0 lb. (3.2 kg)

REGULATIONS UL, cUL, FCC (15B), CE, CB

PACKAGE CONTENTS Media player, AC adapter, mounting bracket, Quick Start Guide,

Recovery CD, Intel Driver CD

WARRANTY One-year limited warranty on parts and labor.

Intel Core 2 Duo 2.8GHz

Intel X4500HD

80GB SATA 2.5"

2GB DDR

Built-in

TCP/IP, HTTP

ViewSonic® recommends our
commercial displays, open frame
display or any ViewSonic large screen LCD or LCD TV
and digital signage software for use with the NMP-610
to give you the best possible digital signage results.

ViewSonic Corporation’s QMS & EMS have been

registered to ISO 9001 & ISO 14001, respectively,

by the British Standards Institution.

ViewSonic Digital Signage Software Partners

1:1

1:50 (LAN)

100+ (WAN)

Offsite Hosted

Sales: [phone] • [e-mail] • ViewSonic.com

Specications subject to change without notice. Selection, offers and programs may vary by country; see your

ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their
respective companies. Copyright © 2009 ViewSonic Corporation. All rights reserved. [14295-01B-08/09] NMP-610-1

For more product information, visit us on the web at ViewSonic.com
