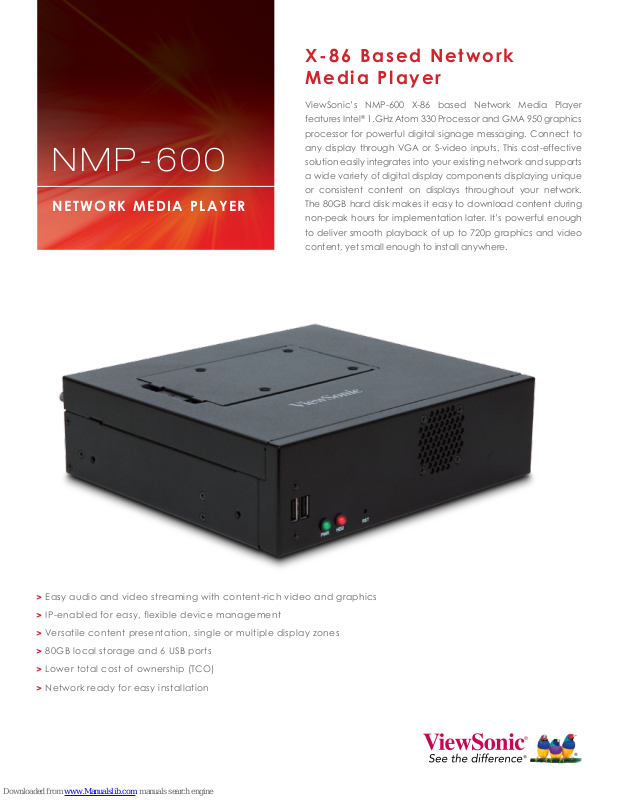

Page 1
N M P - 6 0 0
NETWORK MEDIA PLAYER
X- 86 B as ed N et wo rk
Me di a Pl ay er
ViewSonic’s NMP-600 X-86 based Network Media Player
features Intel® 1.GHz Atom 330 Processor and GMA 950 graphics
processor for powerful digital signage messaging. Connect to
any display through VGA or S-video inputs. This cost-effective
solution easily integrates into your existing network and supports
a wide variety of digital display components displaying unique
or consistent content on displays throughout your network.
The 80GB hard disk makes it easy to download content during
non-peak hours for implementation later. It’s powerful enough
to deliver smooth playback of up to 720p graphics and video
content, yet small enough to install anywhere.
Easy audio and video streaming with content-rich video and graphics
>
IP-enabled for easy, flexible device management
>
Versatile content presentation, single or multiple display zones
>
80GB local storage and 6 USB ports
>
Lower total cost of ownership (TCO)
>
Network ready for easy installation
>
Page 2
N M P - 6 0 0 NE T WOR K ME D IA P LAY E R
OPERATING SYSTEM Windows® XP
CPU
GRAPHICS
STORAGE
RAM
WATCH DOG TIMER
SUPPORTING PROTOCOLS
DISPLAY VGA, S-video
AUDIO RCA stereo analog
NETWORK 10/100/1000 Gigabit Ethernet
PERIPHERAL USB (x6), parallel, serial, PS/2
DECODING Video MPEG-1, 2, 4, Macromedia® Flash
Audio Real Tick, Intel high def, 5.1, S/PDIF
OPERATING CONDITIONS Temperature 50º–104ºF (10º–45ºC)
Humidity 20–85% (non-condensing)
DIMENSIONS (W x H x D) Physical 8.7" x 2.5" x 8.0" (221mm x 63mm x 201mm)
WEIGHT Net 4.3 lb. (1.95 kg)
Gross 6.3 lb. (2.9 kg)
REGULATIONS UL, cUL, FCC (15B), CE, CB, RoHS
PACKAGE CONTENTS Media player, AC adapter, mounting bracket, Quick Start Guide,
Recovery CD, Intel Driver CD
WARRANTY One-year limited warranty on parts and labor.
Intel Core Atom 330 1.6GHz
Intel GM4500
80GB SATA 2.5"
2GB DDR
Built-in
TCP/IP, HTTP
ViewSonic® recommends our
commercial displays, open frame
display or any ViewSonic large screen LCD or LCD TV
and digital signage software for use with the NMP-600
to give you the best possible digital signage results.
ViewSonic Corporation’s QMS & EMS have been
registered to ISO 9001 & ISO 14001, respectively,
by the British Standards Institution.
ViewSonic Digital Signage Software Partners
1:1
1:50 (LAN)
100+ (WAN)
Offsite Hosted
Sales: (888) 881-8781 • [email protected] • ViewSonic.com
Specications subject to change without notice. Selection, offers and programs may vary by country; see your
ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their
respective companies. Copyright © 2009 ViewSonic Corporation. All rights reserved. [14294-00B-01/09] NMP-600-1
For more product information, visit us on the web at ViewSonic.com
