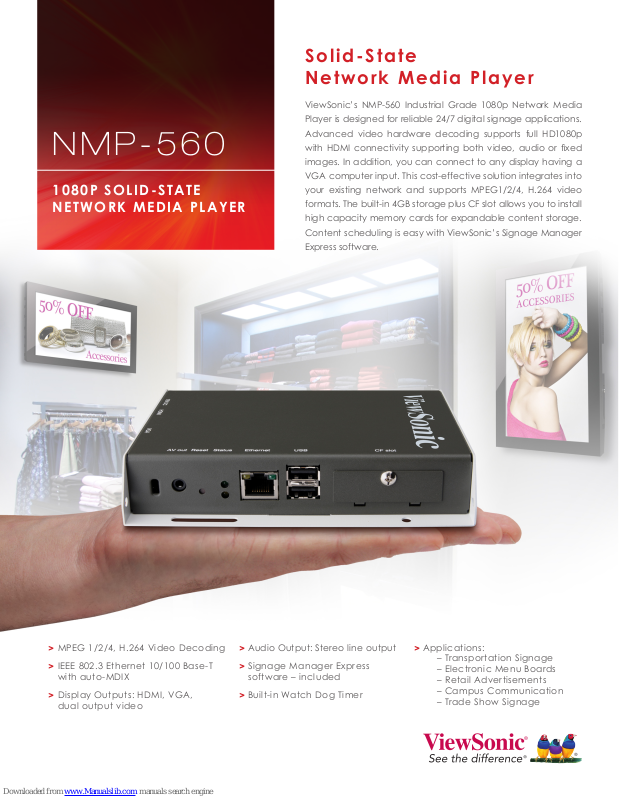

ViewSonic NMP-560 Specifications
N M P - 5 6 0
1080P SOLID-STATE
NETWORK MEDIA PLAYER
So li d- St at e
Ne tw or k Me di a Pl ay er
ViewSonic’s NMP-560 Industrial Grade 1080p Network Media
Player is designed for reliable 24/7 digital signage applications.
Advanced video hardware decoding supports full HD1080p
with HDMI connectivity supporting both video, audio or xed
images. In addition, you can connect to any display having a
VGA computer input. This cost-effective solution integrates into
your existing network and supports MPEG1/2/4, H.264 video
formats. The built-in 4GB storage plus CF slot allows you to install
high capacity memory cards for expandable content storage.
Content scheduling is easy with ViewSonic’s Signage Manager
Express software.
MPEG 1/2/4, H.264 Video Decoding
>
IEEE 802.3 Ethernet 10/100 Base-T
>
with auto-MDIX
Display Outputs: HDMI, VGA,
>
dual output video
>
Signage Manager Express
>
software – included
Built-in Watch Dog Timer
>
Applications:
>Audio Output: Stereo line output
– Transportation Signage
– Electronic Menu Boards
– Retail Advertisements
– Campus Communication
– Trade Show Signage
N M P - 5 6 0 1080P SOLID-STATE NETWORK MEDIA PLAYER
OPERATING SYSTEM Linux
SUPPORTING PROTOCOLS TCP/IP, HTTP
INSTALLED SOFTWARE W3C-SMIL 3.0
NETWORK MANAGEMENT Signage Manager Express
CONNECTORS 10/100 Ethernet, RCA audio
DISPLAY HDMI, VGA, A/V
AUDIO RCA stereo analog
NETWORK 10/100 Ethernet
USB USB (x2)
DECODING Video MPEG-1, 2, 4; H.264, VC-1/WMV9
Audio MPEG-1 (layers 1 & 2), MP3
STREAMING PROTOCOL Types HTTP, local le playback
RESOLUTIONS 640x480, 800x600, 1024x768, 1280x1024,
1280x768, 1366x768, 1920x1080
IMAGE FILE Formats JPEG, PNG
LOCAL STORAGE 4GB ash memory CF card expansion slot
SCANNING FORMAT SDTV 480i, EDTV 480p, HDTV 720p, 1080i
SCREEN ROTATION Landscape, portrait (+90º, –90º)
POWER DC 12V (max), 100-240V AC 1.5A
AUTO RESET Automatic error recovery with built-in Watch Dog Timer
OPERATING CONDITIONS Temperature 50º–104ºF (0º–40ºC)
Humidity 5–85% (non-condensing)
DIMENSIONS (W x H x D) Physical 6.1" x 1.2" x 4.5" (156mm x 29mm x 115mm)
WEIGHT Net 1.1 lb. (0.5 kg)
Gross 2.5 lb. (1.1 kg)
WALL MOUNT VESA 100mmx100mm
REGULATIONS CE, FCC, RoHS
PACKAGE CONTENTS Media player, remote control with batteries, AC adapter,
Ethernet cable, audio cable, mounting bracket, Quick Start Guide,
User Guide on CD, Signage Manager Express CD
WARRANTY One-year limited warranty on parts and labor.
109
11 – 12V DC in
12 – HDMI
13 – VGA
14 – Lock slot
15 – AV out
16 – Ethernet
17 – USB x2
18 – CF card slot
(security cover)
19 – Rugged metal housing
10 – VESA compatible
mounting bracket
ViewSonic Corporation’s QMS & EMS have been registered
to ISO 9001 & ISO 14001, respectively, by TUV NORD.
1
2
3
Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com
Specications subject to change without notice. Selection, offers and programs may vary by country; see your
ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their
respective companies. Copyright © 2010 ViewSonic Corporation. All rights reserved. [15316-00B-11/10] NMP-560-1
For more product information, visit us on the web at ViewSonic.com
