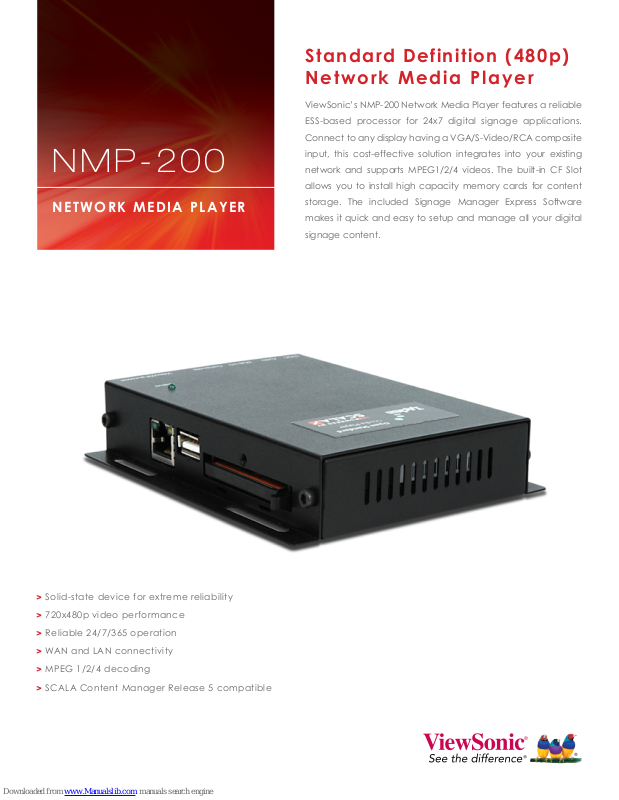

ViewSonic NMP-200 - Network Media Player Ess-based Processor Specifications
N M P - 2 0 0
NETWORK MEDIA PLAYER
Standard Definition (480p)
Ne tw or k M ed ia Pl aye r
ViewSonic’s NMP-200 Network Media Player features a reliable
ESS-based processor for 24x7 digital signage applications.
Connect to any display having a VGA/S-Video/RCA composite
input, this cost-effective solution integrates into your existing
network and supports MPEG1/2/4 videos. The built-in CF Slot
allows you to install high capacity memory cards for content
storage. The included Signage Manager Express Software
makes it quick and easy to setup and manage all your digital
signage content.
Solid-state device for extreme reliability
>
720x480p video per for mance
>
Reliable 24/7/365 operation
>
WAN and LAN connectivity
>
MPEG 1/2/4 decoding
>
SCALA Content Manager Release 5 compatible
>
N M P - 2 0 0 N E TWO RK M EDI A P L AY E R
PRODUCT TYPE Network Media Player
IAdea™ IAN411 Multimedia Networking Processor
IEEE 802.3 Ethernet 10/100 Base-T with Auto-MDIX
Signage Manager Express Software (LAN)
MPEG 1/2 MP@ML (480p)
Typically 3 Mbps data rate, equivalent to 25 minutes
CompactFlash Type I/II memory card
up to 720x480 resolution, 30 frames per second
VGA, S-video, composite RCA video
Stereo line-out
®
compliant (10-cm/4-inch)
4-watt (typ)
Upload and automatically play
content via the USB port.
PROCESSOR
ESS Digital Media Processor 2 (DMP2)
Dual Processor
NETWORKING
PLAYBACK CONTROL
Adfotain Central Management Server (WAN)
SUPPORTED MEDIA FORMATS
MPEG 4 ASP@L2 AVI
CONTENT CAPACITY
per 512MB memory card and 1 hour per 1.2GB memory card
STORAGE MEDIUM
VIDEO PERFORMANCE
VIDEO OUTPUT
AUDIO OUTPUT
DIMENSIONS (W x H x D) Physical 5.3" x 4.4" x 1.0" (133.5mm x 113.5mm x 25mm)
WEIGHT Net 1.8 lb. (0.8 kg)
MOUNTING HOLES 4 VESA
POWER CONSUMPTION
OPERATING CONDITIONS Temperature 0–40º C
Humidity 5–85% @ 40º C
REGULATIONS UL approved AC adapter
PACKAGE CONTENTS Media Player, AC power adapter, User Guide,
Signage Manager Express software
WARRANTY One-year limited warranty on parts and labor
ViewSonic® recommends our
commercial displays, open frame
display or any ViewSonic large screen LCD or LCD TV
and the included Signage Manger Express software
for use with the NMP-200 to give you the best possible
digital signage results.
ViewSonic Corporation’s QMS & EMS have been registered
to ISO 9001 & ISO 14001, respectively, by TUV NORD.
ViewSonic Digital Signage Software Partners
1:1
1:50 (LAN)
100+ (WAN)
Offsite Hosted
Signage
Manager Express
Recommended
Network Media Player
NMP-610
NMP-700
NMP-530
NMP-200
NMP-550
NMP-600
NMP-610
NMP-700
Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com
Specications subject to change without notice. Selection, offers and programs may vary by country; see your
ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their
respective companies. Copyright © 2009 ViewSonic Corporation. All rights reserved. [14427-00B-0609] NMP-200-1
For more product information, visit us on the web at ViewSonic.com
