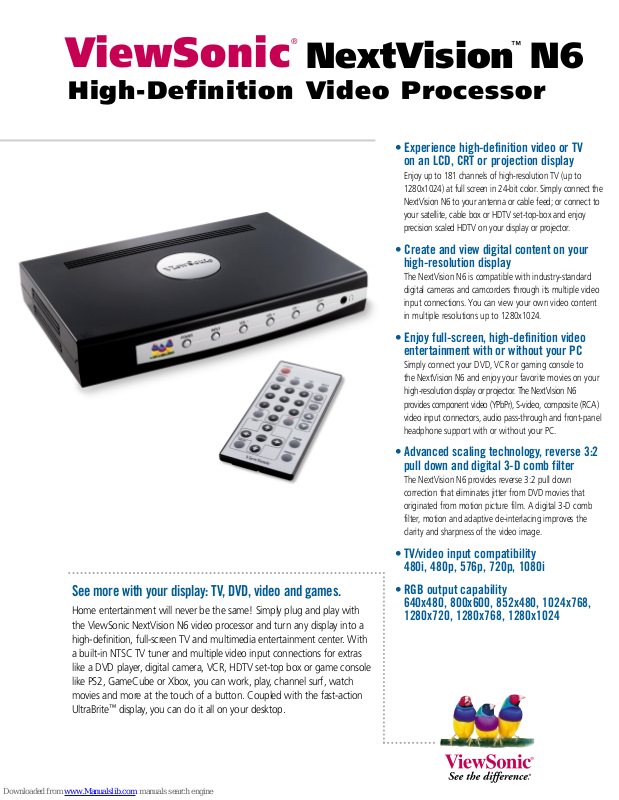

ViewSonic NextVision N6 Specifications
• Experience high-definition video or TV
on an LCD, CRT or projection display
Enjoy up to 181 channels of high-resolution TV (up to
1280x1024) at full screen in 24-bit color. Simply connect the
NextVision N6 to your antenna or cable feed; or connect to
your satellite, cable box or HDTV set-top-box and enjoy
precision scaled HDTV on your display or projector.
• Create and view digital content on your
high-resolution display
The NextVision N6 is compatible with industry-standard
digital cameras and camcorders through its multiple video
input connections. You can view your own video content
in multiple resolutions up to 1280x1024.
• Enjoy full-screen, high-definition video
entertainment with or without your PC
Simply connect your DVD, VCR or gaming console to
the NextVision N6 and enjoy your favorite movies on your
high-resolution display or projector. The NextVision N6
provides component video (YPbPr), S-video, composite (RCA)
video input connectors, audio pass-through and front-panel
headphone support with or without your PC.
• Advanced scaling technology, reverse 3:2
pull down and digital 3-D comb filter
The NextVision N6 provides reverse 3:2 pull down
correction that eliminates jitter from DVD movies that
originated from motion picture film. A digital 3-D comb
filter, motion and adaptive de-interlacing improves the
clarity and sharpness of the video image.
• TV/video input compatibility
480i, 480p, 576p, 720p, 1080i
• RGB output capability
640x480, 800x600, 852x480, 1024x768,
1280x720, 1280x768, 1280x1024
High-Definition Video Processor
ViewSonic
®
NextVision™N6
See more with your display: TV, DVD, video and games.
Home entertainment will never be the same! Simply plug and play with
the ViewSonic NextVision N6 video processor and turn any display into a
high-definition, full-screen TV and multimedia entertainment center. With
a built-in NTSC TV tuner and multiple video input connections for extras
like a DVD player, digital camera, VCR, HDTV set-top box or game console
like PS2, GameCube or Xbox, you can work, play, channel surf, watch
movies and more at the touch of a button. Coupled with the fast-action
UltraBrite
™
display, you can do it all on your desktop.
High-Definition Video Processor
• Picture-in-picture viewing
When connected to a PC you can view a video or TV
window over your data screen.
• Closed caption technology*
Displays text overlay of spoken audio over video.
• SAP/MTS stereo*
Allows the reception of audio other than main
programming audio.
• Parental control*
Built-in V chip allows controlled programming based
on a selected rating system.
• RGB computer pass-through
Watch TV or enjoy your DVD movie without turning
on your computer.
• Auto tuning
Auto tuning of TV broadcast and cable TV channels.
• Multiple channel viewing
Multiview supports 9 individual TV channel windows
with 1 active window.
• Sleep timer
Built-in sleep timer automatically shuts off display at
pre-determined times.
• Easy connection and control
The NextVision N6 is an external plug-and-play tabletop configuration requiring no software drivers or
internal computer installation.
• Convenient 28-key remote control
ViewSonic
®
*
Closed Caption, SAP/MTS and parental control may not be available in all regions. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete
details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2002 ViewSonic Corporation. All rights reserved. [10625-00B-06/02] N6-1
381 Brea Canyon Road, Walnut, CA 91789 • Phone (800) 888-8583 or (909) 444-8888 • Fax (909) 839-7922 • SalesInfo@ViewSonic.com • ViewSonic.com
HIGH-DEFINITION VIDEO PROCESSOR WITH COMPONENT VIDEO INPUTS AND TV TUNER
ANTENNA/CABLE (RF)
Tuner
FI1236MK2 (North America)
Freq Range
55.25–801.25 MHz
Numbers of Channels
2–69 off air
2–125 NTSC cable
INPUT SIGNAL
Type
RF, S-video, composite (RCA), component (YPbPr) RGB
pass-through
3.5mm mini stereo audio in, and RCA (left/right) audio in
TV/Video Compatibility
480i, 480p, 576p, 720p, 1080i
VIDEO OUTPUT
Bit Performance
24-bit RGB 700mV±10% (excluding RGB pass-through)
OUTPUT MODE
Resolution
640x480 @ 60Hz/75Hz 1280x720 @ 60Hz
(excluding RGB
Refresh rate
800x600 @ 60Hz/75Hz 1280x768 @ 60Hz
pass-through)
(Integrated or
852x480 @ 60Hz 1280x1024 @ 60Hz
progressive scan)
1024x768 @ 60Hz/75Hz
AUDIO OUTPUT
MTS*
Mono/stereo/SAP (available in RF mode)
POWER
Input
Universal 90–264V AC, 47–63Hz
Output
12V DC, 1.5 A
Type
Power adapter
CONNECTOR
Signal
F connector for RF, 3.5mm mini stereo jack for audio in and
audio out. RCA left/right for audio in, component video,
(YPbPr), S-video and composite input (RCA), 15-pin mini
D-sub for RGB input and RGB output, front headphone 3.5mm
Power
DC-in jack
CONTROLS
Basic
Power, input, channel +/- and volume +/-
OnView
®
Contrast, brightness, saturation, sharpness, hue, MTS, treble,
bass, balance, audio source selection, OSD position, OSD
language (English, Spanish, French, traditional Chinese),
resolution, refresh rate, input signal, tuner input (antenna,
CATV std, CATV HRC, CATV IRC), sleep, autoscan, channel
add/remove, channel label, parental control (rating selection
and password), CC and text 1&2 and system info.
Remote Control
28-key IR remote control. Power, volume +/-, channel +/-,
four navigation arrows, select, menu, enter, freeze, mute,
input, POP (multi-view), PIP, recall, 10 numbering keys.
OPERATING
Temperature
0–40° C (32–104° F)
CONDITIONS
Humidity
5–95%, non-condensing
Altitude
-150–12,000 feet above sea level
REGULATIONS UL, cUL, FCC Class B
ACCESSORIES
Included
Power adapter, VGA extension cable, 3.5mm mini stereo
cable,A/V cable, user’s guide, remote, batteries and stand
included.
ViewSonic Corporation’s QMS & EMS have been registered
to ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
NextVision™N6
ViewSonic recommends any of it’s
UltraBrite
™
displays be used with
the NextVision N6 for the ultimate
entertainment and computing experience.
