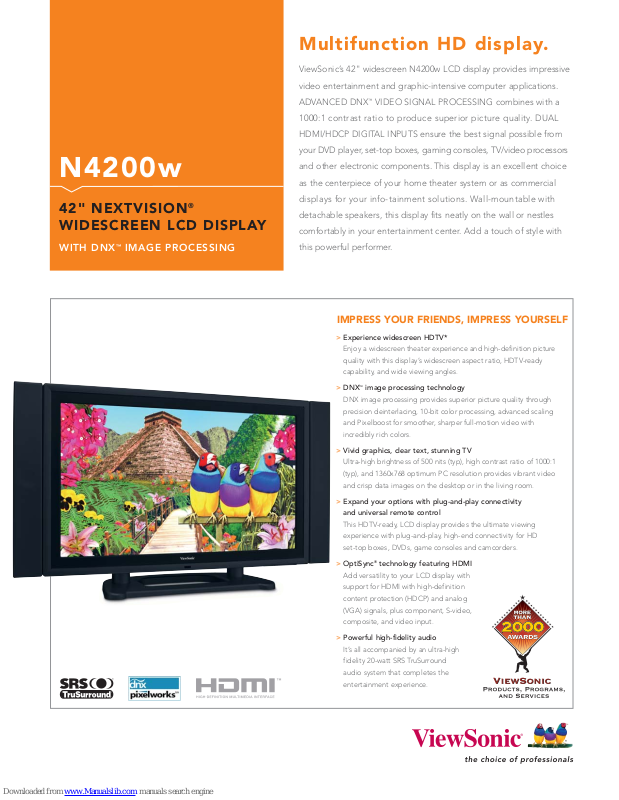

ViewSonic NEXTVISION N4200w Specifications
N4200w
42" NEXTVISION
WIDESCREEN LCD DISPLAY
WITH DNX™IMAGE PROCESSING
®
Multifunction HD display.
ViewSonic’s 42" widescreen N4200w LCD display provides impressive
video entertainment and graphic-intensive computer applications.
™
ADVANCED DNX
1000:1 contrast ratio to produce superior picture quality. DUAL
HDMI/HDCP DIGITAL INPUTS ensure the best signal possible from
your DVD player, set-top boxes, gaming consoles, TV/video processors
and other electronic components. This display is an excellent choice
as the centerpiece of your home theater system or as commercial
displays for your info-tainment solutions. Wall-mountable with
detachable speakers, this display fits neatly on the wall or nestles
comfortably in your entertainment center. Add a touch of style with
this powerful performer.
IMPRESS YOUR FRIENDS, IMPRESS YOURSELF
> Experience widescreen HDTV*
Enjoy a widescreen theater experience and high-definition picture
quality with this display’s widescreen aspect ratio, HDTV-ready
capability, and wide viewing angles.
> DNX™image processing technology
DNX image processing provides superior picture quality through
precision deinterlacing, 10-bit color processing, advanced scaling
and Pixelboost for smoother, sharper full-motion video with
incredibly rich colors.
> Vivid graphics, clear text, stunning TV
Ultra-high brightness of 500 nits (typ), high contrast ratio of 1000:1
(typ), and 1360x768 optimum PC resolution provides vibrant video
and crisp data images on the desktop or in the living room.
> Expand your options with plug-and-play connectivity
and universal remote control
This HDTV-ready, LCD display provides the ultimate viewing
experience with plug-and-play, high-end connectivity for HD
set-top boxes, DVDs, game consoles and camcorders.
> OptiSync®technology featuring HDMI
Add versatility to your LCD display with
support for HDMI with high-definition
content protection (HDCP) and analog
(VGA) signals, plus component, S-video,
composite, and video input.
> Powerful high-fidelity audio
It’s all accompanied by an ultra-high
fidelity 20-watt SRS TruSurround
audio system that completes the
entertainment experience.
VIDEO SIGNAL PROCESSING combines with a
N4200w
42" NEXTVISION®WIDESCREEN LCD DISPLAY WITH DNX™IMAGE PROCESSING
LCD Type 42" (42.02" viewable) color TFT active matrix, wide LCD
Display Area 36.6" horizontal x 20.6" vertical; 42" diagonal
Native Resolution 1366x768
Contrast Ratio 1000:1 (typ)
Viewing Angles 176° horizontal, 176° vertical
Response Time 8ms
Light Source Long life, 50,000 hrs. (typ)
Brightness 500 cd/m2 (typ)
Aspect Ratio 16:9
Glass Surface Anti-glare, hard coating (3H)
INPUT PC RGB analog (75 ohms, 0.7 Vp-p)
TV Composite (RCA), component YPbPr/YCbCr, S-video
Audio 3.5mm mini stereo audio in/out and RCA (left/right) audio in
RGB Frequency Fh: 30~64kHz, Fv: 60~75Hz
Sync H/V separated (TTL)
Digital HDMI (with HDCP and audio support)
Tuner None
AUDIO OUPUT Speakers 2x10-watt SRS TruSurround
COMPATIBILITY PC 1360x768 (preferred), 1024x768, 1280x768
Mac®** Power Mac™ G3/G4/G5 up to 1280x1024, 1280x720 (preferred)
INPUT SIGNAL TV/Video Comp. 480i, 480p, 576p, 720p, 1080i
CONNECTOR Analog 15-pin mini D-sub (VGA)
Digital HDMI
Power 3-pin plug
POWER Voltage AC 90–240V (universal), 50–60Hz
Consumption 240W (typ)
CONTROLS Basic Power, enter, channel +/-, volume +/-, menu
OPERATING Temperature 32–104°F (0–40°C)
CONDITIONS Humidity 10–80% (non-condensing)
DIMENSIONS Physical (mm) 1052mm x 739mm x 304mm (with stand)
(W x H x D) Physical (in.) 41.4" x 29.0" x 12" (with stand)
WEIGHT Net 70.4 lb. (32.0 kg) (with stand)
REGULATIONS UL/cUL, FCC, NOM
PACKAGE CONTENTS LCD display, power cable, remote control with batteries,
WARRANTY One-year limited warranty on parts and backlight
®
OnView
(Video Mode) Picture (contrast, brightness, color, tint, sharpness, aspect
(PC Mode) Auto adjust, contrast, brightness, H. position, V. position, H.
size, fine tune, aspect ratio, information, text/graphic mode,
color temperature
ratio, color temperature), sound (volume, balance, bass, treble,
input menu (AV, S-video, YCbCr, YPbPr, HDMI, VGA), PIP
(input, POP, mode disable, audio, SWAP, size/position), set up
(OSD H/V position), time out, transparency, OSD color, language,
memory recall
VGA cable, Quick Start Guide, User Guide
ViewSonic Corporation’s QMS & EMS have been registered to
ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Customer Service and Technical Support: (800) 688-6688 • Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com
*HDTV cable or satellite provider and set-top box required. **Adapter may be required. Analog adapter available from ViewSonic. DNX is a registered trademark of Pixelworks, Inc. Specifications subject to change without
notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright ©
2006 ViewSonic Corporation. All rights reserved. [12718-00B-11/05] N4200w-1
For more product information, visit us on the web at ViewSonic.com
