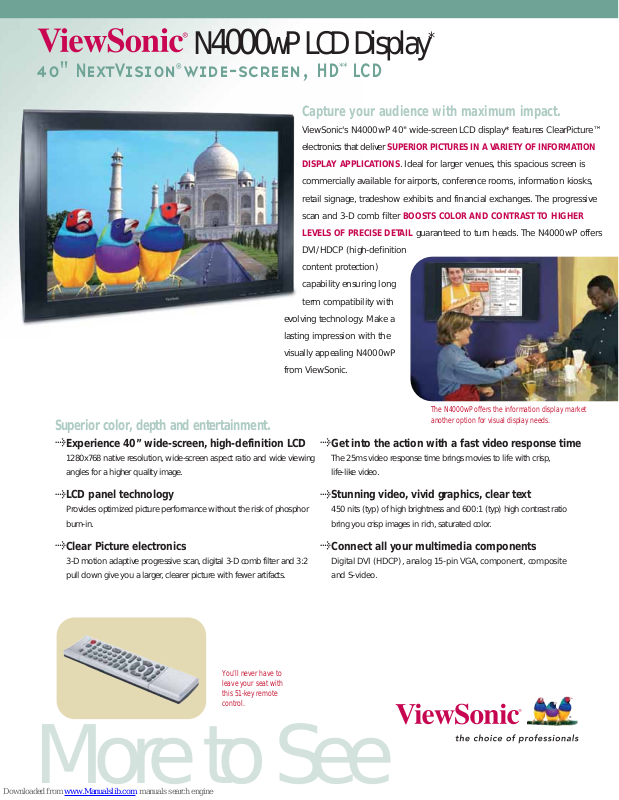

ViewSonic NextVision N4000WP Brochure

N4000wP LCD Display

40" NextVision®wide-screen, HD**LCD

Capture your audience with maximum impact.

ViewSonic's N4000wP 40" wide-screen LCD display* features ClearPicture™
electronics that deliver

DISPLAY APPLICATIONS

commercially available for airports, conference rooms, information kiosks,
retail signage, tradeshow exhibits and financial exchanges. The progressive
scan and 3-D comb filter

LEVELS OF PRECISE DETAIL guaranteed to turn heads. The N4000wP offers

DVI/HDCP (high-definition
content protection)
capability ensuring long
term compatibility with

evolving technology. Make a

*

SUPERIOR PICTURES IN A VARIETY OF INFORMATION

. Ideal for larger venues, this spacious screen is

BOOSTS COLOR AND CONTRAST TO HIGHER

lasting impression with the
visually appealing N4000wP
from ViewSonic.

Superior color, depth and entertainment.

>

Experience 40” wide-screen, high-definition LCD

1280x768 native resolution, wide-screen aspect ratio and wide viewing
angles for a higher quality image.

>

LCD panel technology

Provides optimized picture performance without the risk of phosphor
burn-in.

>

Clear Picture electronics

3-D motion adaptive progressive scan, digital 3-D comb filter and 3:2
pull down give you a larger, clearer picture with fewer artifacts.

The N4000wP offers the information display market
another option for visual display needs.

>

Get into the action with a fast video response time

The 25ms video response time brings movies to life with crisp,
life-like video.

>

Stunning video, vivid graphics, clear text

450 nits (typ) of high brightness and 600:1 (typ) high contrast ratio
bring you crisp images in rich, saturated color.

>

Connect all your multimedia components

Digital DVI (HDCP), analog 15-pin VGA, component, composite
and S-video.

More to See

You’ll never have to
leave your seat with
this 51-key remote
control.

N4000wP LCD Display

40" NextVision®wide-screen, HD**LCD

LCD PANEL Type 40" wide color, 1280x768 resolution

Display Area 34.3" horizontal x 20.6" vertical; 40.0" diagonal
Brightness 450 cd/m2(typ)
Contrast Ratio 600:1 (typ)
Viewing Angle 170° horizontal, 170°vertical @ contrast ratio > 10
Response Time 25ms (typ)
Aspect Ratio 15:9

1

1. One-touch buttons control all major functions.

2

3

2. High-quality audio 3-D surround (SRS) audio

(speakers sold separately)

3. Optional base shown (sold separately)

Additional Special Features

Advanced precision scaling and image processing

•

Full PIP, POP (multiview) swap capability

•

Headphone output

•

VIDEO INPUT AV input Composite video (x1) + R/L RCA audio

AUDIO Speakers Optional SRS 3-D surround sound; 2x12-watt
VIDEO OUTPUT Output 1 R/L RCA audio (x1)
COMPATIBILITY AV 480i (NTSC), 576i (PAL)

POWER Voltage 100–240 (universal), 50–60Hz

CONTROLS Basic Power (soft), menu, source, channel up/down, volume up/down, headphone

OPERATING Temperature 32–104°F (0–40°C)
CONDITIONS Humidity 10–90% (non-condensing)

DIMENSIONS Physical 1020mm x 95mm x 320mm
(W X H X D) 40.2" x 25.6" x 3.7"

WEIGHT Net 62.4 lb. (28.3 kg)

REGULATIONS FCC-B, UL, cUL, ICES003, BSMI
WARRANTY One-year limited warranty on parts, labor and backlight.

Glass Surface Anti-glare

S-Video input S-Video (x1) + R/L RCA audio
Component video Component 1 (x1) + R/L RCA audio; Component 2 (x1) + R/L RCA audio
VGA input RGB (x1) 15 D-sub + PC 3.5 mini jack connector
DVI input DVI-D (HDCP) (x1) + R/L RCA audio
Headphone 3.5 mini jack connector
Audio output R/L (x1) RCA audio

Component DVI 480i, 480p (NTSC), 576i, 576P (PAL), 720p, 1080i
S-Video 480p, 720p, 1080i (NTSC), 576p (PAL)
VGA 480i (NTSC), 576i (PAL)
PC Compatible from VGA up to 1280x1024 non-interlaced, 1280x768 preferred

®†

MAC

Consumption 260W (typ)
Connector 3-pin plug

®

OnView

Gross 84.4 lb. (38.3 kg)

Power Mac™ G3/G4 up to 1280x1024, 1280x768 (preferred)

Headphone, brightness, contrast, color, tint, sharpness, video mode, audio
(volume, treble, bass, balance, audio mode, speaker, MTS), timer (current
time, on status, on timer, sleep timer, languages, noise reduction, PIP, PIP
position, source, POP, SWAP, screen mode

*

specifications

1

4

2

3

5

7

6

The N4000wP features a number of input connections to ensure
long-term compatibility with evolving technology.

ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Phone [phone] or [phone] • In Canada [phone]• Fax [phone] • [e-mail] • ViewSonic.com

*TV tuner not included. Connect to set-top box for full TV capabilities. **HDTV cable or s atellite provider and set-top box needed to view H DT V. †Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without n otice. Selection, offers and programs may var y by
country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2005 ViewSonic Corporation. All rights reserved. [12333-00B-02/05] N4000wP-1

1. Component video (#1) with audio

2. S-video with audio

3. Composite video with audio

4. DVI with audio (R/L)

5. Component video (#2) with audio

6. RGB (VGA) with audio (3.5 mini)

7. DVI video

For more product information, visit us on the web at ViewSonic.com
