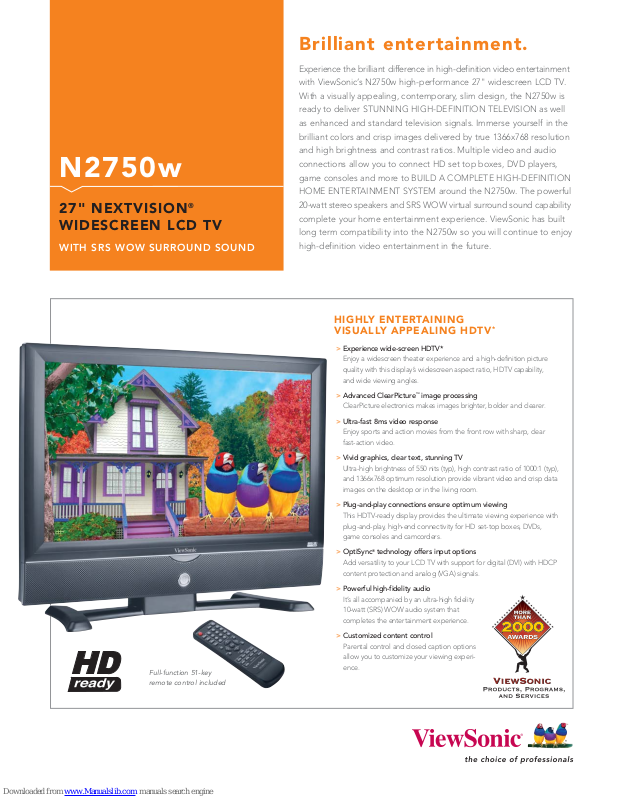

ViewSonic NextVision N2750w Specifications
N2750w
27" NEXTVISION
WIDESCREEN LCD TV
WITH SRS WOW SURROUND SOUND
®
Brilliant entertainment.
Experience the brilliant difference in high-definition video entertainment
with ViewSonic’s N2750w high-performance 27" widescreen LCD TV.
With a visually appealing, contemporary, slim design, the N2750w is
ready to deliver STUNNING HIGH-DEFINITION TELEVISION as well
as enhanced and standard television signals. Immerse yourself in the
brilliant colors and crisp images delivered by true 1366x768 resolution
and high brightness and contrast ratios. Multiple video and audio
connections allow you to connect HD set top boxes, DVD players,
game consoles and more to BUILD A COMPLETE HIGH-DEFINITION
HOME ENTERTAINMENT SYSTEM around the N2750w. The powerful
20-watt stereo speakers and SRS WOW virtual surround sound capability
complete your home entertainment experience. ViewSonic has built
long term compatibility into the N2750w so you will continue to enjoy
high-definition video entertainment in the future.
Full-function 51-key
remote control included
HIGHLY ENTERTAINING
VISUALLY APPEALING HDTV
> Experience wide-screen HDTV*
Enjoy a widescreen theater experience and a high-definition picture
quality with this display’s widescreen aspect ratio, HDTV capability,
and wide viewing angles.
> Advanced ClearPicture™image processing
ClearPicture electronics makes images brighter, bolder and clearer.
> Ultra-fast 8ms video response
Enjoy sports and action movies from the front row with sharp, clear
fast-action video.
> Vivid graphics, clear text, stunning TV
Ultra-high brightness of 550 nits (typ), high contrast ratio of 1000:1 (typ),
and 1366x768 optimum resolution provide vibrant video and crisp data
images on the desktop or in the living room.
> Plug-and-play connections ensure optimum viewing
This HDTV-ready display provides the ultimate viewing experience with
plug-and-play, high-end connectivity for HD set-top boxes, DVDs,
game consoles and camcorders.
> OptiSync®technology offers input options
Add versatility to your LCD TV with support for digital (DVI) with HDCP
content protection and analog (VGA) signals.
> Powerful high-fidelity audio
It’s all accompanied by an ultra-high fidelity
10-watt (SRS) WOW audio system that
completes the entertainment experience.
> Customized content control
Parental control and closed caption options
allow you to customize your viewing experience.
*
N2750w
27" NEXTVISION®WIDESCREEN LCD TV WITH SRS WOW SURROUND SOUND
LCD Type 27" color TFT active matrix, wide 1366x768 LCD
Display Area 23.5" horizontal x 13.2" vertical; 27.0" diagonal
Optimum Resolution 1366x768
Contrast Ratio 1000:1 (typ)
Viewing Angles 176° horizontal, 176° vertical
Response Time 8ms gray-to-gray (avg)
Light Source Long life, 50,000 hrs. (typ)
Brightness 550 cd/m2 (typ)
Aspect Ratio 16:9
Glass Surface Anti-glare, anti-reflective coat
INPUT PC RGB analog (75 ohms, 0.7 Vp-p)
TV TV/cable, composite (RCA), component YPbPr/YCbCr, S-video
Audio 3.5mm mini stereo audio in/out and RCA (left/right) audio in
RGB Frequency Fh: 30~64kHz, Fv: 60~75Hz
Sync H/V separated (TTL)
Digital DVI with HDCP (content protection)
Tuner NTSC
AUDIO OUPUT Speakers 2x10-watt SRS WOW
COMPATIBILITY PC Compatible from VGA up to 1360x768 non-interlaced
Mac®** Power Mac™ G3/G4/G5 up to 1360x768
INPUT SIGNAL TV/Video Comp. 480i, 480p, 720p, 1080i
CONNECTOR Analog 15-pin mini D-sub (VGA)
Digital DVI
Power 3-pin plug
POWER Voltage AC 90–240V (universal), 47–63Hz
Consumption 150W (typ)
1. TV in
2. Component video in
3. S-video
4. Audio Out R/L
5. Audio In R/L
CONTROLS Basic Power, enter, channel +/-, volume +/-, menu
1
2
3
4
5
OPERATING Temperature 32–104°F (0–40°C)
CONDITIONS Humidity 10–90% (non-condensing)
DIMENSIONS Physical (mm) 680mm x 540mm x 243mm (with stand)
(W x H x D) Physical (in) 26.8" x 21.2" x 9.5" (with stand)
WEIGHT Net 35.2 lb. (16.0 kg) (with stand)
REGULATIONS cUL, FCC, NOM, ICES003
PACKAGE CONTENTS LCD TV display, power cable(s), remote control with batteries,
WARRANTY One-year limited warranty on parts and backlight
®
OnView
(Video Mode) Picture (contrast, brightness, color, tint, sharpness, aspect
(TV Mode) MTS, TV/CATV, auto scan, set channel, channel delete, label,
Gross 44.1 lb. (20.0 kg) (with stand)
(PC Mode) Auto adjust, contrast, brightness, H. position, V. position, H.
size, fine tune, aspect ratio, information, text/graphic mode,
color temperature
ratio, 3D comb filter, film mode, color temperature), sound
(volume, balance, bass, treble, SRS, TRU bass), input menu
(TV, AV, S-video, YCbCr, YPbPr, DVI-D, VGA), parental control
(caption, change password, TV ratings, MPAA movie ratings,
V-chip temporary disable), PIP (input, POP, mode disable,
audio, SWAP, size/position), set up (OSD H/V position), time
out, transparency, OSD color, language, memory recall)
favorite, fine tune
VGA cable, RCA A/V cable, Quick Start Guide,
User Guide
ViewSonic Corporation’s QMS & EMS have been registered to
ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Customer Service and Technical Support: (800) 688-6688 • Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com
*HDTV cable or satellite provider and set-top box required. **Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and programs may vary by country; see
your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2006 ViewSonic Corporation. All rights reserved. [12759-00B-01/06] N2750w-1
For more product information, visit us on the web at ViewSonic.com
