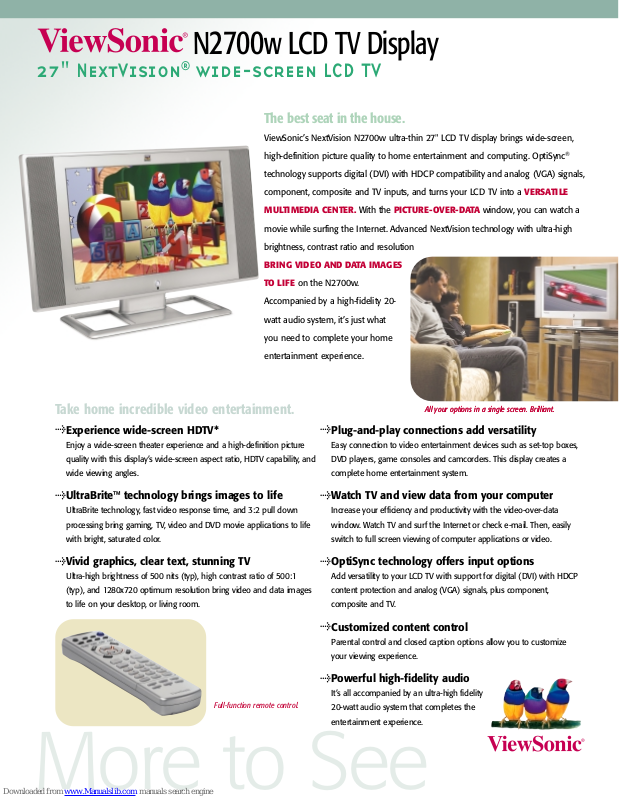

ViewSonic NextVision N2700w Specifications

The best seat in the house.

ViewSonic’s NextVision N2700w ultra-thin 27" LCD TV display brings wide-screen,

high-definition picture quality to home entertainment and computing. OptiSync

®

technology supports digital (DVI) with HDCP compatibility and analog (VGA) signals,

component, composite and TV inputs, and turns your LCD TV into a VERSATILE

MULTIMEDIA CENTER. With the PICTURE-OVER-DATA window, you can watch a

movie while surfing the Internet. Advanced NextVision technology with ultra-high

brightness, contrast ratio and resolution

BRING VIDEO AND DATA IMAGES

TO LIFE on the N2700w.

Accompanied by a high-fidelity 20-

watt audio system, it’s just what

you need to complete your home

entertainment experience.

Take home incredible video entertainment.

N2700w LCD TV Display

27" NextVision®wide-screen LCD TV

More to See

All your options in a single screen. Brilliant.All your options in a single screen. Brilliant.

>

Experience wide-screen HDTV*

Enjoy a wide-screen theater experience and a high-definition picture

quality with this display’s wide-screen aspect ratio, HDTV capability, and

wide viewing angles.

>

UltraBrite™ technology brings images to life

UltraBrite technology, fast video response time, and 3:2 pull down

processing bring gaming, TV, video and DVD movie applications to life

with bright, saturated color.

>

Vivid graphics, clear text, stunning TV

Ultra-high brightness of 500 nits (typ), high contrast ratio of 500:1

(typ), and 1280x720 optimum resolution bring video and data images

to life on your desktop, or living room.

>

Plug-and-play connections add versatility

Easy connection to video entertainment devices such as set-top boxes,

DVD players, game consoles and camcorders. This display creates a

complete home entertainment system.

>

Watch TV and view data from your computer

Increase your efficiency and productivity with the video-over-data

window. Watch TV and surf the Internet or check e-mail. Then, easily

switch to full screen viewing of computer applications or video.

>

OptiSync technology offers input options

Add versatility to your LCD TV with support for digital (DVI) with HDCP

content protection and analog (VGA) signals, plus component,

composite and TV.

>

Customized content control

Parental control and closed caption options allow you to customize

your viewing experience.

>

Powerful high-fidelity audio

It’s all accompanied by an ultra-high fidelity

20-watt audio system that completes the

entertainment experience.

Full-function remote control.

For more product information, visit us on the web at ViewSonic.com

*HDTV cable provider or set-top box required. **Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks

stated herein are the property of their respective companies. Copyright © 2004 ViewSonic Corporation. All rights reserved. [11947-00B-05/04] N2700w-1

ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Phone [phone] or [phone] • In Canada [phone] • Fax [phone] • [e-mail] • ViewSonic.com

specifications

VIEWSONIC NEXTVISION N2700W LCD TV

LCD PANEL Type 27" color TFT active matrix, wide 1280x720 LCD, true HDTV format

Display Area 23.5" horizontal X 13.2" vertical; 27.0" diagonal
Contrast Ratio 500:1 (typ)
Viewing Angle 170° horizontal, 170° vertical
Response Time 25ms (typ), 16ms gray to gray
Brightness 500 cd/m2 (typ)
Aspect Ratio 16:9
Glass Surface Anti-glare, anti-reflective coat, hard DHD coat

INPUT Analog RGB Analog (75 ohms, 0.7 Vp-p)

Video TV/cable, composite (RCA), component YPbPr/YCbCr
Audio 3.5mm mini stereo audio in/out and RCA (left/right) audio in
RGB Frequency Fh: 30~64kHz, fv: 60~75Hz
Sync H/V separated (TTL)
Digital DVI with HDCP (content protection)

OUTPUT Tuner NTSC

AUDIO OUTPUT Speakers 2x10 watt

COMPATIBILITY PC Compatible from VGA up to 1280x1024 non-interlaced,

1280 x 720 (preferred)

Mac®** Power Mac™ G3/G4 up to 1280x1024, 1280x720 (preferred)

COMPUTER Analog 15-pin mini D-sub (VGA)
CONNECTOR Power 3-pin plug

POWER Voltage AC 90–240V (universal), 50–60Hz

Consumption 140W (typ)

CONTROLS Basic Power, enter, channel +/- and volume +/-

OnView®(PC mode)

Auto adjust, contrast/brightness, color adjust, information, image adjust (H/V
position, H. size, fine tune), source select (PC, YPbPr, AV, TV/CATV), setup
(OSD position, time out) and memory recall

(Video mode) Contrast, brightness, color, tint (except YPbPr), sharpness, sound (balance,

bass, treble), source select (PC, YPbPr, AV, TV/CATV), PIP (source select,
YPbPr, AV or TV/CATV, AV position, on/off) and memory recall

(TV mode) Contrast, brightness, color, tint, sharpness, sound (balance, bass, treble,

mute), closed caption (OFF, C1,C2, C3,C4, T1, T2,T3, T4), source select (PC,
YPbPr, AV, TV/CATV), setup (TV/CATV select, autoscan, channel add/delete,
multi-view parental control) and memory recall

OPERATING Temperature 32–104 °F (0–40°C)
CONDITION Humidity 10–90% (non-condensing)

DIMENSIONS Physical 786mm x 526mm x 225mm
(W X H X D) 30.9" x 20.7" x 8.7"

WEIGHT Net 30.8 lb. (14.0 kg)

Gross 40.5 lb. (18.4 kg)

REGULATIONS UL, cUL, FCC class B, CE, NOM

WARRANTY One-year limited warranty on parts, labor and backlight

N2700w LCD TV Display

27" NextVision®wide-screen LCD TV

ViewSonic Corporation’s QMS & EMS have been registered to

ISO 9001 & ISO 14001, respectively, by the British Standards Institution.

•

VXP TV tuner and video adapter included

•

PIP (video over data, video over component)

•

POP - 9, TV channel scan

•

Picture scaling-full screen, fill aspect ratio, 1:1,
wide 1, wide 2, zoom with pan

•

Precision scaling and image processing

1

2

1.

2x10 watt in-bezel stereo speakers

2. Space-saving ultra thin design only 4.75" thick

(no stand)

3. Stylish silver case

4. Adjustable base stand detaches for wall mounting

3

4

Special Features:

Additional Special Features:
