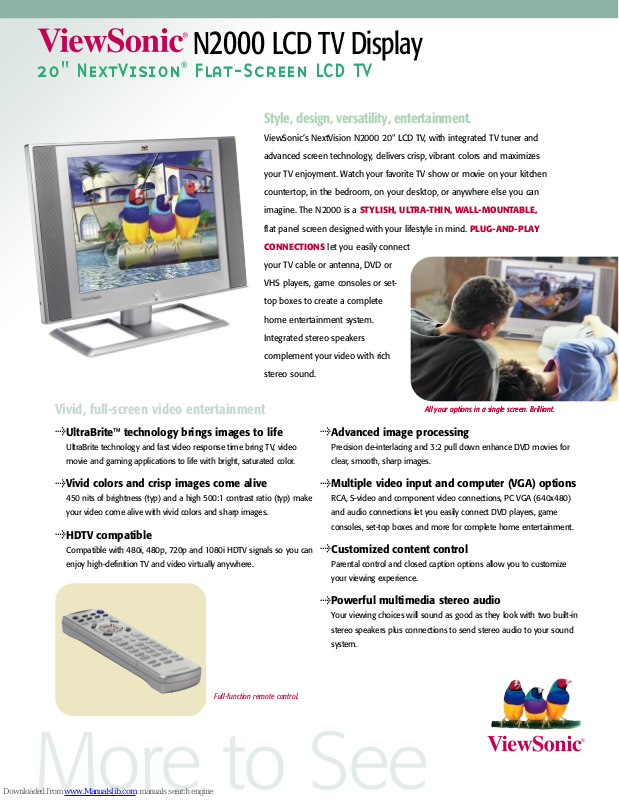

ViewSonic NextVision N2000 Specifications
Style, design, versatility, entertainment.
ViewSonic’s NextVision N2000 20" LCD TV, with integrated TV tuner and
advanced screen technology, delivers crisp, vibrant colors and maximizes
your TV enjoyment. Watch your favorite TV show or movie on your kitchen
countertop, in the bedroom, on your desktop, or anywhere else you can
imagine. The N2000 is a STYLISH, ULTRA-THIN, WALL-MOUNTABLE,
flat panel screen designed with your lifestyle in mind. PLUG-AND-PLAY
CONNECTIONS let you easily connect
your TV cable or antenna, DVD or
VHS players, game consoles or set-
top boxes to create a complete
home entertainment system.
Integrated stereo speakers
complement your video with rich
stereo sound.
Vivid, full-screen video entertainment
N2000 LCD TV Display
20" NextVision®Flat-Screen LCD TV
More to See
All your options in a single screen. Brilliant.All your options in a single screen. Brilliant.
>
UltraBrite™ technology brings images to life
UltraBrite technology and fast video response time bring TV, video
movie and gaming applications to life with bright, saturated color.
>
Vivid colors and crisp images come alive
450 nits of brightness (typ) and a high 500:1 contrast ratio (typ) make
your video come alive with vivid colors and sharp images.
>
HDTV compatible
Compatible with 480i, 480p, 720p and 1080i HDTV signals so you can
enjoy high-definition TV and video virtually anywhere.
>
Advanced image processing
Precision de-interlacing and 3:2 pull down enhance DVD movies for
clear, smooth, sharp images.
>
Multiple video input and computer (VGA) options
RCA, S-video and component video connections, PC VGA (640x480)
and audio connections let you easily connect DVD players, game
consoles, set-top boxes and more for complete home entertainment.
>
Customized content control
Parental control and closed caption options allow you to customize
your viewing experience.
>
Powerful multimedia stereo audio
Your viewing choices will sound as good as they look with two built-in
stereo speakers plus connections to send stereo audio to your sound
system.
Full-function remote control.
For more product information, visit us on the web at ViewSonic.com
Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2004 ViewSonic Corporation. All rights reser ved.
[11700-01B-05/04] N2000-1
ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Phone (800) 888-8583 or (909) 444-8888 • In Canada (866) 262-1967 • Fax (909) 839-7922 • SalesInfo@ViewSonic.com • ViewSonic.com
specifications
VIEWSONIC NEXTVISION N2000 LCD TV
LCD PANEL Type 20" color TFT active matrix XGA LCD
Display Area 16.1" horizontal X 12.0" vertical; 20.1" diagonal
Optimum Resolution
640x480
Contrast Ratio 500:1 (typ)
Viewing Angle 160° horizontal, 140° vertical
Response Time 16ms (typ)
Brightness 450 nits (typ)
Aspect Ratio 4:3
Glass Surface Anti-glare
INPUT Analog RGB Analog (75 ohms, 0.7/1.0 Vp-p)
Video TV/cable, composite (RCA), component YPbPr, S-video
Audio 3.5mm mini stereo audio in/out and RCA (left/right) audio in
RGB Frequency Fh: 30~69kHz, fv: 50~75Hz
Sync H/V separated (TTL)
OUTPUT Tuner NTSC
AUDIO OUTPUT Speakers 2x5-watt
COURTESY PC Compatible with VGA computer resolution (640x480)
COMPUTER
COMPUTER Analog 15-pin mini D-sub (VGA)
CONNECTOR Power 3-pin plug
POWER Voltage AC 90–264V (universal), 50–60Hz
Consumption 60W (max)
CONTROLS Basic Power, enter, channel +/- and volume +/-
OnView®(PC mode)
Auto adjust, contrast/brightness, color adjust, information, image adjust (H/V
position, H. size, fine tune), source select (PC, YPbPr, S-video, AV, TV/CATV),
setup (OSD position, time out) and memory recall
(Video mode) Contrast, brightness, color, tint (except YPbPr), sharpness, sound (balance,
bass, treble), source select (PC, YPbPr, S-video, AV, TV/CATV), PIP (source
select, YPbPr, S-video, AV or TV/CATV, AV position, on/off) and memory
recall
(TV mode) Contrast, brightness, color, tint, sharpness, sound (balance, bass, treble,
mute), closed caption (OFF, C1,C2, C3,C4, T1, T2,T3, T4), source select (PC,
YPbPr, S-video, AV, TV/CATV), setup (TV/CATV select, autoscan, channel
add/delete, parental control) and memory recall
OPERATING Temperature 41 –95°F (5–35°C)
CONDITION Humidity 5–90% (non-condensing)
DIMENSIONS Physical 596.6mm x 473.1mm x 195.6mm
(W X H X D) 23.4" x 18.6" x 7.7"
WEIGHT Net 19.5 lb. (8.9 kgs)
Gross 26.4 lb. (12 kgs)
REGULATIONS UL, cUL, FCC class B, ICES003, MPR II
WARRANTY One-year limited warranty on parts, labor and backlight
N2000 LCD TV Display
20" NextVision®Flat-Screen LCD TV
ViewSonic Corporation’s QMS & EMS have been registered to
ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
Special Features
• Integrated TV tuner
• 3:2 pull down
• HDTV compatible
• Space-saving ultra-thin design
• Adjustable base stand detaches for wall mounting
