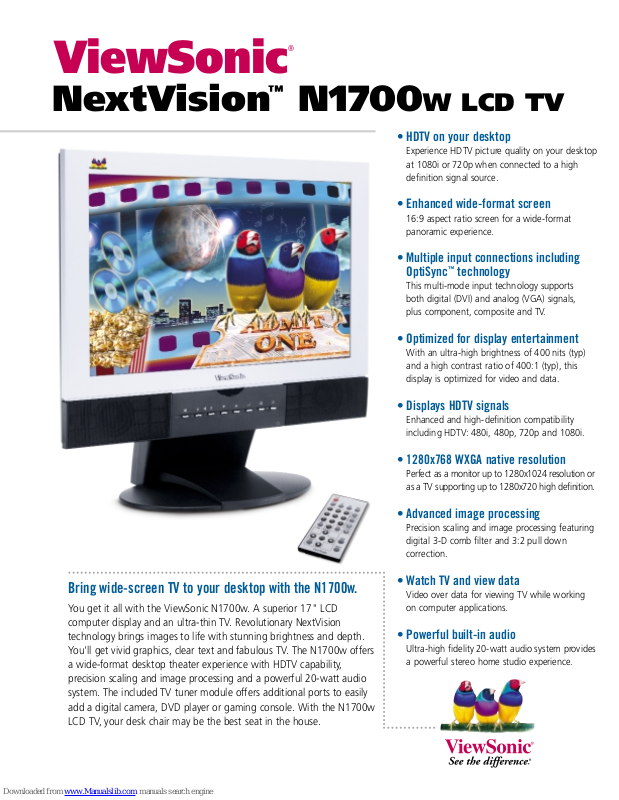

ViewSonic NextVision N1700W Specifications

NextVision

™

N1700W LCD TV

ViewSonic

®

Bring wide-screen TV to your desktop with the N1700w.

You get it all with the ViewSonic N1700w. A superior 17" LCD
computer display and an ultra-thin TV. Revolutionary NextVision
technology brings images to life with stunning brightness and depth.
You'll get vivid graphics, clear text and fabulous TV. The N1700w offers
a wide-format desktop theater experience with HDTV capability,
precision scaling and image processing and a powerful 20-watt audio
system. The included TV tuner module offers additional ports to easily
add a digital camera, DVD player or gaming console. With the N1700w
LCD TV, your desk chair may be the best seat in the house.

• HDTV on your desktop

Experience HDTV picture quality on your desktop
at 1080i or 720p when connected to a high
definition signal source.

• Enhanced wide-format screen

16:9 aspect ratio screen for a wide-format
panoramic experience.

• Multiple input connections including
OptiSync™technology

This multi-mode input technology supports
both digital (DVI) and analog (VGA) signals,
plus component, composite and TV.

• Optimized for display entertainment

With an ultra-high brightness of 400 nits (typ)
and a high contrast ratio of 400:1 (typ), this
display is optimized for video and data.

• Displays HDTV signals

Enhanced and high-definition compatibility
including HDTV: 480i, 480p, 720p and 1080i.

• 1280x768 WXGA native resolution

Perfect as a monitor up to 1280x1024 resolution or
as a TV supporting up to 1280x720 high definition.

• Advanced image processing

Precision scaling and image processing featuring
digital 3-D comb filter and 3:2 pull down
correction.

• Watch TV and view data

Video over data for viewing TV while working
on computer applications.

• Powerful built-in audio

Ultra-high fidelity 20-watt audio system provides
a powerful stereo home studio experience.

ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Phone [phone] or [phone] • In Canada [phone] • Fax [phone] • [e-mail] • ViewSonic.com

• Advanced TV functions

Parental control, multiview (POP) and closed
caption.

• Super-wide viewing angles

160º horizontally and 160º vertically.

• AutoTune®function

Automatically monitors video input and
optimizes display settings without requiring user
adjustments.

• Touch-sensitive digital controls

Sleek, metallic soft-touch buttons utilize
capacitive sensors to respond to the slightest
touch for easy adjustments.

• PC and Mac®compatible

• One-year limited warranty

ViewSonic

®

NextVision

™

N1700W LCD TV

*Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks
stated herein are the property of their respective companies. Copyright © 2003 ViewSonic Corporation. All rights reserved. [10737-03B-03/03_0M] N1700w-1

17.0" TFT NEXTVISION™WIDESCREEN LCD DISPLAY WITH ONVIEW®CONTROLS

LCD PANEL Type TFT active matrix wide color

Display Area 14.6" horizontal, 8.7" vertical, 17.0" diagonal
Optimum Resolution 1280x768
Contrast Ratio 400:1 (typ)
Viewing Angle 160º horizontal, 160º vertical (CR > 10:1)
Response Time 25ms (Tr + Toff)
Light Source Long life, 50,000 hrs. (typ)
Brightness 400 (typ) cd/m

2

Panel Surface Anti-glare, 25% haze, 3H hardness
Case Color Metallic-on-black

VIDEO INPUT

Analog RGB analog (ohms, 0.7/1.0 Vp-p)
Digital DVI-D
Frequency fh:30~64kHz, fv:50~75Hz
Video RGB Analog (75 ohms, 0.7v)
Sync H/V Separated (TTL)

COMPATIBILITY PC VGA up to 1280x1024

Mac®* PowerMac™ up to 1280x1024

INPUT SIGNAL

TV/Video Compatibility

480i, 480p, 720p, 1080i

CONNECTOR Analog Analog 15HD Female

Digital 24-pin DVI-D
VXP VXP Tuner, YPbPr, component, composite
Audio VXP dual stereo RCA type

3.5mm stereo mini
ANTENNA/ Tuner FI1236MK2 (North America)
CABLE (RF) Frequency Range 55.25–801.25 MHz

Numbers of Channels

2–69 off air

2–125 NTSC cable
AUDIO Speakers Dual 10-watt stereo speakers, 20 watts total
POWER Voltage AC 90–264VAC (universal) via external

DC converter brick

Consumption 90 watts (max)

CONTROLS Basic Mute, left, right, down, up, enter, OSD, call, power

OnView

®

Contrast, brightness, saturation, sharpness, hue, PIP

tracking, color select (9300K, 6500K, 5000K, user),

H. size, H. position,V. position, fine tune, smoothing,

autosync, sleep, closed caption select, PIP source,

scale mode (FS, 1:1, FAR), aspect ratio (16:9, 4:3),

tuner input, channel setup, add/erase channel,

channel label, bass, treble, balance, MTS (NICAM)

mode, audio source select, audio feedback toggle,

parental control
REMOTE Recall, POP (multiview), PIP, input select, channel

down/up, volumn down/up, mute, freeze, zoom
OPERATING Temperature 41°F–104°F (5°C–40°C)

CONDITIONS Humidity 10%–90% (non-condensing)
DIMENSIONS Physical 430.6mm x 414mm x 172mm

(W x H x D) 17.0" x 16.3" x 6.8"
WEIGHT Net 12.3 lbs. (5.6 kgs.)

Gross 22.0 lbs. (10.0 kgs.)

REGULATIONS FCC-B, CE, MPR II, BSMI, CCC, C-Tick, UL, c-UL,

SEMKO, NEMKO, DEMKO, FIMKO, ENERGY STA R®,

TUV/GS, CB Report,TCO’99, ICES-003B,VCCI
POWER MANAGEMENT Meets ENERGY STAR®standards
WARRANTY One-year limited warranty on LCD, parts and labor.

ViewSonic Corporation’s QMS & EMS have been registered

to ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
