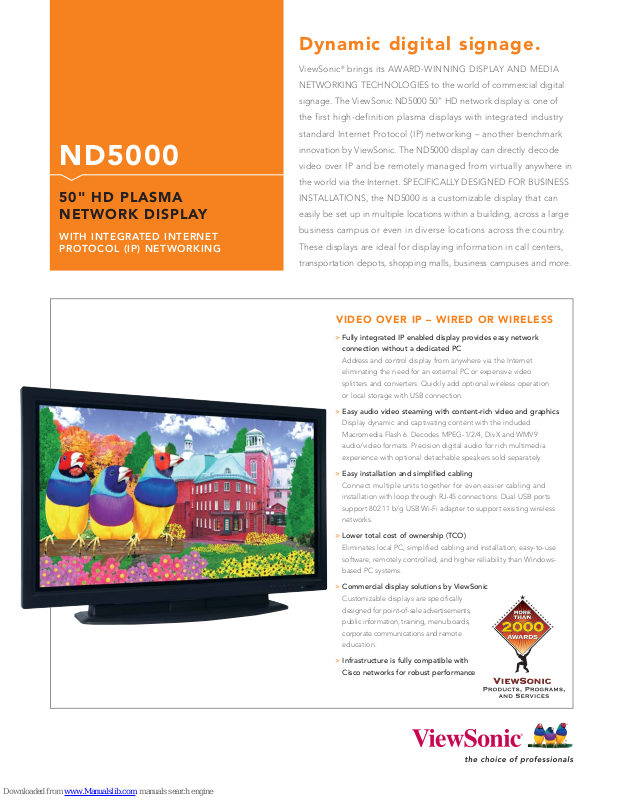

ViewSonic ND5000-1, ND5000 Specification Sheet
ND5000
50" HD PLASMA
NETWORK DISPLAY
WITH INTEGRATED INTERNET
PROTOCOL (IP) NETWORKING
Dynamic digital signage.
ViewSonic®brings its AWARD-WINNING DISPLAY AND MEDIA
NETWORKING TECHNOLOGIES to the world of commercial digital
signage. The ViewSonic ND5000 50" HD network display is one of
the first high-definition plasma displays with integrated industry
standard Internet Protocol (IP) networking – another benchmark
innovation by ViewSonic. The ND5000 display can directly decode
video over IP and be remotely managed from virtually anywhere in
the world via the Internet. SPECIFICALLY DESIGNED FOR BUSINESS
INSTALLATIONS, the ND5000 is a customizable display that can
easily be set up in multiple locations within a building, across a large
business campus or even in diverse locations across the country.
These displays are ideal for displaying information in call centers,
transportation depots, shopping malls, business campuses and more.
VIDEO OVER IP – WIRED OR WIRELESS
> Fully integrated IP enabled display provides easy network
connection without a dedicated PC
Address and control display from anywhere via the Internet
eliminating the need for an external PC or expensive video
splitters and converters. Quickly add optional wireless operation
or local storage with USB connection.
> Easy audio video steaming with content-rich video and graphics
Display dynamic and captivating content with the included
Macromedia Flash 6. Decodes MPEG-1/2/4, DivX and WMV9
audio/video formats. Precision digital audio for rich multimedia
experience with optional detachable speakers sold separately.
> Easy installation and simplified cabling
Connect multiple units together for even easier cabling and
installation with loop through RJ-45 connections. Dual USB ports
support 802.11 b/g USB Wi-Fi adapter to support existing wireless
networks.
> Lower total cost of ownership (TCO)
Eliminates local PC; simplified cabling and installation; easy-to-use
software; remotely controlled, and higher reliability than Windows-
based PC systems.
> Commercial display solutions by ViewSonic
Customizable displays are specifically
designed for point-of-sale advertisements,
public information, training, menu boards,
corporate communications and remote
education.
> Infrastructure is fully compatible with
Cisco networks for robust performance
ND5000
50" HD PLASMA NETWORK DISPLAY WITH
INTEGRATED INTERNET PROTOCOL (IP) NETWORKING
PLASMA Type 50" color plasma
Display Area 43.6" horizontal x 24.5" vertical; 50.0" diagonal
Optimum Resolution 1366x768
Contrast Ratio 3000:1 (typ)
Viewing Angles 160° horizontal, 160° vertical
Brightness 1000 cd/m2 (typ)
Aspect Ratio 16:9 (native)
CONNECTOR Audio Output 2xRCA stereo analog
Network 2xRJ-45
Communication 2xUSB
DECODING Video MPEG-1, MPEG-2, MPEG-4, WMV9, Macromedia®Flash
Audio MPEG-1 (layers 1 & 2), MP3, WMA, WAV
STREAMING Types HTTP, VDP, RTP, IP/TV, local file playback
PROTOCOL
IMAGE FILES Formats JPEG
AUDIO OUTPUT Speakers 2x12-watt (optional)
SCANNING FORMAT SDTV 480i, EDTV 480p, HDTV 720p, 1080i
POWER Voltage AC 100–240V (max), 50/60Hz
Consumption 500W (typ)
CONTROLS Basic Power, contrast, brightness, color, volume
OPERATING Temperature 41–104°F (5–40°C)
CONDITIONS Humidity 20–85% (non-condensing)
DIMENSIONS Physical (mm) 1184mm x 700mm x 63mm
(W x H x D) Physical (in.) 46.6" x 27.6" x 2.5"
WEIGHT Net 115.3 lb. (52.3 kg)
Gross 129.5 lb. (58.7 kg)
REGULATIONS UL, cUL, FCC, Part 15 Class B, IC
PACKAGE CONTENTS Plasma display, power cable, Ethernet cable (6 ft.), remote
Rear connectors:
1) Audio R/L
2) Dual USB
3) RJ-45 NET
4) RJ-45 LAN
OPTIONAL ACCESSORIES Wireless USB adapter, wall mount, detachable speakers
WARRANTY One-year limited warranty on parts and labor
3
2
4
ND5000-LS includes all specifications/features above plus:
LOCAL STORAGE/MEMORY 40GB hard drive
control with batteries, Quick Start Guide, User Guide
™
1
ViewSonic Corporation’s QMS & EMS have been registered to
ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Customer Service and Technical Support: (800) 688-6688 • Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com
Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of
their respective companies. Copyright © 2006 ViewSonic Corporation. All rights reserved. [12761-00B-01/06] ND5000-1
For more product information, visit us on the web at ViewSonic.com
