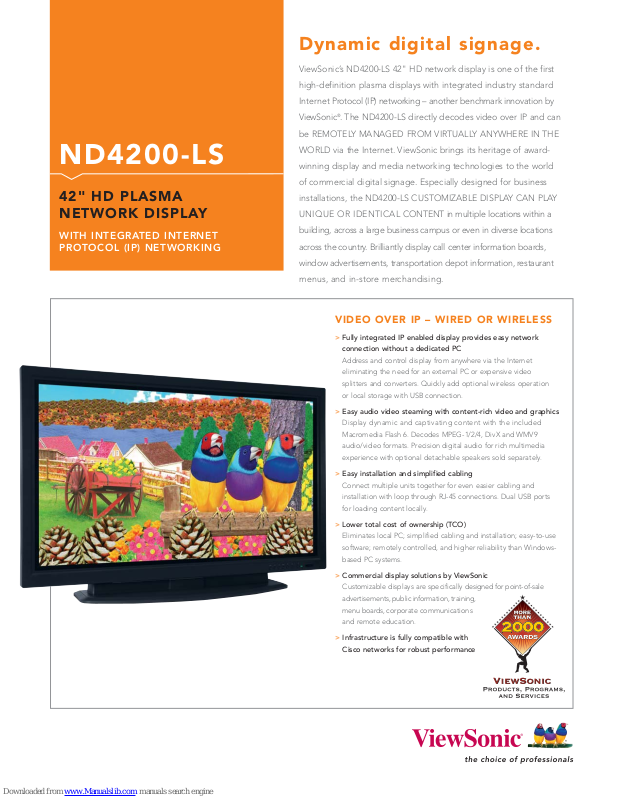

ViewSonic ND4200, ND4200-LS Specifications
ND4200-LS
42" HD PLASMA
NETWORK DISPLAY
WITH INTEGRATED INTERNET
PROTOCOL (IP) NETWORKING
Dynamic digital signage.
ViewSonic’s ND4200-LS 42" HD network display is one of the first
high-definition plasma displays with integrated industry standard
Internet Protocol (IP) networking – another benchmark innovation by
®
ViewSonic
be REMOTELY MANAGED FROM VIRTUALLY ANYWHERE IN THE
WORLD via the Internet. ViewSonic brings its heritage of award-
winning display and media networking technologies to the world
of commercial digital signage. Especially designed for business
installations, the ND4200-LS CUSTOMIZABLE DISPLAY CAN PLAY
UNIQUE OR IDENTICAL CONTENT in multiple locations within a
building, across a large business campus or even in diverse locations
across the country. Brilliantly display call center information boards,
window advertisements, transportation depot information, restaurant
menus, and in-store merchandising.
. The ND4200-LS directly decodes video over IP and can
VIDEO OVER IP – WIRED OR WIRELESS
> Fully integrated IP enabled display provides easy network
connection without a dedicated PC
Address and control display from anywhere via the Internet
eliminating the need for an external PC or expensive video
splitters and converters. Quickly add optional wireless operation
or local storage with USB connection.
> Easy audio video steaming with content-rich video and graphics
Display dynamic and captivating content with the included
Macromedia Flash 6. Decodes MPEG-1/2/4, DivX and WMV9
audio/video formats. Precision digital audio for rich multimedia
experience with optional detachable speakers sold separately.
> Easy installation and simplified cabling
Connect multiple units together for even easier cabling and
installation with loop through RJ-45 connections. Dual USB ports
for loading content locally.
> Lower total cost of ownership (TCO)
Eliminates local PC; simplified cabling and installation; easy-to-use
software; remotely controlled, and higher reliability than Windows-
based PC systems.
> Commercial display solutions by ViewSonic
Customizable displays are specifically designed for point-of-sale
advertisements, public information, training,
menu boards, corporate communications
and remote education.
> Infrastructure is fully compatible with
Cisco networks for robust performance
ND4200-LS
42" HD PLASMA NETWORK DISPLAY WITH
INTEGRATED INTERNET PROTOCOL (IP) NETWORKING
PLASMA Type 42" color plasma
Display Area 36.7" horizontal x 21.0" vertical; 42.0" diagonal
Optimum Resolution 1024x768
Contrast Ratio 3000:1 (typ)
Viewing Angles 160° horizontal, 160° vertical
Brightness 1000 cd/m2 (typ)
Aspect Ratio 16:9 (native)
CONNECTOR Audio Output 2xRCA stereo analog
Network 2xRJ-45
Communication 2xUSB
DECODING Video MPEG-1, MPEG-2, MPEG-4, WMV9, Macromedia®Flash
Audio MPEG-1 (layers 1 & 2), MP3, WMA, WAV
LOCAL STORAGE/ 40GB hard drive
MEMORY
STREAMING Types HTTP, VDP, RTP, IP/TV, local file playback
PROTOCOL
IMAGE FILES Formats JPEG
AUDIO OUTPUT Speakers 2x12-watt (optional)
SCANNING FORMAT SDTV 480i, EDTV 480p, HDTV 720p, 1080i
POWER Voltage AC 100–240V (max), 50/60Hz
Consumption 390W (typ)
OPERATING Temperature 41–104°F (5–40°C)
CONDITIONS Humidity 20–85% (non-condensing)
DIMENSIONS Physical (mm) 1015mm x 613mm x 67.5mm
(W x H x D) Physical (in.) 40.0" x 24.1" x 2.7"
WEIGHT Net 86.0 lb. (39.1 kg)
Gross 99.0 lb. (45.0 kg)
REGULATIONS UL, cUL, FCC, Part 15 Class B, IC
Rear connectors:
1) Audio R/L
2) Dual USB
3) RJ-45 NET
4) RJ-45 LAN
3
2
4
PACKAGE CONTENTS Plasma display, power cable, Ethernet cable (6 ft.), remote
control with batteries, Quick Start Guide, User Guide
OPTIONAL ACCESSORIES Wireless USB adapter, wall mount, detachable speakers
WARRANTY One-year limited warranty on parts and labor
™
1
ViewSonic Corporation’s QMS & EMS have been registered to
ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Customer Service and Technical Support: (800) 688-6688 • Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com
Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of
their respective companies. Copyright © 2006 ViewSonic Corporation. All rights reserved. [12760-01B-07/06] ND4200-1
