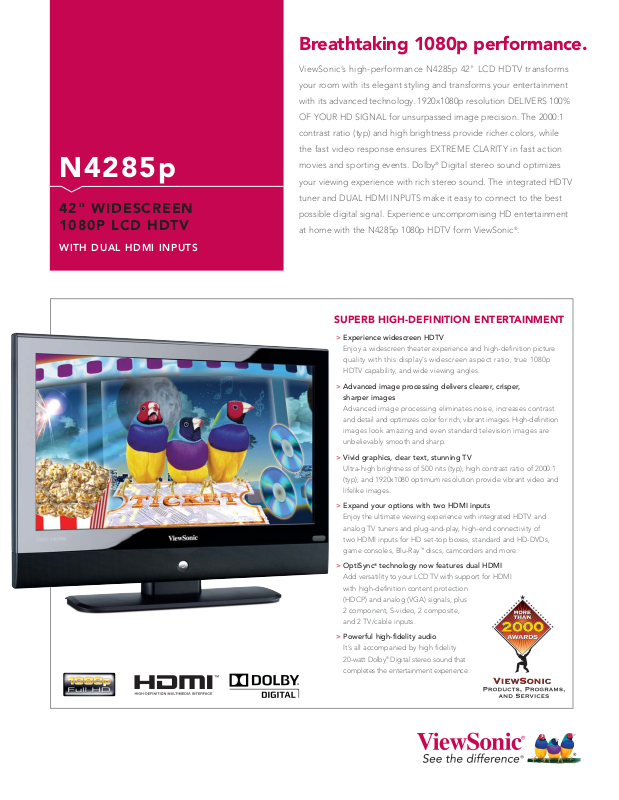

N4285p
42" WIDESCREEN
1080P LCD HDTV
WITH DUAL HDMI INPUTS
Breathtaking 1080p performance.
ViewSonic’s high-performance N4285p 42" LCD HDTV transforms
your room with its elegant styling and transforms your entertainment
with its advanced technology. 1920x1080p resolution DELIVERS 100%
OF YOUR HD SIGNAL for unsurpassed image precision. The 2000:1
contrast ratio (typ) and high brightness provide richer colors, while
the fast video response ensures EXTREME CLARITY in fast action
®
movies and sporting events. Dolby
your viewing experience with rich stereo sound. The integrated HDTV
tuner and DUAL HDMI INPUTS make it easy to connect to the best
possible digital signal. Experience uncompromising HD entertainment
at home with the N4285p 1080p HDTV form ViewSonic
SUPERB HIGH-DEFINITION ENTERTAINMENT
> Experience widescreen HDTV
Enjoy a widescreen theater experience and high-definition picture
quality with this display’s widescreen aspect ratio, true 1080p
HDTV capability, and wide viewing angles.
> Advanced image processing delivers clearer, crisper,
sharper images
Advanced image processing eliminates noise, increases contrast
and detail and optimizes color for rich, vibrant images. High-definition
images look amazing and even standard television images are
unbelievably smooth and sharp.
> Vivid graphics, clear text, stunning TV
Ultra-high brightness of 500 nits (typ), high contrast ratio of 2000:1
(typ), and 1920x1080 optimum resolution provide vibrant video and
lifelike images.
> Expand your options with two HDMI inputs
Enjoy the ultimate viewing experience with integrated HDTV and
analog TV tuners and plug-and-play, high-end connectivity of
two HDMI inputs for HD set-top boxes, standard and HD-DVDs,
game consoles, Blu-Ray
> OptiSync®technology now features dual HDMI
Add versatility to your LCD TV with support for HDMI
with high-definition content protection
(HDCP) and analog (VGA) signals, plus
2 component, S-video, 2 composite,
and 2 TV/cable inputs.
> Powerful high-fidelity audio
It’s all accompanied by high fidelity
20-watt Dolby
completes the entertainment experience.
®
Digital stereo sound that
Digital stereo sound optimizes
™
discs, camcorders and more.
®
.
N4285p
42" WIDESCREEN 1080P LCD HDTV WITH DUAL HDMI INPUTS
LCD Type 42" (42.02" viewable) color TFT active matrix, wide LCD
Display Area 36.6" horizontal x 20.6" vertical; 42.02" diagonal
Native Resolution 1920x1080
Contrast Ratio 2000:1 (typ)
Viewing Angles 176° horizontal, 176° vertical
Response Time 6.5ms
Light Source Long life, 50,000 hrs. (typ)
Brightness 500 cd/m2 (typ)
Aspect Ratio 16:9
Glass Surface Anti-glare, anti-reflective coat
INPUT PC RGB analog (75 ohms, 0.7 Vp-p)
TV S-video, TV/cable x2, composite (RCA) x2,
component YPbPr/YCbCr x2
Audio 3.5mm mini stereo audio in/out and RCA x2 (left/right) audio in
RGB Frequency Fh: 30~64kHz, Fv: 60~75Hz
Sync H/V separated (TTL)
Digital HDMI x2 (with HDCP and audio support)
Tuner ATSC/NTSC/QAM
RS-232 Control port
AUDIO OUTPUT Speakers 2x10-watt
RCA Left/right
COMPATIBILITY PC 640x480, 800x600, 1024x768, 1280x720, 1280x768,
1280x1024, 1360x768, 1440x900, 1680x1050,
INPUT SIGNAL TV/Video Comp. 480i, 480p, 720p, 1080i, 1080p
CONNECTOR Analog 15-pin mini D-sub (VGA)
Digital HDMI x2
Power 3-pin plug
POWER Voltage AC 10–240V (universal), 50–60Hz
Consumption 242W (typ)
CONTROLS Basic Power, enter, channel +/-, volume +/-, menu
Picture Picture mode, brightness, contrast, color, tint,
sharpness, color temperature
TV/Audio Balance, bass, treble, surround, reverb, equalizer, SPDIF type,
auto volume control, tuner mode, auto scan, channel skip,
MTS, audio language
Set Up OSD language, aspect ratio, blue mute, time setup,
closed caption, memory recall, channel block, program block,
input block, change password, clear all
OPERATING Temperature 32–104°F (0–40°C)
CONDITIONS Humidity 10–65% (non-condensing)
DIMENSIONS Physical with stand 40.3"x 30.5"x 11.6" (1025mm x 773mm x 294mm)
(W x H x D) Physical without stand 40.3"x 27.7"x 5.5" (1025mm x 704mm x 139mm)
WEIGHT Net with stand 65.7 lb. (29.8 kg)
Net without stand 57.5 lb. (26.1 kg)
Gross with stand 80.7 lb. (36.6 kg)
VESA®MOUNT 200mm x 400mm; 200mm x 600mm
RECYCLE/DISPOSAL The lamp in this product contains mercury. Please dispose of
in accordance with local, state or federal laws.
REGULATIONS cUL, FCC, NOM, EN 55013, CB, Dolby
PACKAGE CONTENTS LCD TV display, power cable(s), remote control with batteries,
Quick Start Guide, User Guide
WARRANTY One-year limited warranty on parts, labor and backlight
®
ViewSonic Corporation’s QMS & EMS have been registered to
ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com
Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their
respective companies. Copyright © 2009 ViewSonic Corporation. All rights reserved. [14240-00B-12/08] N4285p-1
