Viewsonic N3240W User Manual

ViewSonic
N3240w
LCD TV
®
- User Guide
- B edienung sa nl eitung
- Guida del l'utente
- Guía del usuario
-
Podręcznik użytkownika
-
Käyttöopas
-
Gebruiker Gids
οδηγός χρηστών
-
-
Brugervejledning
-
Användarhandbok
'
ViewSonic
®
Model No. : VS11527-1E
Contents
Compliance Information..........................................................................................................1
Important Safety Instructions ..................................................................................................2
Declaration of RoHS Compliance .......................................................................................... .3
Copyright Information..............................................................................................................4
Product Registration ...............................................................................................................4
Antenna Installation Instructions.............................................................................................5
Cleaning the LCD TV..............................................................................................................5
Getting Started
Package Contents...................................................................................................................6
Front View of the Product. ......................................................................................................7
Signal Source Interface Presentation from Rear View ........................................................... 8

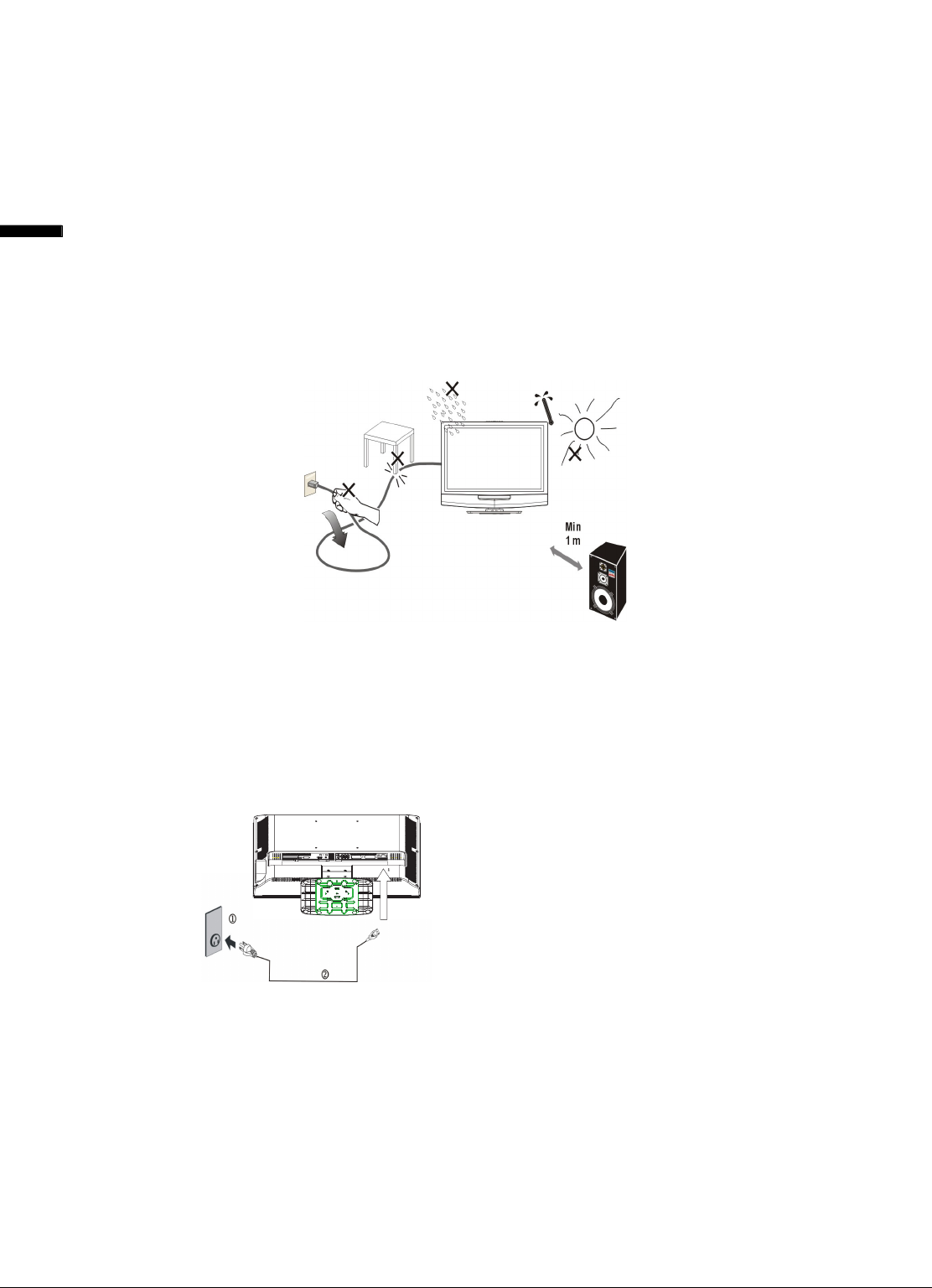

Preparation............................................................................................................................ 13

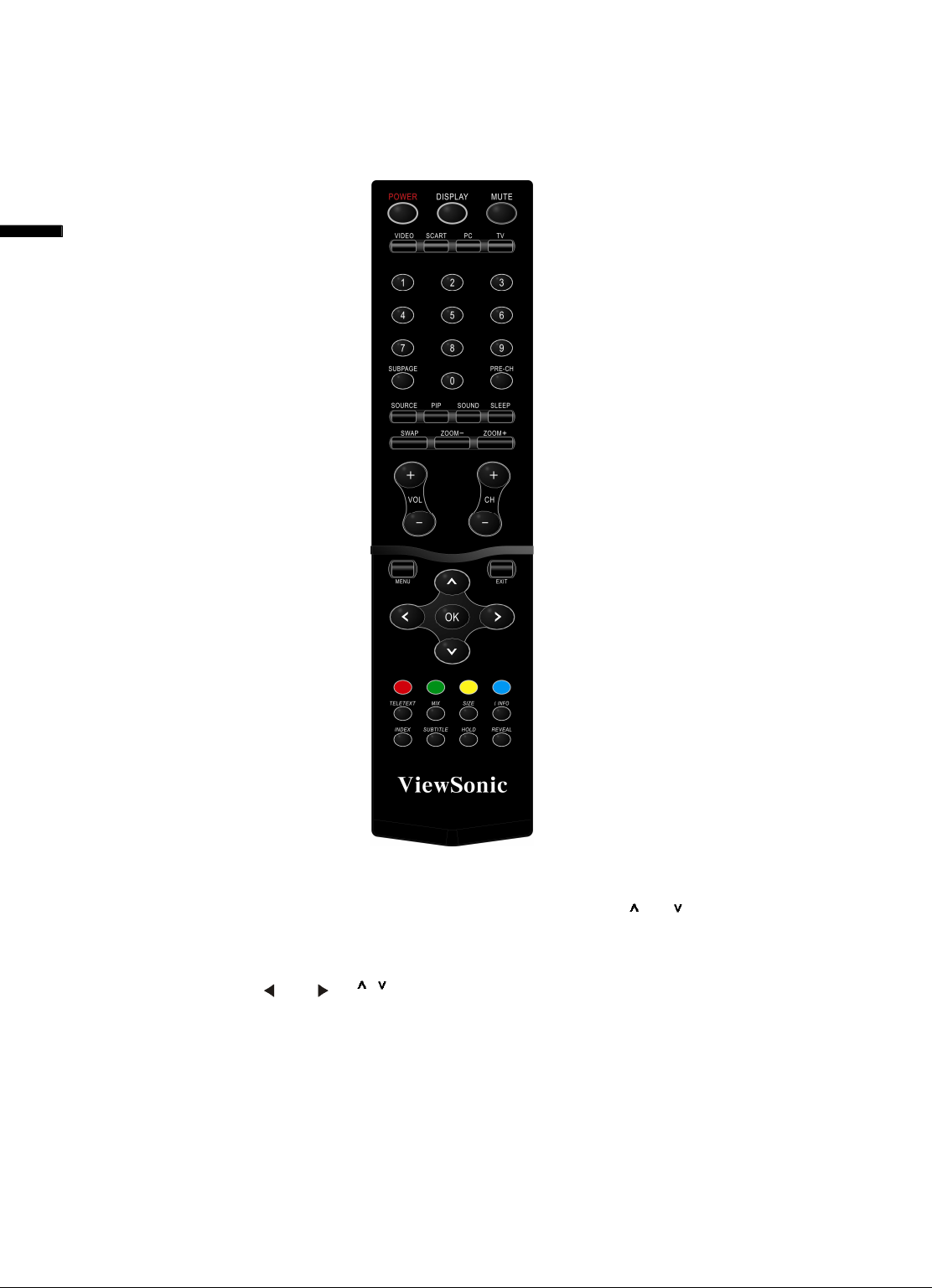

Remote Control.....................................................................................................................15
Teletext..................................................................................................................................16

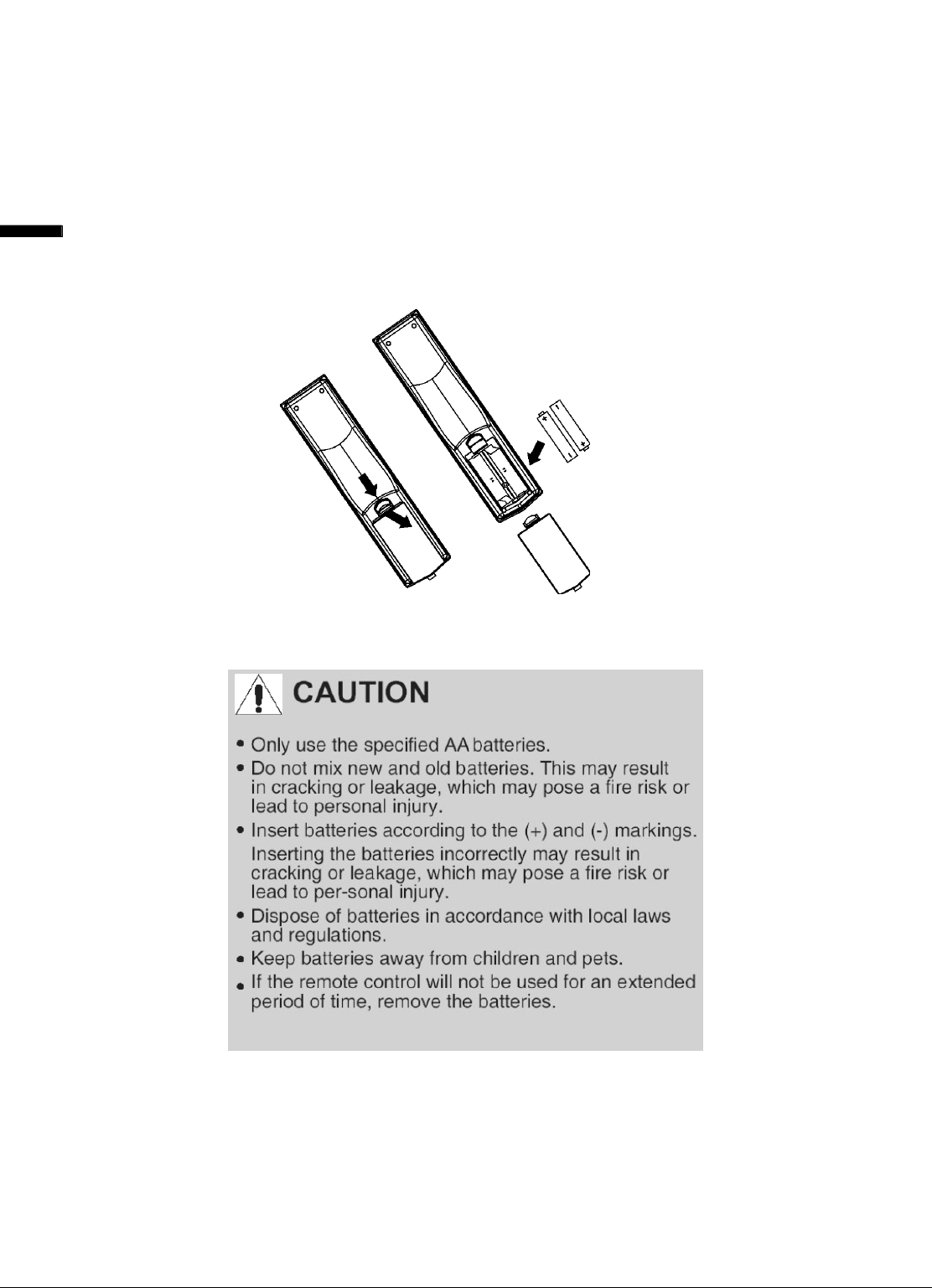

Remote Control Battery Installation...................................................................................... 17

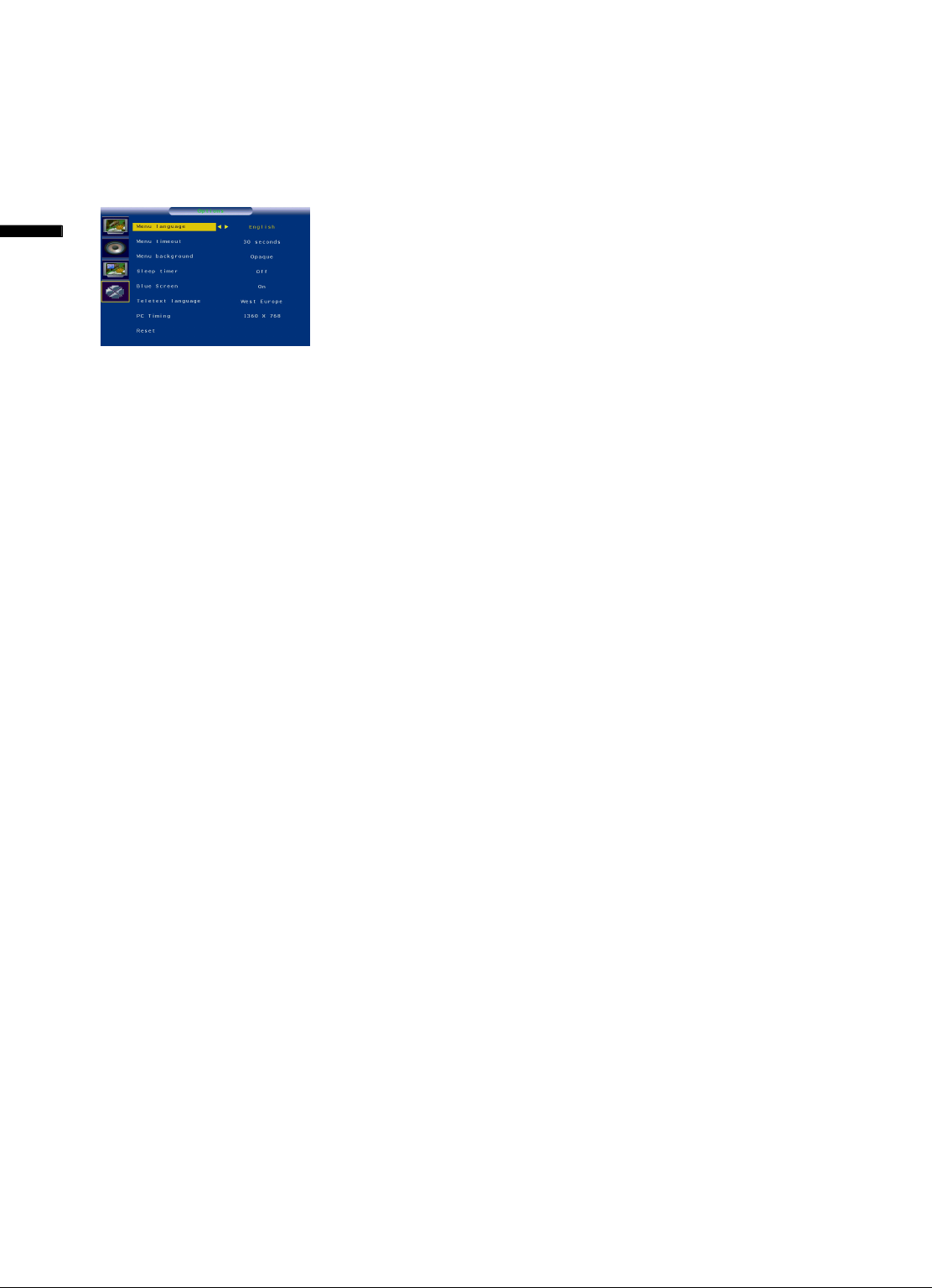

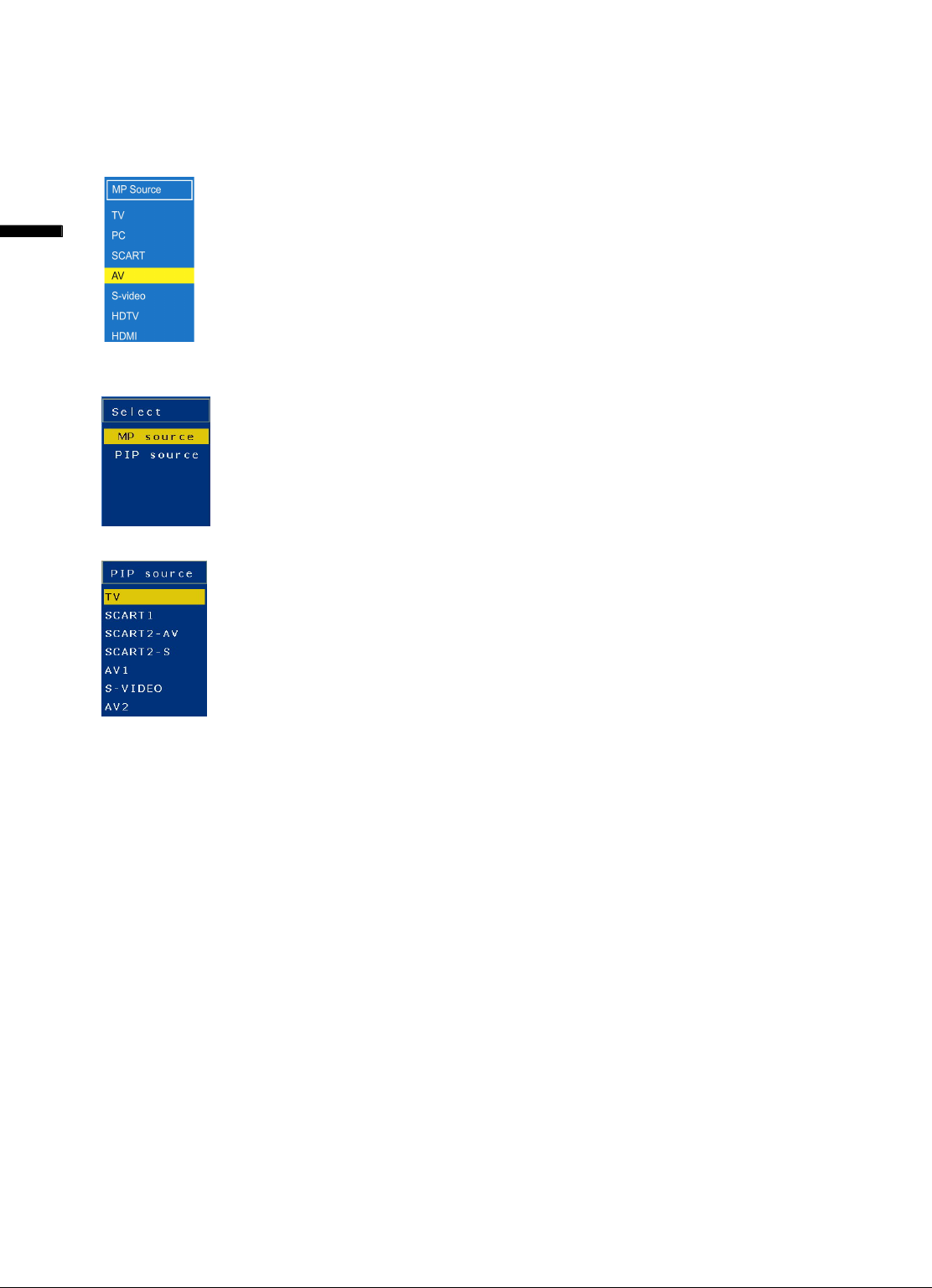

OSD Function
Analog OSD Functions. ........................................................................................................18

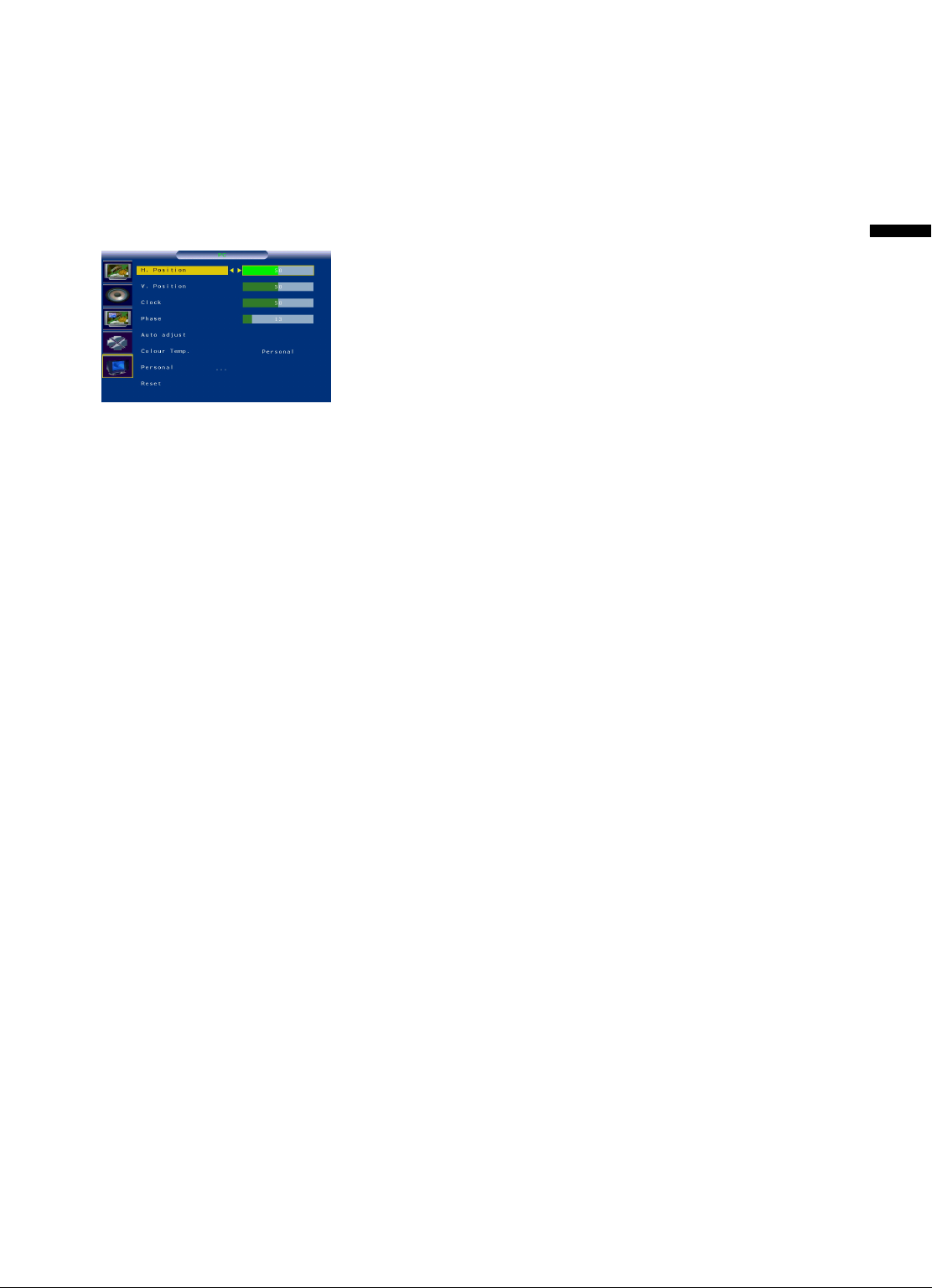

PC Mode OSD Instruction. ...................................................................................................26
ENG LISH
Appendix
Tips........................................................................................................................................27
Product Specification. ...........................................................................................................28
Preset Timing Mode..............................................................................................................29
Troubleshooting ....................................................................................................................30
Glossary................................................................................................................................31
Customer Support.................................................................................................................32
Limited Warranty ..........................................................................................................33
Compliance Information
CE Conformity for European Countries
ENG LISH
The device complies with the requirements of the EEC directive 89/336/ EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility”, and 73/23/EEC as amended by 93/68/ EEC Art.13 with regard to “Safety.”
Following information is only for EU-member states:
The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law.
SRS WOW, SRS and This product is designed using SRS technology with permission from SRS Labs, Inc.
are registered trademarks of SRS Labs, Inc.
AR46
ViewSonic N3240w
1
Important Safety Instructions
1. Read these instructions completely before using the equipment.
2. Keep these instructions in a safe place.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this equipment near water. Warning: 7RUHGXFHWKHULVNRI¿UHRUHOHFWULF
shock, do not expose this apparatus to rain or moisture.
6. Clean with a soft, dry cloth. If further cleaning is required, see “Cleaning the LCD TV” in this guide for further instructions.
7. Do not block any ventilation openings. Install the equipment in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
RWKHUGHYLFHVLQFOXGLQJDPSOL¿HUVWKDWSURGXFHKHDW
9. Do not attempt to circumvent the safety provisions of the polarized or grounding­type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade
DQGWKHWKLUGSURQJDUH SURYLGHGIRU \RXUVDIHW\,IWKHSOXJGRHV QRW ¿W LQWR\RXU
outlet, consult an electrician for replacement of the outlet.
ENG LISH
10. Protect the power cord from being tread upon or pinched, particularly at the plug, and the point where if emerges from the equipment. Be sure that the power outlet is located near the equipment so that it is easily accessible.
2QO\XVHDWWDFKPHQWVDFFHVVRULHVVSHFL¿HGE\WKHPDQXIDFWXUHU
12. Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this equipment when it will be unused for long periods of time.
14. Refer all servicing to qualified service personnel. Service is required when the unit has been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if the unit does not operate normally or has been dropped.
15. This product is only to perform the useful function of entertainment and visual display tasks are excluded.
ViewSonic N3240w
2
Declaration of RoHS Compliance
This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament and the Council on restriction of the use of certain
ENG LISH
hazardous substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:
Substance
Proposed Maximum
Concentration
Actual Concentration
Lead (Pb) 0.1% < 0.1% Mercury (Hg) 0.1% < 0.1% Cadmium (Cd) 0.01% < 0.01% Hexavalent Chromium (Cr6+) 0.1% < 0.1% Polybrominated biphenyls (PBB) 0.1% < 0.1% Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex of the RoHS Directives as noted below:
Examples of exempted components are:
Mercury in compact fluorescent lamps not exceeding 5 mg per lamp and in other
1.
ODPSVQRWVSHFL¿FDOO\PHQWLRQHGLQWKH$QQH[RI5R+6'LUHFWLYH
Lead in glass of cathode ray tubes, electronic components, fluorescent tubes, and
2. electronic ceramic parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.
ViewSonic N3240w
3
Copyright Information
Copyright © ViewSonic®Corporation, 2007. .All rights reserved. ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered
trademarks of ViewSonic Corporation. Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors or
omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the
ULJKWWRFKDQJHSURGXFWVSHFL¿FDWLRQVZLWKRXWQRWLFH,QIRUPDWLRQLQWKLVGRFXPHQW PD\
change without notice. No part of this document may be copied, reproduced, or transmitted by any means, for
any purpose without prior written permission from ViewSonic Corporation.
Product Registration
To meet your future needs, and to receive any additional product information as it becomes available, please register your product on the Internet at: www.viewsonic.com.
ENG LISH
For Your Records
Product Name
Model Number: Document Number: Serial Number: Purchase Date:
Product disposal at end of product life
ViewSonic is concerned about the preservation of our environment. Please dispose of this product properly at the end of its useful life. Your local waste disposal company may provide information about proper disposal.
The lamp in this product contains mercury. Please dispose of properly in accordance with environmental laws of your location.
N3240w ViewSonic LCD TV VS11527-1E N3240w-1E_UG_ENG Rev.1B 03-06-07
ViewSonic N3240w
4

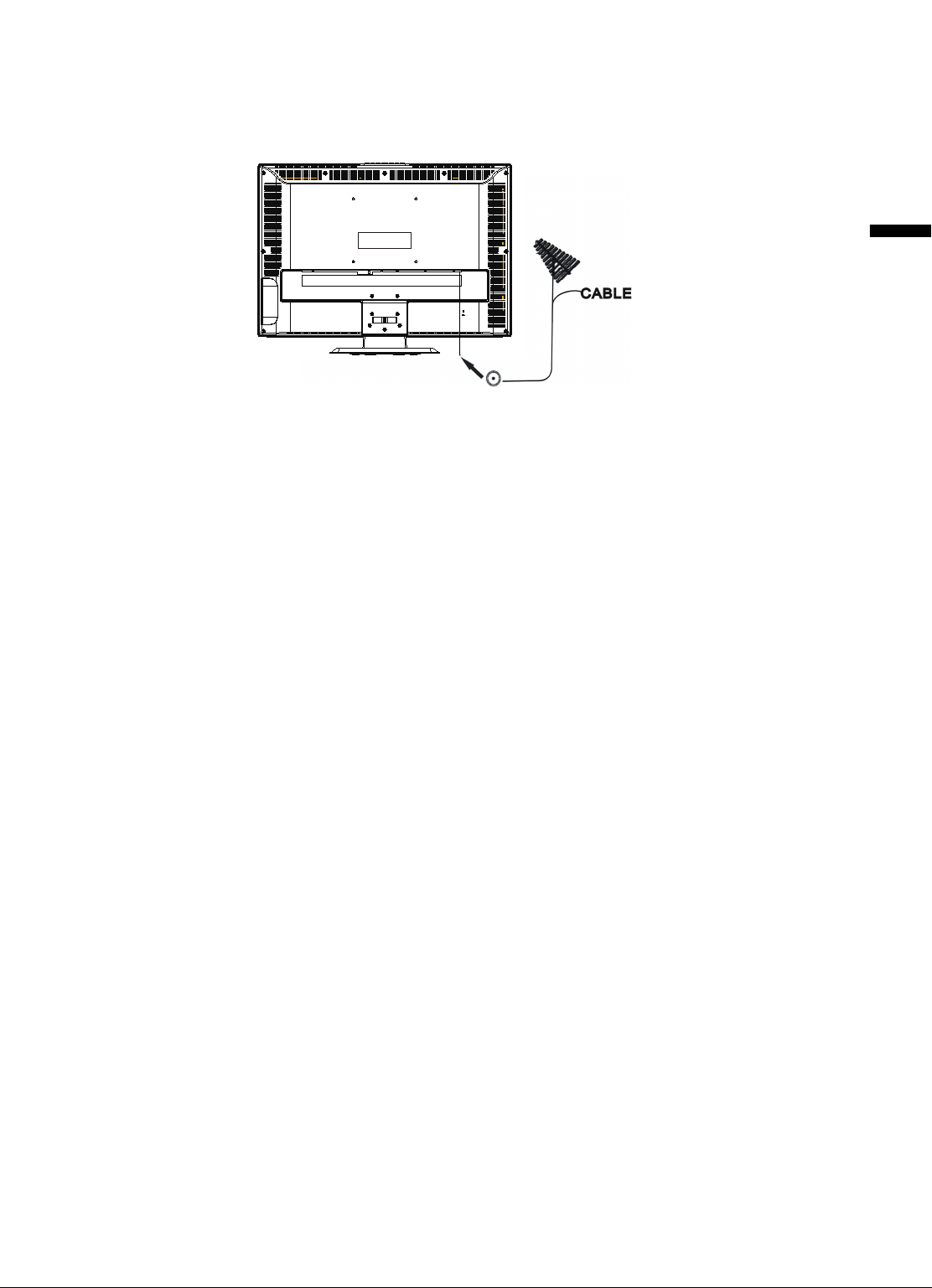

Antenna Installation Instructions
1. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the product be sure the antenna or
ENG LISH
cable system is grounded so as to provide some protection against voltage surges and built-up static charges, Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
2. Lightning
For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. Do not disconnect the antenna or the power cord during a heavy storm lighting may strike while you are holding the cable cord, causing serious injury; turn off your LCD TV and wait for the weather to improve.
3. Power Lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits, When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
Antenna
Ground clamp
Electric service equipment
Ground clamps
Power service grounding electrode system
Antenna discharge unit
Grounding conductors
Cleaning the LCD TV
• Make sure the LCD TV is turned off.
• Never spray or pour any liquid directly onto the screen or case.
To clean the screen:
1. Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles.
2. If still not clean, apply a small amount of non-ammonia, non-alcohol based glass cleaner onto a clean, soft, lint-free cloth, and wipe the screen.
To clean the case:
1. Use a soft, dry cloth.
2. If still not clean, apply a small amount of a non-ammonia, non-alcohol based, mild non­abrasive detergent onto a clean, soft, lint-free cloth, then wipe the surface.
Disclaimer
ViewSonic®does not recommend the use of any ammonia or alcohol-based cleaners on the LCD TV screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD TV. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.
ViewSonic N3240w
5
A
Getting Started
Congratulations on your purchase of a ViewSonic LCD TV display. Important! Save the original box and all packaging material for future shipping needs.
Package Contents
V cable
®
ViewSonic
N3240w LCD TV
- User Guide
- Bedienungsanleit ung
- Guida dell'utente
- Guide de l’utili sateur
SCART cable
Power cord­(For UK use)
Power cord (For Pan Europe use)
QSG
- Guía del usuario
-
-
-
-
-
-
®
ViewSonic
Model No. : VS11527-1E
UG
Användarhandbok
Käyttöopas
Gebruiker Gids
Podręcznik użytkownika
οδηγός χρηστών
Brugervejledning
ENG LISH
Remote Control
ViewSonic N3240w
6
Front View of the Product
ENG LISH
Power : Press this button to turn on the TV or allow the TV to enter standby mode. It is
Menu : Press this button to display or exit the OSD menu. CH( ): When the OSD menu appears, press these two buttons to select the
Vol(+ -) : When the OSD menu appears, press these two buttons to confirm the selected
Source: Press this button to display selected source, press
located on the top middle corner of the TV. If the TV is in standby mode, the indicator at the front will illuminate amber.
item you want to execute; when no OSD menu appears, use to change channels in TV mode.
item; when no OSD menu appears, use to adjust the volume.
button to select.
ViewSonic N3240w
7

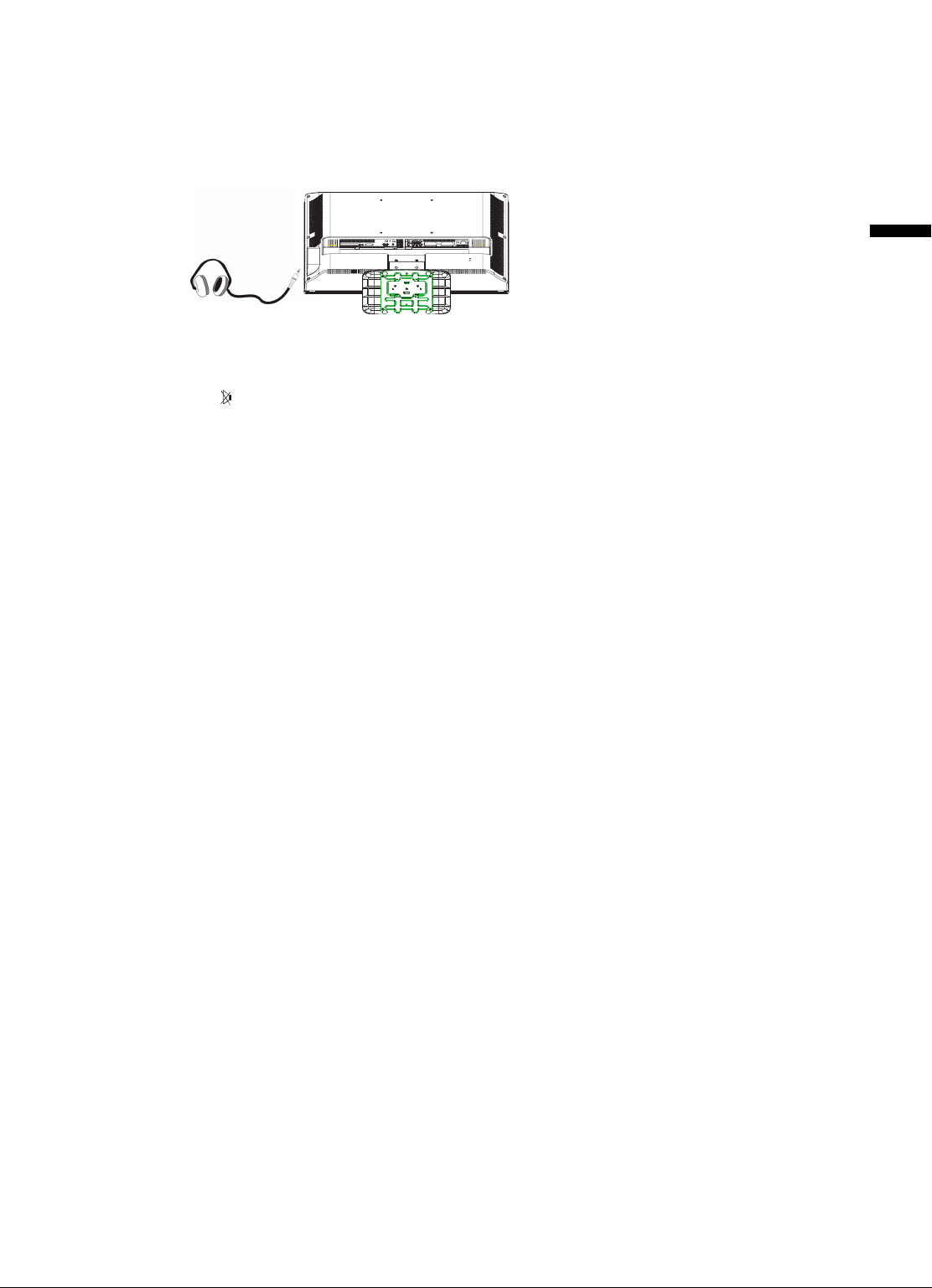

Signal Source Interface Presentation from Rear View
There is a wide range of video and audio equipment that can be connected to your TV. The following connection diagrams show you how to connect them.
ENG LISH
(1)Power: Plug one end of the power cord to the “AC Input” jack in the rear of the TV, and
the other end to the 220V power socket. (2)Power switch: on/off TV. (3)SCART 2: CVBS+S-Video. (4)SCART 1: CVBS+RGB.
ViewSonic N3240w
8

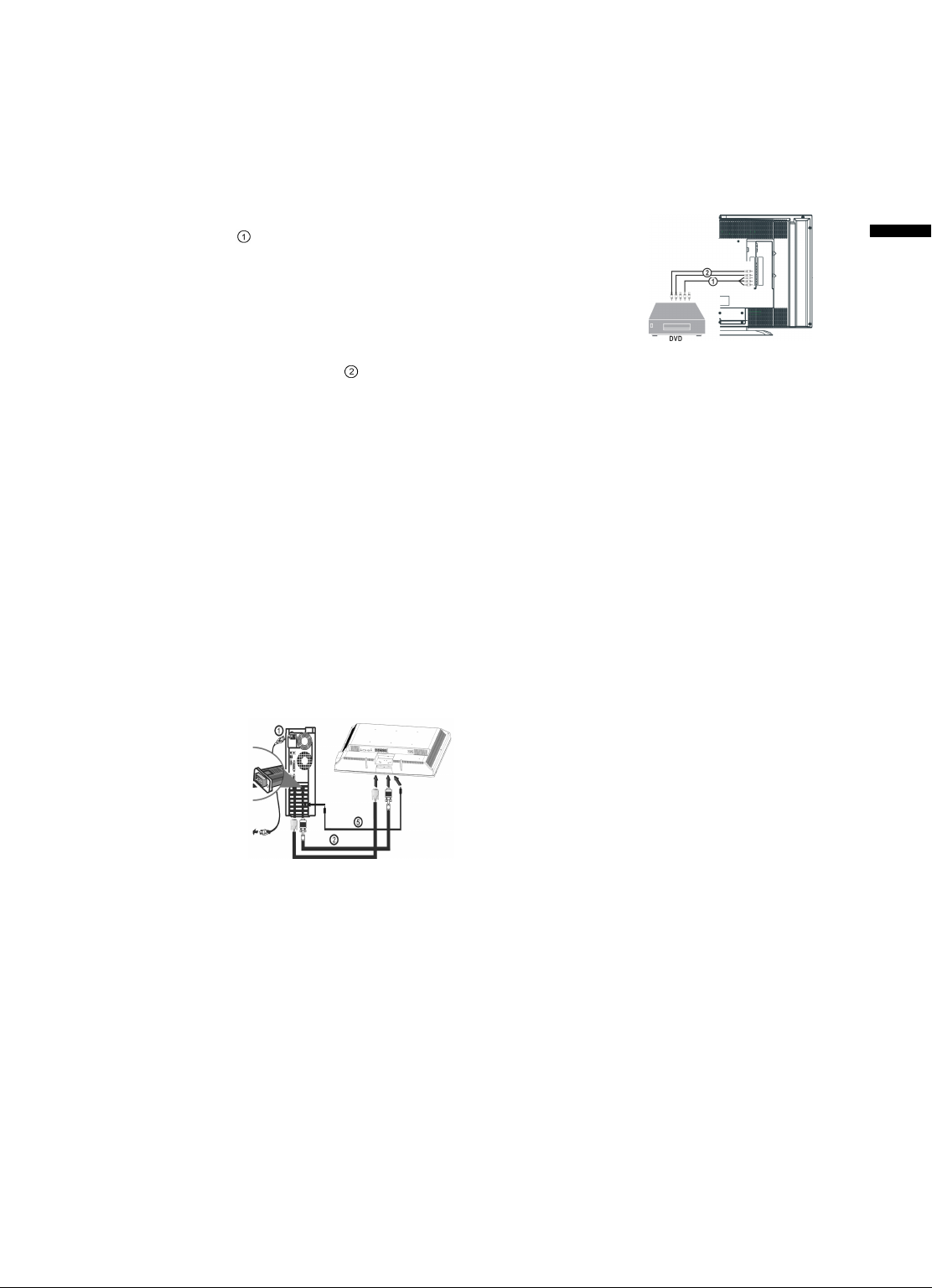

The following will show how to connect SCART connector
HOW TO CONNECT SCART connector
ENG LISH
Audio and Video CINCH sockets (AV IN) (AV)
To connect a VCR, a camcorder, a DVD player or a satellite receiver.
S-Video socket and Audio CINCH sockets (AV IN) (S-VIDEO) To connect an S-Video VCR or an S-Video camcorder.
Connect the three separate component video cables to the DVD player’s. Y, Pb and Pr ports and to the Y, Pb and Pr ports on the TV.
Connect the audio cables to the DVD player’s AUDIO L and R ports and to the L and R AUDIO AV ports on the TV.
Notes:
1. Additional equipment and cables shown are not supplied with this TV set.
2. The 21pin SCART socket can also be used as an output to Audio/Video equipment.
3. Select the desired VIDEO source input position by pushing the TV/VIDEO button on
remote controller.
4. In TV mode, when you switch on the VIDEO source which is connected to SCART
socket, the TV should automatically display the video signal. If it does not, press the TV/VIDEO button on remote controller in order to select the appropriate source.
5. The AUDIO OUT (SCART) terminal provides a fixed level output only. (The menu
settings and remote control volume controls have no effect.)
SCART (SCART IN) (PERITEL)
To connect a VCR, a camcorder, a DVD player, a satellite receiver, a decoder or a games console.
SCART socket is an input/output socket.
ViewSonic N3240w
9
