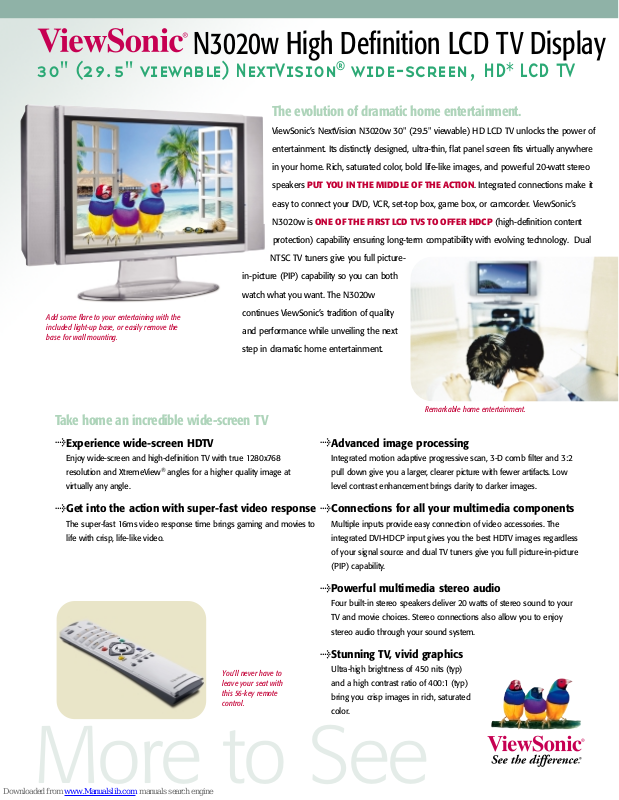

ViewSonic N3020w Specifications

The evolution of dramatic home entertainment.

ViewSonic’s NextVision N3020w 30" (29.5" viewable) HD LCD TV unlocks the power of

entertainment. Its distinctly designed, ultra-thin, flat panel screen fits virtually anywhere

in your home. Rich, saturated color, bold life-like images, and powerful 20-watt stereo

speakers PUT YOU IN THE MIDDLE OF THE ACTION. Integrated connections make it

easy to connect your DVD, VCR, set-top box, game box, or camcorder. ViewSonic’s

N3020w is ONE OF THE FIRST LCD TVS TO OFFER HDCP (high-definition content

protection) capability ensuring long-term compatibility with evolving technology. Dual

NTSC TV tuners give you full picture-

in-picture (PIP) capability so you can both

watch what you want. The N3020w

continues ViewSonic’s tradition of quality

and performance while unveiling the next

step in dramatic home entertainment.

Take home an incredible wide-screen TV

N3020w High Definition LCD TV Display

More to See

Remarkable home entertainment.

>

Experience wide-screen HDTV

Enjoy wide-screen and high-definition TV with true 1280x768

resolution and XtremeView

®

angles for a higher quality image at

virtually any angle.

>

Get into the action with super-fast video response

The super-fast 16ms video response time brings gaming and movies to

life with crisp, life-like video.

>

Advanced image processing

Integrated motion adaptive progressive scan, 3-D comb filter and 3:2

pull down give you a larger, clearer picture with fewer artifacts. Low

level contrast enhancement brings clarity to darker images.

>

Connections for all your multimedia components

Multiple inputs provide easy connection of video accessories. The

integrated DVI-HDCP input gives you the best HDTV images regardless

of your signal source and dual TV tuners give you full picture-in-picture

(PIP) capability.

>

Powerful multimedia stereo audio

Four built-in stereo speakers deliver 20 watts of stereo sound to your

TV and movie choices. Stereo connections also allow you to enjoy

stereo audio through your sound system.

>

Stunning TV, vivid graphics

Ultra-high brightness of 450 nits (typ)

and a high contrast ratio of 400:1 (typ)

bring you crisp images in rich, saturated

color.

You’ll never have to
leave your seat with
this 56-key remote
control.

Add some flare to your entertaining with the
included light-up base, or easily remove the
base for wall mounting.

30" (29.5" viewable) NextVision

®

wide-screen, HD* LCD TV

For more product information, visit us on the web at ViewSonic.com

*Cable provider and set-top box needed to view HDTV. **Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trade-

marks stated herein are the property of their respective companies. Copyright © 2004 ViewSonic Corporation. All rights reserved. [11632-00B-01/04] N3020w-1

ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Phone [phone] or [phone] • In Canada [phone] • Fax [phone] • [e-mail] • ViewSonic.com

N3020w High Definition LCD TV Display

ViewSonic Corporation’s QMS & EMS have been registered to

ISO 9001 & ISO 14001, respectively, by the British Standards Institution.

The N3020w features a number of input connections to ensure
long-term compatibility with evolving technology.

30" (29.5" viewable) NextVision

VIEWSONIC NEXTVISION HD LCD TV DISPLAY

LCD PANEL Type 30" (29.5" viewable) wide color, 1280x768 LCD TV

Display Area 25.3" horizontal X 15.2" vertical; 29.5" diagonal
Brightness 450 cd/m2 (typ)
Contrast Ratio 400:1 (typ)
Viewing Angle 170º horizontal, 170º vertical
Response Time 16ms (typ) gray-to-gray
Aspect Ratio 15:9
Glass Surface Anti-glare

Analog RGB analog (75 ohms, 0.7/1.0 Vp-p)
Video 2xSVHS + R/L audio, 2xCVBS + R/L audio

Digital DVI with HDCP (content protection)

Output 2 Subwoofer

Mac®** Power Mac™ G3/G4 up to 1280x1024, 1280x768 (preferred)

Consumption 175W (typ)
Connector 3-pin plug

Remote 56-key, IR, AAA battery type
Picture Contrast, brightness, color, tint, sharpness, color temp, format, H/V

Sound Bass, treble, balance, volume, surround, BBE®, speaker, audio output
TV Channel, channel status, MTS, blue background
Setup TV (air/cable, search), language, video system, sleep timer, pass code,

Information Resolution, software version, H/V frequency, video system
Exit Exit

Gross 21.0 kg (46.3 lb.)

1

1. One-touch buttons to control all major functions

2. Detachable twin stereo speakers

3

4

5

3.

Only 10.6" thick or less when wall mounted

4. Stylish silver case

5. Removable base for wall mounting (optional wall

mount LCD-WMK-001)

Additional Special Features

Full PIP capability

•

Picture scaling – full screen, fill aspect ratio, 1:1

•

panorama, zoom 1, zoom 2, zoom 3

Advanced precision scaling and image processing

•

Headphone output

•

Closed caption

•

V-chip parental control

•

Dual TV tuners

•

High-quality audio with subwoofer output

•

2

VIDEO INPUT Tuner 2xNTSC

VIDEO OUTPUT Output 1 R/L audio

AUDIO OUTPUT Speakers 2x10-watt

COMPATIBILITY PC Compatible from VGA up to 1280x1024 non-interlaced, 1280x768 preferred

POWER Voltage AC 90–240V (universal), 50–60Hz

CONTROLS Basic Volume +, - , select up/down, input, menu, power

®

OnView

OPERATING Temperature 32–104 ºF (0–40ºC)
CONDITIONS Humidity 20–85% (non-condensing)

DIMENSIONS Physical 927mm x 600mm x 270mm
(W X H X D) 36.5" x 23.6" x 10.6"

WEIGHT Net 17.0 kg (37.5 lb.)

REGULATIONS FCC class B, UL, cUL, ICS003

WARRANTY One-year limited warranty on parts, labor and backlight

®

2xYPbPr/YCbCr + R/L audio

size/position clock phase

closed caption, V-chip, OSD timeout, OSD background, power save, (light),
PIP window size

wide-screen, HD* LCD TV

specifications
