G75f Color Monitor
User Guide
Guide de l’utilisateur
(Intl Spanish)
(Brazilian Portuguese)
(Japanese)
(Traditional Chinese -Tai-
wan)
(Simplified Chinese -
With Plug & Play
17" (16" Viewable Diagonal)
China)
(Korean)
✘
Contents
Product Registration.............................................................. 2
For Your Records ..................................................................2
Getting Started
Package Contents .................................................................3
Precautions ........................................................................... 3
Quick Installation ...................................................................4
Using the Monitor
Setting the Timing Mode ....................................................... 5
Adjusting the Screen Image .................................................. 6
Do the following to adjust the screen image: .................... 7
Other Information
Specifications ...................................................................... 11
Troubleshooting...................................................................12
Customer Support ............................................................... 13
Cleaning the Monitor ........................................................... 14
Limited Warranty .................................................................15
E
N
G
L
I
S
H
Appendix
Safety Guidelines ................................................................ 16
Compliance Information ......................................................17
ViewSonic G75f 1
E
N
G
L
S
H
Copyright © ViewSonic Corporation, 2000. All rights reserved.
Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.
Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft
Corporation in the United States and other countries.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of
ViewSonic Corporation.
I
VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC
are trademarks of VESA.
NERGYSTAR
E
®
is a registered trademark of the U.S. Environmental Protection Agency (EPA).
As an E
E
Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions
contained herein; nor for incidental or consequential damages resulting from furnishing this
material, or the performance or use this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right to
change product specifications without notice. Information in this document may change without
notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any purpose
without prior written permission from ViewSonic Corporation.
NERGYSTAR
NERGYSTAR
®
®
partner, ViewSonic Corporation has determined that this product meets the
guidelines for energy efficiency.
Product Registration
To meet your future needs, and to receive any additional product information as it becomes available,
please register your product on the Internet at:
http://www.viewsonic.com
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
ViewSonic G75f
VCDTS22294
G75f_UG_130
______________
______________
Product disposal at end of product life
ViewSonic is concerned about the preservation of our environment. Please dispose of this product
properly at the end of its useful life. Your local waste disposal company may provide information
about proper disposal.
2 ViewSonic G75f
Getting Started
Congratulations on your purchase of a ViewSonic G75f color monitor.
Important! Save the original box and all packing material for future shipping
needs.
NOTE:
hemisphere where it was purchased. Also, the word “Windows” in this user
guide refers to the following Microsoft operating systems: Windows ‘95,
Windows NT, Windows ‘98, Windows 2000 and Windows ME (Millennium).
Package Contents
Your G75f package includes:
• G75f monitor
• Attached DB-15 video cable
• Power cord
•SetupGuide
• ViewSonic Wizard CD-ROM (including user guide PDF file and INF/ICM
This product was designed for operation in the magnetic fields of the
display optimization files)
E
N
G
L
I
S
H
NOTE:
The supplied INF file ensures compatibility with Windows operating
systems, and the ICM file (Image Color Matching) ensures accurate on-screen
colors. ViewSonic
®
recommends that you install both files.
Precautions
• For best viewing conditions sit at least
18” from the monitor.
• AVOID TOUCHING THE SCREEN
WITH YOUR FINGERS. Oils from the
skin are difficult to remove.
• NEVER REMOVE THE REAR
COVER. The monitor contains highvoltage parts. You may suffer serious
injury if you touch these parts.
• Avoid exposing the monitor to direct
sunlight or another heat source. The
monitor should be facing away from
direct sunlight to reduce glare.
• Do not place your monitor near a source
of water or moisture.
• Place your monitor in a well ventilated
area. Do not place anything on the
monitor that blocks the ventilation slots
or prevents adequate dissipation of heat.
• Do not place heavy objects on the
monitor, video cable, or power cord.
• If smoke, abnormal noise, or strange
odor is present, immediately switch the
monitor off and call your dealer or
ViewSonic. It is dangerous to operate
your monitor under these conditions.
• Keep the monitor away from magnets,
motors, transformers and televisions.
G75f ViewSonic 3
Quick Installation
E
N
G
L
S
H
1 Connect video cable
Make sure both the monitor and computer
are powered OFF.
Connect the video cable to the computer.
I
Macintosh users: Models older than G3
require a Macintosh adapter. Attach the
adapter to the computer and plug the video
cable into the adapter.
®
To order a ViewSonic
contact ViewSonic. See Customer Support
in this user guide.
Macintosh adapter,
2 Connect power cord
Connect the power cord from the monitor to
a properly grounded AC outlet.
3 Power-ON monitor and computer
Power-ON the monitor, then power-ON the
computer. This sequence (monitor before
computer) is very important.
NOTE: At this point Windows 98 users may
receive a message asking them to install the
G75f INF file.
4 Install display optimization files
(INF and ICM files)
(1) Insert the ViewSonic Wizard CD-ROM
into your computer’s CD-ROM drive.
NOTE: If your computer does not have a
CD-ROM drive, see Customer Support in
this user guide.
(2) Wait for the CD-ROM to auto-start.
NOTE: If the CD-ROM does not auto-start:
double-click on the CD-ROM icon in the
Windows Explorer, then double-click on
install.exe
(3) Follow the on-screen instructions.
5 Windows users: Set the Timing
Mode (resolution and refresh
rate)
Example: 1024 X 768 @ 75Hz.
For instructions on changing the resolution
and refresh rate, see the user guide for your
computer's graphics card.
Installation is complete. Enjoy your new
G75f monitor!
To be best prepared for any future customer
service needs:
Write the serial number (see back of the
monitor) in “For your Records” on page 2 of
this guide.
Register your product on the Internet at:
www.viewsonic.com
Power
Cords
4 ViewSonic G75f
Video Cable
Using the Monitor
Setting the Timing Mode
Setting the timing mode is important for maximizing the quality of the
screen image and minimizing eye strain. The
resolution
(example 1280 x 1024) and
refresh rate
timing mode
(or vertical frequency;
example 75 Hz). After setting the timing mode, use the OnView
to adjust the screen image.
The recommended timing modes for this monitor are:
VESA 1024 x 768 @ 75 Hz
.
To set the Timing Mode:
1
Set the resolution: Right-click on the Windows®desktop >
Settings
> Desktop Area or Screen Area for Windows 98 and newer > set
the resolution.
2
Set the refresh rate: See your graphic card's user guide for instructions.
consists of the
®
controls
Properties
E
N
G
L
I
S
H
>
NOTE:
To minimize the adjustments required for an optimal screen
selectatimingmodefromthe
Preset Timing Modes
table below.
,
Preset Timing Modes
VGA 640 x 400 @ 70 Hz
VGA 640 x 480 @ 60 Hz
®
VESA
VESA 800 x 600 @ 75 Hz
VESA 800 x 600 @ 85 Hz
VESA 1024 x 768 @ 60 Hz
WARNING:
640 x 480 @ 75 Hz
Do NOT set the graphics card in your computer to exceed the
maximum refresh rate for each resolution (see below). Doing so may result in
permanent damage to your monitor.
VESA 1024 x 768 @ 75 Hz
VESA 1024 x 768 @ 85 Hz
VESA 1280 x 1024 @ 60 Hz
VESA 1280 x 1024 @ 75 Hz
Macintosh 832 x 624 @ 75 Hz
Macintosh 1152 x 870 @ 75 Hz
Timing Modes with Maximum Refresh Rates
1600 x 1200 NI @ 68 Hz
1280 x 1024 NI @ 80 Hz
1152 x 870 NI @ 93 Hz
1024 x 768 NI @ 105 Hz
800 x 600 NI @ 132 Hz
640 x 480 NI @ 162 Hz
(NI = Non Interlaced)
G75f ViewSonic 5
Adjusting the Screen Image
E
N
G
L
S
H
Beginning with the Main Menu shown below, use the buttons on the front
control panel to adjust the OnView
®
controls which display on the screen. The
OnView controls are explained in the four steps at the top of the next page and
are further explained on pages 8-10.
I
IMPORTANT: The monitor should be warmed up for 30 minutes prior to
making any adjustments.

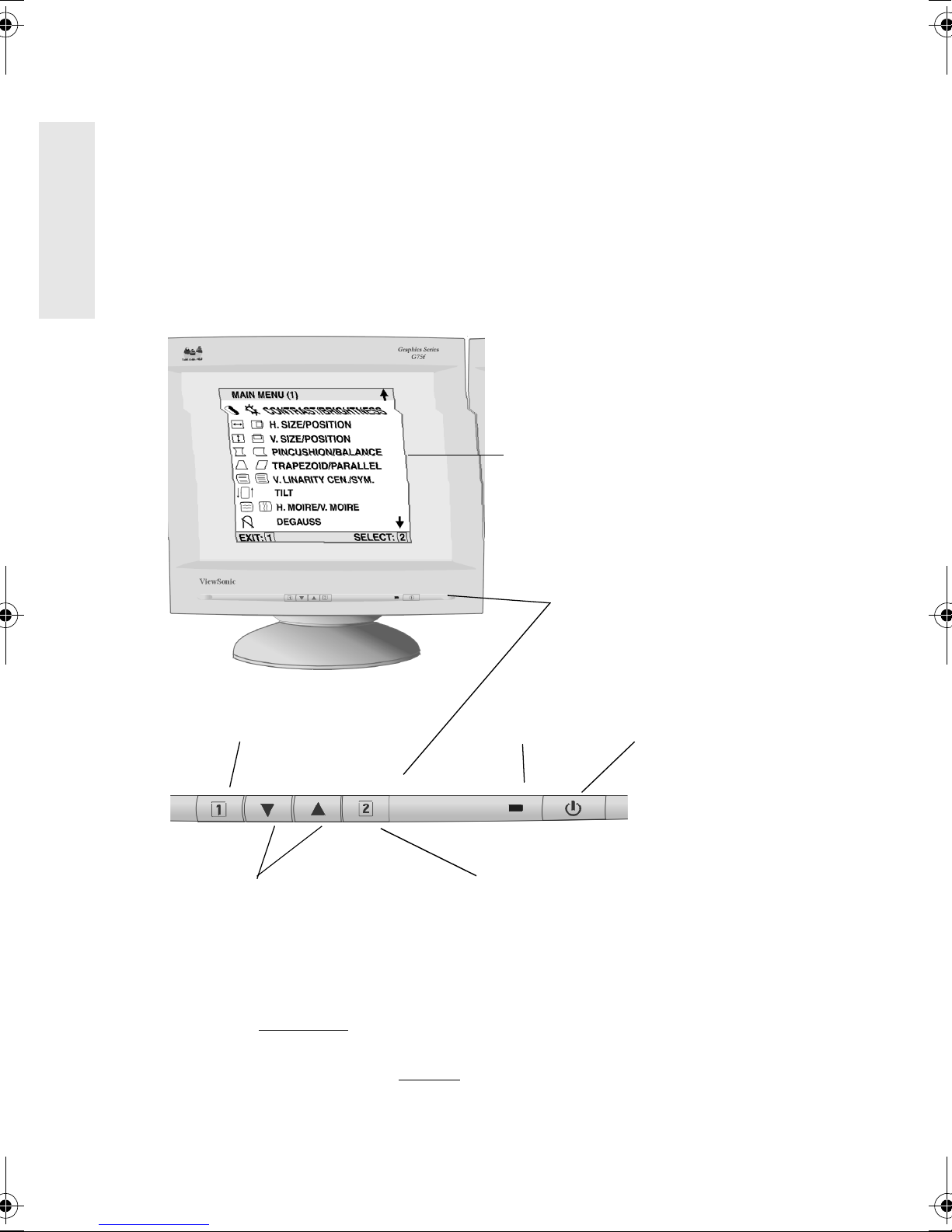

Main Menu with OnView controls
Front Control Panel
Displays Main Menu; also saves
changes/exits Main Menu.
Scroll Up/Down
menu options
* The monitor automatically
fields that can affect color purity and convergence. To prevent possible damage, if you turn the
monitor off, then immediately on again, wait 20 minutes before doing this again. Do not turn the
monitor on and off repeatedly. To manually
degausses each time you turn it on, removing the buildup of magnetic
Power Ligh t
Displays control screen for
highlighted control (or pair
of controls). Also, toggles
between pair of controls on
some control screens.
degauss the monitor, see the instructions on page 9.
Power On/Off
Front Control Panel
6 ViewSonic G75f
Do the following to adjust the screen image:
1

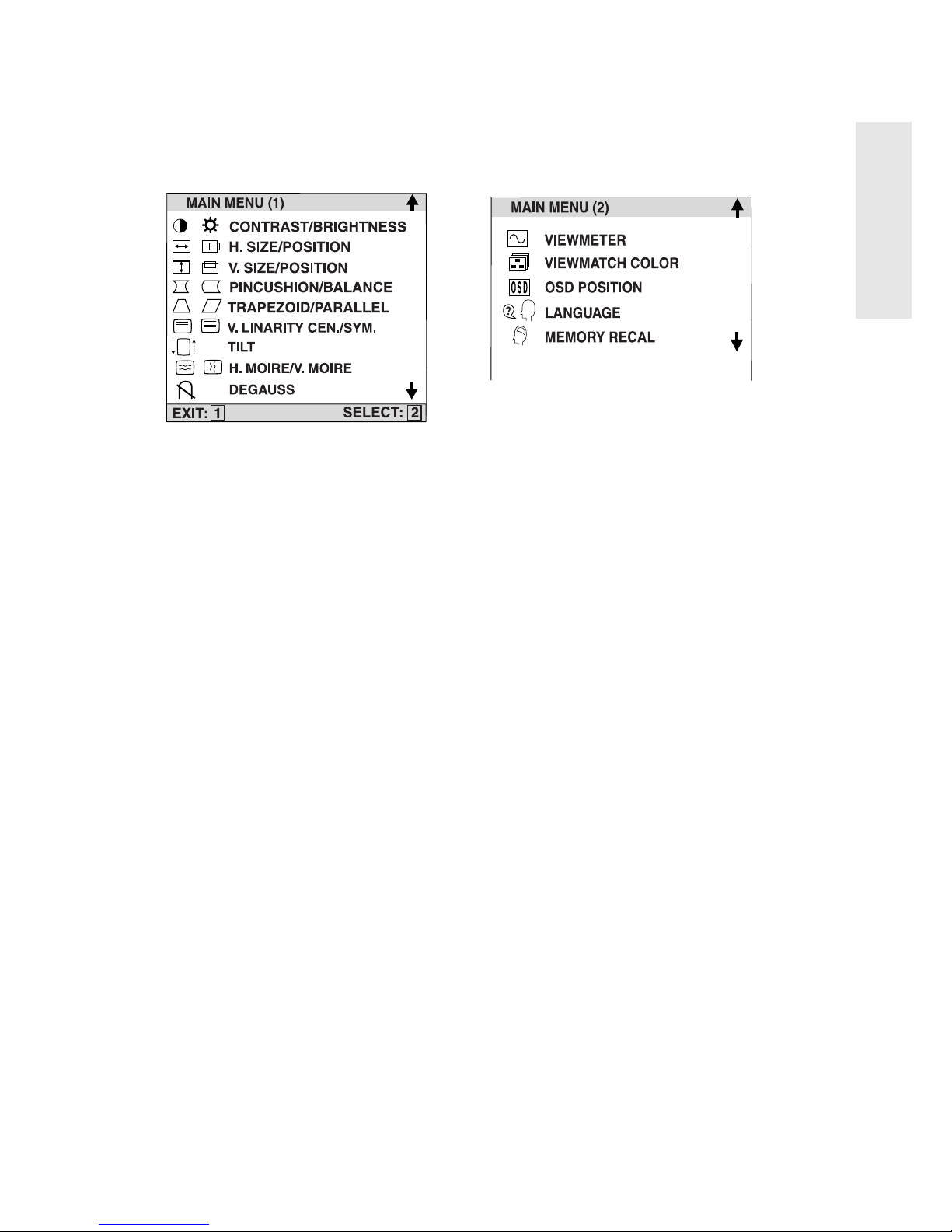

To display the Main Menu (parts 1 and 2 shown below), press button [1].
2
To select a control you want to adjust, press the arrow buttons on the front
control panel of your monitor (▼▲) and scroll through the choices.
When the control you want to adjust is highlighted, press button [2].
E
N
G
L
I
S
H
NOTE:
Some controls on the Main Menu are listed in pairs, such as
Contrast/Brightness. Press button [2] to toggle between control pairs after
displaying a control screen.
3
To adjust the selected control, press the arrow buttons (▼▲).
4
To save the control setting and Exit the menu, press button [1] twice
.
G75f ViewSonic 7
E
N
G
L
S
H
Main Menu Controls
▲▼
The menu items shown below can be adjusted by using the arrow buttons (
on the front of your monitor.
)
Control Explanation
I
Contrast
adjusts the difference between the image
background (black level) and the foreground (white level).
Shortcut:
Before displaying the Main Menu, press ▼ or ▲
to display the Contrast/Brightness control screen.
Brightness
adjusts the background black level of the screen
image.
Shortcut:
Before displaying the Main Menu, press ▼ or ▲
to display the Contrast/Brightness control screen.
Horizontal Size
Horizontal Position
Ver tical Size
Ver tical Position
Pincushion
adjusts the width of the screen image.
moves the screen image left or right.
adjusts the height of the screen image.
moves the screen image up or down.
straightens curves along the vertical edges of
the screen image that bow inward or outward.
Pin Balance
straightens curves along the vertical edges of
the screen image that bow in the same direction.
8 ViewSonic G75f
Trapezoid
adjusts the top and bottom of the screen image
until they have equal length.
Parallel
slants the vertical edges of the screen image until
they are parallel.
V. Linear
(Vertical Linearity Center) adjusts the vertical
distortion at the center of the screen image.
NOTE:
Vertical Linearity Center is an advanced control and
should be used for setup and calibration only.
Control Explanation (Continued)
V. L i n e a r S y m
(Vertical Linearity Symmetry) minimizes the
distortion (squeezing or stretching) images between the top
and bottom of the screen image.
NOTE:
Vertical Linearity Symmetry is an advanced control
and should be used for setup and calibration only
Tilt
rotates the entire screen image.
HMoire
(Horizontal Moire) reduces vertical interference
patterns that appear as ripples, waves, or unwanted
background color textures.
NOTE:
Interference patterns of this type are most
noticeable when viewing images having closely spaced
lines or finely detailed patterns.
VMoire
(Vertical Moire) reduces horizontal interference
patterns that appear as ripples, waves, or unwanted
background color textures.
Interference patterns of this type are most noticeable when
viewing images having closely spaced lines or finely
detailed patterns.
E
N
G
L
I
S
H
Degauss
removes the build-up of magnetic fields that can
cause irregular colors to appear around the edges of screen
images. Your monitor will degauss
automatically
each time
you power it on.
To degauss your monitor
manually,
select Degauss on the
on-screen menu and press button [2].
Important:
harmful to the monitor.
Do not degauss repeatedly. Doing so can be
Wait at least 20 minutes before using
this control again.
ViewMeter
®
displays the frequencies (horizontal and
vertical) coming from the graphics card of the computer.
G75f ViewSonic 9
Control Explanation (Continued)
E
N
G
L
S
H
ViewMatch®Color
provides several color options: three
preset color temperatures and User Color,which allows you
to adjust red (R), green (G), and blue (B). The factory
setting for this product is 9300K (9300 Kelvin).
I
9300K
(oten used in office settings with fluorescent lighting).
6500K
Adds blue to the screen image for cooler white
—
Adds red to the screen image for warmer white
—
and richer red.
5000K
User Color
Adds blue and green to the screen image.
—
Individual adjustments for red, green, and
—
blue.
OSD Position
allows you to move the on-screen display
menus and control screens.
Language
allows you to choose from among several
languages for the menus and control screens: English,
French, German, Italian, and Spanish.
Memory Recall
returns adjustments to the original factory
settings if the product is operating in a Preset Timing Modes
(see the table at the bottom of page 12).
Exception:
the
User Color
This control does not affect changes made with
control.
10 ViewSonic G75f
Other Information
Specifications
CRT
Input Signal
Ty p e
Phosphor
Glass surface
Video
Sync
17” (16.0” viewable diagonal area). 0.25m, AG dot
pitch,90
RGB B22, medium-sho rt persistence
Anti-reflection, anti-glare, anti-static coating
Standard light transmission rate = 38%
RGB Analog (0.7 Vp-p, 75 Ohms
f
H/V Separate (TTL)
o
: 30-86kHz, fv: 50-180 Hz
H
deflection
E
N
G
L
I
S
H
Compatibility
Power
Display Area
Operating
Conditions
Storage Conditions
Dimensions
Weight
Regulations
Power Saving
Modes
PC
Macintosh
Volt age
Consumption
Factory Setting
Full scan
Temperature
Humidity
Altitude
Temperature
Humidity
Altitude
Physical
(monitor)
Net
Gross
UL, CSA, FCC-B, TCO 99, ISO9241-3, TUV/GS, EPA, E2K, C-Tick, VCCI,
CCIB, CCEE, S Mark, CB, DHHS
On
DPMS
Stand By
Off Mode
1
TM
Suspend
VGA up to 1600 x 1200
Power Macintosh compatible up to 1152 x 870 (may
require Macintosh cable adapter)
AC 100-240V (auto switch) 50-60 Hz, 2.0A
100 W (typical), 110 W (max)
300 mm (H) x 225 mm (V) (Std. Display Area)
325 mm (H) x 244 mm (V) (Depends on signal timing)
32° F to 104° F (0° C to 40° C)
5% to 95% (no condensation)
Up to 10,000 ft. (3040 m)
-4° F to +140° F (-20° C to +60° C)
5% to 95% (no condensation)
Up to 40,000 ft. (12192 m)
417 mm (W) x 427 mm (D) x 425 mm (H)
16.4” (W) x 16.8” (D) x 16.7” (H)
18.0 kgs (39.9 lbs) (monitor only)
21 kgs (46.2 lbs)
< 100 W TYPICAL (Green LED)
< 15W (Yellow LED)
< 15W (Yellow LED)
< 3 W (Orange LED)
(Recommended Refresh rate:
(Maximum refresh
VESA®640 x 480 @ 162 Hz
VESA 800 x 600 @ 132 Hz
VESA 1024 x 768 @ 105 Hz
1
Macintosh models prior to G3 require a Macintosh adapter.To order a Macintosh adapter, contact
ViewSonic Customer Support. You will need to provide serial number of the product.
2
Warning:
doing so could result in permanent damage to the monitor.
Do NOT set the graphics card in your computer to exceed these Maximum Refresh Rates;
Preset Timing Modes
VESA 1024 x 768 @ 75 Hz)
2
rates for this monitor are:
VESA 1280 x 1024 @ 80 Hz
VESA 1600 x 1200 @ 68 Hz
Macintosh 832 x 624 @ 127 Hz
Macintosh 1152 x 870 @ 93 Hz
G75f ViewSonic 11
Troubleshooting
E
N
G
L
S
H
No power
• Make sure power button (or switch) is ON.
• Make sure A/C power cord is securely connected to the back of the monitor
and to a power outlet.
I
• Plug another electrical device (like a radio) into the power outlet to verify that
the outlet is supplying proper voltage.
Power on but no screen image
• Make sure the video cable supplied with the monitor is tightly secured to the
video output port on the back of the computer. If the other end of the video cable
is not attached permanently to the monitor, tightly secure it to the monitor.
• Adjust brightness and contrast.
• Verify whether an adapter is required for proper signal continuity between
graphics card and monitor.
Flickering
• Not enough power supplied. Connect the monitor to a different outlet. If
using a surge protector, reduce the number of devices plugged in.
• Check the ViewMeter
®
from the main menu to verify the refresh rate (vertical
frequency) is 75 Hz or higher. See “Specifications” on page 11.
• Remove any devices from the area around the monitor that emit magnetic
fields such as radios, surge protectors, unshielded speakers, fluorescent
lights, AC power converters, desk fans, etc.
• Make sure the graphics card in your computer can use non-interlaced mode at
the desired frequencies. To enable your graphics card to support higher
refresh rates, try selecting fewer colors or running lower resolutions.
Wrong or abnormal colors
• If any colors (red, green, or blue) are missing, check the video cable to make
sure it is securely connected. Loose or broken pins in the cable connector
could cause an improper connection.
• Connect the monitor to another computer.
• Select Degauss from the Main Menu. Do this only once.
• If you have an older graphics card, contactViewSonic
Entire screen image (rolls) vertically
• Make sure video input signals are within the monitor's specified frequency range.
• Try the monitor with another power source, graphics card, or computer system.
• Connect the video cable securely.
Control buttons do not work
• Press only one button at a time.
12 ViewSonic G75f
®
Customer Support.
Customer Support
For the most expedient answer to your question, do the following:
1
Check Troubleshooting (on the previous page).
2
For assistance contact your reseller.
3
For further assistance see the contact information listed below.
Ask your reseller to refer you to a service center if contact information for
your country or region is not listed below:
NOTE:
Country/Region T = Telephone
United States
Canada
United Kingdom T:
You need to provide the serial number (on the back of the product).
Email
F=FAX
T: (800) 688-6688
F: (909) 468-1202
T: (800) 688-6688
F: (909) 468-1202
0800 833 648
0044 (0)1293 643910
F:
vstech@viewsonic.com
vstech@viewsonic.com
----------------------------
E
N
G
L
I
S
H
Europe, Middle East,
Baltic countries, and
North Africa
Australia (contact reseller) -----------------------------
New Zealand
Singapore/Southeast
Asia
Other Asia/Pacific
countries and Indian
Peninsula
South Africa
0044 (0)1293 643900
T:
0044 (0)1293 643910
F:
T: 64-3-366-1135
F: 64-3-366-7006
T: 65-273-4018
F: 65-273-1566
886-2-2248-4072
T:
886-2-2240-8238
F:
T: 27-11-314-0002
F: 27-11-314-0002
-----------------------------
mbarlass@vistech.co.nz
viewsonicspore@pacific.net.sg
vsi@viewsonic.com.tw
atscom@mweb.co.za
G75f ViewSonic 13
Cleaning the Monitor
E
N
G
L
S
H
• MAKE SURE THE MONITOR IS TURNED OFF.
• NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE
SCREEN OR CASE.
To clean the screen:
I
1
Wipe the screen with a clean, soft, lint-free cloth. This removes dust and
other particles.
2
If still not clean, apply a small amount of non-ammonia, non-alcohol based
glass cleaner onto a clean, soft, lint-free cloth, and wipe the screen.
To clean the case:
1
Use a soft, dry cloth.
2
If still not clean, apply a small amount of a non-ammonia, non-alcohol
based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then
wipe the surface.
DISCLAIMER
®
ViewSonic
does not recommend the use of any ammonia or alcohol-based
cleaners on the monitor screen or case. Some chemical cleaners have been
reported to damage the screen and/or case of the monitor. ViewSonic will not be
liable for damage resulting from use of any ammonia or alcohol-based cleaners.
14 ViewSonic G75f
Limited Warranty
VIEWSONIC MONITORS
What the warranty covers:
®
ViewSonic
warranty period. If a product proves to be defective in material or workmanship during the warranty
period,
product or parts may include remanufactured or refurbished parts or components.
How long the warranty is effective:
ViewSonic
and three (3) years for all labor from the date of the first consumer purchase.
Who the warranty protects:
This warranty is valid only for the first consumer purchaser.
What the warranty does not cover:
1. Any product on which the serial number has been defaced, modified or removed.
2. Damage, deterioration or malfunction resulting from:
a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product
b. Repair or attempted repair by anyone not authorized by
c. Any damage of the product due to shipment.
d. Removal or installation of the product.
e. Causes external to the product, such as electrical power fluctuations or failure.
f. Use of supplies or parts not meeting
g. Normal wear and tear.
h. Any other cause which does not relate to a product defect.
3. Removal, installation, and set-up service charges.
How to get service:
1.
For information about receiving service under warranty, contact ViewSonic Customer
Support.
2. To obtain service under warranty, you will be required to provide (a) the original dated sales slip, (b)
your name, (c) your address, (d) a description of the problem, and (e) the serial number of the
product.
3. Take or ship the product freight prepaid in the original container to an authorized
service center or
4. For additional information or the name of the nearest
Limitation of implied warranties:
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE
DESCRIPTION CONTAINED HEREIN INCLUDING THE IMPLIED WARRANTY OF
MERCHANTABILITY AND FITNESS FOR APARTICULAR PURPOSE.
Exclusion of damages:
VIEWSONIC'S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE
PRODUCT. VIEWSONIC SHALL NOT BE LIABLE FOR:
1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES
BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF
PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH
BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.
3. ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHERPARTY.
Effect of state law:
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of
incidental or consequential damages, so the above limitations and exclusions may not apply to you.
Sales outside the U.S.A. and Canada:
For warranty information and service on
contact
warrants its products to be free from defects in material and workmanship during the
ViewSonic
color monitors, including the display tubes, are warranted for three (3) years for all parts
modification, or failure to follow instructions supplied with the product.
ViewSonic
will, at its sole option, repair or replace the product with a like product. Replacement
ViewSonic.
ViewSonic
You will need to provide your product's serial number.
ViewSonic.
or your local
ViewSonic
ViewSonic
dealer.
’s specifications.
ViewSonic
ViewSonic
products sold outside of the U.S.A. and Canada,
service center, contact
ViewSonic
.
E
N
G
L
I
S
H
ViewSonic Monitor Warranty (V2.0) Release Date: 10-15-1999
G75f ViewSonic 15
Appendix
E
N
G
L
S
H
Safety Guidelines
CAUTION:
CAUTION:
certified for the individual country. Some examples are listed below:
I
IMPORTANT NOTICE CONCERNING POWER CORD SELECTION
The power cord set for this unit has been enclosed and has been selected according to the country of destination and must be used to prevent electric shock. Use the following guidelines if it is necessary to replace
the original cord set, or if the cord set is not enclosed.
The female receptacle of the cord set must meet IEC-60320 requirements and will look like (Figure A1
below):
For the United States and Canada
In the United States and Canada the male plug is a NEMA5-15 style (Figure A2), UL Listed, and CSA
Labeled. For units which are mounted on a desk or table, type SVT or SJT cord sets may be used. For
units which sit on the floor, only SJT type cord sets may be used. The cord set must be selected according
to the current rating for your unit. Please consult the table below for the selection criteria for power cords
used in the United States and Canada.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
Use a power cable that is properly grounded. Always use the appropriate AC cord that is
USA................. UL
Canada.............CSA
Germany .......... VDE
Switzerland ..... SEV
Britain ............. BASE/BS
Japan ............... Electric Appliance Control Act
Figure A1
Figure A2
Cord Type Size of Conductors in Cord Maximum Current Rating of Unit
SJT 18 AWG
16 AWG
14 AWG
SVT 18 AWG
17 AWG
10 Amps
12 Amps
12 Amps
10 Amps
12 Amps
For European Countries
In Europe you must use a cord set which is appropriate for the receptacles in your country. The cord set is HARCertified, and a special mark that will appear on the outer sheath, or on the insulation of one of the inner conductors.
AC PLUG CORD PRECAUTIONS FOR THE UNITED KINGDOM
FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET THEN THE PLUG SHOULD BE
CUT OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO AN
APPROPRIATE SOCKET.
If a new plug is to be fitted, please observe the wiring code as shown below.
If in any doubt, please consult a qualified electrician.
WARNING: THIS APPLIANCE MUST BE EARTHED.
IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:
Green-and-Yellow: Earth
Blue: Neutral
Brown: Live
If the coloured wires of the mains lead of this appliance do not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by
the letter E or by the Earth symbol or coloured GREEN or GREEN-AND-YELLOW.
The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or
coloured BLACK. The wire which is coloured BROWN must be connected to the terminal in the plug which is marked
with the letter L or coloured RED.
If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you
have purchased the product.
16 ViewSonic G75f
Compliance Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Warning
To assure continued FCC compliance, the user must use grounded power supply cord and the provided
shielded video interface cable with bonded ferrite cores. If a BNC cable is going to be used, use only a
shielded BNC(5) cable. Also, any unauthorized changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this device.
Notice for Japan
This is a Class B product based on the standard of theVoluntary Control Council for Interference from
Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic
environment, it may cause radio interference. Install and use the equipment according to the instruction
E
N
G
L
I
S
H
G75f ViewSonic 17
E
N
G
L
S
H
NOTE
I
18 ViewSonic G75f
ViewSonic
Corporation
381 Brea Canyon Road
Walnut, CA 91789
Tel (909) 869-7976
Tel (800) 688-6688
Fax (909) 468-1202
Loading...
