ViewSonic EP5540, EP4320-2 User Manual

EP5540/EP5540T
Multimedia Digital Poster

User Guide

Model No.: VS17520

IMPORTANT: Please read this User Guide to obtain important information on installing
and using your product in a safe manner, as well as registering your product for future
service. Warranty information contained in this User Guide will describe your limited
coverage from ViewSonic Corporation, which is also found on our web site at http://

www.viewsonic.com in English, or in specic languages using the Regional selection

box in the upper right corner of our website. “Antes de operar su equipo lea cu
idadosamente las instrucciones en este manual”

Thank you for choosing ViewSonic

As a world leading provider of visual solutions, ViewSonic is dedicated to
exceeding the world’s expectations for technological evolution, innovation,
and simplicity. At ViewSonic, we believe that our products have the

potential to make a positive impact in the world, and we are condent that

the ViewSonic product you have chosen will serve you well.

Once again, thank you for choosing ViewSonic !

i

Compliance Information

NOTE: This section addresses all connected requirements and statements regarding regulations.

Confirmed corresponding applications shall refer to nameplate labels and relevant markings on
unit.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class A/
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his/her own
expense.

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning: To comply with the limits for the Class A/Class B digital device, pursuant to Part 15 of
the FCC Rules, this device must be installed in computer equipment certified to comply with the
Class A/Class B limits. All cables used to connect the computer and peripherals must be shielded
and grounded. Operation with non-certified computers or non-shielded cables may result in
interference to radio or television reception. Changes and modifications not expressly approved by
the manufacturer could void the user’s authority to operate this equipment.

For Canada

CAN ICES-3 (A/B)/NMB-3(A/B)

ii

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive
2014/35/EU.

Following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic
Equipment Directive 2012/19/EU (WEEE).

The mark indicates the requirement NOT to dispose of the equipment as unsorted
municipal waste, but use the return and collection systems according to local law.

If the batteries, accumulators and button cells included with this equipment, display the
chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content
of more than 0.0005% Mercury or more than, 0.002% Cadmium, or more than 0.004%
Lead.

Industry Canada Notice

This device complies with Canadian RSS-210.To prevent radio interference to the licensed service,
this device is intended to be operated indoors and away from windows to provide maximum
shielding. Equipment (or its transmitting antenna) that is installed outdoors is subject to licensing.
The installer of this radio equipment must ensure that the antenna is located or pointed such that it
does not emit RF field in excess of Health Canada limits for the general population; consult Safety
Code 6, obtainable from Health Canada’s website www.hc-sc.gc.ca/rpb.

R&TTE Compliance Statement

This device complies with the Essential Requirements of the R&TTE Directive of the European
Union (1999/5/EC). This equipment meets the following conformance standards:

ETSI EN 300 328
EN 301 489-01
EN 301 489-17
EN 62311

Notified Countries: Germany, UK, Netherlands, Belgium, Sweden, Denmark,
Finland, France, Italy, Spain, Austria, Ireland, Portugal, Greece, Luxembourg,
Estonia, Latvia, Lithuania, Czech Republic, Slovakia, Slovenia, Hungary, Poland and Malta.

iii

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the
European Parliament and the Council on restriction of the use of certain hazardous substances in
electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum
concentration values issued by the European Technical Adaptation Committee (TAC) as shown
below:

Substance

Proposed Maximum
Concentration

Actual Concentration

Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr

6+

) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Bis (2-ethylhexyl) phthalate (DEHP) 0.1% < 0.1%
Butyl benzyl phthalate (BBP) 0.1% < 0.1%
Dibutyl phthalate (DBP) 0.1% < 0.1%
Diisobutyl phthalate (DIBP ) 0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2
Directives as noted below:

Examples of exempted components are:

1. Mercury in cold cathode uorescent lamps and external electrode uorescent lamps (CCFL and
EEFL) for special purposes not exceeding (per lamp):

(1) Short length (≦500 mm): maximum 3.5 mg per lamp.
(2) Medium length (＞500 mm and ≦1,500 mm): maximum 5 mg per lamp.
(3) Long length (＞1,500 mm): maximum 13 mg per lamp.

2. Lead in glass of cathode ray tubes.

3. Lead in glass of uorescent tubes not exceeding 0.2% by weight.

4. Lead as an alloying element in aluminium containing up to 0.4% lead by weight.

5. Copper alloy containing up to 4% lead by weight.

6. Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight
or more lead).

7. Electrical and electronic components containing lead in a glass or ceramic other than dielectric
ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.

iv

Safety Precautions

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND
USING THE LCD COLOR MONITOR:

• DO NOT REMOVE MONITOR BACK COVER. There are no user serviceable parts inside and
opening or removing covers may expose you to dangerous shock hazards or other risks. Refer

all servicing to qualied service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage

points, which can be harmful or fatal or may cause electric shock, re or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or

re.

• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall,
causing serious damage to the monitor.

• Do not place any objects onto the monitor and do not use the monitor outdoors.

• The inside of the uorescent tube located within the LCD monitor contains mercury. Please
follow the laws or rules of your municipality to dispose of the tube properly.

• Do not bend power cord.

• Do not use monitor in high temperature, humid, dusty, or oily areas.

• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with
care.

• Allow adequate ventilation around the monitor, so that heat can properly dissipate. Do not
block ventilated openings or place the monitor near a radiator or other heat sources. Do not
put anything on top of the monitor.

• The power cable connector is the primary means of detaching the system from the power
supply. The monitor should be installed close to a power outlet, which is easily accessible.

• Handle with care when transporting. Save packaging for transporting.

• Please clean the holes of back cabinet to reject dirt and dust at least once a year because of
set reliability.

• If using the cooling fan continuously, it’s recommended to wipe holes a minimum of once a
month.

• When installing the remote control batteries;

- Align the batteries according to the (+) and (-) indications inside the case.

- Align the (-) indication of the battery rst inside the case.

WARNING:

Usage of other than specified head- or earphones can result in hearing loss due to excessive
sound pressures.

v

CAUTION:

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service
personnel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions.

Recommended Use

CAUTION:

• For optimum performance, allow 20 minutes for warm-up.

• Rest your eyes periodically by focusing on an object at least 5 feet away. Blink often.

• Position the monitor at a 90° angle to windows and other light sources to minimize glare and

reections.

• Clean the LCD monitor surface with a lint-free, nonabrasive cloth. Avoid using any cleaning
solution or glass cleaner!

• Adjust the monitor’s brightness, contrast and sharpness controls to enhance readability.

• Avoid displaying xed patterns on the monitor for long periods of time to avoid image
persistence (after image effects).

• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomic benefits, we recommend the following:

• Use the preset Size and Position controls with standard signals.

• Use the preset Color Setting.

• Use non-interlaced signals.

• Do not use primary color blue on a dark background, as it is difcult to see and may produce

eye fatigue due to insufcient contrast.

vi

Table Of Contents

1. Getting Started ...........................................................................................................................1

1.1. Package Contents ...............................................................................................................1

1.2. Fastening the poster ...........................................................................................................1

2. Parts and Functions ..................................................................................................................4

2.1. Remote Control ...................................................................................................................4

2.1.1. Installing remote control Batteries ...........................................................................5

2.1.2. Aiming the remote control ......................................................................................5

3. Connections ...............................................................................................................................6

4. Basic Operations .......................................................................................................................7

4.1. Turn on the display ..............................................................................................................7

4.2. First initiation .......................................................................................................................7

4.3. Float menu (for touch series only) .......................................................................................7

4.3.1. Home Menu Overview .............................................................................................8

4.4. Home Menu Overview .........................................................................................................9

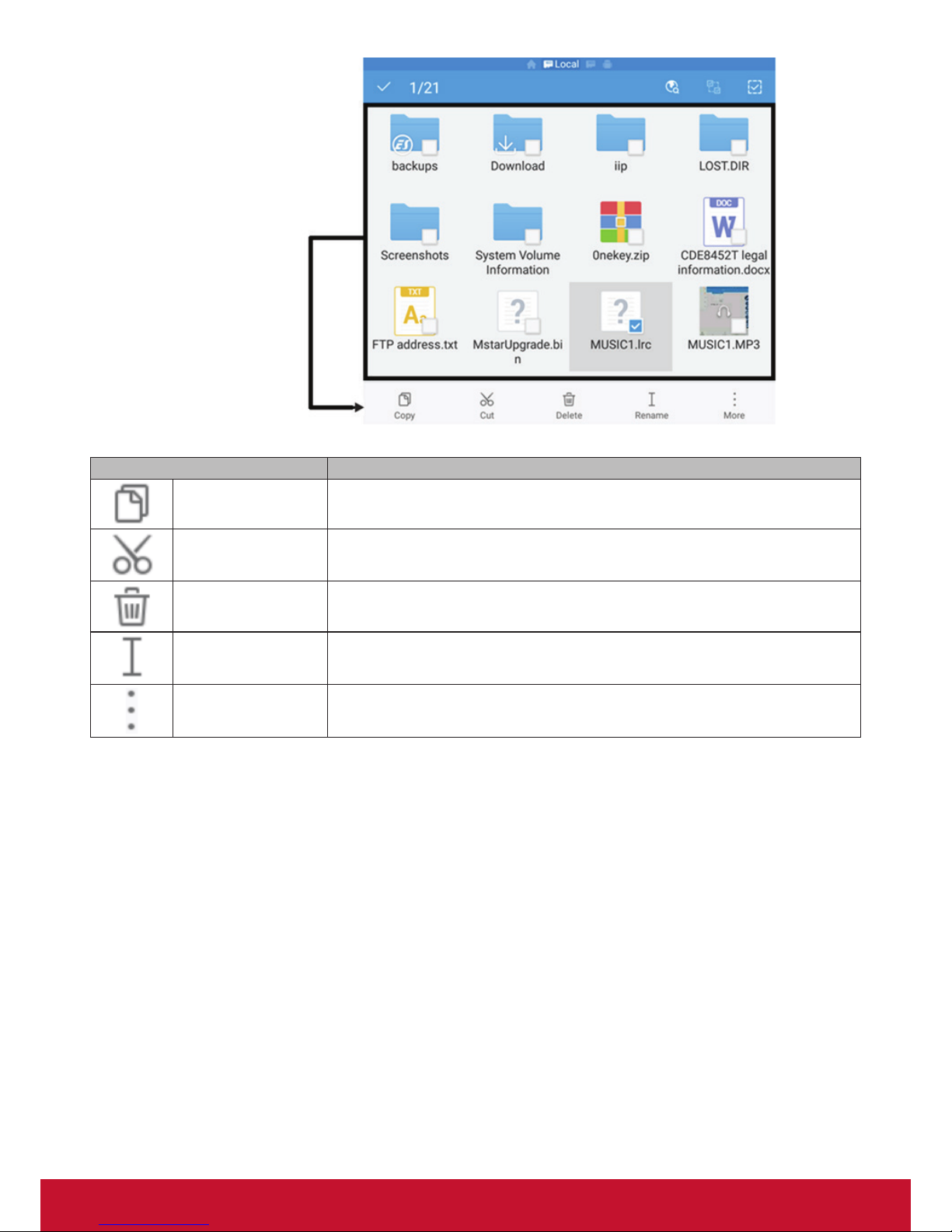

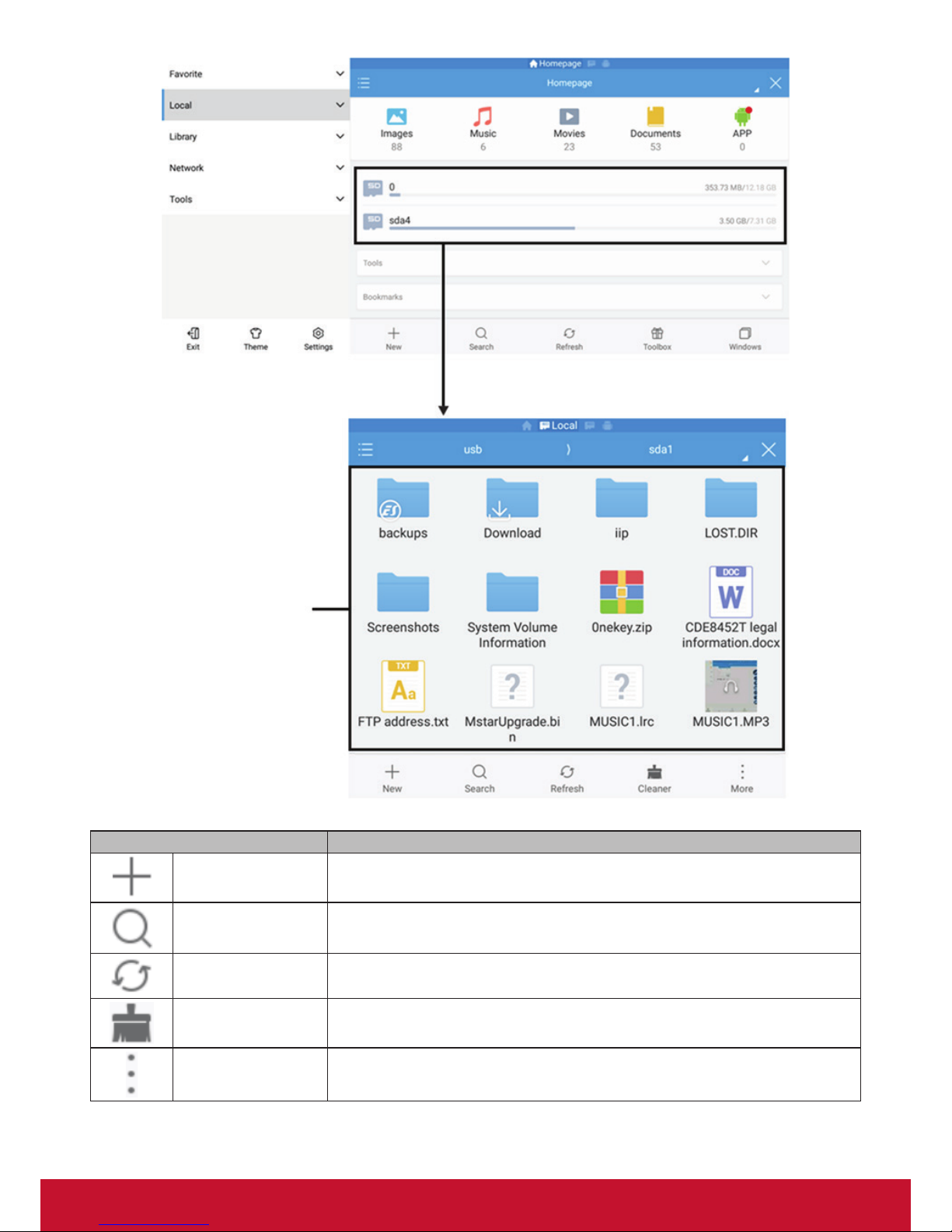

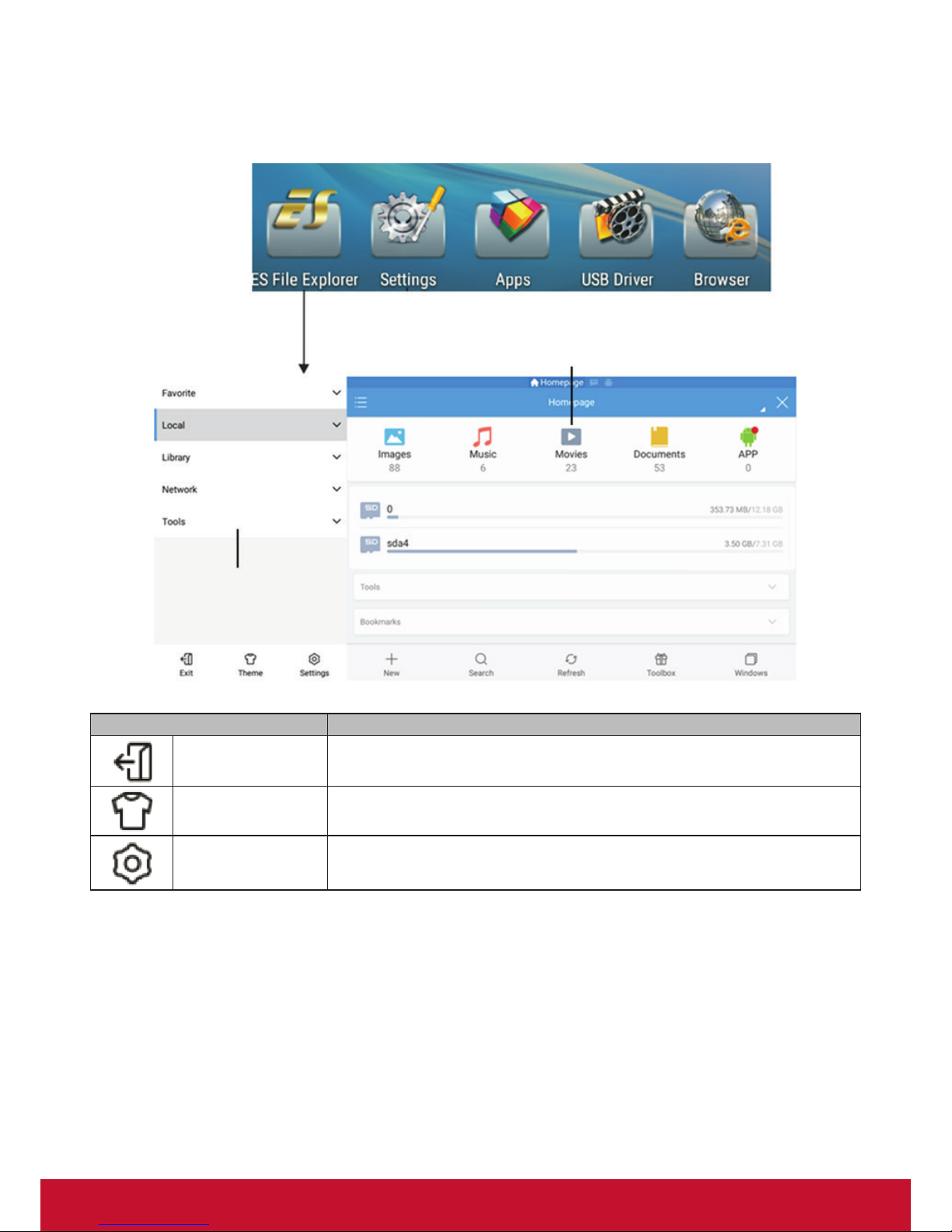

5. File Explorer .............................................................................................................................10

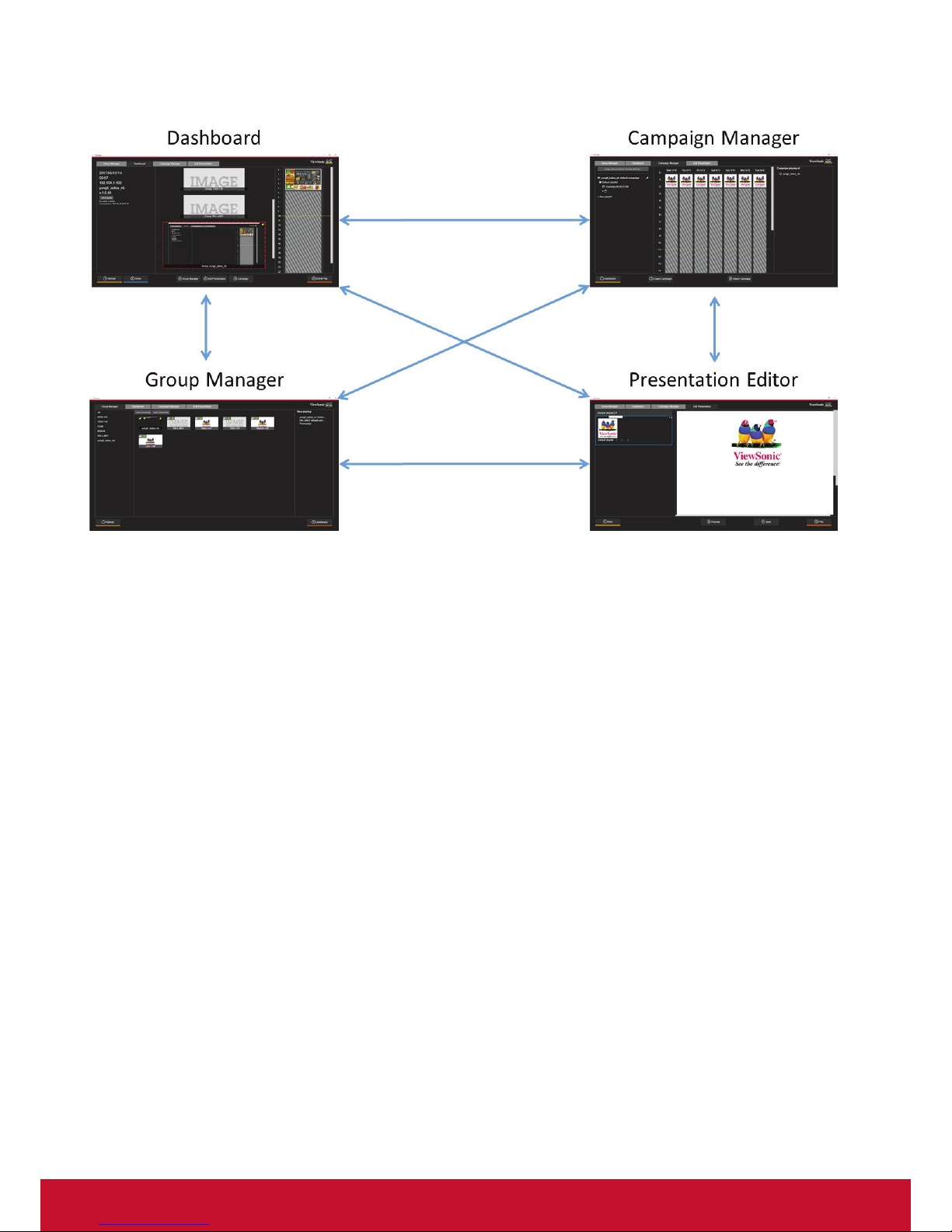

6. vSignage overview (Content Management) ..........................................................................13

6.1. Dashboard .........................................................................................................................14

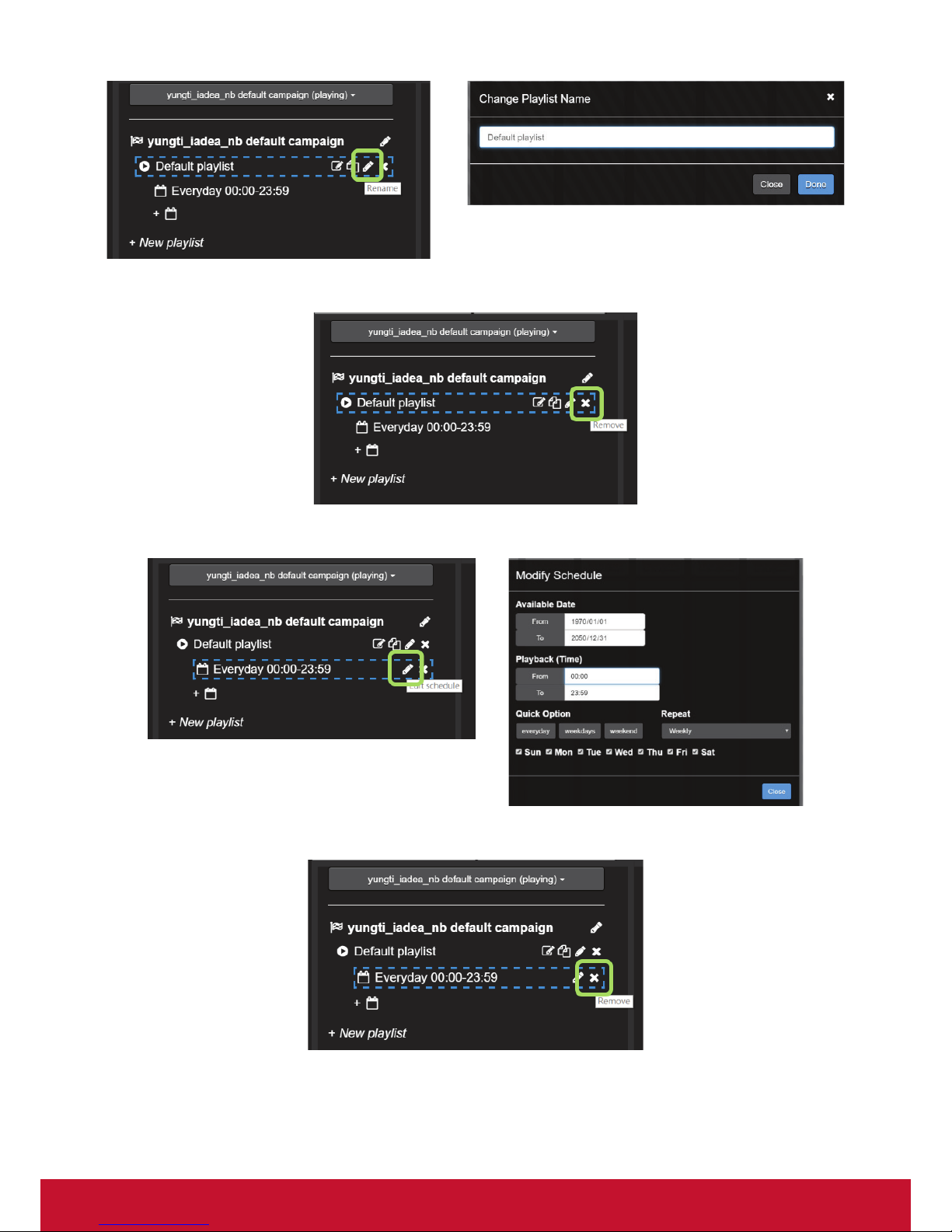

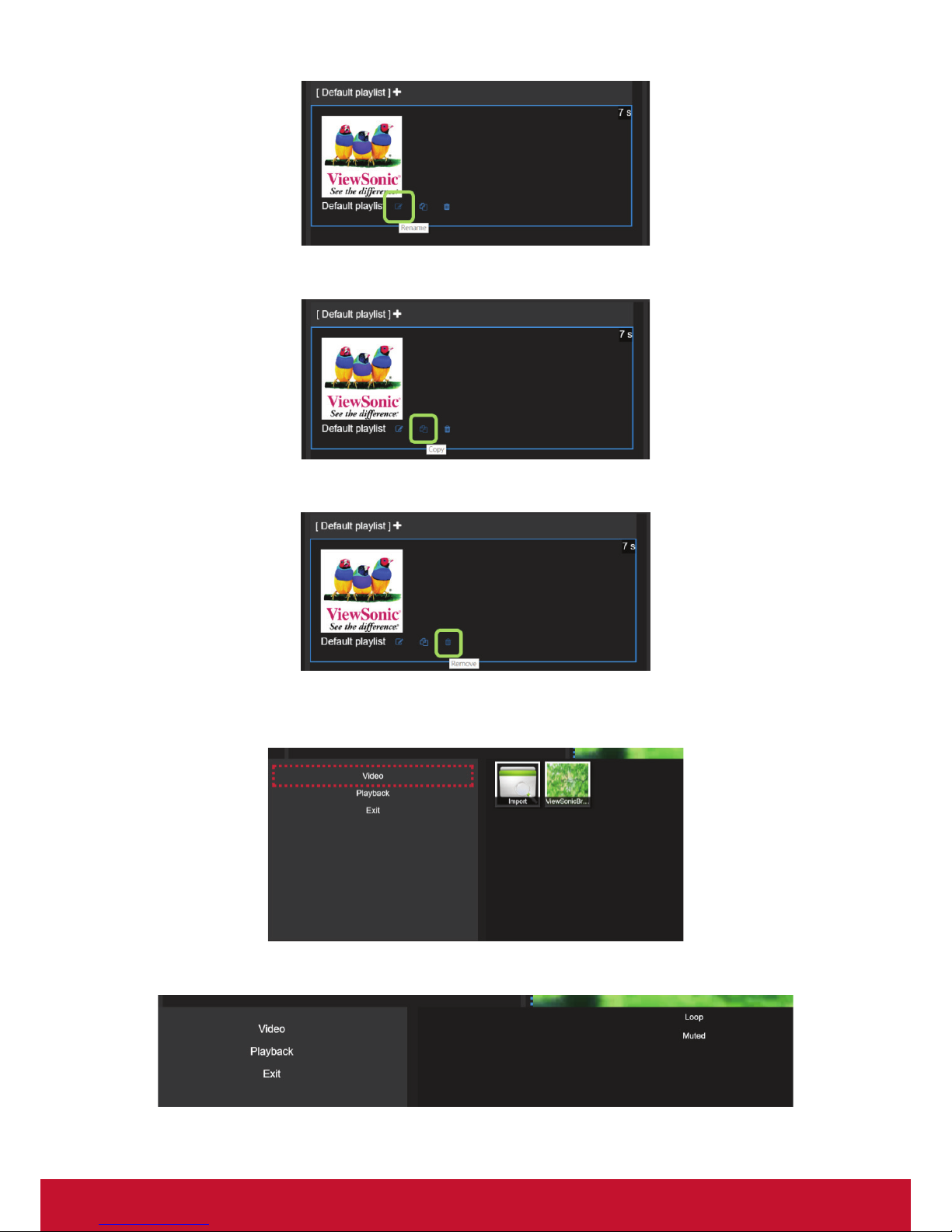

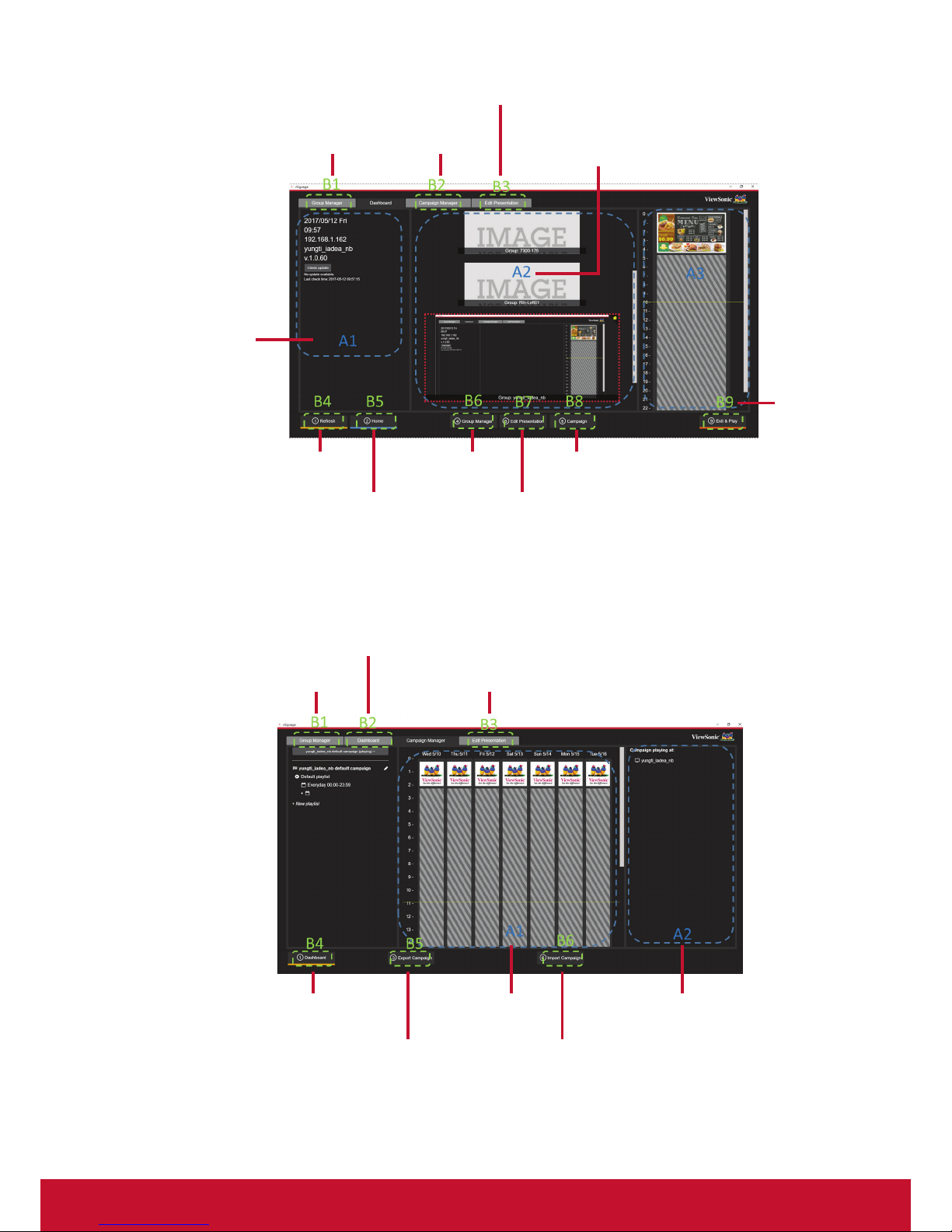

6.2. Campaign Manager ...........................................................................................................14

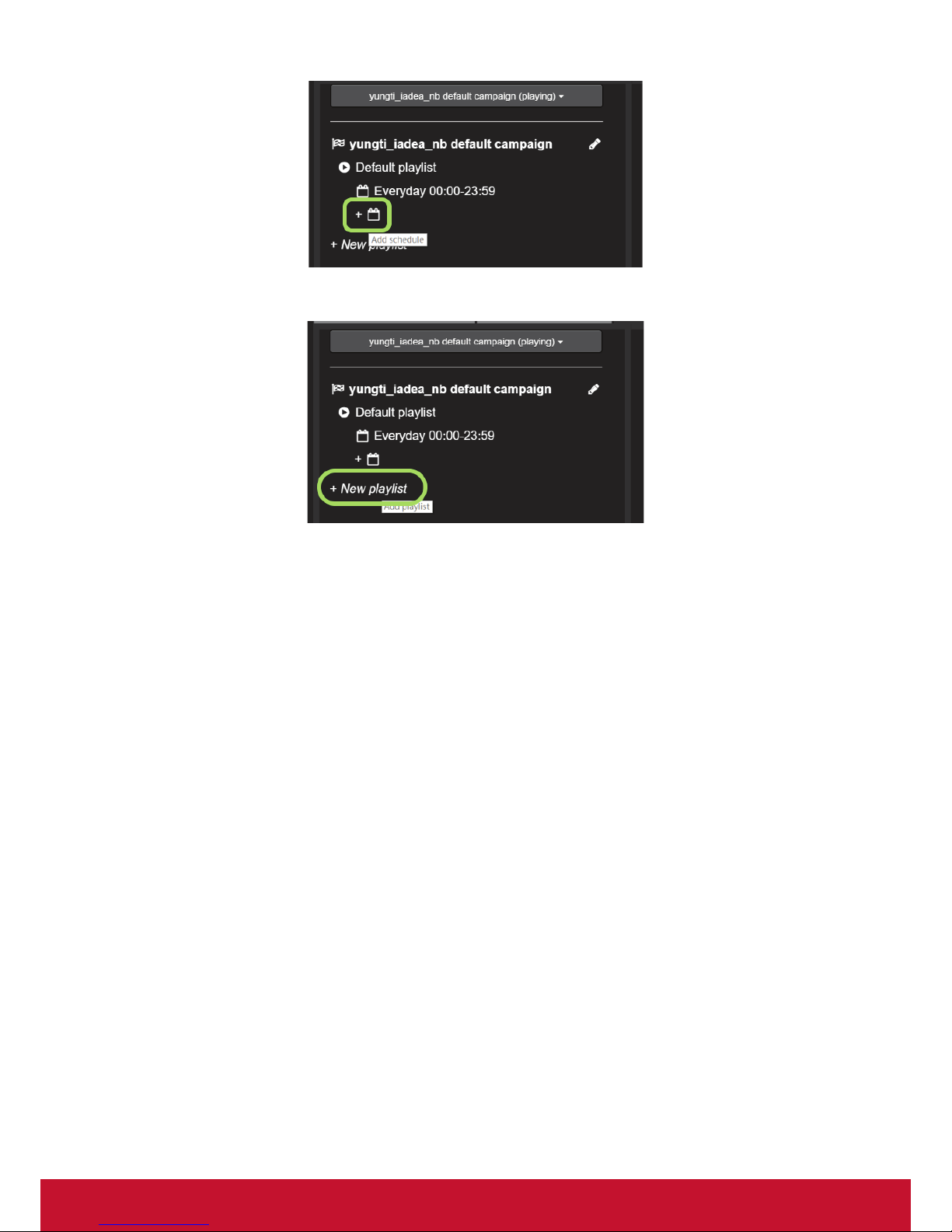

6.2.1. Campaign ..............................................................................................................15

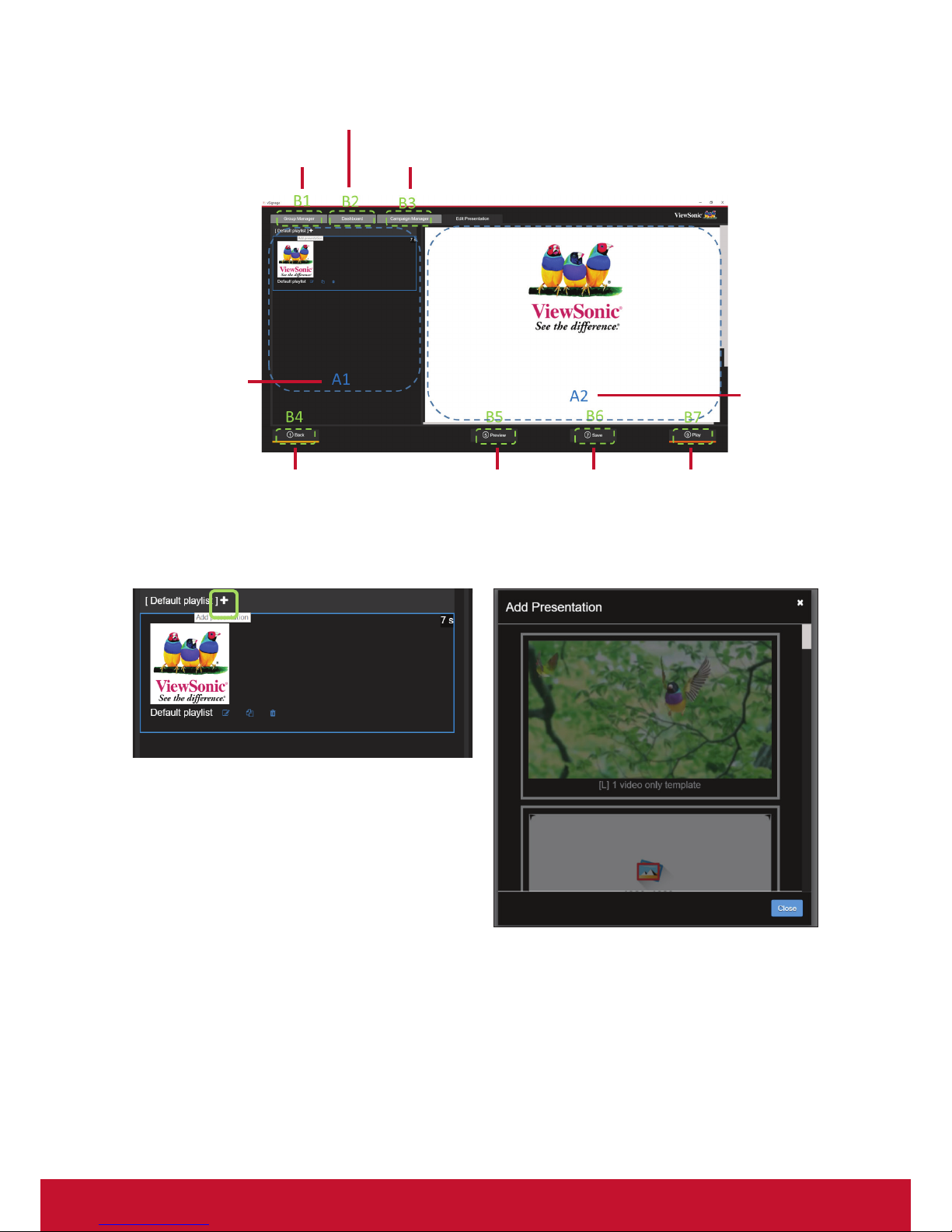

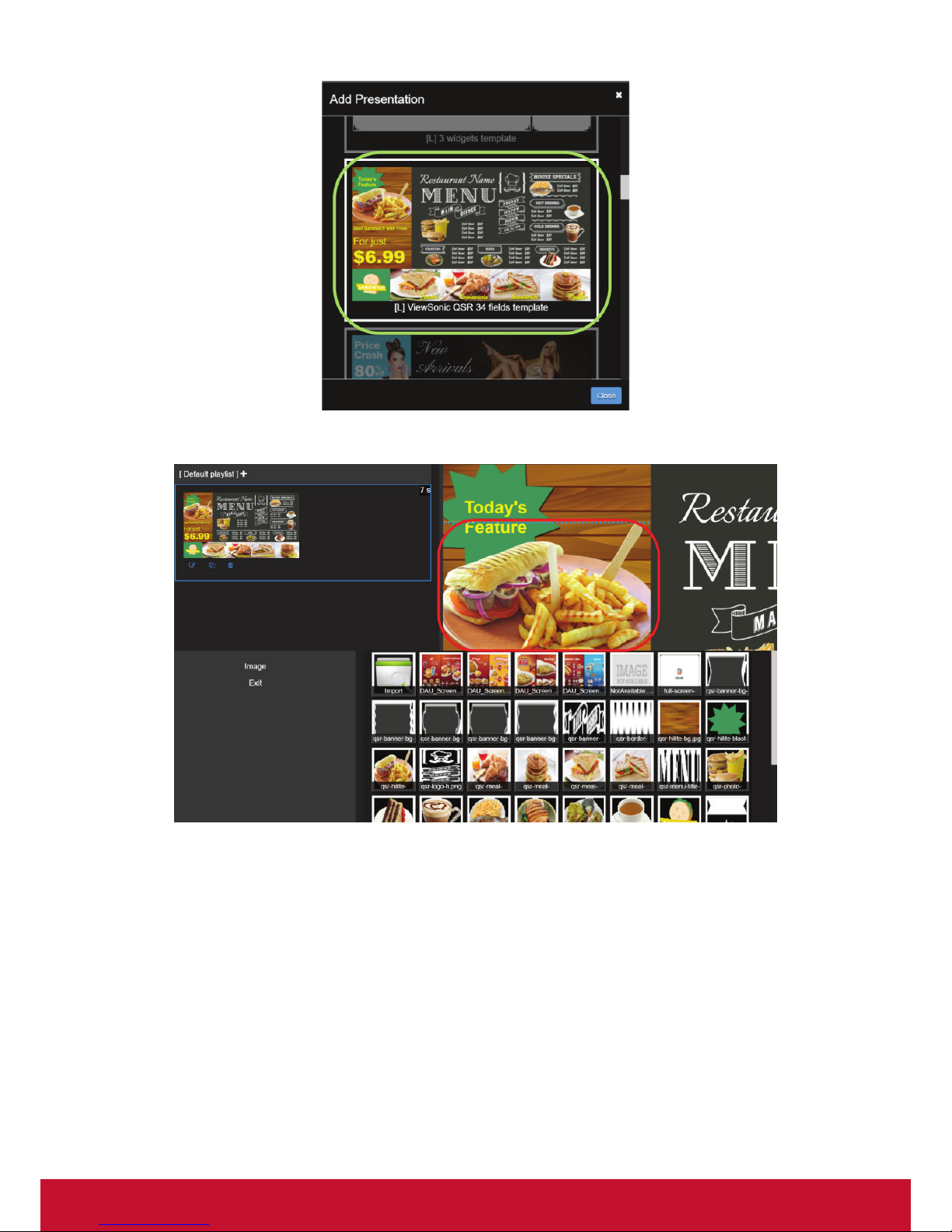

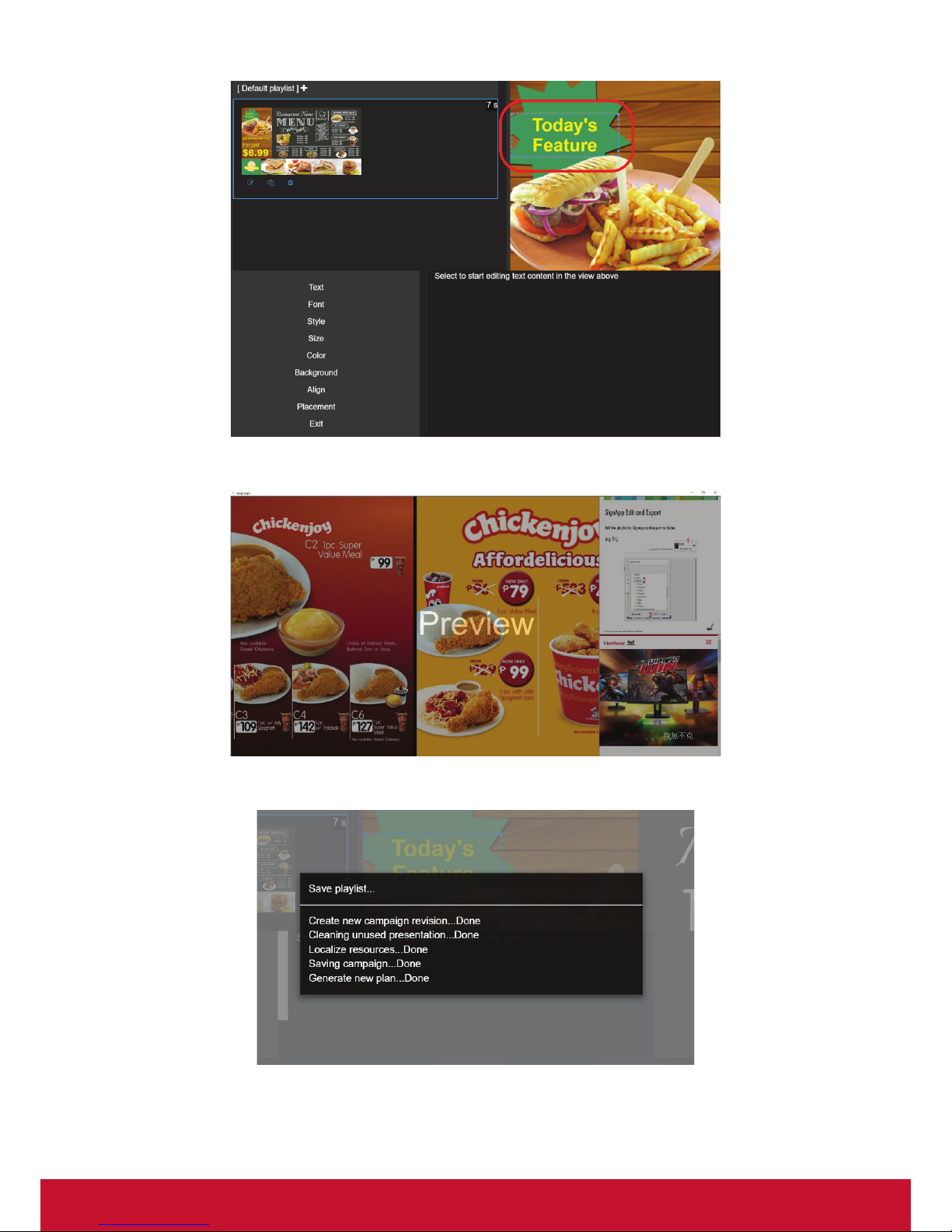

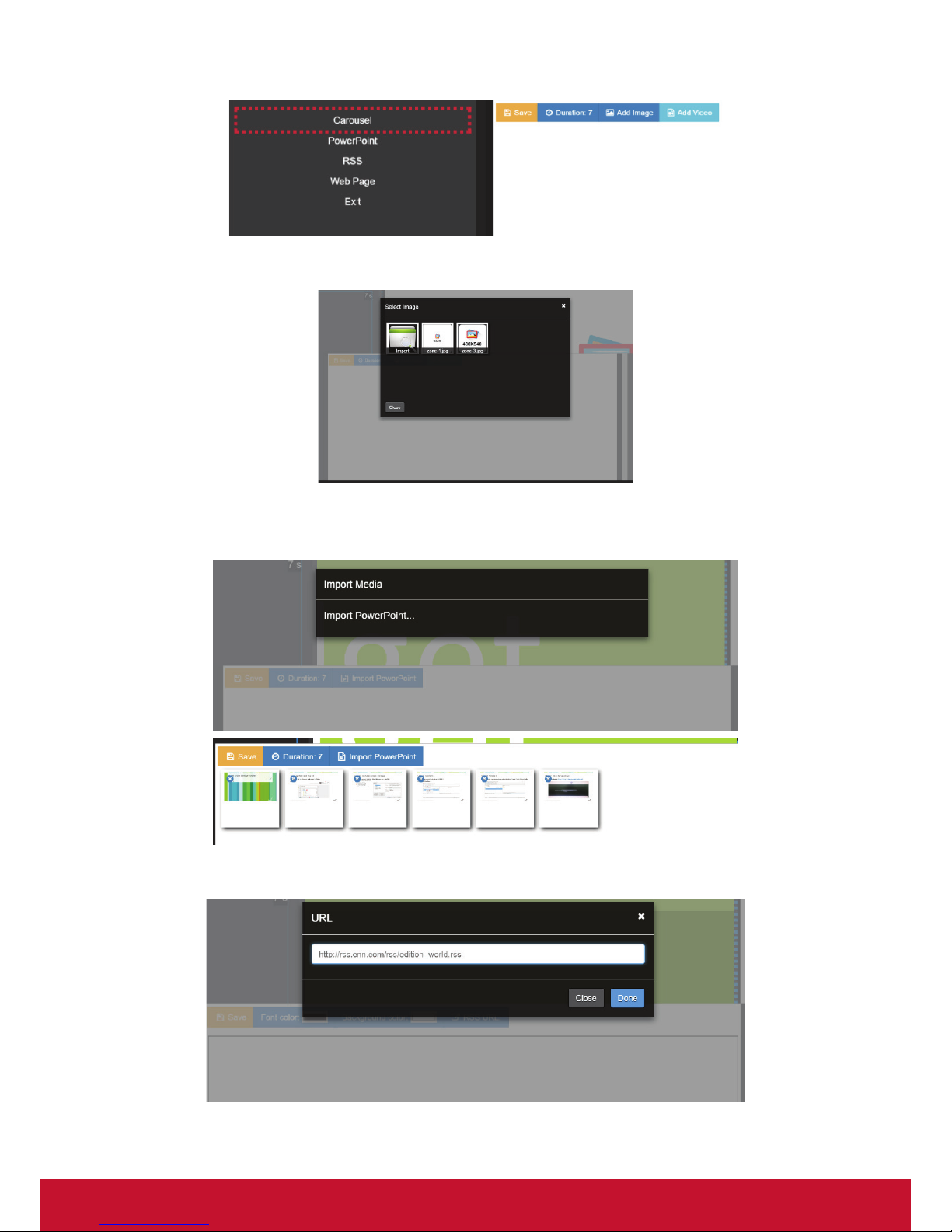

6.3. Edit Presentation ...............................................................................................................18

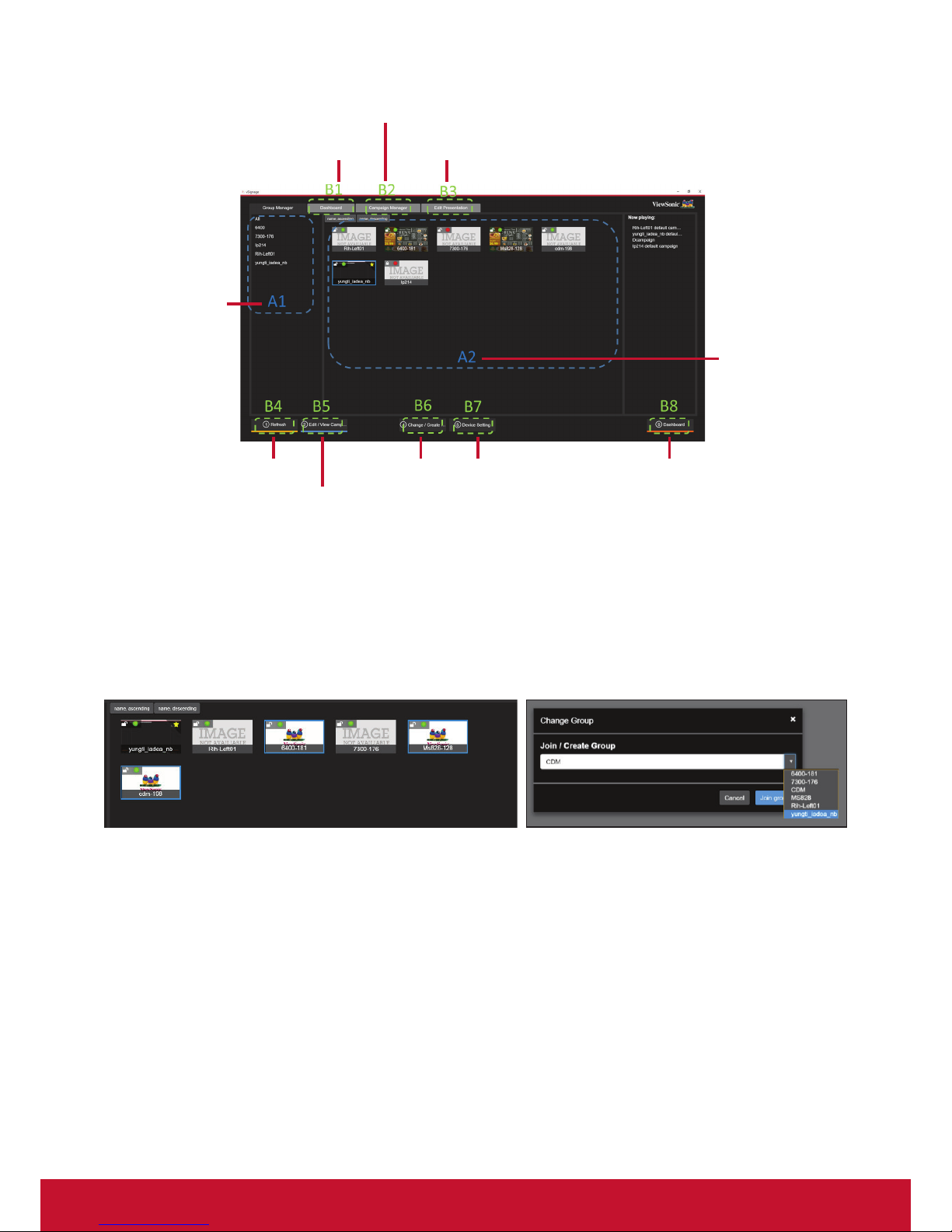

6.4. Group Manager .................................................................................................................25

6.5. User Scenario ...................................................................................................................26

7. System Settings .......................................................................................................................27

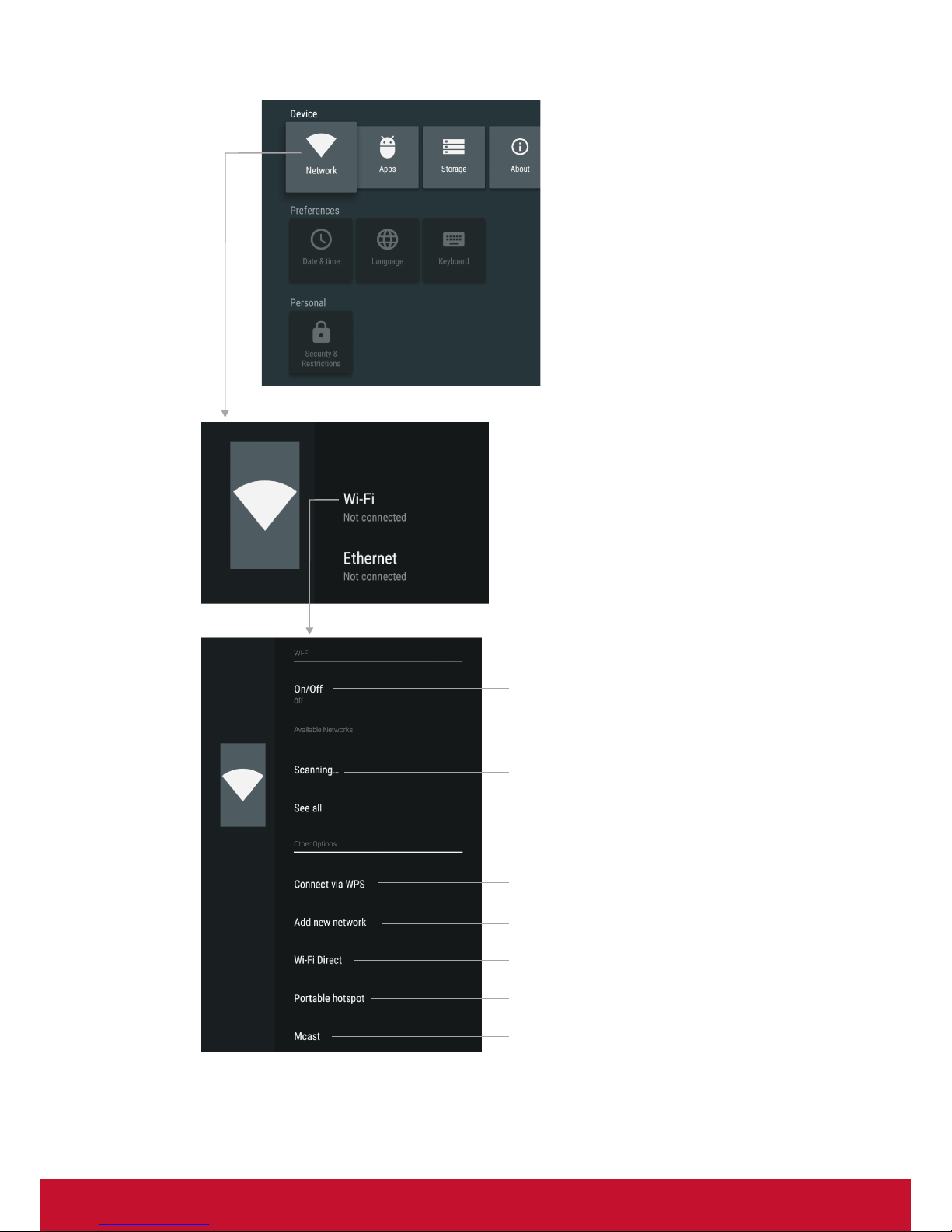

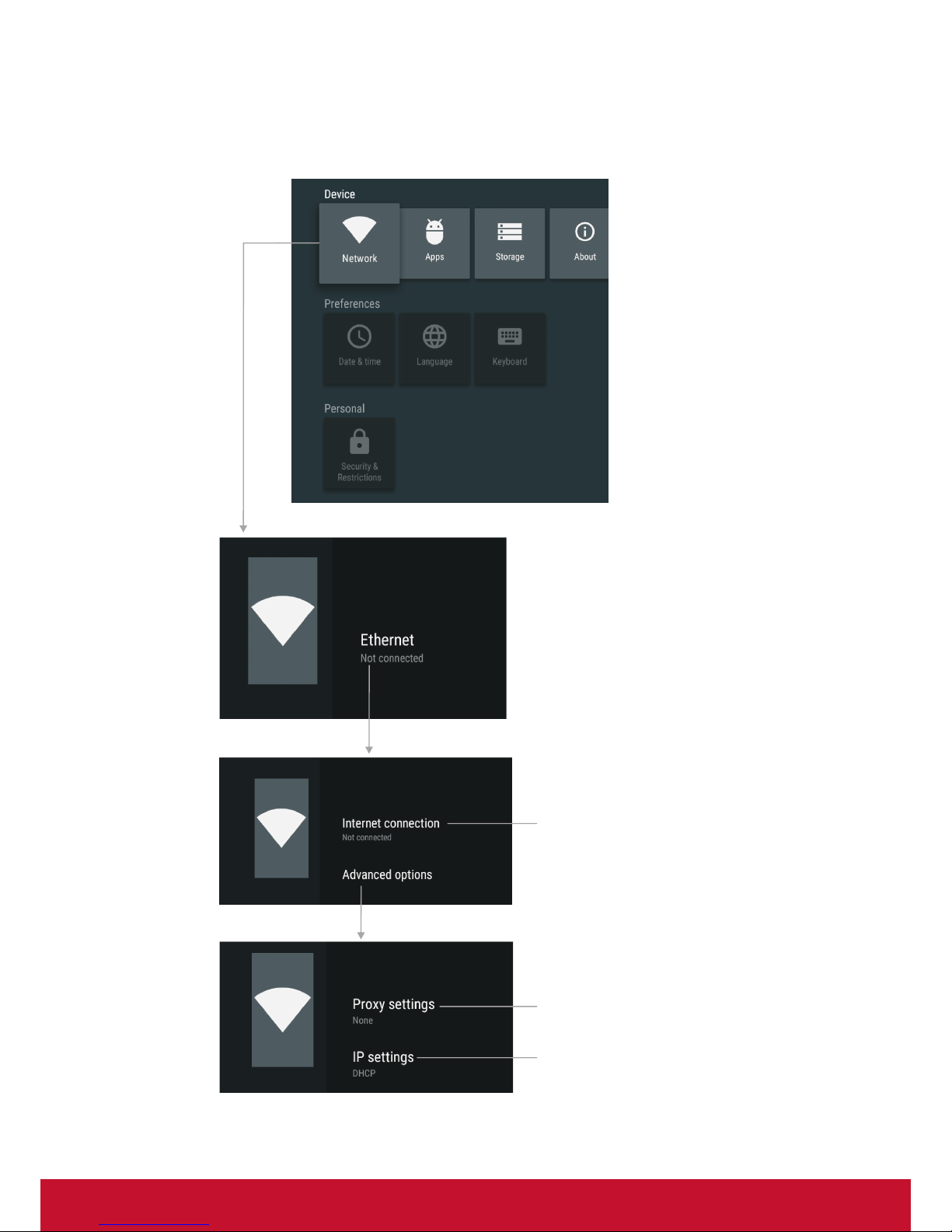

7.1. Network Settings ...............................................................................................................28

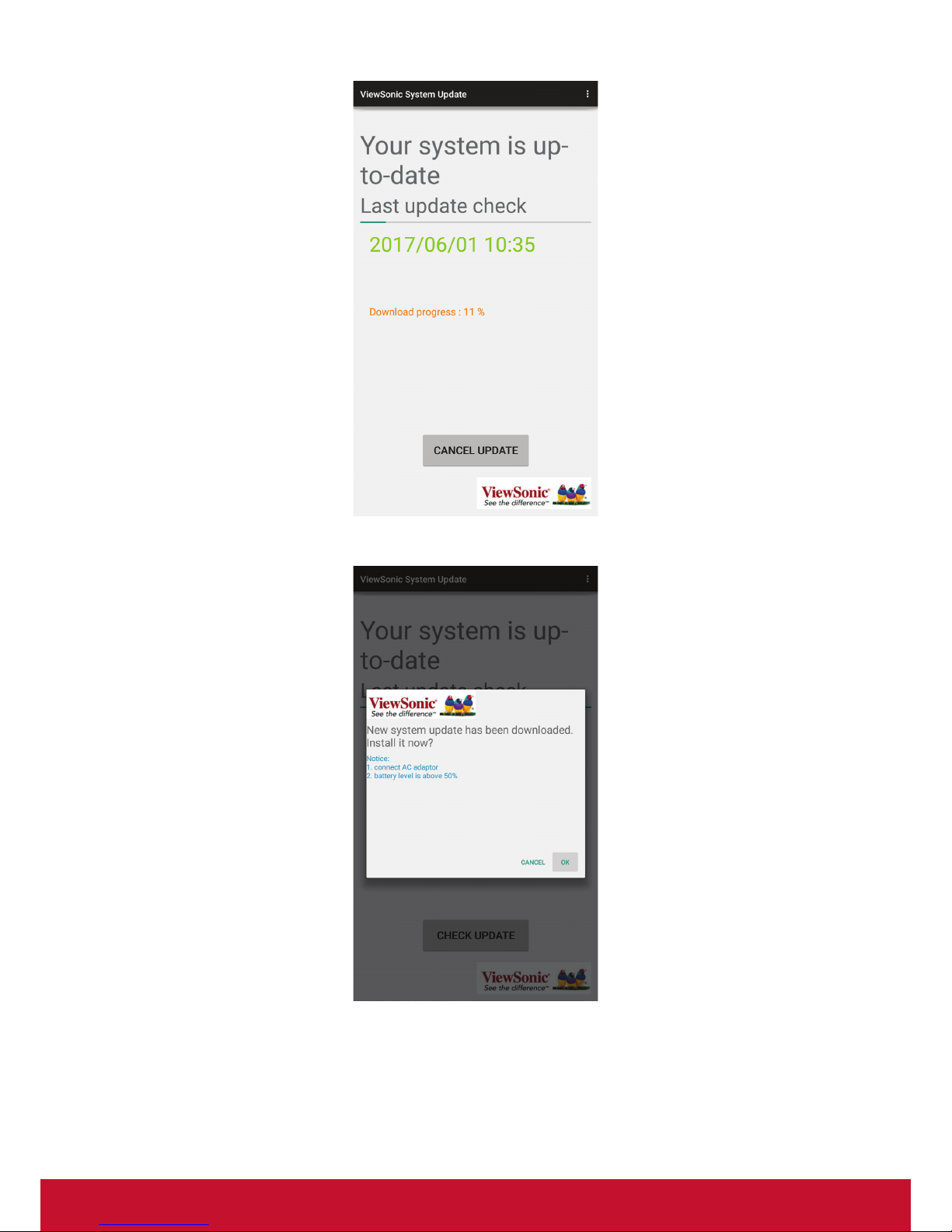

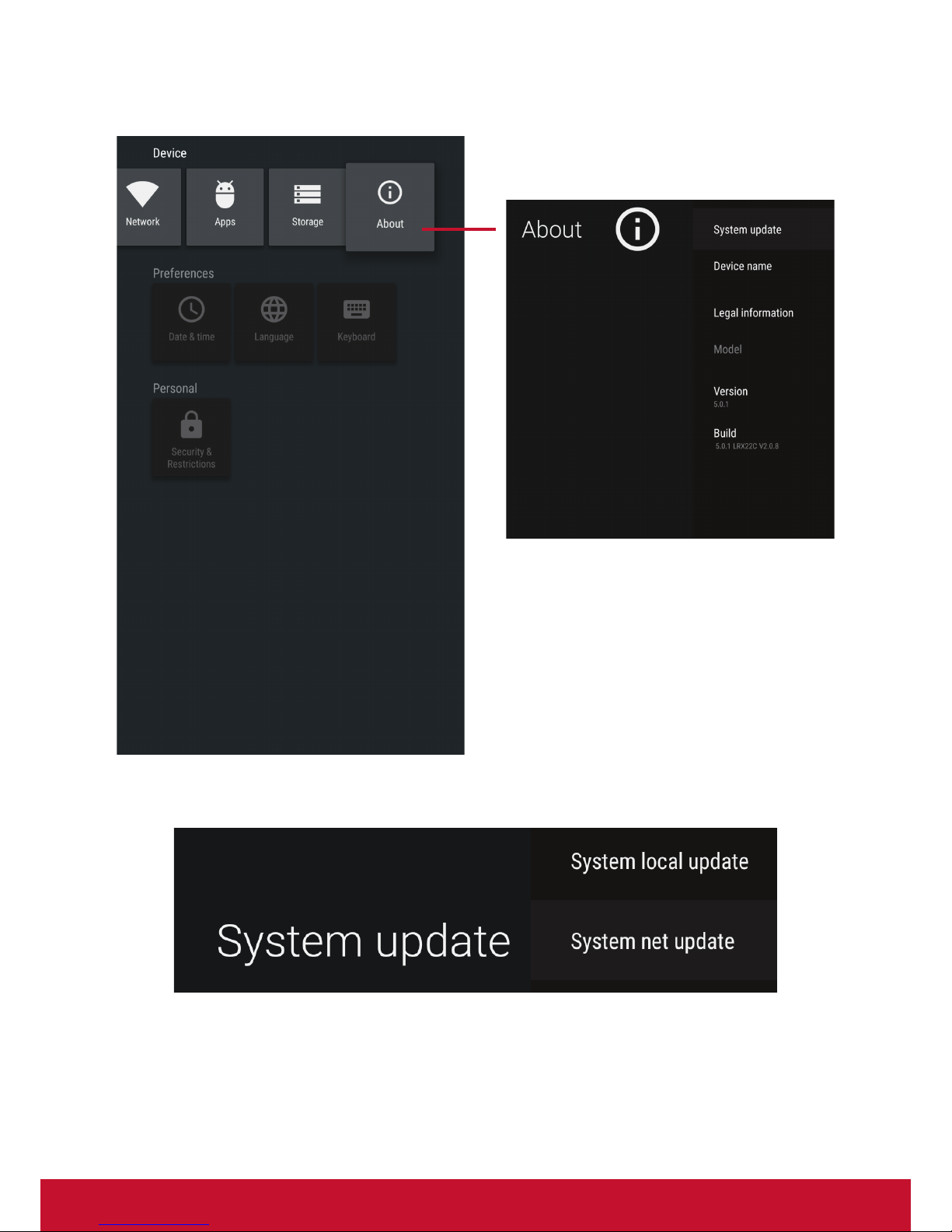

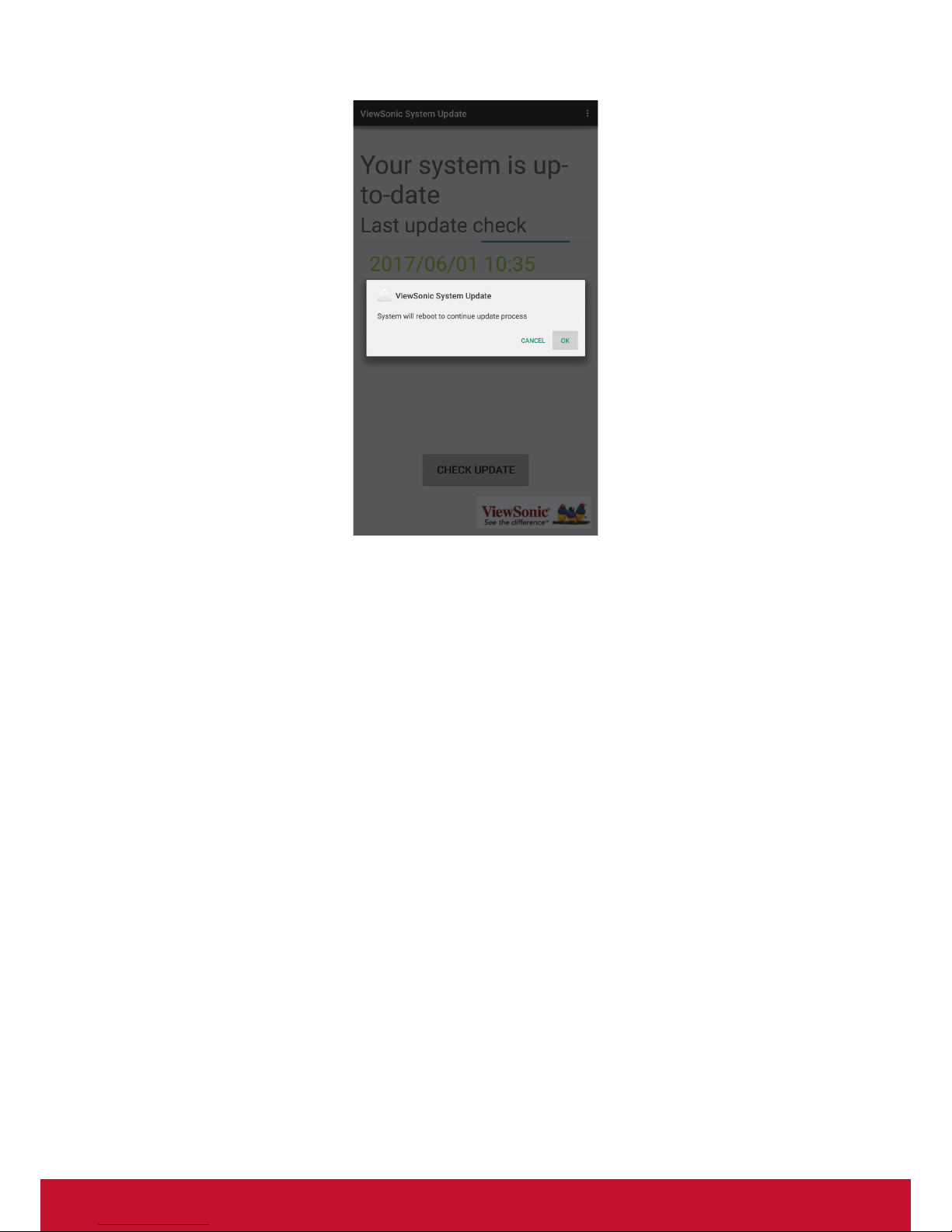

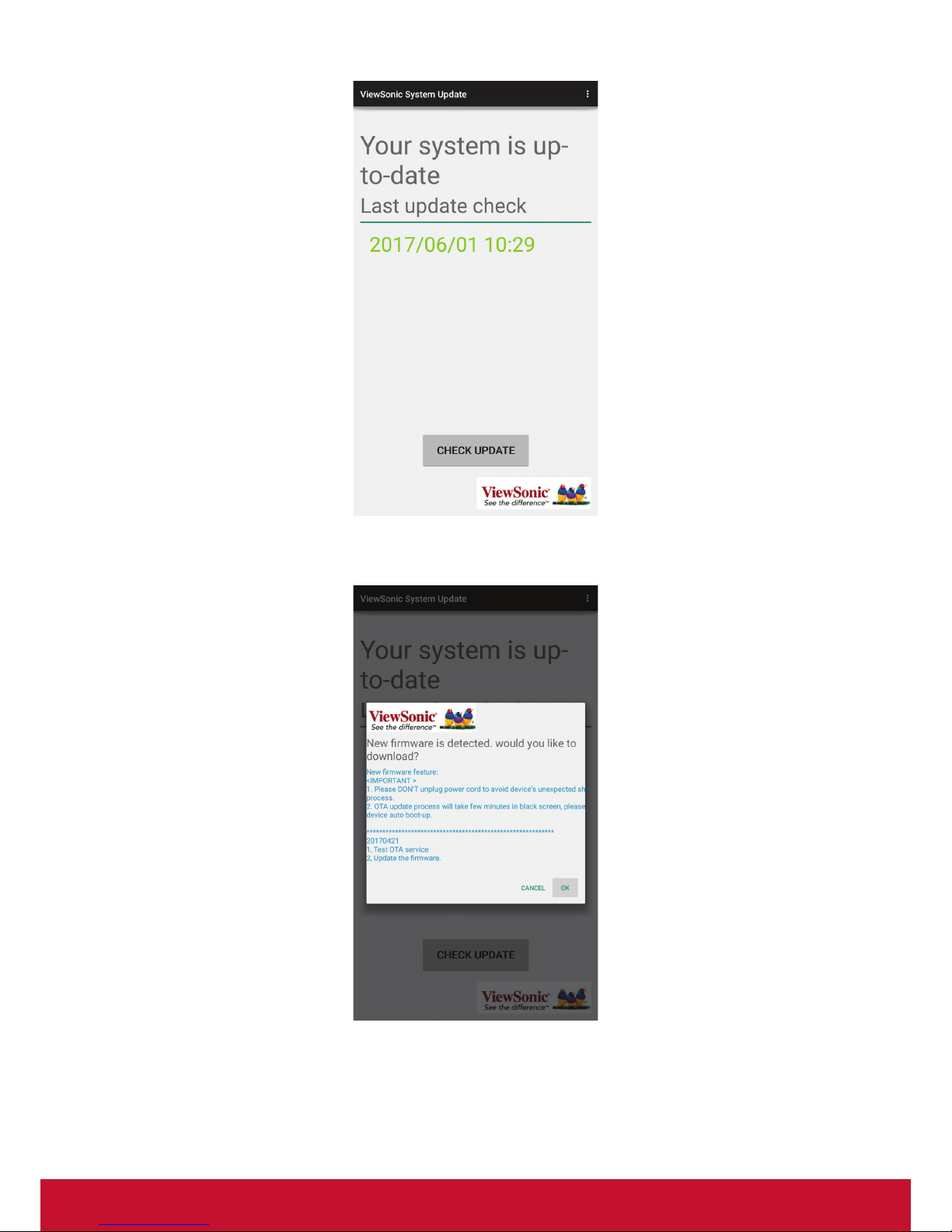

7.2. System update ..................................................................................................................30

8. Menu List ...............................................................................................................................34

9. Using Auto Play .......................................................................................................................36

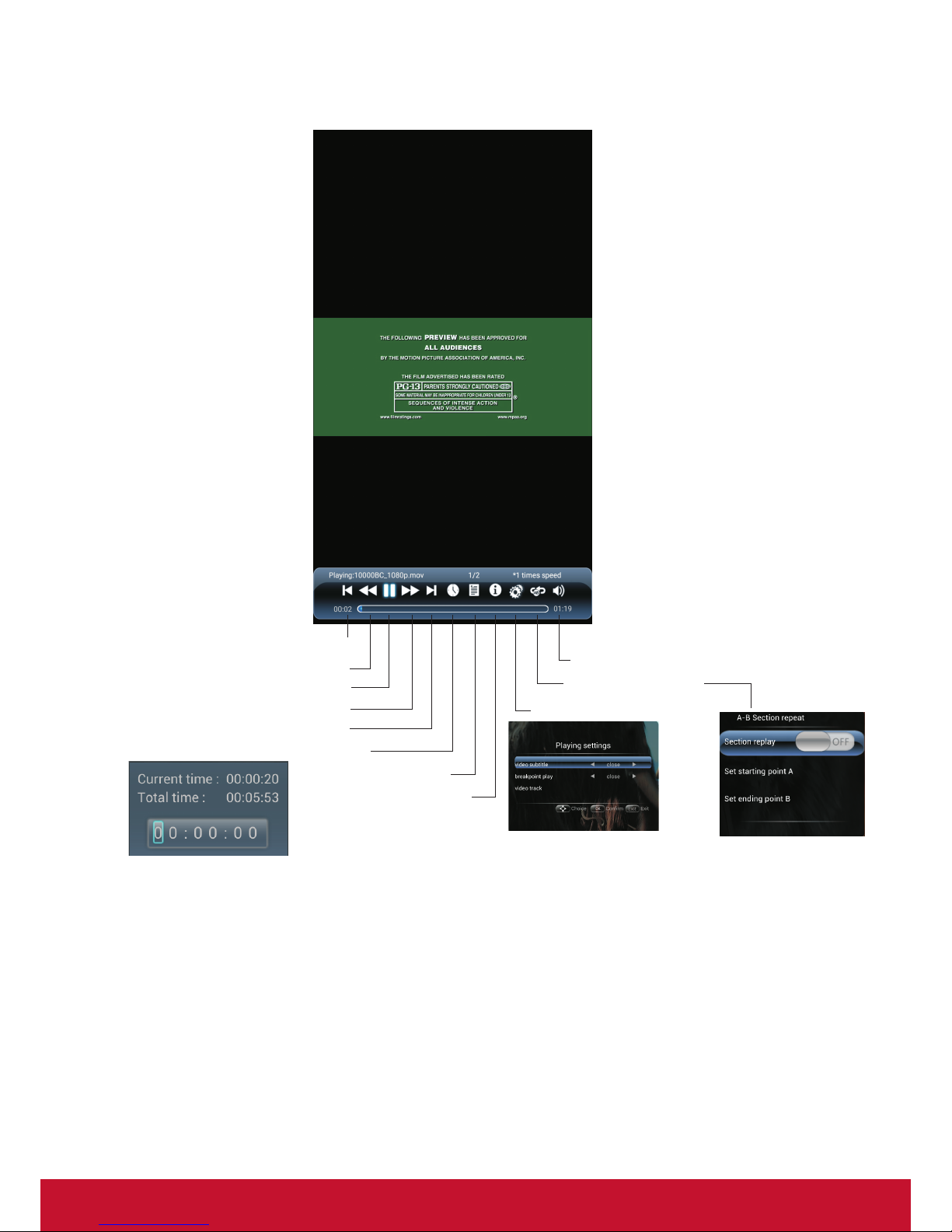

10. Using USB multi media player................................................................................................38

10.1. Insert the USB drive with mutimedia content including photo, movie and music. .............38

10.2. Switch the input source to USB mode. ..............................................................................38

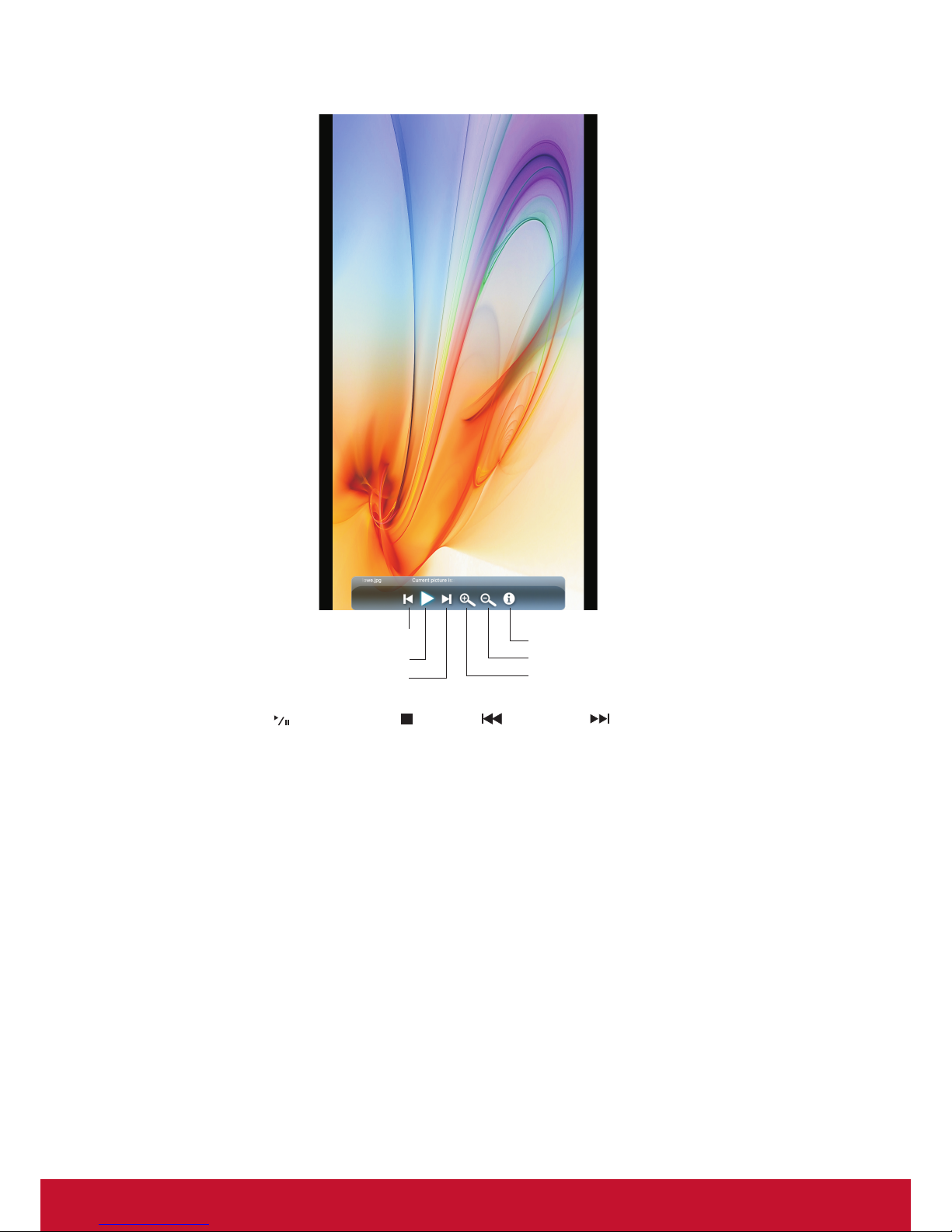

10.3. Playing Photo ....................................................................................................................39

10.4. Playing Music ....................................................................................................................40

10.5. Playing Movie ....................................................................................................................41

vii

11. Supportedmedialesformat .................................................................................................42

12. Troubleshooting .......................................................................................................................43

13. Specications ..........................................................................................................................44

14. Other Information ....................................................................................................................45

Customer Support......................................................................................................................45

Limited Warranty .......................................................................................................................46

Mexico Limited Warranty ...........................................................................................................48

viii

Copyright Information

Copyright © ViewSonic Corporation, 2018. All rights reserved.
ViewSonic

©

and the three birds logo are registered trademarks of ViewSonic Corporation.

ENERGY STAR

®

is a registered trademark of the U.S. Environmental Protection Agency (EPA).
As an ENERGY STAR® partner, ViewSonic Corporation has determined that this product meetsthe
ENERGY STAR® guidelines for energy efficiency.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions
contained herein; nor for incidental or consequential damages resulting from furnishing this
material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to
change product specifications without notice. Information in this document may change without
notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose
without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes
available, please register your product on the Internet at: www.viewsonic.com.

The ViewSonic

®

Wizard CD-ROM also provides an opportunity for you to print the registration form,

which you may mail or fax to ViewSonic.

For Your Records

Product Name:

Model Number:
Document Number:
Serial Number:
Purchase Date:

EP5540_EP5540T
ViewSonic Multimedia Digital Poster
VS17520
EP5540_EP5540T_UG_ENG Rev. 1A 06-14-18

Product disposal at end of product life

ViewSonic respects the environment and is committed to working and living green. Thank you for
being part of Smarter, Greener Computing.

Please visit ViewSonic website to learn more.
USA & Canada: http://www.viewsonic.com/company/green/recycle-program/
Europe: http://www.viewsoniceurope.com/eu/support/call-desk/
Taiwan: https://recycle.epa.gov.tw/

1

1. Getting Started

1.1. Package Contents

The following items are included in your product box.

EP5520/EP5520T

Multimedia Digital Poster

數位多媒體海報機

Quick Start Guide

快速使用指南

This CD is
compatible with
Windows

®

and

Mac OS 10.x

Copyright © 2016, ViewSonic Corporation. All rights reserved. All trademarks,
registered or otherwise, are the property of their respective companies. Disclaimer:
ViewSonic Corporation shall not be liable for technical or editorial reeors or omissions
contained herein; nor for incidental or consequential damages resulting from
furnishing this meterial, or the performance or use of this product. In the interest of
continuing product improvement, ViewSonic Corporation reserves the right to
change product specifications without notice. Information in this CD-ROM may
change without notice, No part of this CD-ROM may be copied, reproduced, or
transmitted by any means, for any purpose without prior written permission of
ViewSonic Corporation.

MM/DD/YY • XXXXXX_UG • Made in China

User Guide and
Installation Software

NOTE: The illustrations may differ slightly from the items shipped with your product.

1.2. Fastening the poster

70 498

87

4- 15

70

87

As illustrated in gure, positioning 4 holes on the earth and

drill the holes at the corresponding position. The diameter of
the hole on the earth should be smaller than the diameter of
the screw. Fit the four fastening screws, fastening the poster
to earth.

NOTES:

1. The appearance of this product in these illustrations may differ from your actual product, and is for

comparative purposes only.

2. We may change the design and specications without notice.

2

1

2

3

Remote Sensor

1. USB 1

USB for PC.

2. USB 2

USB for the poster. ( Embedded Player )

3. RJ45

Enable connection to cable and log on to Internet.

3

2

1

3

4

5

7

8

9

10

6

VGA

PC I

N

USB 3.0

HDMI 2

(ARC)

AUDIO

11

RS-232 USB 2.0

TOUCH

OUT

RJ45(LAN IN)

Main board

Open the door with the key.

Main board

1. PC IN

Enable connection to PC or other external devices with VGA/AUDIO ports.

2. USB 3.0

Connect USB devices to these ports.

3. HDMI1/2 Input

To connect with those equipments with HDMI or DVI interface.
HDMI1: Connect the HDMI cable to the HDMI 1 ports on your display and peripheral device.
HDMI2(ARC): Connect an ARC-enabled home theater receiver to this jack.

4.

Connect headphones to this jack. The Poster is the current audio output.

5. RS-232

For service, RS232 control and the other uses.

6. TOUCH OUT ( for touch series only)

Output the touch for external devices connected to PC or HDMI port which support touch system.

7. USB 2.0

Connect USB devices to this port.

8. RJ45 (LAN IN)

Enable connection to cable and log on to Internet.

9. AC IN

Plug the AC cord into this jack and into a power outlet. (~100-240V 50Hz/60Hz)

10. Power SwitchPush to (1) to connect the power, push to (O ) to cut off.

11. AC OUT

~100-240V 50Hz/60Hz, Current Max.: 0.65A.

4

2. Parts and Functions

2.1. Remote Control

HOME

MUTE

EXIT

MENU

INPUT

VOL

SOUND

1

7

4

2

8

5

0

3

9

6


ASPECT

FREEZE

SNAP

USB

SL EEP

SHORTCUT

INFO

OK

RC-13 13-0A

Power On/Off

Select the screen size

Return to previous menu or
exit the on-screen menu

Use OK button to conrm

selection or enter sub-menu
Use arrow buttons to move

the cursor
Open the menu mainly

for picture, audio and
schedule setting

Control buttons for USB
multimedia playback

/

: Previous/next

/

: Play/Pause button

/

: STOP button

/

/

: Fast forward/fast reverse

To list all recently used
Apps.

Set up the sleep timer

Take a screenshot and store to

USB drive or internal storage

if no USB drive connected.

Freeze the screen

Go to USB mode

VOLUME UP/DOWN

Select sound mode

Select picture mode

Mute the sound

Display desktop

(Home page)

Input source

information

0-9 number buttons

Input source select

Notes:

• For touch model, some functions could be performed through touch directly instead of remote control.

5

2.1.1. Installing remote control Batteries

To install remote control batteries:

1. Open the battery cover.

2. Insert two AAA batteries into the battery compartment. Make sure that the + and –

symbols on the batteries match the + and – symbols in the battery compartment.

3. Replace the cover.

Battery precautions:

Improper use of batteries can result in a leakage of chemicals and/or explosion. Be
sure to follow the instructions below.

• Place batteries with their terminals corresponding to the (+) and (–)indications.

• Different types of batteries have different characteristics. Do not mix batteries of

different types.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the

life of new batteries and/or cause old batteries to leak chemicals.

• Remove batteries as soon as they are non-operable. Chemicals that leak from batteries can cause a

rash. If chemical leakage is found, wipe with a cloth.

• Dispose of batteries in a proper manner.

• If the remote control is not used for an extended period of time, remove the batteries.

• The batteries shall not be exposed to excessive heat such as sunshine, re or the like.

2.1.2. Aiming the remote control

Use the remote control by pointing it towards the remote sensor on the front of your
display. Objects between the remote control and the remote sensor may prevent
proper operation.

Cautions regarding use of remote control

• Do not expose the remote control to shock. In addition, do not expose the remote

control to liquids, and do not place in an area with high humidity.

• Do not install or place the remote control under direct sunlight. The heat may cause

deformation of the unit.

• The remote control may not work properly if the remote sensor window of the main

unit is under direct sunlight or strong lighting. In such a case, change the angle of
the lighting or the display set, or operate the remote control closer to the remote
sensor window.

30

30

5m

6

3. Connections

• Turn off the display and connected device.

• Check the plug type at the ends of cables.

• Make sure the fastened connection.

Audio cable

VGA cable

USB cable

Audio output
devices

HDMI cable

HDMI cable

Network cable

Router

Touch output
(for touch model only)

USB cable

RS232 cable

USB devices

USB devices

NUC PC

Headphone cable

NUC PC or media player

NUC PC or media player

NUC PC or media player

7

4. Basic Operations

4.1. Turn on the display

Plug AC power cord and turn on the AC Power Switch.

NOTE: If not receiving signal for around 5 mintues, display will turn off automatically.

4.2. First initiation

The following installation menu will pop up for rst-time power on.

Select desired menu language, then press START and turn to
next page.

4.3. Float menu (for touch series only)

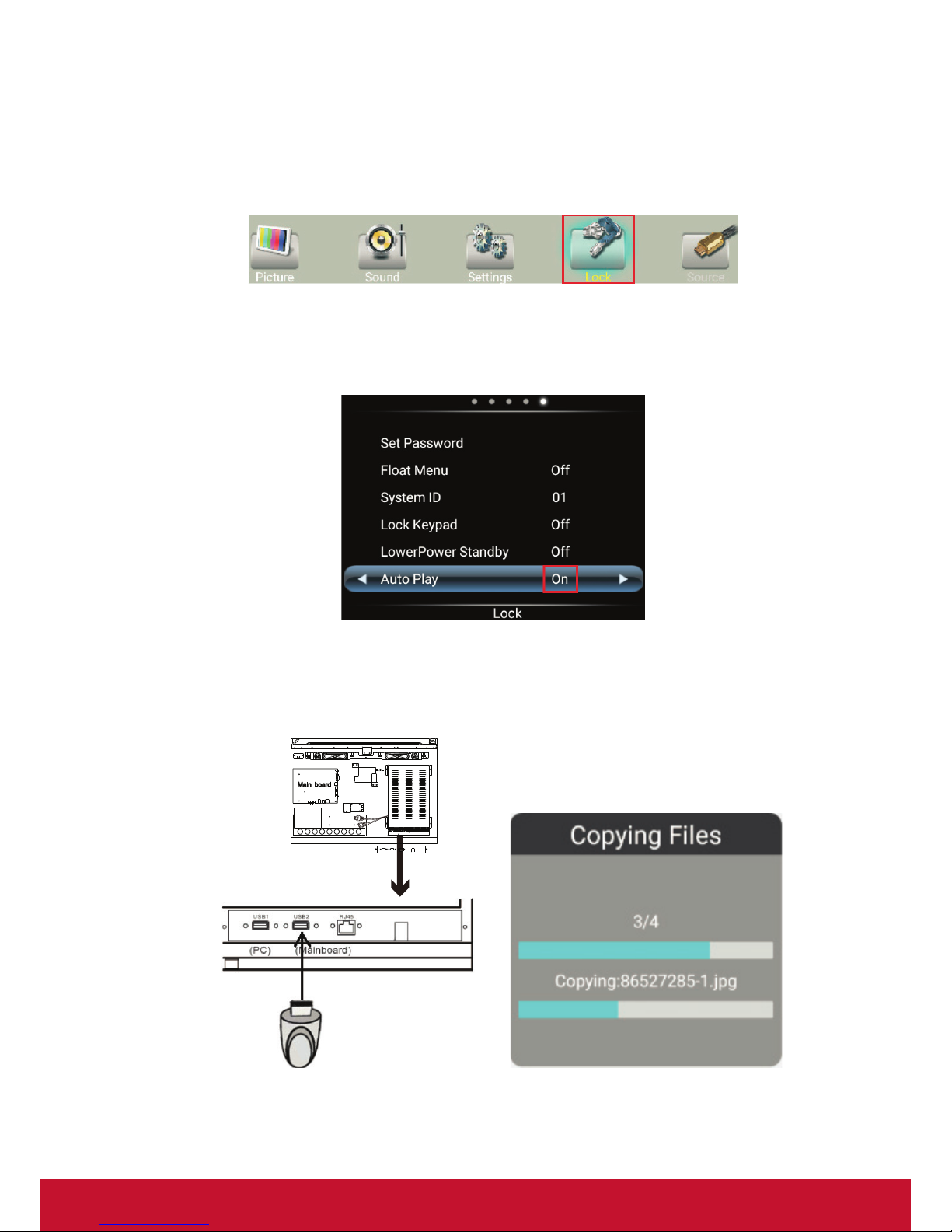

1. Set the FLOAT MENU to on in the Lock menu.

2. Slide up from bottom of the screen center by two or more ngers to

call

in HOME.

3. Drag to any place of the screen.

4. Click

to show control icons.

Annotation

Minimize the FLOAT
MENU

Home page

Volume control

Input source

Show recently used Apps

Open the MENU

8

4.3.1. Home Menu Overview

In this mode, user can only use touch pen to operate.

Item Description

Annotation menu Pop up sub-menu.

Pen

Click to make annotation in the picture.
Click to change color.

Eraser

Click to erase symbols.
Click to change eraser size.

Screen shot Click to screenshot the current image.

Clean Click to clean all the annotation.

Cancel Click to cancel previous step operation.

Close Click to close annotation menu.

9

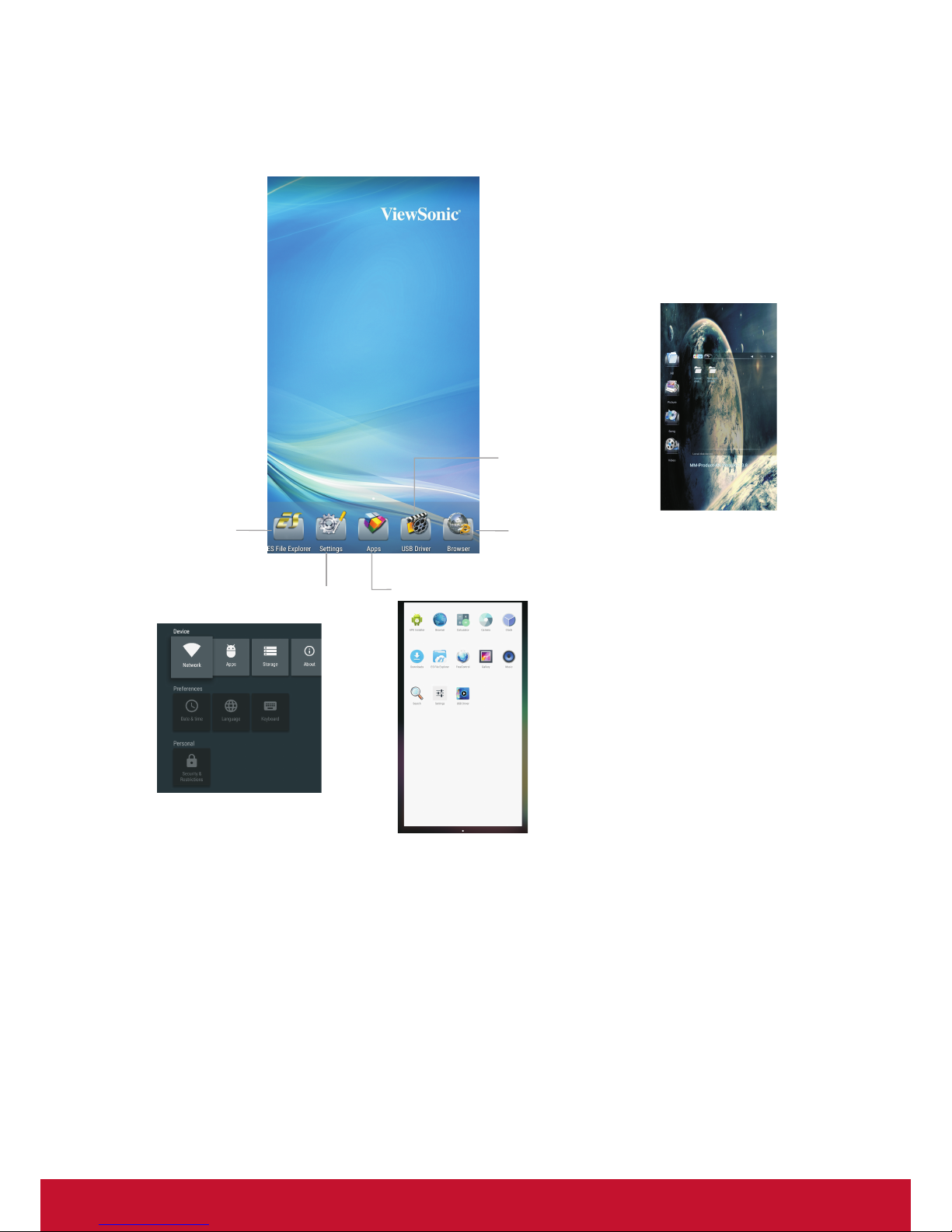

4.4. Home Menu Overview

1. Press HOME button to show desktop menu.

2. Use arrow and OK button for desired selection.

3. Press EXIT button to leave.

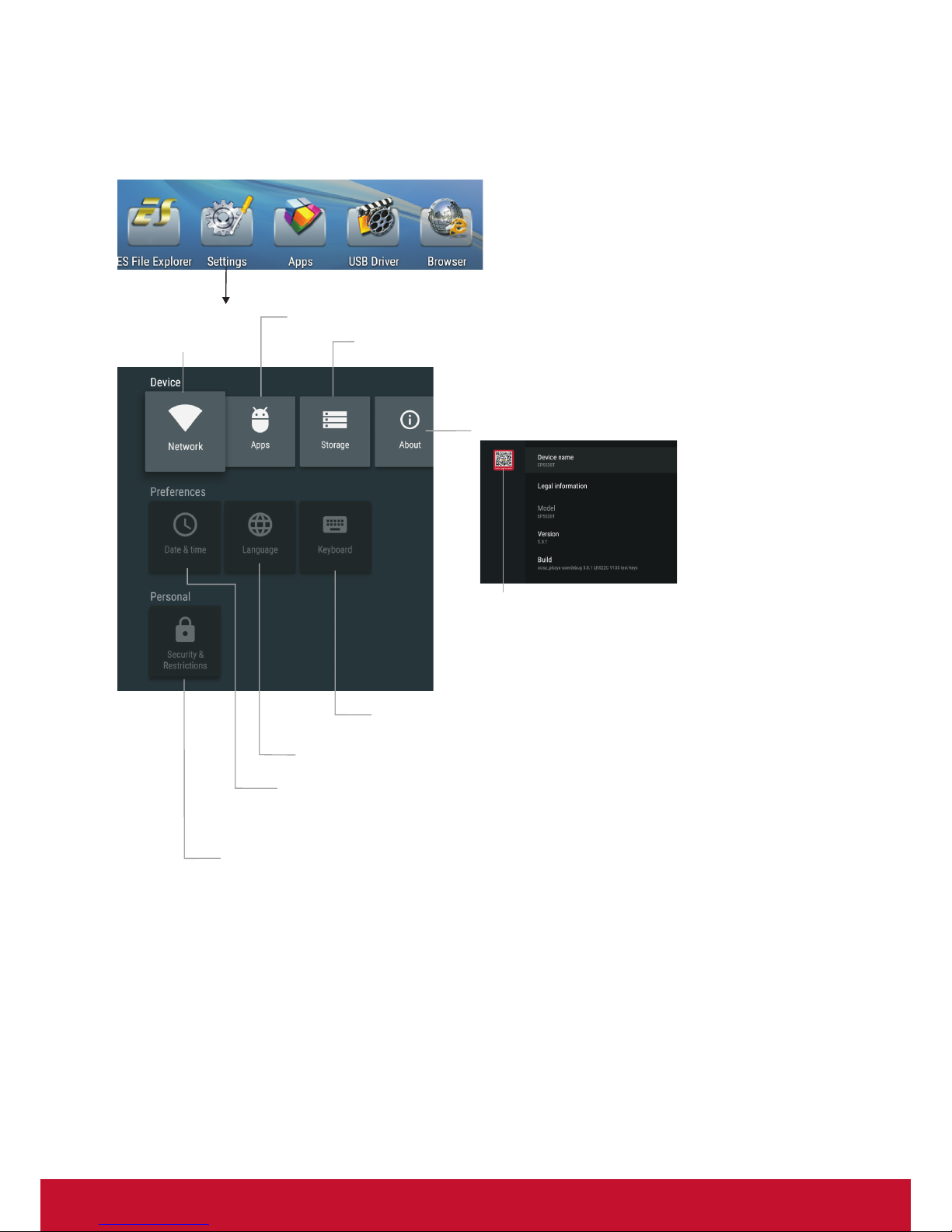

Mainly for network, Date &
time, and Language setting.

File manager

web Browser

External USB

storage

Installed application list.

10

5. File Explorer

1. Press



button to select desktop menu option, press OK to conrm.

2. Press EXIT button to return to previous menu or exit the menu.

Category selection

Click to entry le explorer

Function

Item Description

Exit Click to exit file manager.

Theme Click to change the theme.

Settings Click to entry setting menu page.

11

Double click to open

folder or le

Click to select storage

Item Description

New Click to add file or folder.

Search Click to search file or folder.

Refresh Click to refresh file status.

Cleaner Click to clean not necessary file.

More Click to show more functions.

12

Press and hold

to show the le

management tool

Item Description

Copy Click to copy file.

Cut Click to cut file.

Delete Click to delete file.

Rename Click to rename file.

More Click to show more functions.

13

6. vSignage overview (Content Management)

1. Dashboard: Information overview.

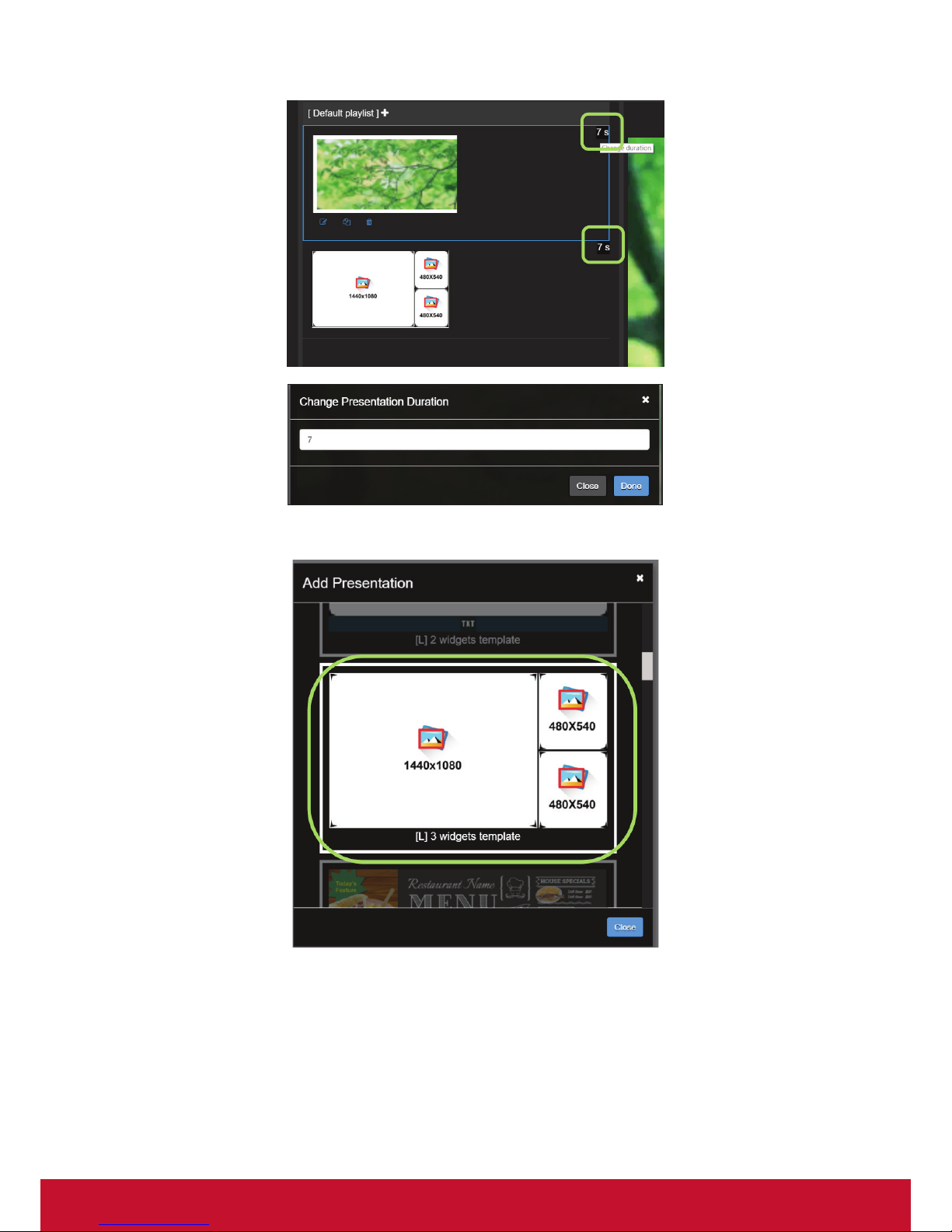

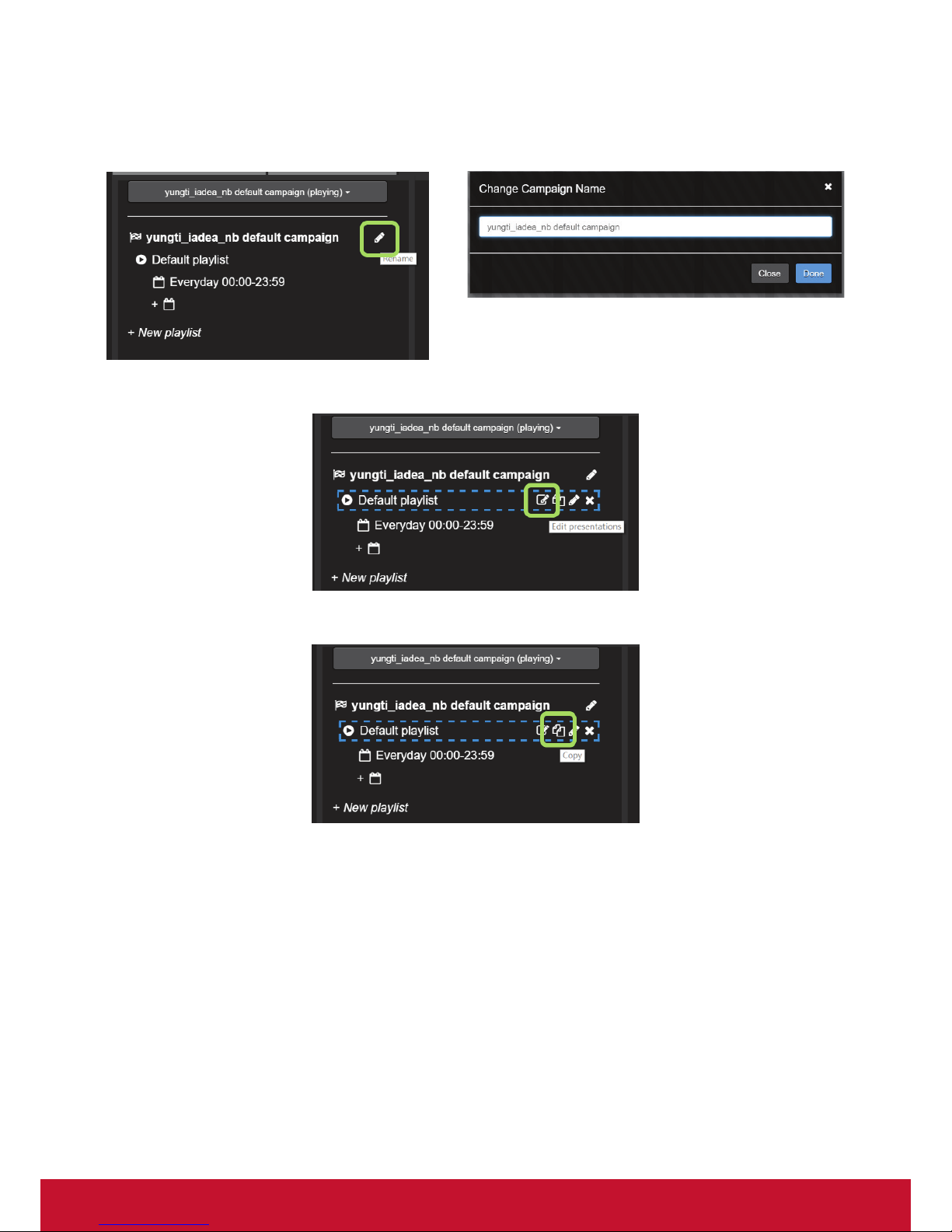

2. Campaign Manager: Edit schedule and manage playlist.

3. Edit Presentation: Edit play items

4. Group Manager: Group player and player setting.

14

6.1. Dashboard

Information: Data,

time, IP, player name,

version number,

update button.

Start play.

Group thumbnail.

Go to Edit Presentation.

Go to Group

Manager.

Go to Group

Manager.

Go to Campaign Manager.

Refresh

Home.

Select itself group.

Go to Edit

Presentation.

Go to Campaign

Manager.

6.2. Campaign Manager

Export campaign Import campaign

Go to Group

Manager.

Go to Edit

Presentation

Go to Dashboard

Go to Dashboard.

Schedule

Preview

Which players
is playing this
campaign.

15

6.2.1. Campaign

Campaign is the whole playlist for player. A campaign contains several playlists. One playlist contains
several presentations and could be played at several time slots.

1. Campaign Name: Change campaign name

2. Playlist: Edit this playlist, go to Edit Presentation Page.

3. Copy: Copy this playlist.

16

4. Rename: Rename this playlist.

5. Remove: Remove this playlist.

6. Time slot: Edit this time slot.

7. Remove time slot: Remove this time slot.

17

8. Add time slot: Add new time slot.

9. Add new playlist: Add the other playlist for this campaign.

18

6.3. Edit Presentation

Presentation list

Go to Group

Manager

Go to Campaign
Manager

Go to Dashboard

Go to Campaign

Manager

Preview.

[3-10]

Save.
[3-11]

Play.

[3-12]

Edit area

1. Add presentation: Add one presentation to this playlist.

19

2. Rename presentation: Rename this presentation.

3. Copy presentation: Copy this presentation.

4. Remove presentation: Remove this presentation from this playlist.

5. Video Template: Add “1 video only template”

• Import Video / Change Video: Click “Import” to import video and then change to another video.

• Change video setting: Enable/disable loop / mute setting.

20

6. Presentation – Change duration: If you have more than two presentations in the playlist, you can

change the playback duration for each presentation.

7. Widget Template: Add “3 widgets template”.

21

8. Widget support 4 types: Carousel (image and video), PowerPoint, RSS, Webpage. Click save after

modify.

• Carousel: Import image or video.

• Carousel: change duration: Duration only effect at image, video would play to the end.

• PowerPoint: Import one PowerPoint.

• RSS: Set RSS URL.

22

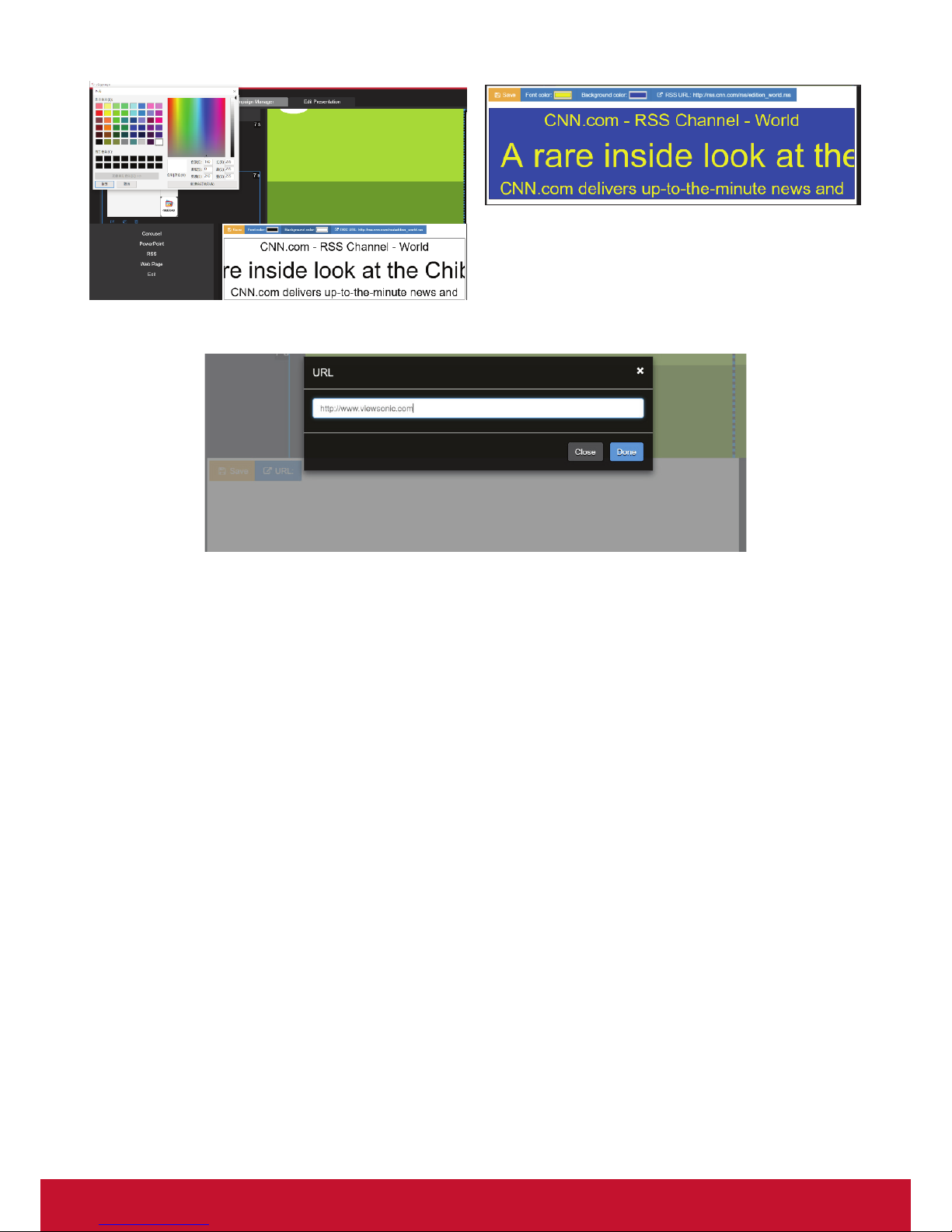

• RSS: Change color.

• Web Page: Set web page URL.

23

9. Image / Text template: Add “ViewSonic QSR 34 elds template”.

• Image Zone: Click the image area, user can change image.

24

• Text Zone: Click the text area, user can change text and text setting.

10. Preview: Click “5 Preview”, go to preview mode.

11. Save: Click “7 Save”, save the playlist and sync to other players.

12. Play: Click “9 Play”, go to playback mode.

25

6.4. Group Manager

Group list

Go to Dashboard

Go to Edit Presentation

Go to Campaign Manager

Refresh Change /

Create Group.

[4-1][4-2]

Device Setting

Go to Campaign

Manager

Go to

Dashboard

Devices list

• Group Players

Player in the same group play the same campaign (content). Player would check update every 2 minutes.
a. Select several players
b. Click “4 Change / Create Group”.
c. Dropdown box, select PC group, click “Join group”.

26

6.5. User Scenario

How to creative a sample campaign and sync to player?

1. At Dashboard,
a. Click “4 Group Manager”.

2. At Group Manager,
a. Select one player, set this player to user’s group. [4-1]
b. Click Tab: “Edit Presentation”.

3. At Edit Presentation,
a. Delete original presentation. [3-4]
b. Add Widget Template: 3 widgets template [3-7]
c. Use carousel at left zone. Add some images and videos. [3-8-1]
d. Use RSS at upper-right zone. Set RSS URL. [3-8-3]
e. Use Web page at right-lower zone. Set web page URL. [3-8-4]
f. Click “7 Save”. [3-11]
Wait a moment for player syncing content. After synced, player would play this three zone presentation.

27

7. System Settings

1. Press



button to select desktop menu option, press OK to conrm.

2. Press EXIT button to leave.

Apps manager

Network Setting

Display system Storage.

Display information

To set default input method
To set Android keyboard (AOSP)

The QR code leads to web
site link for product upgrade or
releated information.

To set on-screen language

To set Date and time

Note: Date & time synchronizes with web site automatically through internet.

For manual setting, please turn “Automatic Data & time” to Off.

To set Security and Restrictions
Allow installation of apps from sources other than the

Play Store.

28

7.1. Network Settings

1. Press



button to select desktop menu option, press OK to conrm.

2. Press EXIT button to leave.

Wired network

Display current net state

Proxy setting

IP settings

29

Wireless Network (USB WiFi dongle)

Turn on/off the WiFi

Scanning Wi-Fi signal.

Display of all the Wi-Fi signal.

Connect via WPS.

Add new network.

Setting Portable WiFi hotspot.

Scanning Wi-Fi direct device.

Enable/disable Miracast

30

7.2. System update

1. Press



button to entry About and then select System update.

System update

2. Select System net update

EP5540

EP5540

31

3. If the user is the latest rmware version, it will show “Your System is up-to-date”.

4. If you have a new rmware in the OTA server folder, it will automatically notify the user to upgrade. The

user will click OK to start the download.

32

5. Start to download rmware

6. Complete the download screen

33

7. The user manually complete the OTA upgrade; successful upgrade will automatically restart, to retain the

user’s original data

34

8. Menu List


Picture Mode Select your favourite picture mode for each input.
Contrast Adjust the contrast.
Brightness Adjust the brightness.
Hue Adjust the image hue. (Only for NTSC system)
Sharpness Adjust the sharpness.
Saturation Adjust the color saturation.
Anti-Flicker Turn on/off the Anti-Flicker function.
Backlight Set up the overall brilliance of the screen.

The Anti-Flicker select Off, you can set the level of
the Backlight as your desired.

Screen

Clock Adjust the screen size.
Phase Adjust the focus of stable images.
H-Position Move the image right or left.
V-Position Move the image up or down.
Auto Tune Automatically adjust the image settings such as

position and phase.
Color temperature Select the color temperature.
Bluelight Filter Reduce the bluelight disturbance to sight, protect

sight health. The Color temperature select User,

you can set the level of the Bluelight Filter as your

desired.
Zoom Mode Select the aspect ratio (display proportions)

according to your video signal type or personal

preference [16:9] /[4:3] / [Panorama] / [Just Scan]/

[Zoom1] / [Zoom2]
OverScan Adjust the reproduction ratio, you may activate this

function to obtain a cleaner picture.
Image NR Select the noise reduction mode to reduce picture

noise.

Sound

Sound Mode Select your favourite sound mode for each input.
Bass Adjust Bass (low sounds).
Treble Adjust Treble (high sounds).
Balance Adjust volume level of right and left speakers.
Surround Turn the Surround sound effect on or off.
Alone Press OK to turn off the picture on your display and

listen to the program audio only.

35

Setting

Menu Timeout Select OSD menu display time.
Data / Time Display Date and Time.
Off Timer With Off Timer function On, the display will

automatically turn off at a preset time.

On Timer With On Timer function On, the

display will automatically turn on
at a preset source at a preset
time.

Highlight Period item, press

or button to select

Once, Everyday, Mon.~Fri.,
Mon.~Sat. or Sat.~Sun..

Sleep Time Set the duration of time until the display automatically

goes into Standby mode.
[Off] / [10 Minutes] / [20 Minutes] / [30 Minutes] /

[60 Minutes] / [90 Minutes] / [120 Minutes] / [180

Minutes] / [240 Minutes].

Lock

Set Password Password settings.

(The default password is 0000 and the super one is

“2580”)
Float Menu Turn on/off the oat menu display.
System ID Setting the device ID. (The ID must be in the range of

1-98.)
Lock Keypad The display buttons is locked.

OFF: Select to enable the panel buttons.

ON: Select to disable the panel buttons.

LowerPower
Standby

Set to ON, the display goes into lower power standby

mode, turn off the picture and audio. RS232 can wake

up and turn on the display.
Auto Play Set to ON, the display will copy media le from

external storage to internal storage then to play the

media le automatically.

Slideshow interval Setting the photo slideshow interval.
Restore To Default Reset all settings to factory defaults.

36

9. Using Auto Play

1. Copy media content (see page 24 for supported media format) to the root directory of a USB Flash drive.
USB Flash drive should be formatted as FAT32.

2. Using the ePoster remote control, press the Menu button.

3. Using the arrow buttons on the remote scroll to the right and select the Lock option.

4. Press OK to enter Lock menu

5. When prompted enter use the remote to enter the password (default standard user password is “0000”
and super user is “2580”).

6. Scroll down to Auto Play and change the option to On.

7. Press Exit to close Menu screen

8. Plug the USB drive into the USB2 (Mainboard) input of the ePoster. Files will be copied to the ePoster
internal memory automatically.

Main board

37

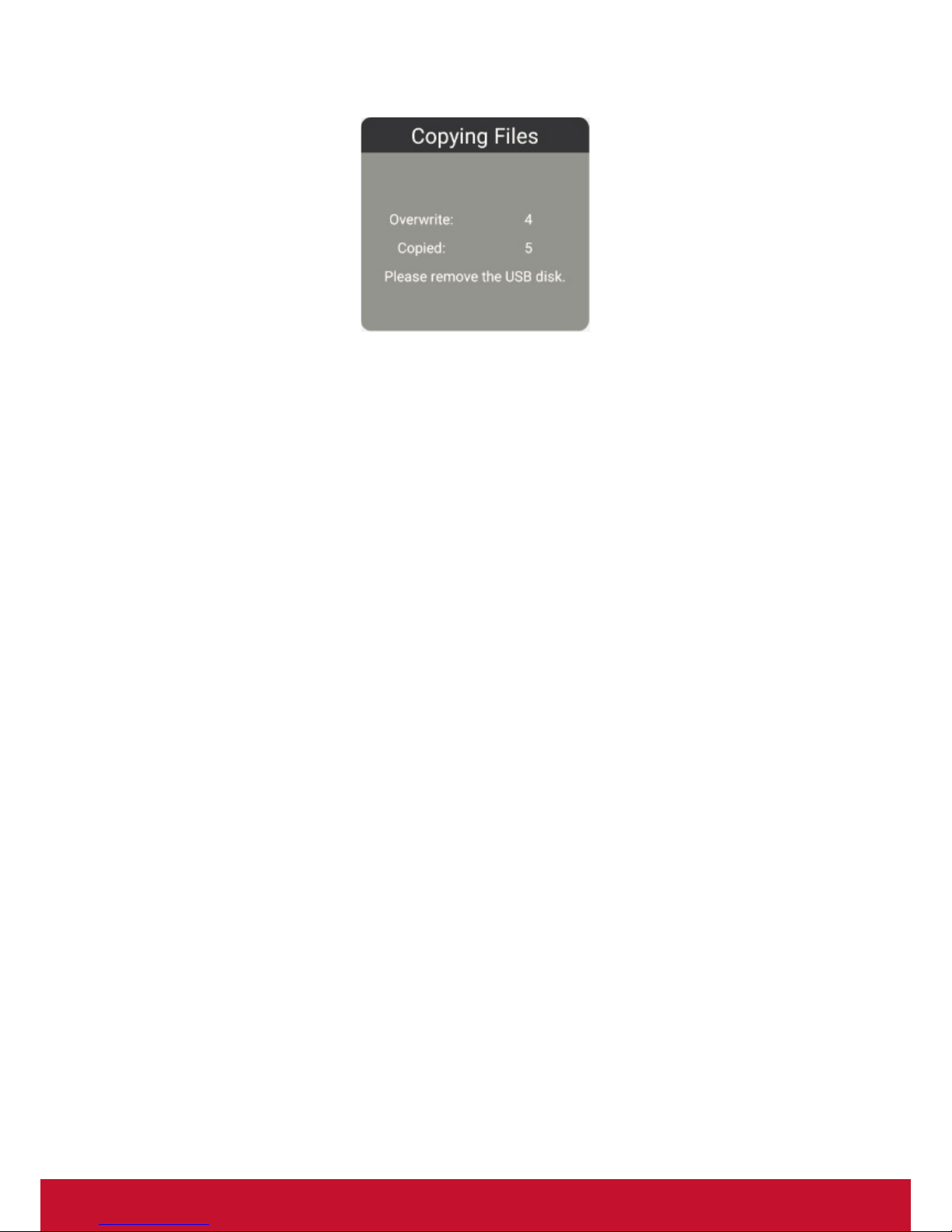

9. After the copying of les have completed, a “Please remove the USB disk” message will display. At this
point, it is safe to remove the USB drive. Playback of the copied content will automatically begin.

38

10. Using USB multi media player

10.1. Insert the USB drive with mutimedia content including photo, movie and music.

10.2. Switch the input source to USB mode.

Notes:

• It is recommended to back up your USB device data.

• Please name your les in English, Otherwise the le names can not be shown correctly.

• Some USB device may not be compatible with this display.

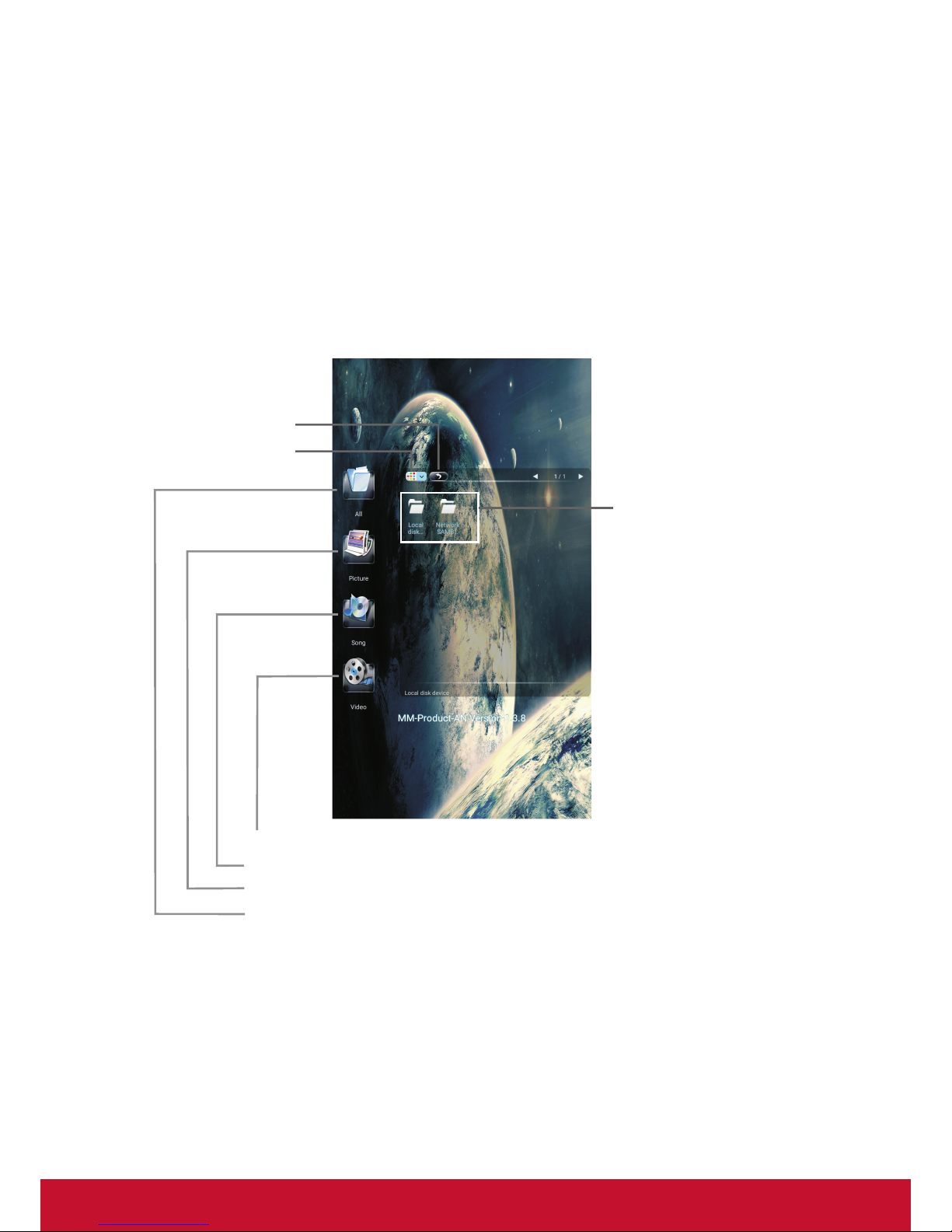

USB multi media interface introduction

File folder.
(you can select from local

disk device (USB device),
network SAMBA device)

Video: Show video les to play.
Music: Show music les to play.

Picture: Show picture les to play.
All: Show allles.

Exit

Select browse format

39

10.3. Playing Photo

Support photo (in JPG, BMP or PNG format).

Previous photo

Play/pause

Next photo

Zoom in
Zoom out

Show information

Notes: You can also use

(Play/Pause), (STOP), (Previous), (Next) on the remote control to

operate.

40

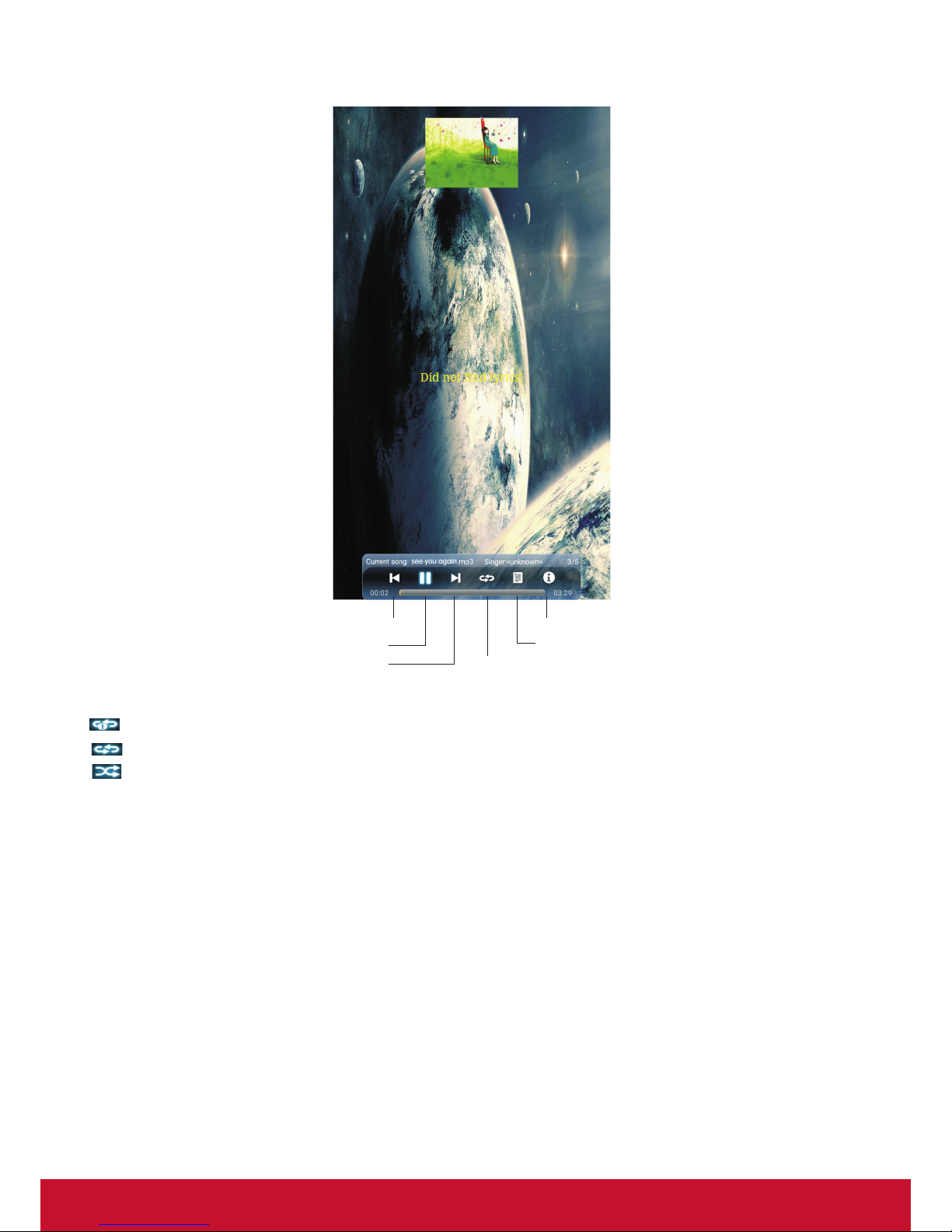

10.4. Playing Music

Support music (in MP3 or AAC format).

Show information

Show playlist

Previous song

Pause/Play

Next song

Repeat mode select

Repeat Mode

repeat to play single music.

repeat to play all music les in current folder when it plays to the end.

no repeat when it plays to the end.

Notes: For touch model, when the control bar disappears during playback, please touch the lower portion

of the screen to show it up.

41

10.5. Playing Movie

Support movie in MPG, MKV, DAT, MP4, MOV or VOB format.

Adjust the volume

AB Section repeat

Playing settings

Show information

Show playlist

A-B repeat : Trun the

Section Replay to On,

then set starting point A
and ending point B.

No repeat: Turn the

Section Replay to Off.

Skip to specic point by input time

Previous movie

Fast reverse

Play/pause

Fast forward

Next movie

42

11. Supported media files format

Image File extension *.jpg, *.jpeg, *.bmp, *.png

Codec Standard RGB

Max. Image resoluon Baseline JPEG : 15360x8704

Progressive JPEG: 1024x768

None Interlace PNG : 9600 x 6400

Interlace PNG: 1200x800

BMP : 9600 x 6400

Max. File name length 128 leers

Video File extension *.mpg, *.mkv, *.mov, *.mp4, *.vob, *.dat

Codec & Bitrate MPEG-1 bitrate<40Mbps

MPEG-4 bitrate<40Mbps

H.264 bitrate<80Mbps

Audio File extension *.mp3,*AAC,

*Practically supported format will depend on the paid royalties.

43

12. Troubleshooting

If, after reading these operating instructions, you have additional questions related to the use of your display,
please call the services center in your local area.

Before calling service, please check the symptoms and follow suggested solutions.

Remote Control

Problem Possible Solutions

Remote control does not operate • The batteries could be weak. Replace the batteries.

• Check the orientation of the batteries.

• Make sure the power cord is plugged in.

Video and Audio

Problem Possible Solutions

No picture (screen not lit), No
sound

• Make sure the power cord is plugged in.

• Press POWER on the display or on the remote control.

Dark, poor or no picture (Screen
lit), good sound

• Select a proper picture mode.

• Adjust the brightness in the video setting.

No color/dark picture/abnormal
color

• Adjust the color saturation in the video setting.

Dotted lines or stripes • Move the display away from noise sources such as cars, neon

signs, or hair dryers.
Good picture, no sound • The sound may be muted. Press MUTE again to cancel.
Audio noise • Communication problems may occur if infrared communication

equipment (e.g., infrared cordless headphones) is used near the

display. Move the infrared communication equipment away from the

display until the noise is eliminated.

General

Problem Possible Solutions

Some items can’t be accessed • If a setting option appears in gray, this indicates that the settings

option is unavailable in current input mode.
Remote control command is not

effect in some cases.

• During the timing of USB device detection (i.e. when the display is
turned on with USB device connected, or when you plug in USB
device during display working), the display may not act by remote
control buttons in such case. Wait some time, then it is OK.

Control buttons do not operate • Disconnect the power cord and wait for a few seconds. Then re-plug

the power cord and turn on the unit again.

POWER button responds slowly
after power is connected.

• When you push POWER SWITCH to power on the display, in about
3 seconds the POWER button starts to respond after pressed.

Note: If your problem is not solved, turn your unit off and then on again.
Cautions: Never attempt to repair a defective display yourself.

44

13. Specifications

Display:

Model No. EP5540 EP5540T

Power Source AC 100-240 V, 50 / 60 Hz
Current Max. 1.8A 1.8A

Display panel

Visible screen size 55 inches (diagonal) 55 inches (diagonal)
Number of pixels 3,840 × 2,160 3,840 × 2,160

Dimensions (W × D × H)

812×450×1900 mm

31.97×17.71×74.80 in

820×450×1900 mm

32.28×17.71×74.80 in

Net Weight

69.7 kg

153.66 lb

70 kg

154.32 lb

Operating conditions

Temperature: 0°C to 40°C 32°F to 104°F
Humidity: 20% ~ 80% non-condensing

Storage conditions

Temperature: -20°C to 60°C - 4°F to 140°F
Humidity: 10% ~ 90% non-condensing

Atmospheric pressure 86kPa ~ 106kPa

Connection
terminals of the
Poster

PC IN 1 1
USB 3 3
HDMI Input 2 2
RJ45 (LAN IN) 1 1
Headphone 1 1
RS-232 1 1
TOUCH OUT 0 1

Notes:

1. Design and specications are subject to change without notice.

2. Weight and dimensions shown are approximate.

3. Specications and external appearance may be changed for the sake of improvement.

45
