ViewSonic EP3203r User Guide
EP2203r/EP3203r/EP3204r/
EP4203r
Multimedia Digital Poster
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing
and using your product in a safe manner, as well as registering your product for future
service. Warranty information contained in this User Guide will describe your limited
coverage from ViewSonic Corporation, which is also found on our web site at http://
www.viewsonic.com in English, or in specic languages using the Regional selection
box in the upper right corner of our website. “Antes de operar su equipo lea cu
idadosamente las instrucciones en este manual”
Model No. VS15139/VS15140/VS15141
Compliance Information
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his
own expense.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: To comply with the limits for the Class A digital device, pursuant to Part 15 of the
FCC Rules, this device must be installed in computer equipment certied to comply with the
Class A limits. All cables used to connect the computer and peripherals must be shielded
and grounded. Operation with non-certied computers or non-shielded cables may result
in interference to radio or television reception. Changes and modications not expressly
approved by the manufacturer could void the user’s authority to operate this equipment.
For Canada
CAN ICES-3 (B)/NMB-3(B)
i
Important Safety Instructions
Read these instructions completely before using the equipment.
1.
Keep these instructions in a safe place.
2.
Heed all warnings.
3.
Follow all instructions.
4.
Do not use this equipment near water. Warning: To reduce the risk of re or electric hock,
5.
do not expose this apparatus to rain or moisture.
Do not block any ventilation openings. Install the equipment in accordance with the
6.
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other
7.
devices (including ampliers) that produce heat.
Do not attempt to circumvent the safety provisions of the polarized or grounding-type
8.
plug. A polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade and the third prong are
provided for your safety. If the plug does not t into your outlet, consult an electrician for
replacement of the outlet.
Protect the power cord from being tread upon or pinched, particularly at the plug, and he
9.
point where if emerges from the equipment. Be sure that the power outlet is located near
the equipment so that it is easily accessible.
Only use attachments/accessories specied by the manufacturer.
10.
Use only with the cart, stand, tripod, bracket, or table specied by the
11.
manufacturer, or sold with the equipment. When a cart is used, use caution when
moving the cart/equipment combination to avoid injury from tipping over.
Unplug this equipment when it will be unused for long periods of time.
12.
Refer all servicing to qualied service personnel. Service is required when the unit has
13.
been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid
is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if the
unit does
ii
Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with Directive 2011/65/
EU of the European Parliament and the Council on restriction of the use of certain hazardous
substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to
comply with the maximum concentration values issued by the European Technical Adaptation
Committee (TAC) as shown below:
Substance
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex III of the
RoHS2 Directives as noted below:
Examples of exempted components are:
1. Mercury in cold cathode uorescent lamps and external electrode uorescent lamps
(CCFL and EEFL) for special purposes not exceeding (per lamp):
(1) Short length (≦500 mm): maximum 3.5 mg per lamp.
(2) Medium length (＞500 mm and ≦1,500 mm): maximum 5 mg per lamp.
(3) Long length (＞1,500 mm): maximum 13 mg per lamp.
2. Lead in glass of cathode ray tubes.
3. Lead in glass of uorescent tubes not exceeding 0.2% by weight.
4. Lead as an alloying element in aluminium containing up to 0.4% lead by weight.
5. Copper alloy containing up to 4% lead by weight.
6. Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by
weight or more lead).
7. Electrical and electronic components containing lead in a glass or ceramic other than
dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic
matrix compound.
Proposed Maximum
Concentration
Actual Concentration
iii
Copyright Information
Copyright© ViewSonic® Corporation, 2013. All rights reserved.
ViewSonic©, the three birds logo, OnView, ViewMatch, and ViewMeter are registered
trademarks of ViewSonic Corporation.
Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or
omissions contained herein; nor for incidental or consequential damages resulting from
furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right to
change product specications without notice. Information in this document may change without
notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any
purpose without prior written permission from ViewSonic Corporation.
Product Registration
To meet your future needs, and to receive any additional product information as it becomes
available, please register your product on the Internet at: www.viewsonic.com.
The ViewSonic
form, which you may mail or fax to ViewSonic.
®
Wizard CD-ROM also provides an opportunity for you to print the registration
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
Product disposal at end of product life
ViewSonic respects the environment and is committed to working and living green. Thank you for
being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more.
USA & Canada: http://www.viewsonic.com/company/green/recycle-program/
Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/
Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx
EP2203r/EP3203r/EP3204r/EP4203r
ViewSonic Multimedia Digital Poster
VS15139/VS15140/VS15141
EP2203r/EP3203r/EP3204r/EP4203r_UG_ENG
Rev. 1C 04-24-13
___________________________________________
___________________________________________
iv
Contents
Packing list............................................................................ 1
1. Product Introduction ........................................................ 1
1.1 Overview ...........................................................................................1
1.2 Product function ................................................................................1
1.3 I/O ports introduction ......................................................................... 2
1.4 Supported media les format ............................................................2
2. Remote Control ................................................................. 3
3. Main Menu Operation Instructions ................................. 4
3.1 System Settings ................................................................................5
3.2 Playback Control ............................................................................... 7
3.3 Network Settings ............................................................................... 9
3.4 Date & Time.....................................................................................13

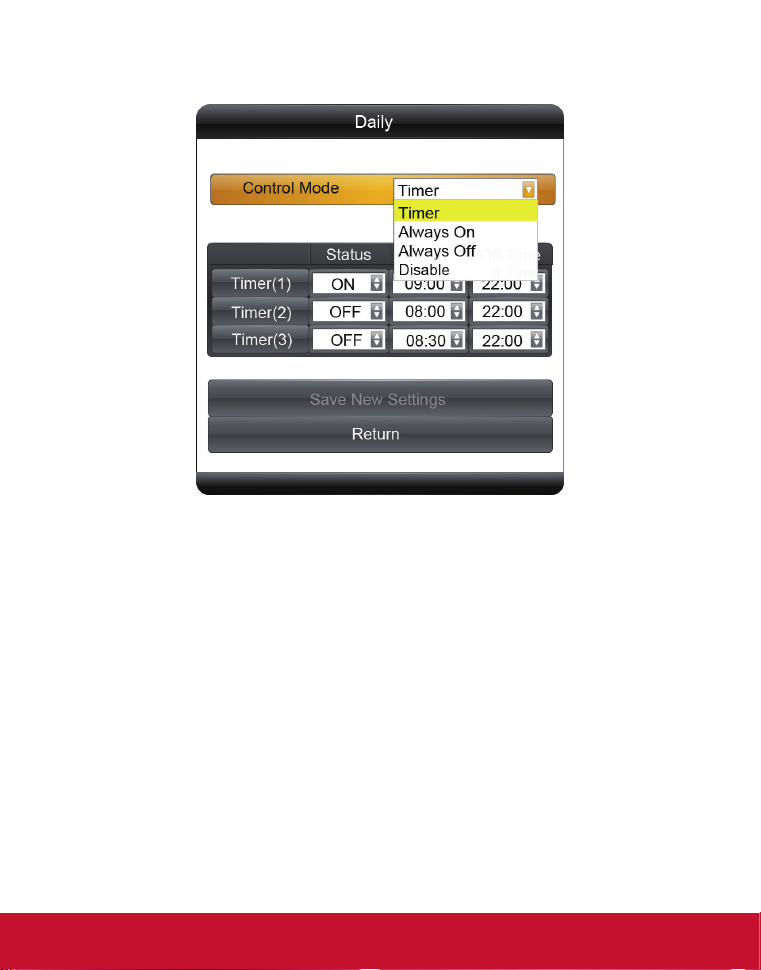

3.5 On / Off Timer ..................................................................................14
3.6 Screen Mode ................................................................................... 17
3.7 File Management.............................................................................18
3.8 Exit ..................................................................................................18
4. Other Setting ................................................................... 19
4.1 Source Setting ................................................................................. 19
4.2 Image Setting .................................................................................. 19
5. ePoster Manager Express Plus Introduction ............... 20

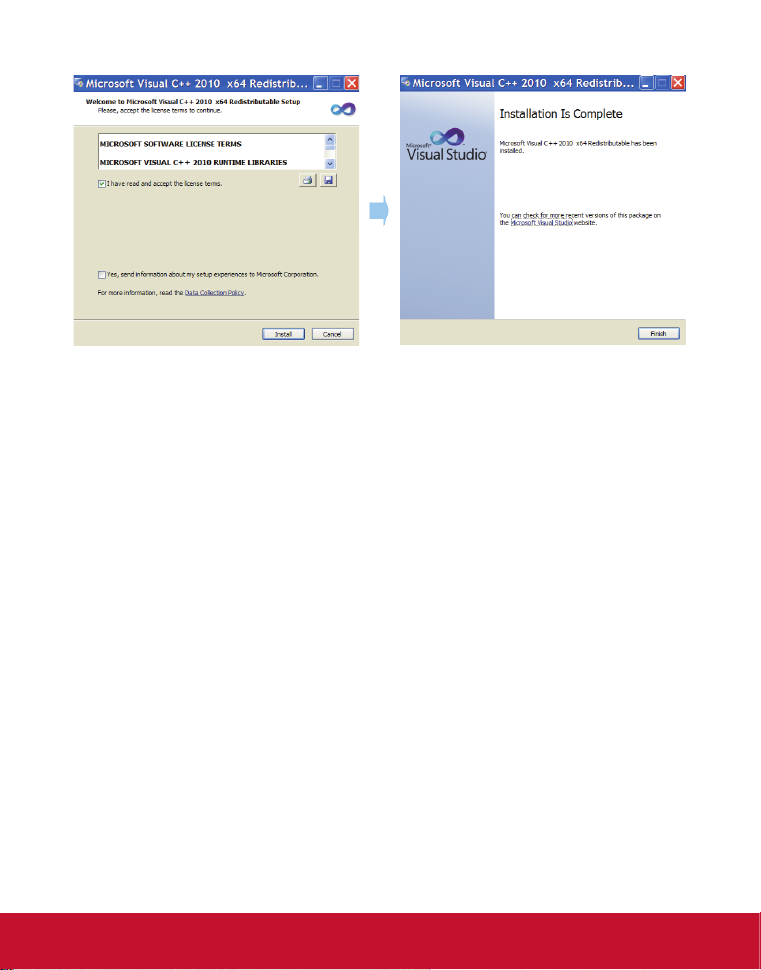

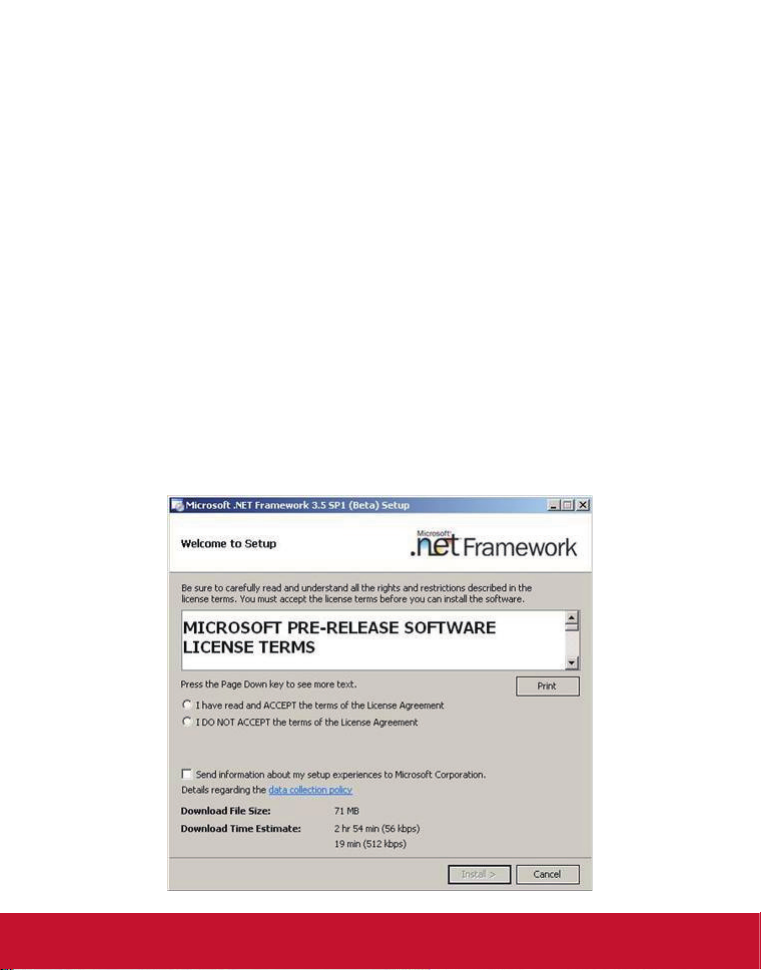

5.1 Installation ....................................................................................... 20
5.2 Playlist Creation ..............................................................................25
5.3 Player Settings ................................................................................ 31
5.4 Save to USB .................................................................................... 32

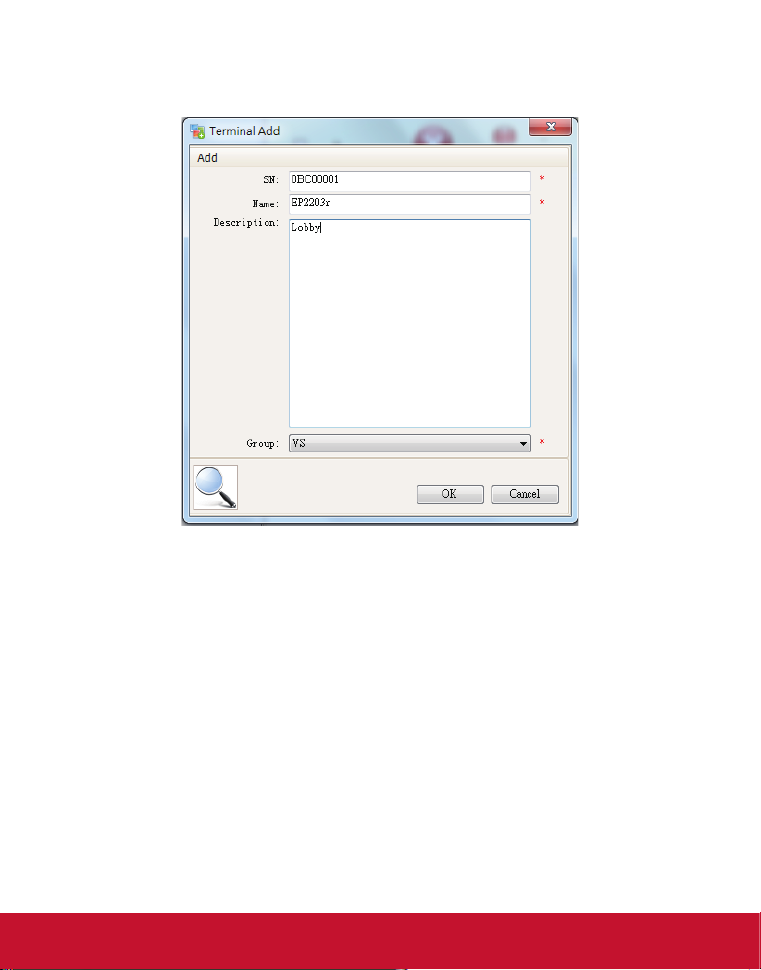

5.5 Terminal Creation ............................................................................ 34
6. Content Update ............................................................... 36
6.1 Update content directly....................................................................36
6.2 Update content via ePoster Manager Express Plus ........................ 36
7. PhotoShop Guidelines ................................................... 37
v
Packing list
In the carton, you will nd the following:
Multimedia Digital Poster
Remote control
Power cable
User manual CD wizard
Quick Start Guide
1. Product Introduction
1.1 Overview
High denition Multimedia Digital Poster, support picture, video, text, time & date,
1080P HD media les. ePoster Manager Express Plus software can provide multi zone
function for both horizontal and vertical mode, customized template is available for
users with different requirement.
1.2 Product function
Built in 4GB ash memory, can store thousands of high denition pictures
Plenty of different transition modes are available
Support scrolling text function
Set the timer On/Off function by daily and weekly
Set different schedule, and playback it accordingly
Horizontal and vertical modes are available
Support multi zone screen function, different templates are available
An external media player can be used via the screens VGA or HDMI input ports
High security, encryption function can be used to protect the content
Read media les from USB stick directly, or input the media les from USB
stick to internal ash memory
1
1.3 I/O ports introduction
RESET: Restart button for the unit
LAN: Network port, connect it with internet
HDMI: High denition HDMI signal input port
VGA: VGA signal input port
Audio: Audio input port
USB: USB stick port, used to input media les
The unit can playback media les from internal ash memory or USB stick directly.
1.4 Supported media les format
File extension *.jpg, *.jpeg, *.gif, *.bmp, *.png
Codec Standard RGB
Max. image resolution Baseline :
Max. le name length 128 letters
JPG : 4096 x 4096
GIF : 1920 x 1080
BMP : 1920 x 1080
PNG : 1920 x 1080
Video
File extension *.mpg, *.avi, *.mkv, *.v, *.mov,
Codec & Bitrate MPEG-1
*.mp4, *.rm, *.rmvb, *.ts, *.tp
MPEG-4
H.264
AVC
VC-1
RM
bitrate<20Mbps
bitrate<20Mbps
bitrate<20Mbps
bitrate<20Mbps
bitrate<20Mbps
bitrate<20Mbps
2
2. Remote Control
Power on or off
Change video input
Digital signage setup
Play;Conrm selection
Navigation button
Stop the selected le
Previous Program
Next Program
Mute
Raise Volume
Lower Volume
Image Setting
Exit the image setting
To HDMI source
To VGA source
To internal storage source
Notice:
1. The buttons don’t mention above are reserved for work with other version in the
future.
2. The setup button (
) only works in Internal Storage channel
3
3. Main Menu Operation Instructions
Currently, the digital poster has 8 menu functions: System Settings, Palyback Control,
Network Settings, Date & Time, On/Off Timer, Screen Mode, File Management and
Exit.
4
3.1 System Settings
Press Setup button to enter the Main Menu setup interface. Press Up, Down buttons
to select System Settings, and press Play button to display System Settings options.
There are 7 options available in all: OSD Lnaguage, Clock Display, Scrolling Text, USB
Port, Sync. Settings, Restore to Factory Settings and Return to Main Menu.
OSD Language: Simplied Chinese, English
5
Clock Display: Top Left, Bottom Left, Top Right, Bottom Right, Off.
Scrolling Text: Off or On.
USB Port: On or Off
Sync. Settings: Off, Host, Slave.
Note: When Host or Slave had selected, Previous Program and Next Program
functions will disable.
Restore to Factory Settings: Restore the menu settings to default.
6
3.2 Playback Control
Work Mode
This is used to set the Multimedia Digital Poster to Stand-alone or LAN mode.
Stand-alone: Storage Priority, Playback Mode and Play Time functions will
enable.
LAN: Network settings will enable.
Note: When Work Mode has changed, please select Save and Reboot rst.
Storage Priority
This is used to set the Multimedia Digital Poster to read media les from Internal
Storage or USB Disk. There are two options as pictured below:
Internal Storage: The Multimedia Digital Poster reads media les from internal
storage only.
USB Disk: The Multimedia Digital Poster reads media les from USB disk only.
7
Playback Mode
There are three options as pictured below:
Free: The user copies the media les into USB stick and the Multimedia Digital
Poster will read it directly
Encrypted: The user makes playlist with encryption by using the ePoster
Manager Express Plus software, the Multimedia Digital Poster will read the
media les after verifying password. (The default password is 12345678)
None Encrypted: The user makes playlist without encryption by using the
ePoster Manager Express Plus software, the Multimedia Digital Poster will read
the media les directly.
Note: Under the Free Playback Mode, the Multimedia Digital Poster will playback the
media les according to the le name. For example, it will playback like this: 001.avi,
002.jpg, 003.mov, or a.avi, b.jpg, c.mov.
Do Not use special characters in the le name (!@#￥%&* ), and blank space is not
supported.
Play Time
This is used to set the play time for pictures under the Free Playback Mode and is not
valid for video le.
Save and Reboot
After change the Work Mode, please select Save and Reboot rst.
8
3.3 Network Settings
The terminal has been set before delivery from factory. You cannot change Local ID or
MAC Address. You can set Server Settings and Get IP Type according to the current
network environment through the remote control.
Press Setup button to enter menu setup home page. Press Up, Down buttons to select
Network Settings, and press Play button to display Network Settings options. There
are totally 6 options available: Server Settings, Machine ID, MAC Address, Get IP
Type, Save and Reboot and Return to Main Menu.
9
Loading...
