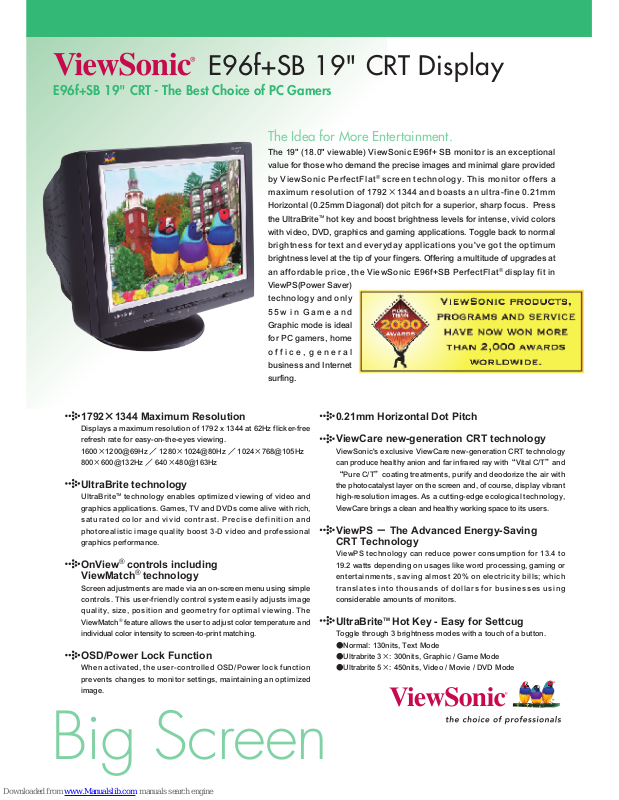

ViewSonic E96FPlus, E96f+SB Specifications
E96f+SB 19" CRT Display
E96f+SB 19" CRT - The Best Choice of PC Gamers
The Idea for More Entertainment.
Big Screen
The 19" (18.0" viewable) ViewSonic E96f+ SB monitor is an exceptional
value for those who demand the precise images and minimal glare provided
by ViewSon ic Per fectFlat
®
screen tec hnology. This monitor offers a
maximum resolution of 1792×1344 and boasts an ultra-fine 0.21mm
Horizontal (0.25mm Diagonal) dot pitch for a superior, sharp focus. Press
the UltraBrite
TM
hot key and boost brightness levels for intense, vivid colors
with video, DVD, graphics and gaming applications. Toggle back to normal
brightness for text and everyday applications you've got the optimum
brightness level at the tip of your fingers. Offering a multitude of upgrades at
an affordable price, the ViewSonic E96f+SB PerfectFlat
®
display fit in
ViewPS(Power Saver)
technology and only
5 5 w i n G a m e a n d
Graphic mode is ideal
for PC gamers, home
o f f i c e , g e n e r a l
business and Internet
surfing.
1792×1344 Maximum Resolution
Displays a maximum resolution of 1792 x 1344 at 62Hz flicker-free
refresh rate for easy-on-the-eyes viewing.
1600×1200@69Hz 1280×1024@80Hz 1024×768@105Hz
800×600@132Hz 640×480@163Hz
UltraBrite technology
UltraBrite
TM
technology enables optimized viewing of video and
graphics applications. Games, TV and DVDs come alive with rich,
sa t u r a t ed color a n d v ivid con t r a s t. Preci s e d e f inition a n d
photorealistic image quality boost 3-D video and professional
graphics performance.
OnView® controls including
ViewMatch® technology
Screen adjustments are made via an on-screen menu using simple
controls. This user-friendly control system easily adjusts image
qualit y, size, positi on and geomet ry fo r optimal viewi ng. The
ViewMatch® feature allows the user to adjust color temperature and
individual color intensity to screen-to-print matching.
OSD/Power Lock Function
When activated, the user-controlled OSD/Power lock function
prevents changes to monitor settings, maintaining an optimized
image.
0.21mm Horizontal Dot Pitch
ViewCare new-generation CRT technology
ViewSonic's exclusive ViewCare new-generation CRT technology
can produce healthy anion and far infrared ray with“Vital C/T”and
“Pure C/T”coating treatments, purify and deodorize the air with
the photocatalyst layer on the screen and, of course, display vibrant
high-resolution images. As a cutting-edge ecological technology,
ViewCare brings a clean and healthy working space to its users.
ViewPS － The Advanced Energy-Saving
CRT Technology
ViewPS technology can reduce power consumption for 13.4 to
19.2 watts depending on usages like word processing, gaming or
entertainments, saving almost 20% on el ec tr icity bills; which
tr a n s l ates in t o t housand s o f dollar s f o r busine s s e s using
considerable amounts of monitors.
UltraBrite
TM
Hot Key - Easy for Settcug
Toggle through 3 brightness modes with a touch of a button.
●Normal: 130nits, Text Mode
●Ultrabrite 3×: 300nits, Graphic / Game Mode
●Ultrabrite 5×: 450nits, Video / Movie / DVD Mode
specifications
E96f+SB 19" CRT Display
CRT
INPUT
COMPATIBILITY
CONNECTOR
CONTROLS
VIDEO INPUT
MISCONVERGENCE
DISPLAY AREA
OPERATING
CONDITIONS
DIMENSIONS
(W×D×H)
WEIGHT
REGULATIONS
Type
Dot Pitch
Glass Surface
Video
Sync
Frequency
PC
Mac
Singal
Power
Voltage
Consumption
Basic
OnView
Bandwidth
Factory Setting
Maximum Scan
Temperature
Humidity
Physical
Net
19" (18"viewable)
0.25mm Diagonal
0.21mm Horizontal
0.14mm Vertical
Anti-Static, Anti-Reflection
RGB Analog (75 ohms, 0.7/1.0Vp-p)
H/V Separated(TTL), Composite Sync
Fh:30-86kHz, Fv:50-160Hz
from VGA up to 1792×1344@62Hz
Power Mac (May require Mac cable adapter)
15 pin mini D-sub
3 pin plug (IEC320)
Power AC 100-240VAC (auto switch) 50/60(+/-3) Hz
100W (Typ.), 110W(Max), 55w(Game/Graphic Mode)
Power on/off, Key-1, Up, Down, Key-2, UltraBrite HotKey
210 MHz (Pixel Clock)
0.25mm (max) at center
0.35mm (max) at corner
352mm×264mm
360mm×270mm (Dependent on signal timing used)
0℃-40℃ (32℉-104℉)
5%-95% (non-condensation)
445mm×465mm×424mm (with base)
17.6"×18.3"×16.7" (with base)
18Kgs (21.2lbs)(with base)
Co ntra st, B righ tnes s, H. Size , H. P osit ion, V. Si ze,
V . P os i t i o n , P i n c u si o n , P i n b a l a n ce , T r a p e z o i d ,
Pa r a ll e l og r a in , T i l t , M oi r e Re d u ct i o n, D e g a u s s ,
V i e w M a t ch ( 9 3 0 0 K, 6 5 00 K , 5 0 0 0K , U s e r C o l o r) ,
Lang uag e, Vi ewM eter, Me mory Rec all
UL/CUL, FCC-B, CB, CE, DHHS, ICES 003, NOM, TUV/
GS, TUV/Ergo, MPRII, GOST-R, SASO, BSMI, CCC, PSB,
Argentina-TUV/S
Headquarters:
381 Brea Canyon Road,
Walnut, CA 97189, U.S.A.
Tel:(800)888-8583 (909)444-8888
Fax:(909)839-7922
www.viewsonic.com
Asia Pacific:
9F, No. 192 Lien Chien Road,
Chung Ho, Taipei, R.O.C.
Tel:886-2-2246-3456
Fax:886-2-8242-3666
www.viewsonic.com.tw
ViewSonic Hong Kong
Suite 811, East Wing, Tsimshatsui Centre,
66 Mody Road, TST East
Kowloon, Hong Kong
Tel:2268-6878
Fax:2268-6778
www.hk.viewsonic.com
ViewSonic (Singapore) Pte Ltd
221 Henderson Road #04-08
Henderson Building
Singapore 159557
Tel:+65-6273-4018
Fax:+65-6273-1566
www.viewsonic.com.sg
ViewSonic Australia Pty Ltd
Unit 3, 44 Dickson Avenue,
Artarmon NSW 2064,
Australia
Tel:(02)9906-6277
Fax:(02)9906-6377
www.viewsonic.com.au
For more product information, visit us on the web at ViewSonic.com
20060309
E96f+SB 19" CRT - The Best Choice of PC Gamers
Model No.VS10794-P
ViewSonic Corporation`s QMS & EMS have been registered to
ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
Reso luti on：
1792 ×134 4 @6 2Hz
1600 ×120 0 @6 9Hz
1280 ×102 4 @8 0Hz
1152 ×864 @95 Hz
1024 ×768 @10 5Hz
800× 600 @132 Hz
640× 480 @163 Hz
640× 400 @180 Hz
