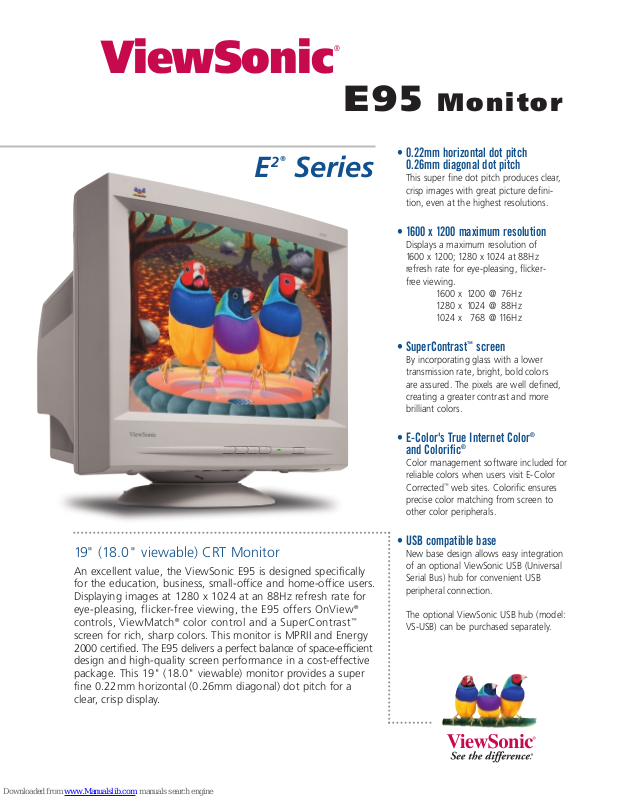

ViewSonic E95 Specifications

E95 Monitor

ViewSonic

®

E

2

®

Series

• 0.22mm horizontal dot pitch

0.26mm diagonal dot pitch

This super fine dot pitch produces clear,
crisp images with great picture defini­tion, even at the highest resolutions.

• 1600 x 1200 maximum resolution

Displays a maximum resolution of
1600 x 1200; 1280 x 1024 at 88Hz
refresh rate for eye-pleasing, flicker­free viewing.

1600 x 1200 @ 76Hz
1280 x 1024 @ 88Hz
1024 x 768 @ 116Hz

• SuperContrast™screen

By incorporating glass with a lower
transmission rate, bright, bold colors
are assured. The pixels are well defined,
creating a greater contrast and more
brilliant colors.

• E-Color's True Internet Color

®

and Colorific

®

Color management software included for
reliable colors when users visit E-Color
Corrected™web sites. Colorific ensures
precise color matching from screen to
other color peripherals.

• USB compatible base

New base design allows easy integration
of an optional ViewSonic USB (Universal
Serial Bus) hub for convenient USB
peripheral connection.

The optional ViewSonic USB hub (model:
VS-USB) can be purchased separately.

19" (18.0" viewable) CRT Monitor

An excellent value, the ViewSonic E95 is designed specifically
for the education, business, small-office and home-office users.
Displaying images at 1280 x 1024 at an 88Hz refresh rate for
eye-pleasing, flicker-free viewing, the E95 offers OnView

®

controls, ViewMatch®color control and a SuperContrast

™

screen for rich, sharp colors. This monitor is MPRII and Energy
2000 certified. The E95 delivers a perfect balance of space-efficient
design and high-quality screen performance in a cost-effective
package. This 19" (18.0" viewable) monitor provides a super
fine 0.22mm horizontal (0.26mm diagonal) dot pitch for a
clear, crisp display.

• Anti-static, anti-reflection screen

This anti-static, anti-reflection screen coating
refracts unwanted light away from the user
while maintaining the highest quality of the
displayed image.

• VESA®GTF compliant

Maximizes display performance by
automatically aligning images to reduce
set-up time†.

•

• PC and Mac

®

compatible

• OnView

®

controls including ViewMatch

®

All screen adjustments are made via an on-screen
menu using simple controls. ViewMatch allows
the user to adjust color temperature and individual
color intensity for screen-to-print matching.

• Three-year limited warranty

*Free universal Mac®cable adapter available.†Requires GTF (general timing format) compliant video card support. ∆Only available in the United States. Copyright © 2001, ViewSonic Corporation. All rights reserved. Corporate names and trademarks
stated herein are the property of their respective companies. Specifications subject to change without notice. The EPA only promotes energy efficiency and does not endorse any particular company or product. VSE95_04/01_20K [10089-01B 03/01]
VS-2229

ViewSonic

®

E

2

®

Series

E95 Monitor

ViewSonic Corporation's QMS\ EMS has been registered to ISO 9001

& ISO 14001 by the British Standards Institution.

19" (18.0" VIEWABLE) COLOR MONITOR IN CHOICE OF TWO COLORS

CRT Type 19" (18.0" diagonal viewable area), 90° deflection

Dot Pitch 0.22mm Horizontal, 0.14mm Vertical, 0.26mm Diagonal
Phosphor RGB P22 medium-short persistence
Glass Surface Tint (TM=49.8%) anti-static, anti-reflection coating

INPUT SIGNAL

Video RGB analog (0.7Vp-p, 75 ohms)
Sync H/V separate (TTL), Sync On Green
Frequency Fh:30-95kHz, Fv:50-180Hz

COMPATIBILITY

PC PC compatibles (from VGA up to 1600 x 1280)
Mac

®

*

Power Mac

™

(from 640 x 480 up to 1600 x 1200)

CONNECTOR

Signal 15-pin mini D-sub
Power 3-pin plug (IEC320)

POWER

Voltage AC 90-240V/50-60Hz (auto switch)
Consumption 130W (typ)

USER CONTROLS

Basic Power on/off, 1, up, down, 2
OnView Brightness, contrast, H/V-position, H/V-size, trapezoid,

pincushion, parallelogram, rotation, degauss, ViewMeter

®

,
ViewMatch color, language, zoom, pin-balance, moiré,
OSD H/V-position, top/bottom hooking, H convergence,
video select, recall

VIDEO INPUT Bandwidth 150MHz (typ)
MISCONVERGENCE 0.3mm (max) at center, (of standard

0.4mm (max) at corner display area)

DISPLAY AREA

Factory Setting 357mm (H) x 268mm (V) (Dependent upon
Maximum Scan 366mm (H) x 274mm (V) signal timing used)

OPERATING

Temperature 32°F to 104°F (0°C to 40°C)

CONDITION Humidity 5% to 95% (non condensing)
DIMENSIONS

Physical 448mm (W) x 464mm (H) x 463mm (D)

(17.6" x 18.3" x 18.2")

WEIGHT Net 19.5Kg (43 lbs.)
OTHER DDC1 & DDC2B, GTF and GSA compliant
REGULATIONS caU, UL, DHHS, FCC, NOM, MPR-II, E

NERGY STA R

®

,
TUV/GS,TUV/Ergo, NEMKO, DEMKO, SEMKO,
FLMKO, CB, PCT, PCBC, E2000

POWER MANAGEMENT Meets ENERGY STAR®, E2000
WARRANTY Three-year limited warranty on CRT, parts and labor.

48-hour Express Exchange

®

service option available∆.

381 Brea Canyon Road, Walnut, CA 91789 • Phone [phone] • [phone] • Fax [phone] • ViewSonic.com
