ViewSonic E90F, E90F-2 Specifications
E90f
19" (18.0" VIEWABLE)
E2®SERIES CRT MONITOR
WITH PERFECTFLAT®SCREEN
Perfectly suited to your desktop.

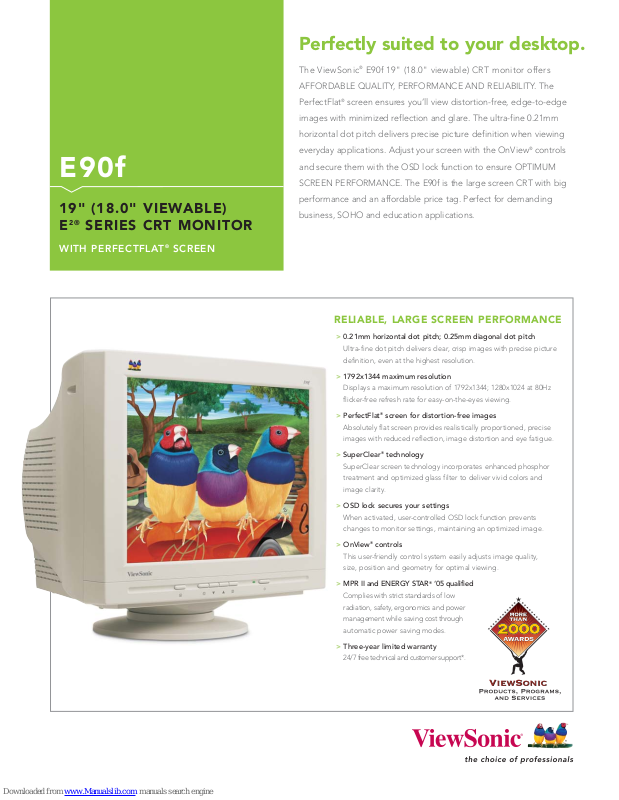

The ViewSonic®E90f 19" (18.0" viewable) CRT monitor offers
AFFORDABLE QUALITY, PERFORMANCE AND RELIABILITY. The
®
PerfectFlat
images with minimized reflection and glare. The ultra-fine 0.21mm
horizontal dot pitch delivers precise picture definition when viewing
everyday applications. Adjust your screen with the OnView
and secure them with the OSD lock function to ensure OPTIMUM
SCREEN PERFORMANCE. The E90f is the large screen CRT with big
performance and an affordable price tag. Perfect for demanding
business, SOHO and education applications.
screen ensures you’ll view distortion-free, edge-to-edge
®
controls
RELIABLE, LARGE SCREEN PERFORMANCE
> 0.21mm horizontal dot pitch; 0.25mm diagonal dot pitch
Ultra-fine dot pitch delivers clear, crisp images with precise picture
definition, even at the highest resolution
> 1792x1344 maximum resolution
Displays a maximum resolution of 1792x1344; 1280x1024 at 80Hz
flicker-free refresh rate for easy-on-the-eyes viewing
> PerfectFlat
Absolutely flat screen provides realistically proportioned, precise
images with reduced reflection, image distortion and eye fatigue
> SuperClear
SuperClear screen technology incorporates enhanced phosphor
treatment and optimized glass filter to deliver vivid colors and
image clarity
> OSD lock secures your settings
When activated, user-controlled OSD lock function prevents
changes to monitor settings, maintaining an optimized image
> OnView
This user-friendly control system easily adjusts image quality,
size, position and geometry for optimal viewing
> MPR II and ENERGY STAR
Complies with strict standards of low
radiation, safety, ergonomics and power
management while saving cost through
automatic power saving modes.
> Three-year limited warranty
24/7 free technical and customer support*.
®
screen for distortion-free images
®
technology
.
®
controls
®
‘05 qualified
.
.
.
.
.
E90f
19" (18.0" VIEWABLE) E2®SERIES CRT MONITOR WITH PERFECTFLAT®SCREEN
CRT Type 19" (18.0" viewable) 90º deflection
Dot Pitch 0.21mm horizontal x 0.14mm vertical; 0.25mm diagonal
Phosphor Pigment coated P22 (Cd free)
Glass Surface Tint: TM~52.6%, anti-reflection, anti-static screen coating
VIDEO SIGNAL Video RGB analog (75 ohms, 0.7 Vp-p)
Sync H/V separated (TTL), composite sync
Frequency Fh: 30~86kHz, Fv: 50~180Hz
COMPATIBILITY PC IBM and compatibles from VGA up to 1792x1344 (non-interlaced)
Mac®** Power Mac/G3/G4/G5 from 640x480 to 1600x1200
Others** Most Workstations
CONNECTOR Analog 15-pin mini D-sub (high density)
Power 3-pin plug (IEC320)
POWER Voltage AC 100–240VAC, 50/60Hz (+/- 3)
Consumption 100W (typ), auto switch
CONTROLS Basic Power, on/off, 1, down, up, 2, auto sizing
VIDEO INPUT Bandwidth 202MHz (typ)
MISCONVERGENCE 0.25mm (max) at center
DISPLAY AREA Factory Setting 352mm x 264mm (typ)
(HORZ. x VERT.) Full Scan 360mm x 270mm (dependent upon timing signal)
OPERATING Temperature 32–104°F (0–40°C)
CONDITIONS Humidity 5–95% (non-condensing)
DIMENSIONS Physical (mm) 456mm x 450mm x 461mm
(W x H x D) Physical (in.) 17.9" x 17.7" x 18.1"
WEIGHT Net 52.8 lb. (24.0 kg)
REGULATIONS UL/cUL 1950, FCC-B, CB, DHHS, ICES 003, NOM, TUV/GS,
POWER MANAGEMENT Meets MPR II and ENERGY STAR®‘05 standards
PACKAGE CONTENTS CRT display, power cable, 15-pin VGA video cable (attached),
WARRANTY Three-year limited warranty on CRT, parts and labor
®
OnView
Gross 60.1 lb. (27.3 kg)
Contrast, brightness, H./V. size, H./V. position, zoom, pincushion,
trapezoid, pinbalance, parallelogram, tilt, moiré reduction,
degauss, ViewMatch®(9300K, 6500K, 5000K, user), OSD
position, language, ViewMeter®, memory recall
0.35mm (max) at corner
TUV/Ergo, MPR II, TUV/S, ENERGY STAR®‘05
Quick Start Guide, ViewSonic Wizard CD
ViewSonic Corporation’s QMS & EMS have been registered to
ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Customer Service and Technical Support: (800) 688-6688 • Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com
*Excludes major U.S. holidays. **Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic
representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2006 ViewSonic Corporation. All rights reserved. [12805-00B-02/06] E90f-2
For more product information, visit us on the web at ViewSonic.com
