Getting Started
NOTE:
the word “Windows” refers to Microsoft Windows 95, NT, 98, 2000 and
Me (Millennium).
Package Contents
•
• Quick Start Guide
• Power cord
• D-sub Video cable (for VGA graphics card)
• ViewSonic Wizard CD-ROM (includes User Guide PDF and INF/ICM dis-
monitor
E75f
play optimization files)
Precautions
• For best viewing conditions sit at least
18" from the monitor.
• Avoid touching the screen with your
fingers. Oils from the skin are difficult to
remove.
• NEVER REMOVE THE REAR
COVER. The monitor contains high
voltage parts. You may suffer serious
injury if you touch these parts.
• Avoid exposing the monitor to direct
sunlight or another heat source,
including an open flame. The monitor
should be facing away from direct
sunlight to reduce glare.
• Always handle your monitor with care
when moving it.
• Place your monitor in a well ventilated
area. Do not place anything on the
monitor that prevents adequate
dissipation of heat.
• Ensure the area around the monitor is
clean and free of moisture.
• Keep the monitor away from magnets,
motors, transformers, speakers, and
televisions.
• Do not place heavy objects on the
monitor, video cable, or power cord.
• If smoke, abnormal noise, or strange
odor is present, immediately switch the
monitor off and call your dealer or
ViewSonic. It is dangerous to continue
using the monitor.
ViewSonic E75f 3
Page 5
Quick Installation
Connect the monitor and
1
computer power cords to a
properly grounded AC outlet.
Connect the video cable from
2
your monitor to your computer.
NOTE:
need an adapter. (See
Support
Turn on your monitor, then your
3
Macintosh users may
Customer
on page 12.)
computer. This sequence (monitor
before computer) is important.
NOTE:
Windows 95, 98 or 2000
users may receive a message
asking them to install the INF file.
This is on the CD.
Insert the ViewSonic Wizard CD.
4
NOTE:
If you do not have a
CD-ROM drive, contact
ViewSonic Customer Support.
NOTE:
If the CD does not autostart, double-click the CD icon in
Windows Explorer, then doubleclick
vswzrd.exe
.
Macintosh users: from the
Macintosh desktop, double-click
on the “ViewSonic Wizard”
folder, then double-click on the
“ViewSonic” icon.
Follow the on-screen instructions.
5
Windows users: Set the timing
mode (see
Mode
Setting the Timing
on page 5).
To register your product online, go to
the ViewSonic website for your
region. See the Customer Support
table in this guide.
AC wall outlet
4 ViewSonic E75f
Power cables
VGA video
cable
Page 6
Using your monitor
Setting the Timing Mode
Setting the timing mode is important for maximizing the quality of the screen
image and minimizing eye strain. The
(example: 10240 x 768) and
Hz).
For the best picture quality set your monitor to:
VESA
To set the Resolution:
1
2
3
4
®
1024 x 768@ 85 Hz.
Right-click on the Windows deskop.
Click
Click the
Select the resolution by moving the slider, which displays in the
area
Properties
Settings
or
Screen area
on the drop-down menu.
tab.
refresh rate
in the window.
timing mode
(or vertical frequency, example: 85
consists of the
resolution
Desktop
NOTE:
ViewSonic Wizard CD installation (or refer to your graphics card’s
documentation).
The refresh rate should already be set if you have completed the
OSD Lock Settings
You have the option of using the OSD Lock feature to prevent current image
adjustments from being changed.
•
OSD Lock:
buttons are pressed the message
•
OSD Unlock:
Press and hold [1] and the down arrow
OSD Locked
Press and hold [1] and the down arrow
will display for 5 seconds.
for 10 seconds. If any
▼
again for 10 seconds.
▼
ViewSonic E75f 5
Page 7
Adjusting the Screen Image
Use the buttons onse ti-c3(tto)it.6(14(etto)rs)-82( c(etto))12(o)-trs e ti-cl pettocreocrel .3(u)-5.6.2(sad(u)-5.j2(e b)1ststing)-ocreiew4.7(g)-23(e)]T5.524 1 T5.5244th®e
6 ViewSonic E75f
Page 8

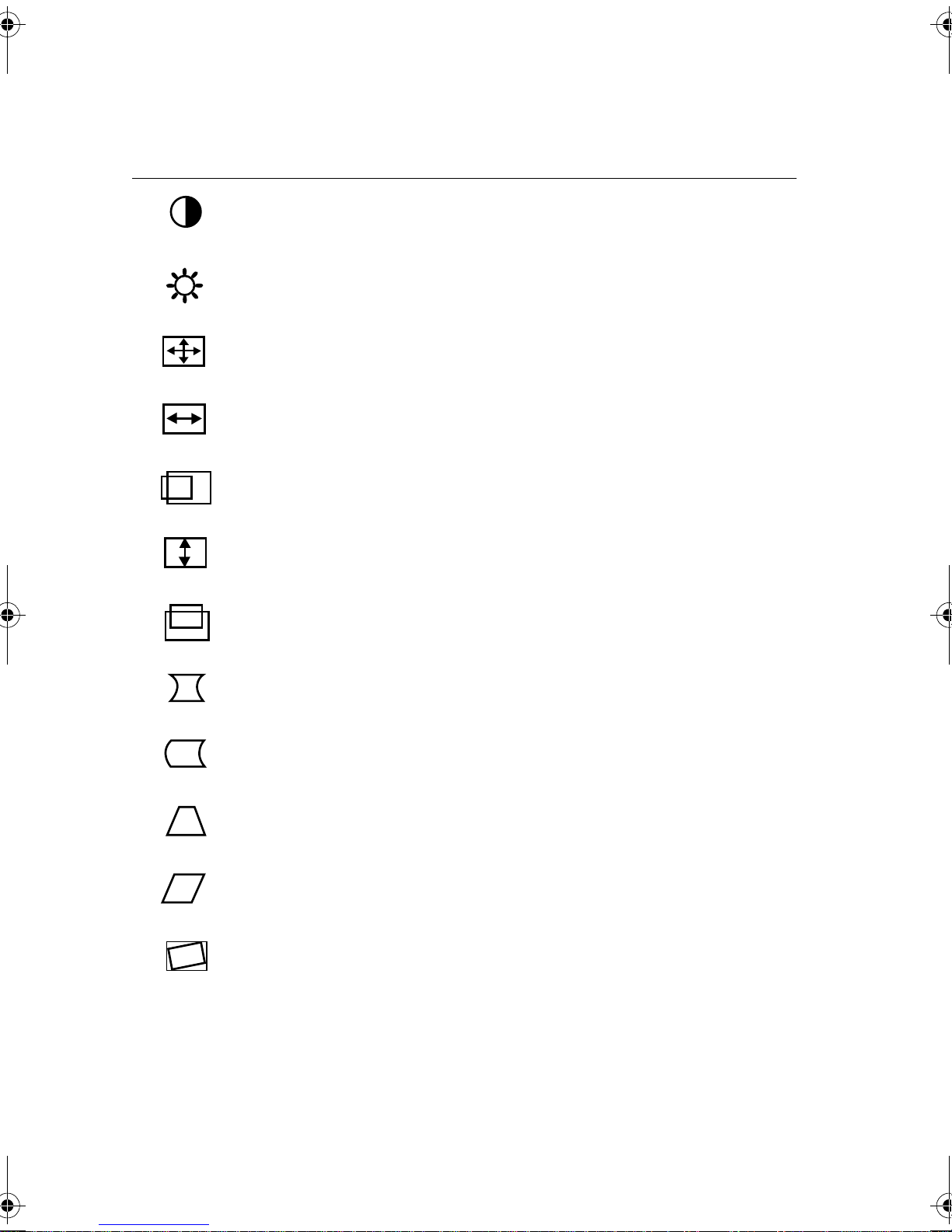

Menu Options
Control Explanation
Contrast
adjusts the difference between the image background
(black level) and the foreground (white level).
adjusts the background black level of the screen
Brightness
image.
Zoom
Horizontal Size
Horizontal Position
Vertical Size
Vertical Position
expands and contracts the entire screen image.
adjusts width of the screen image.
moves the screen image left or right.
adjusts the height of the screen image.
moves the screen image up or down.
curves the vertical sides of the screen image.
Pincushion
Pin Balance
curves the vertical edges of the screen image to the
left or right.
Trapezoid
adjusts the top and bottom of the screen image until
they have equal length.
Parallelogram
slants the vertical edges of the screen image until
they are parallel.
rotates the entire screen image.
Tilt
ViewSonic E75f 7
Page 9

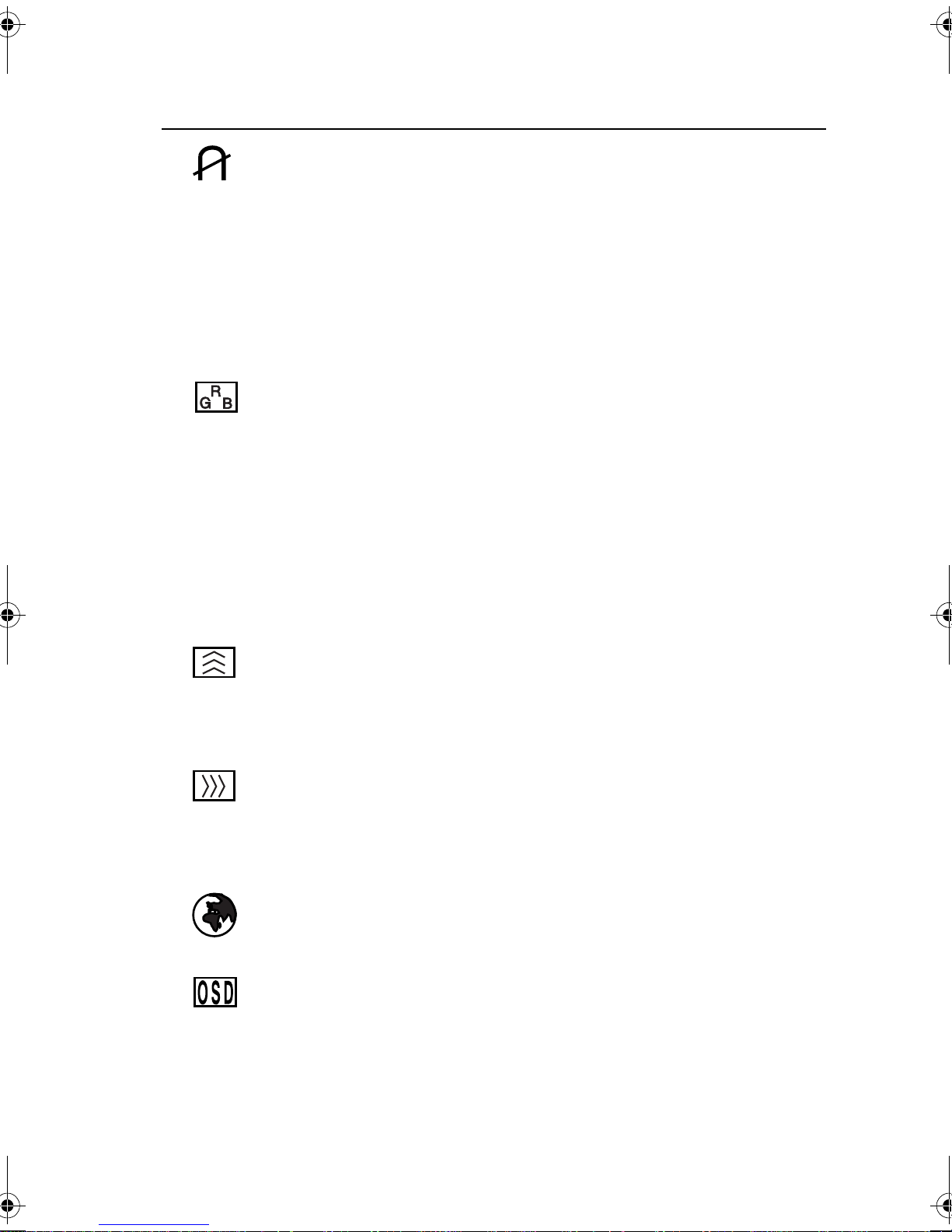

Control Explanation
Degauss
removes the build-up of magnetic fields that can cause
irregular colors to appear around the edges of screen images.
There are two ways to degauss the display: automatically by
turning the monitor on, or manually by selecting the Degauss
control from the menu.
With Degauss selected from the menu, press button [2] to
degauss the monitor manually.
Important: Do not degauss repeatedly. Doing so can be harmful
to the display. Wait at least 20 minutes before selecting this
control again.
ViewMatch® Color
provides several color options: preset color
temperatures and User Color which allows you to adjust red (R),
green (G), and blue (B). The factory setting for this product is
9300K (9300°
9300K
— Adds blue to the screen image for cooler white (used
Kelvin).
in most office settings with fluorescent lighting).
6500K
— Adds red to the screen image for warmer white and
richer red.
5000K
— Adds blue and green to the screen image for a darker
color.
User Color
— Individual adjustments for red, green, and blue.
H. Moire
(Horizontal Moire) reduces vertical interference
patterns that appear as ripples, waves, or unwanted background
color textures. Moire interference patterns are most noticeable
when viewing images having closely spaced lines or finely
detailed patterns.
V. Moire
(Vertical Moire) reduces horizontal interference
patterns that appear as ripples, waves, or unwanted background
color textures. Moire interference patterns are most noticeable
when viewing images having closely spaced lines or finely
detailed patterns.
Language
allows you to choose from among several languages
for the menus and control screens: English, French, German,
Italian, and Spanish.
OSD Position
allows you to move the on-screen menus and
control screens.
8 ViewSonic E75f
Page 10
Control Explanation
Memory Recall
returns adjustments to the original factory
settings if the display is operating in a Preset Timing Mode. (See
the table at the bottom of page 10.)
Exception: This control does not affect changes made with the
User Color control.
®
i
Viewmeter
signal coming from the graphics card of the computer. See
displays information regarding the current input
Setting the Timing Mode on page 5.
ViewSonic E75f 9
Page 11
Other Information
Specifications
CRT
Input signal
Compatibility
Power
Display area
Operating conditions
Storage conditions
Dimensions (monitor)
Type: Full 17(16.0" viewable diagonal area), 0.21 mm Horizontal,
0.13 mm Vertical, and 0.25 mm diagonal dot pitch, 90° deflection
Phosphor: RGB P22 medium/short persistence
Glass surface: Anti-reflection. anti-static, and anti-glare coating
Standard light transmission rate = 50%
Video: RGB Analog (0.7 Vp-p, 75 Ohms)
Sync: f
H/V Separate (TTL), Composite Sync
Windows: VGA up to 1600 x 1200, non-interlaced
Power Macintosh
(may require MAC
Voltage: 100–240 VAC, 50/60 Hz (auto switch), 12 VDC, 3 A
Consumption: 90W (typical), 100W (maximum)
Factory Setting: 310 mm (H) x 230 mm (V) (Typical)
Full Scan: 320 mm (H) x 240 mm (V) (Depends on signal timing)
Temperature: 41° F to 104° F (+5° C to +40° C)
Humidity: 5% to 95% (no condensation)
Altitude: -1,312 feet to 9,482.5 feet (-400 m to 3,000 m)
Temperature: -4° F to +140° F (-20° C to +60° C)
Humidity:5% to 95% (no condensation)
Altitude:-1,312 feet to 39,370 feet (-400 m to 12,000 m)
404 mm (W) x 406 mm (H) x 425 mm (D)
15.9.0" (W) x 16.0" (H) x 16.7" (D)
: 30-86 kHz, fv: 50-150 Hz
H
1
: up to 1024 x 768
®
cable adapter)
Weight (monitor)
Regulatory approvals
Power modes
1
Macintosh users may need an adapter. Contact ViewSonic (see
35.9 lb (16.3 kg)
UL, cUL, FCC-B, MPR-II, DHHS, E2K, EPA E
NOM, ICES-003
Green = On (normal)
Orange = Off mode (< 3 W)
Preset Timing Modes
VGA 640 x 400 @ 70 Hz
®
VESA
640 x 480 @ 75, 85 Hz
VESA 800 x 600 @ 75, 85 Hz
VESA 1024 x 768 @ 75 Hz
VESA 1024 x 768 @ 85 Hz
VESA 1280 x 1024 @ 75, 85 Hz
Macintosh
Macintosh 832 x 624 @ 75 Hz
Macintosh 1024 x 768 @ 75 Hz
NERGY STAR
Customer Support
®
640 x 480 @ 67 Hz
on page 12).
®
, TUV/S,
10 ViewSonic E75f
Page 12
Troubleshooting
No power
• Make sure power button (or switch) is ON.
• Make sure A/C power cord is securely connected to the back of the monitor
and to a power outlet.
• Plug another electrical device (like a radio) into the power outlet to verify that
the outlet is supplying proper voltage.
Power is ON but no screen image
• Make sure the video cable supplied with the monitor is tightly secured to the
video output port on the back of the computer. If the other end of the video cable
is not attached permanently to the monitor, tightly secure it to the monitor.
• Adjust brightness and contrast.
•
NOTE:
Macintosh users may need an adapter. Contact Customer Support for
more infromation.
Flickering
• Not enough power supplied. Connect the monitor to a different outlet. If
using a surge protector, reduce the number of devices plugged in.
®
• Check the ViewMeter
frequency) is 75 Hz or higher. See
from the main menu to verify the refresh rate (vertical
Specifications
on page 10.
• Remove any devices from the area around the monitor that emit magnetic
fields such as radios, surge protectors, unshielded speakers, fluorescent
lights, AC power converters, desk fans, etc.
• Make sure the graphics card in your computer can use non-interlaced mode at
the desired frequencies. To enable your graphics card to support higher
refresh rates, try selecting fewer colors or running lower resolutions.
Wrong or abnormal colors
• If any colors (red, green, or blue) are missing, check the video cable to make
sure it is securely connected. Loose or broken pins in the cable connector
could cause an improper connection.
• Connect the monitor to another computer.
• Select Degauss from the Main Menu. Do this only once.
• If you have an older graphics card, contact ViewSonic
Entire screen image rolls vertically
• Make sure video input signals are within the monitor's specified frequency range.
• Try the monitor with another power source, graphics card, or computer system.
• Connect the video cable securely.
Control buttons do not work
• Press only one button at a time.
®
Customer Support.
ViewSonic E75f 11
Page 13
Customer Support
For technical support or product service, see the table below or contact your
reseller.
NOTE:
Country/
You will need the product serial number.
Web site T = Telephone
Region
United States
Canada
United Kingdom viewsoniceurope.com
Europe, Middle
East, Baltic
countries, and
North Africa
Australia and New
Zealand
Singapore/India
and Southeast
Asia
viewsonic.com/
support
viewsonic.com/
support
viewsoniceurope.com Contact your reseller service.eu@
viewsonic.com.au
viewsonic.com.sg
F = FAX
T:
(800) 688-6688
F:
(909) 468-1202
T:
(800) 688-6688
F:
(909) 468-1202
T:
0800 833 648
F:
(01293) 643910
T:
+61 2 9929 3955
F:
+61 2 9929 8393
T:
65 273 4018
F:
65 273 1566
Email
service.us@
viewsonic.com
service.ca@
viewsonic.com
service.eu@
viewsoniceurope.com
viewsoniceurope.com
service.au@
viewsonic.com
service.sg@
viewsonic.com
Other Asia/Pacific
countries and
Indian Peninsula
South Africa viewsonic.com/asia
viewsonic.com.tw
T:
886 2 2246 3456
F:
886 2 8242 3668
T:
886 2 2246 3456
F:
886 2 8242 3668
service.ap@
viewsonic.com
service.ap@
viewsonic.com
12 ViewSonic E75f
Page 14
Cleaning the Monitor
• MAKE SURE THE MONITOR IS TURNED OFF.
• NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE
SCREEN OR CASE.
To clean the screen:
Wipe the screen with a clean, soft, lint-free cloth. This removes dust and
1
other particles.
If still not clean, apply a small amount of non-ammonia, non-alcohol based
2
glass cleaner onto a clean, soft, lint-free cloth, and wipe the screen.
To clean the case:
Use a soft, dry cloth.
1
If still not clean, apply a small amount of a non-ammonia, non-alcohol
2
based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then
wipe the surface.
DISCLAIMER
®
ViewSonic
cleaners on the monitor screen or case. Some chemical cleaners have been
reported to damage the screen and/or case of the monitor. ViewSonic will not be
liable for damage resulting from use of any ammonia or alcohol-based cleaners.
does not recommend the use of any ammonia or alcohol-based
ViewSonic E75f 13
Page 15
Limited Warranty
VIEWSONIC MONITORS
What the warranty covers:
ViewSonic
warranty period. If a product proves to be defective in material or workmanship during the warranty
period,
product or parts may include remanufactured or refurbished parts or components.
How long the warranty is effective:
ViewSonic
and three (3) years for all labor from the date of the first consumer purchase.
Who the warranty protects:
This warranty is valid only for the first consumer purchaser.
What the warranty does not cover:
1. Any product on which the serial number has been defaced, modified or removed.
2. Damage, deterioration or malfunction resulting from:
3. Removal, installation, and set-up service charges.
How to get service:
1.
2. To obtain service under warranty, you will be required to provide (a) the original dated sales slip, (b)
3. Take or ship the product freight prepaid in the original container to an authorized
4. For additional information or the name of the nearest
®
warrants its products to be free from defects in material and workmanship during the
ViewSonic
color monitors, including the display tubes, are warranted for three (3) years for all parts
a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product
modification, or failure to follow instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by
c. Any damage of the product due to shipment.
d. Removal or installation of the product.
e. Causes external to the product, such as electrical power fluctuations or failure.
f. Use of supplies or parts not meeting
g. Normal wear and tear.
h. Any other cause which does not relate to a product defect.
For information about receiving service under warranty, contact ViewSonic Customer Support.
You will need to provide your product's serial number.
your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
vice center or
will, at its sole option, repair or replace the product with a like product. Replacement
ViewSonic.
ViewSonic
ViewSonic.
’s specifications.
ViewSonic
service center, contact
ViewSonic
ViewSonic
ser-
.
Limitation of implied warranties:
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE
DESCRIPTION CONTAINED HEREIN INCLUDING THE IMPLIED WARRANTY OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Exclusion of damages:
VIEWSONIC'S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE
PRODUCT. VIEWSONIC SHALL NOT BE LIABLE FOR:
1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES
BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF
PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH
BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.
3. ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.
Effect of state law:
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of
incidental or consequential damages, so the above limitations and exclusions may not apply to you.
Sales outside the U.S.A. and Canada:
For warranty information and service on
contact
ViewSonic Monitor Warranty (V2.0) Release Date: 10-15-1999
ViewSonic
or your local
ViewSonic
ViewSonic
dealer.
products sold outside of the U.S.A. and Canada,
14 ViewSonic E75f
Page 16
Appendix
Safety Guidelines
CAUTION:
CAUTION:
country. Examples:
The socket-outlet should be installed near the equipment and should be easily accessible.
Use a properly grounded power cord. Always use the appropriate AC cord certified for your
USA.................UL
Canada.............CSA
Germany..........VDE
Switzerland ..... SEV
Britain .............BASE/BS
Japan ...............Electric Appliance Control Act
IMPORTANT NOTICE CONCERNING POWER CORD SELECTION
The power cord set for this unit has been enclosed and has been selected according to the country of
destination and must be used to prevent electric shock. Use the following guidelines if it is necessary to
replace the original cord set, or if the cord set is not enclosed.
The female receptacle of the cord set must meet IEC-60320 requirements and may look like (Figure A1
below):
Figure A1
Figure A2
United States and Canada
In the United States and Canada the male plug is a NEMA5-15 style (Figure A2), UL Listed, and CSA
Labeled. For units which are mounted on a desk or table, type SVT or SJT cord sets may be used. For
units which sit on the floor, only SJT type cord sets may be used. The cord set must be selected according
to the current rating for your unit. Please consult the table below for the selection criteria for power cords
used in the United States and Canada.
Cord Type Size of Conductors in Cord Maximum Current Rating of Unit
SJT 18 AWG
16 AWG
14 AWG
SVT 18 AWG
17 AWG
10 Amps
12 Amps
12 Amps
10 Amps
12 Amps
Europe
Use a cord set appropriate for the receptacles in your country. The cord set is HAR-Certified with a special
mark on the outer sheath or on the insulation of one of the inner conductors.
AC PLUG CORD PRECAUTIONS FOR THE UNITED KINGDOM
FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET THEN THE PLUG
SHOULD BE CUT OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO
AN APPROPRIATE SOCKET.
If a new plug is to be fitted, observe the wiring code as shown below. If in any doubt, consult a qualified
electrician.
WARN ING!
IMPORTANT:
If the coloured wires of the mains lead of this appliance do not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is
marked by the letter E or by the Earth symbol or coloured GREEN or GREEN-AND-YELLOW.
The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the
letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal in the
plug which is marked with the letter L or coloured RED.
If you have any questions concerning which proper power cord to use, consult the dealer from whom you
have purchased the product.
THIS APPLIANCE MUST BE EARTHED.
The wires in this mains lead are coloured as follows:
Green-and-Yellow: Earth
Blue: Neutral
Brown: Live
ViewSonic E75f 15
Page 17
Compliance Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Warning
To assure continued FCC compliance, the user must use grounded power supply cord and the provided shielded
video interface cable with bonded ferrite cores. If a BNC cable is going to be used, use only a shielded BNC(5) cable.
Also, any unauthorized changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this device.
Notice for Japan
This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information
Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may
cause radio interference. Install and use the equipment according to the instruction manual.
16 ViewSonic E75f
Page 18
ViewSonic Corporation
Loading...
